Indoor & Outdoor LightingLED Pixel LampModel: LPM-R30

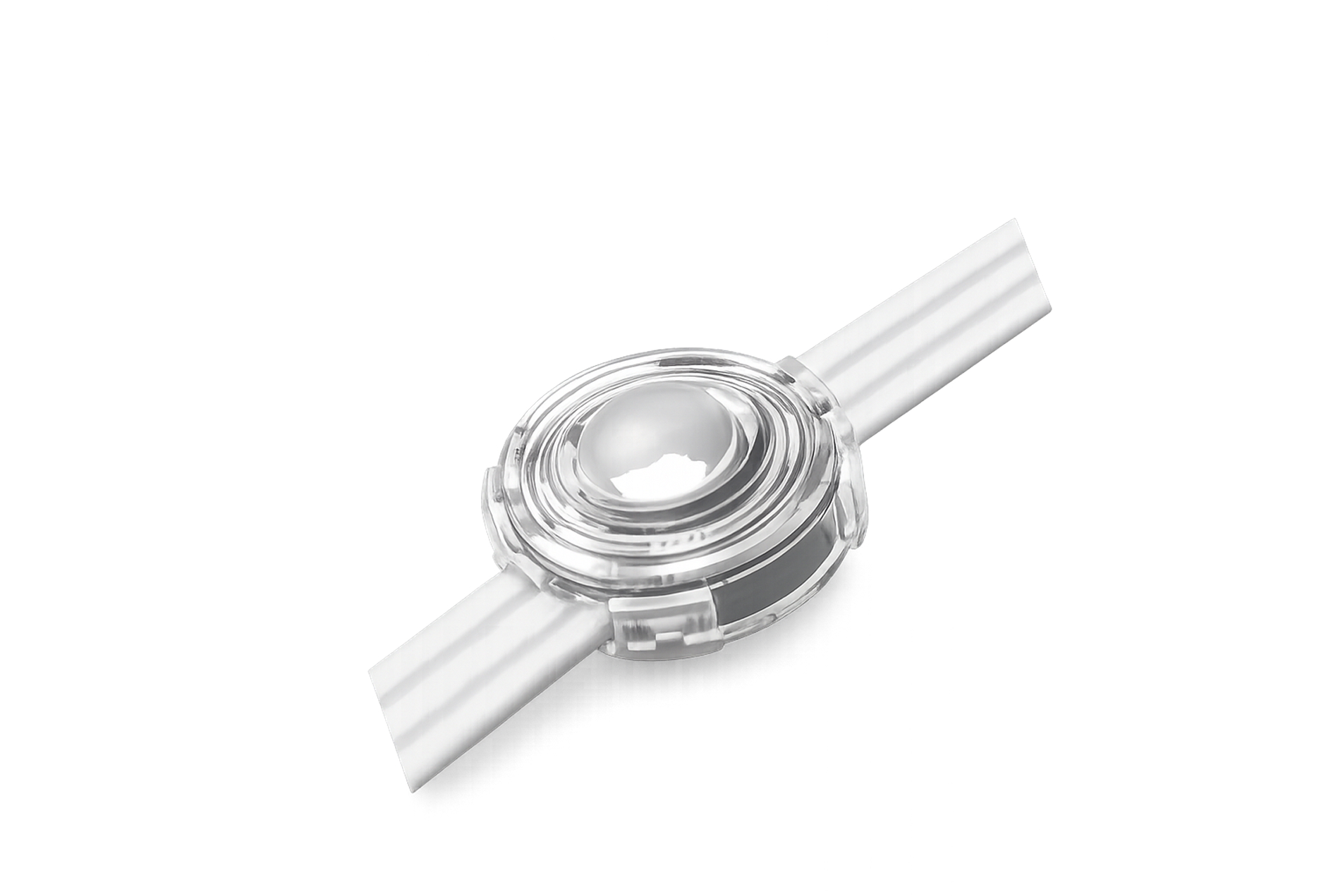

TPK LPM-R30 RGB pixel string light

LPM-R30 | IP67 RGB Pixel String Light

1W per Light · IP67 · 60-Piece RGB Pixel String

The LPM-R30 is a 24V DC RGB pixel string light that can be configured into regular or irregular patterns. A standard set includes 60 lights across a total length of 100 ft, making it suitable for decorative lighting, outline lighting, and high-resolution display effects in both indoor and outdoor environments. Lighting scenes can be controlled by RF remote or through the Surplife app via Bluetooth or Wi-Fi.

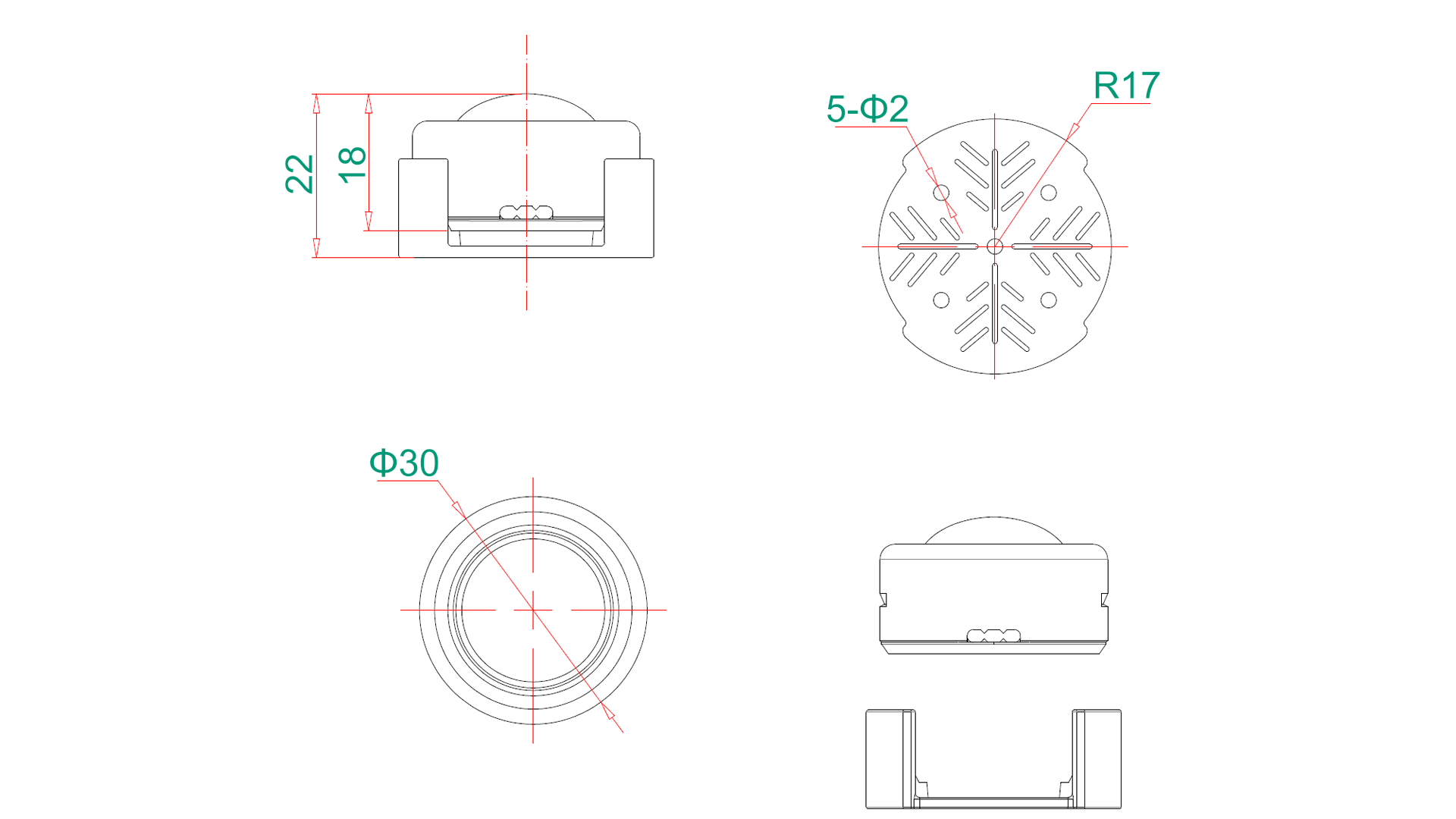

LPM-R30 product and installation reference for RGB pixel string light
IP67Indoor & outdoor protection
24VLow-voltage operation
ETLUS & Canada projects
CEEuropean compliance
3-YearWarranty support

Color & Optic

Color Options

RGB
RGB color-changing output

Beam Options

90 degree beam angle
90°
Standard 90° beam angle

Product Specifications | RGB Pixel String Light

Power60 W
Total Length100 ft
Color RangeRGB
Power per Light1W
Operating Voltage24V DC
Power Input (Adapter)100-240V AC, 50/60Hz
ControlRF remote + Bluetooth/Wi-Fi app
Beam Angle90°
IP RatingIP67
Light Life50,000 hours
SizeΦ30 mm
Weight1.61kg ±5%
Warranty3 years
Environment Temperature-20°C to +60°C

Model Configuration

Model Set Configuration Power Color Luminous Flux Net Weight
LPM-R30 60 lights / 100 ft 1W per light
RGB
 45 lm( per light ) Weight: 1.61kg ±5%Qty/Ctn: 8 pcsCarton: 61.5 × 41.5 × 26.5 cm

Standard configuration: 60 RGB pixel lights over a total length of 100 ft. Each light operates at 1W and 24V DC, with approximately 45 lm output per light and IP67 protection.

Advantages

Free-Form Layout Configuration

The pixel string can be arranged into regular or irregular shapes to match eaves, outlines, decorative patterns, and custom display layouts.

Dynamic RGB Lighting Effects

RGB output supports static colors, built-in dynamic scenes, playlists, gradients, and customizable lighting effects.

Remote and App Control

Operate brightness, colors, speed, scenes, and timers through the RF remote or the Surplife app using Bluetooth or Wi-Fi.

Music, Timer and Group Functions

App functions include music synchronization, microphone rhythm control, scheduled operation, scene playlists, and group control.

IP67 Indoor and Outdoor Use

IP67 environmental protection supports decorative lighting applications in both interior spaces and outdoor eave or facade locations.

Adhesive or Screw Installation

Install each light with VHB adhesive on smooth surfaces or use the dedicated mounting base for secure screw fixing.

Application Scenarios

Eave and Outline Lighting

Suitable for rooflines, eaves, edges, and architectural outlines that require flexible node spacing and RGB effects.

Indoor Decorative Lighting

Creates colorful ambient lighting for living rooms, entertainment areas, feature walls, and decorative ceiling layouts.

Facade Pixel Displays

Can be configured into pixel patterns for decorative facade effects and high-resolution display-style installations.

Custom Regular or Irregular Patterns

Flexible string construction supports grids, curves, symbols, and other customized patterns for creative lighting projects.

The LPM-R30 is designed for flexible RGB decorative lighting where custom arrangement, app-based effects, 24V low-voltage operation, and IP67 protection are required.

Impressions

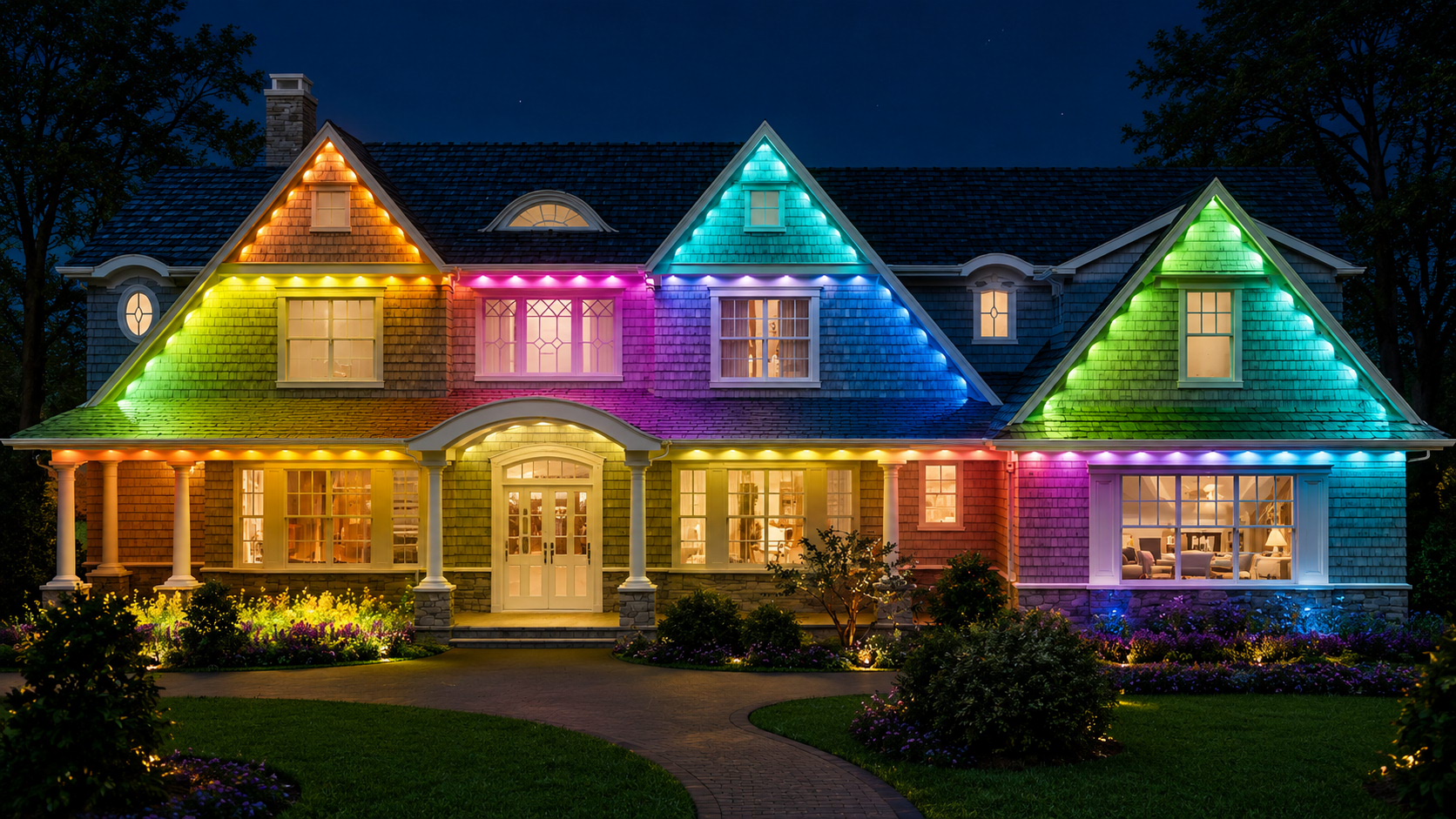

Impression 1 RGB pixel string light lighting for architectural project | TPK Lighting

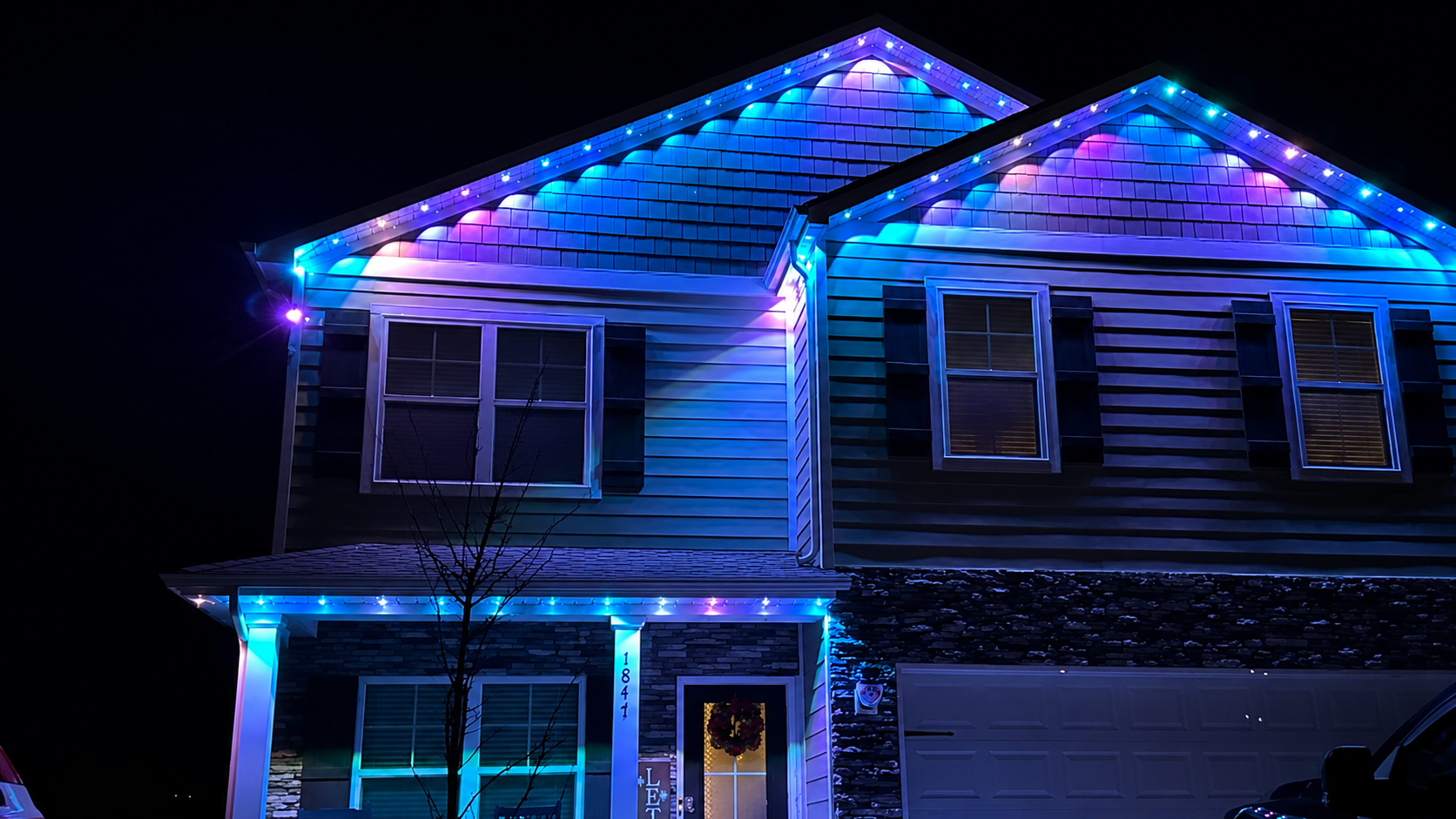

Impression 2 RGB pixel string light lighting for bridge structure | TPK Lighting

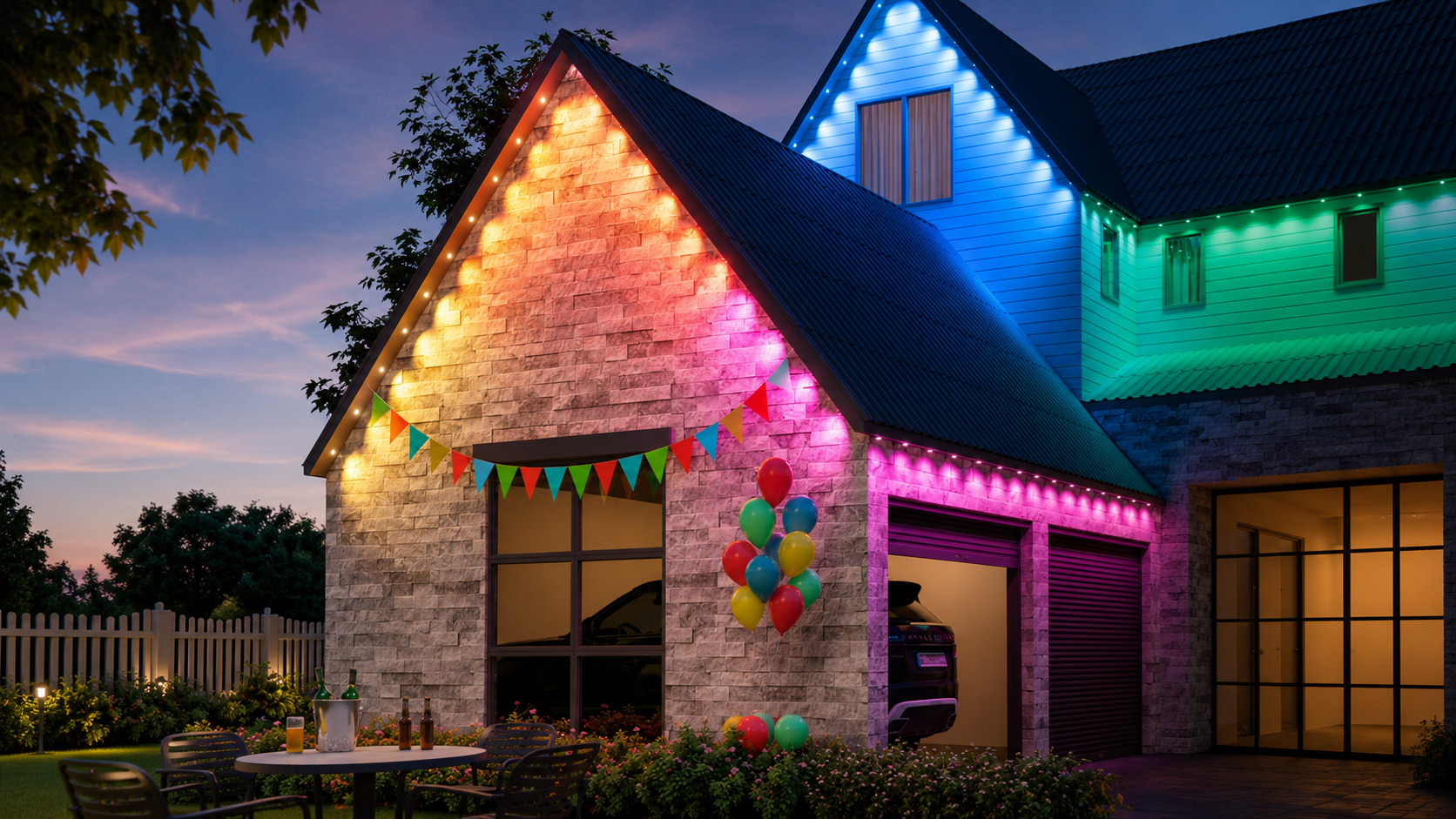

Impression 3 RGB pixel string light nightscape application | TPK Lighting

Downloads

Specification Sheets

Certification Documents

Technical Files

Testing Reports & Application Media

Control & Installation

RFRemote ControlControl on/off, brightness, static colors, dynamic modes, speed, timer settings, music rhythm, and key lock.Included control option
APPBluetooth & Wi-Fi AppThe Surplife app supports color editing, scenes, playlists, music modes, timers, group control, linkage, and smart shortcuts.Surplife compatible
FIXDual Installation MethodsUse VHB adhesive on clean, smooth surfaces or secure the dedicated mounting base with screws.Adhesive or screw fixing

Related Projects

Tianjin Haitang Building facade lighting project China by TPK Lighting
Tianjin Haitang Building

Custom DMX512 pixel lighting integrating 4,495 six-pointed star fixtures into an 8,000 m² parametric curtain wall.

Building Facade

Tianjin Haitang Building

Tianjin, China
Zhongshan Electronic Incubation Base facade lighting project China by TPK Lighting
Electronic Incubation Base

Dynamic facade illumination inspired by electronic circuit boards, utilizing DMX512 pixel dots and linear lights.

Building Facade

Electronic Incubation Base

Zhongshan, China
Living World Mall facade lighting project Indonesia by TPK Lighting
Living World Mall

Dynamic facade lighting system enhancing the 3D geometric textures and commercial aesthetics.

Building Facade

Living World Mall

Indonesia

Accessories

Accessories can be supplied according to installation method, wiring layout and control configuration.

LPM-R30 RGB Pixel String Light accessory - Power adapter
Power Adapter
100-240V AC input to 24V DC output
LPM-R30 RGB Pixel String Light accessory - RGB controller
RGB Controller
Bluetooth / Wi-Fi app control
LPM-R30 RGB Pixel String Light accessory - RF remote control
RF Remote Control
Direct lighting effect control
LPM-R30 RGB Pixel String Light accessory - Mounting base
Mounting Base
Dedicated screw-fixing base
LPM-R30 RGB Pixel String Light accessory - Waterproof Connector
Waterproof Connector
Outdoor power connection sealing
