Outdoor Architectural
LED Wall Washer
Model:  LWW-OP-D80

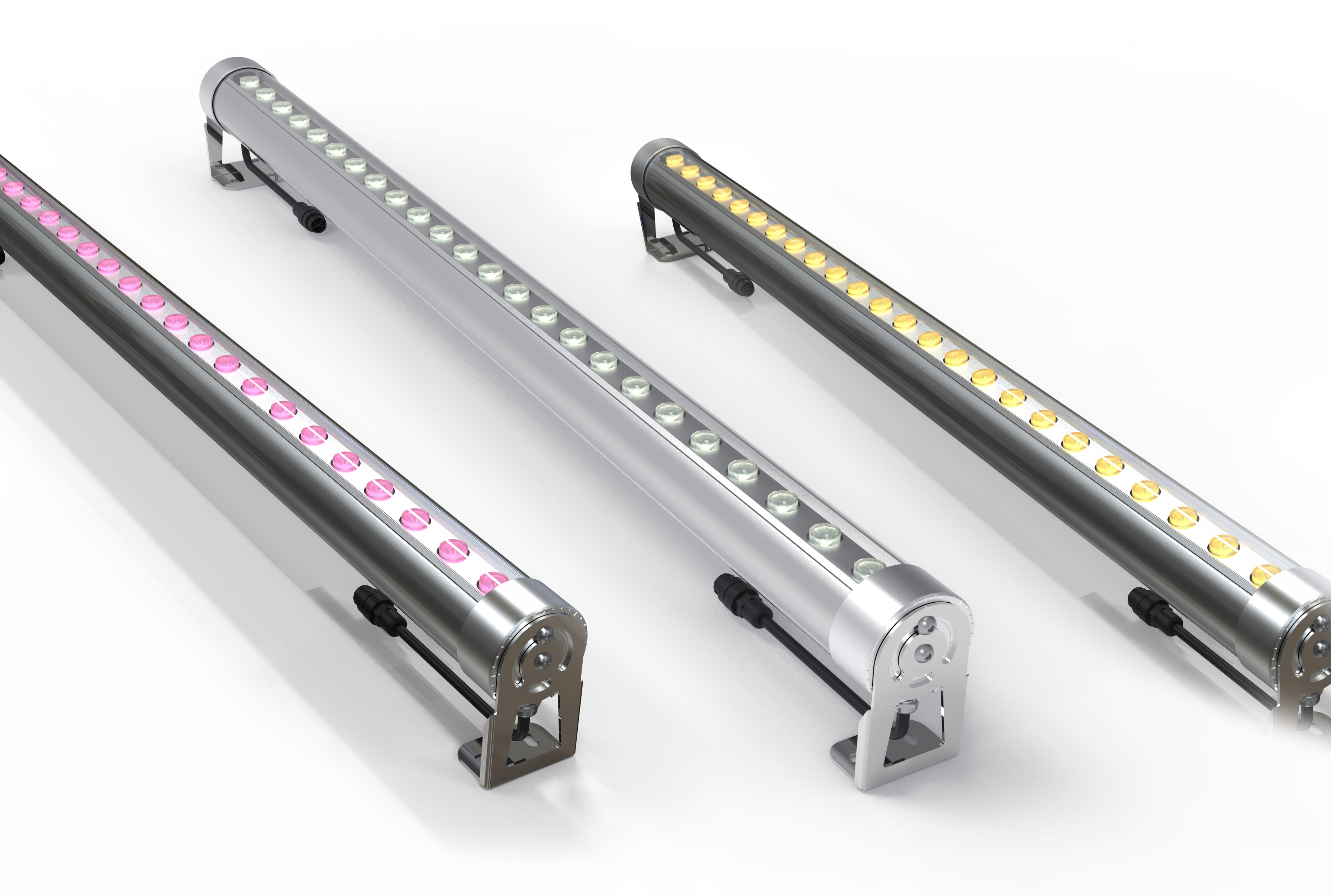

LWW-OP-D80 led wall washer product image
× LWW-OP-D80 image preview

LWW-OP-D80

LED Wall Washer

LWW-OP-D80 is an IP67 outdoor architectural led wall washer for building facades, commercial exteriors, landscape lighting and project-based installations. It supports project-ready configuration options such as beam angle, color temperature or RGB/RGBW, control method and downloadable technical files for specification review.

LED Wall Washer
× LWW-OP-D80 image preview
UKCA
DMX/RDM
UKCA
DALI
UKCA
0-10V
Power-Switchable
100-277VAC
UKCA
Op. Temp.
RoHS
RoHS
IK08
IK09
IP67
IP67
3 Years Registered
3 Years
CE
European CE
Color and Optic
2200K

2200K

2700K

2700K

3000K

3000K

3500K

3500K

4000K

4000K

6500K

6500K

RGB

RGB

RGBW

RGBW

(Color Temperature Customizable)
20

20°

30

30°

45

45°

20×40

20×40°

( Temperature Customizable )

Technical parameters
Chips Brand
LUMILEDS
LED Types
3535
Color
RGBW-4in1
Quantity of LED
L3-6P/L6-12P/L12-24P
Input Voltage
24V DC/100-277V AC
Housing Material
Stainless steel cover+Aluminum Alloy 6063+PC round tube
Waterproof Measure
Structural waterproof
Control Mode
RF wireless remote control, no touch panel
Beam Angle
20°/30°/45°/20x40°
IP Rating
IP67
Protection Level
IK09
Span Life
100,000Hrs
Size
L393xD80mm/L690xD80mm/L1290xD80mm
Weight
1.3/2.5/4.4±5%kgs
Warranty
3 years
Environment Temperature
- 20°C-45°C
Model Configuration
Model Length Power(Max) Colours Lumen Package
LWW-OP-D80-L6 L680mm 18W/32W
RGBW 1044lm-2720lm
2.5±5%Kg 8Units/Ctn 70*42*24.5CM
LWW-OP-D80-L12 L1290mm 36W/64W
RGBW 2088lm-5440lm
4.4±5%Kg 4Units/Ctn 131.5*22*24.5CM

Advantages

The Right Amount of Light

High brightness, low energy consumption, to meet large area lighting needs.



Optics and Distributions for All Occasions

Medium 20°, Flood 30°, Narrow Flood 35°, Wide Flood 45°, Asymmetric 20*40°



Flexible installation structure

support multi-angle adjustment, easyto accurately illuminate the target area.



Sturdy Construction

High quality aluminum heat dissipation design, good corrosion resistance and ensure long-term use of temperature control,effectively extend the LED service life.



Control Flexibility

Go the distance and use your favourlite control protocols, including DMX/RDM,and remote control



3-Year Warranty

Standard 3-year warranty for completeassembly.


Impressions
Impression 1
Accessories
LWW-OP-D80 led wall washer accessory

End cap

LWW-OP-D80 led wall washer accessory

Signal input cable

LWW-OP-D80 led wall washer accessory

Adapter cable

LWW-OP-D80 led wall washer accessory

Y-type cable

LWW-OP-D80 led wall washer accessory

End cap
