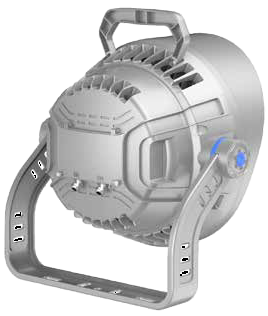

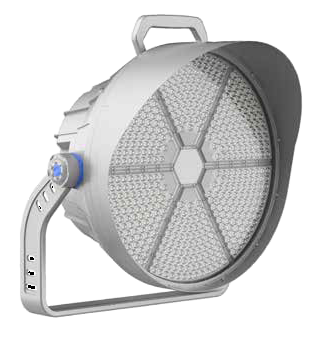

YXYSW6
SKYWING
|
|
|
|
High wattage from 400W to 1200W Light efficiency up to 150lm/W High strength polycarbonate lens, optical lighting distribution: 10°/ 15°/ 25°/ 45°/ 60°/ 90° ADC12 die-casting heat sink: Excellent thermal management & compact structure 4mm thickness U shape bracket: High-strength cold-rolled plate designwith integral flanging and bending, light weight, high mechanical strength, Special corrosion treatment to reach the WF2 standard. Integrated breather valve: Balance the internal & external temperature and humidity Top brand LED chip and driver, ensure the product quality and lifetime Ingress protection: IP66 waterproof Double surge protection: Driver & extra 10KV SPD Tempered glass cover option: To apply in harsh conditions |
|
|
|
|
Model Configuration Table:
|
Model No. |
YXYSW6-A400W |
YXYSW6-A500W |
YXYSW6-A600W |
YXYSW6-A800W |
YXYSW6-A1000W |
YXYSW6-A1200W |
|
|
Power |
400W |
500W |
600W |
800W |
1000W |
1200W |
|
|
Input Voltage |
AC100-277V;50/60Hz |
||||||
|
Lumen EFF |
150LM/W(±5%) |
||||||
|
LED Brand |
LUMILEDS 3030/OSRAM 3737 |
||||||
|
Driver Brand |
MEANWELL/ SOSEN /INVENTRONICS |
||||||
|
CCT |
3000K/4000K/5000K/5700K/6500K |
||||||
|
CRI |
Ra>80(70,90 Optional) |
||||||
|
PF |
0.95 |
||||||
|
Beam Angle |
10°/15°/25°/45°/60°/90° |
||||||
|
IP Rating |
IP66 |
||||||
|
IK Rating |
IK08 |
||||||
|
Warranty |
5 Years |
||||||
|
Life Span |
50,000Hrs |
||||||
|
Working Temperature |
-35C-+50C |
||||||
|
Dimmension(mm) |
522*509*389mm |
681*660*497mm |
|||||
|
Certifcation |
UL/ETL/CQC/CB/CE/ENEC/SAA/FCC/RoHS |
||||||
