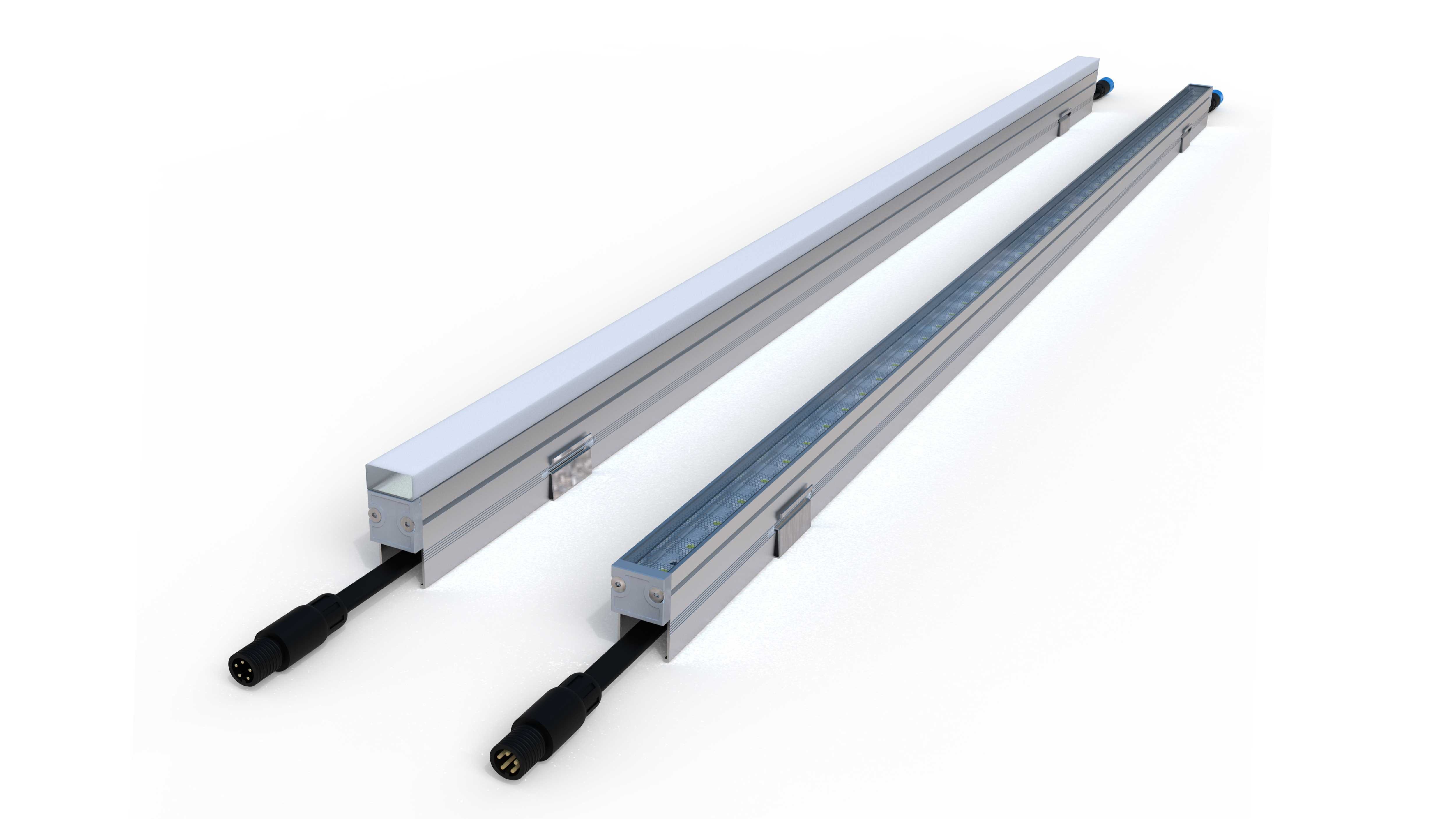

LLS-OP-W20A
High-quality PMMA diffusive UV-resistant material, 5-year UVresistance, transparent light but opaque points.
LLS-OP-W20B
The lamp body is made of 6063 aluminum, with surface anti-oxidationtreatment, featuring high heat dissipation and corrosion resistance.
2200K
2700K
3000K
3500K
4000K
6500K
RGB
RGBW
20°
25°
35°
40°
60°
150°

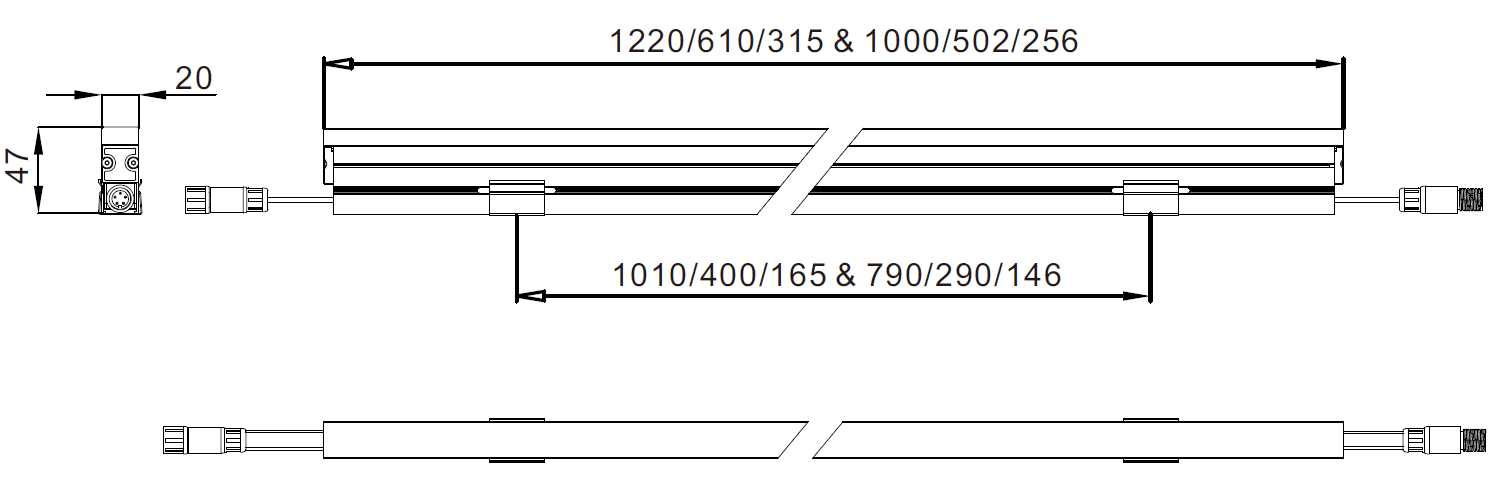

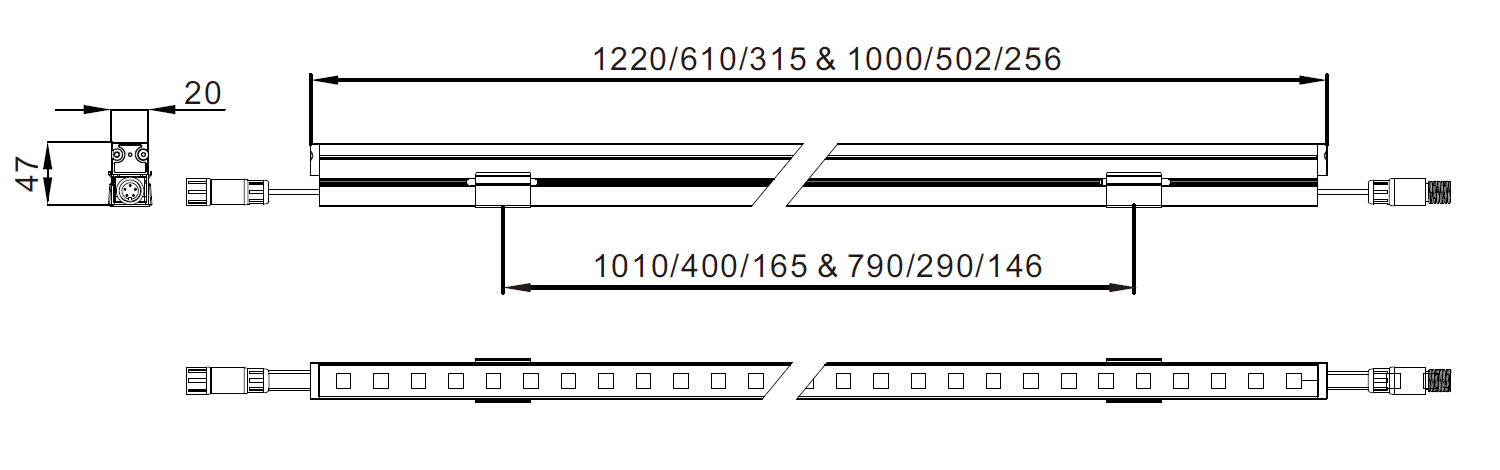

| Model | Length | Power(Max) | Colours Lumen | Package |
|---|---|---|---|---|
| LLS-OP-W20A-L6 | L500mm | 7W |
2700K3000K 350lm
4000K5700K
RGBW 250lm
|
0.58±5%Kg 40Units/Ctn 125.5*32*23CM |
| LLS-OP-W20A-L12 | L1000mm | 15W |
2700K3000K 750lm
4000K5700K
RGBW 500lm
|
1.16±5%Kg 20 Units/Ctn 125.5*32*23CM |
| LLS-OP-W20B-L6 | L610mm | 8W |
2700K3000K 488lm
4000K5700K
RGBW 160lm
|
0.63±5%Kg 40Units/Ctn 125.5*32*23CM |
| LLS-OP-W20B-L12 | L1220mm | 16W |
2700K3000K 976lm
4000K5700K
RGBW 320lm
|
1.05±5%Kg 20Units/Ctn 125.5*32*23CM |
Advantages
Sturdy Construction
The lampshade is made of high-quality PC diffusive material, which isUV-resistant and anti-yellowing. It allows light to pass through but not tothe point, emits light evenly and has high luminous efficiency. (Squarelampshades can be customized.)
Full-structure waterproofing
Waterproof structure, IP66/IK10, providing superior reliability in outdooruse.;
Flexible installation structure
Spring clip installation solution, suitable for installation in narrow slit positions.
Sturdy Construction
The lamp body is made of 6063 aluminum, with surface anti-oxidationtreatment, featuring high heat dissipation and corrosion resistance.
Control Flexibility
Control scheme includes constant illumination and DMX512 protocol,ensuring stable and reliable system.
3-Year Warranty
Standard 3-year warranty for completeassembly.
End cap
Signal input cable
Adapter cable
Y-type cable
End cap
