Outdoor ArchitecturalLED Wall WasherModel: LWW-PZT-W38A

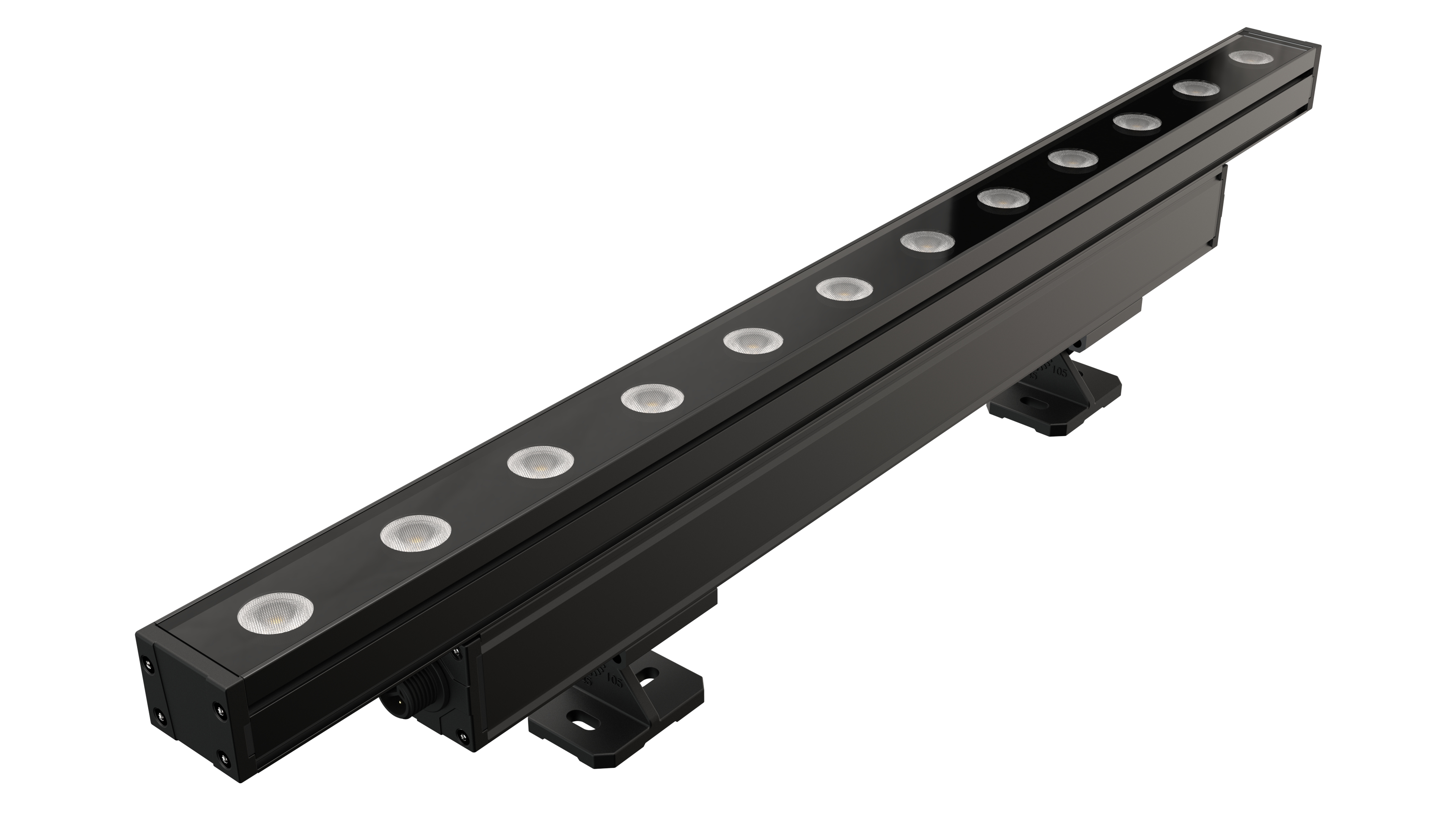

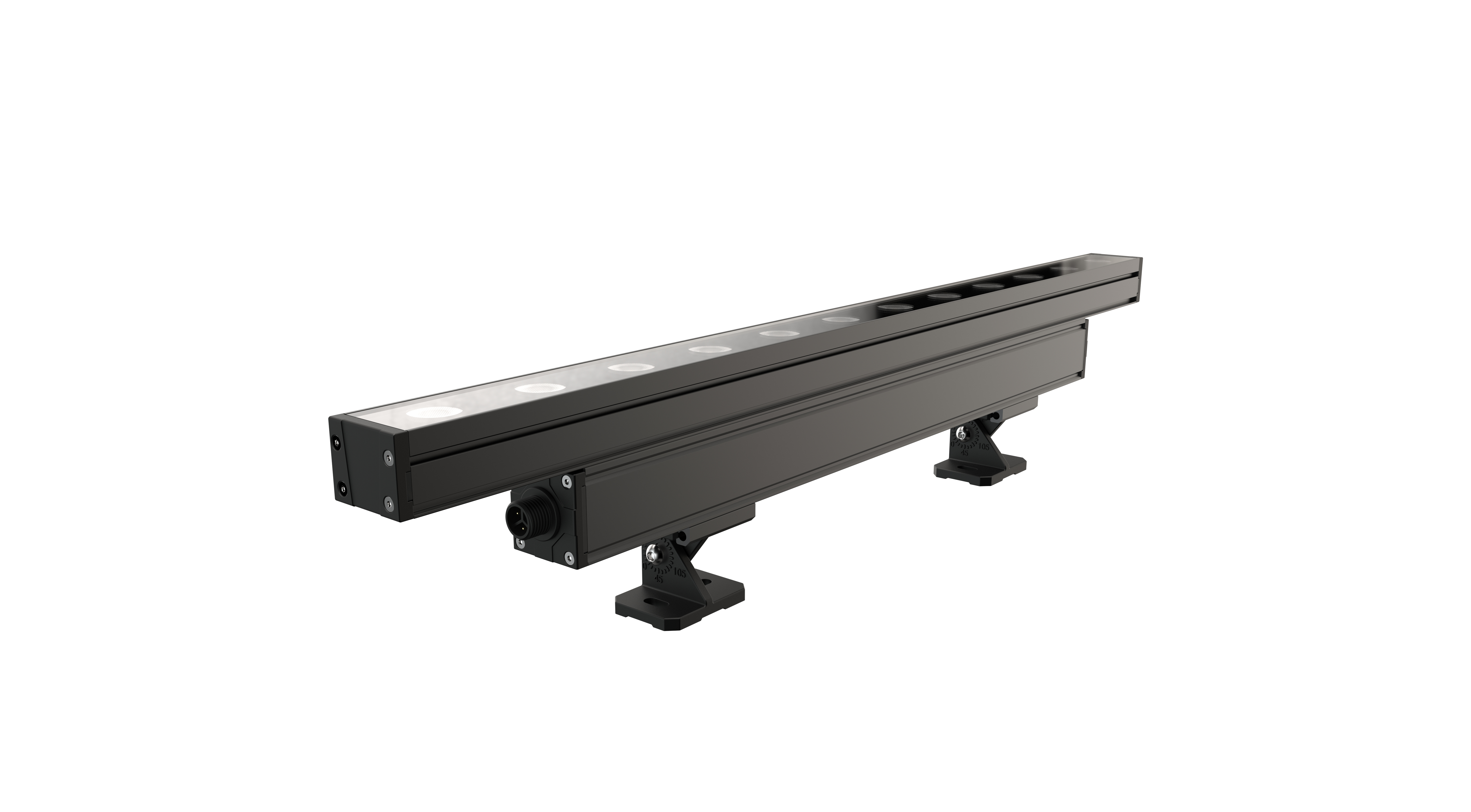

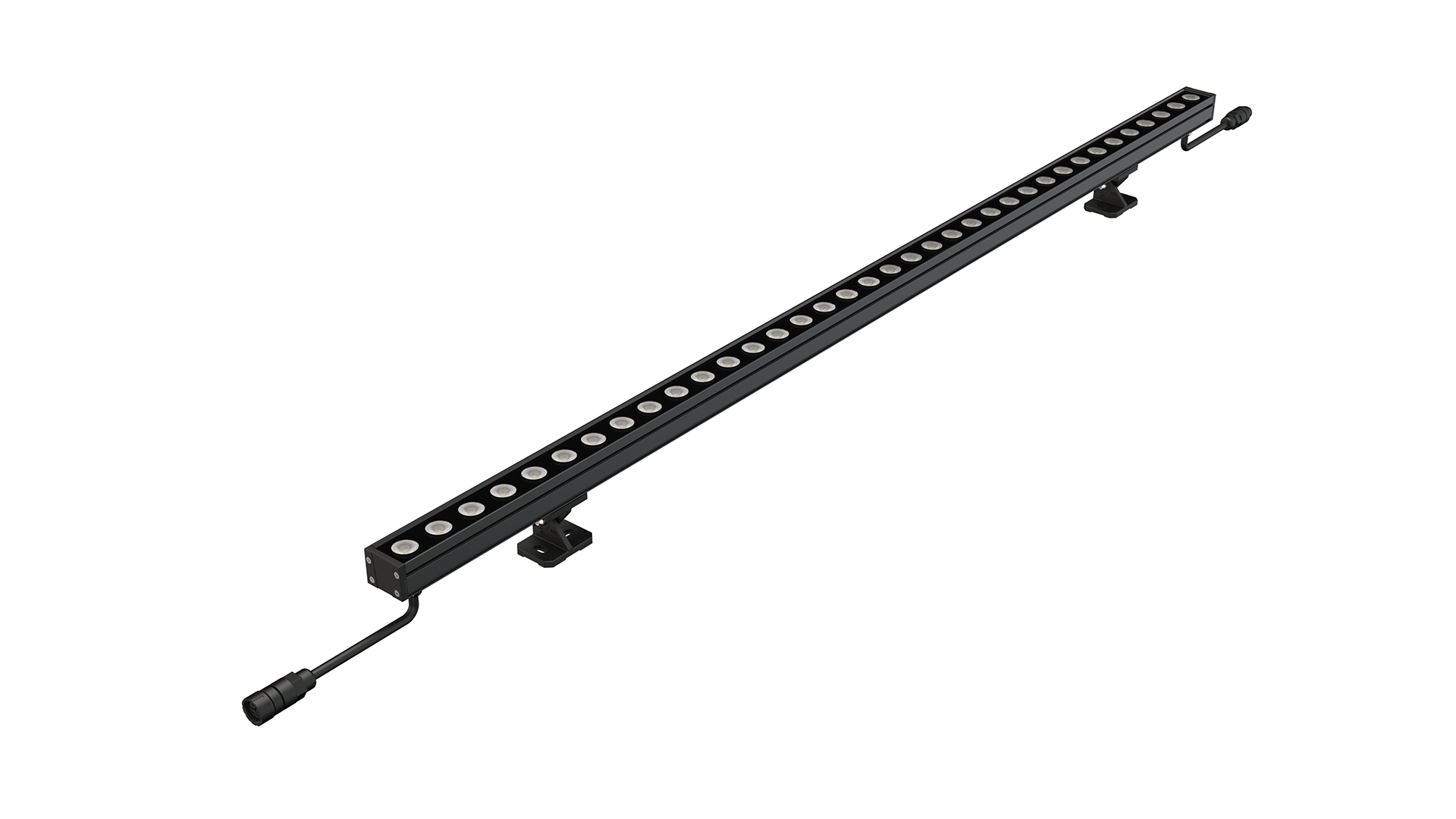

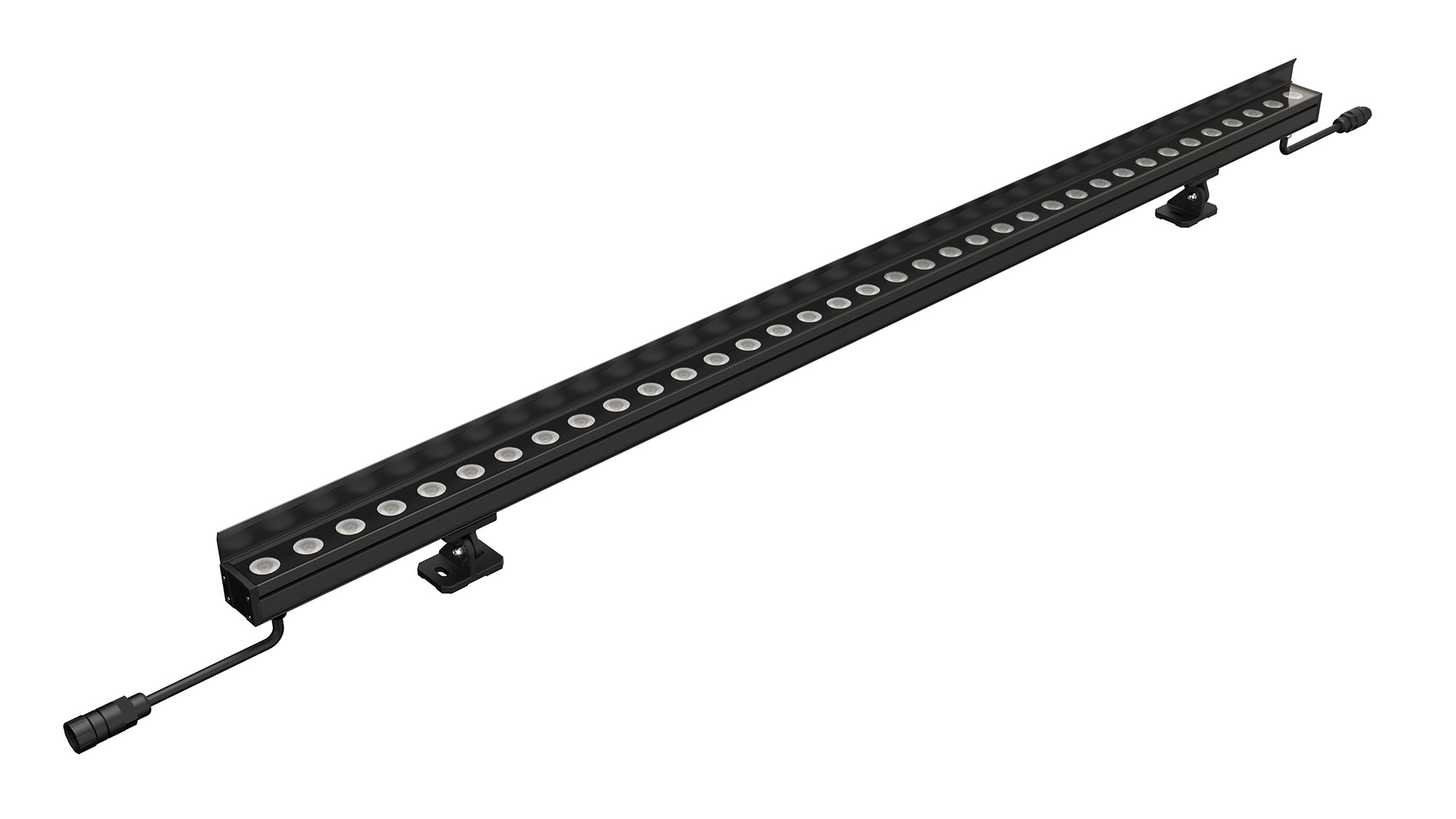

TPK LWW-PZT-W38A IP66 LED wall washer for architectural facade lighting

LWW-PZT-W38A

9–36W IP66 LED Wall Washer — ETL Listed, CE Certified

The LWW-PZT-W38A is an outdoor architectural LED wall washer for building facades, bridge structures and hotel exteriors. It combines a 38mm compact profile, structural waterproofing, multiple beam angles, static white / RGB / RGBW options, and DMX512/RDM or 0–10V control for permanent exterior installation.

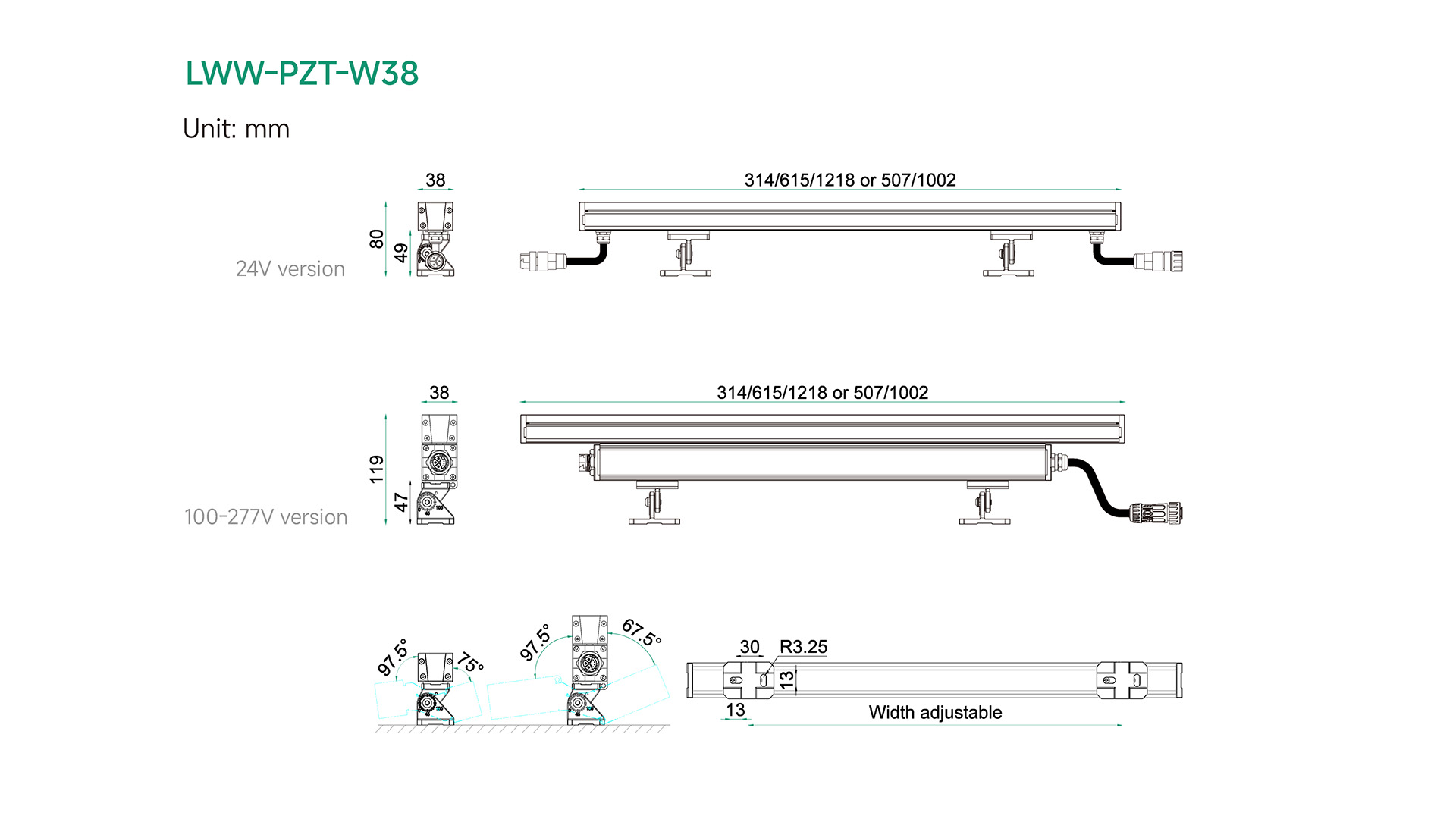

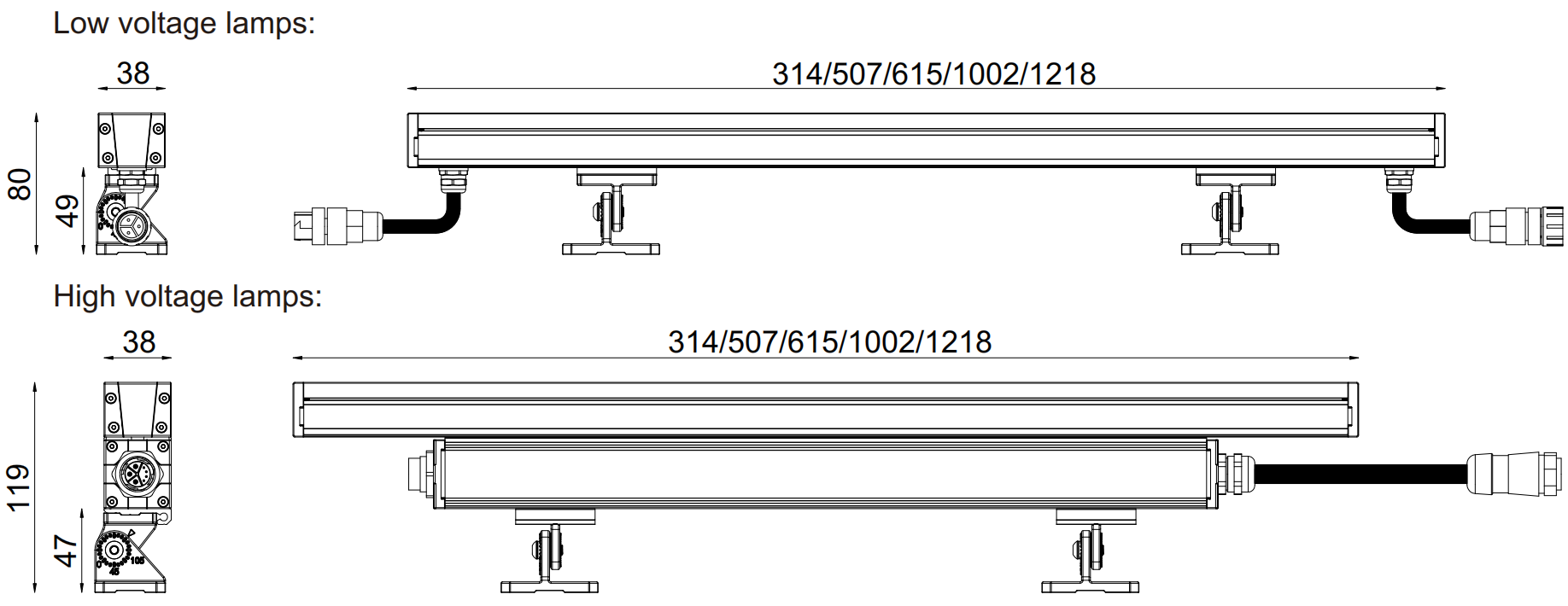

LWW-PZT-W38A LED wall washer dimension and product preview
IP66Outdoor protection
IK08Impact resistance
ETLUS & Canada projects
CEEuropean compliance
3-YearWarranty support

Color & Optic

Color Options

2200K
2700K
3000K
3500K
4000K
6500K
RGB
RGBW
Color temperature customizable

Beam Options

10 degree beam angle
10°
20 degree beam angle
20°
40 degree beam angle
40°
60 degree beam angle
60°
10 by 45 degree beam angle
10×45°
15 by 55 degree beam angle
15×55°
20 by 40 degree beam angle
20×40°
Optic customizable

Product Specifications

Power9–36W
LED TypeLUMILEDS 3535
ColorStatic White / RGB / RGBW
Length OptionsL3 / L5 / L6 / L10 / L12
Input Voltage24V DC / 100–240V AC / 100–277V AC
Housing MaterialAluminum alloy + glass cover
Waterproof MeasureStructural waterproof
Control ModeDMX512 / RDM / 0–10V
Beam Angle10° / 20° / 40° / 60° / 10×45° / 15×55° / 20×40°
IP RatingIP66
Protection LevelIK08
Span Life30,000 hours
SizeL314–1218 × W38 × H80/119mm
Weight1.1–2.5kg ±5%
Warranty3 years
Environment Temperature−20°C to +40°C

Model Configuration

Model Length Power Color Options Lumen Output Packing Info
LWW-PZT-W38A-L3 314mm 9W
WRGBRGBWRGB
 360–1170 lm Weight: 1.1kg ±5%Qty/Ctn: 16 pcsCarton: 71.5 × 31 × 32.5 cm
LWW-PZT-W38A-L5 507mm 18W
WRGBRGBWRGB
 720–2340 lm Weight: 1.4kg ±5%Qty/Ctn: 12 pcsCarton: 55.5 × 45.5 × 32.5 cm
LWW-PZT-W38A-L6 615mm 18W
WRGBRGBWRGB
 720–2340 lm Weight: 1.6kg ±5%Qty/Ctn: 12 pcsCarton: 66.5 × 45.5 × 32.5 cm
LWW-PZT-W38A-L10 1002mm 36W
WRGBRGBWRGB
 1440–4680 lm Weight: 2.2kg ±5%Qty/Ctn: 8 pcsCarton: 105.5 × 31 × 32.5 cm
LWW-PZT-W38A-L12 1218mm 36W
WRGBRGBWRGB
 1440–4680 lm Weight: 2.5kg ±5%Qty/Ctn: 8 pcsCarton: 127 × 31 × 32.5 cm

Configuration summary: static white CCTs from 2200K to 6500K, RGB and RGBW 4-in-1 options, power range 9W–36W, lumen output 360–4680 lm, five length options from 314mm to 1218mm, IP66, IK08, ETL listed and CE certified.

Advantages

Optics for Wall Washing

Available beam angles include 10°, 20°, 40°, 60° and asymmetric optics for facade washing, grazing and long linear runs.

DMX512 / RDM Control

Supports dynamic RGB and RGBW architectural lighting scenes, with 0–10V dimming available for static white applications.

Static White, RGB and RGBW

Color options cover warm white, neutral white, cool white, RGB and RGBW for different facade and project effects.

Corrosion-Resistant Aluminum Structure

Anodized aluminum profile improves corrosion resistance, weather durability and reliable heat dissipation for permanent outdoor installations.

IP66 Outdoor Protection

Structural waterproofing is designed for permanent outdoor facade, bridge and landscape lighting applications.

IK08 Impact Resistance

IK08 protection helps the fixture withstand impact risk in public, commercial and outdoor project environments.

Application Scenarios

Building Facade Lighting

For vertical wall washing, curtain wall lighting, hotel exterior lighting and commercial building facades.

Bridge and Infrastructure Lighting

For bridge structures, guardrails, public infrastructure and long-distance outdoor lighting projects.

Hotel and Retail Exterior Lighting

For hotel entrances, retail facades, commercial plazas and warm white architectural lighting.

Landscape and Public Space Lighting

For retaining walls, landscape corridors, parks, public plazas and urban nightscape projects.

LWW-PZT-W38A is designed for permanent outdoor architectural lighting projects where wall washing, beam control, weather resistance and installation flexibility are required.

Impressions

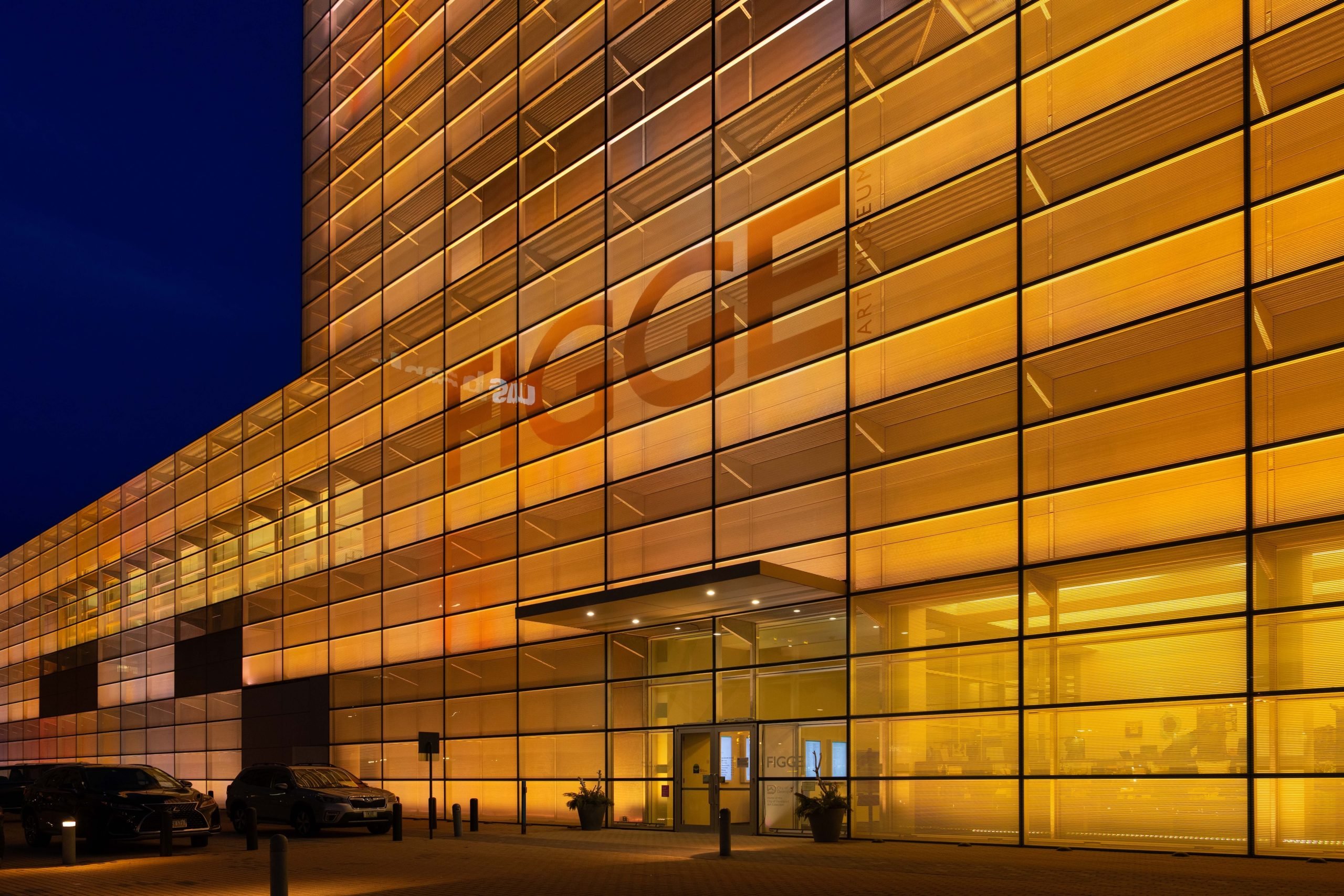

LWW-PZT-W38A LED wall washer lighting effect for building facade project

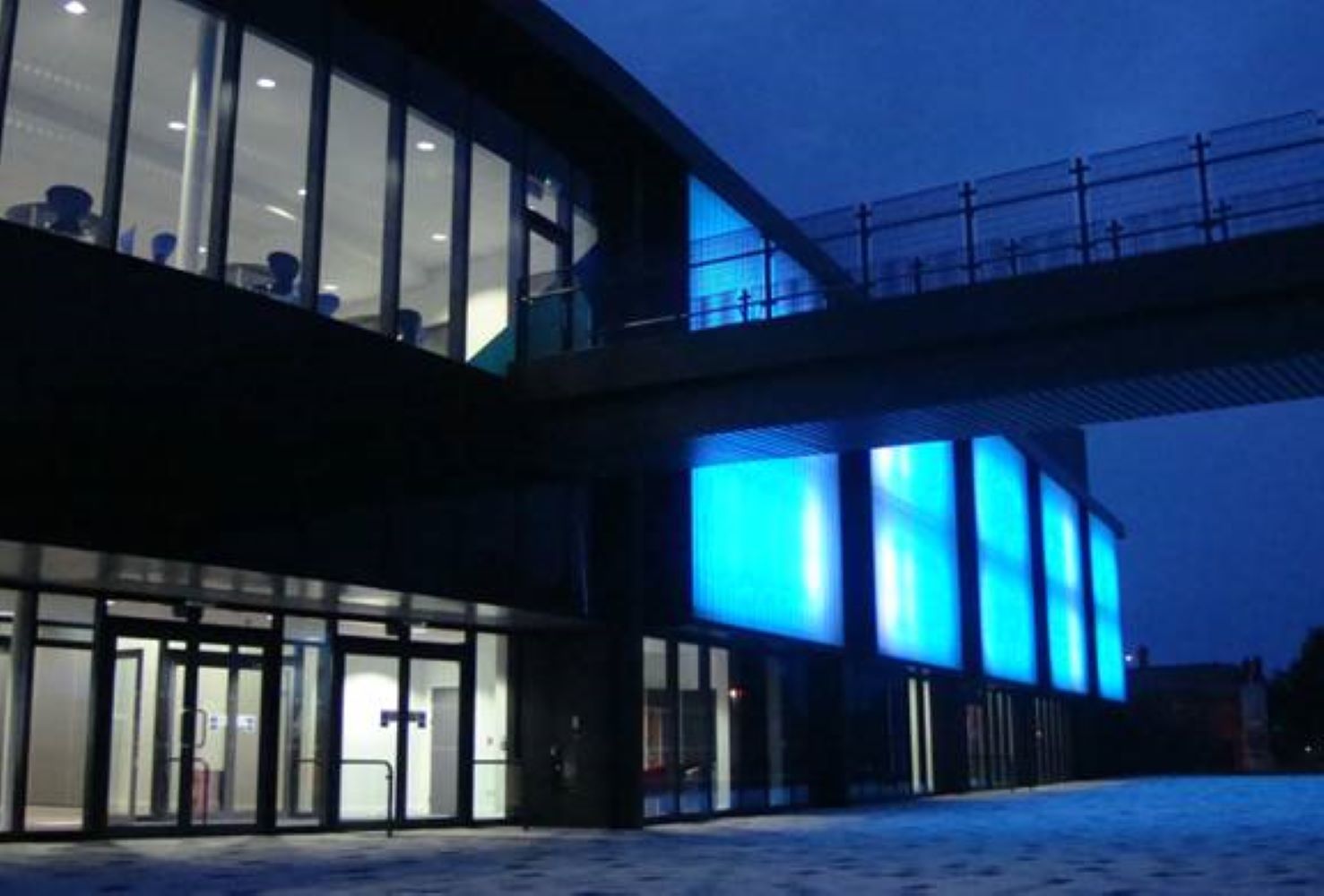

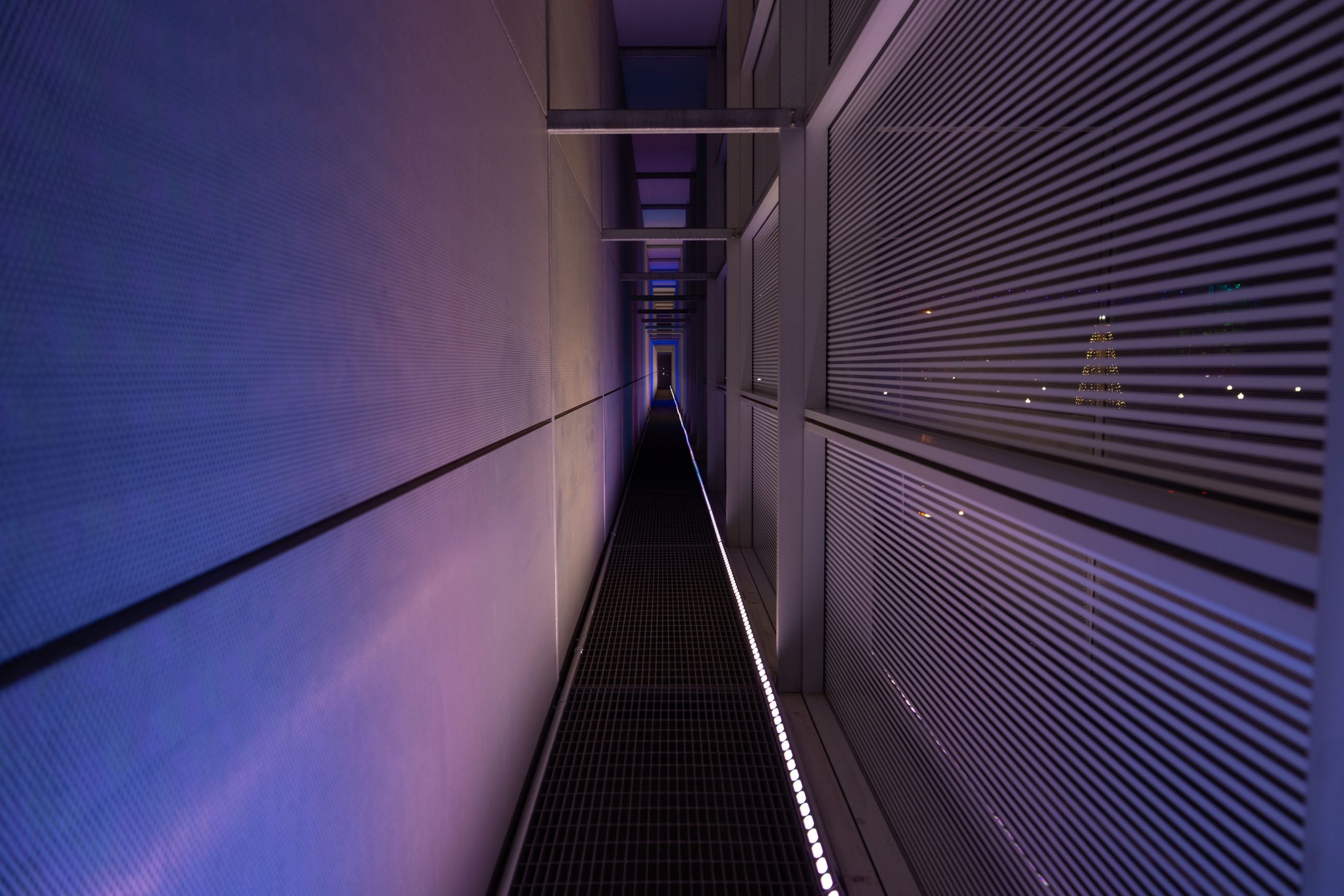

LED wall washer wall grazing effect for architectural corridor

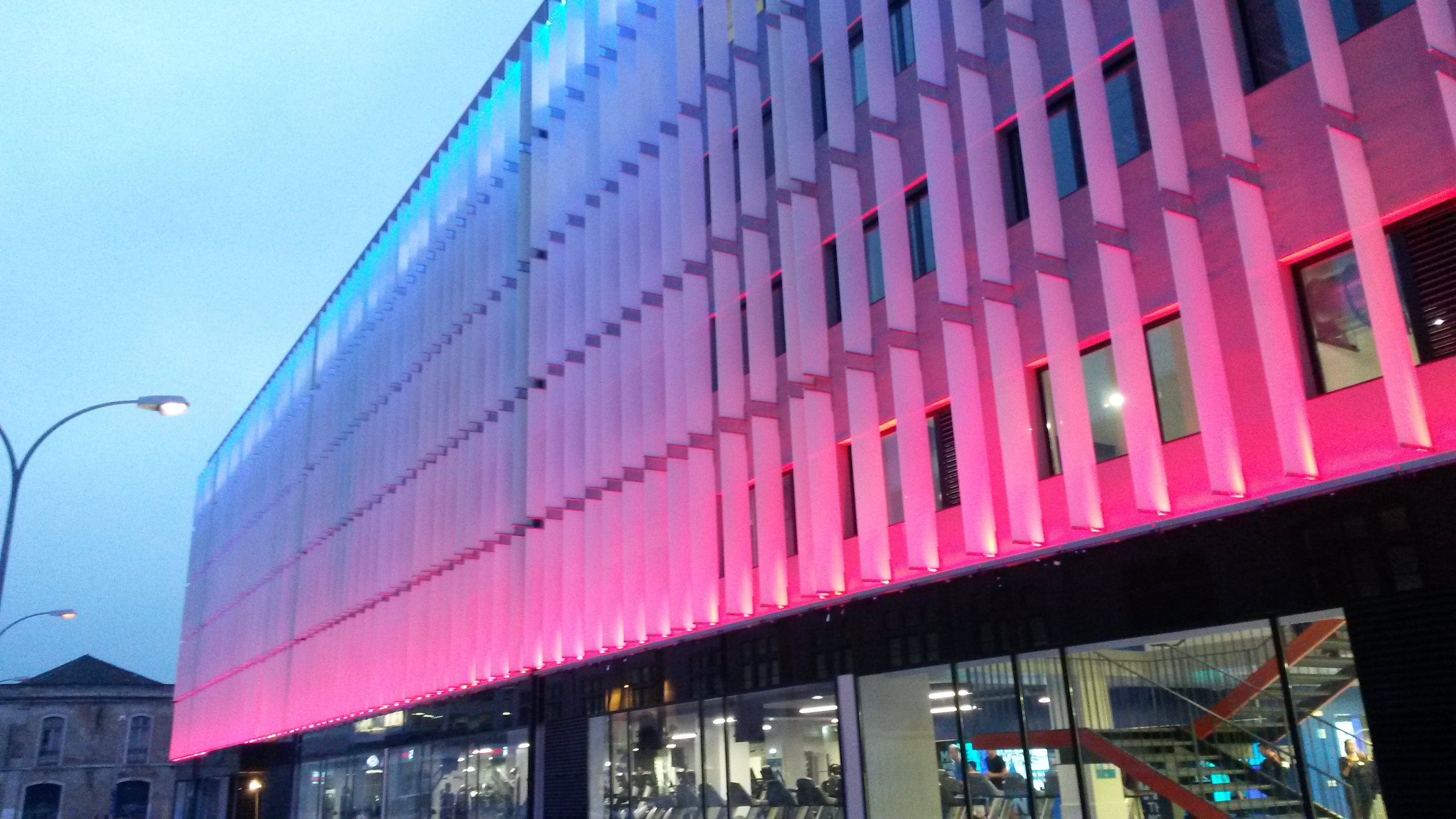

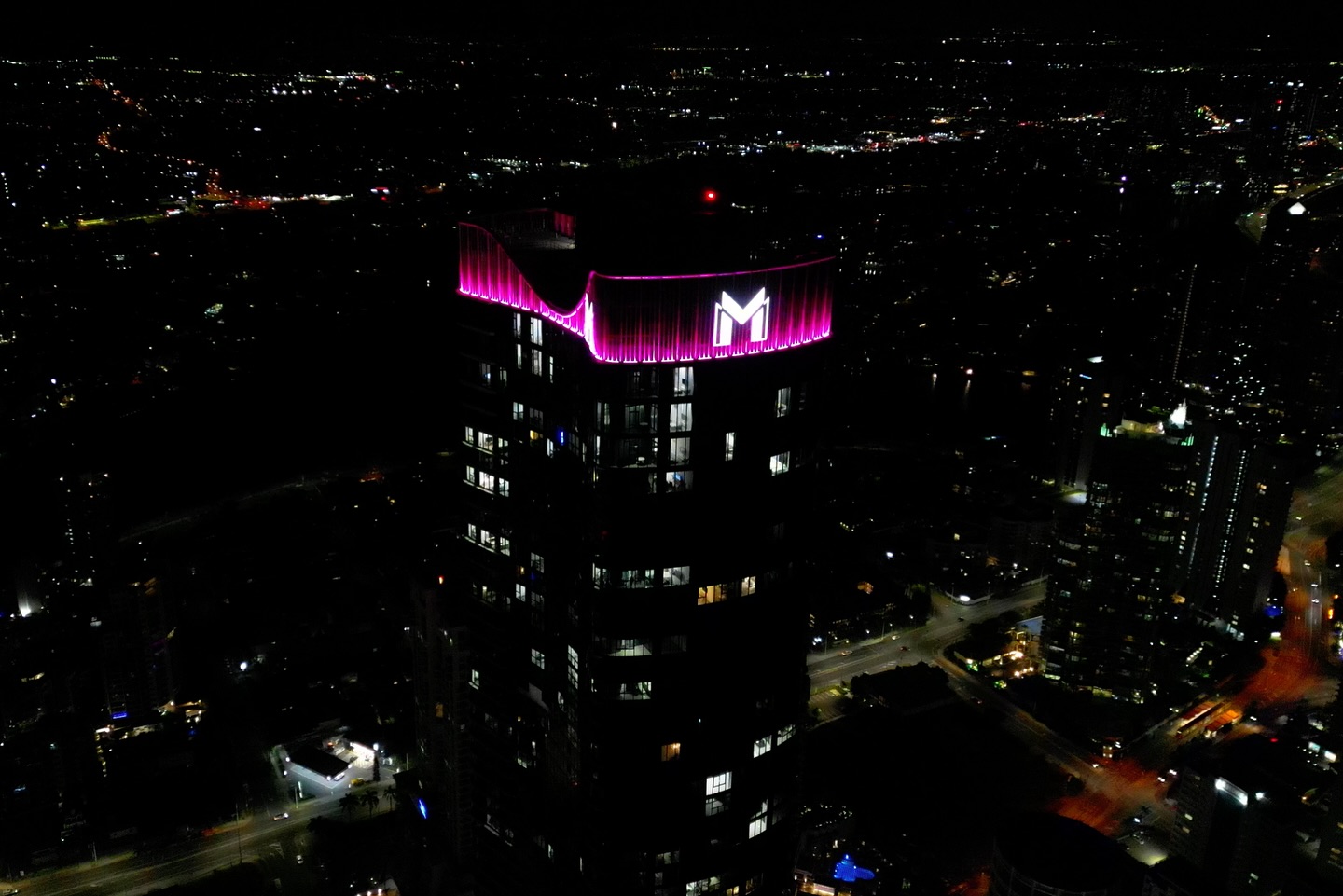

Outdoor LED wall washer facade lighting impression

Downloads

Specification Sheets

Certification Documents

Technical Files

Testing Reports & Application Media

Certifications & Compliance

ETLETL ListedNorth America projects. ANSI / UL safety documentation for outdoor lighting fixtures.Download certificate CECE CertifiedEuropean market compliance. Low Voltage and EMC documentation for outdoor architectural fixtures.Download certificate
RoHSRoHS CompliantEnvironmental compliance. Restriction of hazardous substances documentation included with product files.Available with documentation

Related Projects

Volgograd Bridge bridge lighting project Russia by TPK Lighting
Volgograd Bridge

Dynamic bridge lighting enhances structure and creates an iconic night landmark.

Bridge Lighting

Volgograd Bridge

Volgograd, Russia
Turkmenistan National Tower landmark lighting RGBW by TPK Lighting
Turkmenistan National Tower

RGBW building illumination for a national landmark and public nightscape.

Landmark Lighting

Turkmenistan National Tower

Ashgabat, Turkmenistan
Changhong International City building facade lighting project China by TPK Lighting
Changhong International City

Warm facade lighting creates an inviting residential and commercial night view.

Building Facade

Changhong International City

Mianyang, China

FAQ

Model: LWW-PZT-W38A
What is the IP rating of the LWW-PZT-W38A?
The LWW-PZT-W38A carries an IP66 rating. IP66 means fully dust-tight and protected against powerful water jets from any direction, making it suitable for permanent outdoor architectural installations including building facades, bridges and open landscape areas exposed to rain and hosing. For underwater or submersion applications, IP68-rated products are required.
Is the LWW-PZT-W38A ETL certified for projects in the United States and Canada?
Yes. The LWW-PZT-W38A is ETL listed and can support projects in the United States and Canada. The ETL certificate PDF is available on this page for project submittal packages or can be requested via ES2@topkinglite.com.
What control systems are compatible with the LWW-PZT-W38A?
The LWW-PZT-W38A supports DMX512/RDM for dynamic color and multi-zone programming, and 0–10V dimming for static white applications. Input voltage options include 24V DC, 100–240V AC and 100–277V AC.
What beam angles are available, and how do I choose the right one?
Available beam angles include 10°, 20°, 40°, 60°, 10×45°, 15×55° and 20×40°. Use narrow beams for longer throw and taller facades, standard beams for general wall washing, wide beams for close mounting, and asymmetric beams for controlled grazing or elongated light spread.
What lengths and wattages does the LWW-PZT-W38A come in?
Five length configurations are available: L3 (314mm / 9W), L5 (507mm / 18W), L6 (615mm / 18W), L10 (1002mm / 36W) and L12 (1218mm / 36W). All versions share the same 38mm-wide profile for consistent visual alignment across facade runs.
What warranty does the LWW-PZT-W38A carry?
TPK provides a standard 3-year warranty covering the complete LWW-PZT-W38A assembly under normal outdoor installation and operating conditions. Rated lifespan is 30,000 hours at an operating temperature range of −20°C to +40°C.

Accessories

Accessories can be supplied according to installation method, wiring layout and control configuration.

LWW-PZT-W38A end cap accessory
End Cap
Fixture end protection
LWW-PZT-W38A signal input cable accessory
Signal Input Cable
DMX / signal connection
LWW-PZT-W38A adapter cable accessory
Adapter Cable
Power or signal adaptation
LWW-PZT-W38A Y-type cable accessory
Y-Type Cable
Branch wiring support
LWW-PZT-W38A waterproof connector accessory
Waterproof Connector
Outdoor connection sealing
