Building Facade
Lighting Solutions
Facade lighting has to fit the building — not just the lighting schedule. TPK delivers outdoor lighting engineered around facade geometry, available installation space and control planning. Below are three project-proven paths documenting custom pixel nodes, compact slab-edge linear fixtures, and shallow-recess flush integration.
Tianjin Haitang Building
Live! Hotel Maryland
Linhai Business Headquarters
Listing by configuration
Match a Facade Condition to a Documented Approach
Parametric cladding, tight spandrel reveals, and shallow floor slabs impose physical boundaries that standard catalogue luminaires cannot solve without modification. Review our three documented engineering paths below.
Pixel-Integrated Curtain Wall
Luminaire built into the facade package — each structural node becomes an individually addressable pixel; exterior geometry is molded to follow the cladding geometry.
View solution experience
Glass Curtain Wall — Slab-Edge Linear
Continuous lightbar run recessed within the spandrel cavity — available cavity depth sets the entire fixture envelope, mounting clip profile, and cable termination.
View solution experience
Shallow Concrete Slab — Flush Linear Integration
Continuous linear illumination where interior concrete slabs provide insufficient depth for conventional in-ground fittings — custom polycarbonate flush lens seated flush with the architectural channel.
View solution experienceArchitectural Condition Matching Table Identify your structural starting point
Parametric screen with repeating structural nodes
Reference approach: Pixel-Integrated Curtain Wall. Constraint solved: custom star tooling, daylight aperture control, weight limit <410g, FEA thermal simulation. Candidate platform: LPM-HEX130. Next step: submit node 3D CAD / cladding profile.
Restricted spandrel cavity at horizontal slab edge
Reference approach: Slab-Edge Linear in 32mm Cavity. Constraint solved: 30×30mm envelope fitting 1.25″ cavity, 3 coordinated lengths, 24V T-branching, ETL listing. Candidate platform: LLS-OP-W30C. Next step: check cavity section & penetration locations.
Shallow floor slab recess; cannot core-drill for in-ground
Reference approach: Shallow Recess Flush Linear. Constraint solved: 30mm low-profile channel integration, flush optical face, anti-glare louver, IP66/67 moisture seal. Candidate platform: LLS-OP-W30B. Next step: verify channel depth, drainage & loading.
Solid masonry, stone cladding or vertical structural piers
Reference approach: Opaque Wall & Pier Grazing / Wash. Constraint solved: setback-to-height ratio calculation, narrow grazing optics (10×30° / 15×50°), glare control. Candidate platform: LWW-OP-W75 / W55. Next step: run DIALux calculation with surface reflectance.
This matching matrix highlights primary structural conditions. Each new project requires independent review of electrical distribution, wind loading, and local building code compliance.
Pixel-Integrated Curtain Wall
The luminaire is built into the facade package, not added to its surface. Each structural node becomes one addressable pixel — so the fixture shape is driven by the architecture, and a catalogue product usually cannot be used without custom development.
Repeating nodes
Geometric pattern with a consistent structural node at each unit.
Day-invisible
Fixture reads as cladding, not as an added light fitting.
Pixel control
Individually addressed for animation and dynamic content.
Weight limit
Hard weight limit per node with no welding to primary structure.
Experience highlights What this project taught us

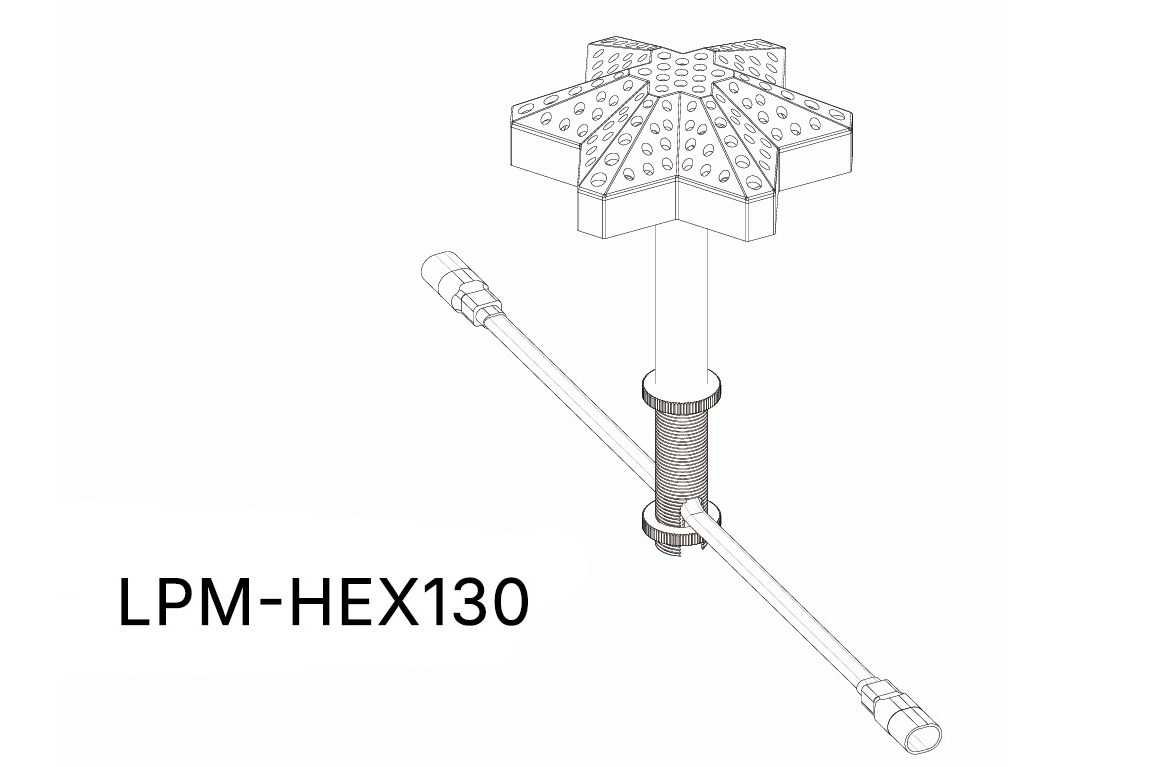

GeometryBuilding-fixed star → LPM-HEX130
concept sketch to mould lock
A catalogue fixture cannot match the node geometry

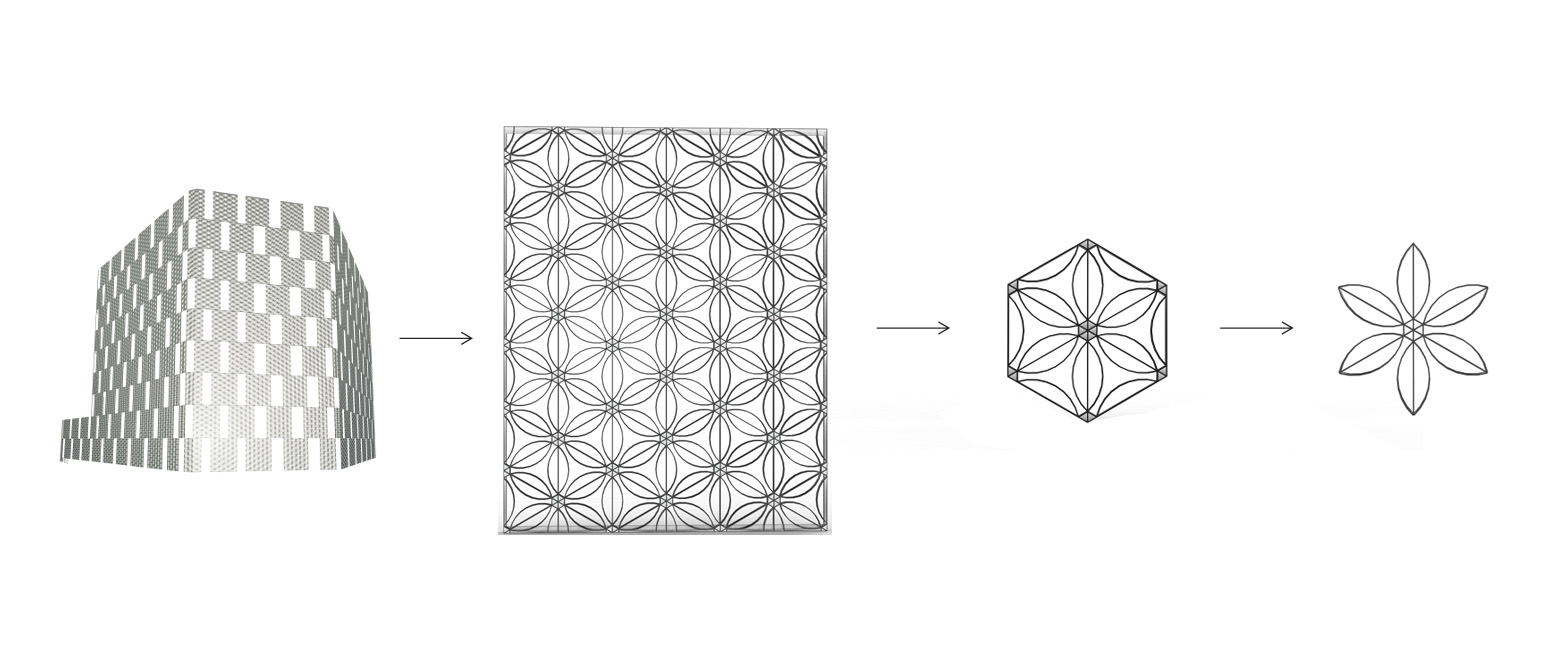

The Haitang facade uses a six-pointed star geometry derived from the crabapple flower (海棠花). Each star is a structural intersection in the aluminium screen. Standard circular or square puck fixtures clashed with the architectural pattern and exposed visible fasteners during daylight hours.

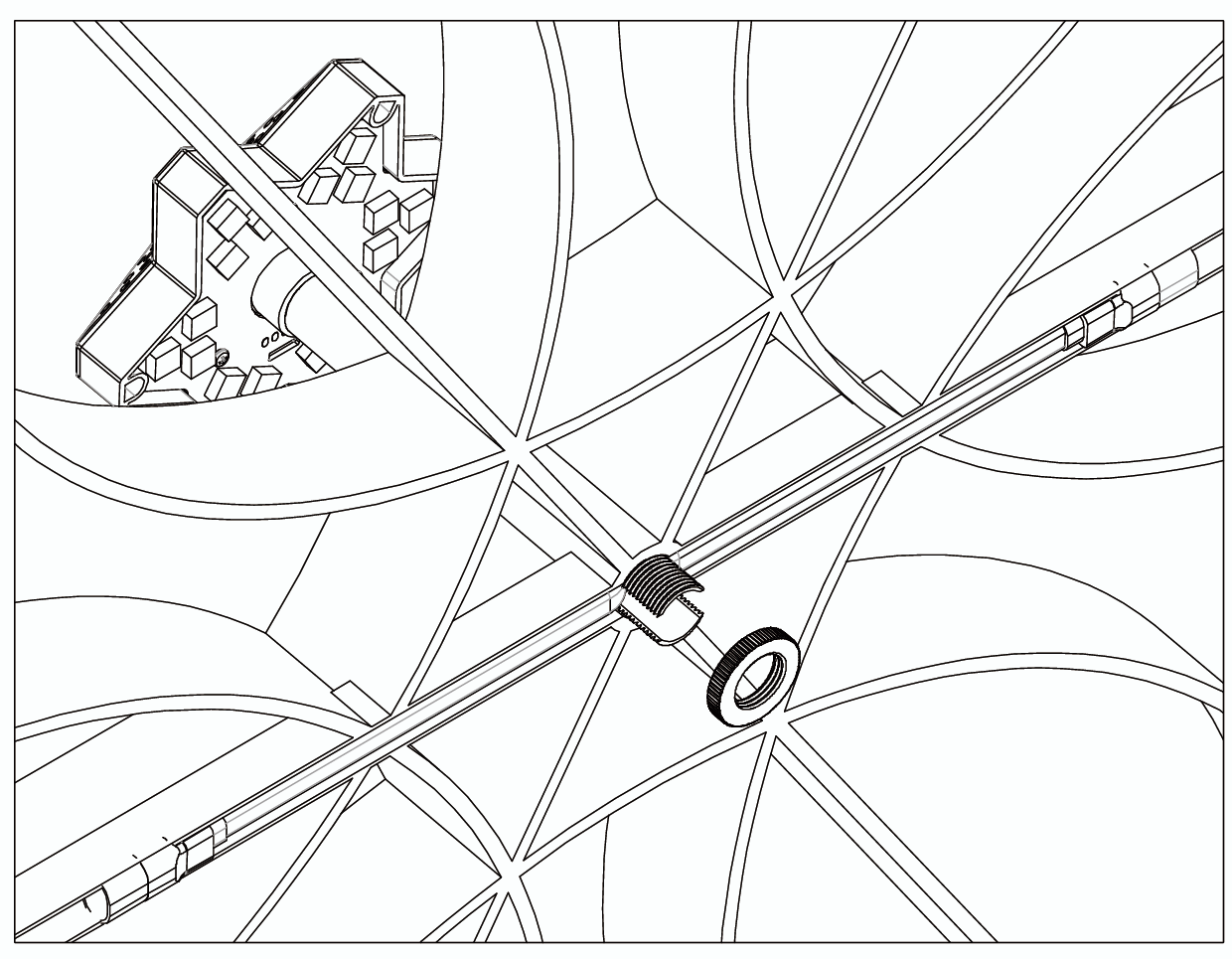

Resolved — Developed LPM-MJ-HEX130-DMX from the lead designer's concept sketch: bespoke die-cast aluminium star body, UV-stabilized PC face, and an engineered plug-in clip seating directly into the node recess. Sequence: 3D concept prototype → aperture refinements → weight, thermal FEA, and aging tests → final mould lock.
Further constraints Physical sampling, load & thermal simulation
Built, certified, supported Product platform on this path
Available technical records on request: product specification cut sheet, May 2022 thermal FEA report summary, and DMX address scheduling template.

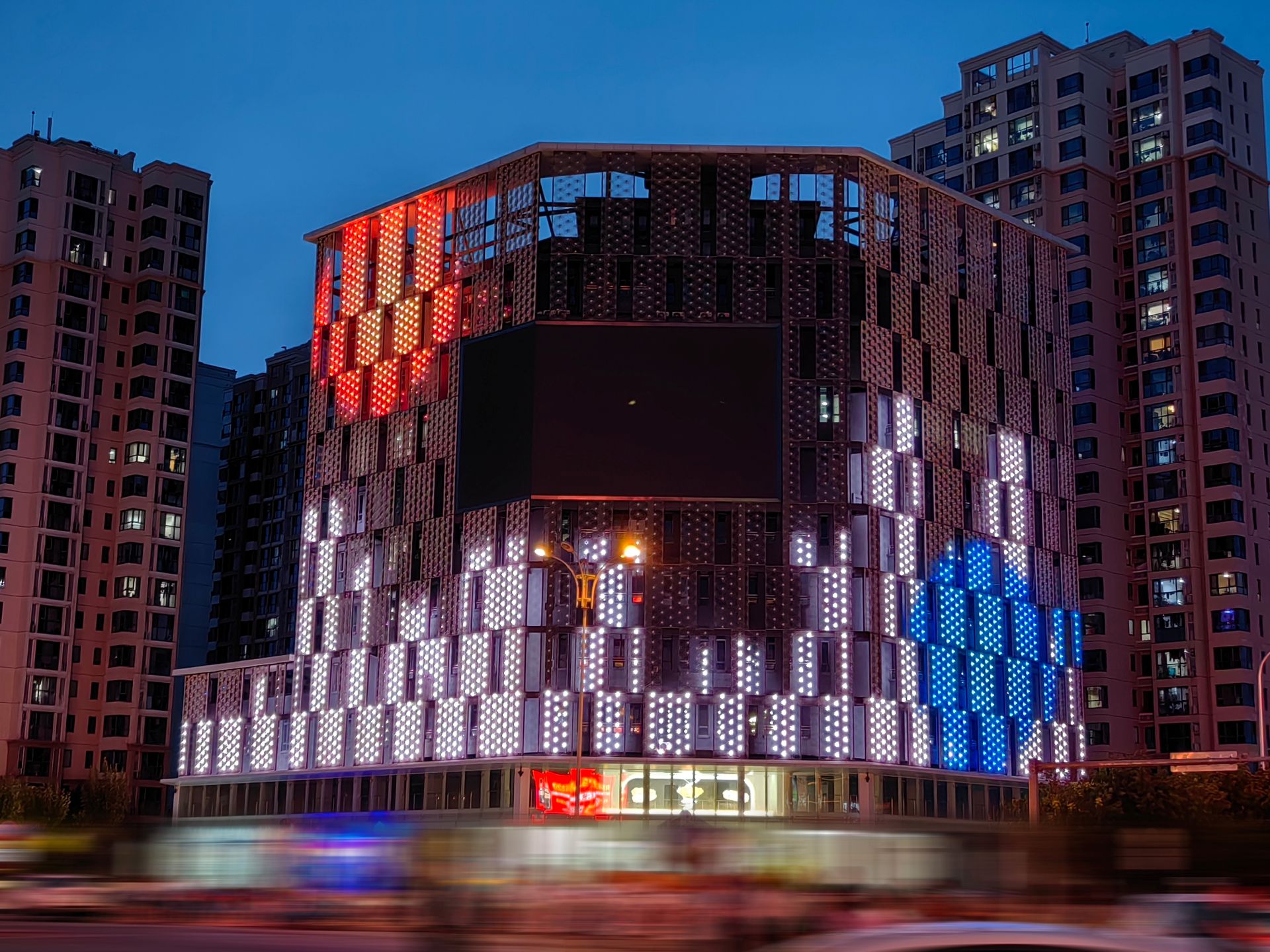

Tianjin Haitang Building
11-storey commercial office complex, crabapple-derived parametric aluminium screen curtain wall, ~8,000 m². Custom LPM-HEX130-DMX engineered from architect concept to volume delivery.
Glass Curtain Wall — Slab-Edge Linear
A continuous glowing line at each floor slab edge, fixture recessed into the spandrel cavity. From street level only the light is visible — every engineering decision starts from cavity depth.
Spandrel line
Visible horizontal spandrel; continuous line required across each floor slab.
Built-in cavity
Post-installation access requires removing exterior glazing, not open routine servicing.
Fixed cable entries
No new penetrations through the curtain wall mullion without waterproofing review.
U.S. listing
U.S. installations mandate a recognized NRTL listing (ETL/UL); CE marking cannot substitute.
Experience highlights What this project taught us
A 1.25-inch cavity sets the entire specification
Curtain wall spandrel cavity was limited to 1.25 inches (≈32mm). The architect submittal review (BLTa) explicitly required: “Confirm fixture and angle mounting method will fit within 1.25″ cavity.” Body, clip, fastener heads, and cable glands had to clear without altering the approved curtain wall structure.

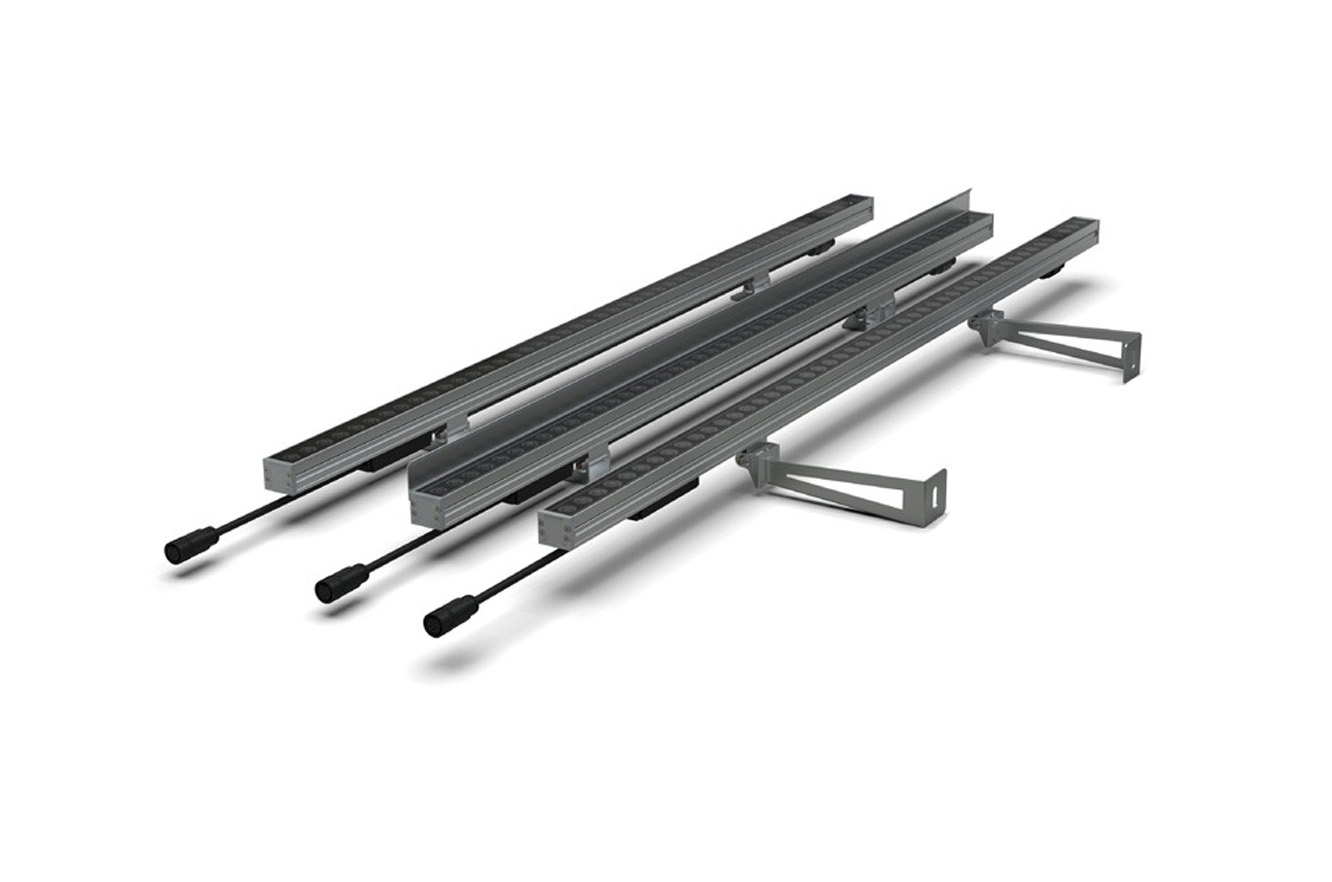

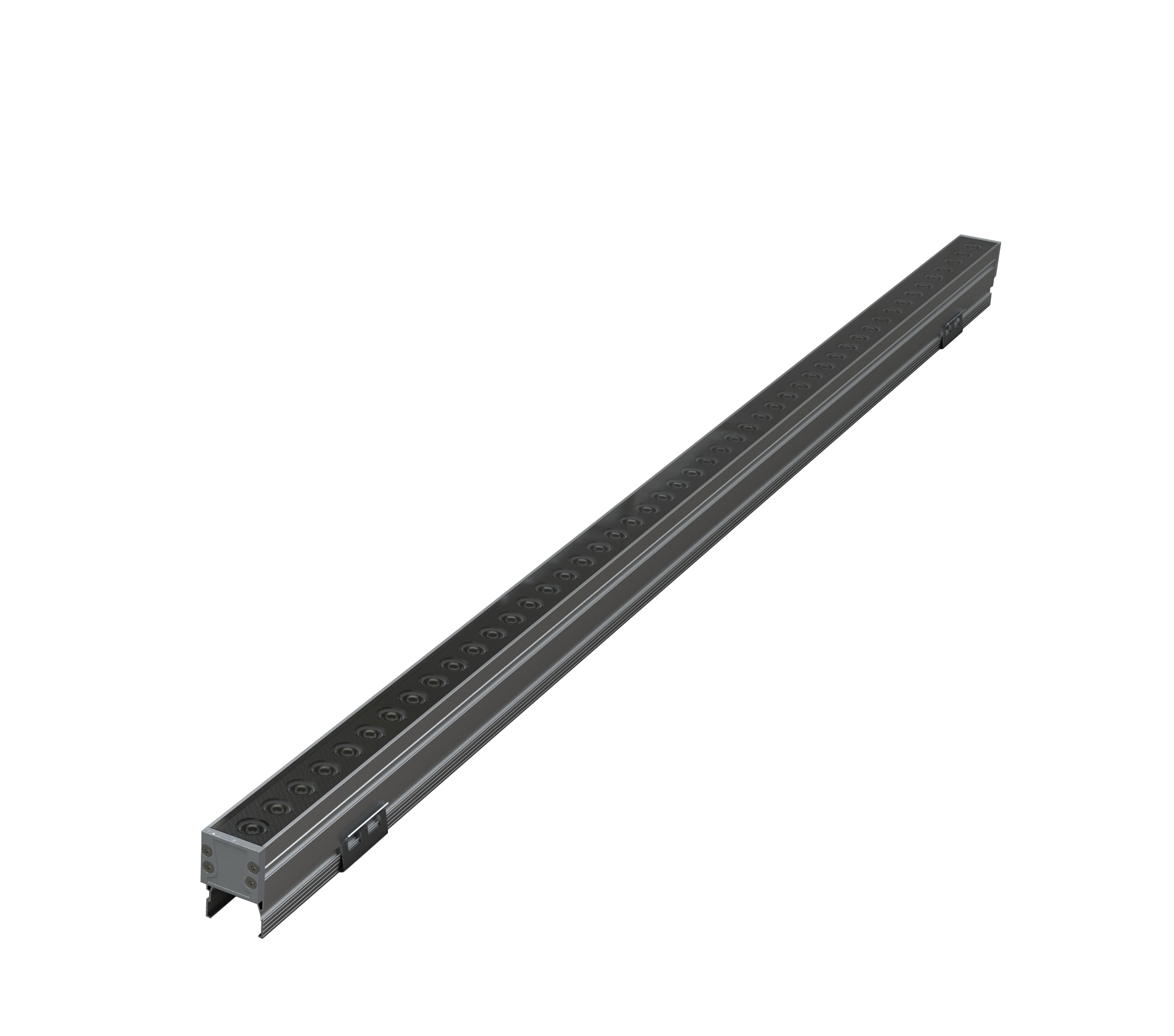

Resolved — Specified LLS-OP-W30C with 30×30mm aluminum extrusion, ultra-flat mounting clip, and tempered glass cover lens rather than polycarbonate for multi-year UV stability and weather endurance.
Further constraints Coordinated lengths, power distribution & addressing
Built, certified, supported Products on this path
Available technical records on request: series cut sheet, 24V DC voltage-drop calculation sheet, and DMX sequential addressing guidelines.
Verified Assembly Details & Circuit Schematics Physical fit verified
Technical shop details and electrical topology diagrams demonstrating physical fit within 1.25″ (≈32mm) spandrel reveals, integrated drainage clearance, 24V T-branching, and multi-floor DMX addressing. All details shown are production configurations — view LLS-OP-W30C specifications.

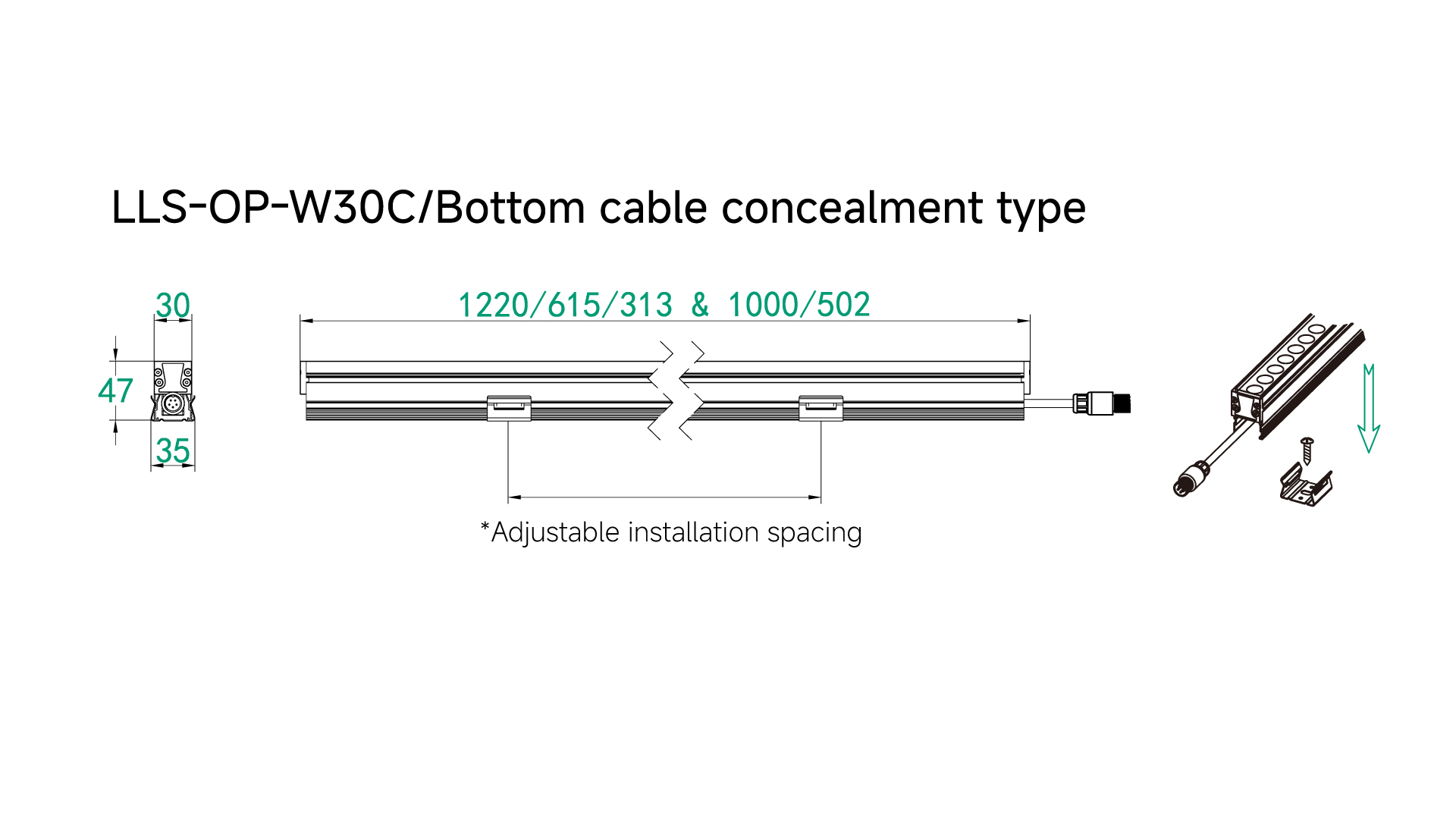

Mechanical Dimensions & Cavity Envelope
Custom 1.150″ [29mm] width × 1.14″ [25mm] height compact aluminum extrusion engineered specifically to clear a 1.25″ (31.75mm) reveal with margin. Includes Plan, Side, Bottom, and End views documenting full assembly tolerances.
Engineering detail 01 · Key metric: 29mm body width · 25mm height · 22mm clip height · 48″ (1219.2mm).
Exterior Mounting Detail & Drainage Clearance
Exterior-grade aluminum mounting clip detail explicitly incorporating dedicated “Clearance for drainage” under the extrusion body. Specifies a minimum of 3 clips per lightbar with maximum 16″ spacing.
Engineering detail 02 · Key metric: aluminum extrusion clip · integrated drainage gap · exterior rated.
24V DC Wiring & Power Supply Topology
Electrical wiring schematic detailing 24V DC (+/-) power and DMX data conductors. Codifies the electrical rule: “Power supplies, one per leg, (not to exceed 10 fixtures)” with internal junction-box data pass-through and drip loop protection.
Engineering detail 03 · Key metric: max 10 fixtures per PSU branch · waterproof screw ring · drip loop.
Architectural DMX Addressing Riser Schedule
Multi-floor riser diagram establishing sequential DMX channel assignments across multi-story elevations. Confirms 1-foot incremental addressable control coordinated with centralized control equipment.
Engineering detail 04 · Key metric: 1-foot DMX resolution · multi-floor riser · 100% sequential mapping.
Technical details above illustrate proven mechanical clearance for 1.25″ cavities, drainage gap integration, and 24V T-branching. New projects should evaluate local facade pocket sections, cable penetrations, and thermal expansion margins. Where linear lightbars are recessed directly adjacent to guest-room glazing, spill light into guest rooms can cause severe guest complaints — the linked guide covers optical shielding louvers, interior glare cutoff lines and full mock-up verification protocols.
Read: Hotel Facade Lighting — Window Spill Control and Curtain-Wall Integration
Live! Casino & Hotel Maryland
16-floor luxury hospitality property, three elevations, Gable Company (Baltimore). 860 ETL-listed LLS-OP-W30C fixtures coordinated across three lengths within 1.25″ slab-edge cavities.
Shallow-Recess & Flush Linear Integration
Integrating continuous linear illumination where the structural floor slab is too shallow for conventional in-ground fittings. The fixture assembly sits flush within the architectural channel, delivering continuous grazing while concealing raw diodes from daytime view.
Shallow slab recess
Concrete floor depth cannot accommodate standard 80–120mm in-grade pots.
Flush optical face
Fixture lens must sit flush with the architectural channel profile.
Concealed diode view
Micro-louver or linear batwing optics eliminate direct diode visibility.
Water & dust ingress
IP66/IP67 sealed enclosure resisting floor moisture and outdoor dust.
Experience highlights What this project taught us
Standard in-ground luminaires cannot fit shallow slab reveals
At the Linhai Business Headquarters complex (62,969 m²), the perimeter floor slabs featured very shallow concrete depth. Installing conventional recessed in-ground luminaires (which typically require 80–120mm depth plus drainage sumps) was structurally impossible without cutting into reinforced floor slab rebar.
Resolved — Engineered a compact low-profile linear installation utilizing the 30mm LLS-OP-W30B platform fitted with specialized flush polycarbonate cover assemblies. This concealed the raw LED emitters, protected against surface water spray, and created a seamless architectural finish.
Built, certified, supported Product platform on this path
Boundary notice: The flush lens arrangement addresses optical alignment and moisture resistance; for high-traffic pedestrian walk-over or drive-over conditions, contact our team for load-rated stainless-steel channel submittals.
Linhai Business Headquarters
62,969 m² municipal archive and business headquarters complex in Taizhou, Zhejiang. Combining flush-mounted linear luminaires, DMX wall washers, and architectural spotlights to create a clean, modern civic landmark.
Opaque Walls, Vertical Fins and Structural Piers
Solid masonry, stone panels, textured terracotta, and vertical structural piers require a fundamentally different engineering approach than direct-view curtain wall nodes or slab-edge linears. Fixture selection begins with surface texture, setback clearance, and optical beam cutoff.
Setback-to-height
Ratio of setback distance to wall height determines grazing (1:8) vs washing (1:4).
Surface texture
Polished stone reflects hot spots; rough stone requires steep grazing angles.
Optical shielding
Visors, honeycomb louvers, or micro-baffles to prevent stray light into the sky.
Maintenance access
Cantilevered brackets must provide safe technician access for aiming and re-lamping.
Candidate Platforms & Optical Selection
Heavy facade washLWW-OP-W75
High-output architectural wall washer · multi-optic options
Engineering notice: Stated maximum throws do not guarantee uniform lighting on textured walls. Setback, fixture spacing, and surface reflectance must be modeled using true .IES photometric data.
From Architectural Condition to Approved Configuration
How TPK collaborates with lighting designers, facade contractors, and MEP teams to validate structural fit before production release.
Condition & Envelope Audit
Review architectural cladding details, spandrel cavity sections, structural weight allowances, and fixed cable entry points.
Candidate Assembly Co-Design
Coordinate fixture extrusion, mounting clip geometry, cover lens type, and cable terminations against the physical cavity boundary.
Prototyping & Physical Validation
Provide 3D samples for daytime aesthetic inspection; execute thermal FEA simulation and certified weigh reports prior to tooling lock.
Production & Pre-Addressing
Factory pre-program sequential DMX addresses; tag harnesses by floor and elevation; conduct full IP and burn-in testing.
Installation & Commissioning
Supply channel distribution schedules, voltage-drop sheets, and remote Madrix/controller commissioning assistance.
Project Delivery Boundary Matrix Clear division of technical responsibility
Project Submittals & Engineering Documentation
Every project path is backed by verified submittal packages. Review standard submittal types and key technical clarifications below.
Standard Submittal Package
Full architectural cut sheets, 2D DWG / 3D STEP fixture dimension models, true .IES photometric files for DIALux calculation, and official ETL / CE certification records.
Project-Specific Validation Data
Thermal FEA simulation summaries (such as the Haitang 63.7°C report), certified component weigh files (XSJH202204221001), and 24V DC branch voltage-drop engineering calculation worksheets.
Control & Addressing Documentation
DMX512 channel distribution tables, Madrix system patch sheets, sequential address coding schedules, and field diagnostic coder instructions.
Mounting & Installation Coordination
Mounting clip profile drawings, cable harness T-branch schematics, thermal expansion joint recommendations, and drainage clearances within spandrel cavities.
Engineering Clarifications Direct answers to critical project questions
Need specific submittals for your design team? Email your request to ES2@topkinglite.com or access the general repository via TPK Resources.
Have a Facade Lighting Condition to Review?
Send your elevation drawings, cladding node details, or spandrel cavity cross-sections. Our engineering team will review the mounting envelope, evaluate candidate optical assemblies, and outline the necessary validation steps.
