LWW-OP-D80
The LWW-OP-D80 is an IP67 round-tube LED wall washer designed for architectural facades, wet outdoor environments and car wash tunnels. Its smooth cylindrical housing helps reduce foam, dust and residue build-up on exposed surfaces, making routine rinse-down easier than with fixtures that have sharp corners or deep ledges. Available in static white, RGB and RGBW configurations, the D80 supports standalone built-in effects or external DMX512 control for dynamic lighting scenes.
Color & Optic
Beam Options
Product Specifications
Model Configuration
| Model | Length | Power (Max) | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|
| LWW-OP-D80-L6 | L685mm | 18W / 32W | RGBW | 1044-2720 lm | Weight: 2.5kg ±5%Qty/Ctn: 8 pcsCarton: 70 × 42 × 24.5 cm |
| LWW-OP-D80-L12 | L1290mm | 36W / 64W | RGBW | 2088-5440 lm | Weight: 4.4kg ±5%Qty/Ctn: 4 pcsCarton: 131.5 × 22 × 24.5 cm |
Configuration summary: Available in lengths L685 and L1290 mm. Includes RGBW configurations, operating on 24V DC or 100-277V AC input. Housed in a stainless steel cover, aluminum alloy 6063 end caps and a smooth PC round-tube light-emitting surface, with an IP67 rating for demanding outdoor integration.
Advantages
Precision Beam Distribution
Offers multiple precision beam angles including 20°, 30°, 45°, and asymmetric 20×40° to cater to diverse structural dimensions and wall-washing heights.
DMX512 Dynamic Control
Compatible with standard DMX dimmer systems and independent RF control, enabling dynamic synchronization and thousands of programmable color-changing effects.
Static White, RGB and RGBW
Supports single CCT configurations (2700K–6500K), RGB, and RGBW LED packages, producing clean mixed white or saturated dynamic colors from a single beam.
Corrosion-Resistant Round-Tube Build
Built with aluminum alloy 6063 end caps, a stainless steel cover and a smooth PC round-tube light-emitting surface, ensuring long-term anti-corrosion performance in demanding outdoor and wet environments.
IP67 Submersible Protection
Fully sealed structural waterproofing achieves an IP67 rating, guaranteeing safe and continuous operation in demanding outdoor and wet environments.
Flexible Project Integration
Features a highly adjustable mounting bracket for precise targeting, adapting seamlessly to global project electrical standards with 24V DC or 100-277V AC input.
Car Wash Ready Round-Tube Design
The smooth cylindrical housing helps reduce foam and dust build-up on exposed surfaces, making routine rinse-down easier in wet car wash tunnel environments.
Built-In Effects or DMX512 Control
Selected RGB/RGBW versions provide more than 100 built-in dynamic effects for standalone use, and integrate with external controllers such as Pharos and MADRIX via DMX512 for synchronized tunnel lighting scenes.
Application Scenarios
Building Facade Outlining
Ground-mount or bracket-mount at facade bases; narrow 20° or asymmetric 20×40° beams provide uniform vertical washing without light spillage.
Commercial Exterior Highlighting
Install along commercial entrances and curtain walls; dynamic RGBW configurations elevate nighttime brand identity via DMX control.
Bridge and Infrastructure
Mount along bridge railings and structural edges; the robust IP67 casing withstands high humidity and mechanical vibration.
Landscape and Public Space
Deploy across public squares and landscape structures; independent control modes simplify wiring and operation for non-dynamic setups.

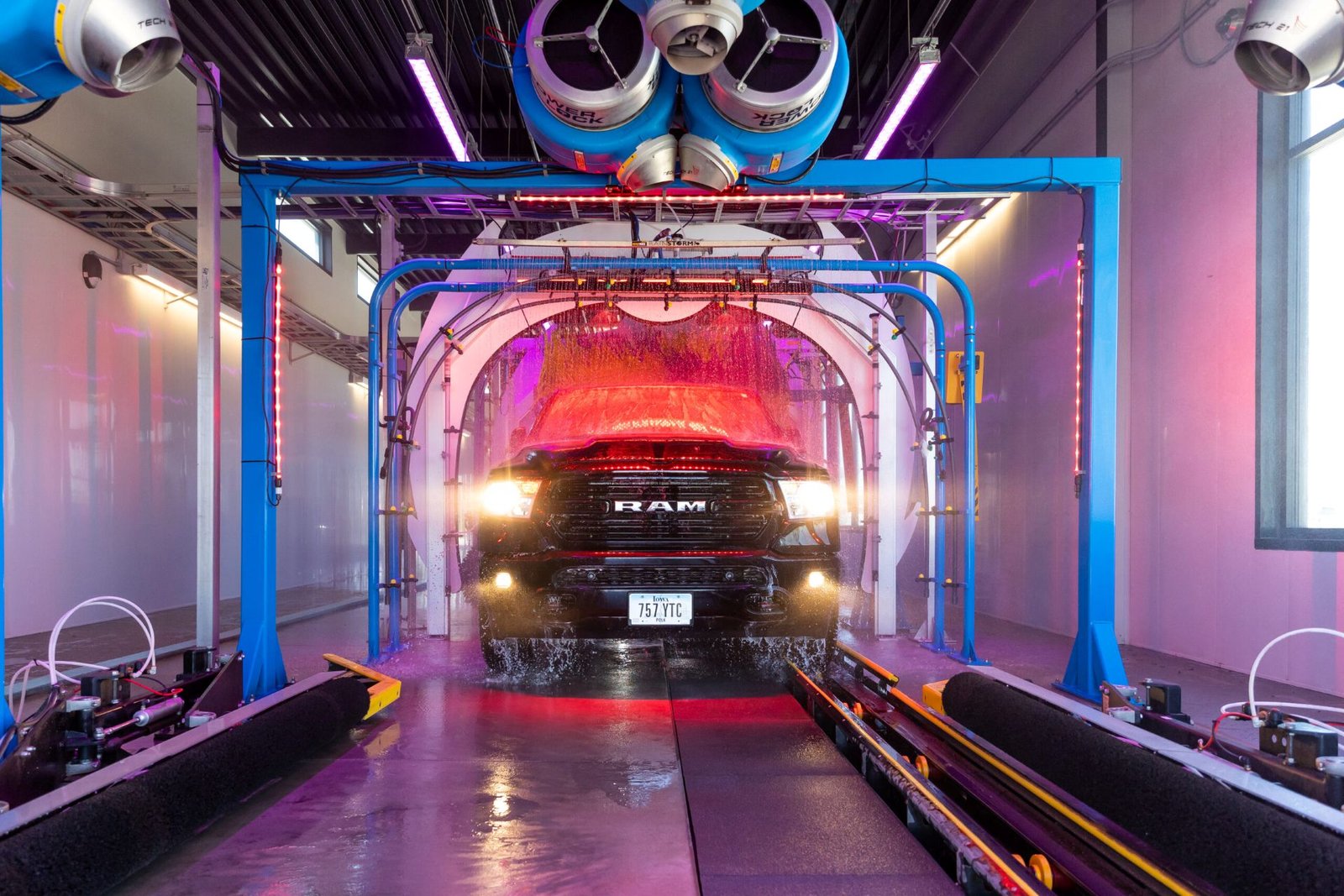

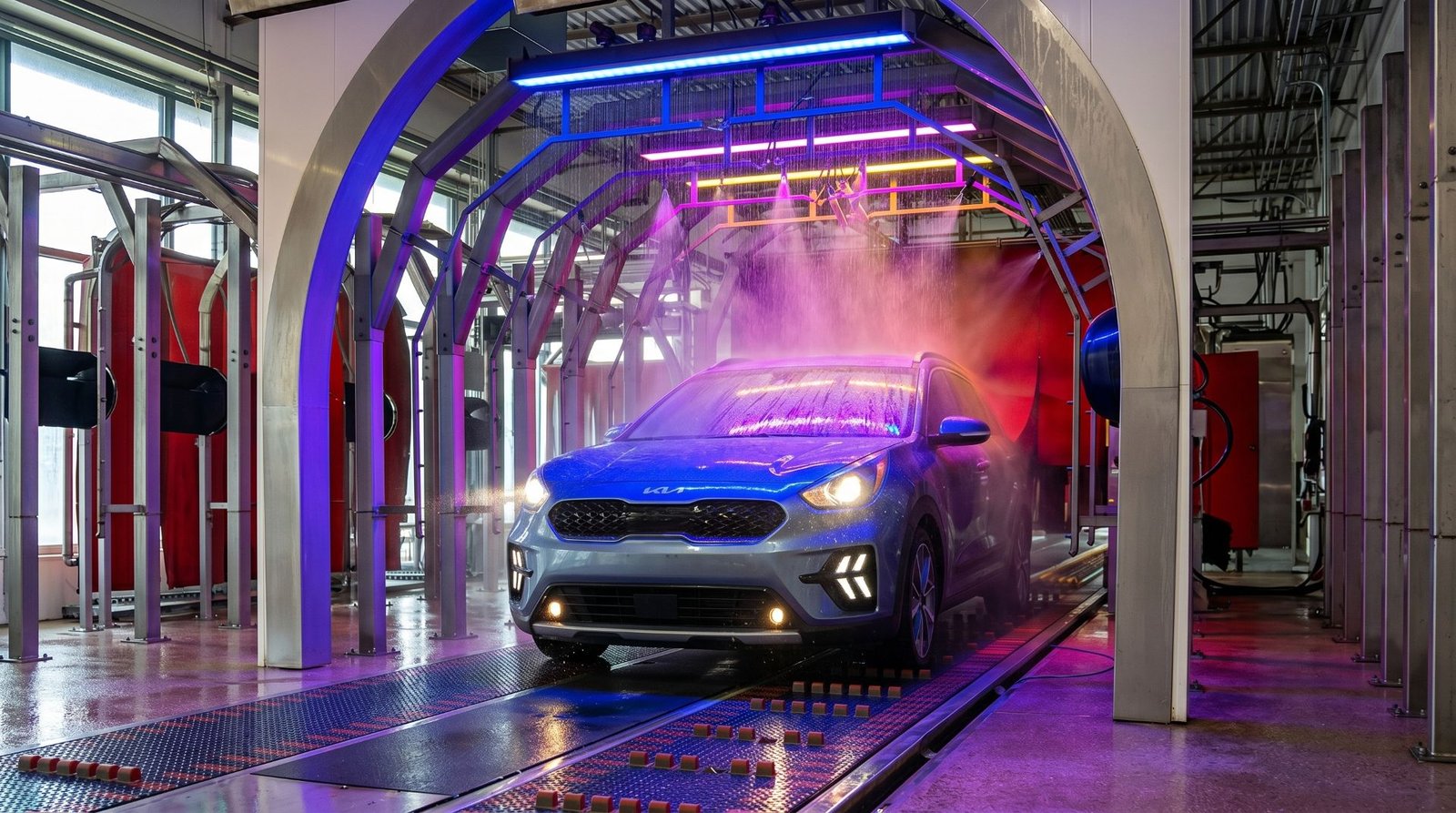

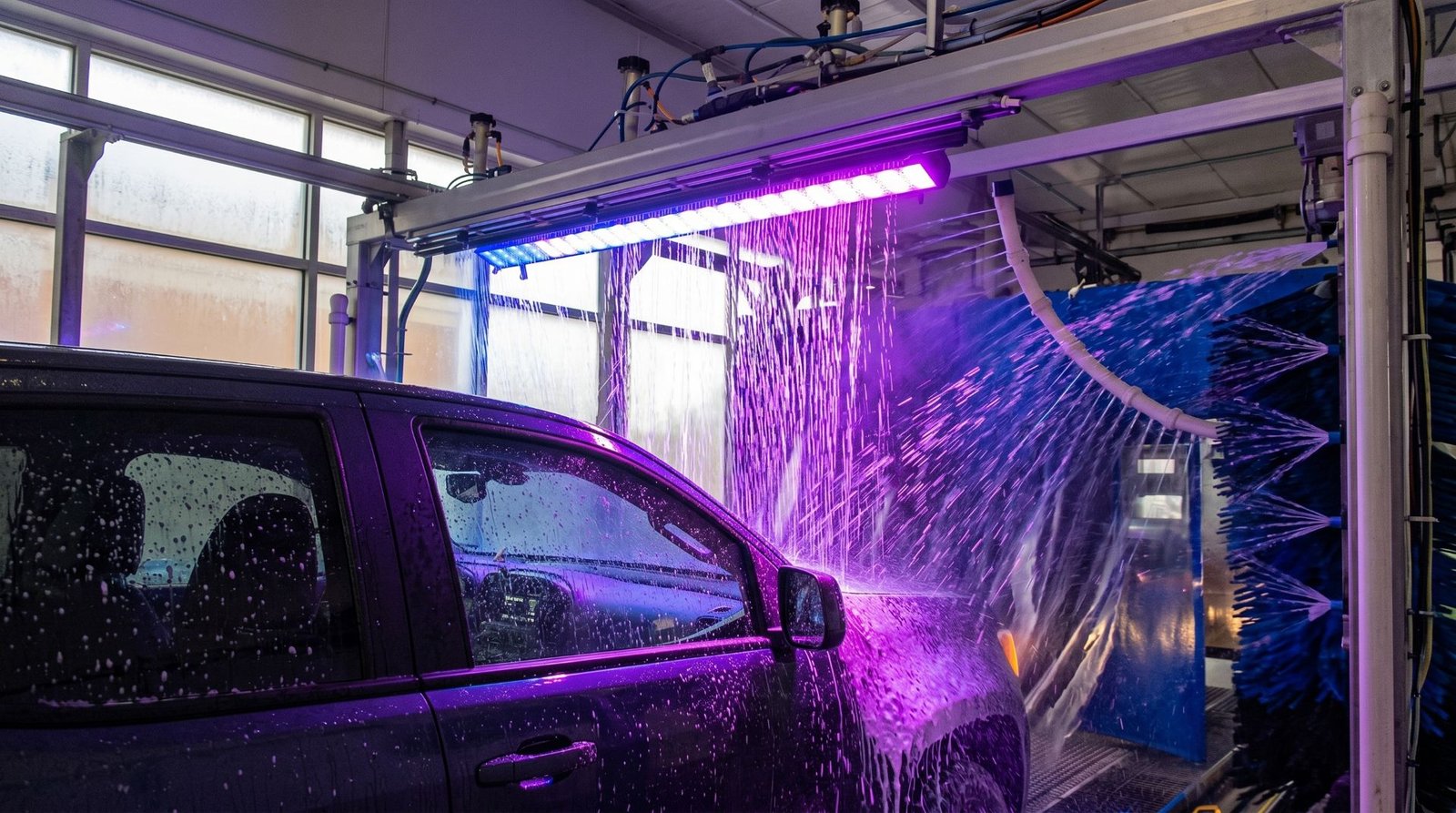

Car Wash Tunnel Lighting
The D80 is well suited to wet, foam-heavy car wash tunnels. Its smooth round-tube profile has no sharp upper edges or deep ledges where foam, dust and residue can easily collect, helping routine rinse-down and cleaning work more efficiently. The IP67 enclosure and corrosion-resistant housing support demanding wash-bay installations when the fixture is selected, mounted and maintained for the site conditions.
Selected RGB/RGBW configurations can provide more than 100 built-in lighting effects for standalone tunnel lighting, helping operators create dynamic customer-facing scenes without a separate external controller. For synchronized arches, wash zones and larger sites, the D80 can also be integrated with an external DMX512 system.
For a complete walkthrough, read our car wash tunnel lighting guide.
The LWW-OP-D80 is designed for versatile outdoor architectural lighting projects where customizable optics, reliable IP67 weather resistance, and dynamic DMX control are required.
Impressions
