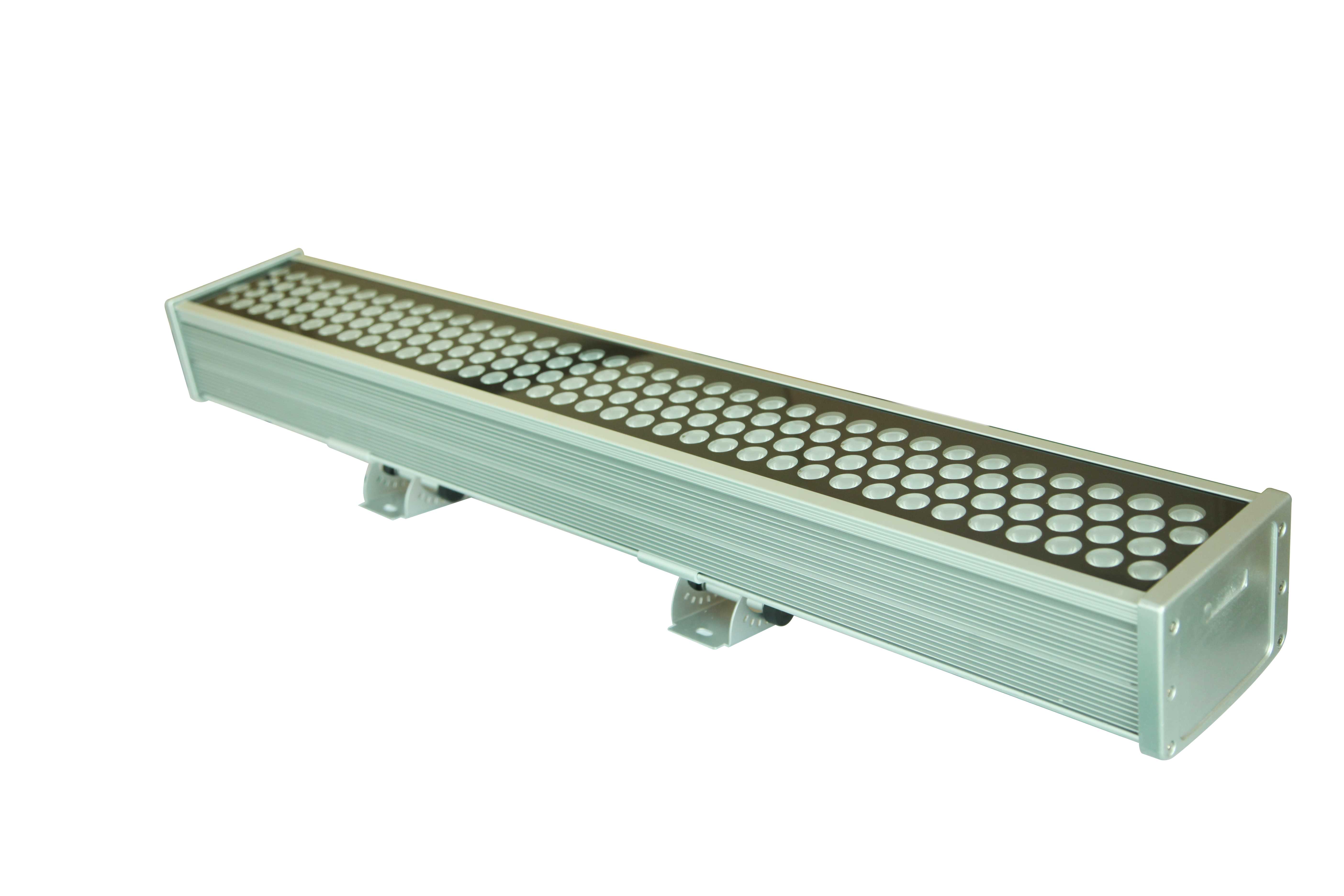

Outdoor ArchitecturalLED Wall WasherModel: LWW-ROWS-W150
LWW-ROWS-W150
The LWW-ROWS-W150 series is a high-power outdoor LED wall washer designed for architectural facade illumination. Featuring a robust aluminum housing with IP65 protection, it delivers powerful lighting up to 15–50 meters. Available in multiple CCT options and RGB/RGBW, with DMX512/RDM and DALI control protocols for flexible operation in professional lighting projects.
Color & Optic
Color Options
Beam Options
Product Specifications

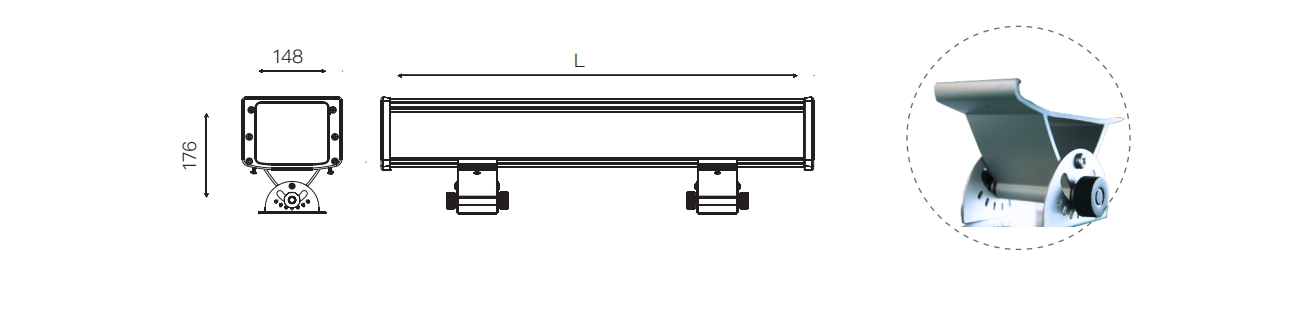

Model Configuration
| Model | Length | Power (Max) | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|
| LWW-ROWS-W150-L3 | L300mm | 40W |
2700K3000K
4000K5700K
RGB
RGBW
|
2500lm 1200lm 1400lm
|
Weight: 3.0kg ±5%Qty/Ctn: 4 Units/CtnCarton: 81×49×26 cm |
| LWW-ROWS-W150-L6 | L640mm | 70W |
2700K3000K
4000K5700K
RGB
RGBW
|
4300lm 2100lm 2550lm
|
Weight: 6.4kg ±5%Qty/Ctn: 2 Units/CtnCarton: 71×49×26 cm |
| LWW-ROWS-W150-L12 | L1240mm | 140W |
2700K3000K
4000K5700K
RGB
RGBW
|
8700lm 4200lm 4900lm
|
Weight: 10kg ±5%Qty/Ctn: 1 Unit/CtnCarton: 130×23.5×22 cm |
Configuration summary: The LWW-ROWS-W150 series offers three length options (L300/L640/L1240mm) with corresponding power ratings (40W/70W/140W). Features high-quality AL6063 construction with IP65 protection, supporting DMX512/RDM, DALI and 0-10V control protocols for professional architectural lighting applications.
Advantages
The Right Amount of Light
High brightness paired with low energy consumption, perfectly meeting the lighting needs of large areas with projection distances of 15–50 meters.
Versatile Control and Input
Wide voltage input (100–277V AC), with DMX512/RDM, DALI and 0-10V control protocols for flexible operation in any project.
Tight Waterproof Structure
Features a robust, tightly sealed waterproof structure with IP65 rating for reliable protection against moisture ingress in demanding outdoor environments.
Sturdy and Durable Construction
The fixture body is made of 6063 aluminum with anti-oxidation surface treatment, ensuring excellent heat dissipation and anti-corrosion performance.
Optional Optic Lenses
Offers a selection of 8 precision optic lenses from 15° narrow beam to 30×50° asymmetric distribution to customize the light for different applications.
3-Year Warranty
Standard 3-year warranty for complete assembly, providing peace of mind for professional installations.

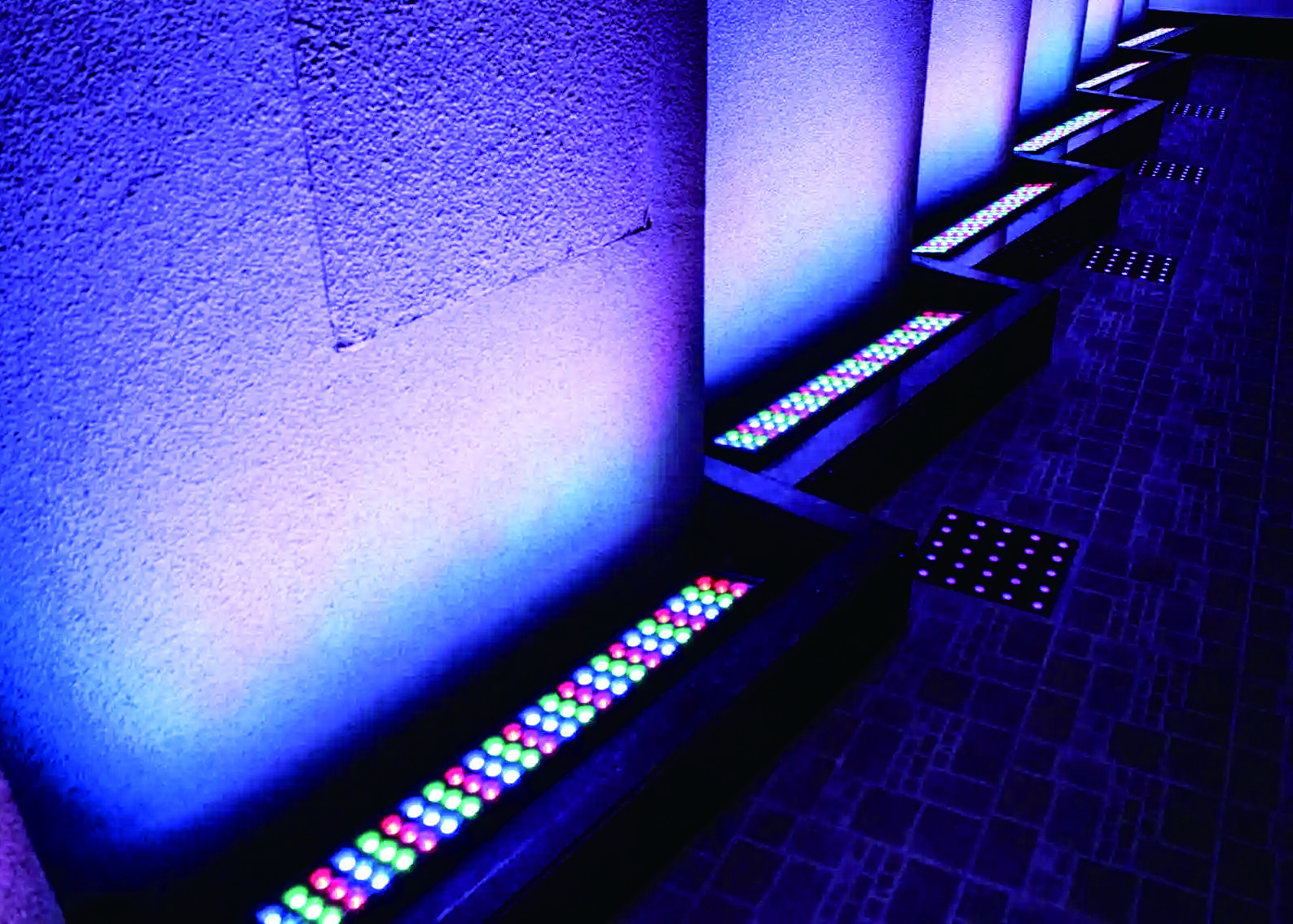

Application Scenarios
Building Facade Lighting
For commercial building facades, curtain walls, and architectural structures requiring high-power, dynamic color illumination and long-distance beam projection.
Bridge and Infrastructure Lighting
For bridge structures, guardrails, and large public infrastructure projects where high output and precise beam control are essential.
Landmark and Landscape Lighting
For national landmarks, parks, and public plazas where high-power RGBW and narrow beam shaping creates iconic nightscapes.
Hotel and Retail Exterior Lighting
For hotel entrances, retail facades, and commercial plazas requiring warm white and dynamic color atmospheres.
LWW-ROWS-W150 is designed for permanent outdoor architectural lighting projects where high power, beam control, weather resistance and dynamic color are critical.
Impressions
Downloads
Specification Sheets
Spec SheetCertification Documents
- Coming soon
Technical Files
- Coming soon
Testing Reports & Application Media
Application VideosCertifications & Compliance
Related Projects
FAQ
Model: LWW-ROWS-W150What control protocols does the LWW-ROWS-W150 support?
What is the maximum projection distance?
Is the LWW-ROWS-W150 suitable for coastal environments?
What is the warranty period?
Accessories
Accessories can be supplied according to installation method, wiring layout and control configuration.
End Cap
Signal Input Cable
Adapter Cable
Y-Type Cable
End Cap (Alternative)
