Porter House Roof Top Lighting | New York Commercial Facade Illumination
New York, NY, USA | Commercial Roof Top & Facade | DMX512 RGBW System | 2023
Project Overview
Located in the vibrant commercial environment of New York City, the Porter House Bar and Grill required a distinctive nighttime identity that seamlessly integrates with its classic Manhattan architectural aesthetic.

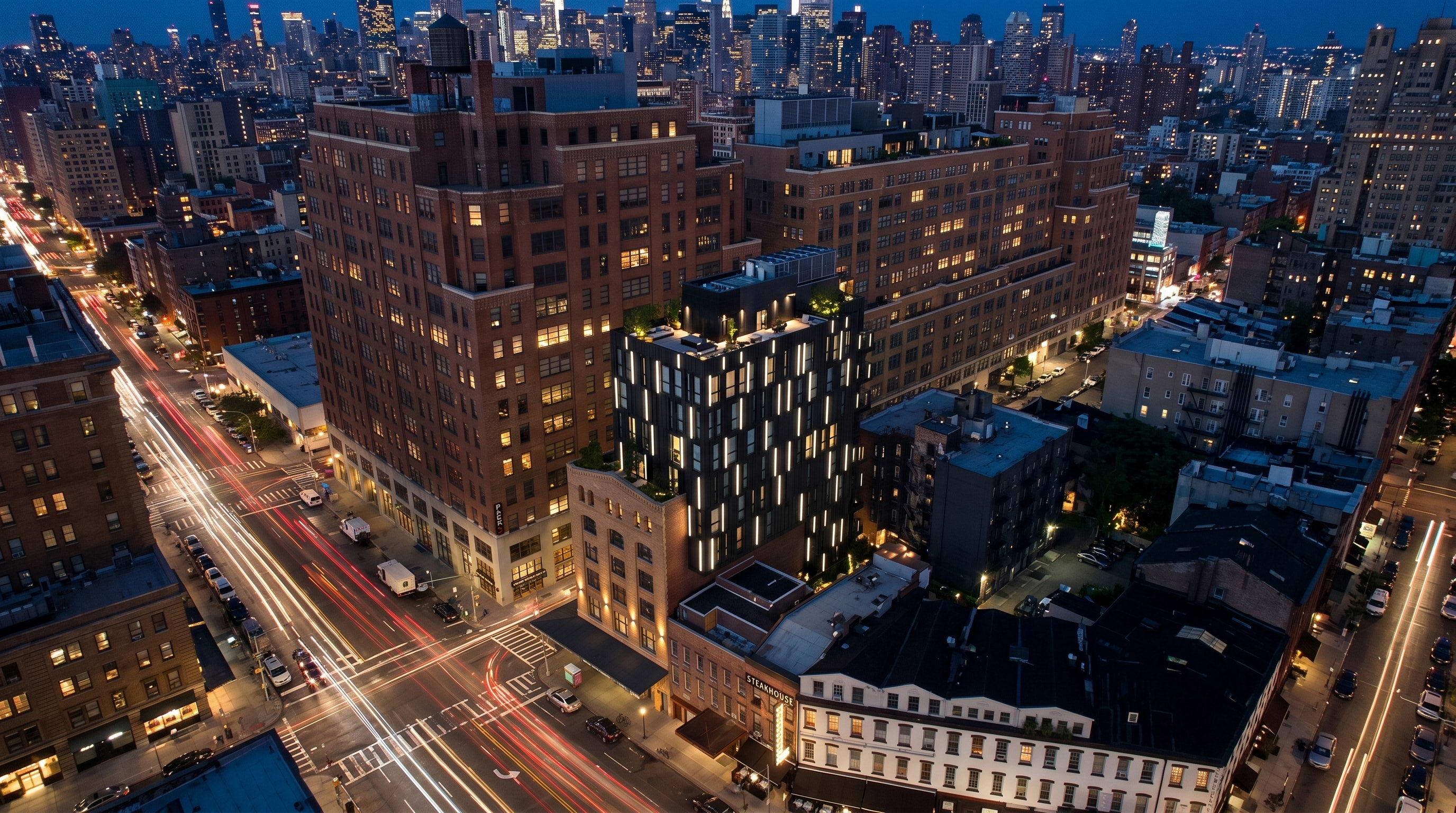

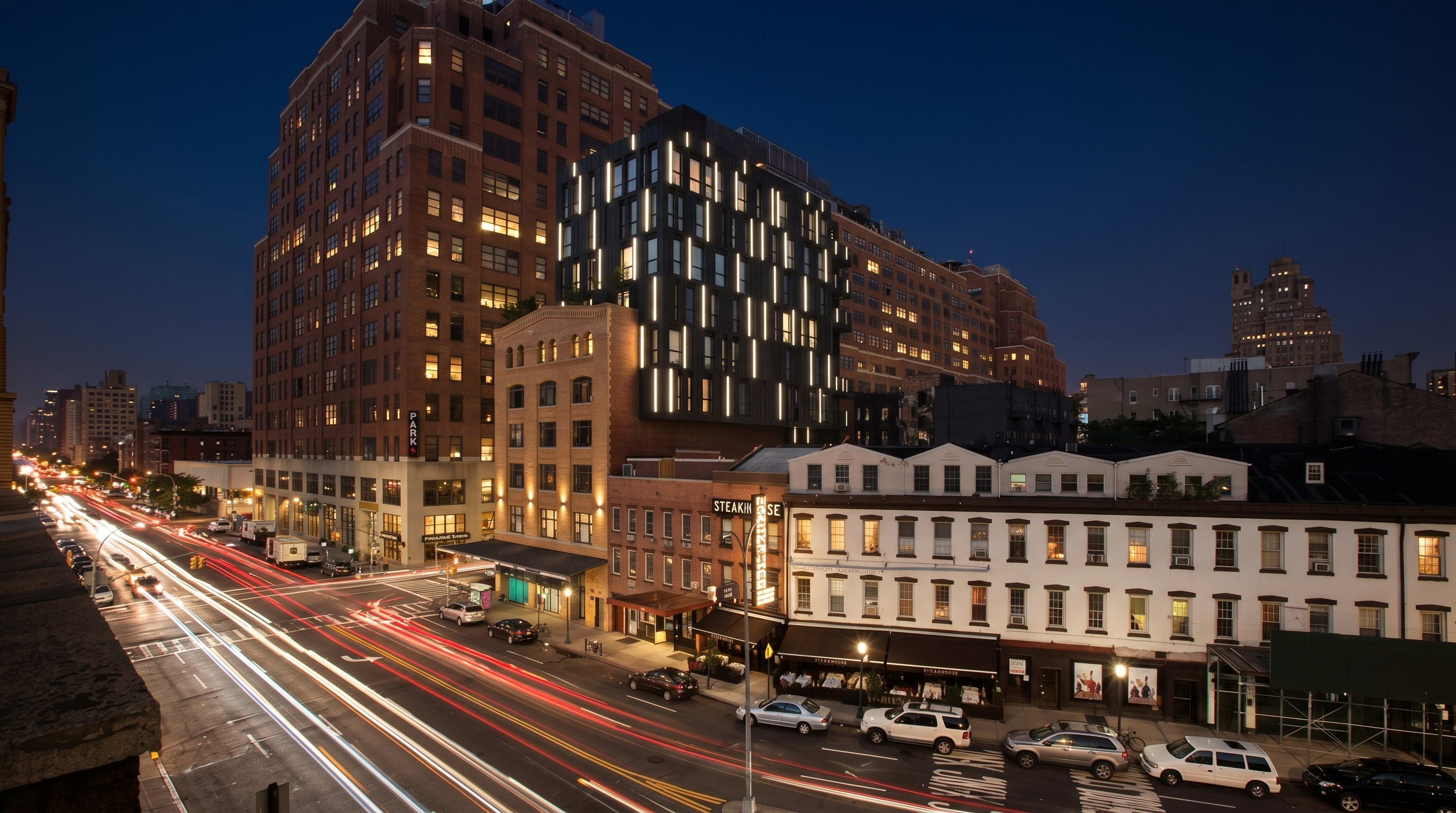

TPK Lighting provided a comprehensive 17kW dynamic illumination system, deploying 500 units of custom-finished LLS-ESS-W100-L10 RGBW linear fixtures along the roof top and building facade. Powered by the robust MADRIX LUNA 16 Art-Net node and MADRIX 5 KEY software, the installation ensures fluid, 16-universe DMX512 color transitions without latency.
This project serves as a compelling benchmark for the East Coast market, demonstrating how customized architectural lighting can surpass legacy brands in both wattage-per-foot efficiency and precise visual integration within strict urban environments.
Why This Specification
Specification Logic Explained — The Reasoning Behind Every Key Decision
Architectural Integration
The client mandated that the fixtures must visually blend into the building's daytime envelope. Standard silver or black aluminum housings would disrupt the classic exterior aesthetic of the Porter House in New York.
Exact Color Match

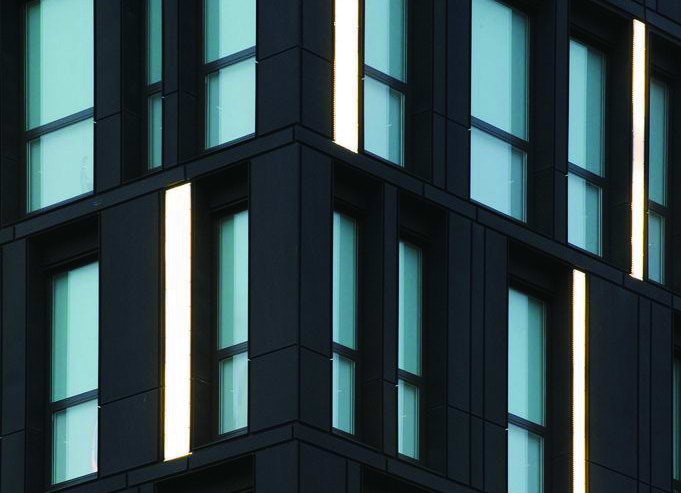

TPK manufactured the 500 linear units with a custom Bronze finish. This bespoke housing precisely matches the architectural facade, ensuring the lighting hardware remains virtually invisible during daylight hours.
High Output Constraints
The lighting design required intense lumen output to combat Manhattan's heavy urban ambient light, demanding a specific wattage-per-foot efficiency that outpaced standard offerings from competitors like Color Kinetics.
Maximized Lumen Efficacy
We specified the LLS-ESS-W100-L10 operating at a maximum of 34W per meter. This configuration delivered the exact wattage-per-foot required by the client, providing superior photometric performance and cost-efficiency.
East Coast Coastal Climate & Urban Wind
New York City's commercial rooftops are exposed to severe coastal humidity, winter blizzards, freezing temperatures, and strong urban wind tunnel effects, demanding exceptionally rugged fixtures.
Rugged Thermal Management
The fixtures are engineered with a heavy-duty aluminum alloy base and a frosted PC cover, achieving a strict IP65 rating. This ensures reliable structural integrity and moisture resistance during NYC's harsh winters and humid summers.
Complex Dynamic Control
Synchronizing 500 individual RGBW fixtures across a massive roofline requires a stable, high-capacity data network that complies with the client's existing architectural control ecosystem.
16-Universe Art-Net Infrastructure
We integrated the MADRIX LUNA 16 Art-Net Node. This hardware effortlessly bridges standard network protocols to 16 DMX512 universes, ensuring flawless, lag-free dynamic color mapping across the entire facade.
Core Focus
Commercial Facade Lighting That Balances Performance and Aesthetics
Deploying roof top illumination in the demanding environment of New York City requires fixtures that not only endure harsh coastal weather but also deliver precise DMX control. The Porter House project emphasizes exact architectural matching and control ecosystem compatibility.
- Custom Bronze Finish for seamless daytime architectural integration without compromising weatherproofing.
- High Wattage-Per-Foot Efficiency outperforming traditional US legacy brands in both brightness and project ROI.
- 16-Universe DMX512 Architecture via MADRIX for fluid, synchronized RGBW animation across 500 individual fixtures.
What the System Delivers
500
Linear Units
17kW
Total Power
IP65
Weather Resistance
The custom bronze linear lighting system delivers dynamic RGBW illumination that perfectly matches the architectural envelope. Operating securely on a 24VDC ETL-compliant infrastructure, it serves as a highly reliable benchmark for commercial facade upgrades in the North American East Coast market, proving TPK's capability to customize and compete with top-tier global brands.
LLS-ESS-W100-L10
34W · IP65 · RGBW · DMX512
MADRIX LUNA 16
Art-Net Node · 16×512 Channels Out
