Outdoor Architectural LED Wall Washer Model: LWW-WZB-W55

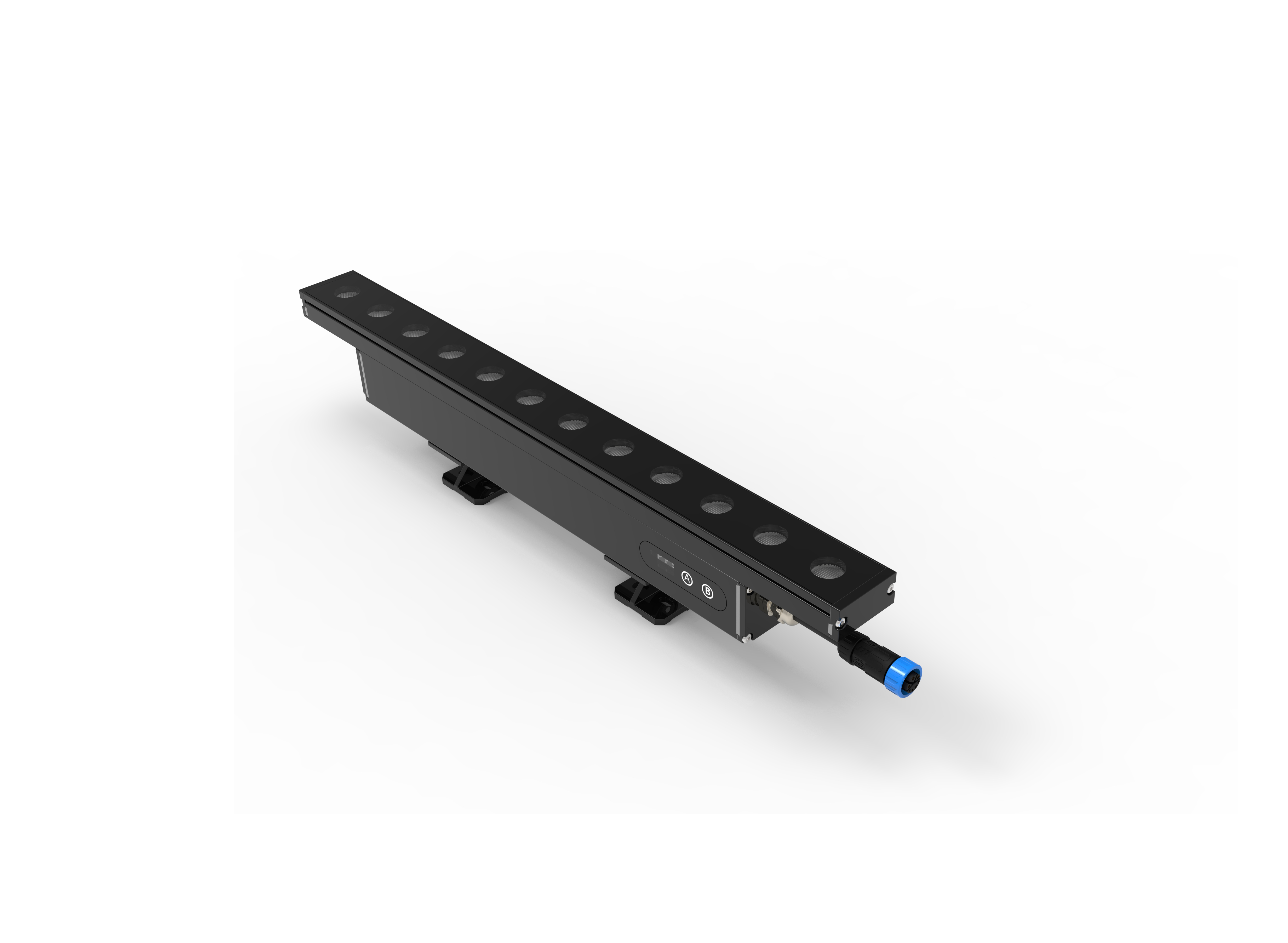

LWW-WZB-W55 18–65W IP66 ETL listed outdoor LED wall washer for architectural facade and bridge lighting

LWW-WZB-W55

18–65W IP66 LED Wall Washer — ETL Listed, CE Certified

The LWW-WZB-W55 is an 18–65W IP66 outdoor LED wall washer built for architectural facade, bridge, and public space lighting. It carries ETL listing for the US and Canada and CE certification for European projects. Available in static white (2800K–6300K), RGB, and RGBW configurations with DMX512/RDM and 0–10V control. Three fixture lengths — 350mm, 620mm, and 1220mm — keep procurement and layout straightforward across a wide range of project scales.

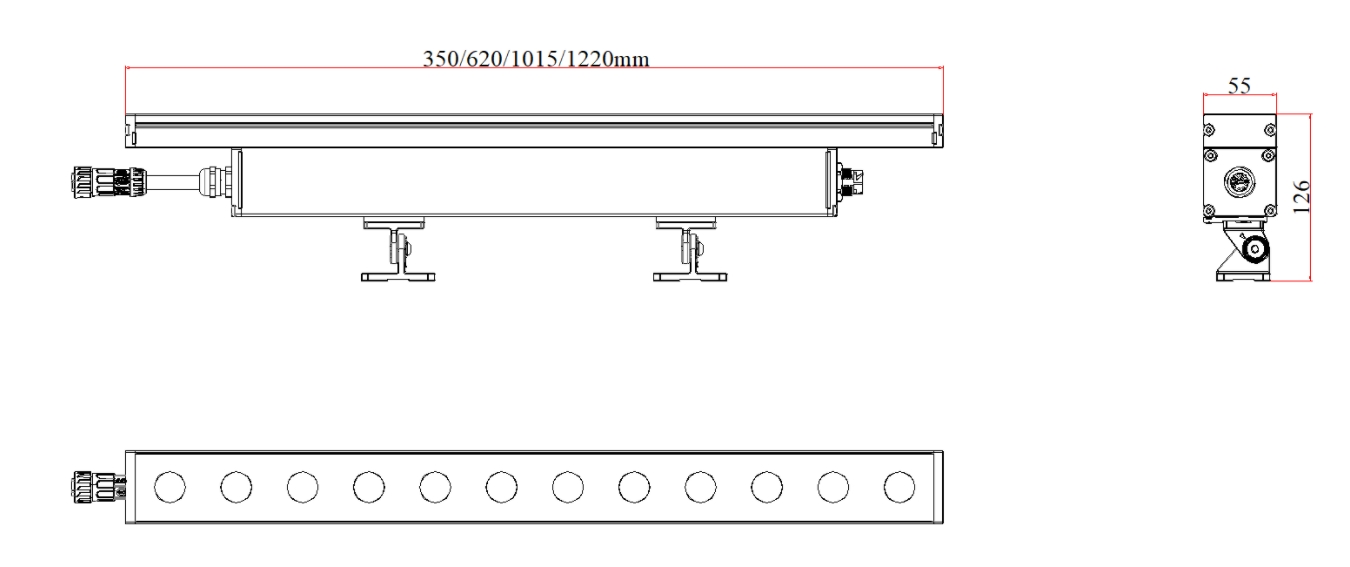

LWW-WZB-W55 dimension drawing for LED wall washer
IP66Outdoor protection
IK06Impact resistance
ETLUS & Canada projects
CEEuropean compliance
3-YearWarranty support

Color & Optic

Color Options

2800K
3000K
4000K
6300K
RGB
RGBW
Static white range 2800K–6300K. Color temperature customizable.

Beam Options

5 degree beam angle option for LWW-WZB-W55
5°
8 degree beam angle option for LWW-WZB-W55
8°
10 degree beam angle option for LWW-WZB-W55
10°
20 degree beam angle option for LWW-WZB-W55
20°
30 degree beam angle option for LWW-WZB-W55
30°
40 degree beam angle option for LWW-WZB-W55
40°
60 degree beam angle option for LWW-WZB-W55
60°
15x40 degree asymmetric beam option for LWW-WZB-W55
15×40°
15x55 degree asymmetric beam option for LWW-WZB-W55
15×55°
9 beam angle options including asymmetric distributions.

Product Specifications

Power18W / 35W / 65W
LED TypesSMD5050
ColorStatic White / RGB / RGBW
Input Voltage100–277V AC
Housing MaterialAluminum alloy 6063 + tempered glass
Waterproof MeasureMulti-layer structural waterproof
Control ModeDMX512 / RDM / 0–10V
Beam Angle5° / 8° / 10° / 20° / 30° / 40° / 60° / 15×40° / 15×55°
IP RatingIP66
Impact RatingIK06
Lifetime30,000 hrs
Dimensions350 / 620 / 1220mm × W55 × H126mm
Warranty3 years
Operating Temperature−20°C to +40°C

Model Configuration

Model Length Power Color Options Lumen Output Packing Info
LWW-WZB-W55-L3 350mm 18W
WRGB RGBW RGB
 630–1660 lm Weight: 1.5kg ±5% Qty/Ctn: 12 pcs Carton: 82 × 33.5 × 34.5 cm
LWW-WZB-W55-L6 620mm 35W
WRGB RGBW RGB
 1225–3220 lm Weight: 2.5kg ±5% Qty/Ctn: 8 pcs Carton: 67.5 × 43.5 × 34.5 cm
LWW-WZB-W55-L12 1220mm 65W
WRGB RGBW RGB
 2275–5980 lm Weight: 4.7kg ±5% Qty/Ctn: 4 pcs Carton: 129 × 23 × 34.5 cm

Lumen output by light source: Static white up to 92 lm/W; RGBW 50 lm/W; RGB 35 lm/W. All variants: 100–277V AC, IP66, IK06, ETL listed, CE certified, 3-year warranty.

Advantages

Optics for Wall Washing

Nine beam angles — from a tight 5° to a wide 60°, plus 15×40° and 15×55° asymmetric distributions — give designers the precision to graze, wash, or flood a facade without compromise.

DMX512 / RDM Control

Full DMX512/RDM support for dynamic color programming and multi-zone sequencing. Daisy-chain up to 128 fixtures per run (RGBW 4CH). Static white circuits can run on 0–10V dimming independently.

Static White, RGB and RGBW

Static white covers 2800K through 6300K for warm hospitality lobbies to crisp commercial exteriors. RGB and RGBW unlock full dynamic color — saturated primaries, color-mixed pastels, or tunable white on a single platform.

Corrosion-Resistant Aluminum Structure

Extruded 6063 aluminum profile with anodized finish improves corrosion resistance and weathering durability, while the multi-layer structural waterproofing keeps moisture out of the optical chamber for the long haul.

IP66 Outdoor Protection

Fully dust-tight and rated for high-pressure water jets from any direction. Suitable for coastal environments, exposed bridge decks, and high-wash-down commercial facades where cut-rate IP ratings fail within a season.

Quick-Connect Installation

Factory-installed quick connectors simplify field wiring, cut commissioning time on large runs, and make troubleshooting or lamp replacement straightforward without rewiring the circuit.

Application Scenarios

Building Facade Lighting

Wall washing, grazing, and linear accent on commercial towers, hotel facades, retail exteriors, and mixed-use podiums. The 55mm housing disappears against most facade details once installed.

Bridge and Infrastructure Lighting

Designed to handle the mechanical vibration, temperature swings, and moisture exposure that bridges and elevated structures demand. ETL listing covers US and Canadian infrastructure projects.

Hotel and Retail Exterior Lighting

Warm RGBW color mixing for hospitality arrivals and retail frontages where accurate color rendering and tunable white are non-negotiable for the brand experience at night.

Landscape and Public Space Lighting

Retaining walls, colonnades, park pavilions, and civic plazas. Three fixture lengths let you maintain consistent module spacing whether you're running 10 feet or 400.

The LWW-WZB-W55 is a long-term outdoor fixture. It performs best in applications where consistent light quality, tight optic control, and low maintenance access are priorities.

Impressions

Impression 1 LED wall washer architectural facade lighting | TPK Lighting
Impression 2 LED wall washer outdoor architectural lighting | TPK Lighting
Impression 3 LED wall washer landscape architectural lighting | TPK Lighting

Downloads

Specification Sheets

Certification Documents

Technical Files

Testing Reports & Application Media

Certifications & Compliance

ETL North America ETL listed for US and Canada project documentation. Meets ANSI/UL outdoor luminaire safety standards. Download ETL certificate CE European Market Certified for European low-voltage directive (LVD) and electromagnetic compatibility (EMC) requirements. Download CE certificate
RoHS Environmental Compliance Restriction of hazardous substances documentation is available with product files on request. Available with product files

Related Projects

Suria KLCC Malaysia commercial landmark facade illumination project | LED wall washer by TPK Lighting
Suria KLCC

DMX512 RGBW wall washing brings dynamic color to one of Southeast Asia's most recognized retail landmarks.

Commercial Landmark Facade

Suria KLCC

Kuala Lumpur, Malaysia
EDP Headquarters Lisbon Portugal corporate facade illumination project | LED wall washer by TPK Lighting
EDP Headquarters

CE-certified DMX512 RGBW system delivers precise dynamic facade lighting for a major European energy company's HQ.

Corporate Headquarters Facade

EDP Headquarters

Lisbon, Portugal
Volga River Bridge Russia bridge and infrastructure lighting project | LED wall washer by TPK Lighting
Volga River Bridge

RGBW DMX system articulates structural spans and creates a landmark night presence along the Volga.

Bridge & Infrastructure Lighting

Volga River Bridge

Russia

FAQ

Model: LWW-WZB-W55
What is the IP rating of the LWW-WZB-W55?
The LWW-WZB-W55 is rated IP66 — fully dust-tight and protected against high-pressure water jets from any angle. That covers the vast majority of outdoor facade, bridge, and landscape applications without concern. If your spec requires IP67 or IP68 for submersible or below-grade installation, that's a different product category.
Is the LWW-WZB-W55 ETL certified for North American projects?
Yes. The LWW-WZB-W55 carries ETL listing, which satisfies ANSI/UL safety requirements for the US and Canadian markets. The ETL certificate PDF is available on this page for submittal packages. For project-specific documentation requests, contact ES2@topkinglite.com.
What control systems are compatible with the LWW-WZB-W55?
The fixture runs on DMX512/RDM for full dynamic control and multi-zone programming. It supports master/slave mode and can be daisy-chained up to 128 units per run in RGBW 4-channel mode. For static white installations, 0–10V dimming is available. Input is 100–277V AC, so it's compatible with North American and international power without a separate transformer.
What beam angles are available for the LWW-WZB-W55?
Nine options: 5°, 8°, 10°, 20°, 30°, 40°, 60°, 15×40°, and 15×55°. Narrow angles (5°–10°) work on tall facades or long throw distances. Mid-range (20°–40°) handles standard wall washing. The 60° is your go-to for close-in grazing or diffuse wash on textured surfaces. The asymmetric 15×40° and 15×55° lenses are useful when you need to control horizontal spill without losing vertical coverage.
What lengths and wattages does the LWW-WZB-W55 come in?
Three lengths: 350mm (18W), 620mm (35W), and 1220mm (65W). Maximum delivered lumens for static white are 1,660 lm at 18W, 3,220 lm at 35W, and 5,980 lm at 65W — up to 92 lm/W. The fixture is 55mm wide and 126mm tall including the bracket, which keeps it unobtrusive on most facade details. Custom lengths are available; contact us for details.
What warranty does the LWW-WZB-W55 carry?
Three years on the complete luminaire assembly under normal outdoor installation and operating conditions. Rated lifetime is 30,000 hours; operating temperature range is −20°C to +40°C. For project-specific warranty documentation, reach out to ES2@topkinglite.com.

Accessories

Accessories can be supplied according to installation method, wiring layout and control configuration.

LWW-WZB-W55 LED wall washer accessory - End Cap
End Cap
Fixture end protection
LWW-WZB-W55 LED wall washer accessory - Signal Input Cable
Signal Input Cable
DMX / signal input connection
LWW-WZB-W55 LED wall washer accessory - Adapter Cable
Adapter Cable
Power or signal transition
LWW-WZB-W55 LED wall washer accessory - Y-Type Cable
Y-Type Cable
Branch wiring connection
LWW-WZB-W55 LED wall washer accessory - Waterproof Connector
Waterproof Connector
Outdoor cable sealing
