TPK delivers facade lighting as engineered solutions — matching fixture
geometry, structural limits and control planning to the real
building condition. Two paths are documented with figures from live installations.

Explore solutions Download IES
4,495Custom pixel fixtures
Tianjin Haitang Building
860Linear fixtures · 16 floors
Live! Hotel Maryland
ETL · CEView certifications
Confirm listing by model
Tianjin Haitang Building facade design rendering, decorative aluminum curtain-wall panel pattern, TPK Lighting

Facade solutions we deliver

Parametric cladding and glass curtain walls impose different constraints on fixtures, mounting and control. Two paths below are documented with live project data.

Other facade conditions

Metal panel, stone & concrete, and facade renovation can be assessed against drawings and mounting constraints. A full chapter will be published when a complete project evidence pack is ready.

Discuss your facade

Pixel-Integrated Curtain Wall

The luminaire is built into the facade package, not added to its surface. Each structural node becomes one addressable pixel — so the fixture shape is driven by the architecture, and a catalogue product usually cannot be used without custom development.

When this solution fits
01

Repeating nodes

Geometric pattern with a consistent structural node at each unit.

02

Day-invisible

Fixture reads as cladding, not as a light fitting.

03

Pixel control

Individually addressed for animation, not uniform wash.

04

Weight limit

Hard limit per node. No welding to primary structure.

LPM-HEX130 product above, night green-lit installed node effect below, TPK Lighting

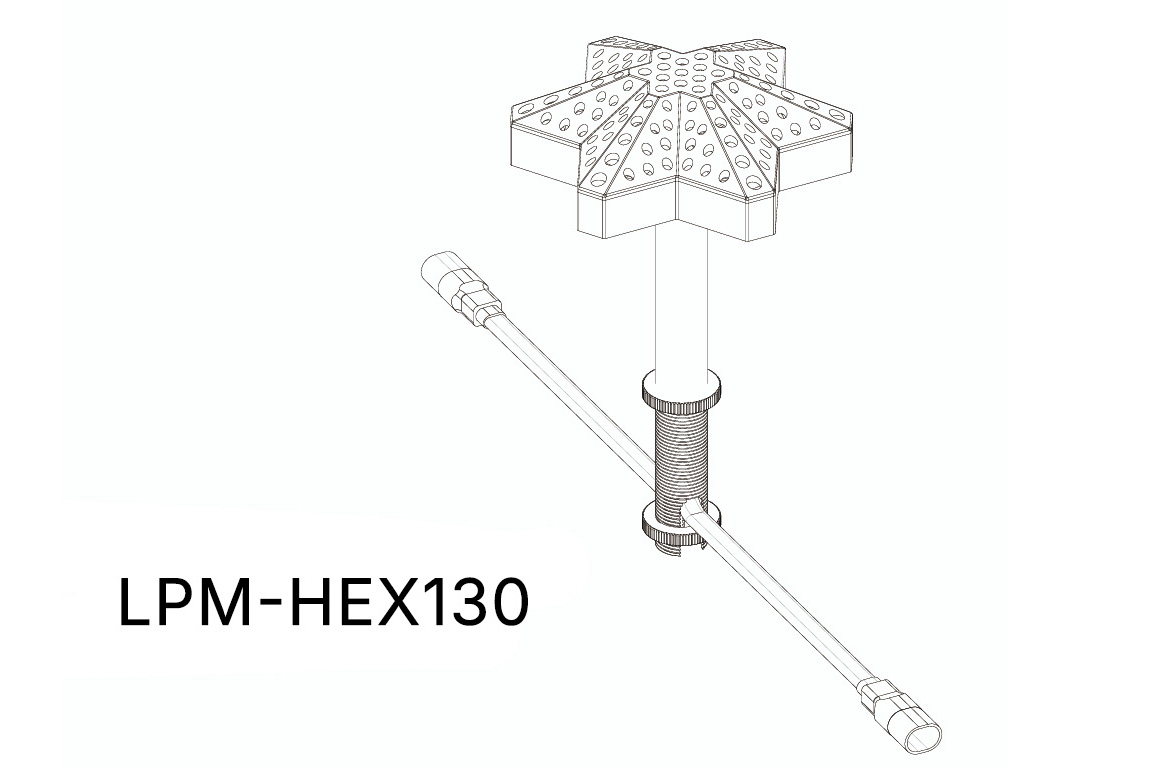

LPM-HEX130 product (top) and installed night effect (bottom).

Experience highlights What this project taught us

GeometryBuilding-fixed star → LPM-HEX130

concept to mould lock

Daytime lookAperture −1mm / −0.5mm · two sample cycles · designer sign-off
WeightPC 373.6g · metal 404.2g · XSJH202204221001
ThermalFEA peak 63.7°C · May 2022 report to project team
ControlMadrix · 12× MADRIX-A18D · 4,495 addresses
Scale4,495 fixtures · production order 2022 · Lit March 2023
Representative engineering problem
Custom pixel fixture engineering detail for Haitang curtain wall, TPK Lighting

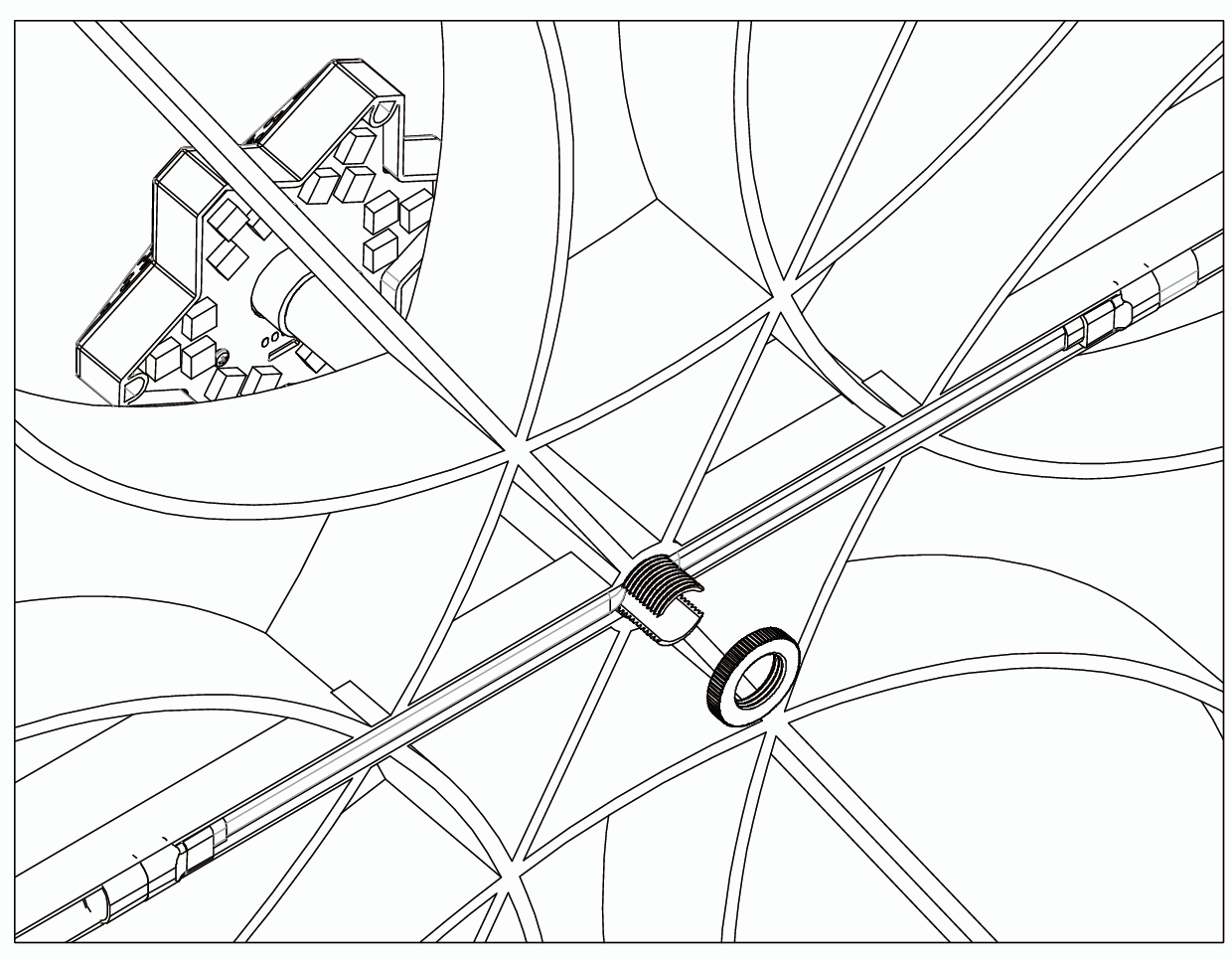

Challenge 01 · The shape is fixed by the building

A catalogue fixture cannot match the node

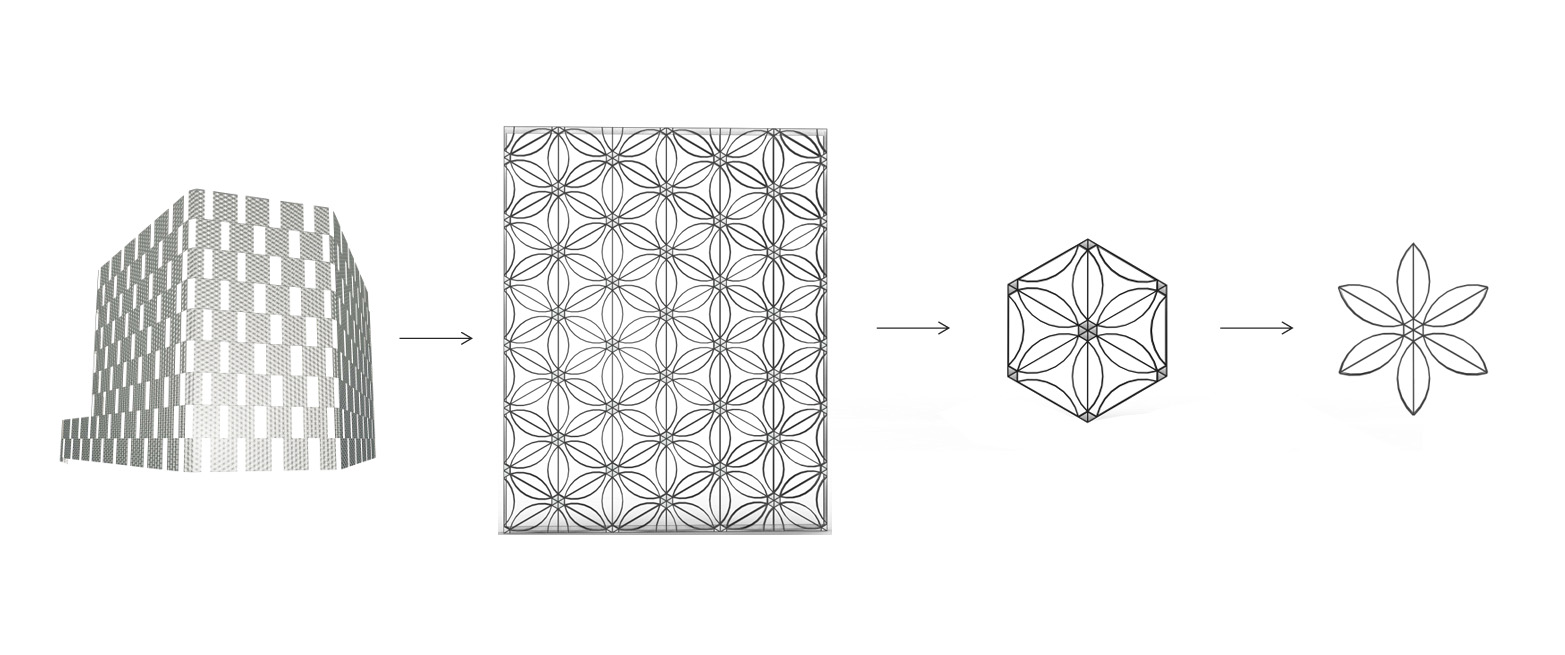

The Haitang facade uses a six-pointed star derived from the crabapple flower (海棠花). Each star is a structural element in the aluminium curtain wall. No existing model fit the shape and scale.

Resolved — LPM-MJ-HEX130-DMX from the architect's concept sketch: star aluminium body, PC face, plug-in clip into the node recess. Concept → samples → weight, thermal and aging validation → mould lock.

Further constraints Sample, load & thermal

02 · Daylight aperturesLarge −1mm · small −0.5mm over two cycles · designer “within acceptable range”
03 · Node weightPC 373.6g · metal 404.2g · both within structural limit
04 · Dense array thermalFEA peak 63.7°C within LED range · report supplied

Built, certified, supported Product on this path

ModelLPM-HEX130
Electrical12W · RGBW · DMX512 · DC 24V
BuildIP65 · 130mm · custom star · plug-in clip
ControlMadrix · 12× A18D · resolve address map before cabling
Evidence4,495 fixtures · FEA · weigh file XSJH202204221001
Product pageView product

Files on request: specification sheet, thermal simulation report (May 2022), DMX address scheme template.

Tianjin Haitang Building full facade pixel animation at night, TPK Lighting
China · Commercial Office · Parametric Curtain Wall

Tianjin Haitang Building

11-storey office, crabapple-derived star curtain wall, ~8,000 m². Custom LPM-HEX130-DMX from concept to production.

4,495 fixturesRGBW DMX512MadrixIP65Lit March 2023
View project references

Glass Curtain Wall — Slab-Edge Linear

A continuous glowing line at each floor slab edge, fixture recessed into the spandrel cavity. From street level only the light is visible — every decision starts from cavity depth.

When this solution fits
01

Spandrel line

Visible horizontal spandrel; continuous line at each slab edge.

02

Built-in cavity

Access after install means removing glass, not routine open access.

03

Fixed cable entries

New penetrations need installer and waterproofing coordination.

04

US listing

U.S. projects may require a recognized NRTL listing; CE marking does not substitute for the applicable U.S. certification requirement.

LLS-OP-W30C linear LED product for slab-edge install, TPK Lighting
LLS-OP-W30C — used in the 32mm spandrel cavity envelope.

Experience highlights What this project taught us

Cavity first1.25″ (≈32mm) sets the product envelope · BLTa submittal Mar 2020
Profile30×30mm · flat clip · drainage · tempered glass lens over PC
Lengths692× L12 · 105× L6 · 63× L3
Power~5× L12 per leg @24V · T-type two legs of five
ListingETL confirmed before production · Aug 2023 correspondence
Addressing860 factory sequential DMX · field address coder
Representative engineering problem
LLS-OP-W30C linear LED for slab-edge cavity install, TPK Lighting
Challenge 01 · Everything fits in 32mm

A 1.25-inch cavity sets the entire spec

Spandrel cavity 1.25 inches (≈32mm) — architect submittal (BLTa): fit within 1.25" cavity. Body, clip and cable termination must clear without structural change.

Resolved — LLS-OP-W30C 30×30mm extrusion; flat clip and drainage within tolerance. Tempered glass lens over PC for multi-year UV.

Further constraints Length, power, listing, address

02 · Floor-plate widths692 × L12 · 105 × L6 · 63 × L3 (1,219 / 610 / 305mm)
03 · No new penetrationsT-type split · two legs of five L12 at 24V
04 · U.S. listingRecognized NRTL listing as required · CE is not a substitute
05 · 860 at heightFactory sequential address · field coder
OrderM-231207GAB · Jan 2024
CertificationsView certifications

Built, certified, supported Products on this path

LLS-OP-W30C-L121,219mm · 15W · RGB · 24V · DMX512 · IP66 · ETL · Qty 692
LLS-OP-W30C-L6610mm · 8W · RGB · 24V · DMX512 · IP66 · ETL · Qty 105
LLS-OP-W30C-L3305mm · 4W · RGB · 24V · DMX512 · IP66 · ETL · Qty 63
Voltage drop~5% (1.2V) design · V-drop = I × R × L · T-type halves leg length
Product pageView product
Dimension drawingFixture geometry · not a curtain-wall construction section

Files on request: series specification sheet, 24V voltage-drop worksheet, DMX sequential address guide.

LLS-OP-W30C product dimension drawing, TPK Lighting

LLS-OP-W30C · Dimension drawing

Product outline and key fixture dimensions for the 30×30mm linear body used on slab-edge runs.

Project cavity depth was 1.25" (≈32mm). The drawing is fixture geometry — not a curtain-wall construction section. Confirm fit against the actual spandrel cavity before release.

View LLS-OP-W30C product
Live! Casino Hotel Maryland slab-edge linear at night, TPK Lighting
USA · Hotel High-Rise · Glass Curtain Wall

Live! Casino & Hotel Maryland

16-floor glass curtain wall, three elevations, Gable Company (Baltimore). 860 ETL-listed LLS-OP-W30C across three lengths.

860 fixturesETL3 lengths24V / DMX51216 floorsJan 2024
View project references

From Brief to Commissioning

Custom projects add sampling and validation rounds before mould lock.

01

Concept & geometry

Cladding drawings, node dimensions, fixing method.

02

Sample iteration

2–3 rounds of cover and aperture review before sign-off.

03

Validation

Weight, thermal, aging — submitted before mould lock.

04

Production

DMX addresses pre-programmed at factory.

05

Commissioning

Channel mapping, Madrix scenes, remote support.

Common Questions

Two documented paths: pixel-integrated curtain wall (Tianjin Haitang, 4,495 fixtures) and slab-edge linear (Live! Maryland, 860 fixtures). Other conditions can be reviewed project by project.
Yes. On Tianjin Haitang Building, TPK developed LPM-MJ-HEX130-DMX from concept sketch through samples, weight and thermal validation to mould lock.
Official page: tpk-led.com/certifications. Confirm the exact model against project requirements before production.
Specification sheets, thermal reports where available (e.g. Haitang FEA May 2022), DMX address templates, 24V voltage-drop worksheets. Email ES2@topkinglite.com or use Resources.

Have a facade project in mind?

Send your facade type, cladding drawings or cavity dimensions. Our engineering team will confirm whether a standard fixture fits or custom development is needed.

Send a project inquiry WhatsApp our team
