What is the IP rating of the YXYDF3B?

The YXYDF3B is rated IP66, making it fully dust-tight and resistant to high-pressure water jets from any direction. Combined with its ADC12 die-casting aluminum housing and tempered glass, it is built for extreme outdoor conditions including infrastructure and sports applications. Lifetime is rated at 50,000 hours.

Is the YXYDF3B UL/ETL certified for North American projects?

Yes. The YXYDF3B carries UL and ETL listings, ensuring it meets strict safety standards for North American projects. Certification documentation can be requested for project submittals via ES2@topkinglite.com.

What control systems are compatible with the YXYDF3B?

The YXYDF3B utilizes standard On/Off controls for high-efficiency static white applications, operating on an AC 100-277V input voltage infrastructure.

What warranty does the YXYDF3B carry?

The YXYDF3B is backed by a 5-year full-assembly warranty covering all manufacturing defects under normal operating conditions. With proper installation, the rated lifetime reaches 50,000 hours.

About Us

Certifications & Patents

Company News

Trade Show News

Company profile

FAQ
LED Wall Washer

Linear Light

LWW-PZT-W38A

LWW-WZB-W55

LWW-OP-D80

LWW-ROWS-W150

Spot Light

SP-DKP-F170A

SP-MEGA-F620A

SP-MEGA-F310A/B

Stadium Light

STD-YXYSW4

STD-YXYSW5

STD-YXYSW6

STD-YXYDF3A

LLS-WZB-W40

LLS-OP-W30A

LLS-OP-W20

LLS-OP-D50

SP-EA-R195/R225
Building Wall

Road Bridge

Jinyun County

Live Hotel

Living World Mall Indonesia

Turkmenistan Engineering

Mianyang city a ring road overpass

Lighting Project of Fujiang Bridge

The volga river bridge

Road Lamp Project of Nanlang Village

Sport stadium

Kleanthis Vikelidis Stadium

Florida Atlantic University

Shahid Nassiri Stadium

Rangers Ballpark
Catalogues

Tech Articles

Custom
Building Facade Lighting

bridge lighting

stadium lighting

urban lightin

hotel landscape lighting

landmark lighting

ꀅ English

WhatsApp Us

Email Us

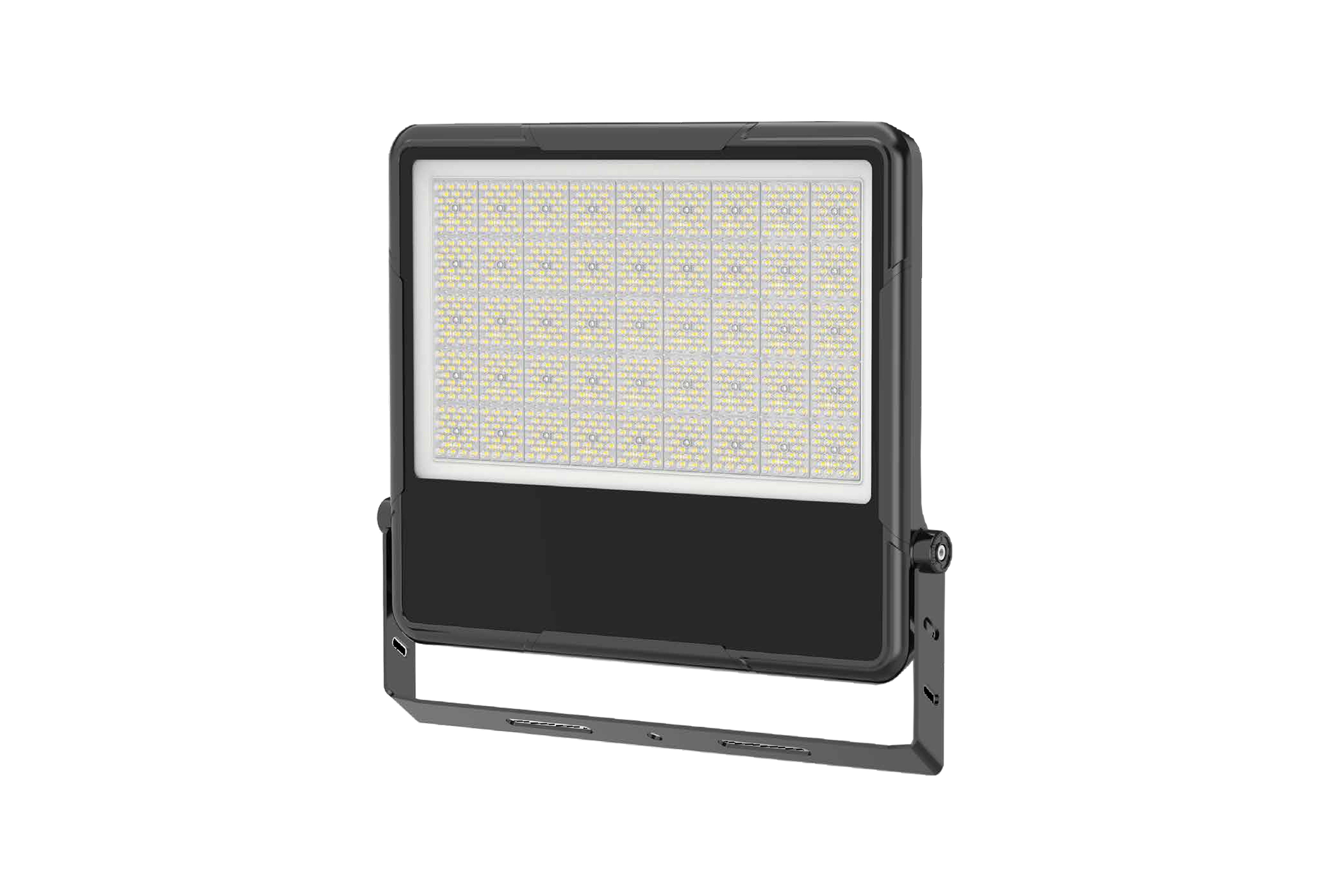

Narrow Beam AngleLED FloodlightModel: YXYDF3-B

YXYDF3-B

30W–500W IP66 Narrow Beam LED Floodlight — UL Listed, CE Certified

The YXYDF3-B (DIAMOND III Narrow Beam Series) is a professional LED floodlight engineered for outdoor infrastructure, landscape, and architectural applications demanding precise optical control. Constructed with ADC12 die-casting aluminum, it delivers excellent thermal management and up to 150 lm/W efficacy. Available in 30W to 500W configurations, the fixture features an offset bracket with ±120° adjustment, IK08 tempered glass, and multiple precise beam angles including asymmetric options.

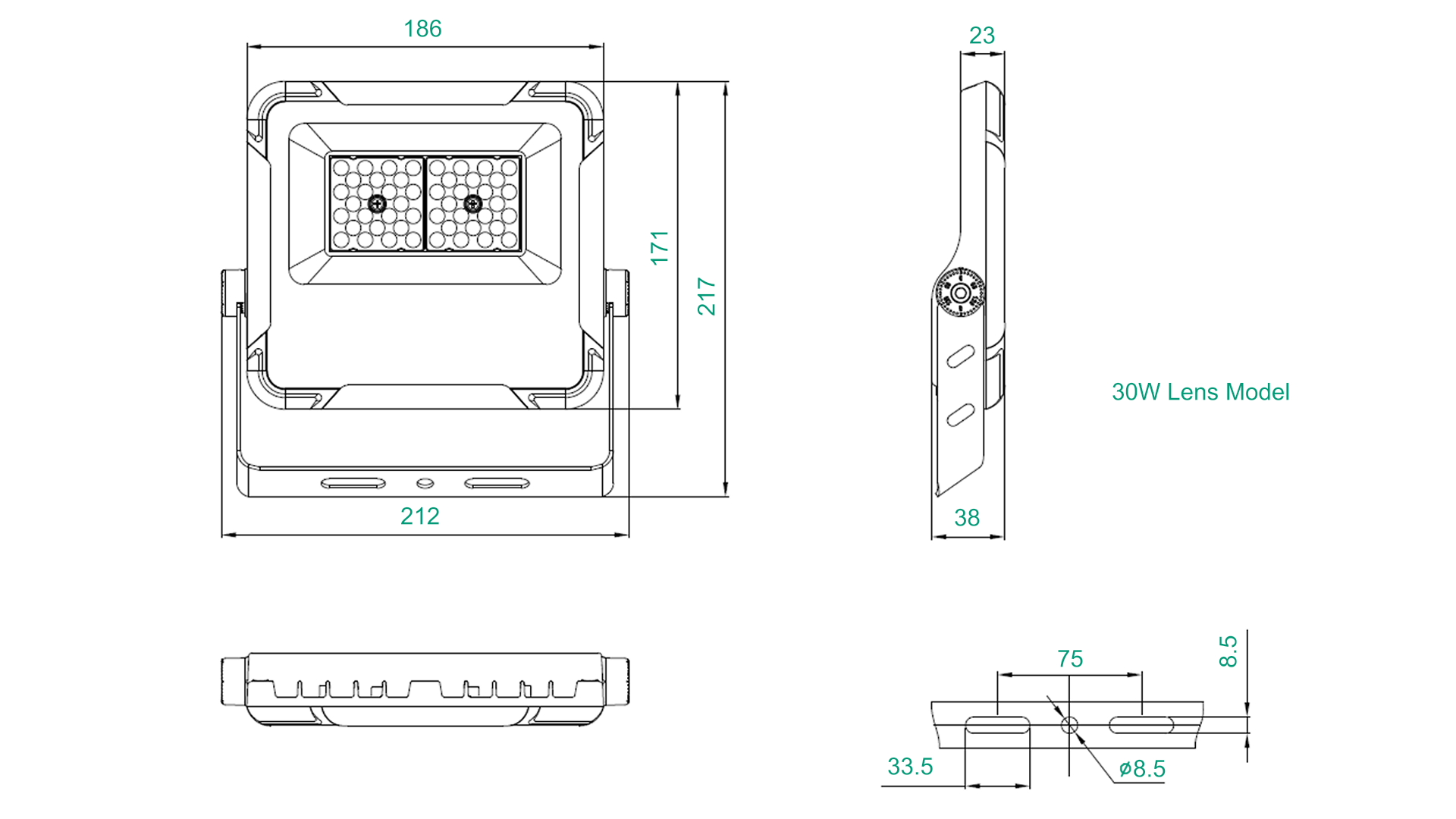

YXYDF3B LED floodlight dimension drawing

IP66Outdoor protection

IK08Impact resistance

ULNorth America compliance

CEEuropean compliance

5-YearWarranty support

Color & Optic

Color Options

3000K

4000K

5000K

5700K

6500K

Static white CCTs available from 3000K to 6500K (CRI >80)

Beam Options

30°

45°

60°

90°

70×150°

Precision optical lenses for diverse wall washing and floodlighting effects

Technical Parameters Model Configuration

Product Specifications

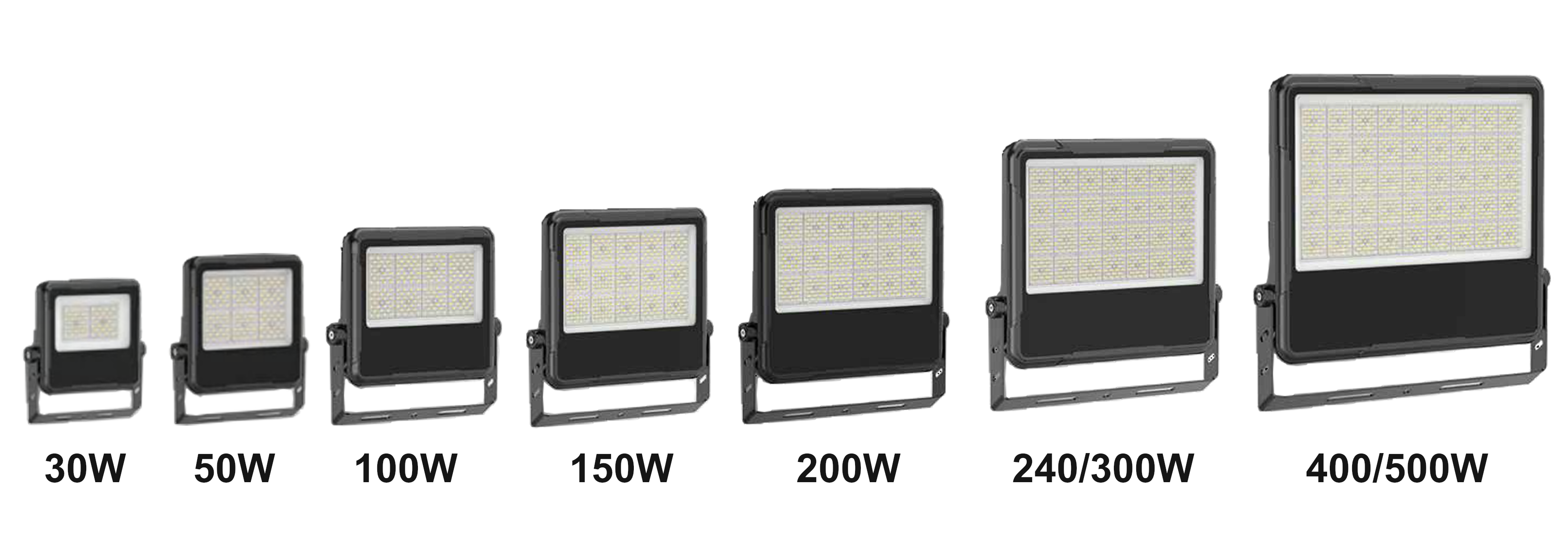

Power30W / 50W / 100W / 150W / 200W / 250W / 300W / 400W / 500W

LED TypesLUMILEDS 2835

ColorStatic White

Input Voltage100–277V AC

Housing MaterialADC12 Die-casting Aluminum

Cover Lens4mm Tempered glass

Control ModeStandard On/Off

Beam Angle30° / 45° / 60° / 90° / 70×150°

IP RatingIP66

Impact RatingIK08

Size217–550 × 212–589 × 38–56mm

Lifetime50,000 hrs

Warranty5 years

Operating Temperature−25°C to +50°C

Model Configuration

Model	Length	Power	Color Options	Lumen Output	Packing Info
YXYDF3-B30W	217mm	30W	White	4,500 lm	Weight: 1.10 KG Qty/Ctn: 10 Units/Ctn Carton: 490×230×240mm
YXYDF3-B50W	254mm	50W	White	7,500 lm	Weight: 1.50 KG Qty/Ctn: 10 Units/Ctn Carton: 550×270×260mm
YXYDF3-B100W	302mm	100W	White	15,000 lm	Weight: 2.25 KG Qty/Ctn: 5 Units/Ctn Carton: 330×320×330mm
YXYDF3-B150W	358mm	150W	White	22,500 lm	Weight: 3.25 KG Qty/Ctn: 5 Units/Ctn Carton: 390×360×370mm
YXYDF3-B200W	386mm	200W	White	30,000 lm	Weight: 4.40 KG Qty/Ctn: 5 Units/Ctn Carton: 420×395×405mm
YXYDF3-B250W	460mm	250W	White	37,500 lm	Weight: 6.40 KG Qty/Ctn: 2 Units/Ctn Carton: 495×175×490mm
YXYDF3-B300W	460mm	300W	White	45,000 lm	Weight: 6.40 KG Qty/Ctn: 2 Units/Ctn Carton: 495×175×490mm
YXYDF3-B400W	550mm	400W	White	60,000 lm	Weight: 11.00 KG Qty/Ctn: 2 Units/Ctn Carton: 650×170×625mm
YXYDF3-B500W	550mm	500W	White	75,000 lm	Weight: 11.50 KG Qty/Ctn: 2 Units/Ctn Carton: 650×170×625mm

Lumen output calculated at 150 lm/W (±5%). Specific lumen output may vary based on exact CCT and optics configuration. All models are IP66 and carry a 5-year warranty.

Advantages

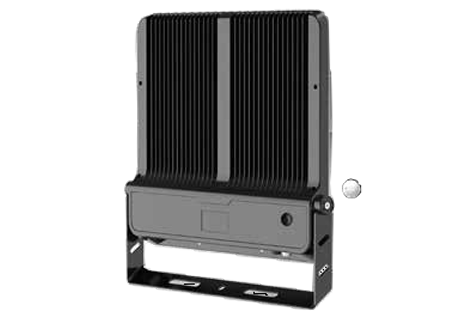

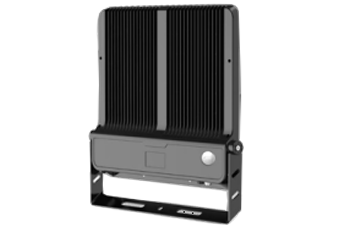

ADC12 Die-Casting Heat Sink

Excellent thermal management reduces temperature differences and ensures low lumen depreciation over the fixture's 50,000-hour rated lifetime.

Narrow Beam Precision

Multiple narrow and asymmetrical beam options allow for highly targeted optical alignment and long-distance projection.

Integrated Breather Valve

Perfectly balances internal and external temperature and humidity to protect internal components in harsh weather conditions.

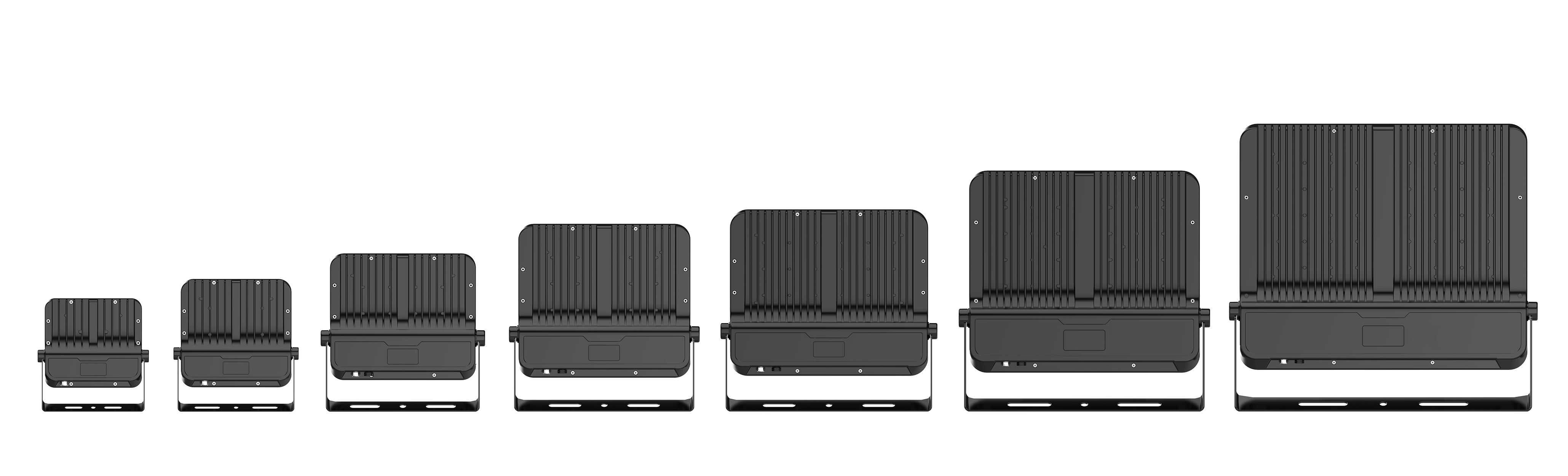

Offset Adjustable Bracket

The specialized racked angle design allows for ±120° adjustment, enabling precise installation and accurate light aiming.

Tempered Glass Protection

High-strength tempered glass cover provides robust physical protection for demanding outdoor and infrastructure environments.

High Efficiency Performance

Top-tier LUMILEDS chips and premium drivers deliver up to 150 lm/W efficacy, maximizing light output while minimizing energy costs.

Impressions

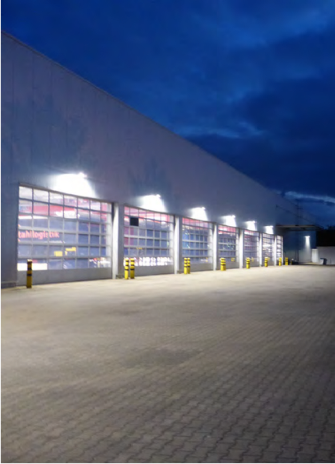

YXYDF3B high power floodlight application view

YXYDF3B stadium and sports lighting effect

Outdoor LED floodlight structure illumination

Downloads

Specification Sheets

Certification Documents

ETL Certification

Technical Files

Testing Reports & Application Media

Certifications & Compliance

ULNorth AmericaUL listed for US and Canada project documentation. Meets safety standards for outdoor luminaires.Available with documentation

CEEuropean MarketCertified for European LVD and EMC requirements for outdoor high power luminaires.Available with documentation

RoHSEnvironmental ComplianceRoHS hazardous substance restriction documentation available with product files on request.Available with documentation

Related Projects

Prokurative

Elegant outdoor event lighting seamlessly integrated into a historic plaza, providing balanced, high-visibility illumination for public sporting and cultural events.

Public Space Lighting
