What is the IP rating of the YXYDF2?

The YXYDF2 is rated IP66, making it fully dust-tight and resistant to high-pressure water jets from any direction. Combined with its ADC12 die-casting aluminum housing and 4mm tempered glass, it is built for extreme outdoor conditions including infrastructure and facade applications. Lifetime is rated at 50,000 hours.

Is the YXYDF2 CE / SAA certified for international projects?

Yes. The YXYDF2 carries CE and SAA listings, ensuring it meets strict safety and electrical standards for European, Australian, and global projects. Certification documentation can be requested for project submittals via ES2@topkinglite.com.

What control systems are compatible with the YXYDF2?

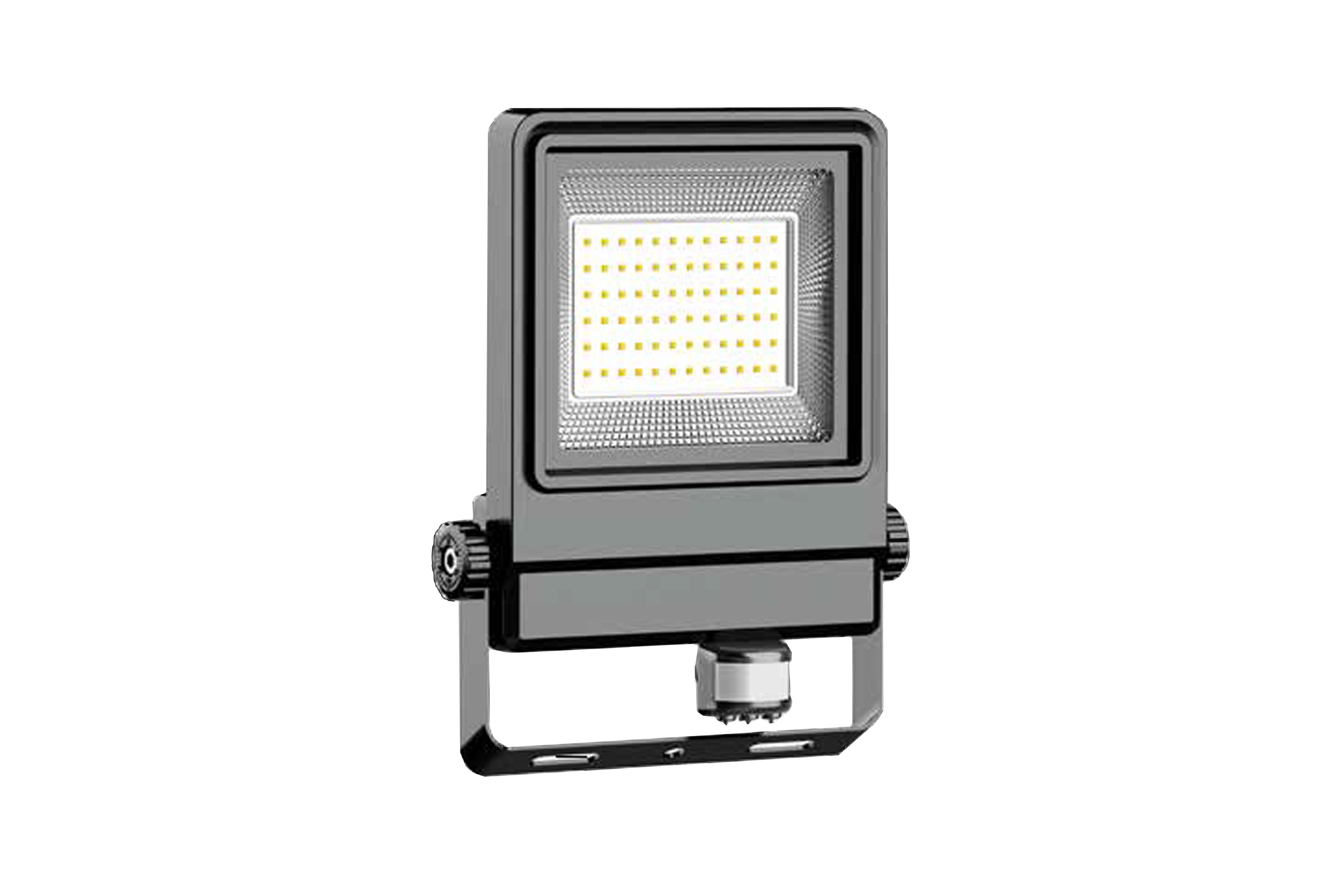

The YXYDF2 utilizes standard On/Off controls for high-efficiency static white applications, operating on an AC 100-277V input voltage infrastructure. An optional PIR sensor model is also available for energy-saving automation.

What warranty does the YXYDF2 carry?

The YXYDF2 is backed by a 5-year full-assembly warranty covering all manufacturing defects under normal operating conditions. With proper installation and thermal management provided by the ADC12 heat sink, the rated lifetime reaches 50,000 hours.

About Us

Certifications & Patents

Company News

Trade Show News

Company profile

FAQ
LED Wall Washer

Linear Light

LWW-PZT-W38A

LWW-WZB-W55

LWW-OP-D80

LWW-ROWS-W150

Spot Light

SP-DKP-F170A

SP-MEGA-F620A

SP-MEGA-F310A/B

Stadium Light

STD-YXYSW4

STD-YXYSW5

STD-YXYSW6

STD-YXYDF3A

LLS-WZB-W40

LLS-OP-W30A

LLS-OP-W20

LLS-OP-D50

SP-EA-R195/R225
Building Wall

Road Bridge

Jinyun County

Live Hotel

Living World Mall Indonesia

Turkmenistan Engineering

Mianyang city a ring road overpass

Lighting Project of Fujiang Bridge

The volga river bridge

Road Lamp Project of Nanlang Village

Sport stadium

Kleanthis Vikelidis Stadium

Florida Atlantic University

Shahid Nassiri Stadium

Rangers Ballpark
Catalogues

Tech Articles

Custom
Building Facade Lighting

bridge lighting

stadium lighting

urban lightin

hotel landscape lighting

landmark lighting

ꀅ English

WhatsApp Us

Email Us

Narrow Beam AngleLED FloodlightModel: YXYDF2

YXYDF2

30W–300W IP66 LED Floodlight — CE, CB, SAA Certified

The YXYDF2 (DIAMOND II Series) is a professional narrow beam angle LED floodlight designed for architectural, landscape, and bridge illumination. Utilizing ADC12 die-casting aluminum for superior thermal management, it delivers up to 150 lm/W efficacy. Available in 30W to 300W configurations, the fixture features a versatile racked angle bracket with 270° adjustment, IK08 tempered glass, and static white CCT options. It carries CE, CB, and SAA certifications for global project compliance.

IP66Outdoor protection

IK08Impact resistance

CEEuropean compliance

ETLNorth America safety

5-YearWarranty support

Color & Optic

Color Options

3000K

4000K

5000K

5700K

Static white CCTs available from 3000K to 5700K (CRI >80)

Beam Options

120°

Standard 120° wide beam optical distribution for large area floodlighting

Technical Parameters Model Configuration

Product Specifications

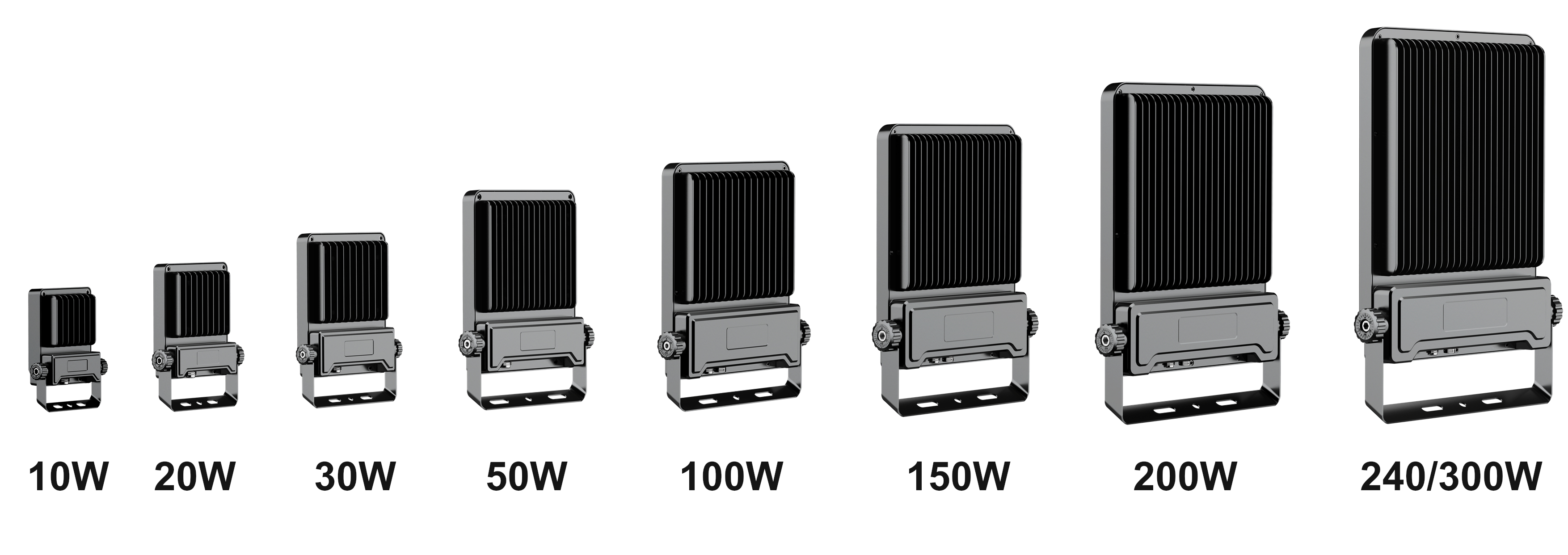

Power30W / 50W / 100W / 150W / 200W / 240W / 300W

LED TypesLUMILEDS 2835 SMD

ColorStatic White

Input Voltage100–277V AC

Housing MaterialADC12 Die-casting Aluminum

Cover Lens4mm Tempered glass

Control ModeStandard On/Off

Beam Angle120°

IP RatingIP66

Impact RatingIK08

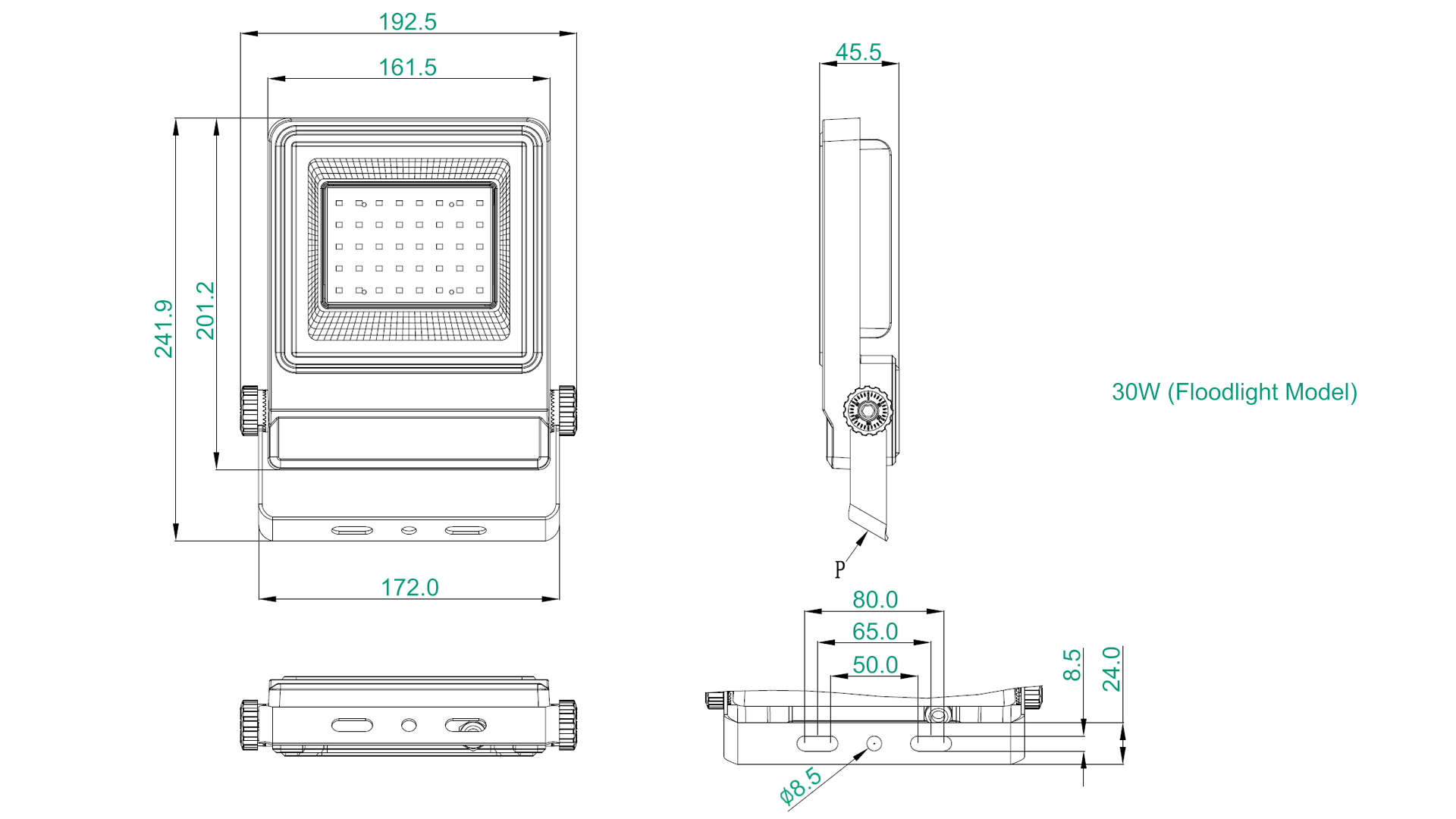

Size201–486 × 193–406 × 46–69mm

Lifetime50,000 hrs

Warranty5 years

Operating Temperature−25°C to +50°C

Model Configuration

Model	Length	Power	Color Options	Lumen Output	Packing Info
YXYDF2-30W	201mm	30W	White	4,500 lm	Weight: 1.10 KG Qty/Ctn: 15 Units/Ctn Carton: 605×310×270mm
YXYDF2-50W	247mm	50W	White	7,500 lm	Weight: 1.60 KG Qty/Ctn: 10 Units/Ctn Carton: 520×315×320mm
YXYDF2-100W	301mm	100W	White	15,000 lm	Weight: 2.80 KG Qty/Ctn: 5 Units/Ctn Carton: 395×330×400mm
YXYDF2-150W	358mm	150W	White	22,500 lm	Weight: 4.50 KG Qty/Ctn: 5 Units/Ctn Carton: 400×395×495mm
YXYDF2-200W	412mm	200W	White	30,000 lm	Weight: 5.80 KG Qty/Ctn: 4 Units/Ctn Carton: 415×330×555mm
YXYDF2-240W	486mm	240W	White	37,500 lm	Weight: 7.85 KG Qty/Ctn: 3 Units/Ctn Carton: 460×275×630mm
YXYDF2-300W	486mm	300W	White	45,000 lm	Weight: 8.00 KG Qty/Ctn: 3 Units/Ctn Carton: 460×275×630mm

Lumen output calculated at 150 lm/W (±5%). All models are IP66 and carry a 5-year warranty.

Advantages

ADC12 Die-Casting Heat Sink

Excellent thermal management maintains stable lumen output and minimizes temperature differences, ensuring the fixture's long-term performance.

Racked Angle Adjustment

Features 10° adjustment steps allowing for up to 270° of precise installation adjustment, adapting to various mounting environments.

Integrated Breather Valve

Perfectly balances internal and external temperature and humidity, protecting internal components from harsh outdoor weather elements.

High-Strength Bracket

Galvanized, corrosion-resistant cold-rolled plate bracket with integral flanging provides high mechanical strength for secure mounting.

Tempered Glass Protection

4mm thick tempered glass provides IK08 impact resistance, significantly enhancing the fixture's durability in public and commercial spaces.

Premium Efficiency

Lumileds 2835 chips paired with high-quality SOSEN drivers deliver an impressive 150 lm/W efficacy, maximizing brightness while reducing energy costs.

Impressions

YXYDF2 building facade lighting impression

YXYDF2 bridge and infrastructure lighting effect

Downloads

Specification Sheets

Certification Documents

ETL Certification

Technical Files

Testing Reports & Application Media

Certifications & Compliance

CEEuropean MarketCertified for European LVD and EMC requirements for outdoor high power luminaires.Available with documentation

ETLNorth America ComplianceETL certified for safety and electrical compliance in United States and Canada projects.Available with documentation

RoHSEnvironmental ComplianceRestriction of hazardous substances documentation included with product files on request.Available with documentation

Related Projects

Prokurative

Elegant outdoor event lighting seamlessly integrated into a historic plaza, providing balanced, high-visibility illumination for public sporting and cultural events.

Public Space Lighting
