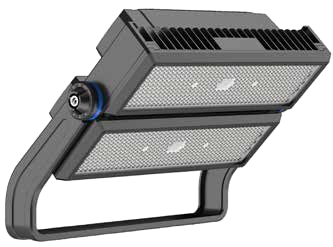

YXYSW8
SKYWING
|
|
|
|
|
Tempering Glass for Harsh Environment |

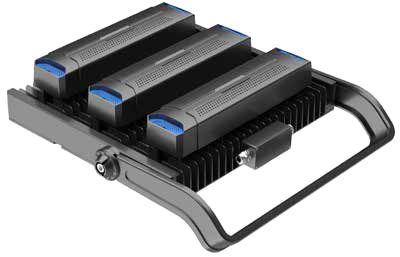

Die-casting Aluminum Teminal Box |

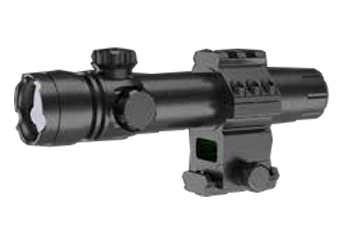

Aming Device & Spill Sheild |
|
.Optional accessories are available
|
||
|
High wattage from 200W to 1500W Light efficiency up to 150lm/W High strength polycarbonate lens, optical lighting distribution: 10°/15°/25°/45°/60°/90° Integrated die casting heat sink: Excellent thermal management & compact structure Module gap design: Reduces wind resistance area and increase heat dissipation performance Integrated breather valve: Balance the internal & external temperature and humidity 4mm thickness U shape bracket: High-strength cold-rolled plate designwith integral flanging and bending, light weight, high mechanical strength, Special corrosion treatment to reach the WF2 standard. Double surge protection: Driver & extra 10KV SPD Options: DALI, DMX |
||
|
|
||
Model Configuration Table:
|
Model No. |
YXYSW8 -H300W |
YXYSW8 -H600W |
YXYSW8 -H900W |
YXYSW8 -H1200W |
YXYSW8 -H1500W |
|
Power |
240W/300W |
480W/600W |
720W/900W |
960W/1200W |
1200W/1500W |
|
Input Voltage |
AC100-277V;50/60Hz |
||||
|
Lumen EFF |
150LM/W(±5%) |
||||
|
LED Brand |
LUMILEDS 2835/LUMILEDS 3030/OSRAM 3737 |
||||
|
Driver Brand |
MEANWELL/ SOSEN /INVENTRONICS |
||||
|
CCT |
3000K/4000K/5000K/5700K/6500K |
||||
|
CRI |
Ra>80(70,90 Optional) |
||||
|
PF |
0.95 |
||||
|
Beam Angle |
10°/15°/25°/45°/60°/90°/Asymmetrical 60° |
||||
|
IP Rating |
IP66 |
||||
|
IK Rating |
IK08 |
||||
|
Warranty |
5 Years |
||||
|
Life Span |
50,000Hrs |
||||
|
Working Temperature |
-35C-+50C |
||||
|
Dimmension(mm) |
560*250*148mm |
560*447*148mm |
560*447*148mm |
560*761*148mm |
560*918*148mm |
|
Certifcation |
UL/ETL/CQC/CB/CE/ENEC/SAA/FCC/RoHS |
||||
Case diagram:
