High Power Sports & FloodlightLED FloodlightModel: YXYSW7

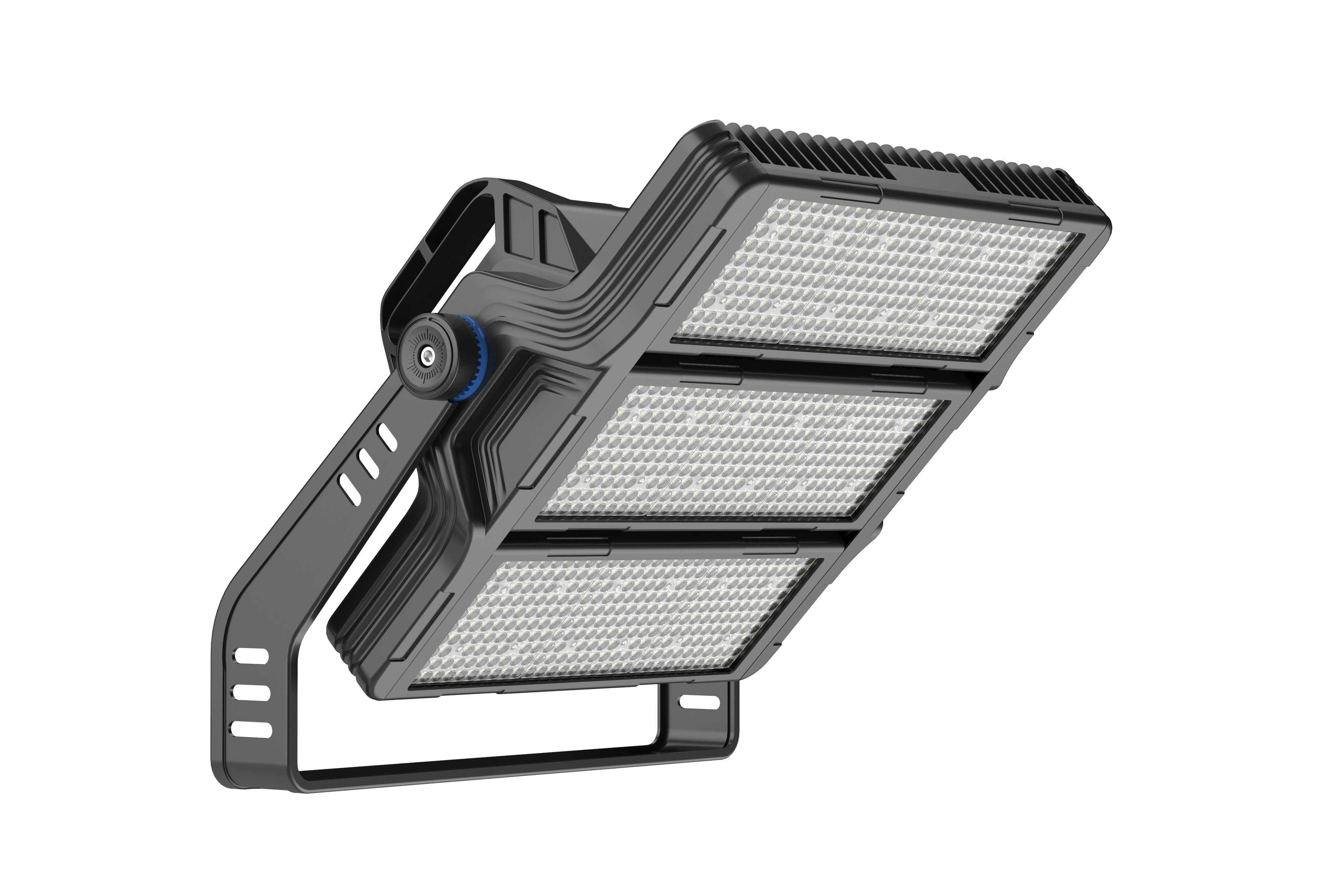

YXYSW7 400W-1800W IP66 LED floodlight for stadium and large infrastructure lighting

YXYSW7

400W–1800W Modular IP66 LED Floodlight — UL/ETL Listed, CE Certified

The YXYSW7 (SKYWING SF07 Series) is a high-power, modular LED floodlight engineered for professional sports stadiums, high mast, and large-scale infrastructure illumination. Featuring independent modules scalable from 400W up to 1800W, it utilizes ADC12 die-casting aluminum heat sinks to ensure excellent thermal management and up to 170 lm/W efficacy. A built-in 10KV SPD, precision aiming device, IK08 tempered glass, and 270° racked angle adjustment combine to provide a highly durable, broadcast-quality lighting solution.

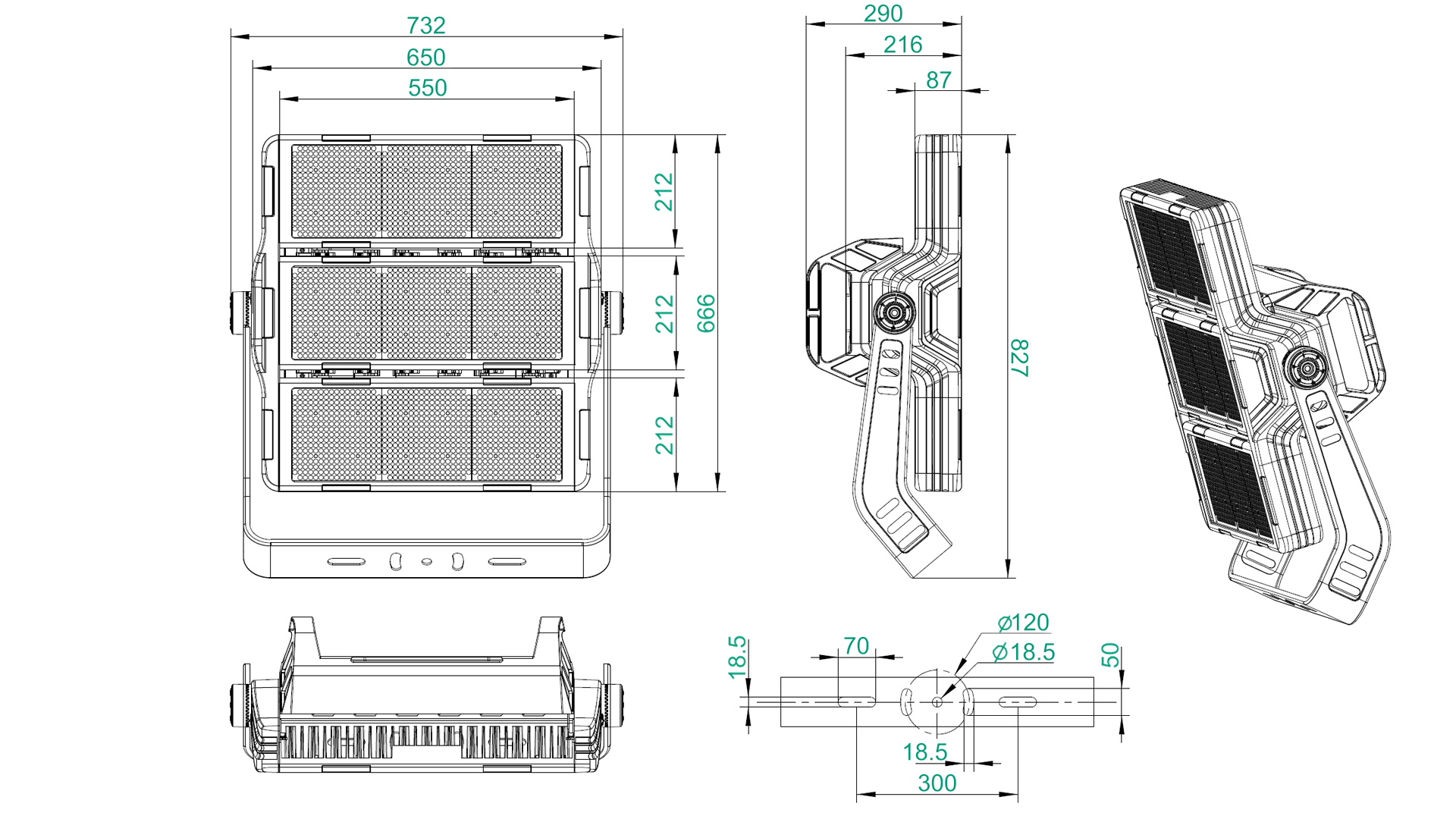

YXYSW7 LED floodlight modular design preview
DLCEnergy rebate qualified
ETLNorth America safety
ULNorth America compliance
CEEuropean compliance
5-YearWarranty support

Color & Optic

Color Options

3000K
4000K
5000K
5700K
6500K
Static white CCTs available from 3000K to 6500K (CRI 70+/80+)

Beam Options

10 degree beam angle
10°
25 degree beam angle
25°
45 degree beam angle
45°
60 degree beam angle
60°
90 degree beam angle
90°
High strength polycarbonate lens for precise optical control, Asym 60°

Product Specifications

Power400W / 500W / 600W / 800W / 1000W / 1200W / 1500W / 1800W
LED TypesLUMILEDS / OSRAM
ColorStatic White
Input Voltage100–277V AC
Housing MaterialADC12 Die-casting Aluminum
Cover LensPolycarbonate / Tempered glass option
Control ModeDALI / DMX / 1-10V
Beam Angle10° / 25° / 45° / 60° / 90° / Asym 60°
IP RatingIP66
Impact RatingIK08
Size718 / 732 × 422–839 × 290–350mm
Lifetime60,000 hrs
Warranty5 years
Operating Temperature−35°C to +50°C

Model Configuration

Model Length Power Color Options Lumen Output Packing Info
YXYSW7-G400W 718mm 400W
White
60,000 lm
Weight: 18.00 KG Qty/Ctn: 1 Units/Ctn Carton: 760×260×370mm
YXYSW7-G500W 718mm 500W
White
75,000 lm
Weight: 18.00 KG Qty/Ctn: 1 Units/Ctn Carton: 760×260×370mm
YXYSW7-G600W 718mm 600W
White
90,000 lm
Weight: 18.00 KG Qty/Ctn: 1 Units/Ctn Carton: 760×260×370mm
YXYSW7-G800W 732mm 800W
White
120,000 lm
Weight: 33.00 KG Qty/Ctn: 1 Units/Ctn Carton: 770×330×640mm
YXYSW7-G1000W 732mm 1000W
White
150,000 lm
Weight: 33.00 KG Qty/Ctn: 1 Units/Ctn Carton: 770×330×640mm
YXYSW7-G1200W 732mm 1200W
White
180,000 lm
Weight: 33.00 KG Qty/Ctn: 1 Units/Ctn Carton: 770×330×640mm
YXYSW7-G1500W 732mm 1500W
White
225,000 lm
Weight: 45.00 KG Qty/Ctn: 1 Units/Ctn Carton: 770×330×880mm
YXYSW7-G1800W 732mm 1800W
White
270,000 lm
Weight: 45.00 KG Qty/Ctn: 1 Units/Ctn Carton: 770×330×880mm

Lumen output calculated at 150 lm/W (±5%). Higher efficacy options up to 170 lm/W are available. Specific lumen output may vary based on exact CCT and optics configuration. All models are IP66 and carry a 5-year warranty.

Advantages

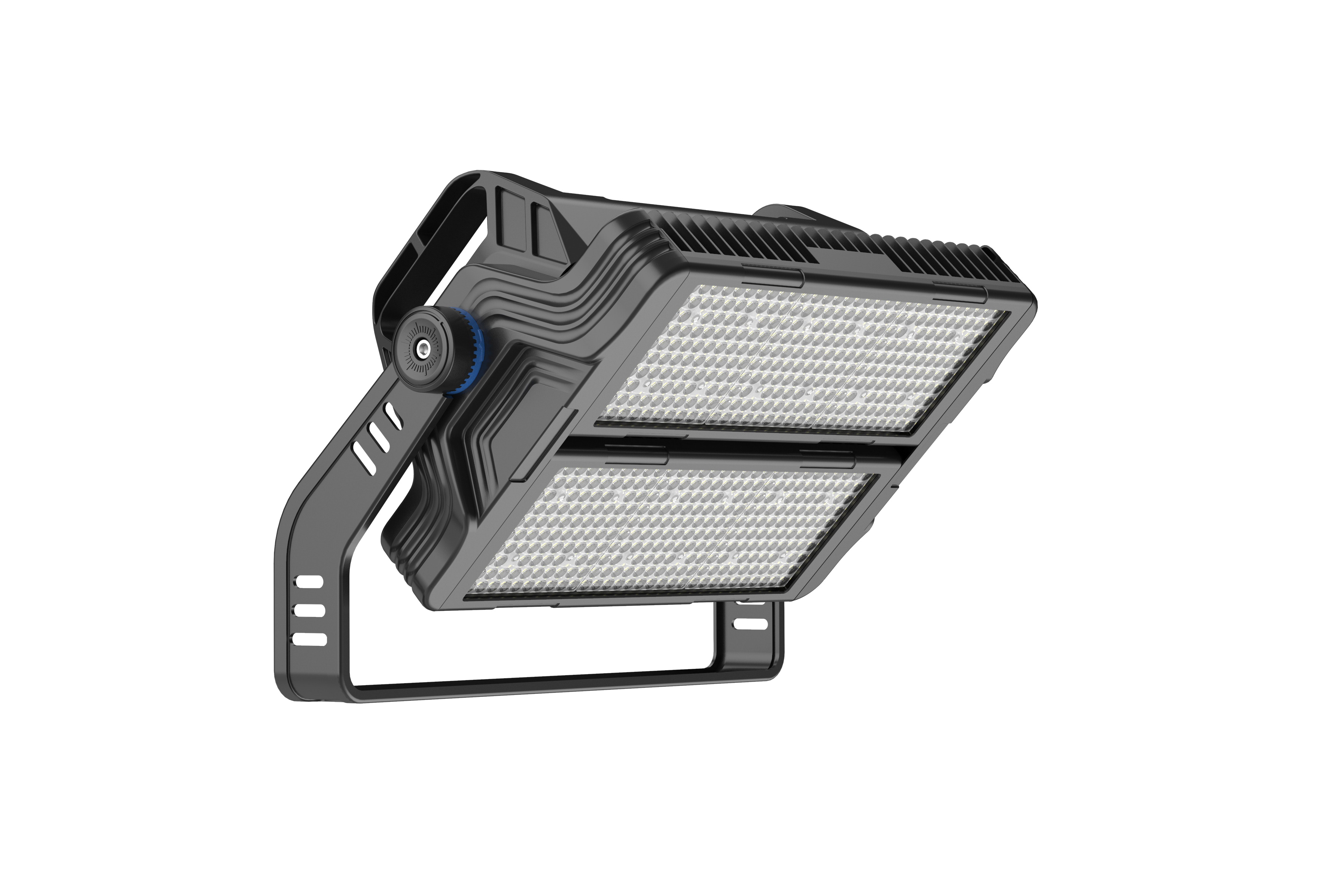

Scalable Modular Design

Power ratings scale from 400W up to 1800W by combining multiple independent light modules, offering tailored configurations for stadiums and high mast applications.

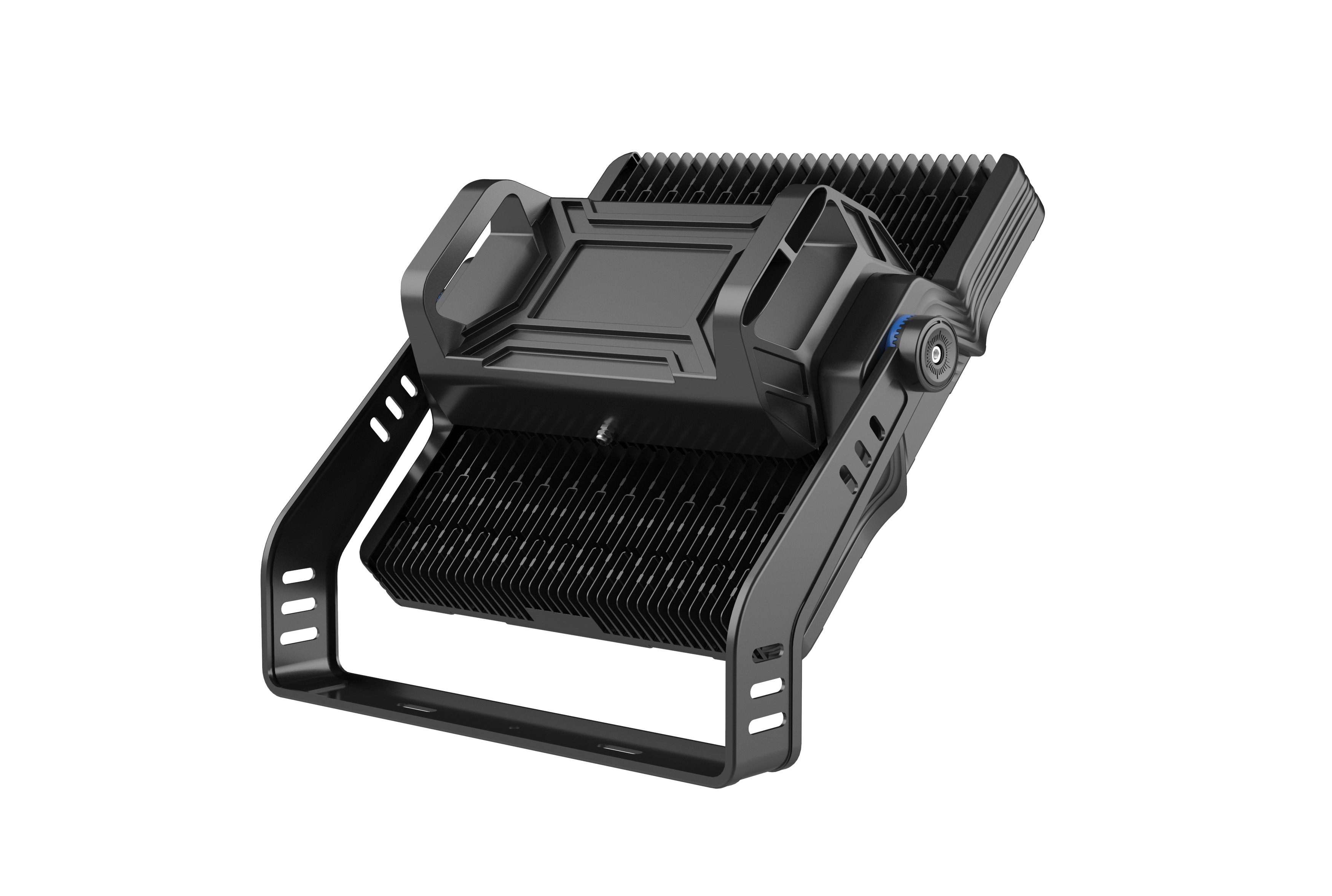

ADC12 Die-Casting Heat Sink

Integrated ADC12 die-casting aluminum delivers excellent thermal management, maintaining stable lumen output and a compact footprint over the 60,000-hour rated lifetime.

Precision Aiming Device

Optional aiming scope allows for fast and highly accurate beam alignment on site, essential for professional sports lighting and broadcast-quality requirements.

Racked Angle Adjustment

High-strength cold-rolled bracket design with 10° adjustment steps allows for up to 270° of precise aiming, making it perfect for complex architectural angles.

Tempered Glass & IK08

Features a 4mm tempered glass cover that provides robust IK08 impact resistance and further reduces UV degradation, ideal for harsh and coastal environments.

Double Surge Protection

Built-in high-quality drivers from premium brands combined with an extra 10KV SPD protect the fixture against severe voltage fluctuations and outdoor electrical surges.

Impressions

YXYSW7 stadium and high mast lighting effect
YXYSW7 LED floodlight structure illumination
YXYSW7 LED floodlight structure illumination

Downloads

Specification Sheets

Certification Documents

Technical Files

Testing Reports & Application Media

Certifications & Compliance

ULNorth AmericaUL listed for US and Canada project documentation. Meets safety standards for outdoor luminaires.Available with documentation
CEEuropean MarketCertified for European LVD and EMC requirements for outdoor high power luminaires.Available with documentation
DLCDLC PremiumDLC Premium certification documentation available for energy efficiency, rebate, and project submittal requirements.Available with documentation

Related Projects

Kleanthis Vikelidis Stadium sports lighting project Greece by TPK Lighting
Kleanthis Vikelidis Stadium

Advanced LED stadium illumination meeting international broadcasting standards for premier European football matches.

Sports Lighting

Kleanthis Vikelidis Stadium

Thessaloniki, Greece
Rangers Ballpark stadium lighting project USA by TPK Lighting
Rangers Ballpark

High-performance LED floodlighting system delivering broadcast-quality illumination for professional baseball games.

Sports Lighting

Rangers Ballpark

USA
Stadio Olimpico sports lighting project by TPK Lighting
Stadio Olimpico

High-output LED sports lighting system designed for world-class stadiums, delivering exceptional uniform illumination that meets elite international broadcasting standards.

Sports Lighting

Stadio Olimpico

Rome, Italy

Accessories

Accessories designed to optimize optical control, physical protection, and installation precision.

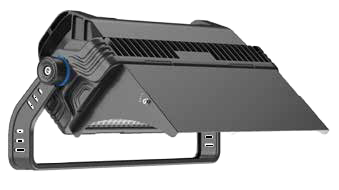

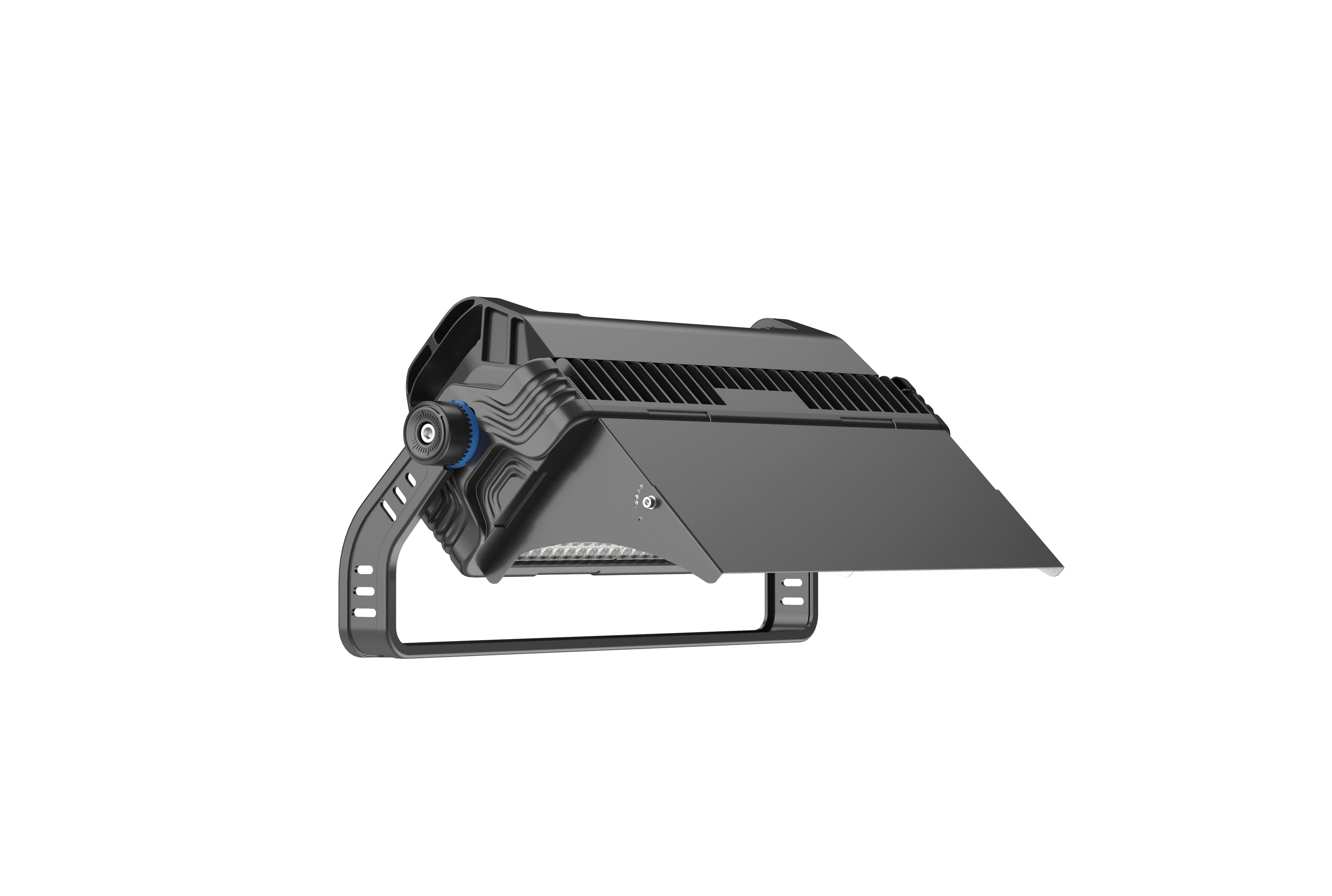

YXYSW7 visor spill shield accessory
Visor / Spill Shield
Spill light & pollution control
YXYSW7 aiming device
Aiming Device / Scope
Precise beam angle alignment
