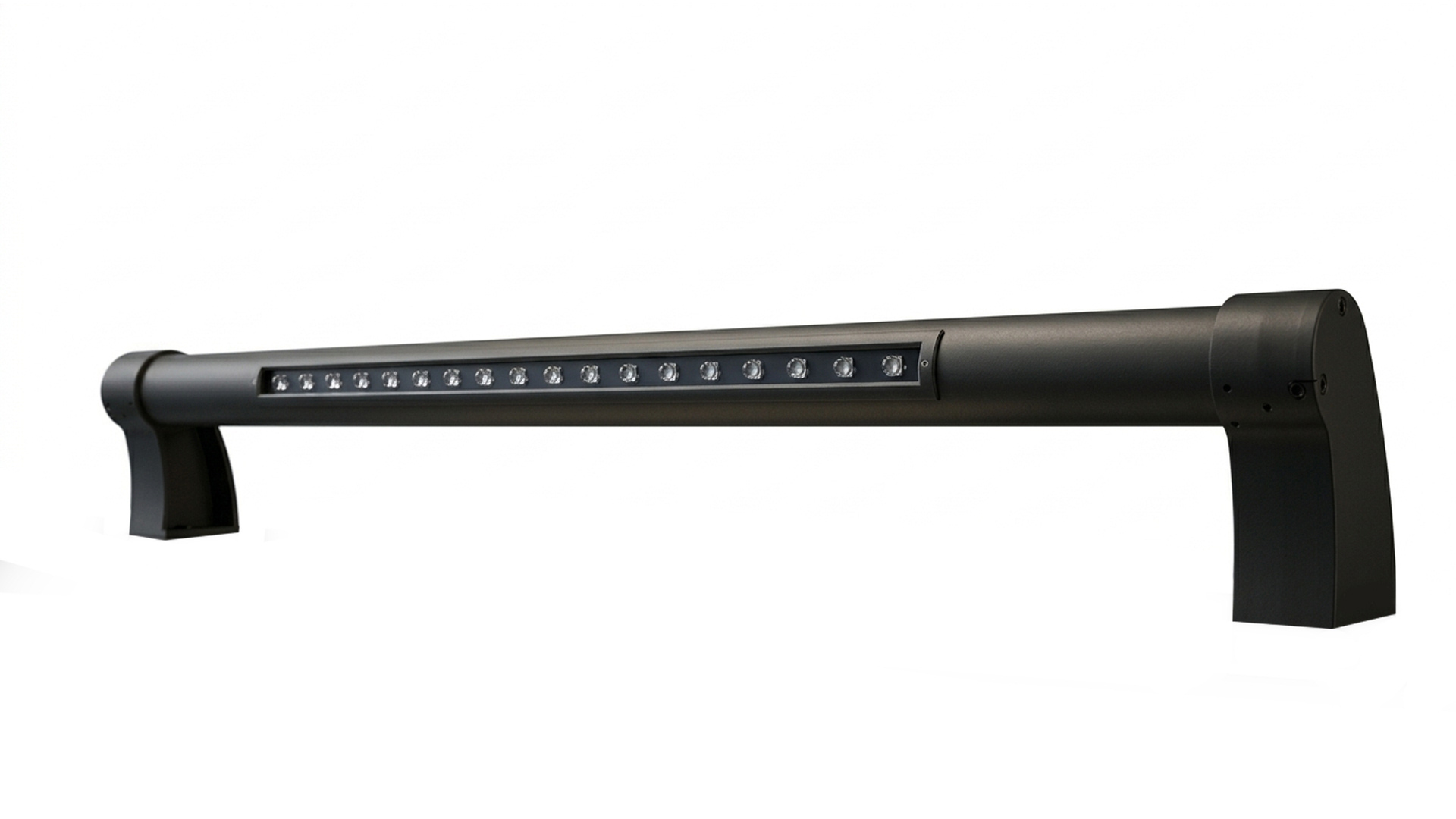

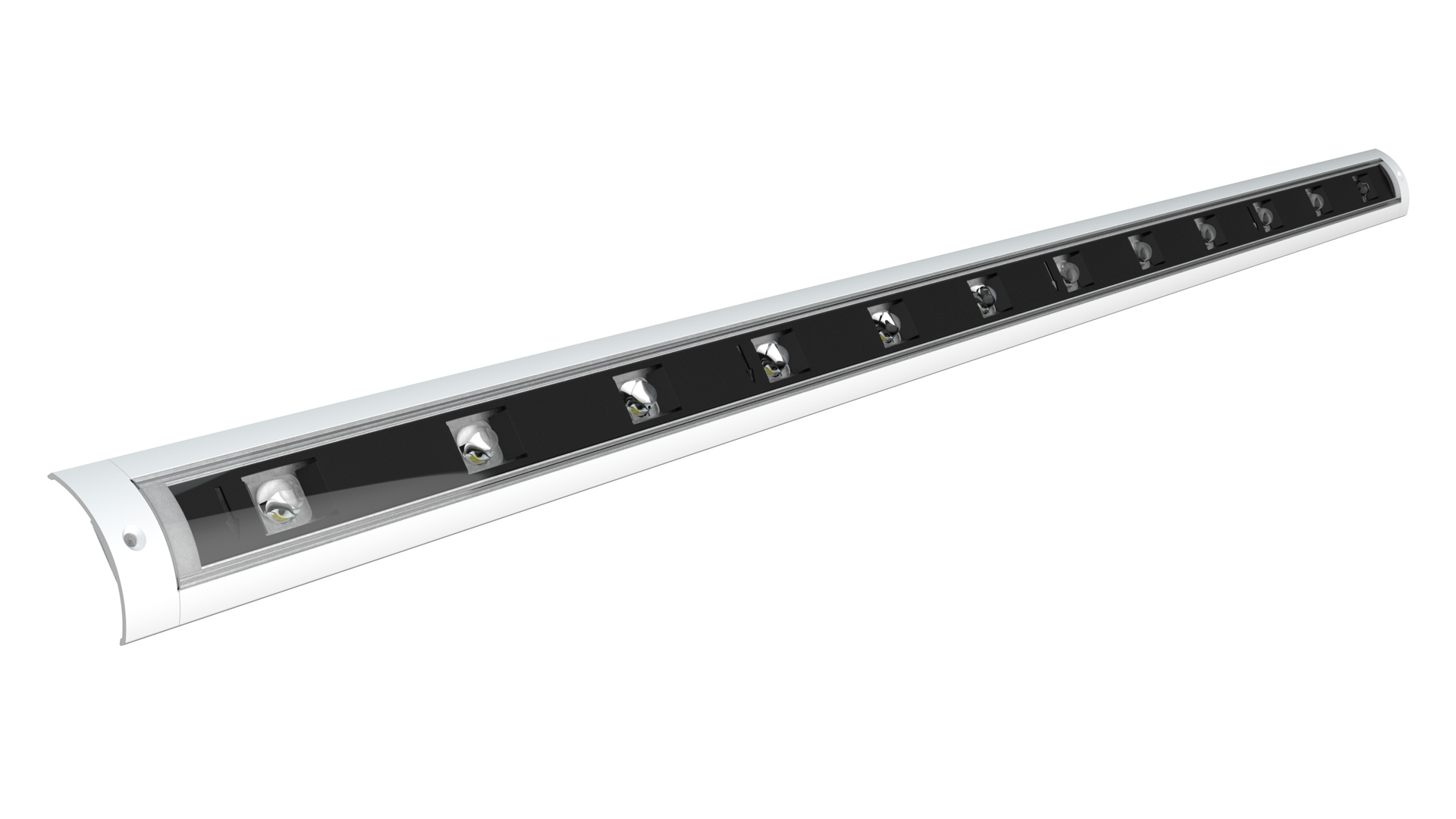

Outdoor ArchitecturalLED Guardrail LightModel: LWW-GRB-W55
LWW-GRB-W55 | IP65 LED Guardrail Light
The LWW-GRB-W55 is a 4W/12W IP65 LED guardrail light for bridge guardrails, road safety barriers, waterfront railings, and architectural outlining. Its 24V DC, 6063 aluminum alloy and PC tube construction provides IK08 impact resistance and effective heat dissipation for outdoor infrastructure. Standard 4000K illumination and a 120° beam support uniform linear lighting, while ON/OFF or DMX512 control supports static or dynamic architectural lighting schemes.
LED Guardrail Light Colour & Optic
Color Options
Beam Options
LWW-GRB-W55 Product Specifications
Model Configuration
| Model | Dimension | Power (Max) | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|
| LWW-GRB-W55-L6 | φ76mm | 4W |
4000K
|
480lm
|
Weight: 0.65kg ±5%Qty/Ctn: 16 Units/CtnCarton: 69.5 × 32 × 22.5 cm |
| LWW-GRB-W55-L10 | φ76mm | 12W |
4000K
|
1440lm
|
Weight: 0.97kg ±5%Qty/Ctn: 16 Units/CtnCarton: 103.5 × 32 × 21.5 cm |
| LWW-GRB-W55-L12 | φ76mm | 4W |
4000K
|
480lm
|
Weight: 1.13kg ±5%Qty/Ctn: 16 Units/CtnCarton: 125.5 × 32 × 21.5 cm |
| LWW-GRB-W55-L12 | φ108mm | 12W |
4000K
|
1440lm
|
Weight: 1.31kg ±5%Qty/Ctn: 16 Units/CtnCarton: 125.5 × 32 × 21.5 cm |
Configuration summary: Available in φ76mm and φ108mm profiles with standard 4000K CCT. Operates on 24V DC input. Housed in robust aluminum 6063 and PC tube with an IP65 rating for demanding municipal guardrail integration.
IP65 LED Guardrail Light Advantages
Dual-Purpose Illumination
Designed specifically for bridge and road safety guardrails, providing simultaneous functional path lighting and decorative architectural outlining.
DMX512 Dynamic Control
Compatible with standard DMX dimmer systems and independent RF control, enabling dynamic synchronization and thousands of programmable color-changing effects.
Wide Uniform Output
Produces clean, saturated 4000K illumination from a uniform 120° beam distribution, ensuring zero dark spots along continuous installations.
Aviation Aluminum Structure
Built with an extruded aviation-grade aluminum alloy 6063 body, maximizing heat dissipation and ensuring long-term anti-corrosion performance for municipal infrastructure.
Fully Potted IP65 Protection
Internal components are fully encapsulated with high-grade thermal glue, achieving an IP65 rating and guaranteeing safe operation in wet outdoor environments.
IK08 High Impact Resistance
The combination of a rigid metal chassis and a high-strength transparent PC tube provides excellent defense against external impacts, crucial for public road scenarios.
Bridge & Road Guardrail Lighting Applications
Bridge & River Guardrails

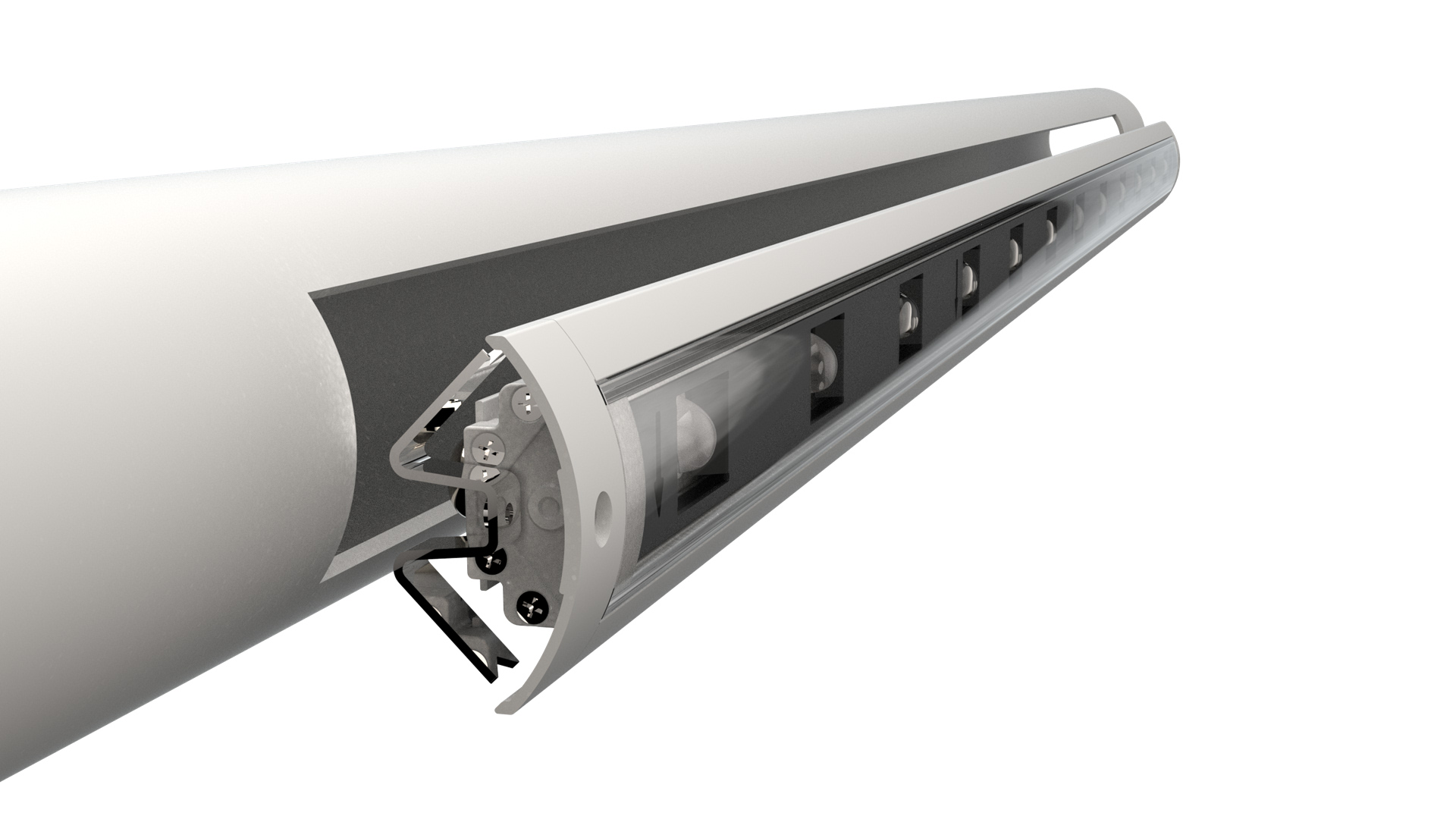

Seamlessly mounts onto existing metal handrails or concrete barriers, delivering continuous glowing lines along bridges and waterfront promenades.
Urban Overpasses
Provides critical path safety lighting while dramatically enhancing the nighttime aesthetic profile of highway overpasses and elevated roads.
Commercial Exterior Outlining
Deployable along building rooflines, large commercial curtain walls, and terraces to create striking DMX-controlled pixel arrays and media facades.
Landscape & Path Lighting
Integrates flawlessly into park boundaries, large-scale retaining walls, and public safety barriers to safely guide pedestrian traffic.
The LWW-GRB-W55 series is designed for versatile outdoor infrastructure projects where structural integration, reliable IP65/IK08 weather resistance, and dynamic DMX control are essential.

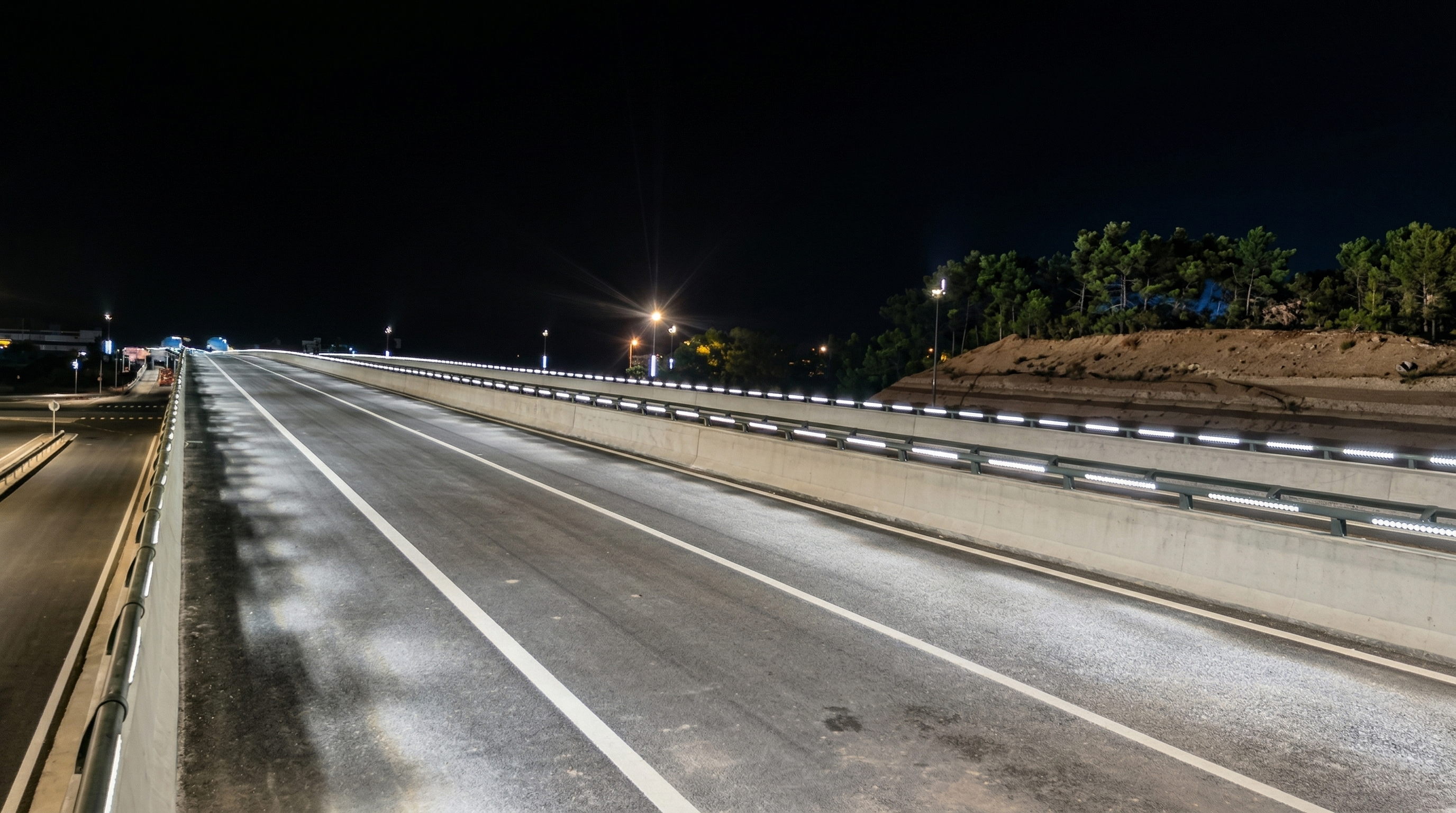

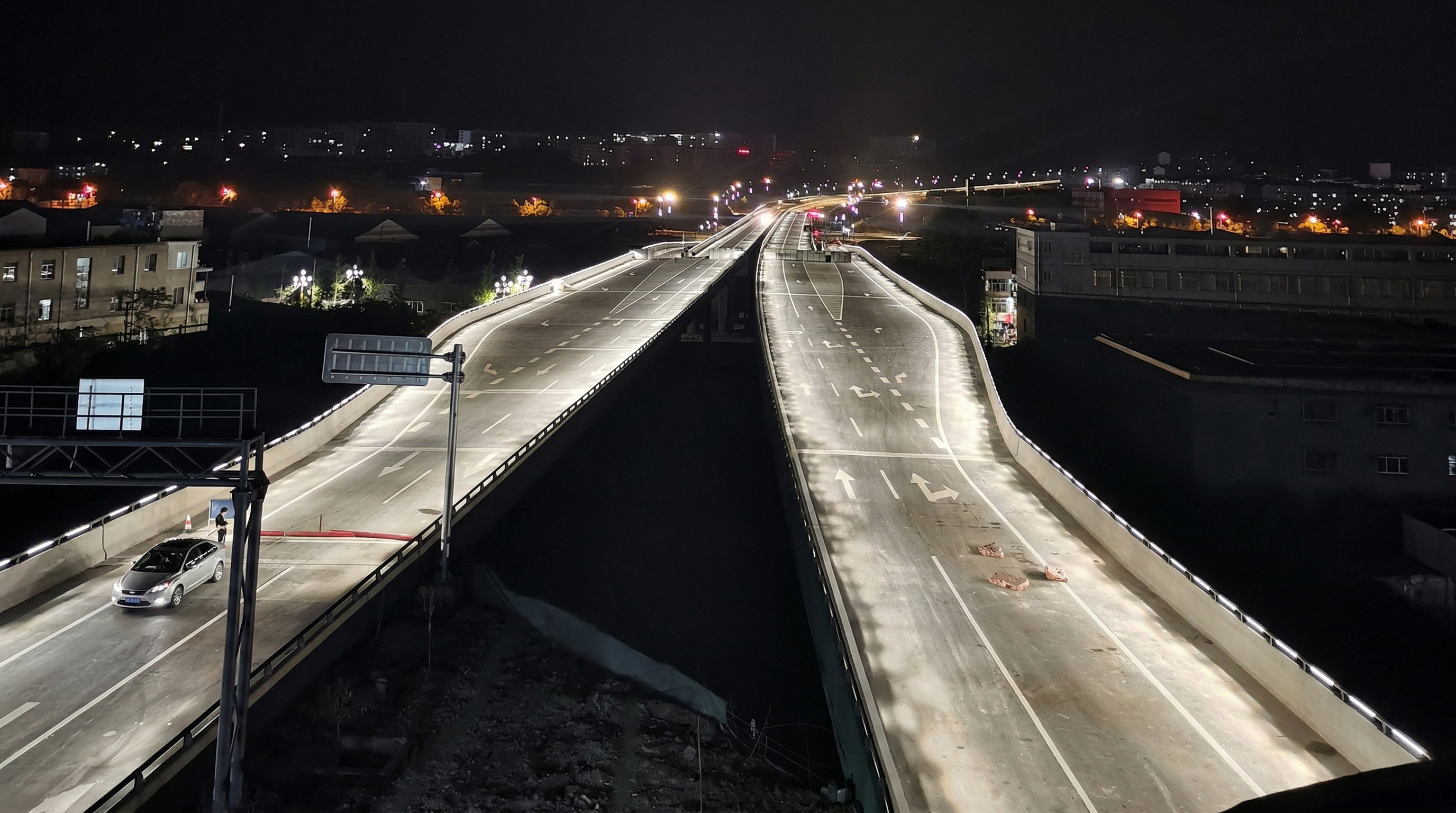

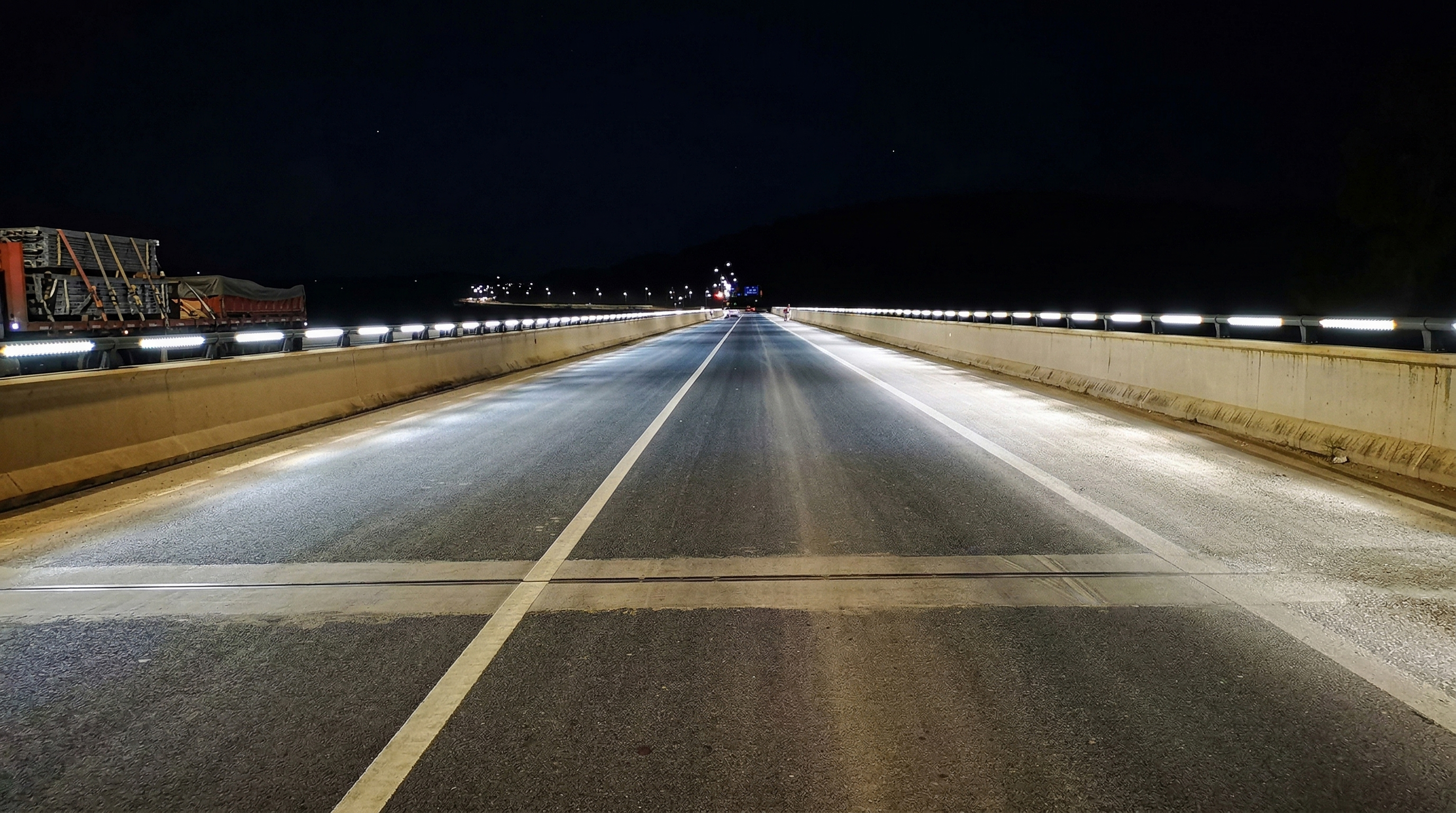

Impressions
Downloads
Specification Sheets
Product SpecificationCertification Documents
CE CertificationTechnical Files
Testing Reports & Application Media
Certifications & Compliance
Related Projects
Accessories
Accessories can be supplied according to installation method, wiring layout and control configuration.
