Outdoor Architectural
LED Underground Light
Model:  LUL-PZT-W80
Hero image

LUL-PZT-W80

LED UNDERGROUND LIGHT

The products are widely used for the ground lighting decoration on piazza, restaurants, private villas garden ,conference room ,exhibition hall,stage bar, shopping mall , tourist attractions and beautify the area environment

LED Wall Washer
× Preview
DMX/RDM
DMX/RDM
24V DC
24V DC
100-240V AC
100-240V AC
RoHS
RoHS
IK08
IK08
IP67
IP67
3 Years Registered
3 Years
CE
European CE
Color and Optic
2200K

2200K

2700K

2700K

3000K

3000K

3500K

3500K

4000K

4000K

6500K

6500K

RGB

RGB

RGBW

RGBW

(Color Temperature Customizable)
20

20°

25

25°

35

35°

40

40°

45

45°

60

60°

( Temperature Customizable )

Technical parameters
Chips Brand
LUMILEDS
LED Types
3030/3535
Color
RGBW-4in1
Quantity of LED
L10-36P
Input Voltage
100-240V AC
Housing Material
Aluminium alloy and tempered glass
Waterproof Measure
Structural waterproof
Control Mode
DMX console
Beam Angle
10°/25°/45°/60°/90°
IP Rating
IP67
Protection Level
3 Years
Span Life
30,000Hrs
Size

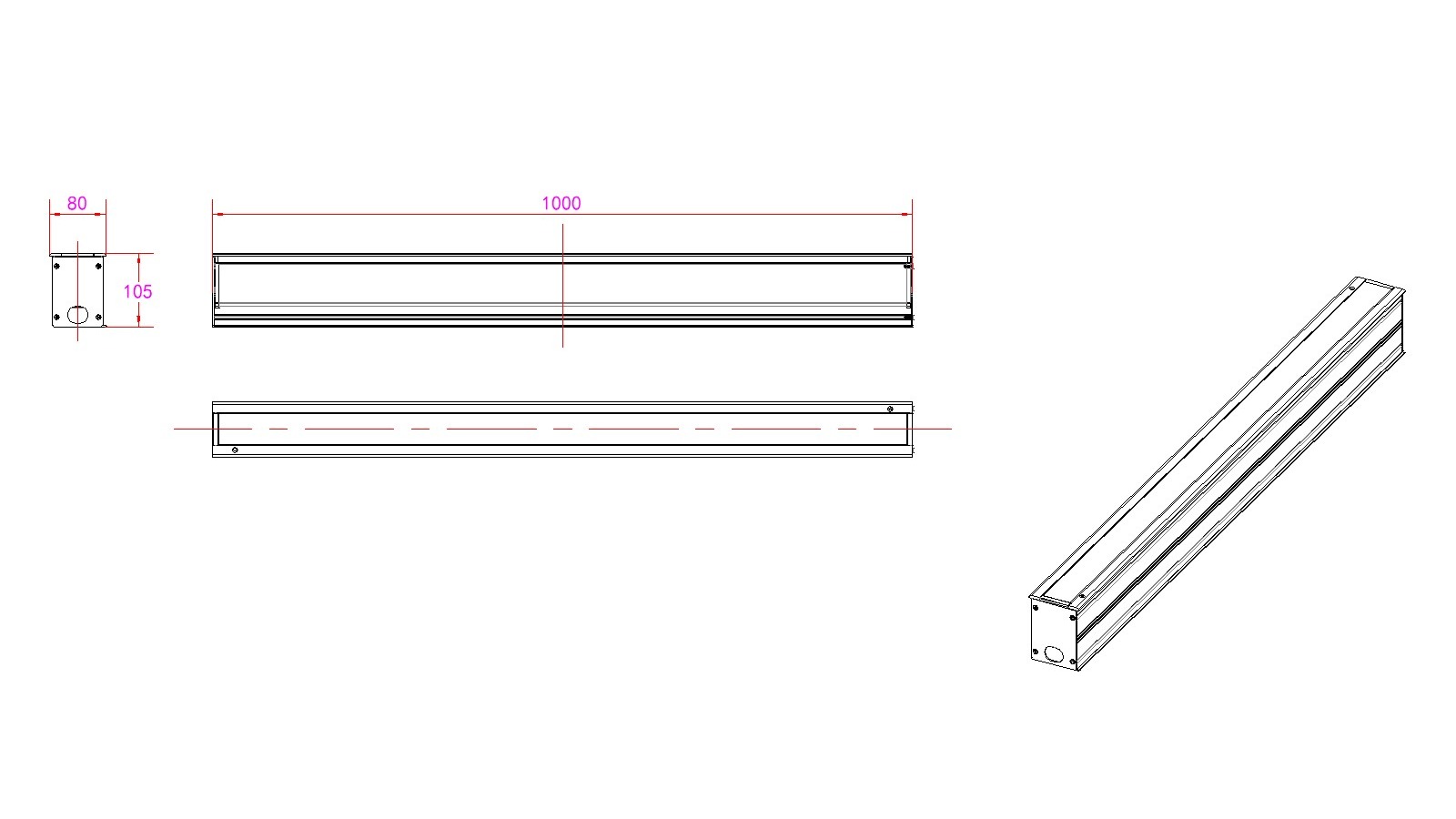

L1000*W80*H105mm
Weight
2.3/4.7kgs±5%
Warranty
3 years
Environment Temperature
- 20°C-40°C
Model Configuration
Model Length Power(Max) Colours Lumen Package
LUL-PZT-W80-L10 L1000mm 36W
2700K3000K 2880-3600lm
4000K5700K
RGBW
4.7±5%Kg 24Units/Ctn 105*25*32.5CM

Advantages

The Right Amount of Light

High brightness, low energy consumption, to meet large area lighting needs.



Optics and Distributions for All Occasions

Narrow Spot 15°, Medium 25°, Flood 30°, Narrow Flood 35°, Wide Flood 45°, Very Wide Flood 60°



Flexible installation structure

support multi-angle adjustment, easyto accurately illuminate the target area.



Sturdy Construction

High quality aluminum heat dissipation design, good corrosion resistance and ensure long-term use of temperature control,effectively extend the LED service life.



Built-in Beam Angle Adjustment

This luminaire features an internal angle adjustment mechanism, allowing direct beam angle adjustment (as marked with the 10° range in the diagram) without disassembling the outer housing.



3-Year Warranty

Standard 3-year warranty for completeassembly.


Impressions

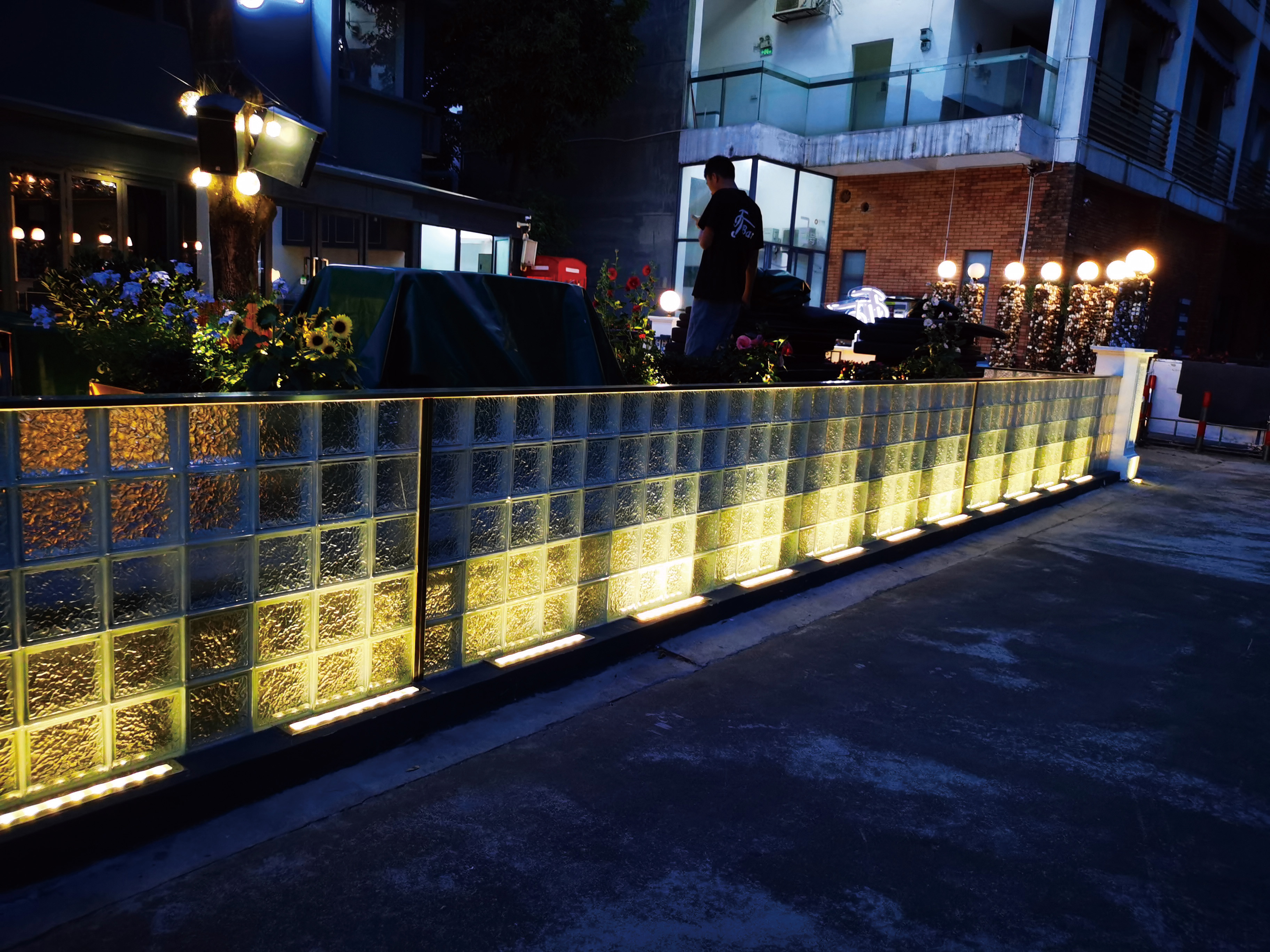

Impression 1
Impression 2

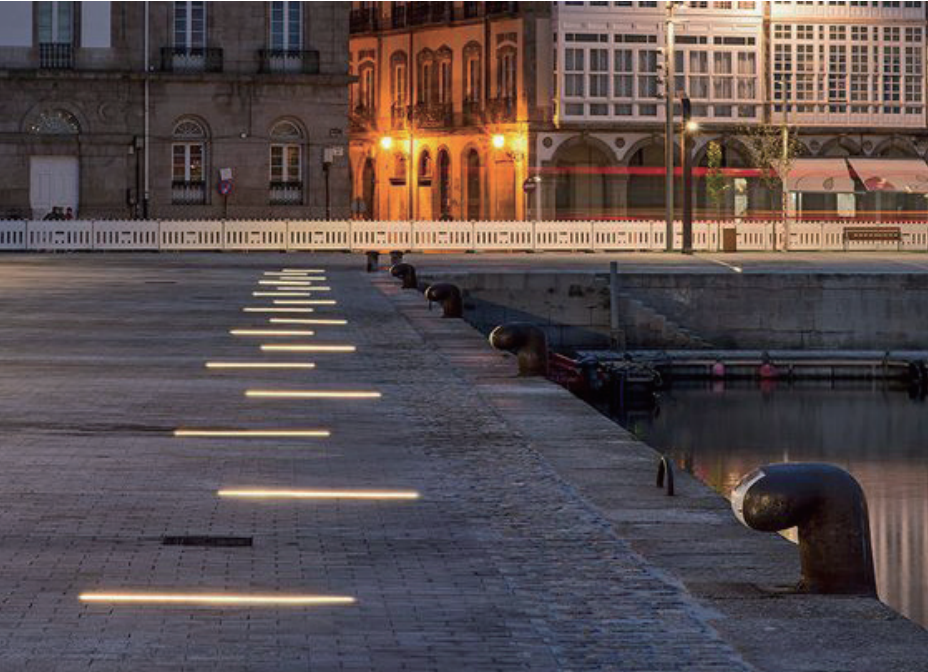

Impression 3
Downloads
Spec Sheet
Certification and Catalogue
Technical Files
Certification and Reliable Test Reports
