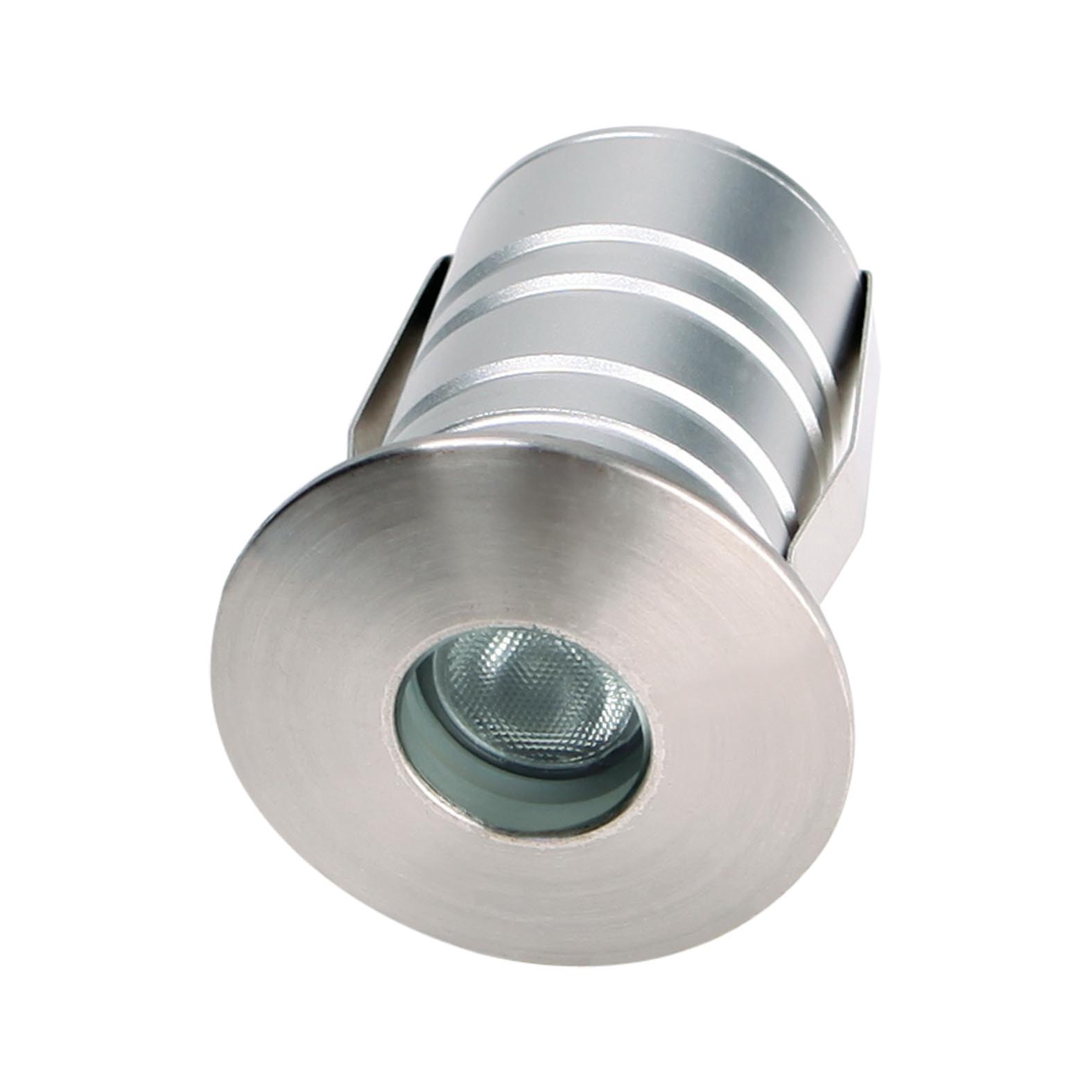

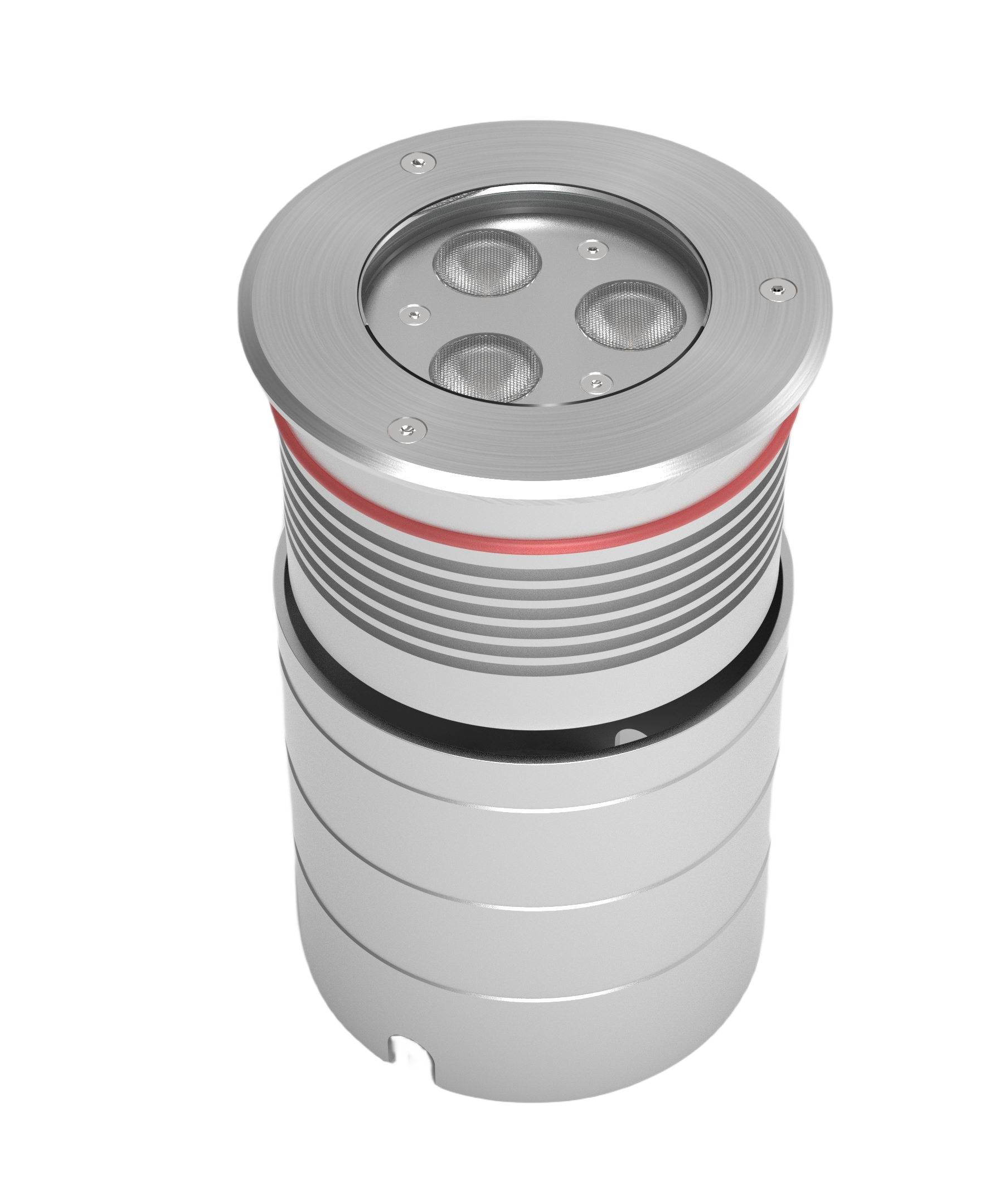

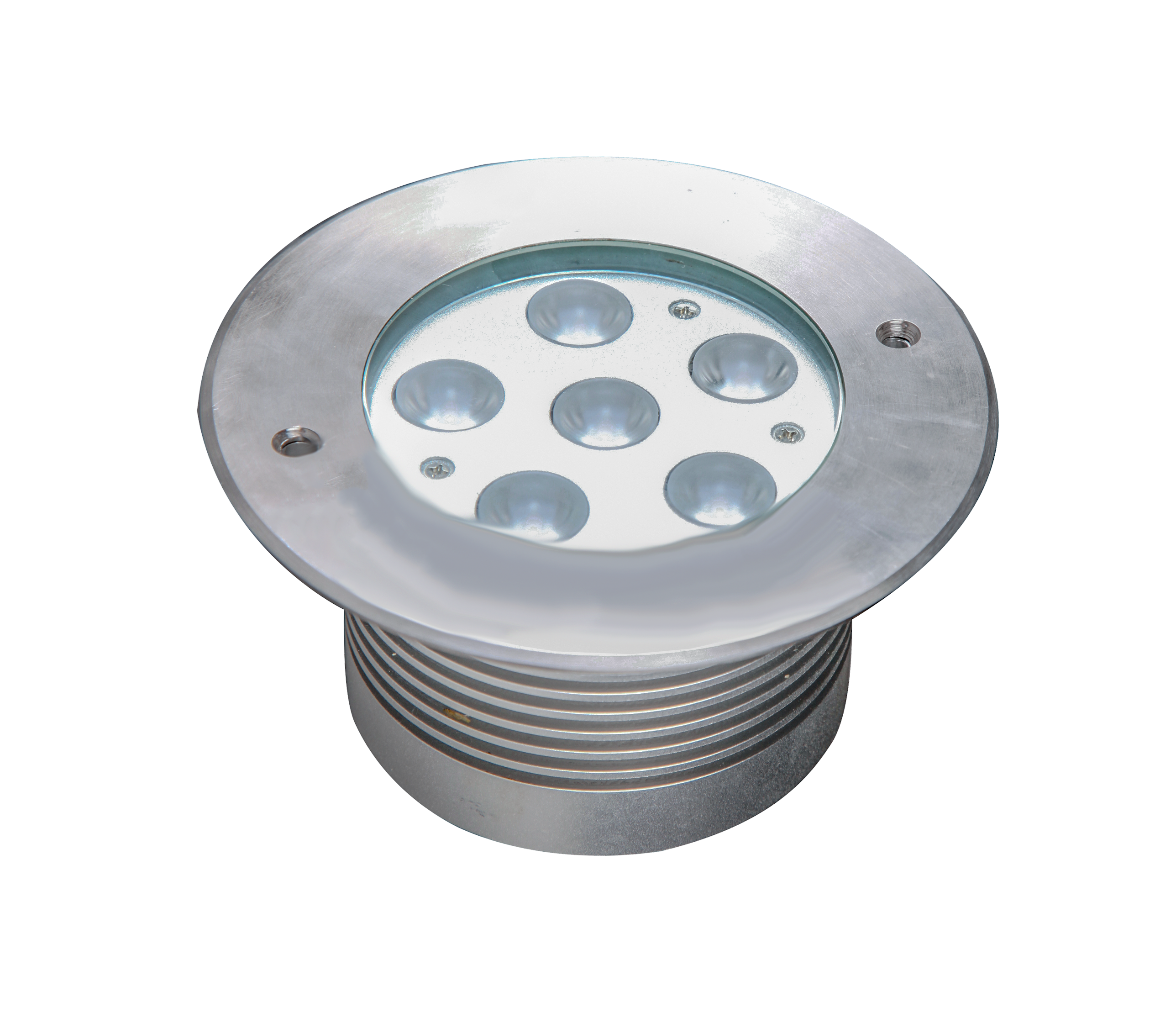

LUL-R60A / R110 / R145A
- Premium 316L stainless steel surface cover for superior corrosion resistance
- Dual structural and gluing waterproof technology for maximum reliability
- Multiple selections for size and power to meet diverse project needs

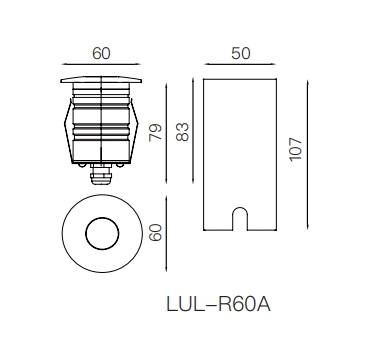

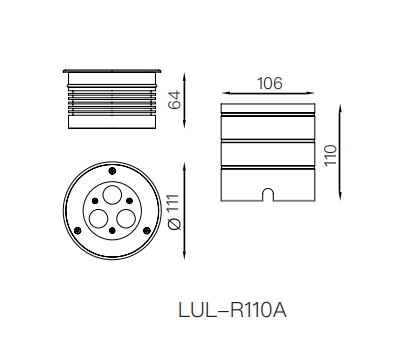

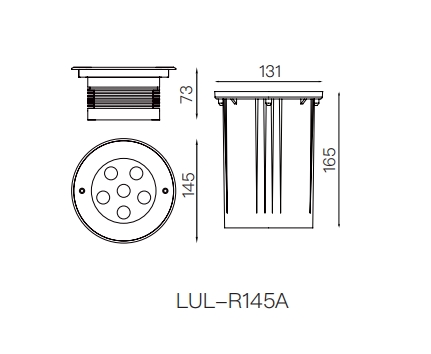

Product Drawings
Model Configuration Table
| Model | Diameter | Power (Max) | Colours | Lumen | Beam Angle | Control | Chips Brand | Package |
|---|---|---|---|---|---|---|---|---|
| LUL-R60A-1P | φ60 | 2.3W | 2700K / 3000K 4000K / 6000K |
160lm | 15° / 20° 25° / 30° 40° / 45° 60° |
 |
 |
0.3±5%Kg 50 Units/Ctn 38*38*31CM |
| LUL-R60A-3P | φ60 | 3W | R+G+B | 88lm | 0.3±5%Kg 50 Units/Ctn 38*38*31CM |
|||
| LUL-R110A-3P | φ110 | 7W | 2700K / 3000K 4000K / 6000K |
630lm | 1.2±5%Kg 18 Units/Ctn 48*48*40CM |
|||
| LUL-R110A-9P | φ110 | 9W | RGBW | 360lm | 1.2±5%Kg 18 Units/Ctn 48*48*40CM |
|||
| LUL-R145A-6P | φ145 | 14W | 2700K / 3000K 4000K / 6000K |
690lm | 1.7±5%Kg 12 Units/Ctn 56*37*45CM |
|||
| LUL-R145A-18P | φ145 | 18W | R+G+B | 560lm | 1.7±5%Kg 4 Units/Ctn 56*37*45CM |

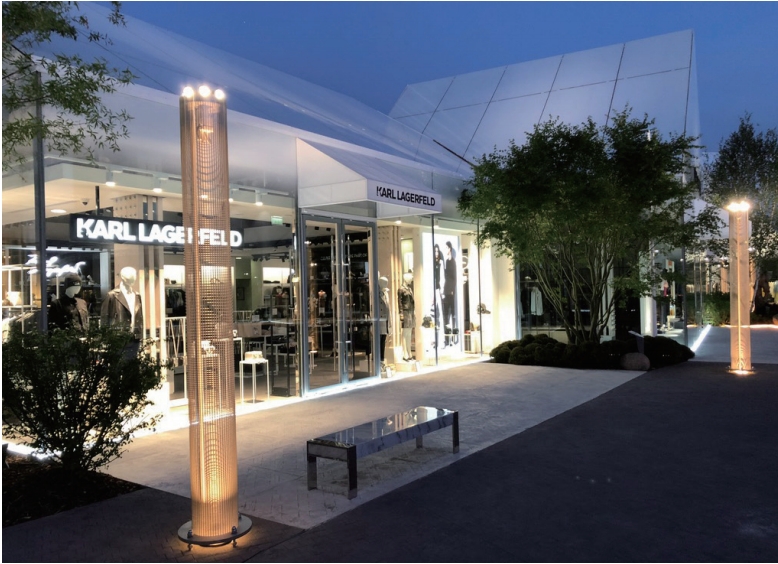

Case Diagram
Product Specification
Catalogue
IES Files
