SP-EA-R195/R225



· Structural waterproof;
· High voltage input, DMX512/RDM control;
· Maximum power 4OW:
· Narrow beam angle, 5° and 8"are available,
· RGBW mode has good mixing effect;
· Suitable for ultra-low temperature environment
Can be customized and wall the same color of the lamp body

· Daytime can also be well integrated into the building Angle adjustment and simple installation

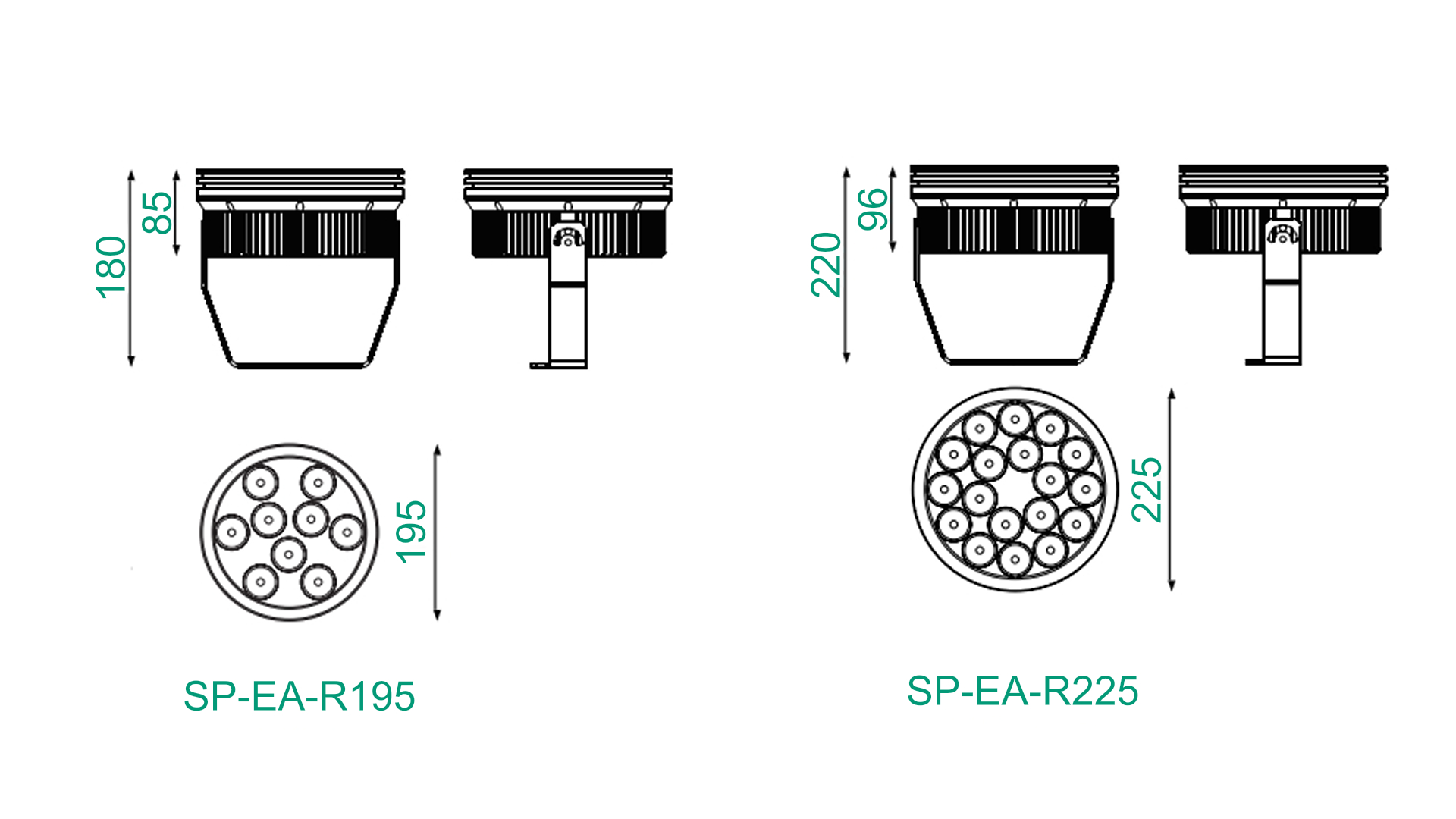

   Product drawing:



   Model Configuration Table:

Model

Diameter

Power(Max)

Colours

Lumen

Beam Angle

Control

Chips Brand

Package

SP-EA-

R195A-6P

φ195

20W

RGBW

1422lm

5° /10°

20° /25°

35° /40°

60°

3.1±5%Kg

4 Units/Ctn

58.5*30

*57.5CM

SP-EA-

R195A-9P

φ195

20W

2700K/3000K

4000K/6000K

3077lm

3.1±5%Kg

4 Units/Ctn

58.5*30

*57.5CM

R+G+B

714lm

SP-EA-

R225A-12P

φ225

40W

RGBW

2464lm

4.5±5%Kg

4 Units/Ctn

61.5*31.5

*60CM

SP-EA-

R225A-18P

φ225

40W

2700K/3000K

4000K/6000K

5518lm

4.5±5%Kg

4 Units/Ctn

61.5*31.5

*60CM

R+G+B
1778lm

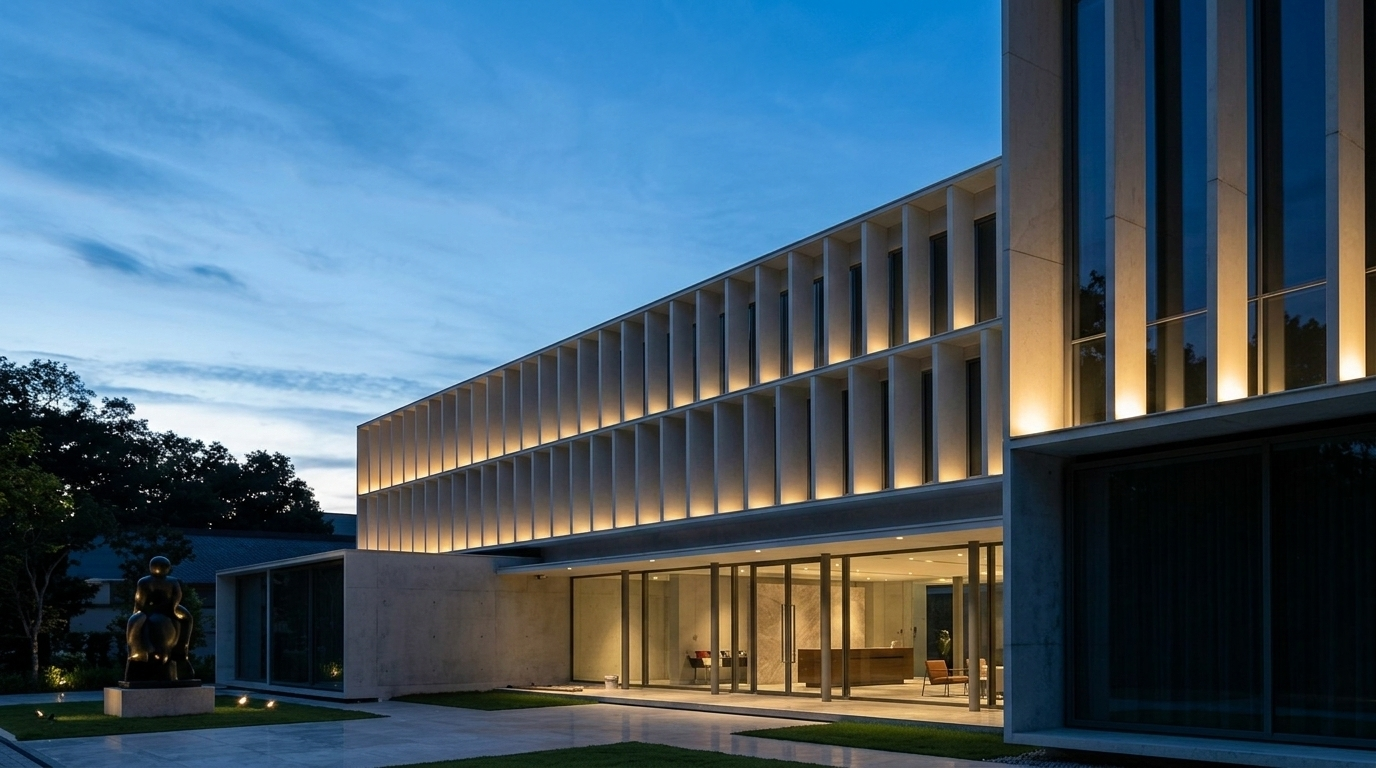

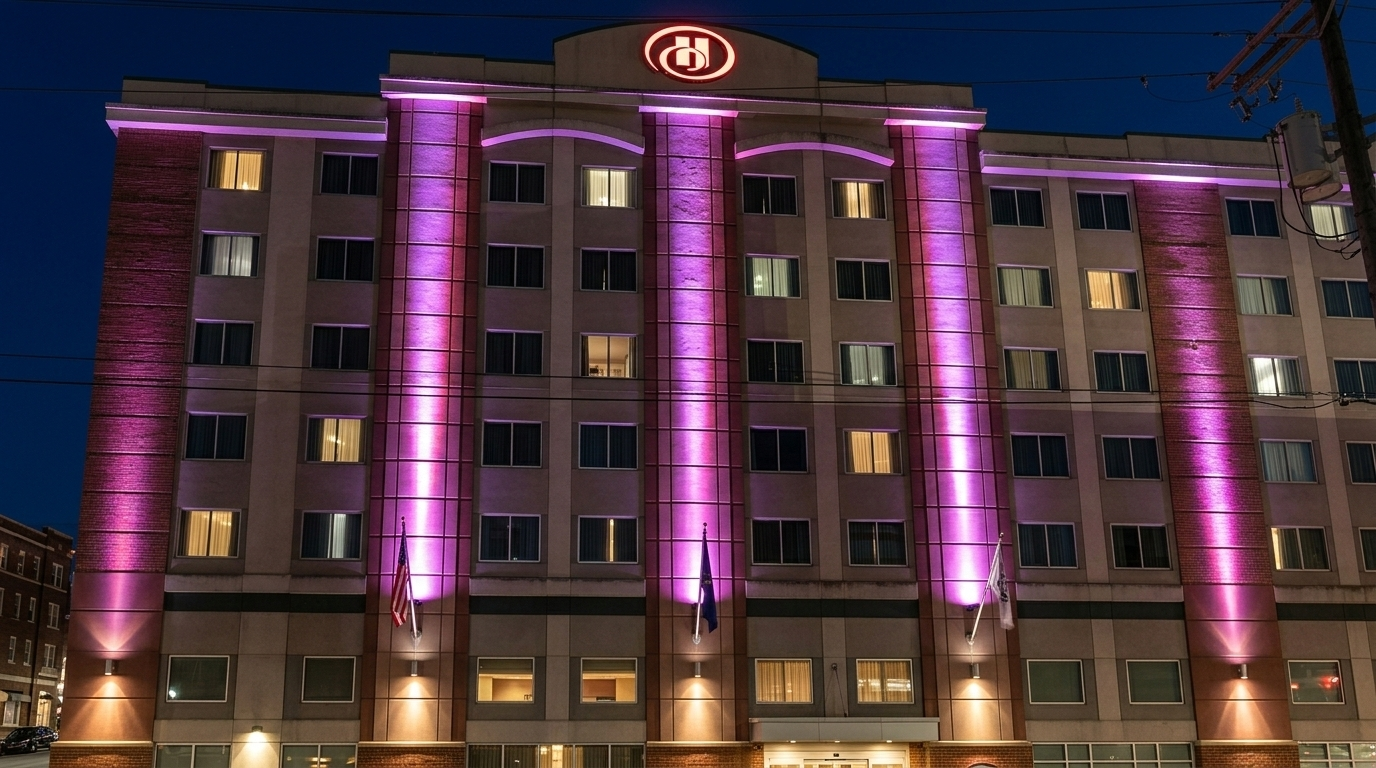

   Case diagram:



   Download:

  Product specification      catalogue       IES
