Suria KLCC Architectural Facade Lighting | Kuala Lumpur Landmark Illumination
Kuala Lumpur, Malaysia | Commercial Landmark Facade Illumination | DMX512 RGBW LED System | November 2024
Project Overview

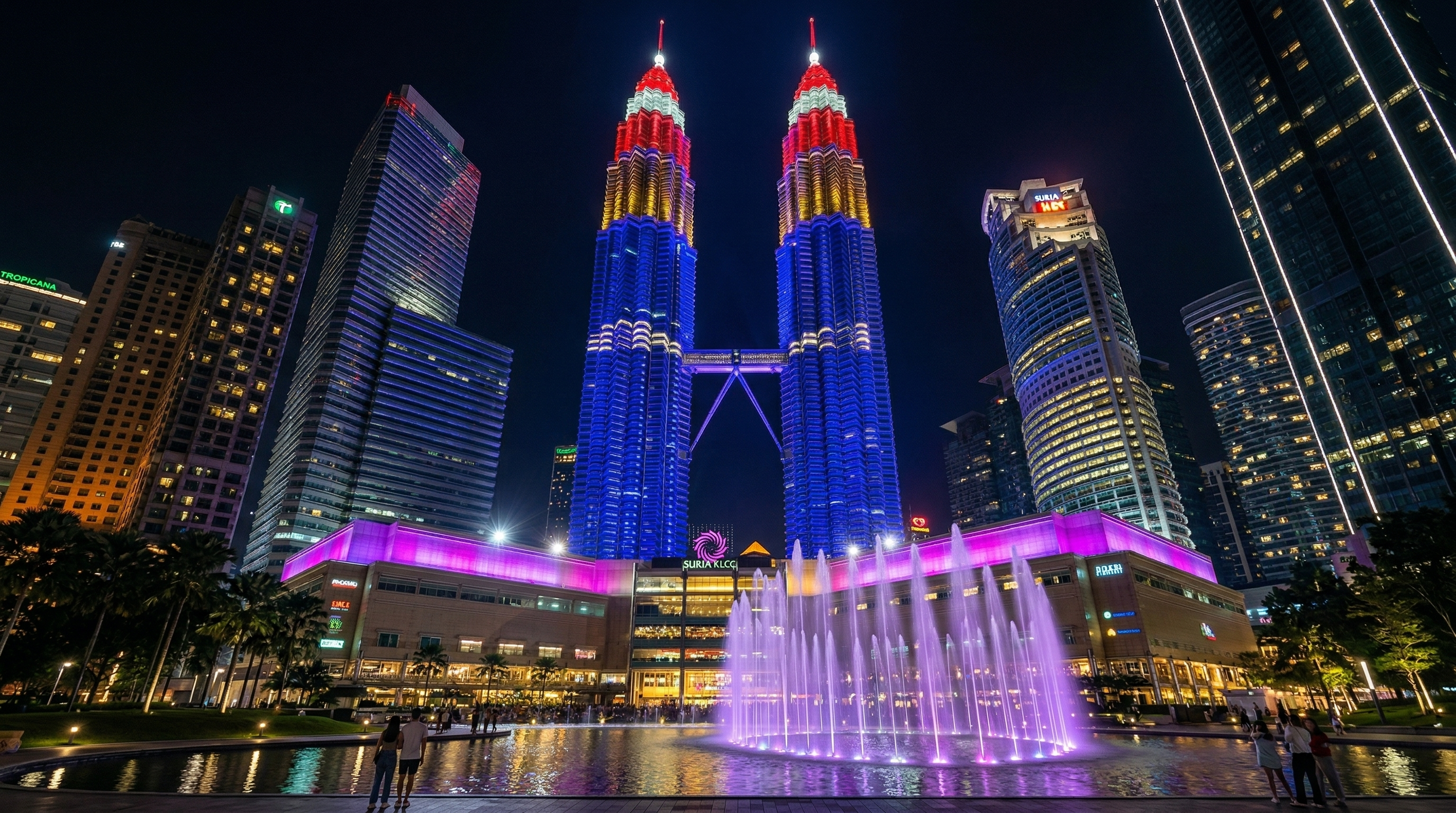

Suria KLCC is Southeast Asia's most recognisable retail landmark, sitting at the base of the Petronas Twin Towers in the heart of Kuala Lumpur. In November 2024, TPK Lighting delivered a fully programmable DMX512 facade illumination system that serves both everyday brand identity and large-scale event programming — meeting the visual standards demanded by one of the world's most photographed commercial addresses.

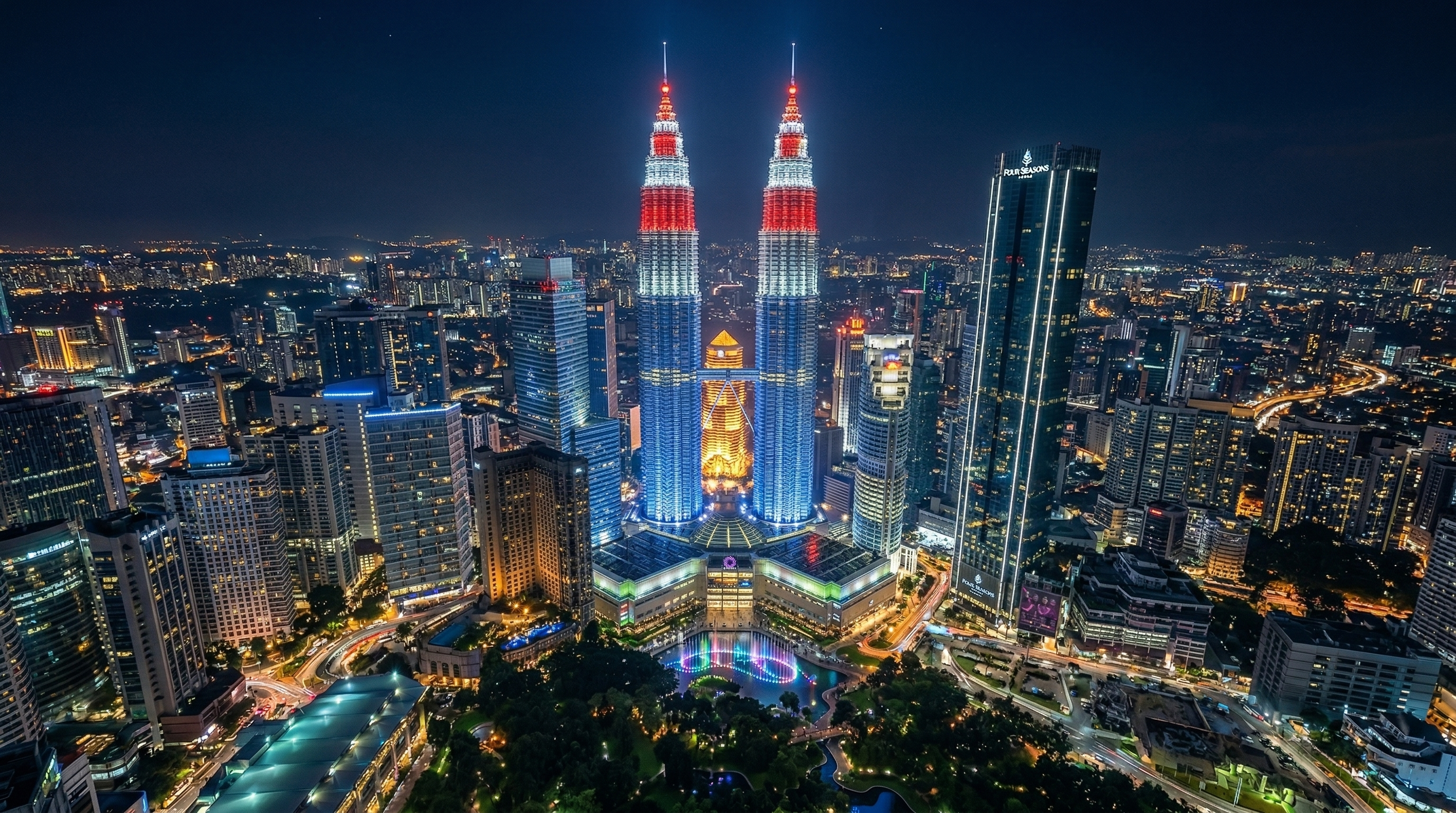

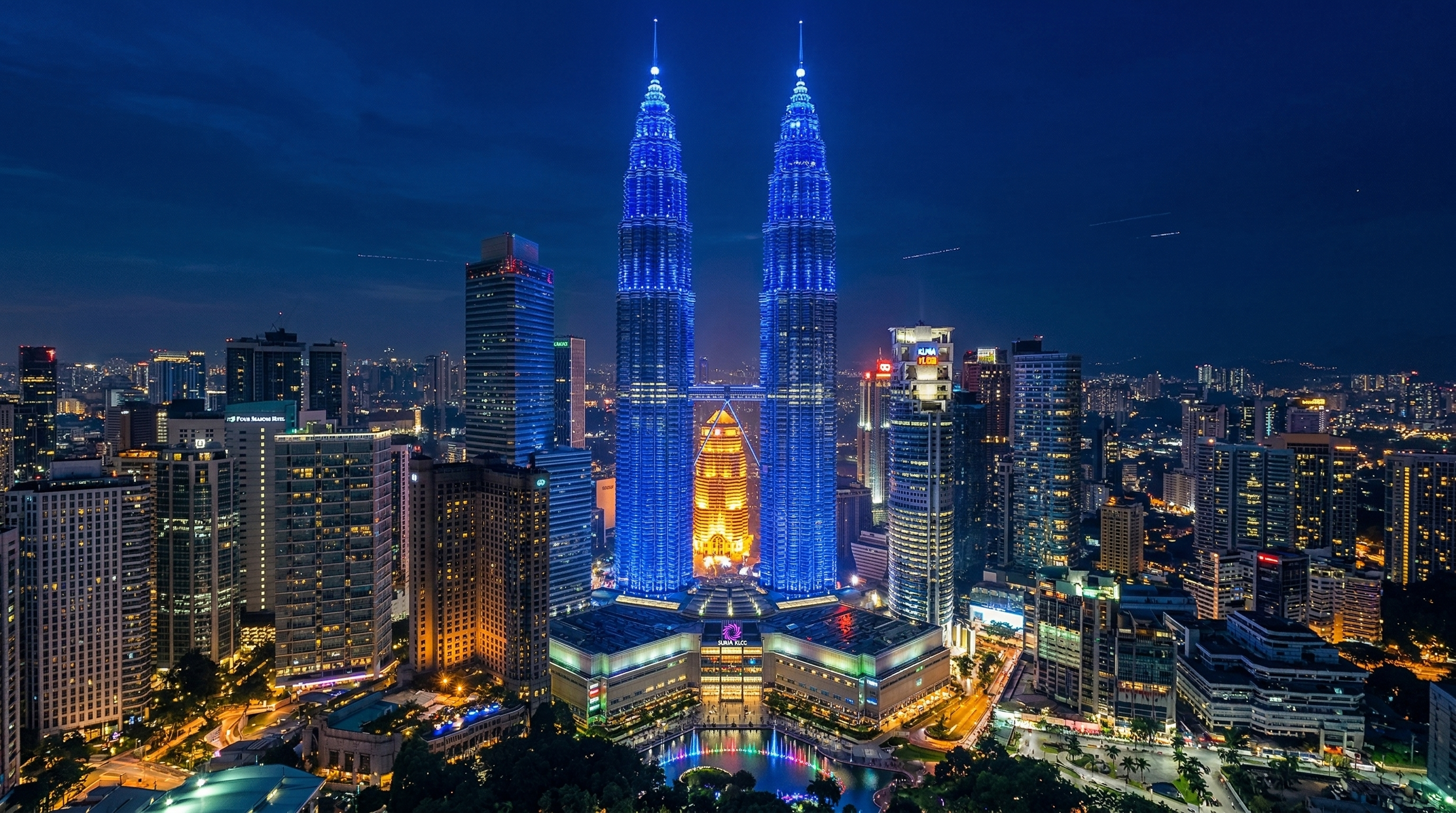

The project combines two complementary fixture categories — RGBW LED wall washers tracing the lower commercial facade perimeters, and high-output architectural floodlights illuminating the tower base sections and surrounding fountain plaza. Together they create a layered nighttime composition that reads coherently from street level, from KLCC Park, and from Jalan Ampang.
Key Challenges & TPK Solutions
Illuminating a World-Class Landmark — The Engineering Problem
Complex Multi-Surface Geometry
The facade combines curved canopies, vertical columns, and large horizontal surfaces at multiple heights. Achieving uniform illumination without hot spots or dark zones required precise beam angle selection and fixture spacing calculation for each zone.
Asymmetric Beam Engineering
The LWW-WZB-W55-L12's 12°×60° asymmetric distribution concentrates output onto each surface without cross-spill. Fixture spacing was calculated against IES photometric data to verify uniformity ratios across all facade zones before installation.
DMX Synchronisation Across Two Fixture Categories
Wall washers and high-output floodlights are fundamentally different fixture types with different DMX channel structures. Coordinating seamless colour scenes across both required careful universe mapping and address planning.
Unified DMX512 Control Network
A single DMX512 backbone manages both fixture categories with individual-zone addressing. Scene transitions — including national holiday programming and retail event colour changes — execute with zero latency across the full installation.
Tropical Climate Durability
Kuala Lumpur's high humidity, heavy monsoon rainfall, and year-round UV exposure place severe demands on outdoor fixtures. Under-rated equipment fails within the first 12 months in these conditions.
Full IP67 Weatherproofing
All wall washer fixtures carry IP67 certification — fully sealed against sustained water immersion and complete dust ingress. Drivers and optical assemblies rated for continuous operation at ambient temperatures up to 45°C.
Core Focus
Landmark-Grade Nighttime Identity
The Suria KLCC lighting system is designed to function simultaneously as a commercial branding tool and a civic landmark contribution. The RGBW colour gamut supports both a refined warm-white corporate mode for standard operations and full dynamic colour programming for public occasions — Malaysia National Day, international retail campaigns, and major events at the adjacent Petronas towers.
- Layered facade composition — wall washers and floodlights create foreground, midground and background depth across the building's multiple setback levels.
- Programmable event identity — full RGBW dynamic range enables scene changes without any fixture-level intervention by the property team.
- Landmark visibility from multiple axes — legible from KLCC Park, Jalan Ampang, and the Petronas Twin Towers observation deck.
What the System Delivers
IP67
Weather Proof
RGBW
Full Dynamic Color
DMX512
Intelligent Control

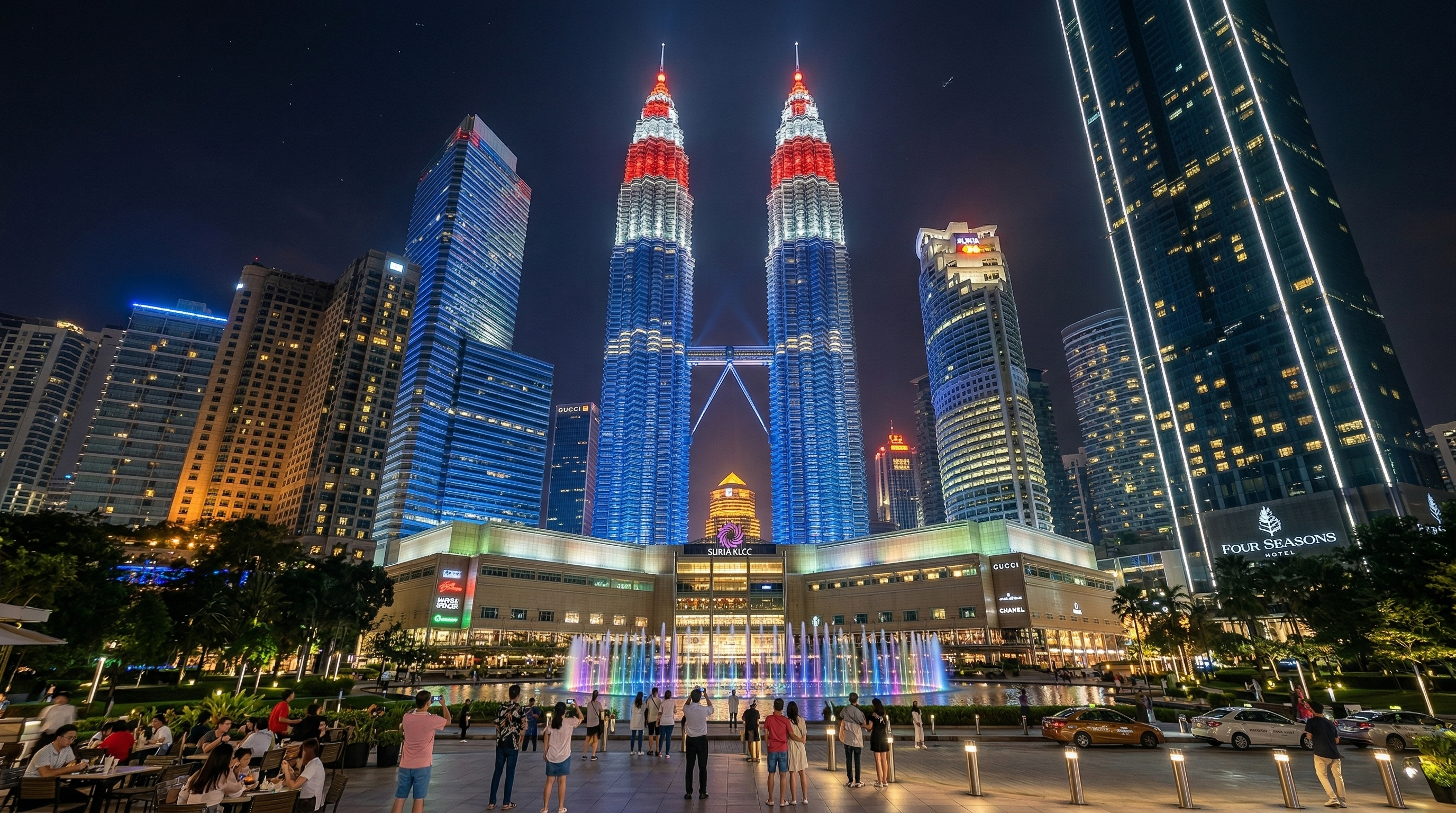

The combined TPK architectural lighting system transforms Suria KLCC's nighttime presence from a statically lit commercial building into a programmable visual landmark. It operates in refined warm-white mode during standard retail hours and shifts to full RGBW dynamic programming for public events — all from a single control network, with no hardware changes required. For TPK Lighting, this project demonstrates how engineering precision and creative vision together produce installations worthy of the world's most iconic addresses.
LWW-WZB-W55-L12
55W · IP67 · RGBW · 12°×60°

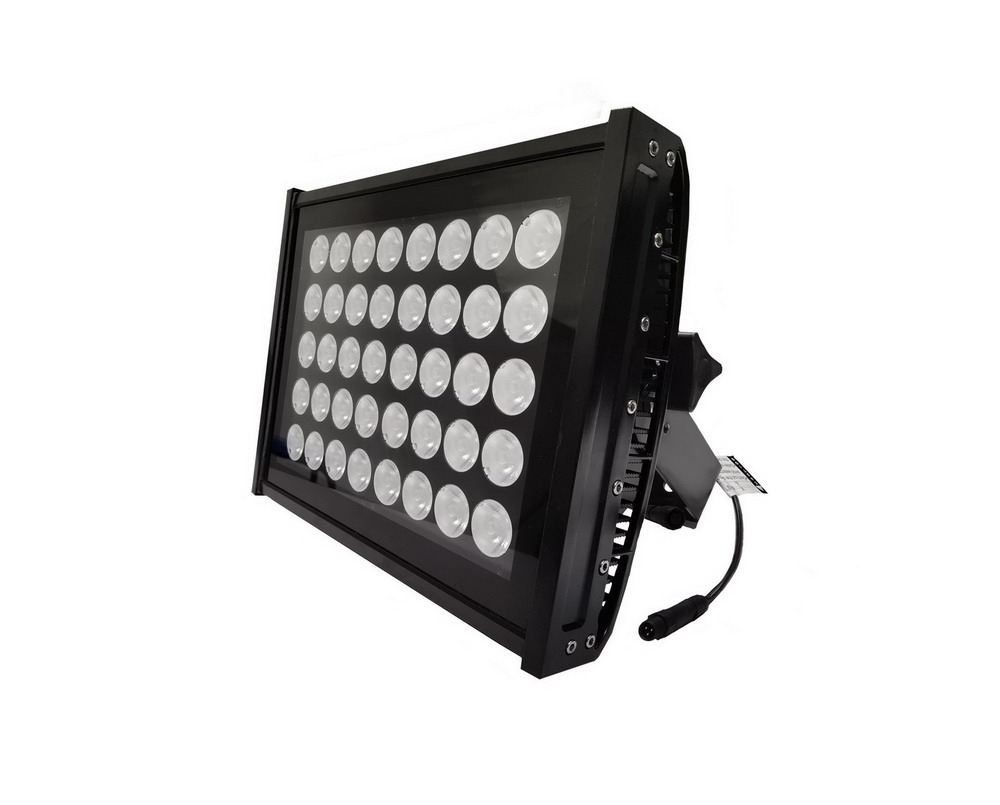

SP-F310A
310W · IP66 · RGBW · Long-throw
