SWL-3006 Firmament Series Solar Wall Light

IP65 Weatherproof · Bell-Dome Conical Optic · 4.5W Monocrystalline PV · Self-Contained Unit (External Tall Pole Excluded)

The SWL-3006 Firmament Series Architectural Solar Wall Light delivers 360-degree radial luminous wash for high-end exterior facades, entrance gateways, courtyard retaining walls, and outdoor hospitality verandas. Engineered with an integrated 5V 4.5W monocrystalline circular solar panel embedded into its upper crown, SWL-3006 eliminates external wiring while maintaining a balanced architectural profile. Powered by a high-capacity 3.2V 6000mAh (19.2Wh) LiFePO4 battery pack and 40 high-output SMD LEDs with dual-color CCT switching (3000K/6000K), it provides over 3 consecutive nights of autonomy under overcast skies. Complete self-contained surface-mount wall luminaire; external tall street lighting poles are excluded.

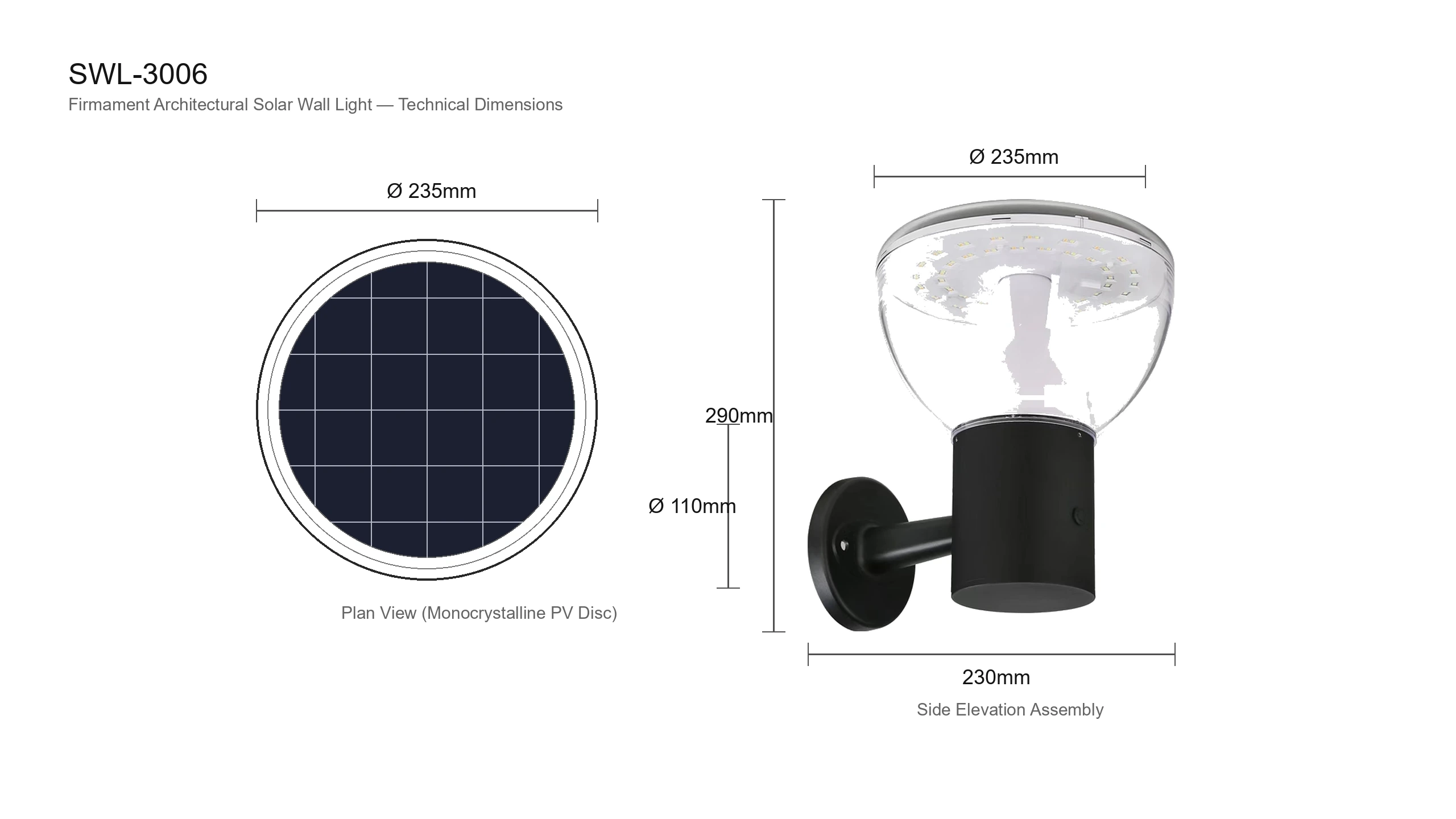

SWL-3006 firmament solar wall light engineering CAD dimension blueprint (self-contained unit · external tall pole excluded)

Color & Optic

Color Temperature Options

3000K

6000K

Features dual-color CCT toggle supporting warm white (3000K) for relaxed residential ambiance and daylight white (6000K) for architectural perimeter security.

Finish Options

Sand Black

Architectural Grey

Architectural multi-stage powder-coat finish engineered for high UV resistance and coastal salt spray endurance.

Product Specifications

Solar Panel 5V / 4.5W Monocrystalline Silicon Disc

Battery Storage 3.2V 6000mAh (19.2Wh) High-Cycle LiFePO4

Fixture Dimensions Ø235 × H290 × Projection 230mm (Wall Mount)

LED Array & CCT 40 High-Output SMD LEDs (3000K/6000K Switch)

Intelligent Control Dusk-to-Dawn Automation + Push CCT Mode

Lighting Autonomy >3 Consecutive Overcast / Rainy Nights

Housing Material Die-Cast Aluminum + UV-Clear Bell PC Dome

Exterior Finish Sand Black Architectural Thermoset Powder

Ingress & Impact IP65 Ingress Certified | CE & RoHS

Operating Range -25°C to +65°C Temperature Resistance

Mounting Interface Wall Mount Circular Flange Standoff Arm

Supply Scope Wall Luminaire Only (External Pole Excluded)

Model Lineup & Engineering Configurations

Model Code	Power Source	PV / Input	Battery / Lamp	Color Temperature	Finish Color	Packaging Specs
SWL-3006-SOL	Solar Autonomous	5V / 4.5W Mono	3.2V 6000mAh (19.2Wh)	3000K 6000K	Sand Black	Wall Surface Mount Self-Contained · Pole Excluded 4 Sets/Ctn · 650×570×380mm · 9.5kg
SWL-3006-AC	AC 100-240V Mains	50/60Hz AC Input	40 SMD LEDs Engine	3000K 6000K	Sand Black	Wall Surface Mount Self-Contained · Pole Excluded 4 Sets/Ctn · 650×570×380mm · 9.5kg

Advantages

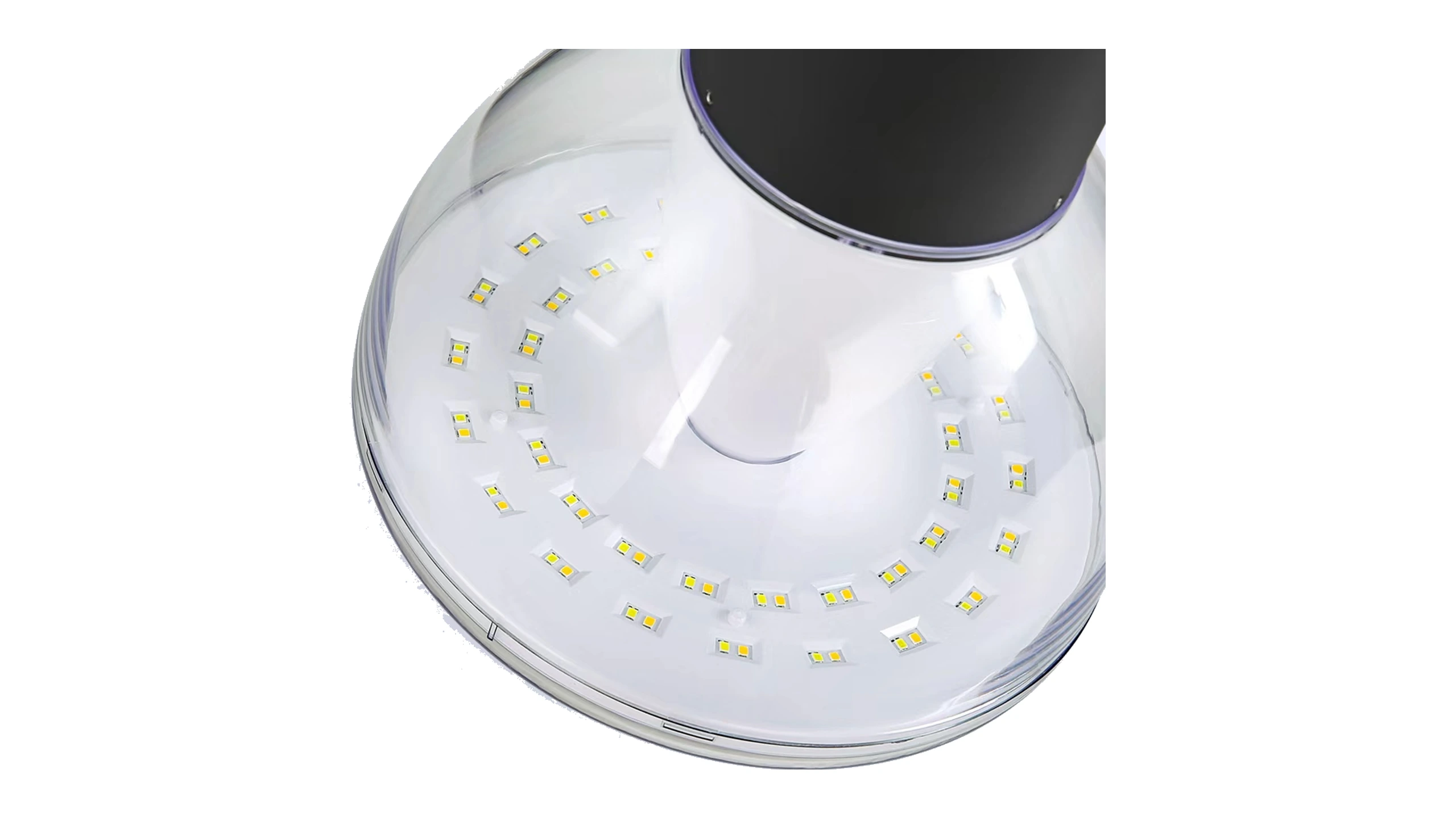

Clear Bell Dome & Conical Reflector

Engineered optical geometry disperses downward illumination in a wide 360-degree footprint while preventing upward light pollution.

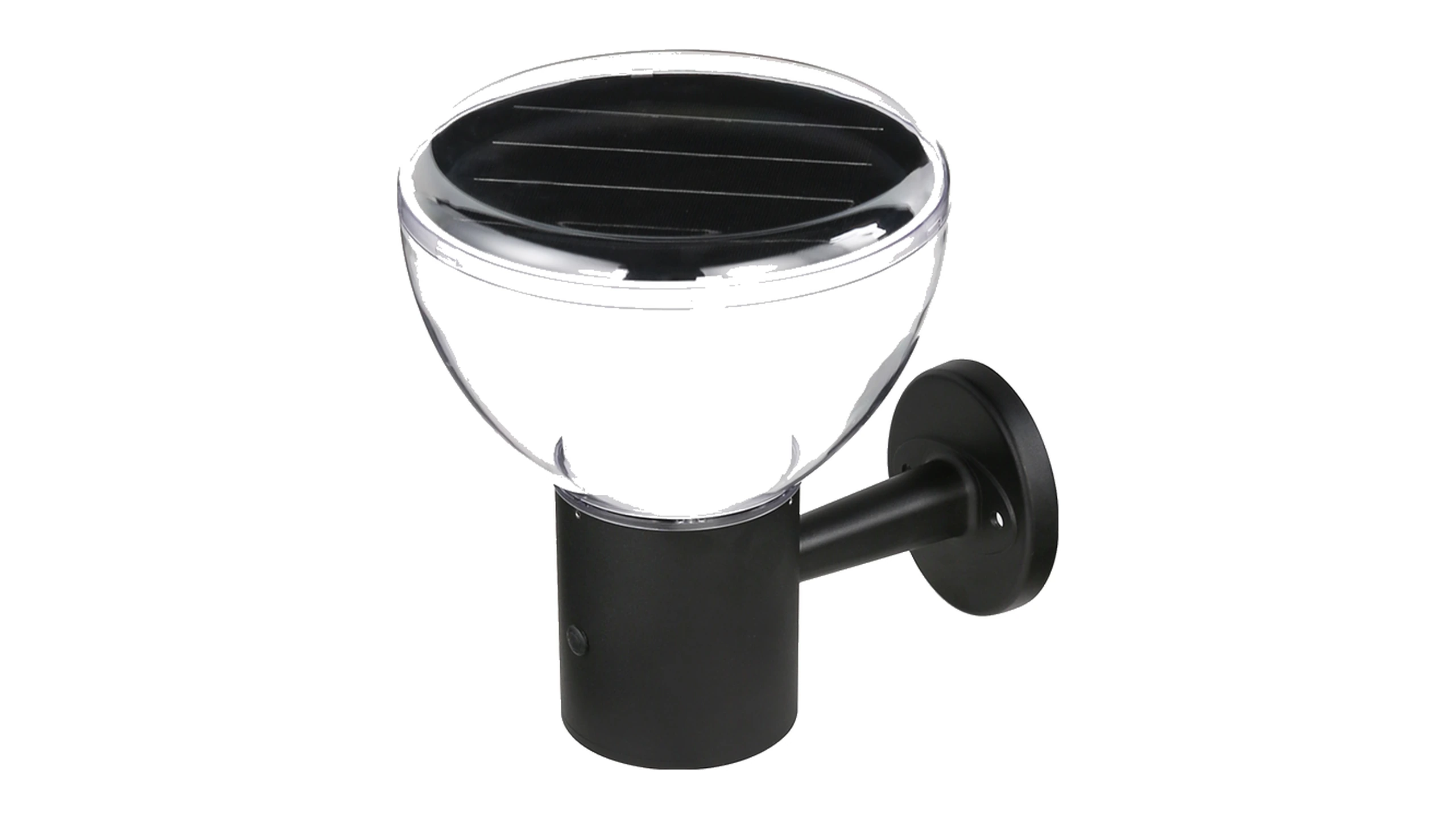

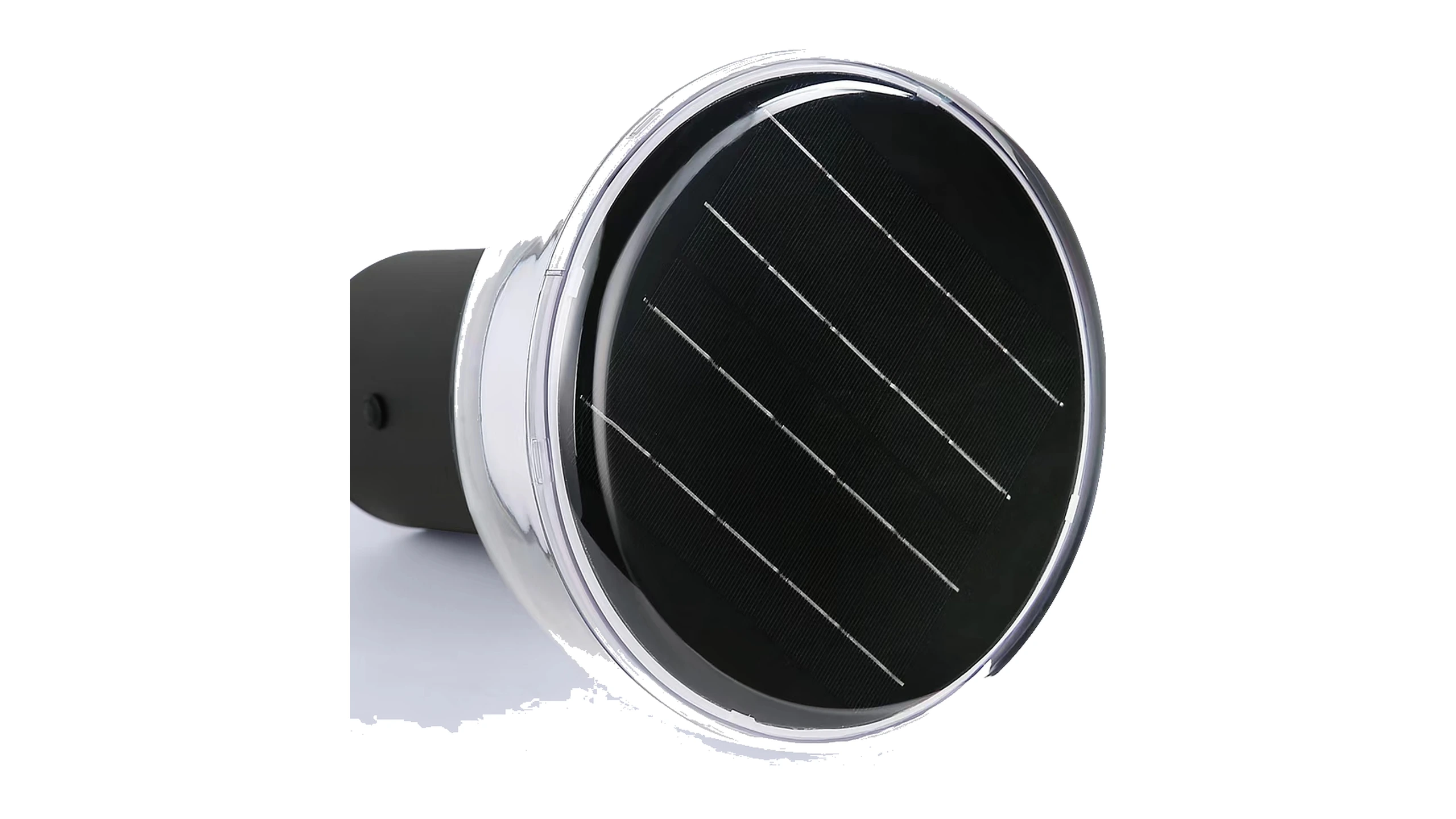

4.5W Monocrystalline PV Disc

High-efficiency circular monocrystalline module seamlessly integrated into the crown cap ensures rapid solar harvesting across all daylight angles.

High-Cycle 6000mAh LiFePO4 Battery

Industrial-grade 3.2V 6000mAh Lithium Iron Phosphate cell pack provides superior thermal resilience and over 2,000 deep discharge cycles.

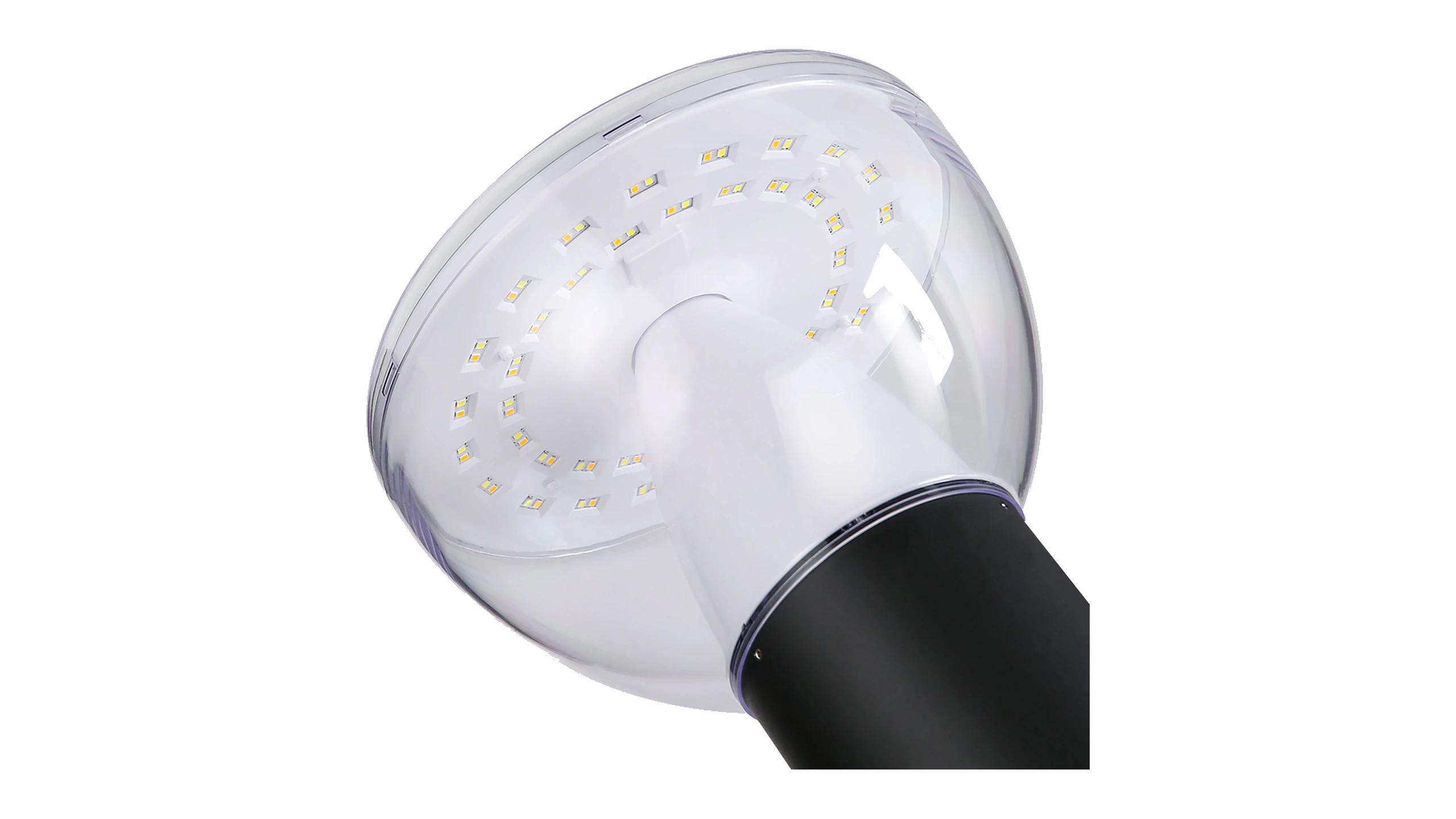

40-SMD Dual-Color Circular Array

Concentric LED array delivers uniform, flicker-free luminous flux with user-switchable 3000K warm and 6000K crisp daylight temperatures.

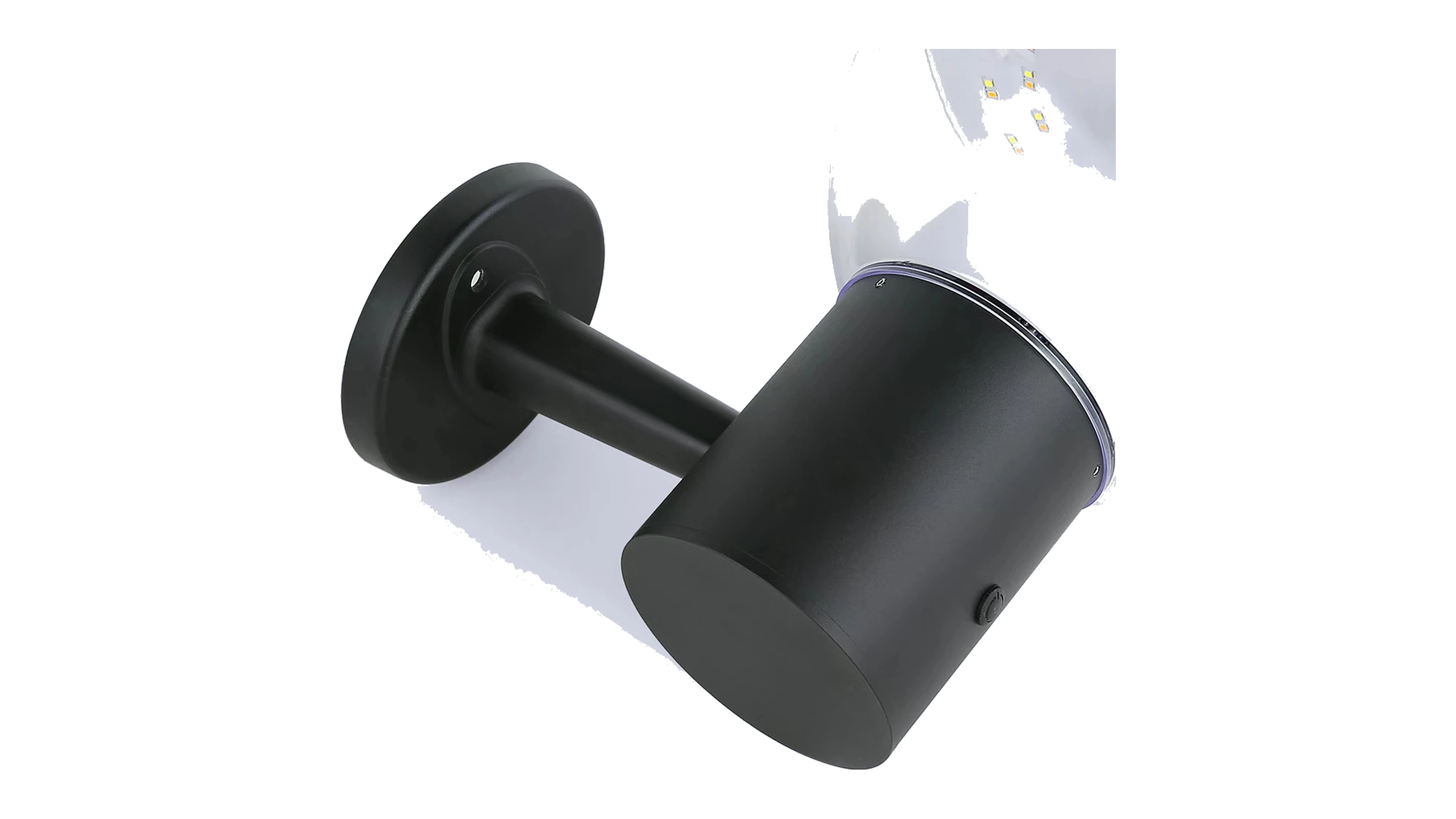

Heavy-Duty Die-Cast Wall Flange

Sturdy aluminum standoff arm and circular mounting flange provide rock-solid structural anchoring against strong coastal wind gusts.

IP65 Ingress & Marine Sealing

Precision silicone O-rings seal optical and electrical compartments against heavy monsoon rain, high humidity, and airborne dust.

Applications

Villa Portals & Porch Entries

Framing private villa gateways and grand portico entrances with prestigious architectural perimeter lighting.

Courtyard Perimeter Masonry

Illuminating boundary garden walls and stone pillars with zero trenching or high-voltage conduit installation.

Garden Retaining Walls

Providing warm guidance illumination along terraced landscape ledges, steps, and poolside retaining walls.

Outdoor Dining & Veranda Terraces

Creating an intimate evening atmosphere for alfresco entertainment pavilions, pergolas, and courtyard dining spaces.

Hospitality Corridor Walkways

Enhancing nighttime pedestrian comfort along boutique resort exterior corridors, spa cabanas, and villa paths.

Commercial Campus Parapets

Delivering reliable dusk-to-dawn perimeter visibility along corporate headquarters perimeter walls and business parks.

Impressions

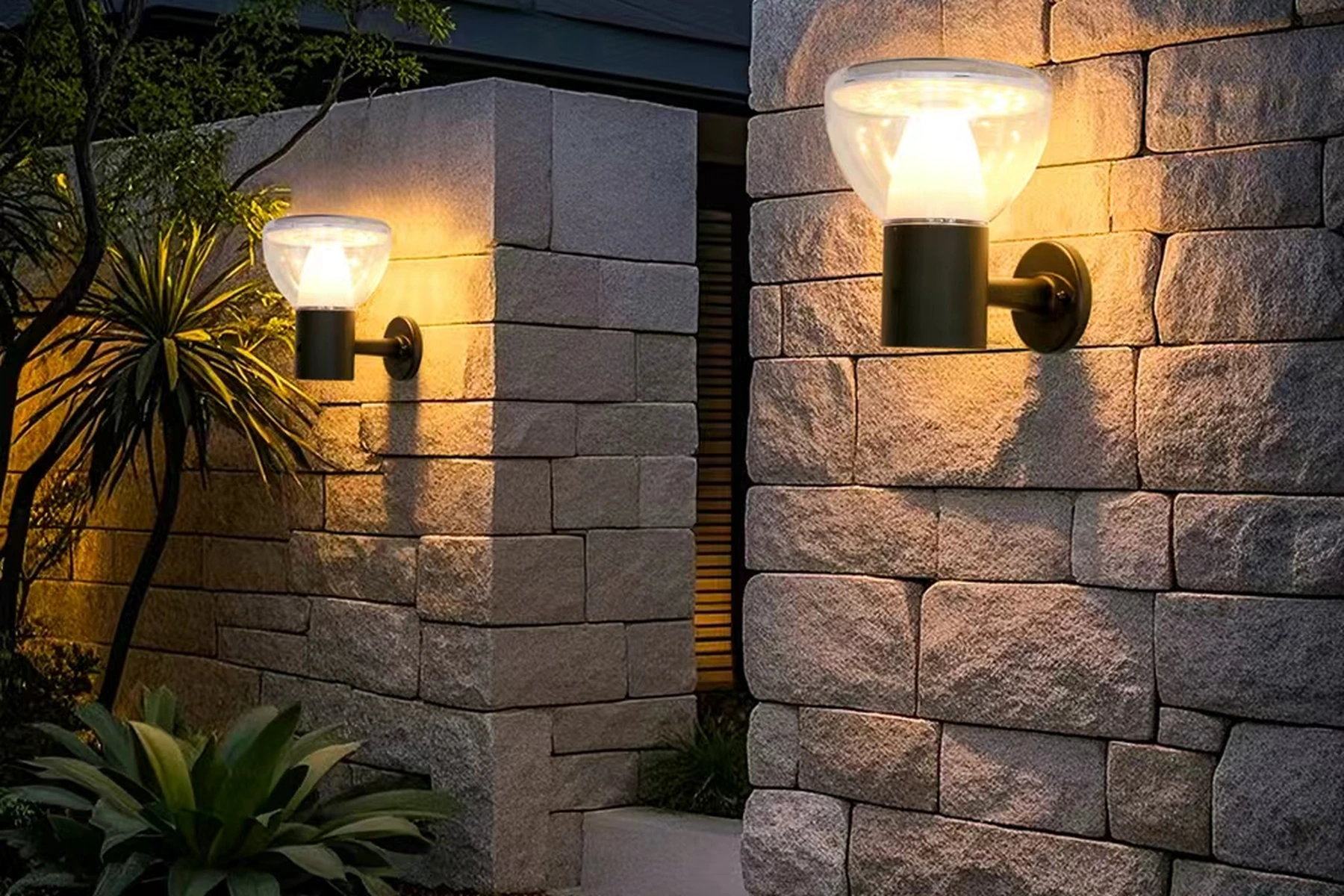

SWL-3006 firmament solar wall lights installed along rustic stone boundary pillars at sunset

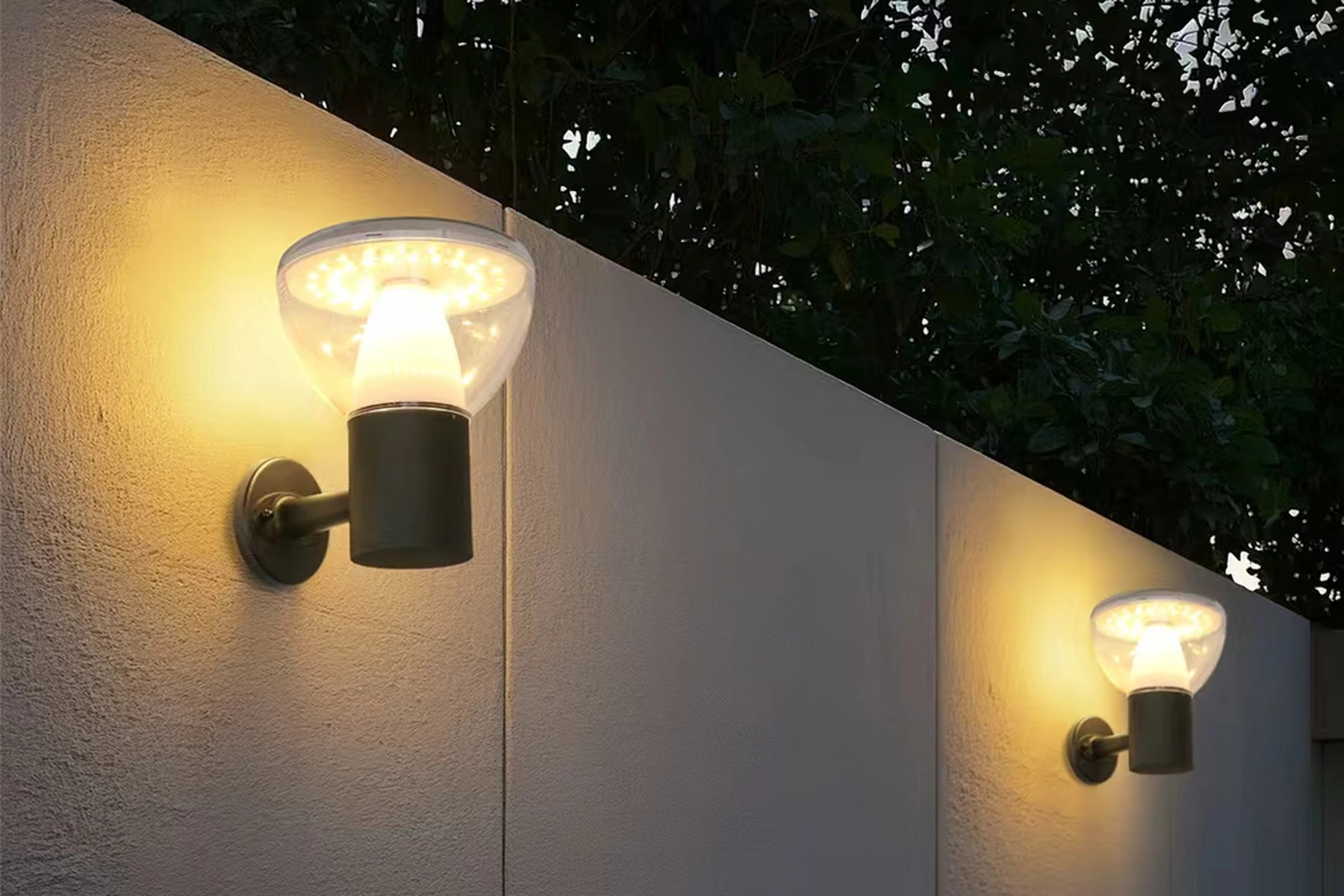

SWL-3006 wall lights washing villa courtyard boundary wall in warm evening glow

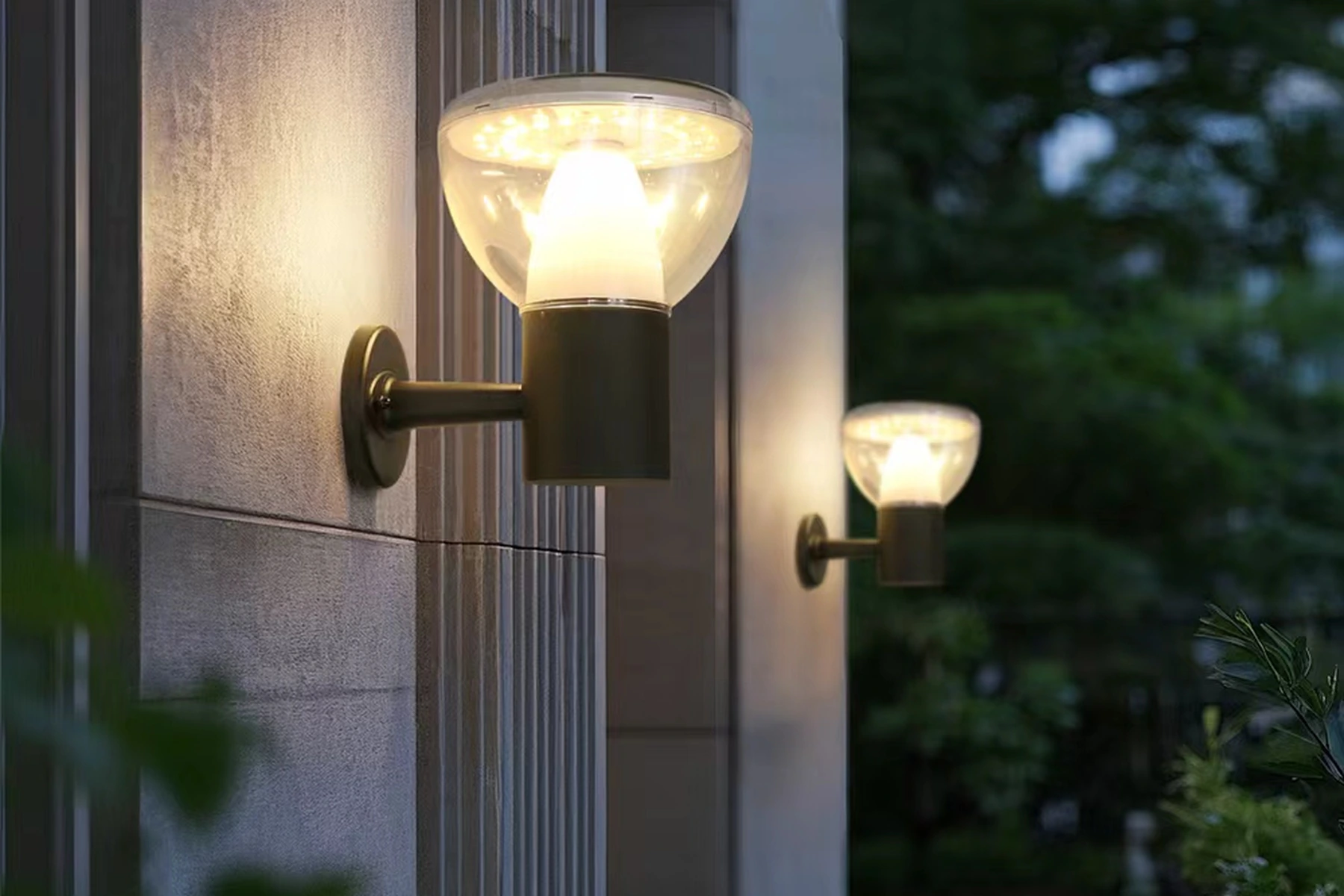

SWL-3006 solar wall sconces mounted on landscaped garden terrace wall

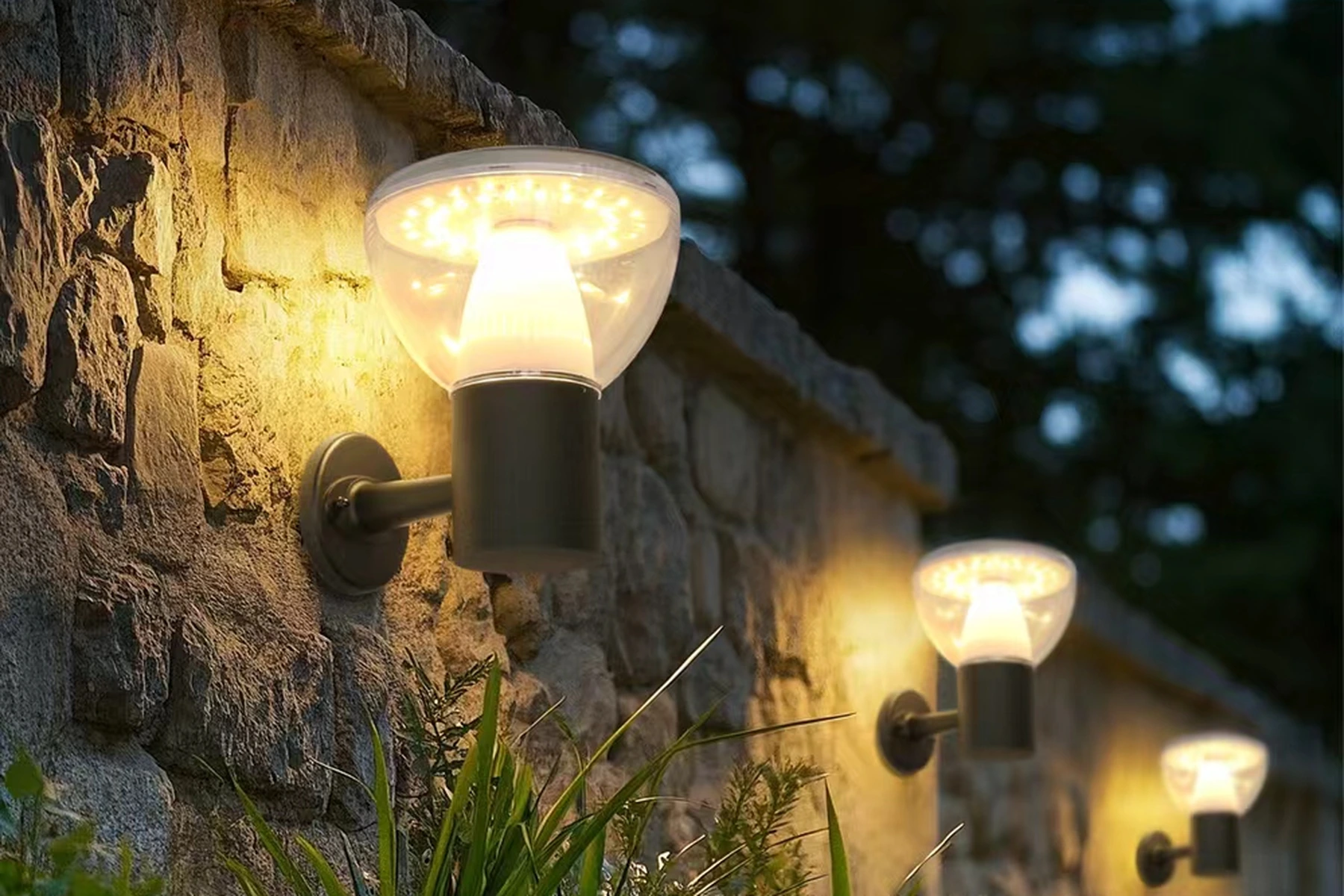

SWL-3006 firmament wall sconce illuminating contemporary residential patio entrance

FAQ

What mounting interface is included with the SWL-3006 wall sconce?

The SWL-3006 includes an engineered circular die-cast aluminum wall flange with pre-drilled anchoring points and heavy-duty expansion hardware for direct attachment onto masonry, brick, stone, and wood structures. External tall street light poles are excluded; this is a wall luminaire.

How does the 3000K/6000K dual-color switching work?

The fixture features an integrated IP65-sealed push button switch on the bottom cylinder allowing effortless cycling between 3000K warm white and 6000K daylight white, matching seasonal aesthetic preferences.

Where is the CAD engineering blueprint for the SWL-3006 located?

Because the SWL-3006 is an engineered single-model architectural wall sconce, its official CAD dimension blueprint is featured directly in the Product Overview media preview above for immediate architectural reference.

Are both solar autonomous and AC mains hardwired versions available?

Yes. Projects requiring 100% off-grid operation can specify the solar autonomous model with integrated 4.5W monocrystalline disc, while applications with existing electrical conduit can select the AC hardwired 100-240V model with matching aesthetics.
