SWL-1004 Jasmine Series Solar Wall Light

IP65 Weatherproof · Botanical Fluted Optic · 4.5W Monocrystalline PV · Self-Contained Unit (External Tall Pole Excluded)

The SWL-1004 Jasmine Series Architectural Solar Wall Light combines graceful botanical bell aesthetics with high-performance exterior illumination for building facades, perimeter columns, terrace verandas, and luxury villa entryways. Featuring an expansive fluted bell-form diffuser, it casts a uniform downward and radial ambient glow that highlights architectural textures without upward light pollution. Powered by a high-efficiency 4.5W 5V monocrystalline solar disc and a 3.2V 7000mAh (22.4Wh) LiFePO4 battery pack, it offers reliable multi-night lighting autonomy and zero wiring requirements. Complete self-contained surface-mount wall luminaire; external tall street lighting poles are excluded.

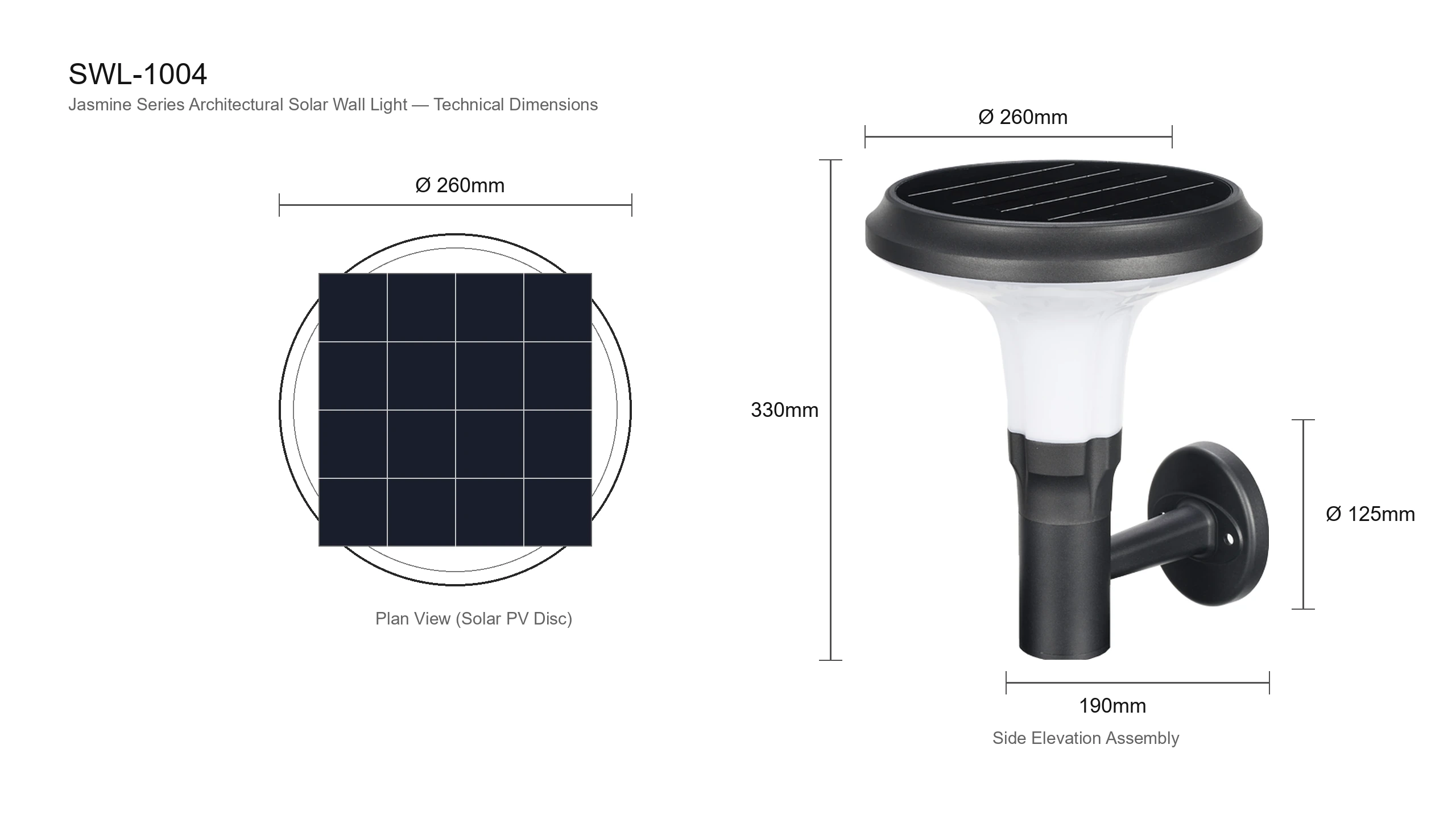

SWL-1004 jasmine solar wall light engineering CAD dimension blueprint (self-contained unit · external tall pole excluded)

Color & Optic

Color Temperature Options

3000K

6000K

Available in 3000K warm white for welcoming residential ambiance and 6000K daylight white for security perimeter illumination.

Finish Options

Sand Black

Architectural Grey

Architectural textured powder-coat finish engineered for high UV resistance and coastal salt spray endurance.

Product Specifications

Solar Panel 4.5W / 5V Monocrystalline Silicon Disc

Battery Storage 3.2V 7000mAh (22.4Wh) High-Cycle LiFePO4

Fixture Dimensions Ø260mm Head × H330mm × 190mm Projection

Color Temperature 3000K Warm / 6000K Daylight White

Charging Time 4–6 Hours Direct Sunlight Exposure

Lighting Autonomy >3 Consecutive Overcast / Rainy Nights

Housing Material Die-Cast Aluminum + Botanical PC Diffuser

Exterior Finish Sand Black Architectural Thermoset Powder

Ingress & Impact IP65 Ingress Certified | CE & RoHS

Operating Range -25°C to +65°C Temperature Resistance

Mounting Interface Surface Wall Flange Disc (Ø125mm 2-Hole)

Supply Scope Wall Luminaire Only (External Pole Excluded)

Model Lineup & Engineering Configurations

Model Code	Power Source	PV / Input	Battery / Lamp	Color Temperature	Finish Color	Packaging Specs
SWL-1004-SOL	Solar Autonomous	4.5W / 5V Mono	3.2V 7000mAh (22.4Wh)	3000K 6000K	Sand Black	Wall Surface Mount Self-Contained · Pole Excluded 4 Sets/Ctn · 620×560×380mm · 9.6kg
SWL-1004-AC	AC 100-240V Mains	50/60Hz AC Input	E27 / SMD Engine	3000K 6000K	Sand Black	Wall Surface Mount Self-Contained · Pole Excluded 4 Sets/Ctn · 620×560×380mm · 9.6kg

Advantages

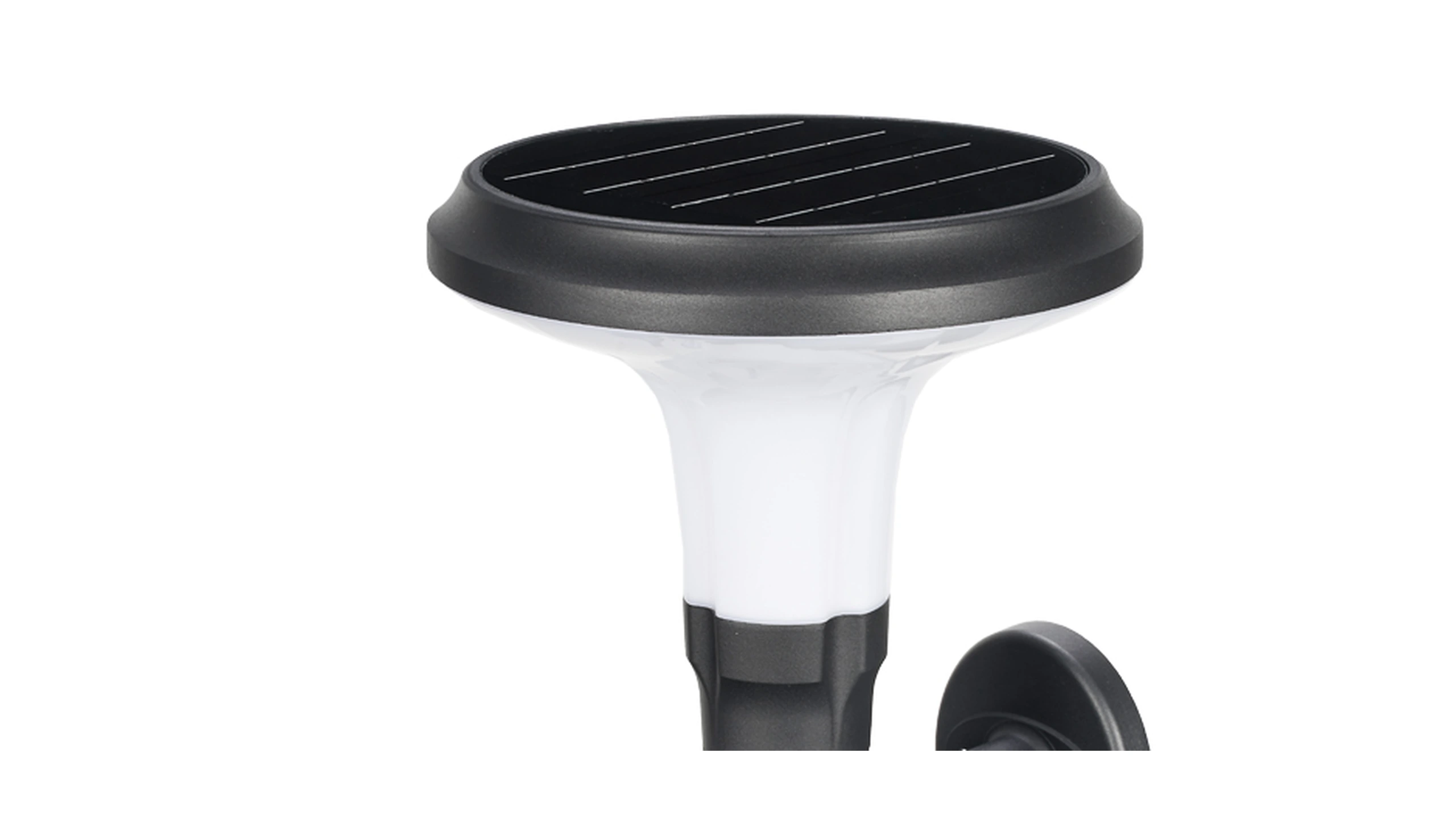

Botanical Bell Diffuser Geometry

Inspired by night-blooming jasmine flowers, the curved diffuser delivers harmonious 360-degree glare-free perimeter wash.

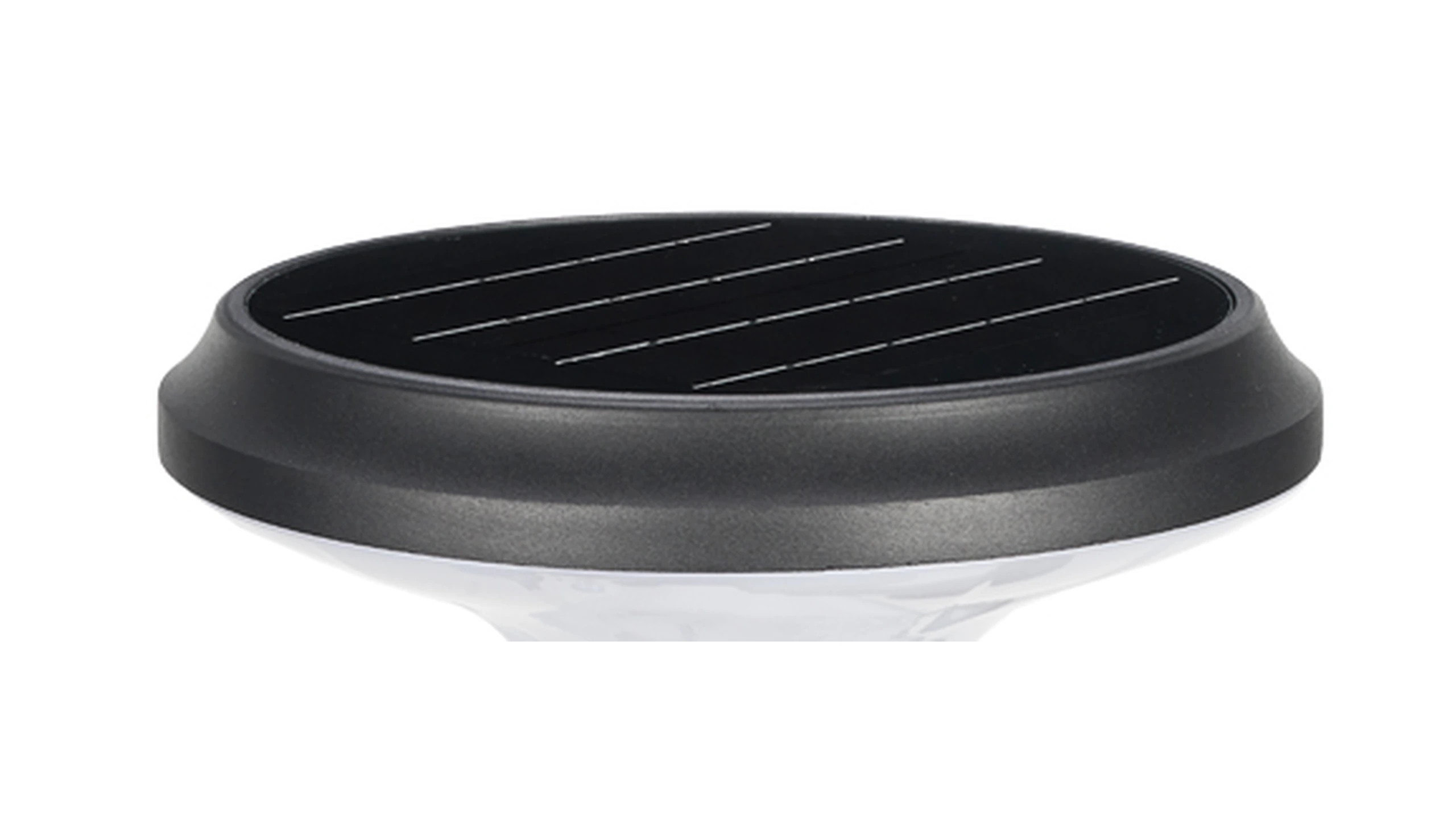

4.5W Monocrystalline PV Disc

Seamlessly integrated solar disc collects sunlight from dawn to dusk, fully charging the battery within 4 to 6 daylight hours.

High-Capacity 7Ah LiFePO4 Battery

High-density 3.2V 7000mAh (22.4Wh) Lithium Iron Phosphate chemistry provides over 2,000 cycles and multi-night autonomy.

Marine-Grade Die-Cast Aluminum

Heavy-duty cast aluminum body with multi-layer thermoset powder finish prevents rust and salt spray corrosion.

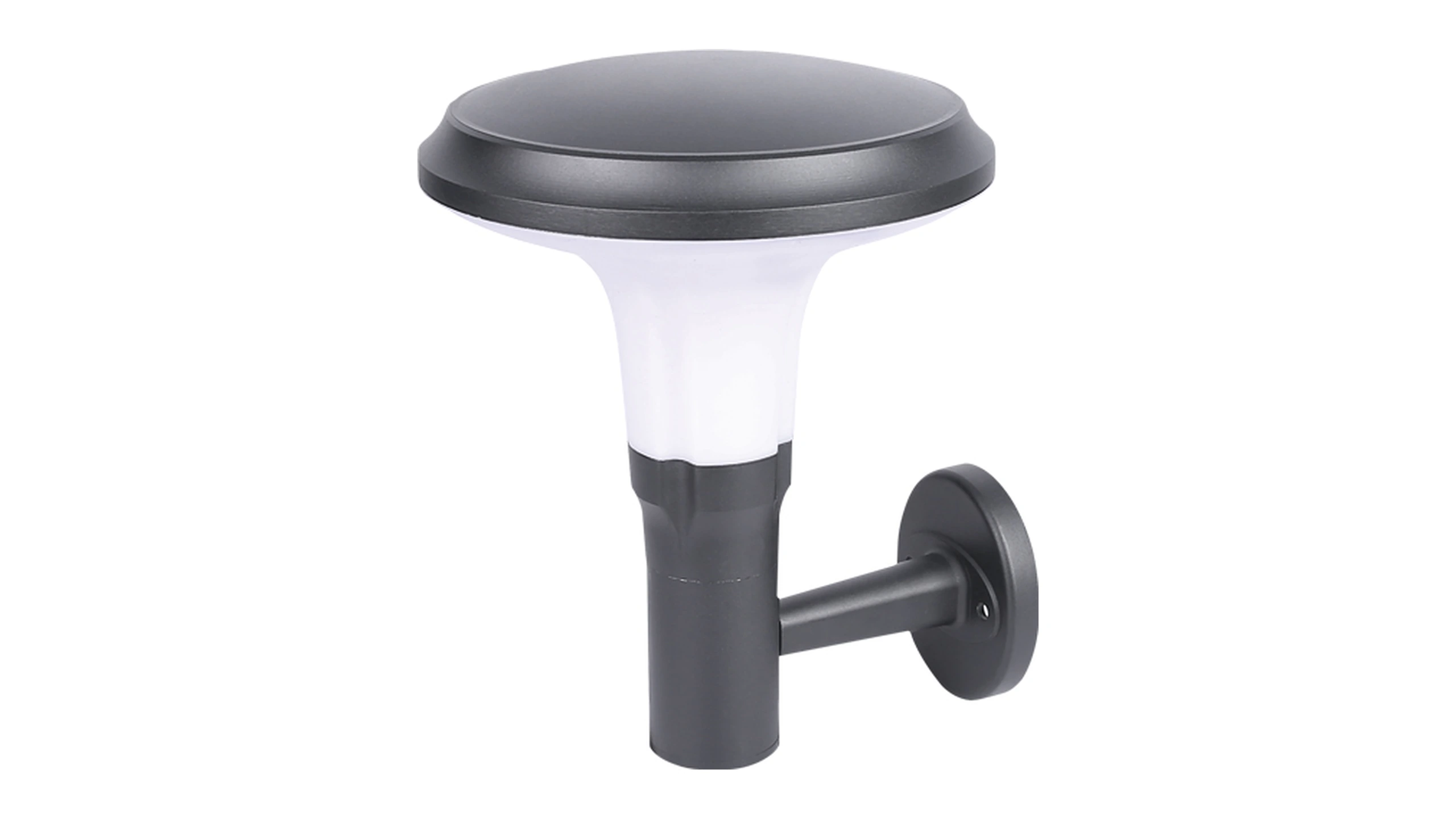

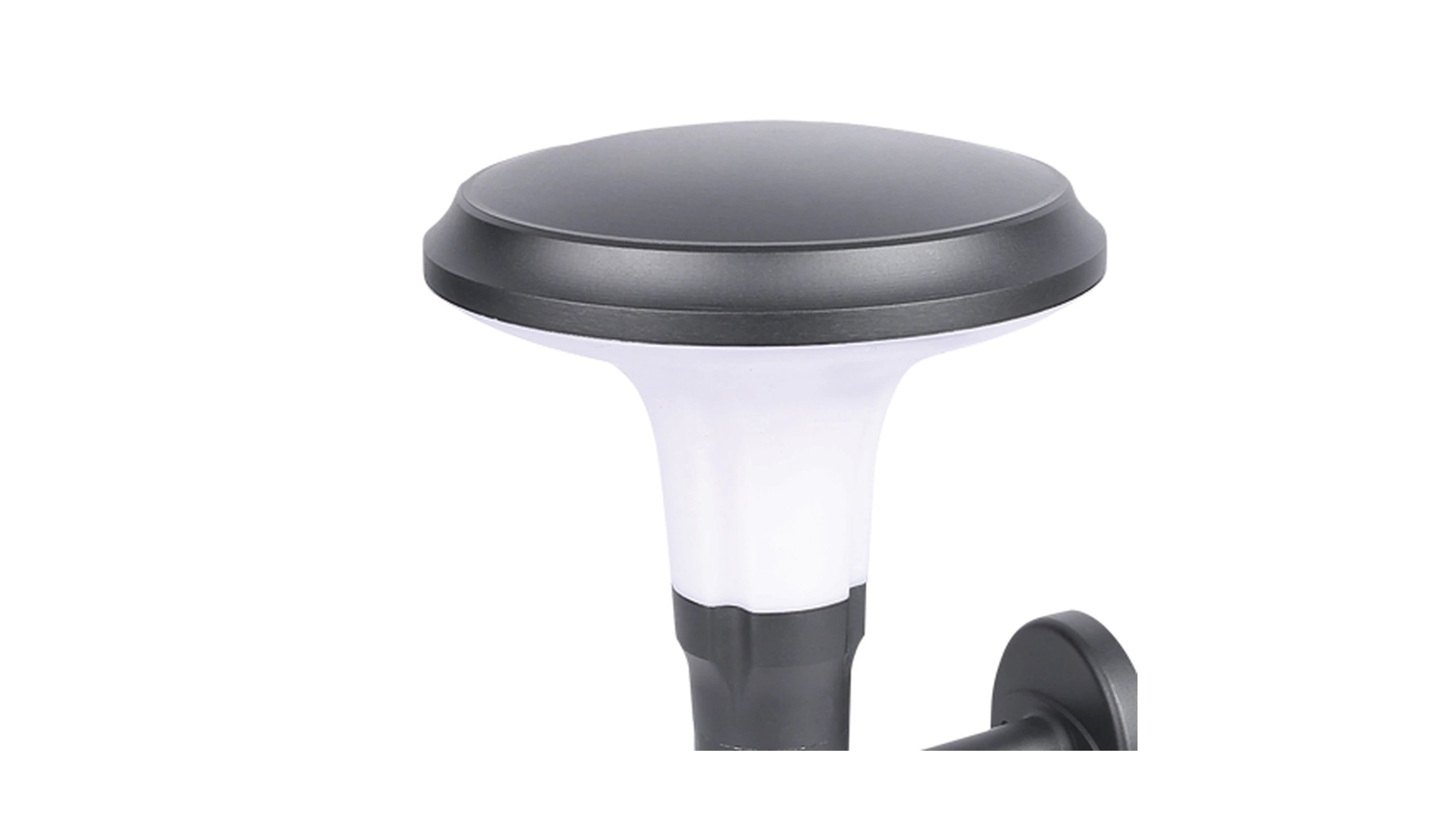

Dual Power Architecture Available

Available in both off-grid 100% solar autonomous configuration and hardwired AC mains version for maximum project flexibility.

IP65 Ingress & Dustproof Sealing

Full silicone gasket sealing delivers complete protection against torrential rainstorms, dust storms, and extreme temperatures.

Applications

Building Facades & Balconies

Accentuate exterior stucco, brick, or natural stone walls with warm architectural downlight.

Villa Porticos & Entryways

Framing main entrances and private driveway gates with welcoming, glare-free illumination.

Courtyard & Garden Walls

Mounting atop perimeter walls and courtyard partitions with zero cable trenching requirements.

Patio & Veranda Perimeters

Providing cozy ambient lighting for outdoor dining terraces, covered decks, and hotel courtyards.

Commercial Resort Walkways

Enhancing hospitality corridors, poolside pavilions, and guest villa exterior walkways.

Perimeter Security Boundaries

Delivering reliable dusk-to-dawn perimeter visibility along commercial and residential boundaries.

Impressions

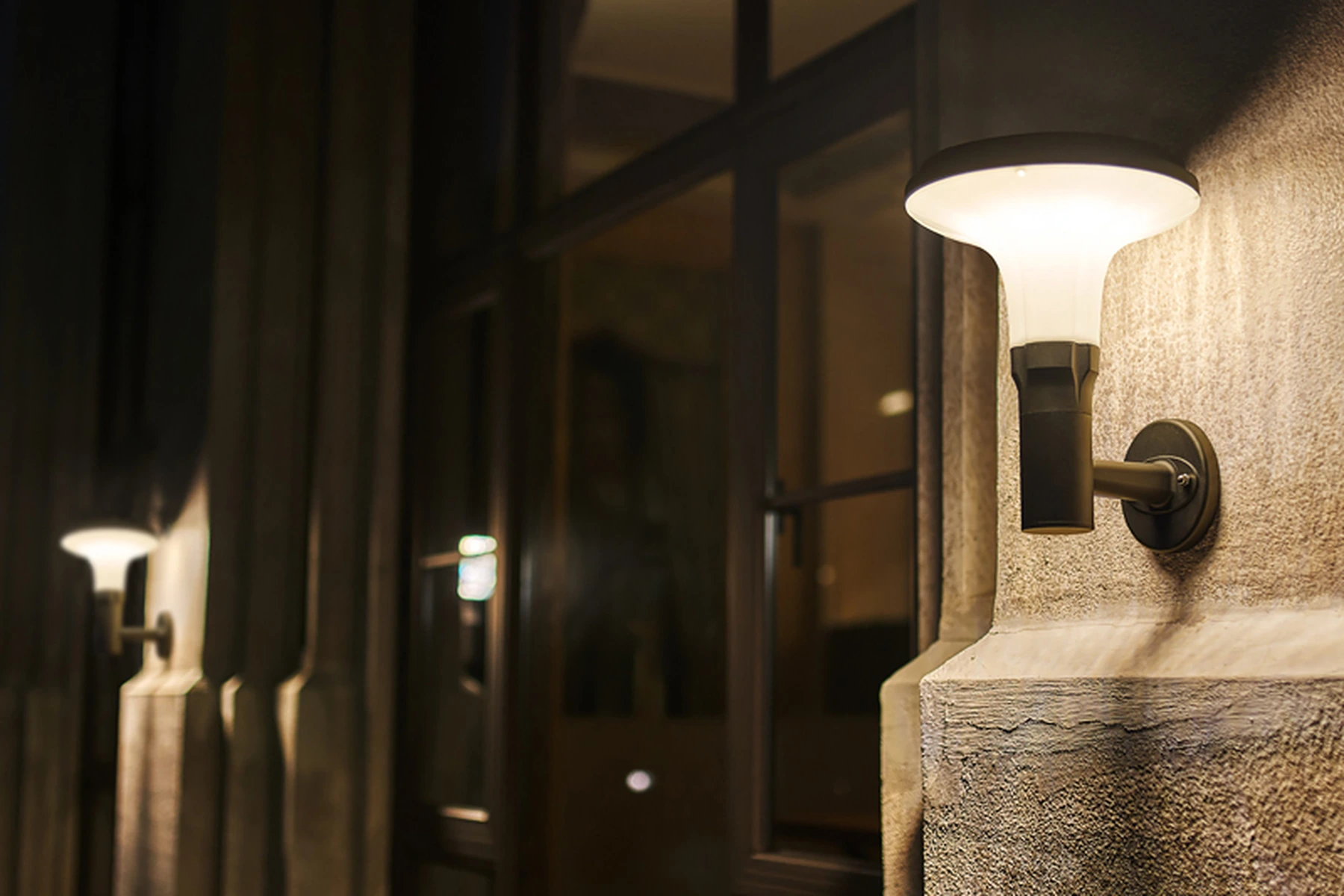

SWL-1004 jasmine solar wall lights mounted along villa stone facade at twilight

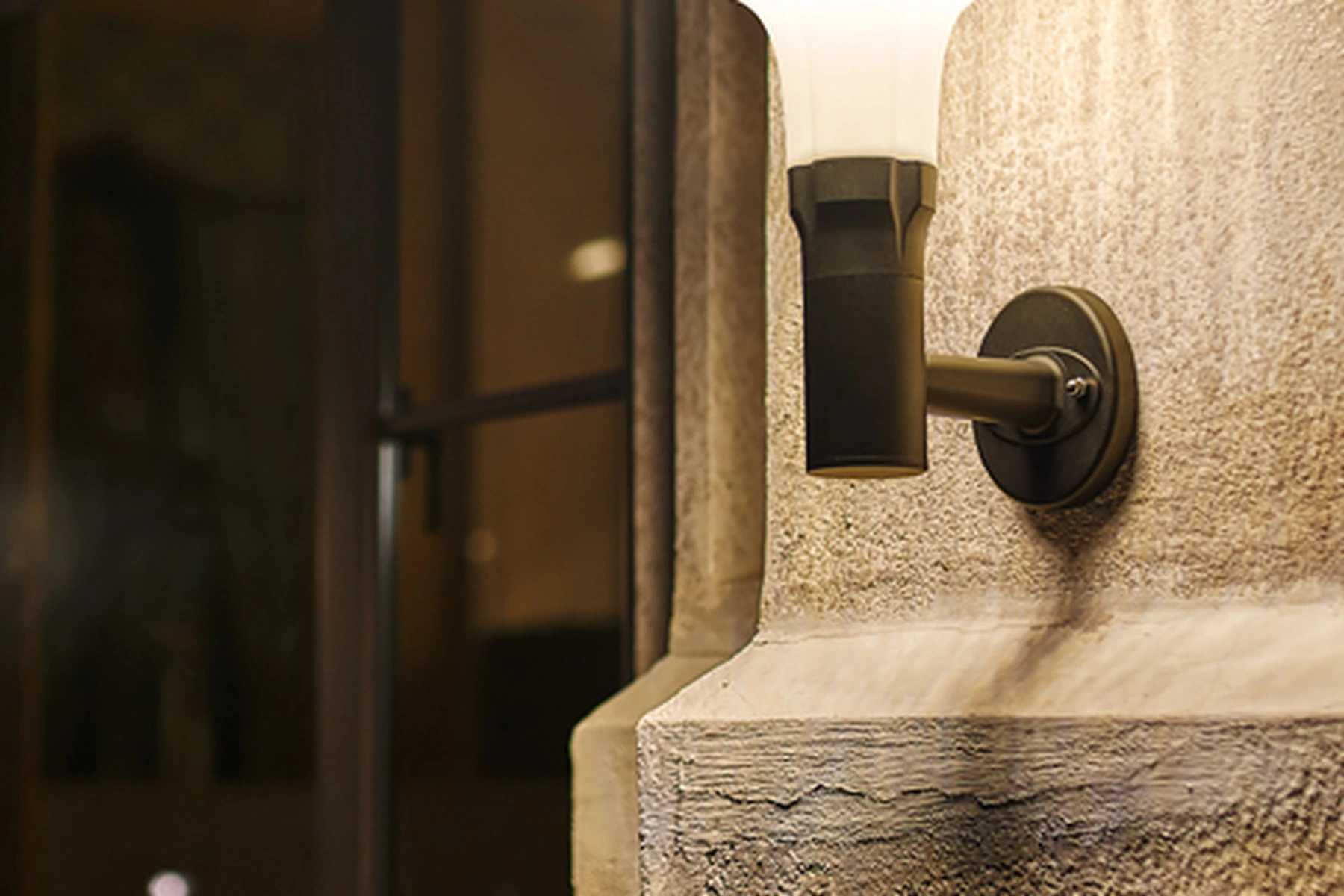

SWL-1004 foreground solar wall sconce highlighting textured stucco masonry

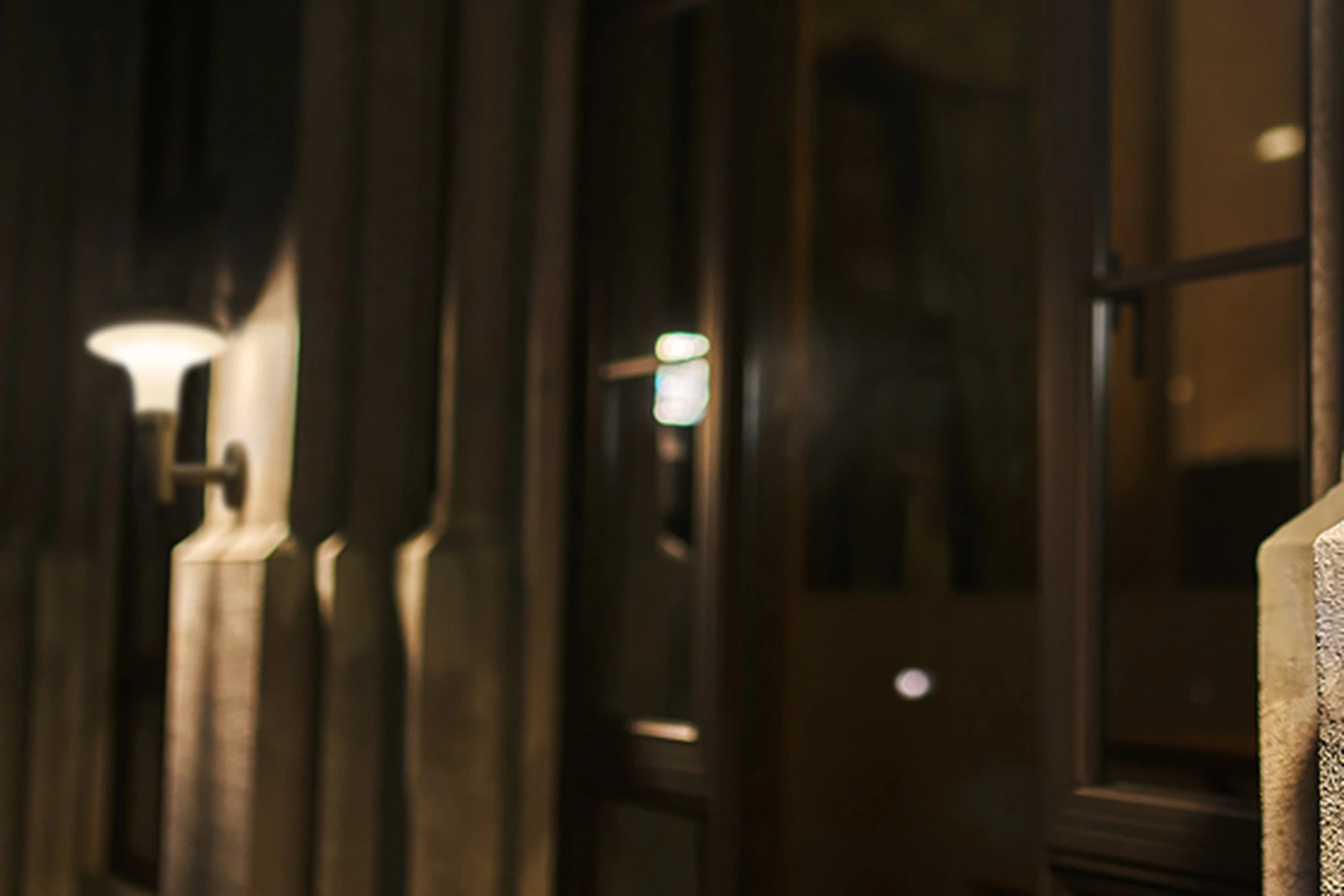

SWL-1004 jasmine wall lanterns framing exterior French window architecture

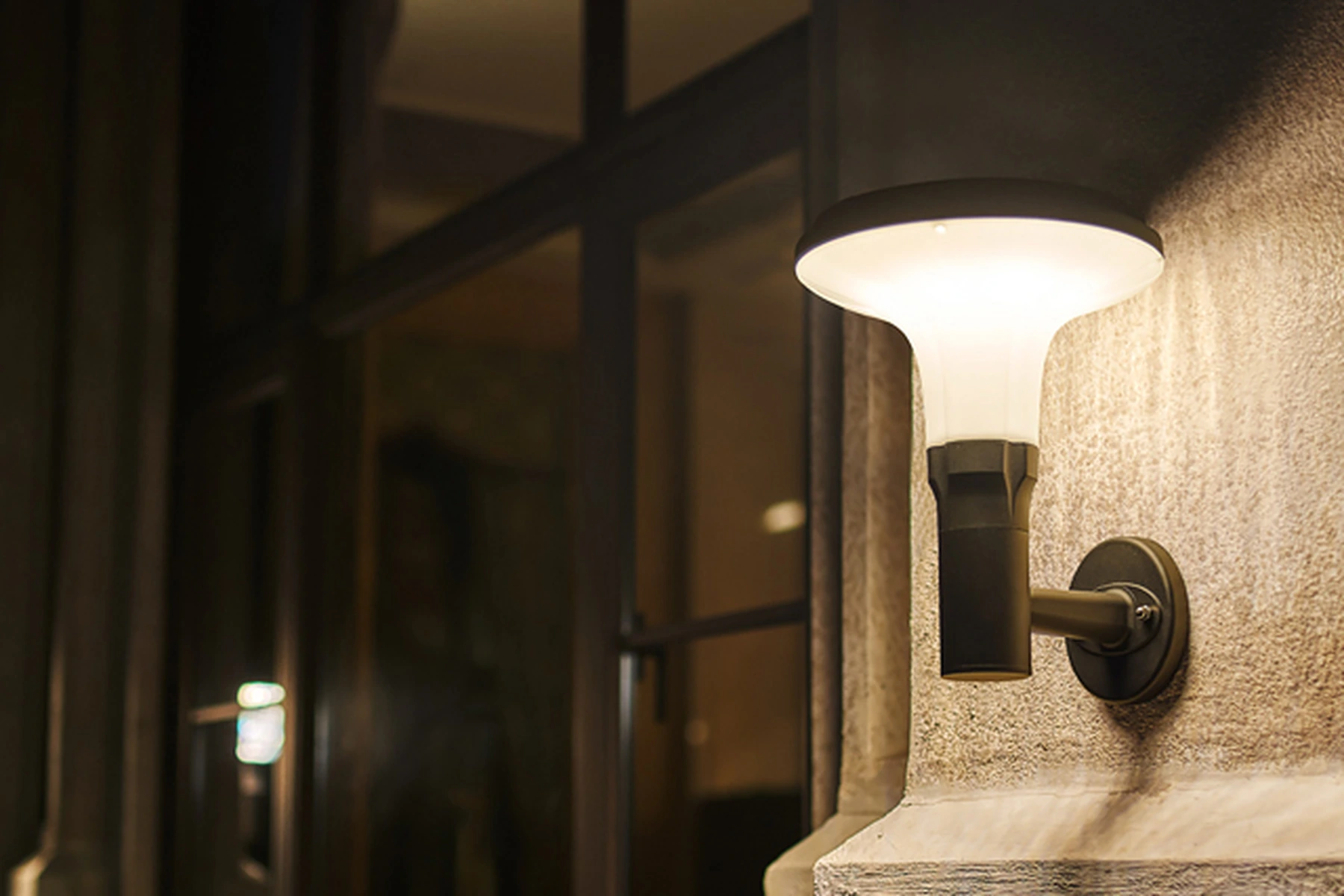

SWL-1004 architectural downward light pool washing stone entrance pillar

FAQ

What mounting interface is used for the SWL-1004 wall sconce?

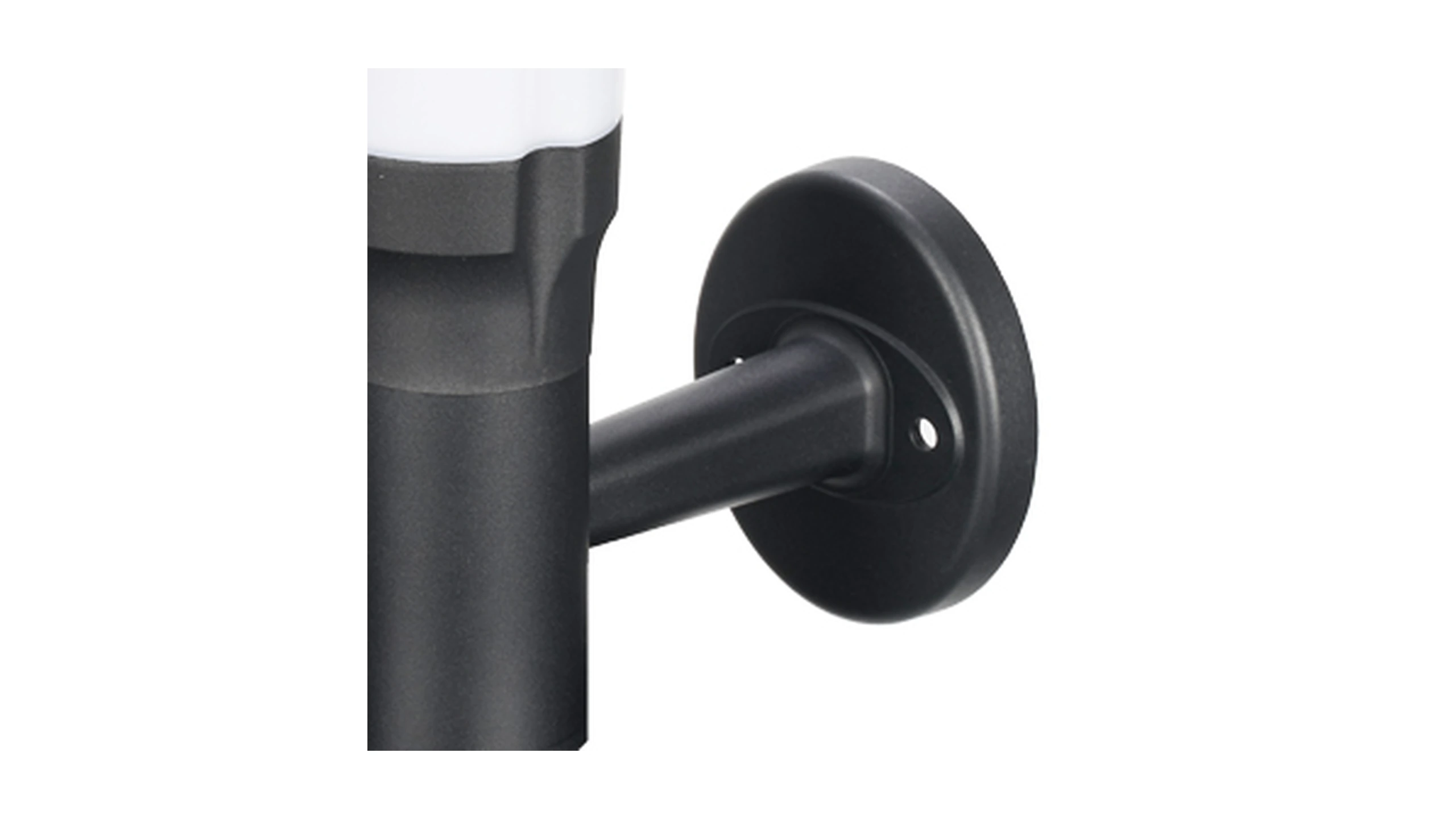

The SWL-1004 includes an integrated Ø125mm circular mounting flange with dual pre-drilled anchor bolt holes designed for secure fastening onto concrete walls, exterior masonry, brick pillars, or timber siding. External tall street light poles are excluded; this is a wall luminaire.

How does the SWL-1004 perform during prolonged cloudy or rainy periods?

Powered by a high-capacity 3.2V 7000mAh (22.4Wh) Grade-A LiFePO4 battery pack and intelligent PWM power management, the SWL-1004 maintains over 3 continuous cloudy or rainy days (3+ full nights) of illumination without supplementary sunlight charging.

Where is the CAD engineering blueprint for the SWL-1004 located?

Because the SWL-1004 is an engineered single-model architectural wall sconce, its official CAD dimension blueprint is featured directly in the Product Overview media preview above for immediate architectural reference.

Are both solar autonomous and AC mains hardwired versions available?

Yes. Projects requiring 100% off-grid operation can specify the solar autonomous model with integrated 4.5W monocrystalline disc, while applications with existing electrical conduit can select the AC hardwired 100-240V model with matching aesthetics.
