Name: SWL-1006 Solar Wall Light | TPK Lighting
SKU: SWL-1006

SWL-1006 Bird Series Solar Wall Light

IP65 Weatherproof · Inclined Monocrystalline PV · Smart PIR Detection · Self-Contained Unit (External Tall Pole Excluded)

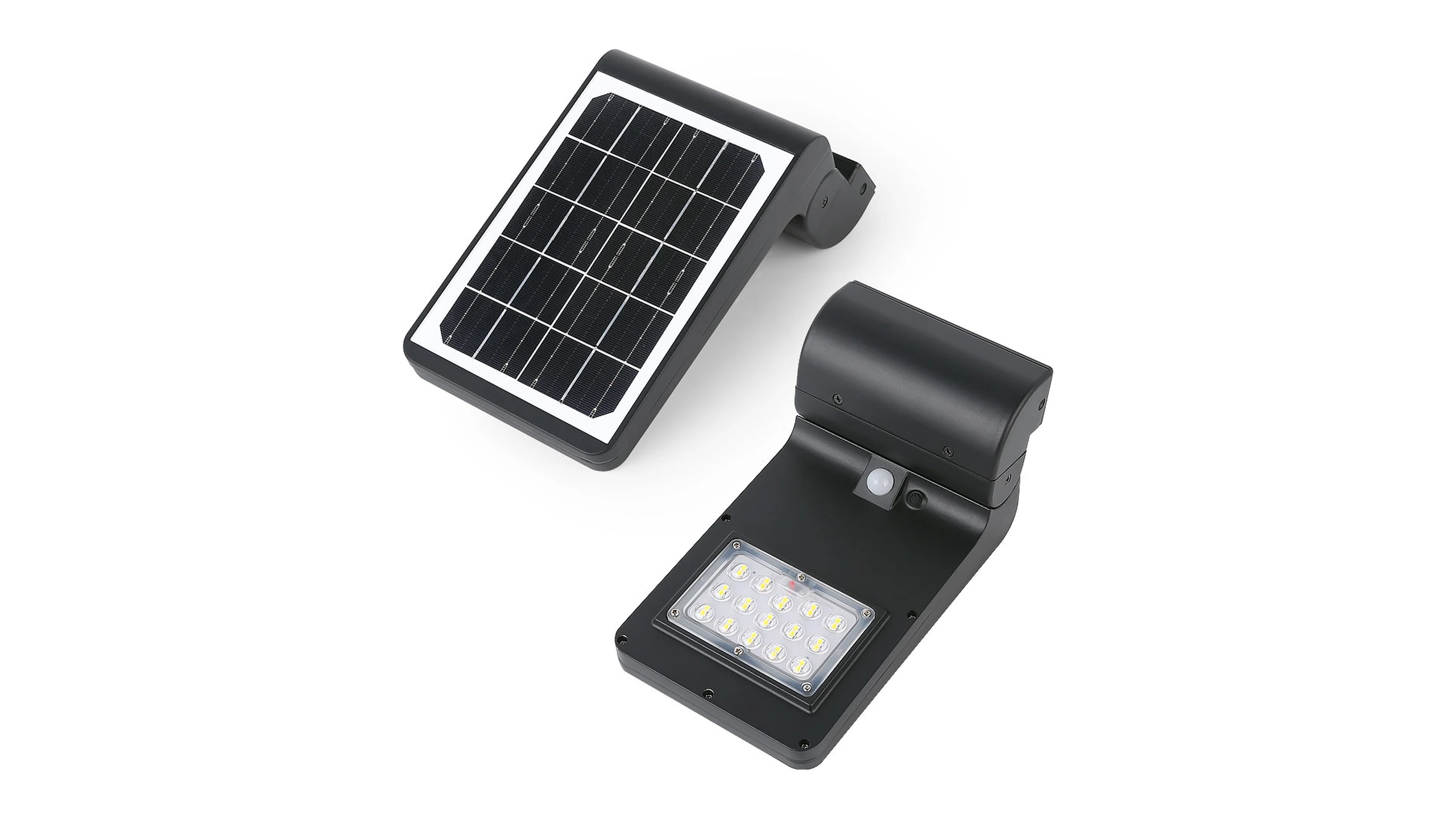

The SWL-1006 Bird Series Architectural Solar Wall Light combines aerodynamic bio-mimetic contours with heavy-duty exterior performance to elevate building facades, perimeter fences, patio dining decks, and villa entryways. Engineered with an inclined 5V 5W monocrystalline solar panel, it maximizes solar photon capture throughout seasonal sun angles. Equipped with a high-capacity 3.2V 8Ah (25.6Wh) LiFePO4 battery pack, 30 precision SMD LEDs, and smart PIR motion sensing, SWL-1006 delivers bright security lighting upon motion detection and gentle ambient wash during standby. Complete self-contained surface-mount wall luminaire; external tall street lighting poles are excluded.

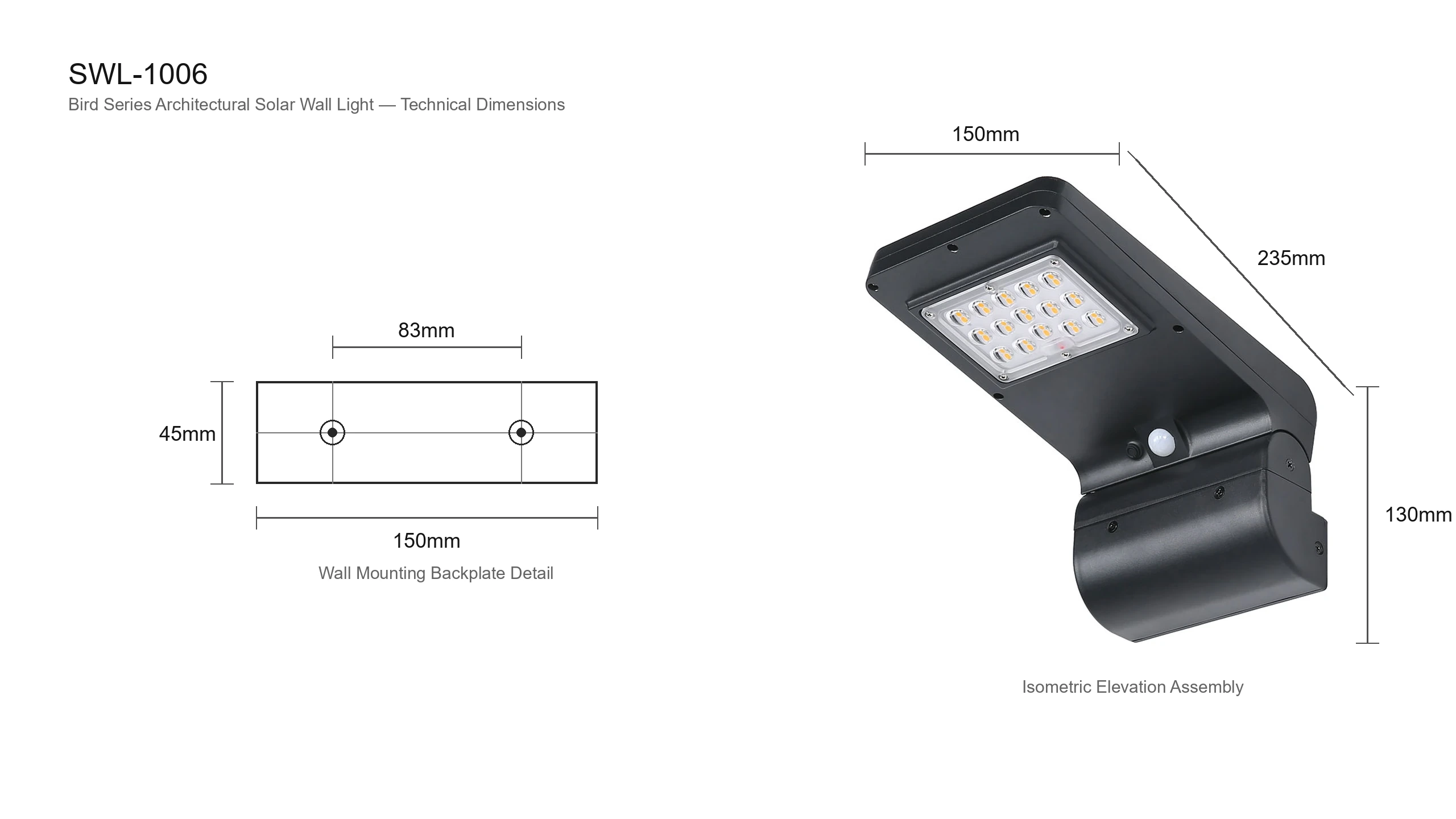

SWL-1006 bird solar wall light engineering CAD dimension blueprint (self-contained unit · external tall pole excluded)

Color & Optic

Color Temperature Options

3000K

6000K

Available in 3000K warm white for welcoming residential ambiance and 6000K daylight white for security perimeter illumination.

Finish Options

Sand Black

Architectural Grey

Architectural textured powder-coat finish engineered for high UV resistance and coastal salt spray endurance.

Product Specifications

Solar Panel 5V / 5W Monocrystalline Silicon Panel

Battery Storage 3.2V 8Ah (25.6Wh) High-Cycle LiFePO4

Fixture Dimensions W150 × L235 × H130mm (Backplate 150×45mm)

LED Array & CCT 30 SMD LEDs · 3000K Warm / 6000K White

Intelligent Sensor Wide-Angle PIR Motion + Dusk-to-Dawn Photocell

Lighting Autonomy >3 Consecutive Overcast / Rainy Nights

Housing Material Die-Cast Aluminum + UV-Stabilized PC Optic

Exterior Finish Sand Black Architectural Thermoset Powder

Ingress & Impact IP65 Ingress Certified | CE & RoHS

Operating Range -25°C to +65°C Temperature Resistance

Mounting Interface Wall Mount Bracket Included (83mm Spacing)

Supply Scope Wall Luminaire Only (External Pole Excluded)

Model Lineup & Engineering Configurations

Model Code	Power Source	PV / Input	Battery / Lamp	Color Temperature	Finish Color	Packaging Specs
SWL-1006-SOL	Solar Autonomous	5V / 5W Mono	3.2V 8Ah (25.6Wh)	3000K 6000K	Sand Black	Wall Surface Mount Self-Contained · Pole Excluded 12 Sets/Ctn · 510×470×250mm · 19.4kg
SWL-1006-AC	AC 100-240V Mains	50/60Hz AC Input	SMD Engine / Driver	3000K 6000K	Sand Black	Wall Surface Mount Self-Contained · Pole Excluded 12 Sets/Ctn · 510×470×250mm · 19.4kg

Advantages

Aerodynamic Bio-Mimetic Geometry

Sleek bird-wing profile sheds rainwater and minimizes wind load while projecting downward glare-free illumination.

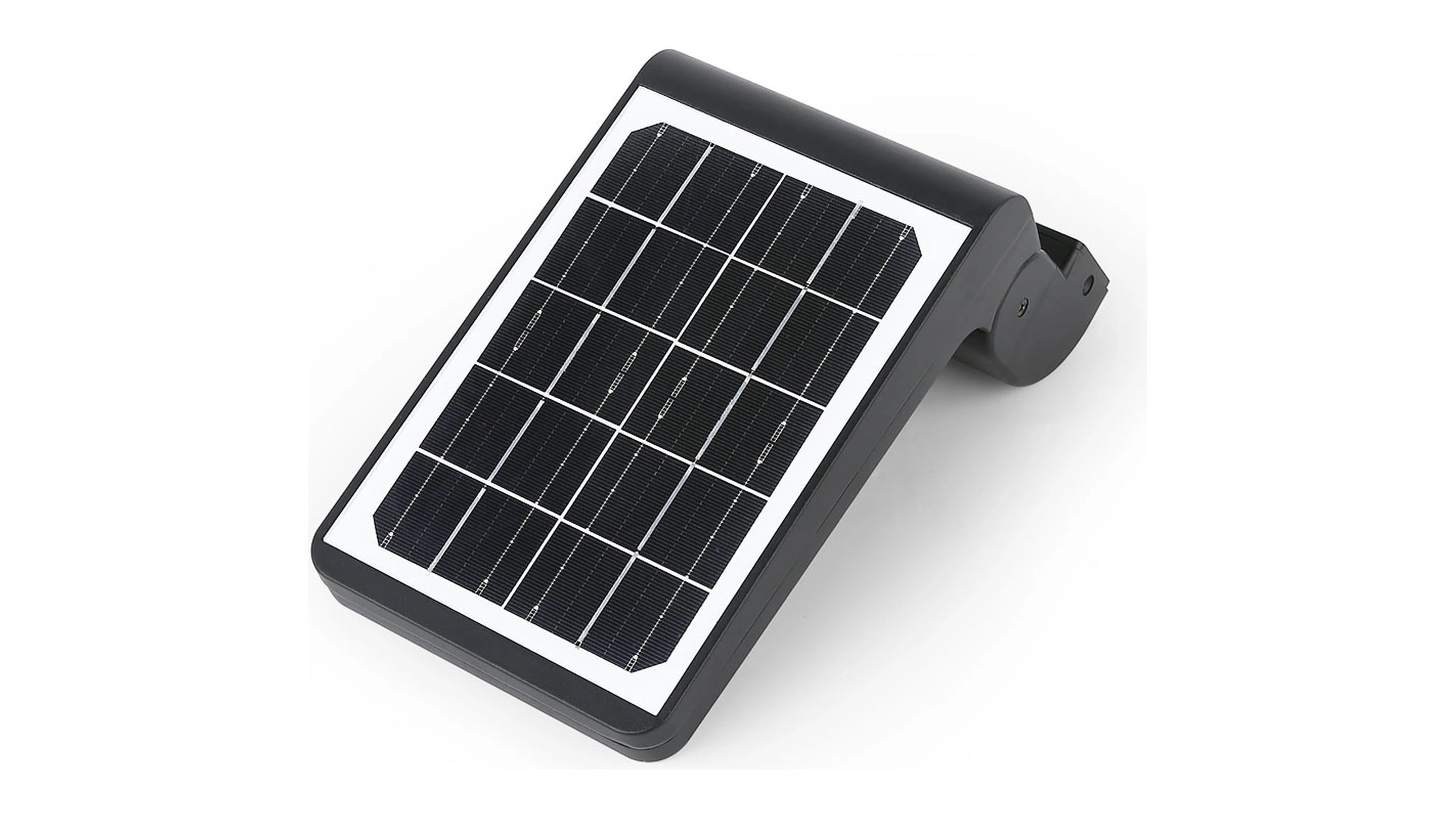

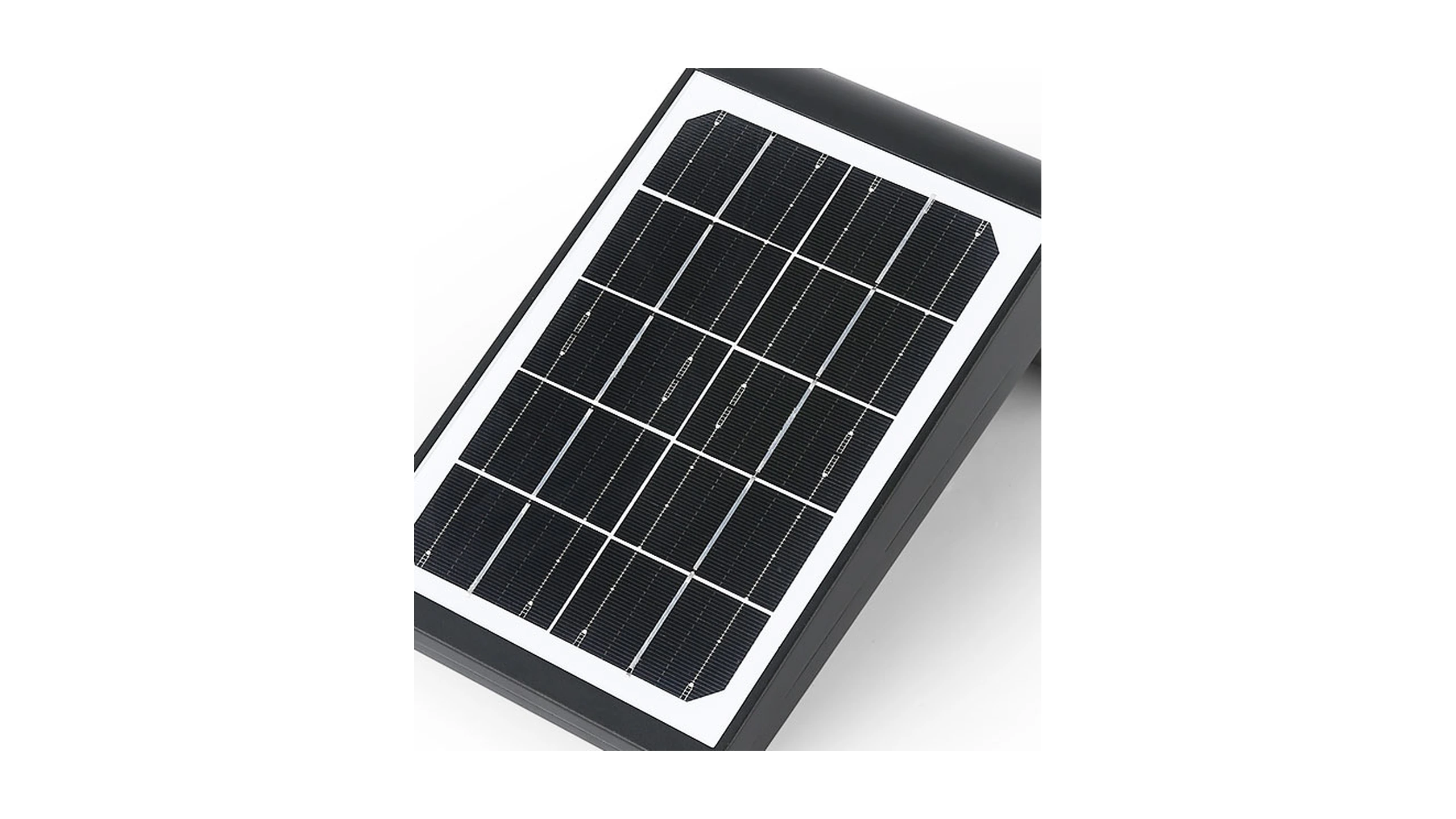

5W Monocrystalline PV Canopy

High-efficiency mono-Si panel angled for optimal sunlight capture during both winter low-sun and summer high-sun conditions.

High-Capacity 8Ah LiFePO4 Core

Heavy-duty 3.2V 8Ah (25.6Wh) Grade-A Lithium Iron Phosphate cells deliver over 2,000 cycles with zero thermal hazard.

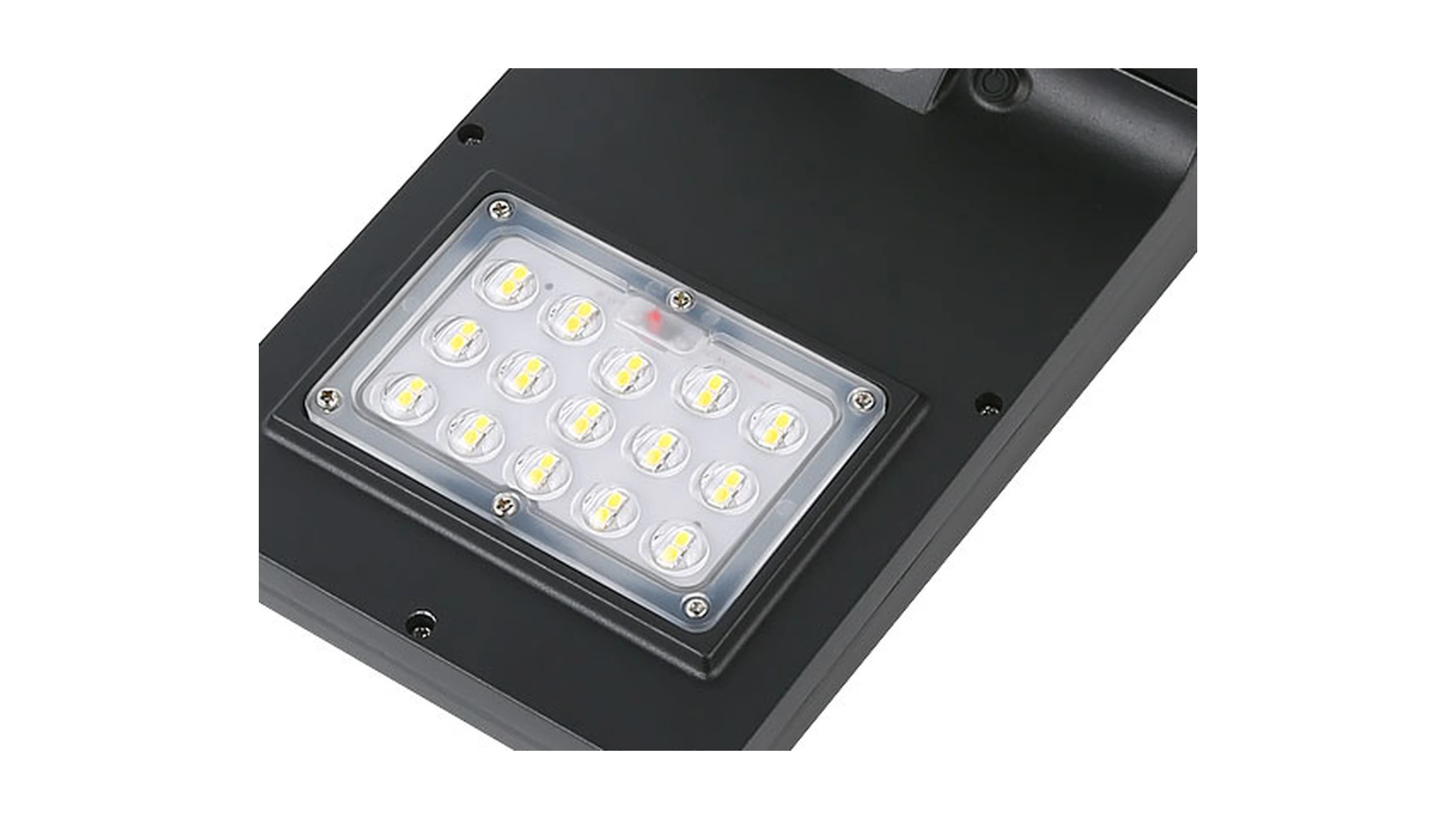

30 SMD LED High-Lumen Array

Precision engineered optical lens directs light forward and downward, banishing harsh glare while illuminating wall bases.

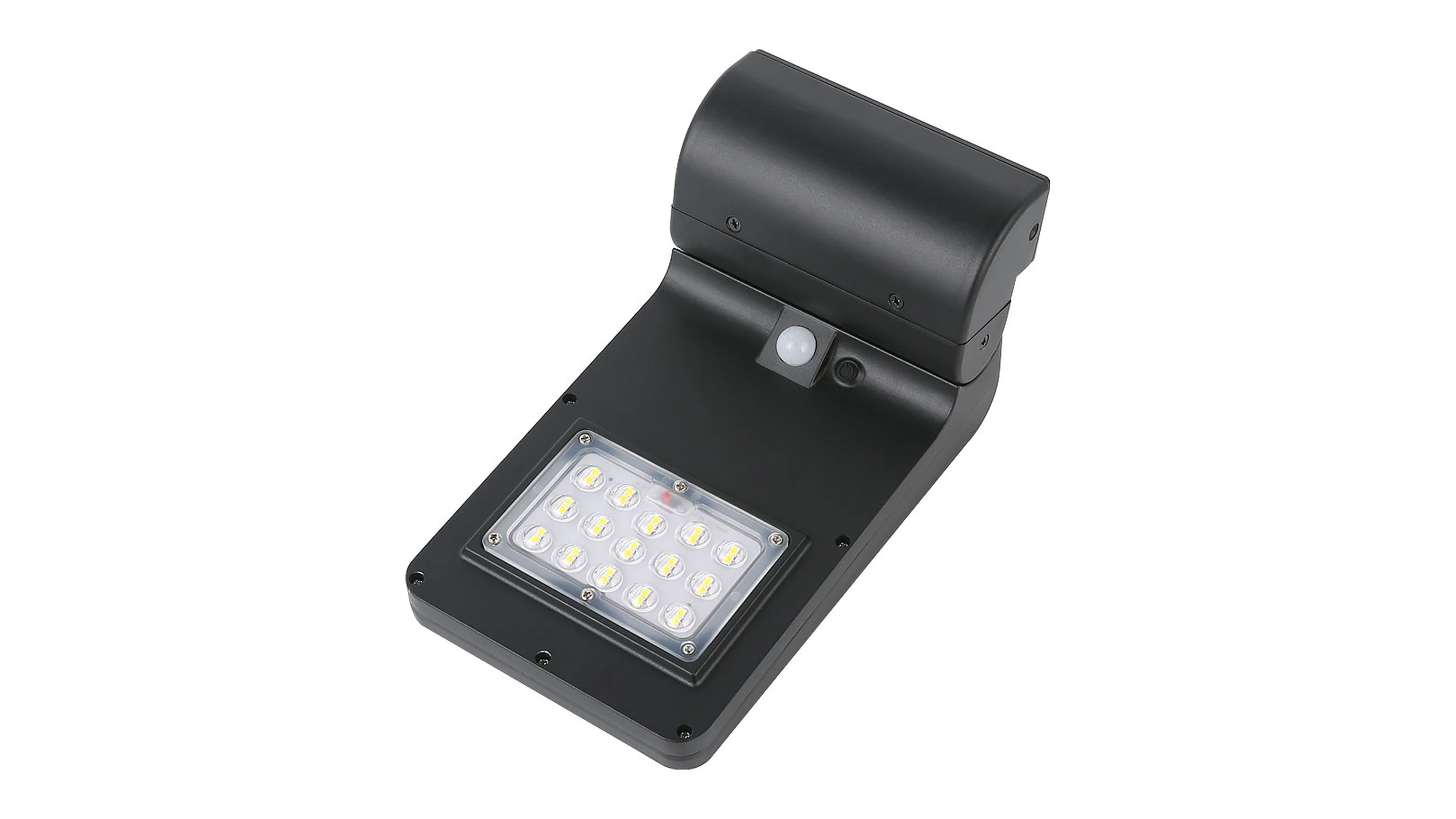

Smart PIR Motion & Dusk-to-Dawn

Multi-zone sensor automatically transitions from ambient standby to full output upon detecting human movement within 6–8 meters.

IP65 Waterproof Die-Cast Housing

Rugged corrosion-resistant die-cast aluminium with silicone perimeter gaskets withstands coastal salt air and driving rain.

Applications

Villa Facades & Residential Patios

Providing elegant architectural downlight along villa exterior walls, patio seating areas, and courtyard verandas.

Timber & Slat Cladding Entrances

Seamlessly integrating with contemporary wooden slat facades and modern entrance doorways with zero conduit runs.

Seaside & Coastal Dining Decks

Corrosion-resistant IP65 construction ideal for beach cottages, marina terraces, and coastal restaurant perimeters.

Masonry Entry Gates & Pillars

Illuminating driveway gateposts, boundary brick piers, and courtyard entry portals with responsive security lighting.

Commercial Walkways & Corridors

Guiding pedestrian movement along resort pathways, business park exterior corridors, and hospitality pavilions.

Garden Walls & Perimeter Enclosures

Delivering self-powered illumination across perimeter boundary walls where trenching electrical cables is impractical.

Impressions

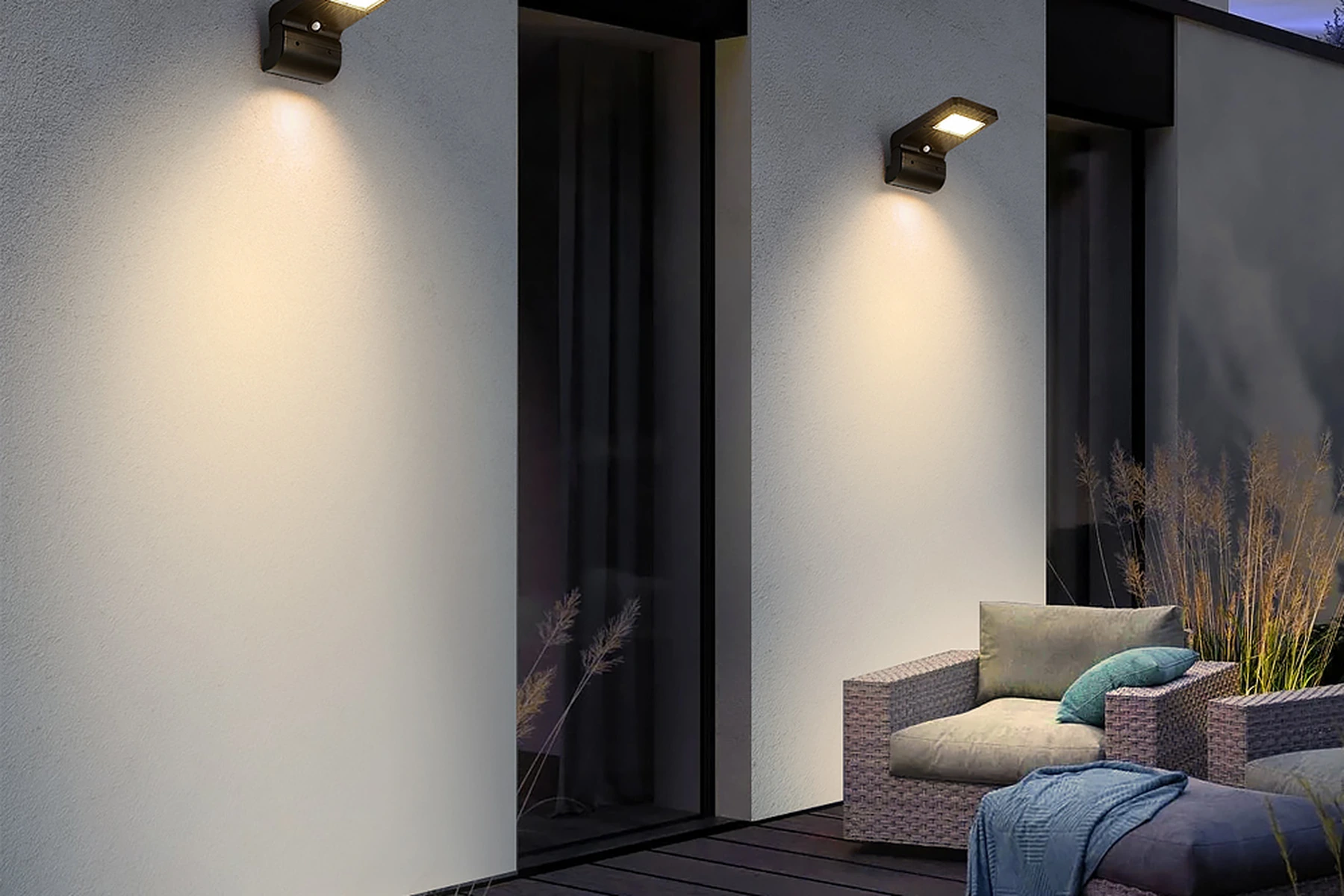

SWL-1006 bird solar wall lights mounted along modern villa patio deck at twilight

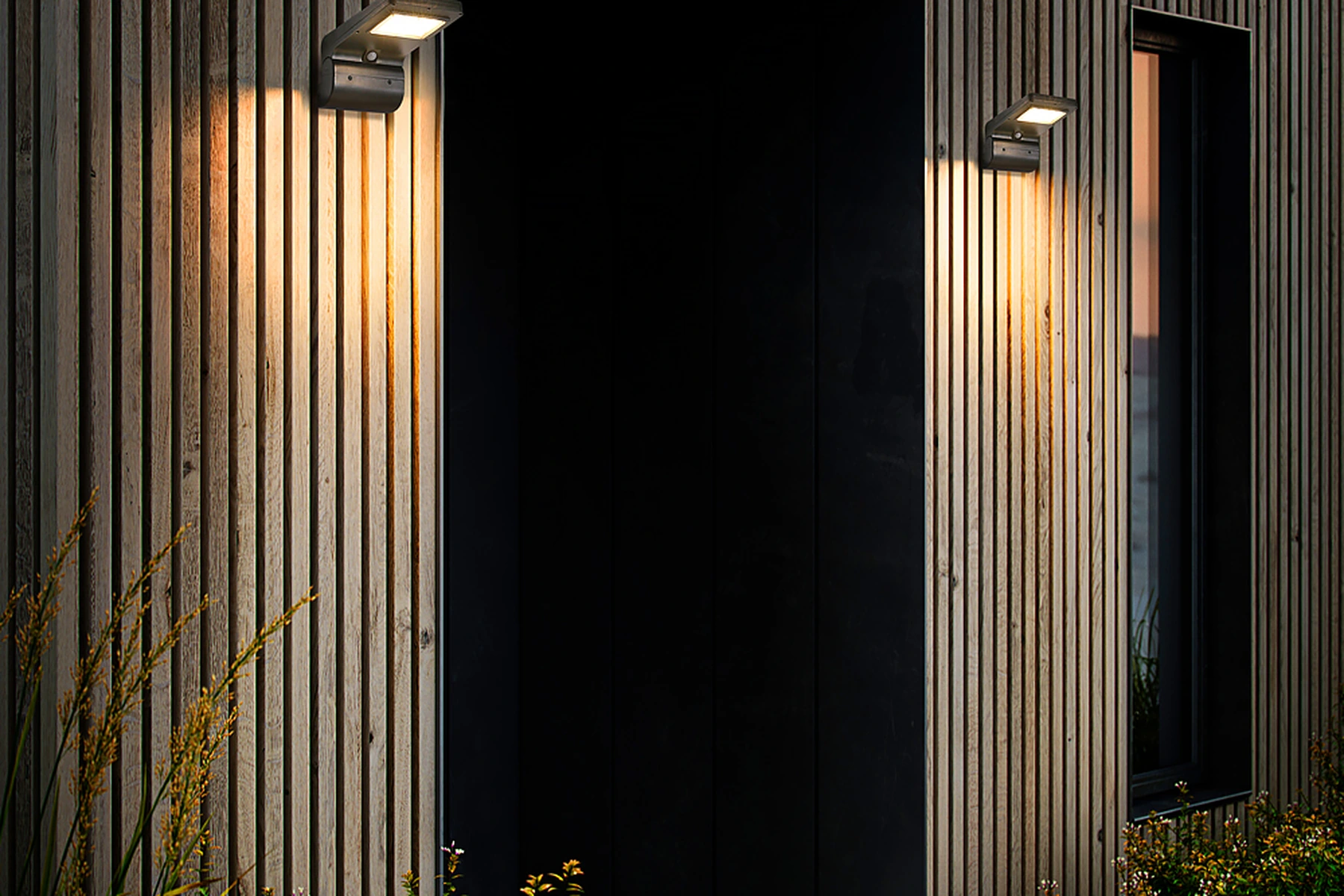

SWL-1006 solar wall lights flanking contemporary timber slat entrance facade

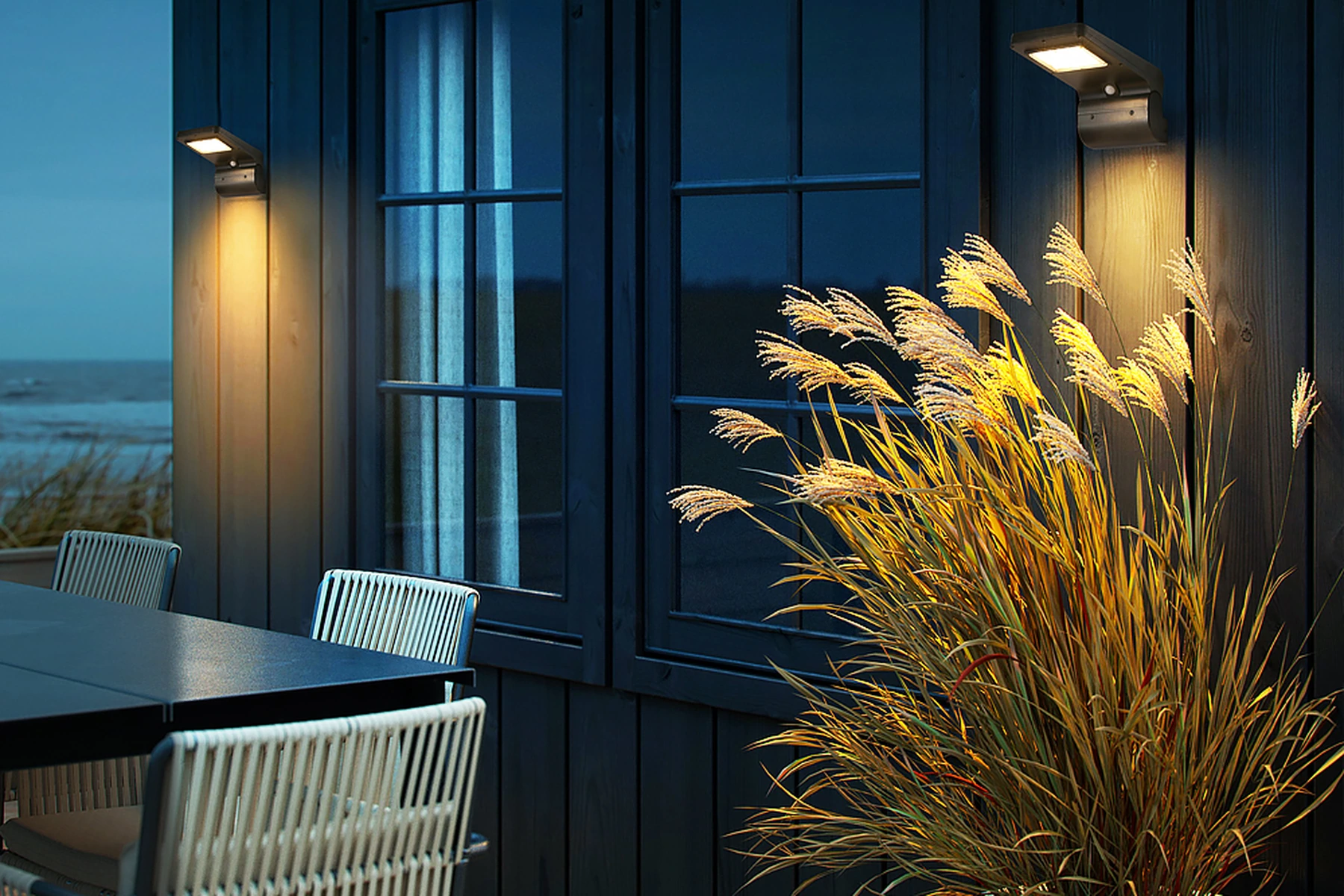

SWL-1006 bird wall sconces illuminating seaside terrace dining deck

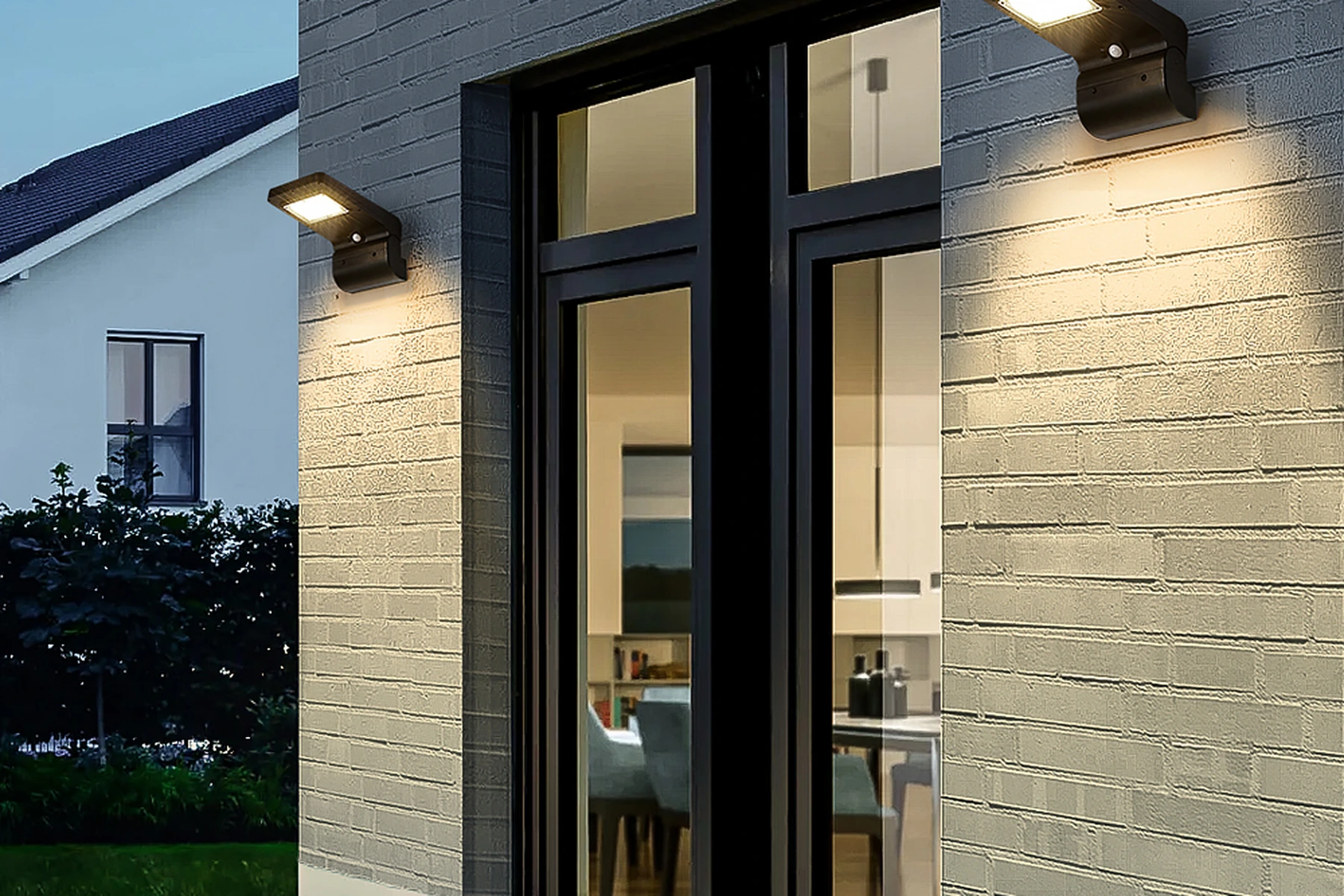

SWL-1006 bird wall lights installed on brick masonry villa doorway

FAQ

What mounting interface is used for the SWL-1006 wall sconce?

The SWL-1006 includes an engineered 150×45mm surface mounting bracket with dual anchor holes (83mm spacing) for direct attachment onto exterior masonry walls, timber siding, or fence pillars. External tall street light poles are excluded; this is a wall luminaire.

How does the PIR motion sensor operate during nighttime?

At dusk, the SWL-1006 activates in low-power ambient standby mode. When its wide-angle PIR sensor detects movement within 6–8 meters, the 30-LED array instantly ramps up to 100% full brightness, reverting to standby 20 seconds after movement ceases.

Where is the CAD engineering blueprint for the SWL-1006 located?

Because the SWL-1006 is an engineered single-model architectural wall sconce, its official CAD dimension blueprint is featured directly in the Product Overview media preview above for immediate architectural reference.

Can the SWL-1006 withstand harsh coastal environments and storms?

Yes. Manufactured from heavy-gauge die-cast aluminium with architectural powder coating and IP65 waterproof perimeter sealing, SWL-1006 delivers superior resistance against salt spray, tropical downpours, and intense UV exposure.
