SWL-3005 Crescent Series Solar Wall Light

IP65 Weatherproof · Cantilever Slim Profile · 5W Monocrystalline PV · Self-Contained Unit (External Tall Pole Excluded)

The SWL-3005 Crescent Series Architectural Solar Wall Light combines an aerodynamic cantilever silhouette with high-performance exterior illumination for building perimeters, garden fencing, courtyard verandas, and residential patio entries. Engineered with an inclined 5V 5W monocrystalline solar panel, it maximizes photon harvest even in low-sun angles. Equipped with a heavy-duty 3.2V 8Ah (25.6Wh) LiFePO4 battery pack, 8 high-output SMD LEDs with optical refraction lenses, and an intelligent wide-angle PIR motion sensor, SWL-3005 delivers over 3 consecutive nights of autonomy with automated dusk-to-dawn switching. Complete self-contained surface-mount wall luminaire; external tall street lighting poles are excluded.

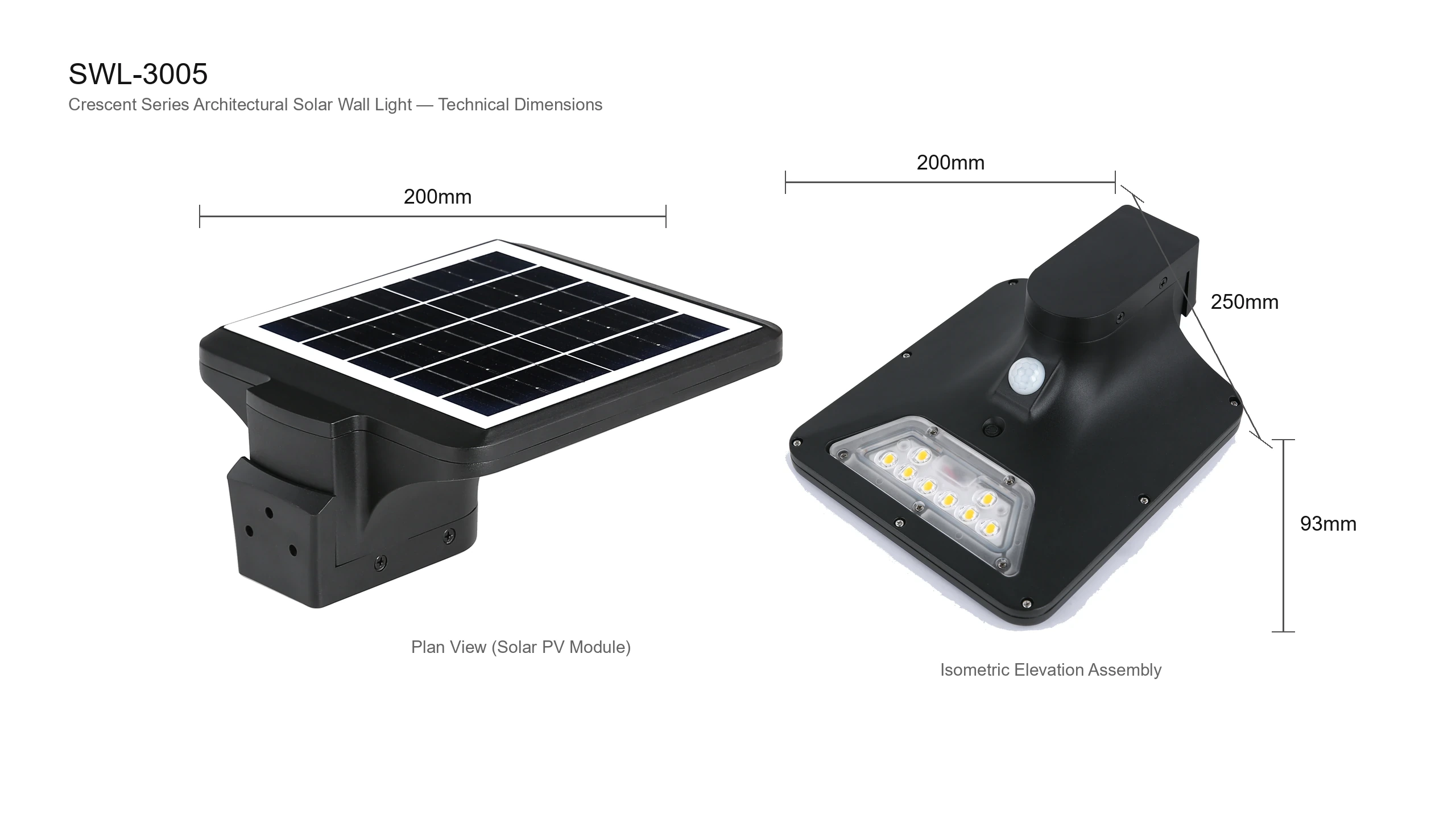

SWL-3005 crescent solar wall light engineering CAD dimension blueprint (self-contained unit · external tall pole excluded)

Color & Optic

Color Temperature Options

3000K

6000K

Available in 3000K warm white for welcoming residential ambiance and 6000K daylight white for security perimeter illumination.

Finish Options

Sand Black

Architectural Grey

Architectural textured powder-coat finish engineered for high UV resistance and coastal salt spray endurance.

Product Specifications

Solar Panel 5V / 5W Monocrystalline Silicon Panel

Battery Storage 3.2V 8Ah (25.6Wh) High-Cycle LiFePO4

Fixture Dimensions W200 × L250 × H93mm (Cantilever Profile)

LED Array & CCT 8 High-Output SMD LEDs with Refractive Lenses

Intelligent Control Remote Control + PIR Motion + Dusk-to-Dawn

Lighting Autonomy >3 Consecutive Overcast / Rainy Nights

Housing Material Die-Cast Aluminum + UV-Stabilized PC Optic

Exterior Finish Sand Black Architectural Thermoset Powder

Ingress & Impact IP65 Ingress Certified | CE & RoHS

Operating Range -25°C to +65°C Temperature Resistance

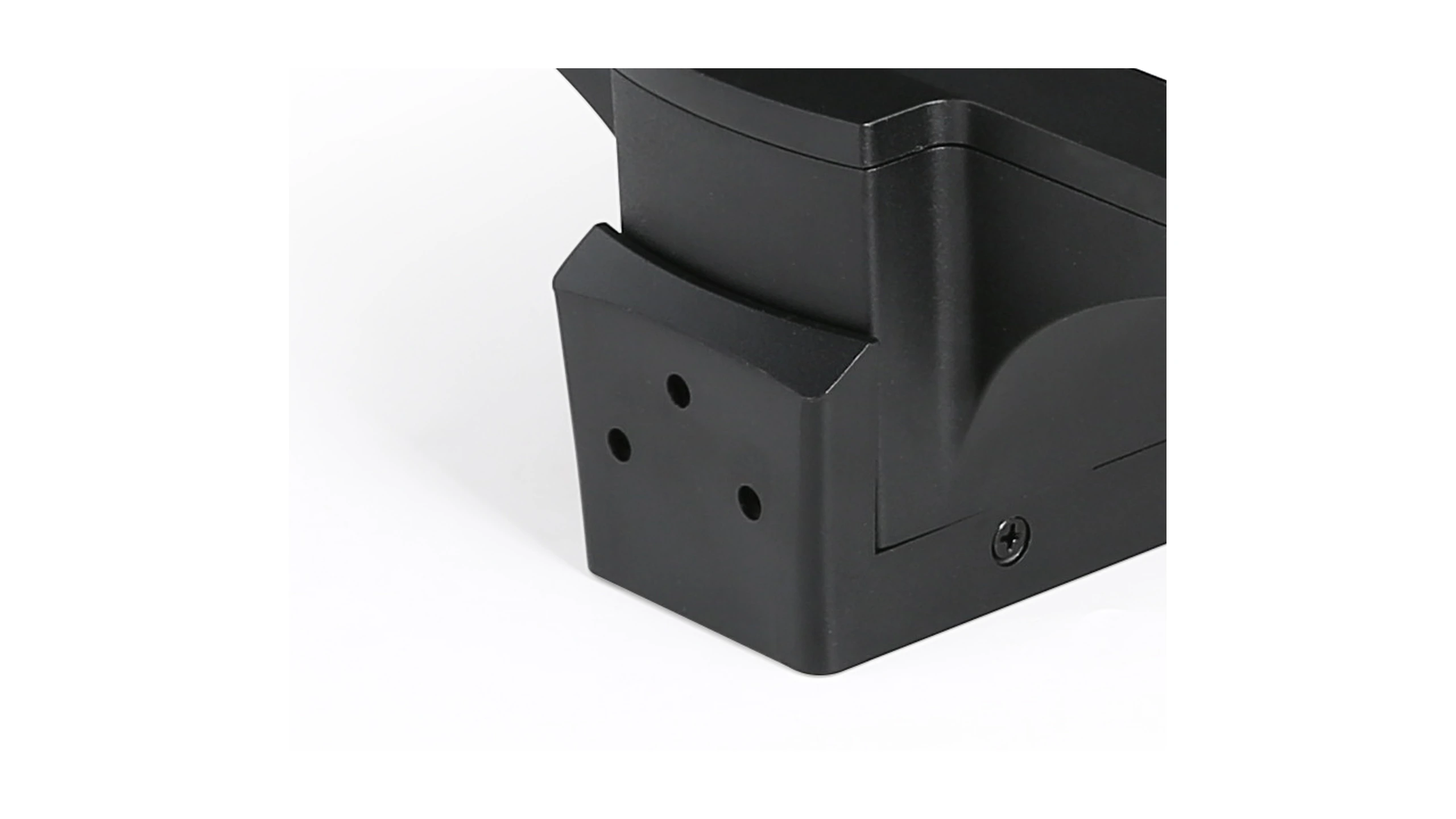

Mounting Interface Wall Mount Quick-Lock Base (Triangular Anchor)

Supply Scope Wall Luminaire Only (External Pole Excluded)

Model Lineup & Engineering Configurations

Model Code	Power Source	PV / Input	Battery / Lamp	Color Temperature	Finish Color	Packaging Specs
SWL-3005-SOL	Solar Autonomous	5V / 5W Mono	3.2V 8Ah (25.6Wh)	3000K 6000K	Sand Black	Wall Surface Mount Self-Contained · Pole Excluded 12 Sets/Ctn · 510×450×360mm · 18.5kg
SWL-3005-AC	AC 100-240V Mains	50/60Hz AC Input	SMD Engine / Driver	3000K 6000K	Sand Black	Wall Surface Mount Self-Contained · Pole Excluded 12 Sets/Ctn · 510×450×360mm · 18.5kg

Advantages

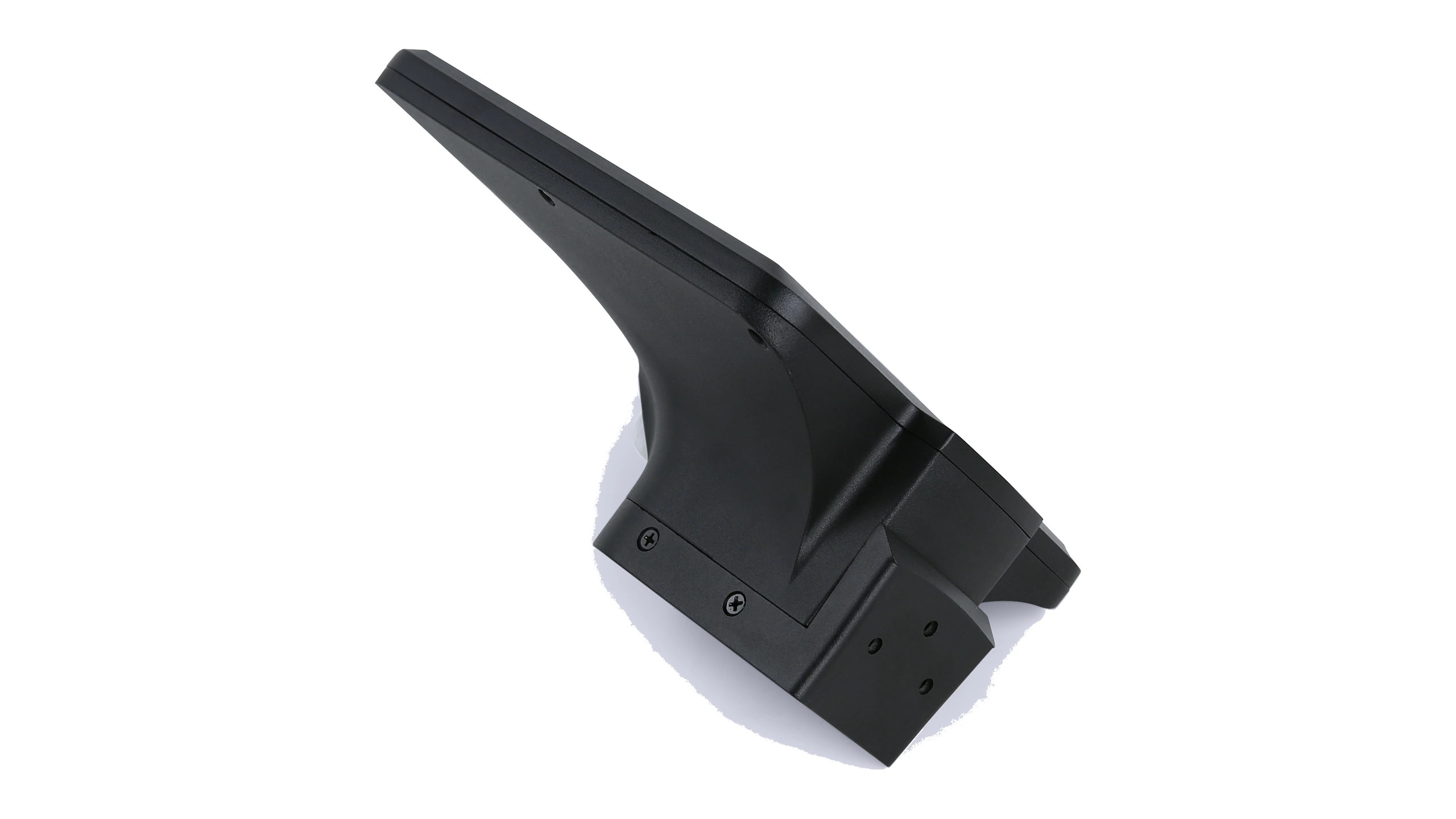

Aerodynamic Cantilever Silhouette

Modern curved forward-projection profile minimizes wind resistance while casting optimal downward lighting pools along walls.

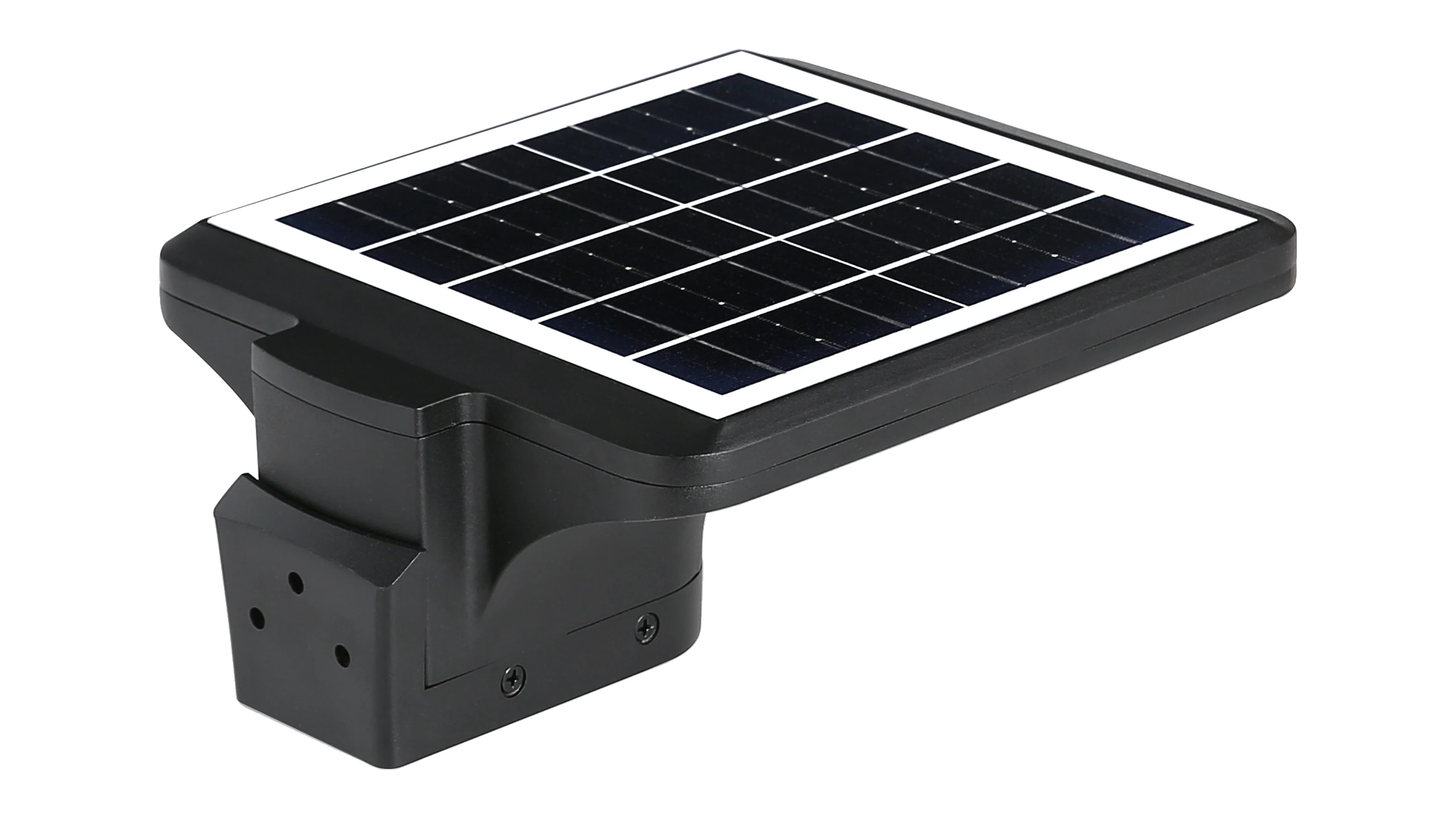

5W Monocrystalline PV Disc

High-efficiency solar disc engineered with anti-reflective glass maximizes sunlight conversion across variable weather conditions.

High-Capacity 8Ah LiFePO4 Battery

Premium 3.2V 8Ah (25.6Wh) Lithium Iron Phosphate cells deliver over 2,000 cycles with exceptional thermal stability.

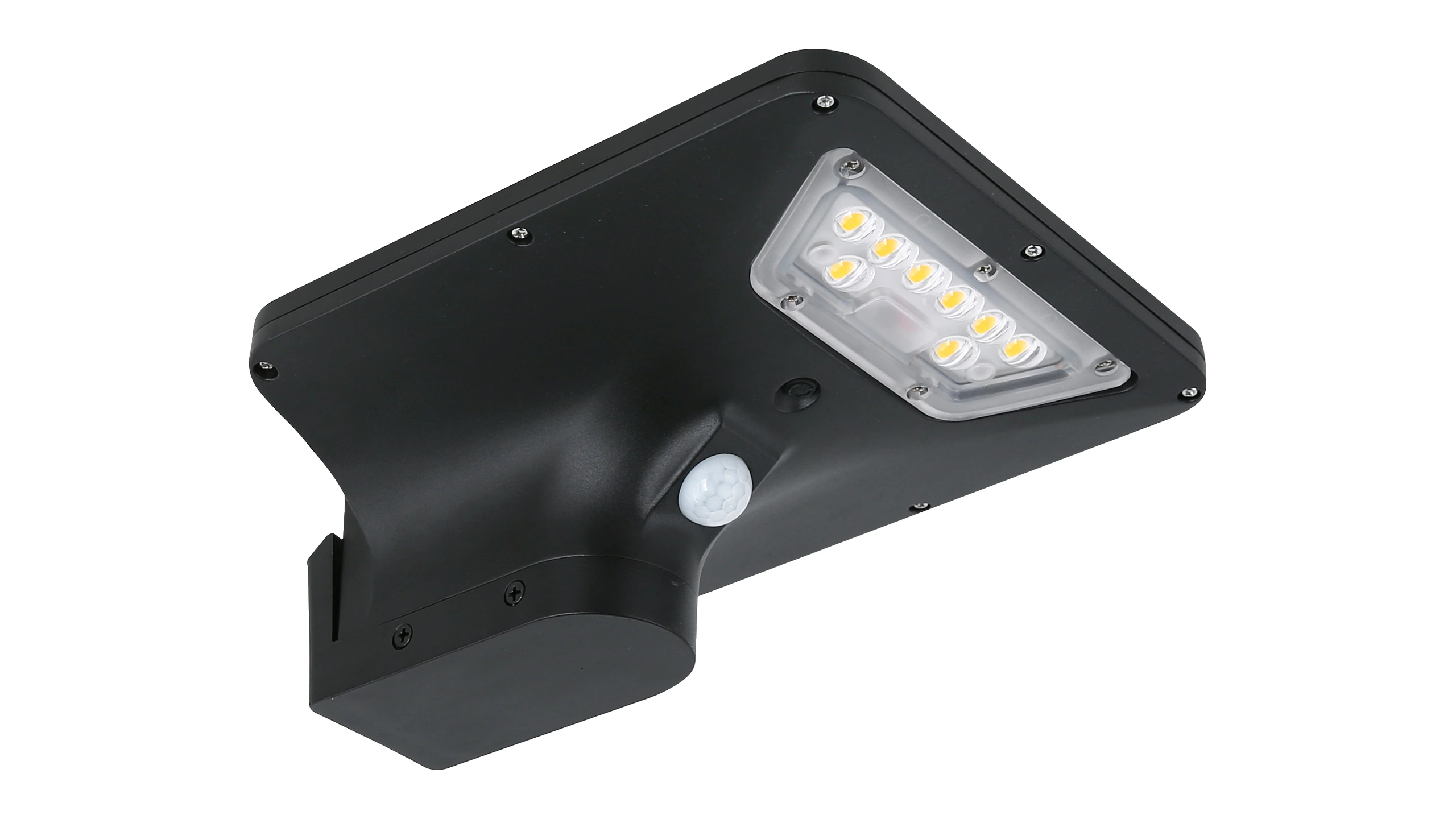

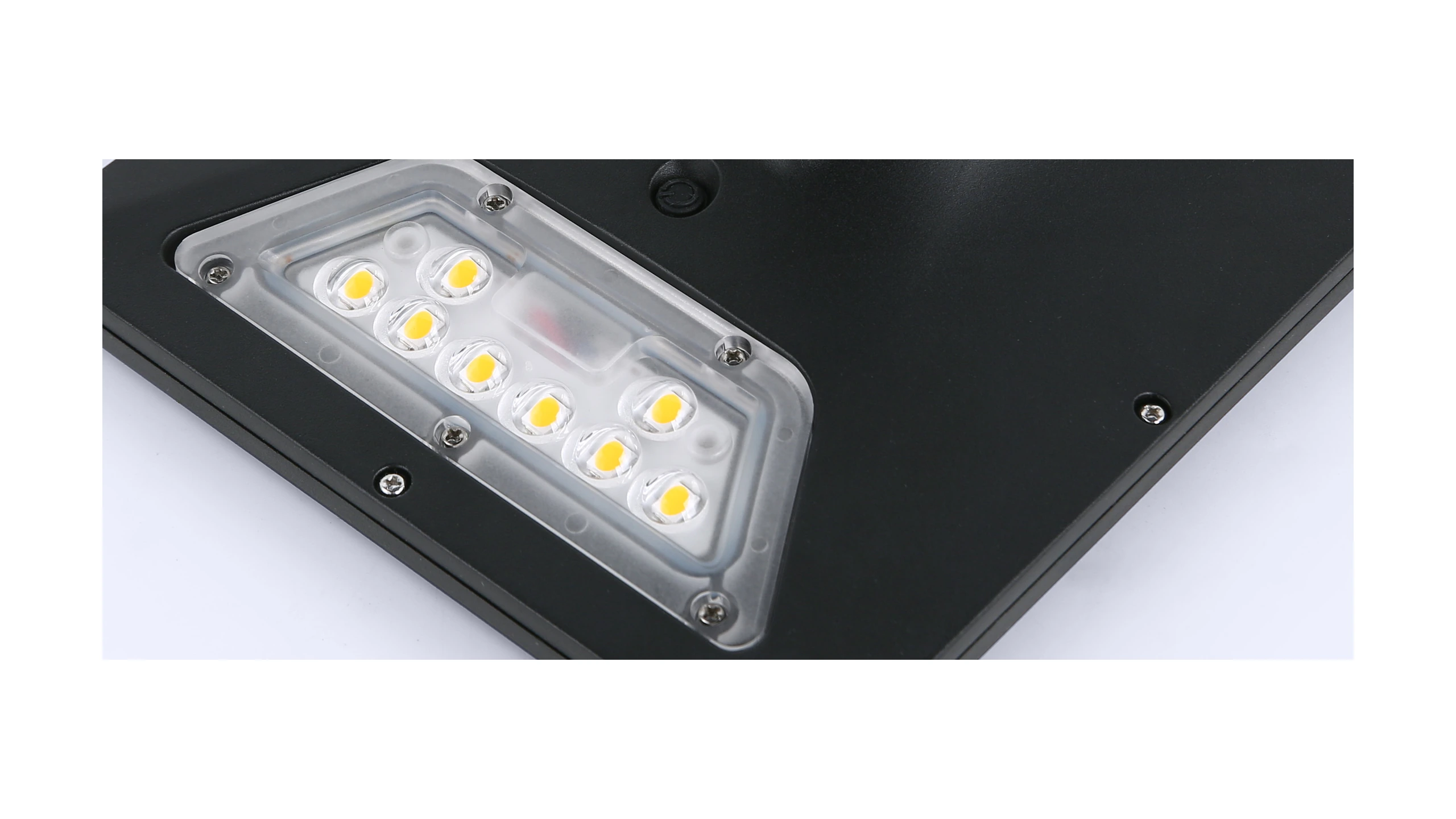

8-SMD Optical Refractive Prism

Custom individual lenses spread high-lumen output evenly, avoiding hot spots and providing glare-free illumination.

Smart PIR Motion & Remote Control

Integrated sensor detects motion within 6–8 meters; included handheld remote enables instant timer and brightness adjustments.

IP65 Ingress & Dustproof Sealing

Precision silicone perimeter sealing prevents moisture ingress during tropical storms and coastal sea-mist exposure.

Applications

Garden Walls & Timber Fencing

Providing elegant accent downlight along private boundary walls, timber privacy screens, and estate enclosures.

Contemporary Slat Facades

Mounting directly onto architectural wooden slat walls and modern entry portals with zero electrical conduit.

Masonry Stone Retaining Walls

Illuminating textured stone retaining ledges and perimeter parapets with warm, glare-free wash.

Patio & Veranda Dining Decks

Creating welcoming ambiance for outdoor entertaining spaces, courtyard dining terraces, and swimming pool perimeters.

Hospitality Resort Corridors

Guiding pedestrian movement along hotel garden walkways, guest cabanas, and pavilion entrances.

Commercial Pathway Enclosures

Delivering reliable dusk-to-dawn perimeter visibility along corporate campus perimeters and public park walls.

Impressions

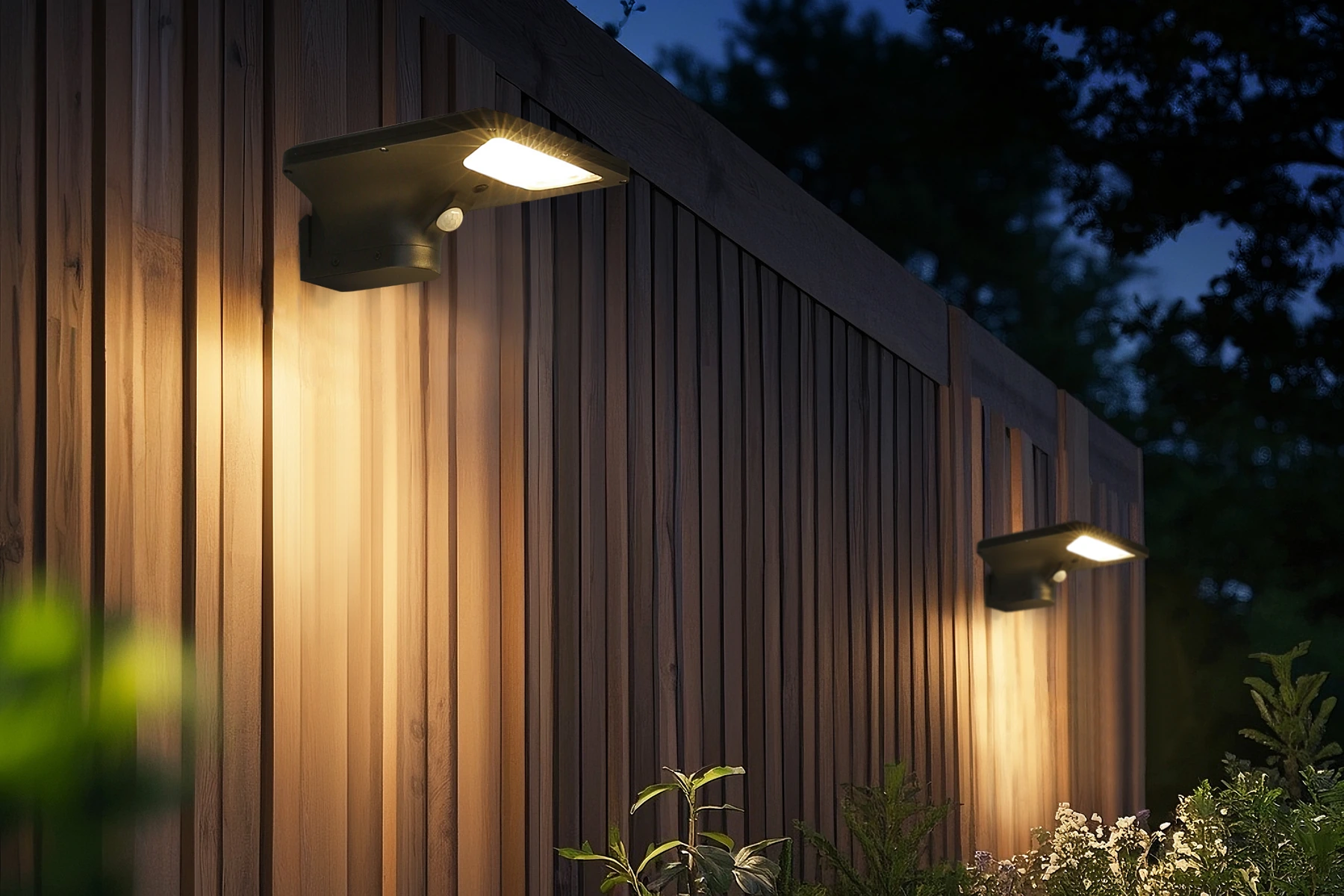

SWL-3005 crescent solar wall lights installed along vertical wood privacy fence at dusk

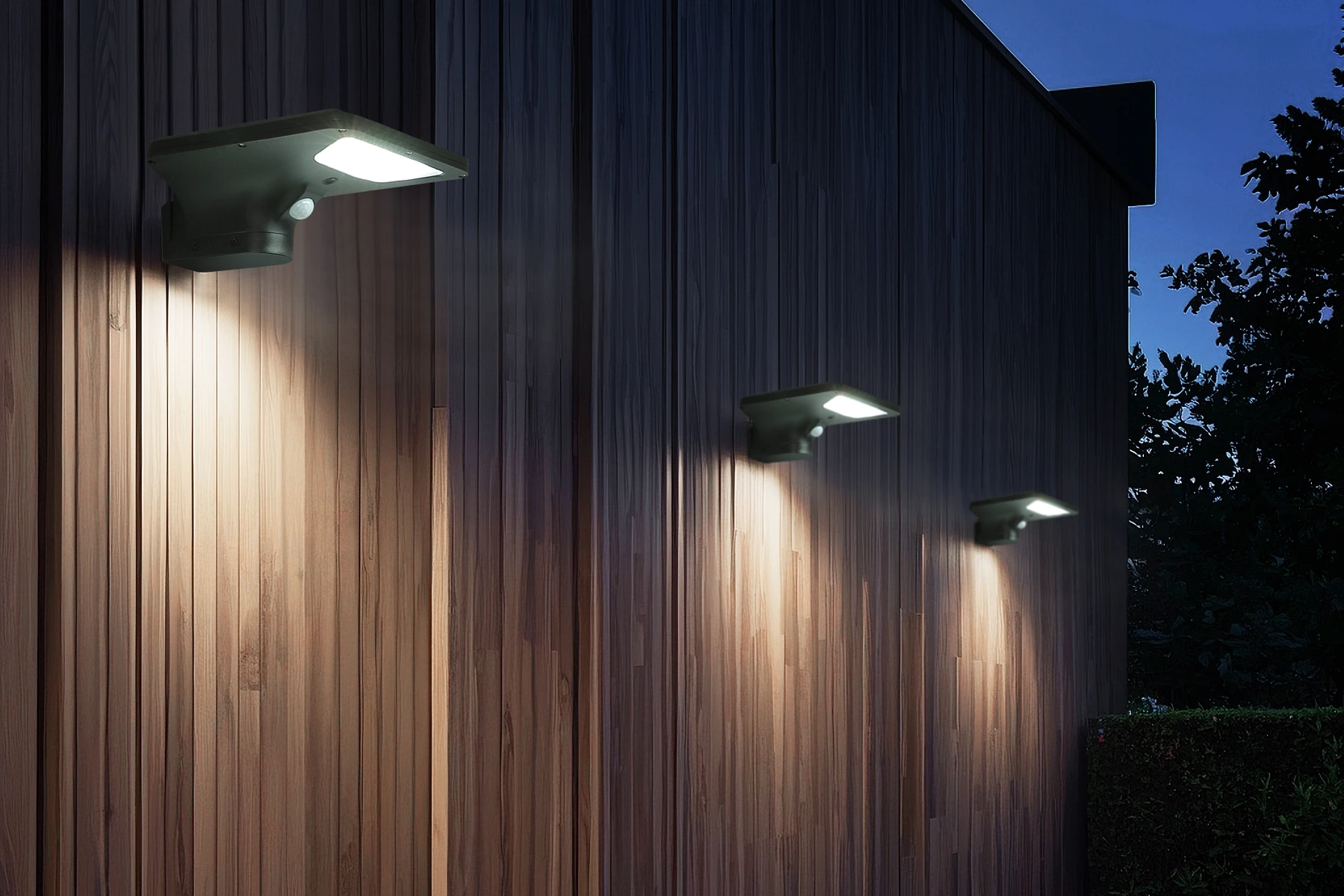

SWL-3005 wall lights illuminating contemporary timber batten facade in sequence

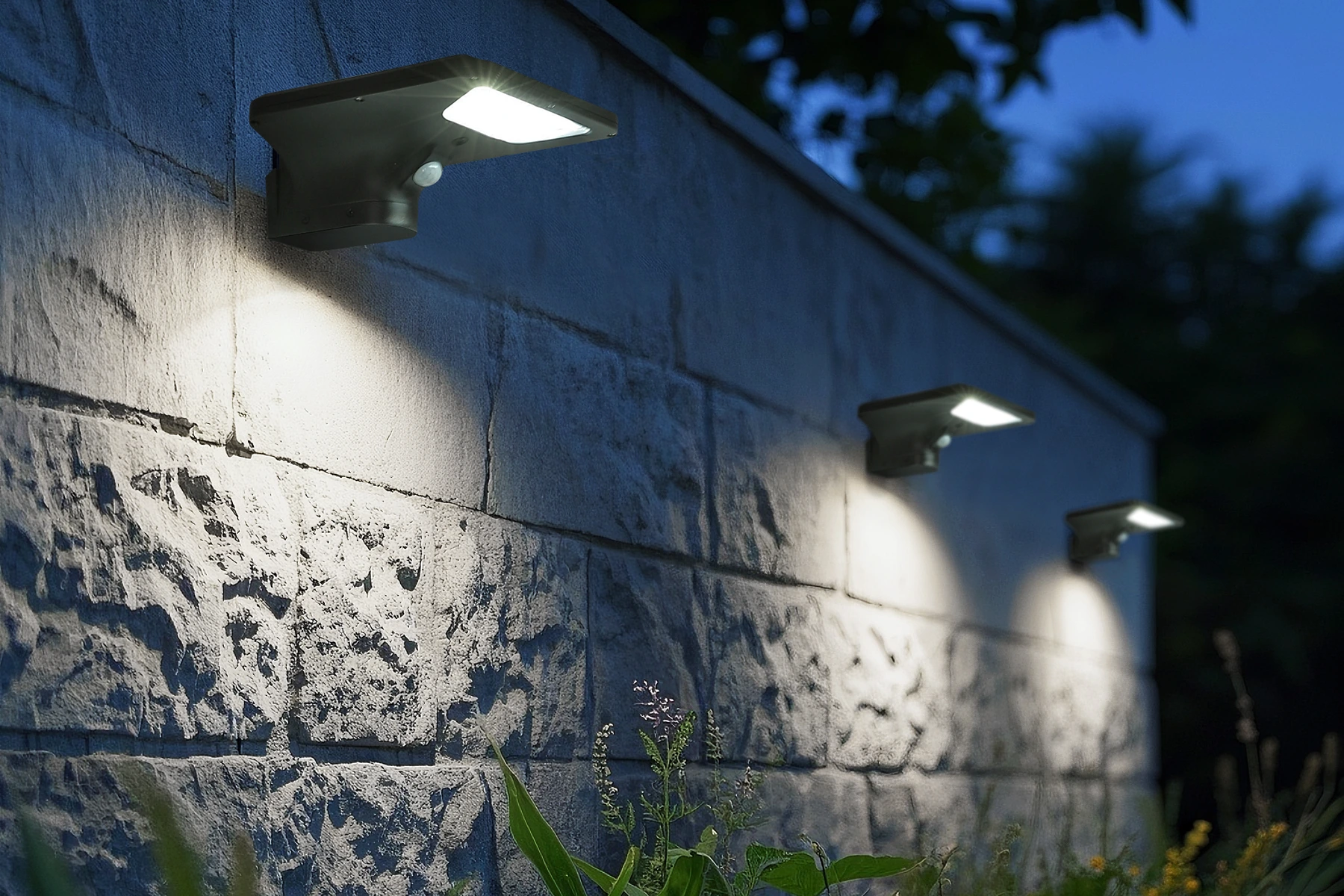

SWL-3005 solar wall sconces mounted on rustic stone wall with garden flowerbed

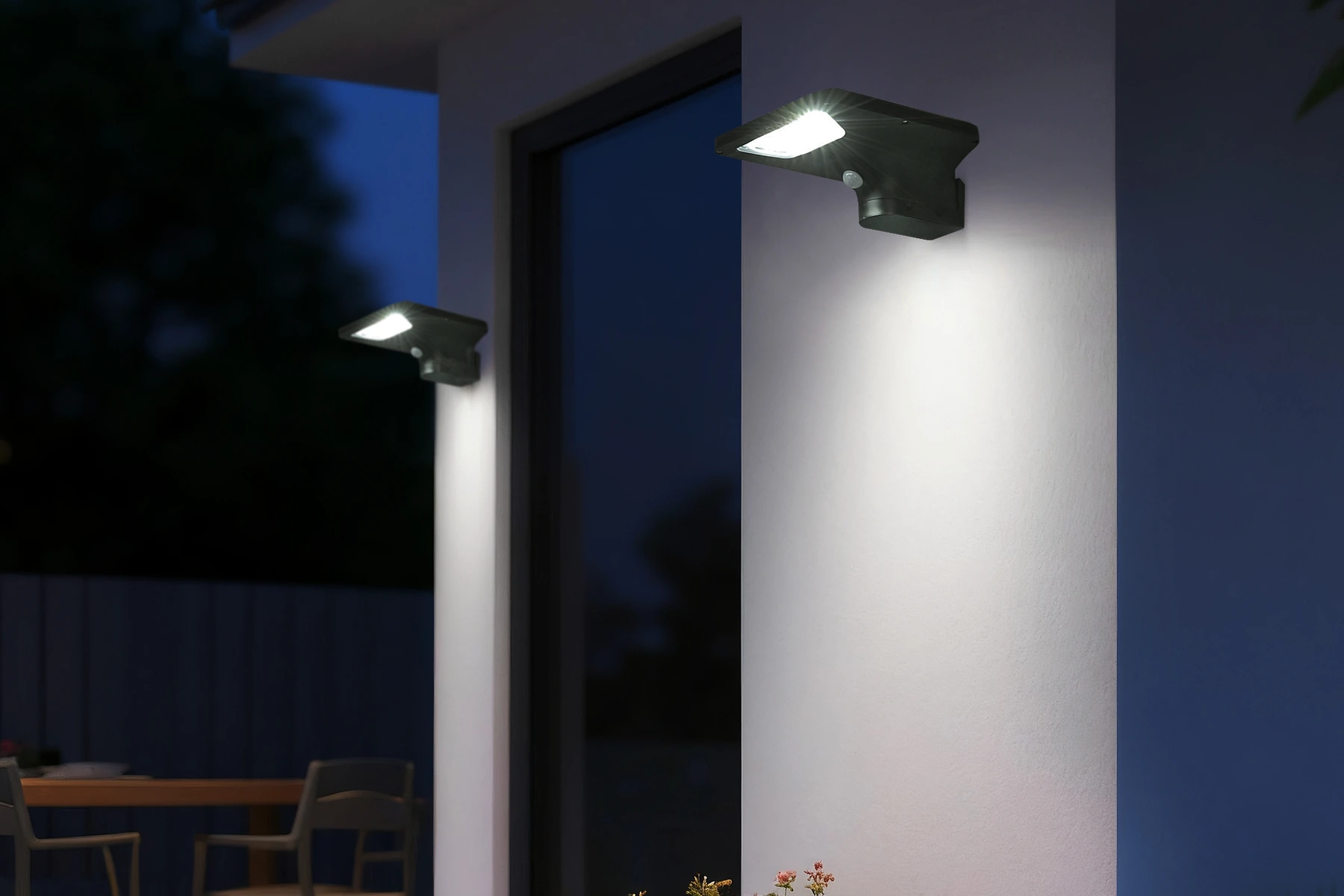

SWL-3005 crescent wall sconce washing villa patio terrace doorway

FAQ

What mounting interface is used for the SWL-3005 wall sconce?

The SWL-3005 features an engineered wall-mount backplate with triangular anchor fastening holes designed for rapid attachment onto timber fences, brick walls, and concrete columns. External tall street light poles are excluded; this is a wall luminaire.

How does the included remote control operate with the luminaire?

The multi-function remote control allows users to toggle between automatic PIR sensing mode, 100% constant brightness, timer shutoff (2h/4h/6h), and CCT color temperature switching from ground level without climbing ladders.

Where is the CAD engineering blueprint for the SWL-3005 located?

Because the SWL-3005 is an engineered single-model architectural wall sconce, its official CAD dimension blueprint is featured directly in the Product Overview media preview above for immediate architectural reference.

Are both solar autonomous and AC mains hardwired versions available?

Yes. Projects requiring 100% off-grid operation can specify the solar autonomous model with integrated 5W monocrystalline disc, while applications with existing electrical conduit can select the AC hardwired 100-240V model with matching aesthetics.
