SSL-8060 Starry Sky Series Integrated Solar Street Light
The SSL-8060 Starry Sky Series Integrated Solar Street Light combines an ultra-slim aerodynamic aluminum chassis with commercial-grade photovoltaic performance for municipal roadways, industrial logistics parks, suburban thoroughfares, and commercial campuses. Available in 60W, 90W, and 120W power classes delivering up to 10,856 lumens, each system incorporates high-conversion monocrystalline solar cells (18V up to 120W), automotive-grade lithium iron phosphate (LiFePO4) storage (up to 512Wh / 160Ah), and precision optical batwing lenses providing an expansive road illumination corridor. Supplied as an all-in-one luminaire head (lighting poles excluded from standard shipment) engineered for seamless direct installation onto standard Ø76mm pole spigots, it provides over 3 nights of continuous dusk-to-dawn lighting even through prolonged overcast and rainy periods.
Color & Optic
Beam Options
Product Specifications
Model Configuration
| Model | Dimension | Power | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|

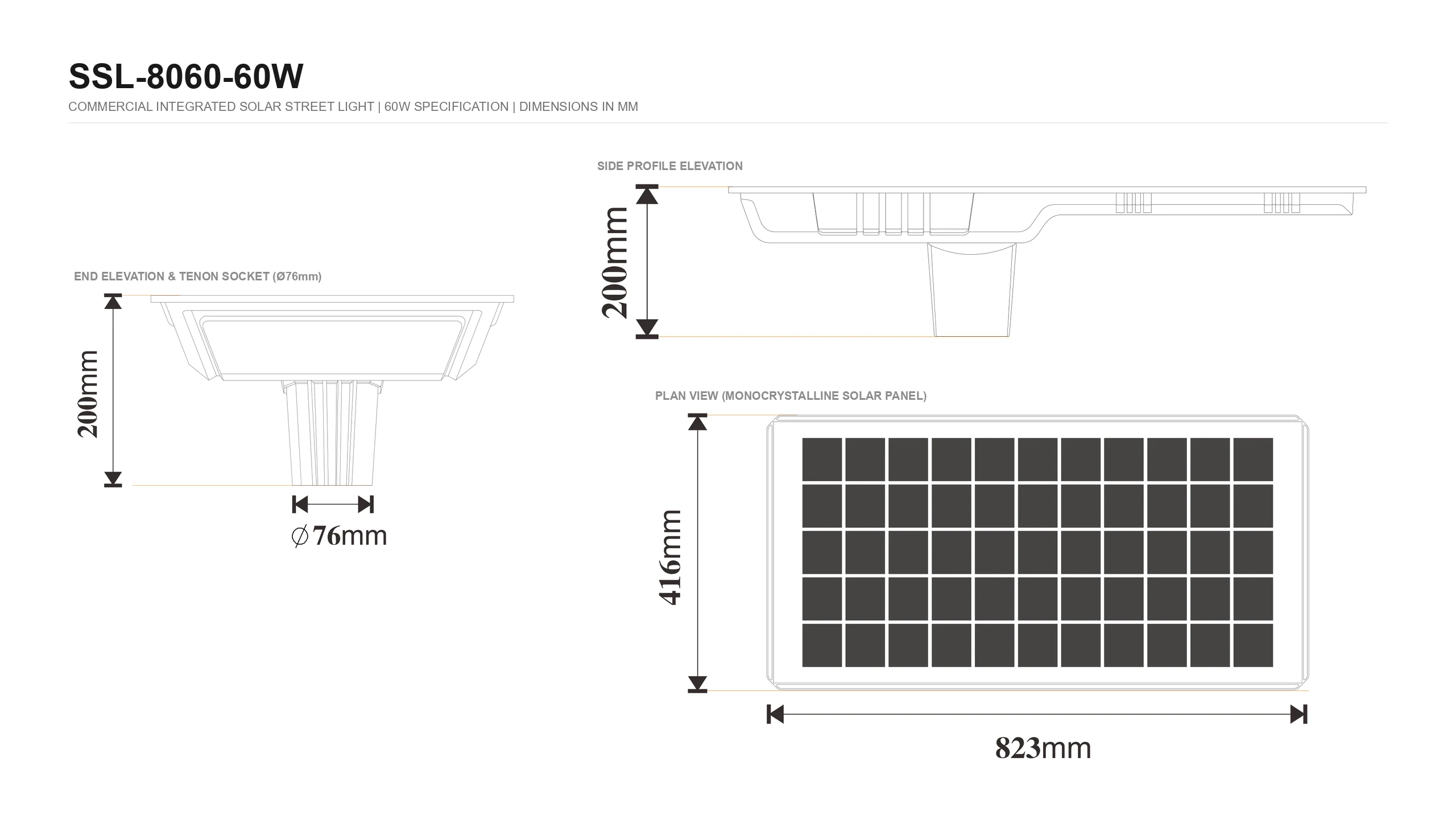

| SSL-8060-60W | 823 × 416 × 200 mm | 60W Class (18V 60W PV) |
3000K
4000K
6500K
|
5,667.6 lm | Tenon: Ø76 mm (Luminaire Only · Pole Excluded) | G.W. 10.88 kg Battery: LiFePO4 80Ah (256Wh) Carton: 860×460×130mm (1 Set) |

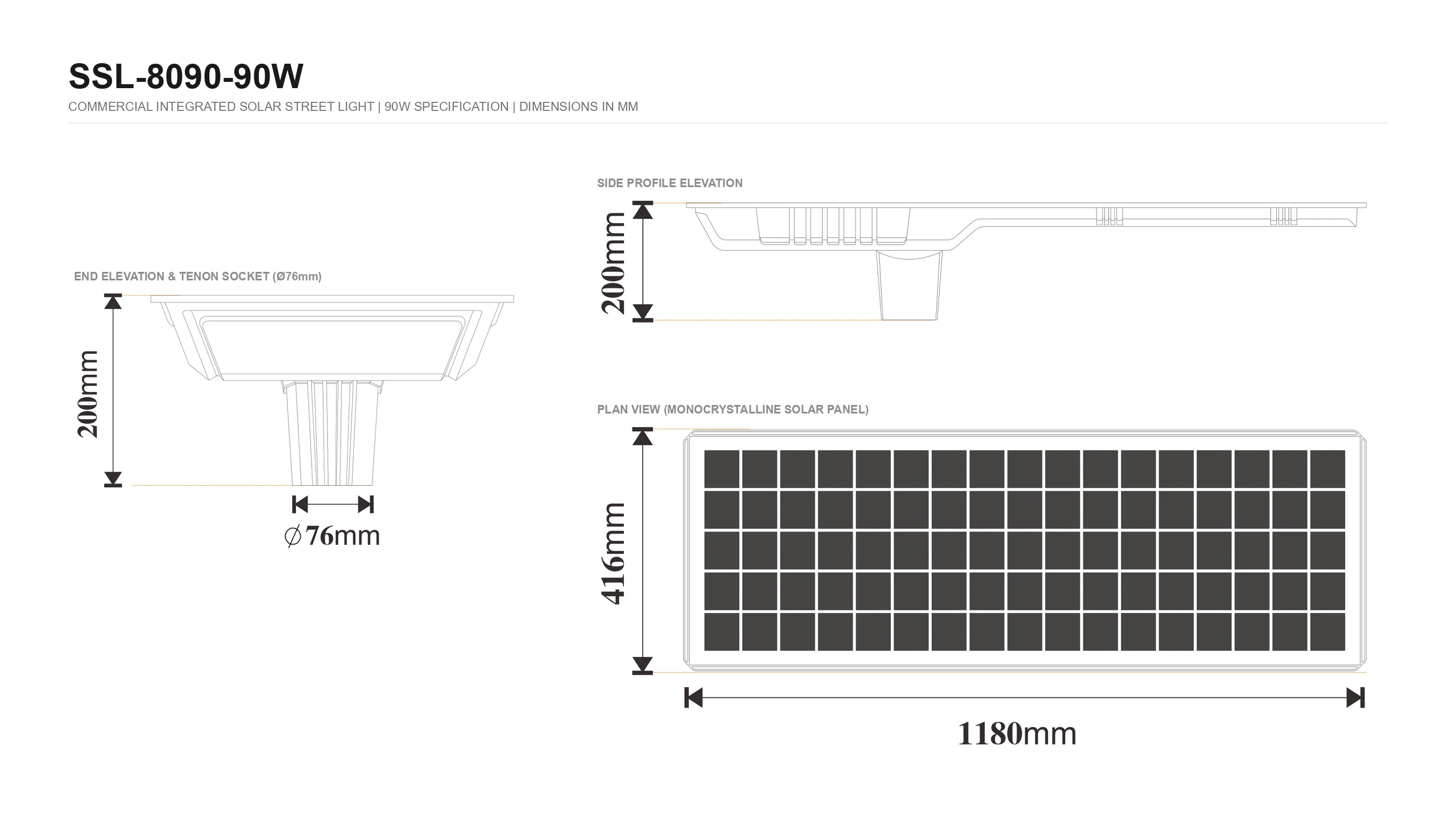

| SSL-8090-90W | 1180 × 416 × 200 mm | 90W Class (18V 90W PV) |
3000K
4000K
6500K
|
7,651.9 lm | Tenon: Ø76 mm (Luminaire Only · Pole Excluded) | G.W. 15.30 kg Battery: LiFePO4 120Ah (384Wh) Carton: 1220×460×130mm (1 Set) |

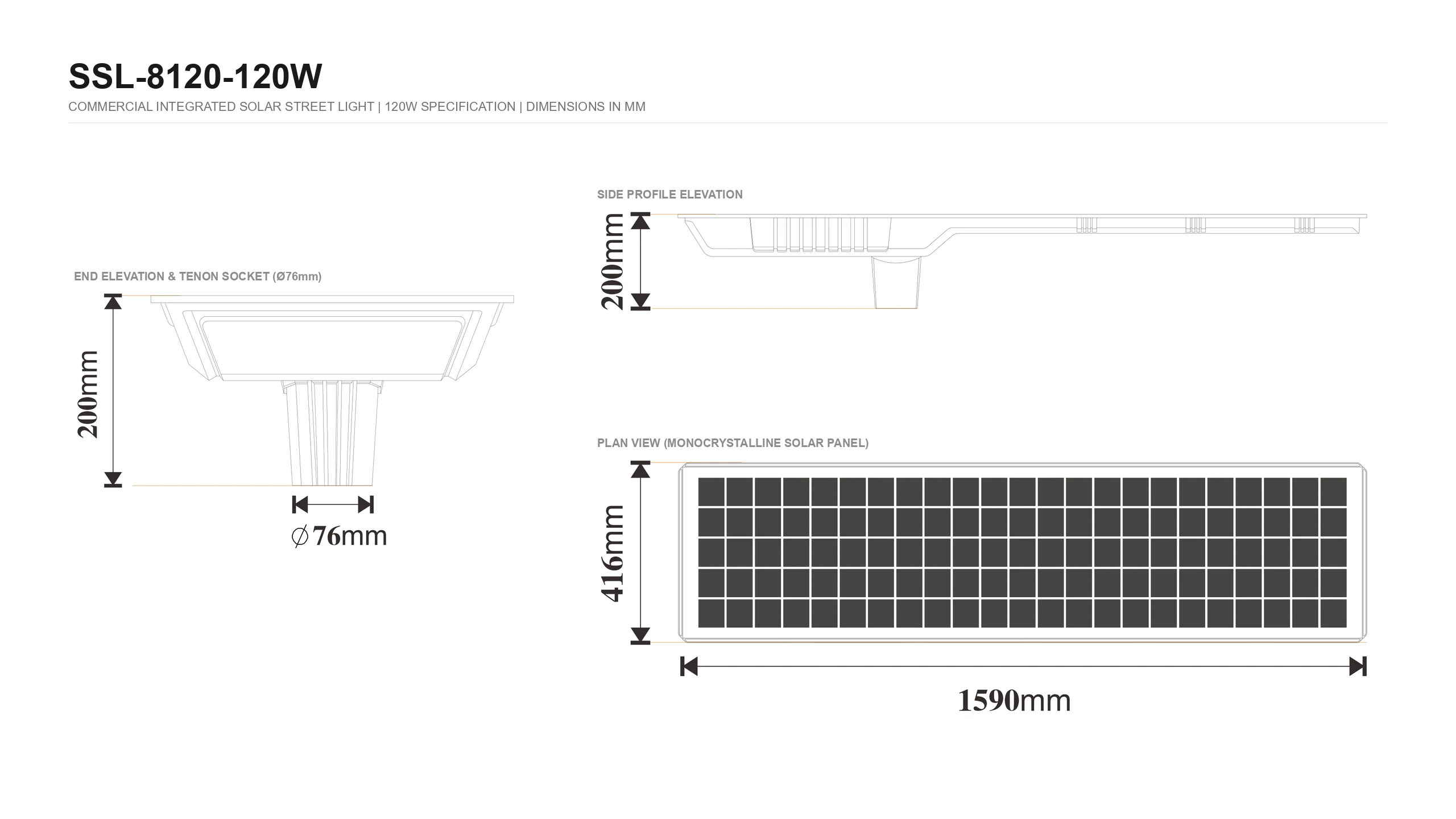

| SSL-8120-120W | 1590 × 416 × 200 mm | 120W Class (18V 120W PV) |
3000K
4000K
6500K
|
10,856.8 lm | Tenon: Ø76 mm (Luminaire Only · Pole Excluded) | G.W. 20.81 kg Battery: LiFePO4 160Ah (512Wh) Carton: 1630×460×140mm (1 Set) |
Advantages

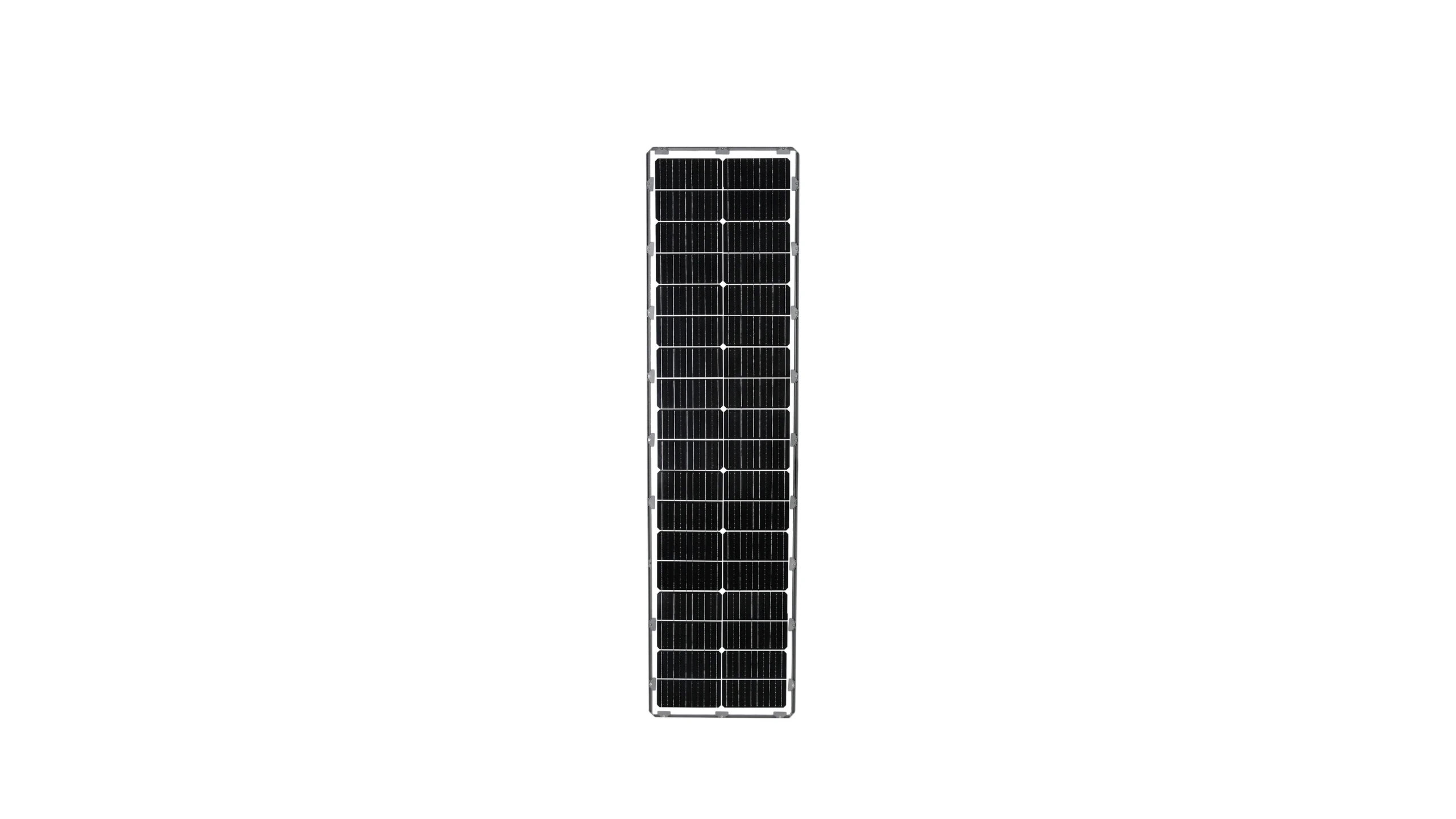

High-Efficiency Monocrystalline Silicon PV
Integrated top-mounted A-grade monocrystalline solar panel operating at 18V with up to 22.4% module conversion efficiency, achieving complete solar replenishment within 6 peak sunlight hours.
Deep-Cycle Automotive-Grade LiFePO4 Battery
High-capacity 3.2V battery packs (up to 512Wh / 160Ah) rated for over 2,500 charging cycles at 80% DoD, maintaining reliable power output across extreme operating temperatures from -25°C to +65°C.

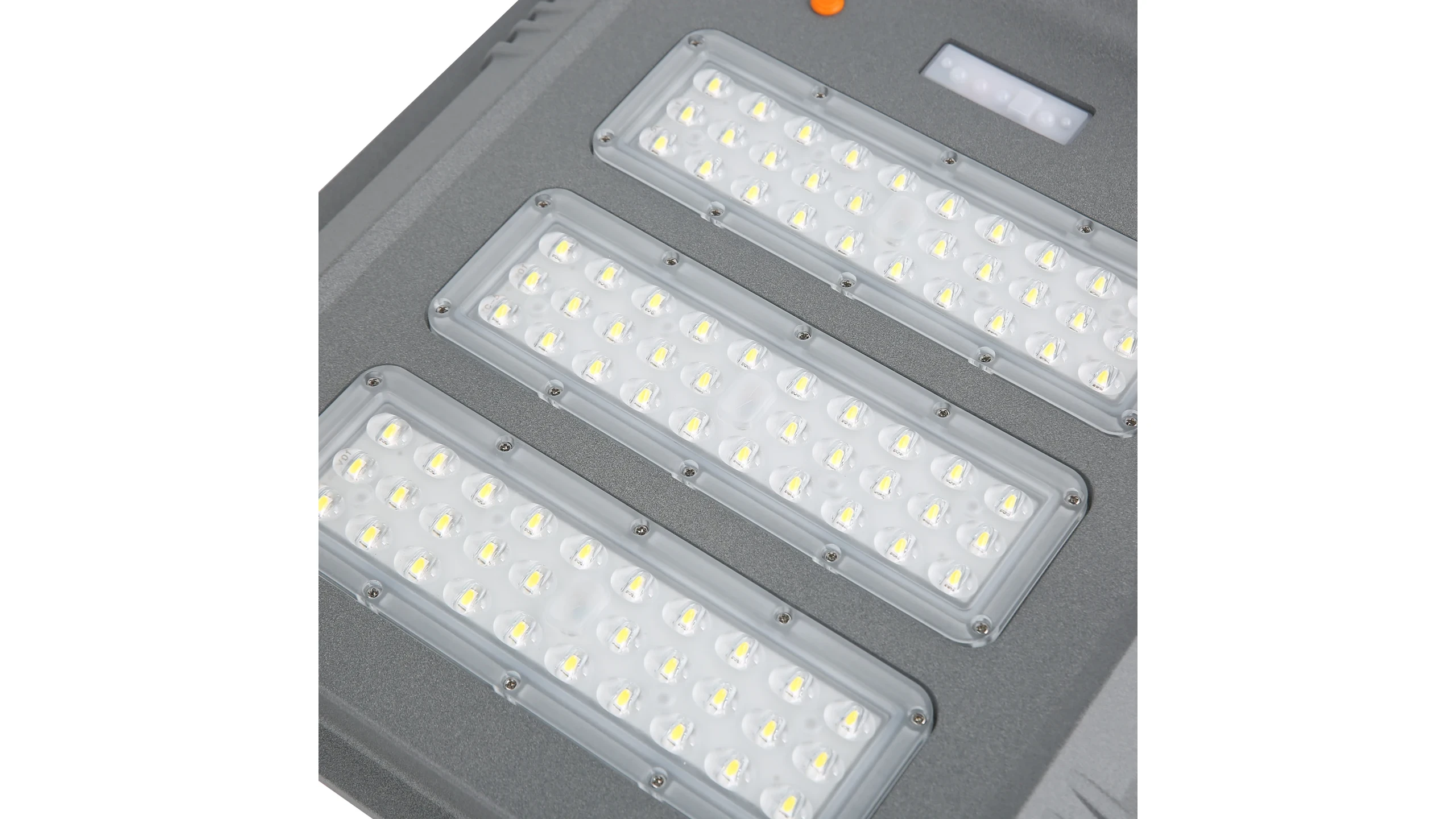

Precision Batwing Optical Light Distribution
Engineered PMMA optical lenses deliver wide rectangular batwing light distribution, reducing road surface glare and maximizing pole-to-pole illumination spacing up to 21-25 meters.
Aerodynamic Heavy-Duty Die-Cast Aluminum Body
Integrated die-cast aluminum heat-dissipating housing treated with outdoor anodic oxidation and electrostatic powder coating, providing IP65 ingress protection and superior wind resistance.
Intelligent PWM Power Management
Built-in smart dusk-to-dawn lighting controller regulates multi-stage intelligent dimming profiles, ensuring over 3 continuous nights of autonomous lighting during severe overcast and rainy weather.

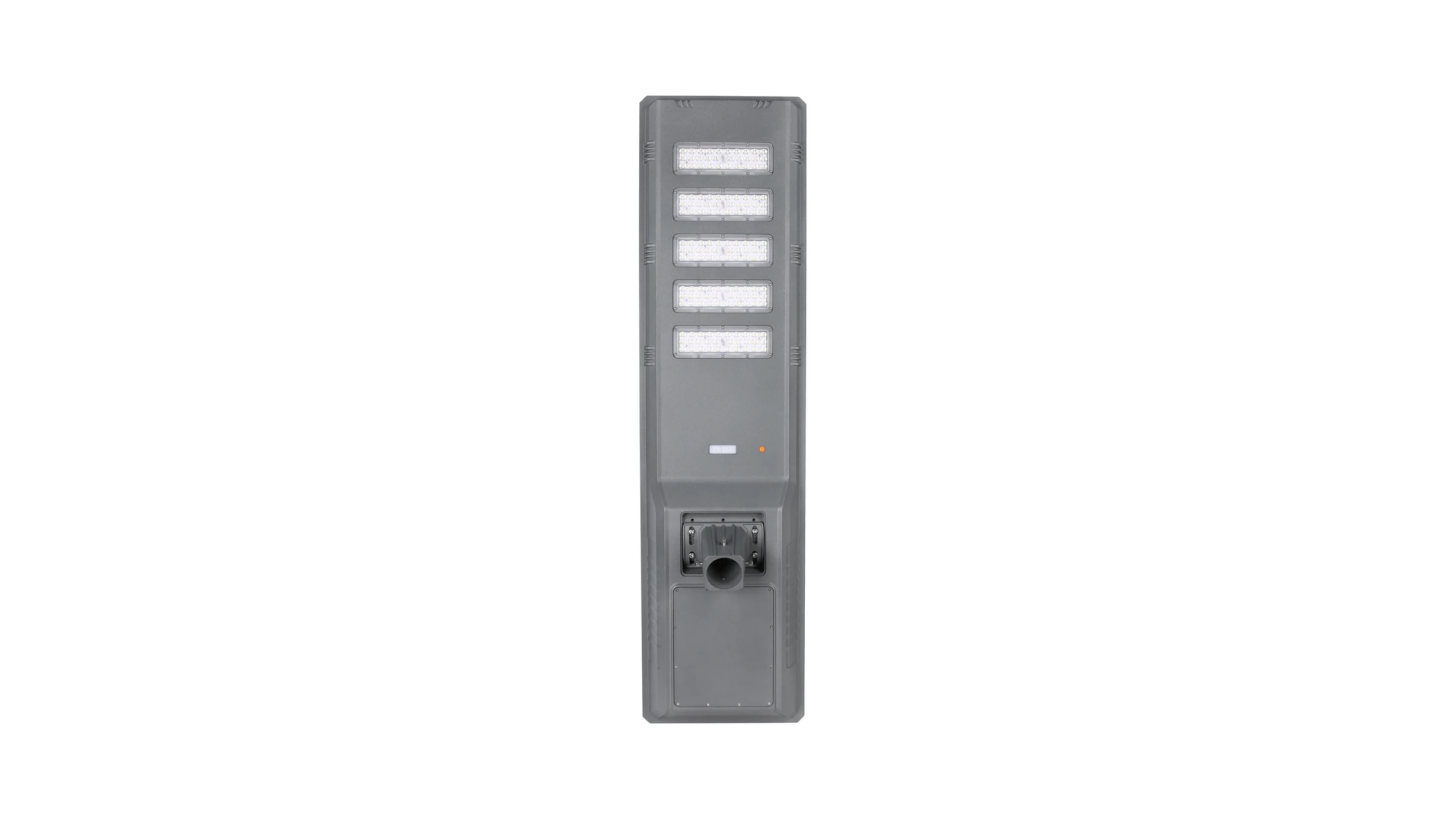

Standard Ø76mm Spigot Tenon Mount
Industry-standard Ø76mm mounting sleeve with high-tensile stainless steel set-screws enables rapid direct installation of the luminaire head onto standard local roadway poles (pole excluded), with optional universal knuckle angle adapter.
Application Scenarios

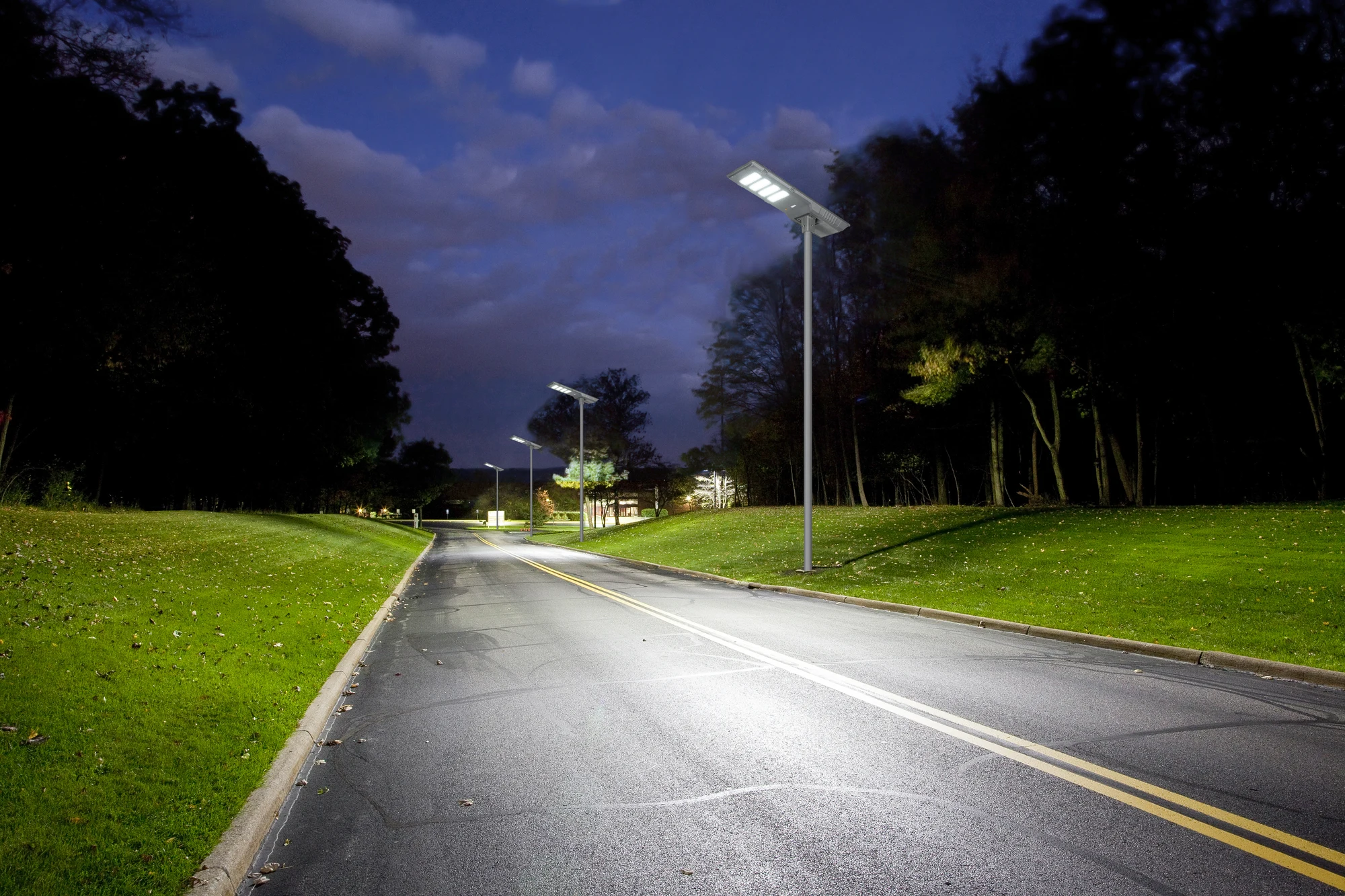

Municipal & Rural Roadways
Standard secondary highways, municipal thoroughfares, and rural roads requiring zero-grid trenching, low maintenance, and continuous nighttime safety visibility.
Industrial & Logistics Parks
Perimeter access roads, freight loading docks, distribution facilities, and factory campus avenues demanding durable high-lumen commercial illumination.

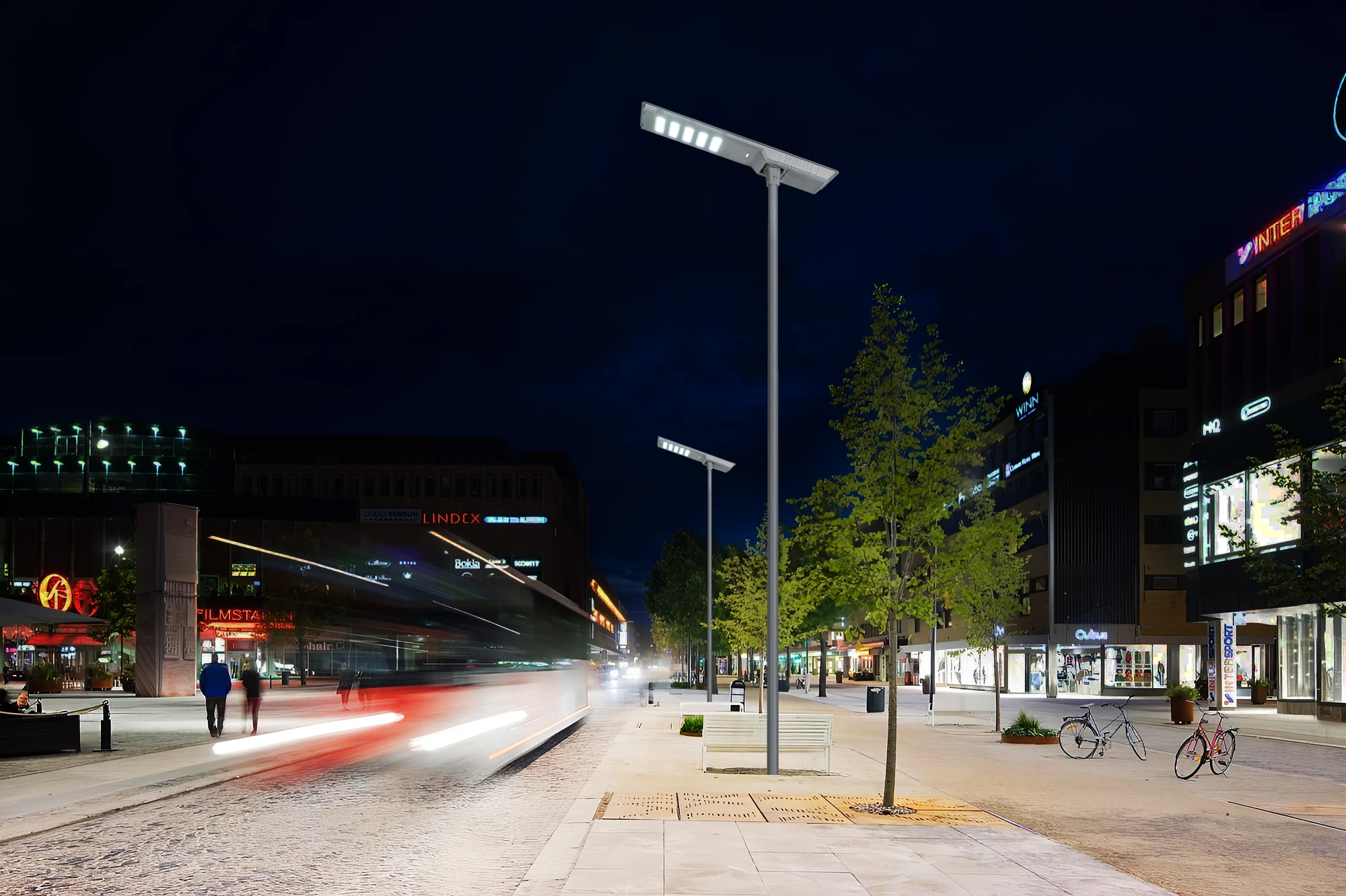

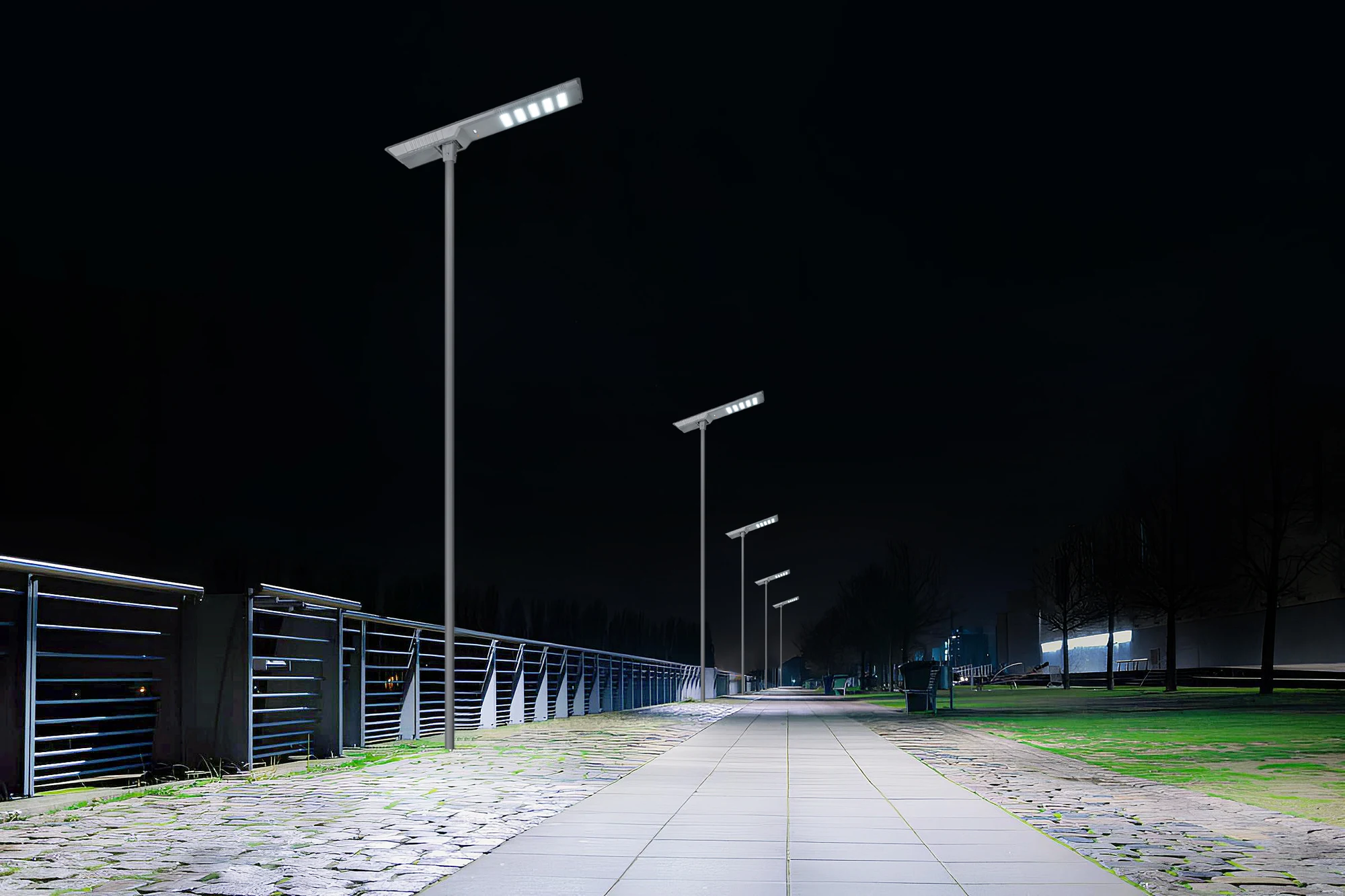

Commercial Plazas & Parking Lots
Shopping center perimeters, transit parking areas, and pedestrian promenades requiring wide uniform batwing light coverage and clean architectural aesthetics.

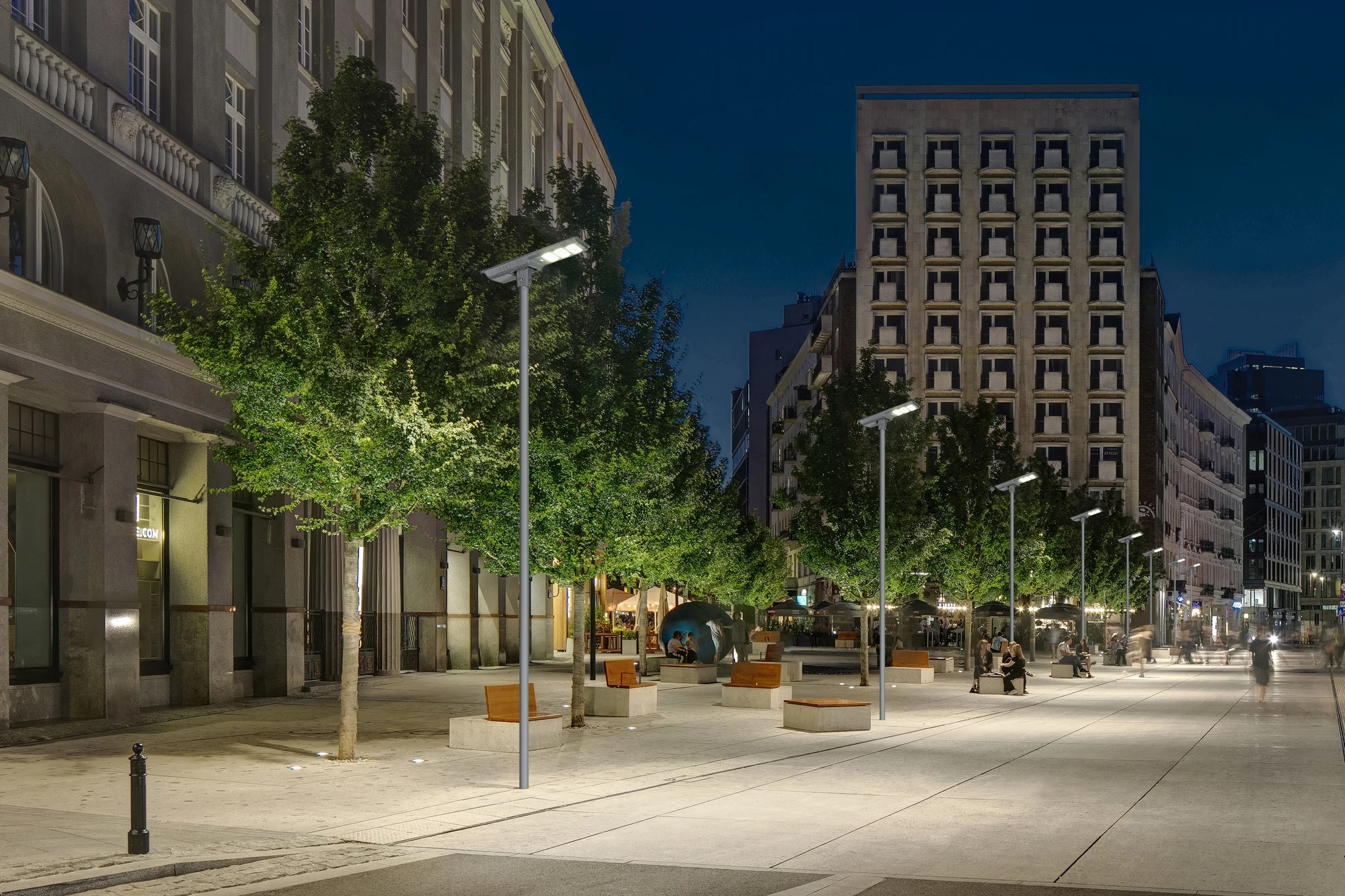

Urban Boulevards & Avenues
City boulevards, landscaped parkways, and civic thoroughfares benefiting from low glare optical distribution and integrated clean energy autonomy.
Parks & Waterfront Promenades
Municipal public parks, greenway trails, riverfront walkways, and recreation corridors providing eco-friendly solar illumination with zero ground cable excavation.

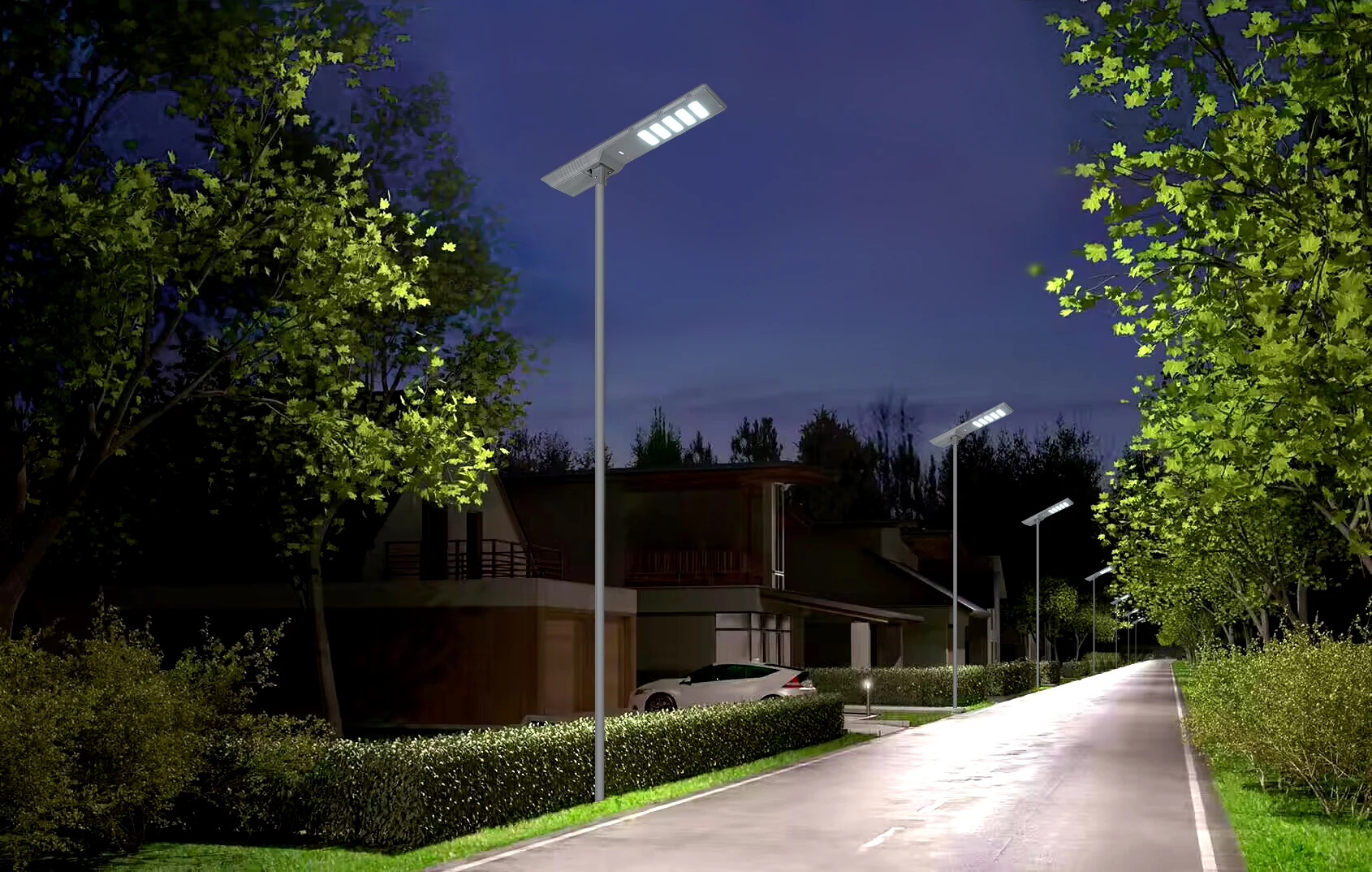

Residential Communities & Estates
Suburban neighborhoods, gated residential villa complexes, and resort developments seeking modern styling, whisper-quiet solar operation, and reliable security lighting.
