SSL-5109 Flourishing Lotus Series Solar Garden Light

IP65 Weatherproof · 360° Omnidirectional Lotus Optics · Up to 150W Monocrystalline Solar · Heavy-Duty Die-Cast Aluminum

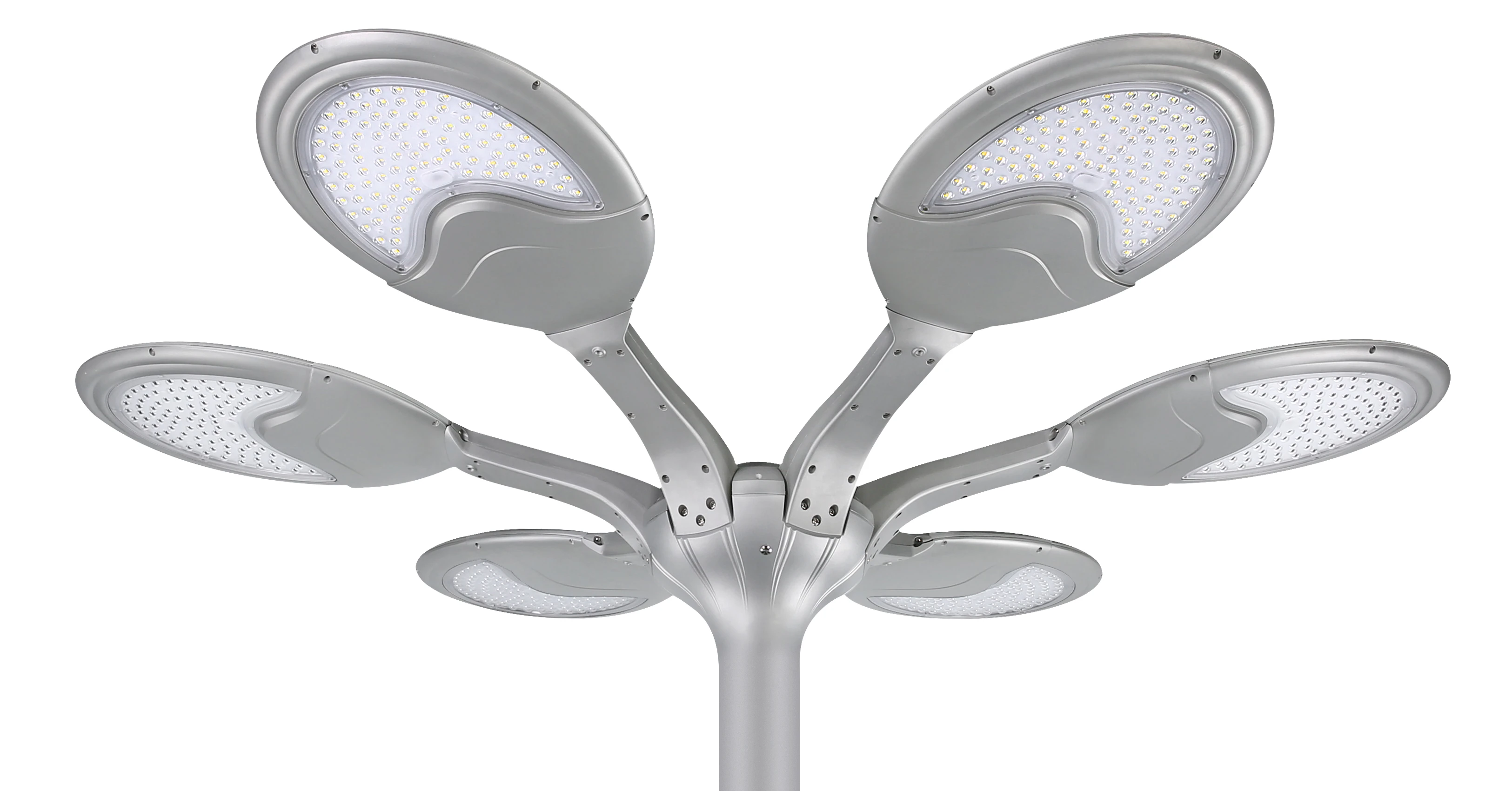

The SSL-5109 Flourishing Lotus Series Solar Garden Light integrates an organic blooming lotus petal architecture engineered for broad 360-degree omnidirectional illumination across prestigious plazas, municipal parks, commercial boulevards, and residential estates. Available in 3-head (200W class) and 6-head (400W class) modular configurations, it incorporates high-efficiency monocrystalline solar panels (up to 150W), heavy-duty die-cast aluminum housing with corrosion-resistant anodic treatment, deep-cycle LiFePO4 battery storage (up to 576Wh / 180Ah), and precision optical PC lenses delivering over 5,980 lumens with 3 to 5 continuous rainy days of dusk-to-dawn autonomous operation.

IP65 Weatherproof Rating

MPPT Smart Solar Controller

LiFePO4 Deep-Cycle Battery (180Ah)

>3 Days Rainy Days Autonomy

CE / RoHS / IP65 International Standards

Color & Optic

Color Options

3000K

6500K

Available in 3000K warm white and 6500K daylight cool white. High color rendering index CRI > 80 Ra.

Beam Options

120°

High-transmittance optical PC lens delivering wide 120° beam per petal, combined into seamless 360° omnidirectional area coverage.

Product Specifications

Solar Panel 18V 150W (6-Head) / 18V 75W (3-Head) Monocrystalline Silicon

Battery Pack 3.2V 180Ah (576Wh, 6-Head) / 3.2V 90Ah (288Wh, 3-Head) LiFePO4

LED Light Source High-Efficiency 2835 / 3030 SMD · 600 pcs (6-Head) / 300 pcs (3-Head)

Luminous Flux 5,980 LM (6500K) / 5,576 LM (3000K, 6-Head) · 2,990 LM (3-Head)

Color Temperature 3000K Warm White ~ 6500K Daylight White (CRI > 80 Ra)

Beam Angle 120° Radial per Petal · 360° Omnidirectional Panoramic Lighting

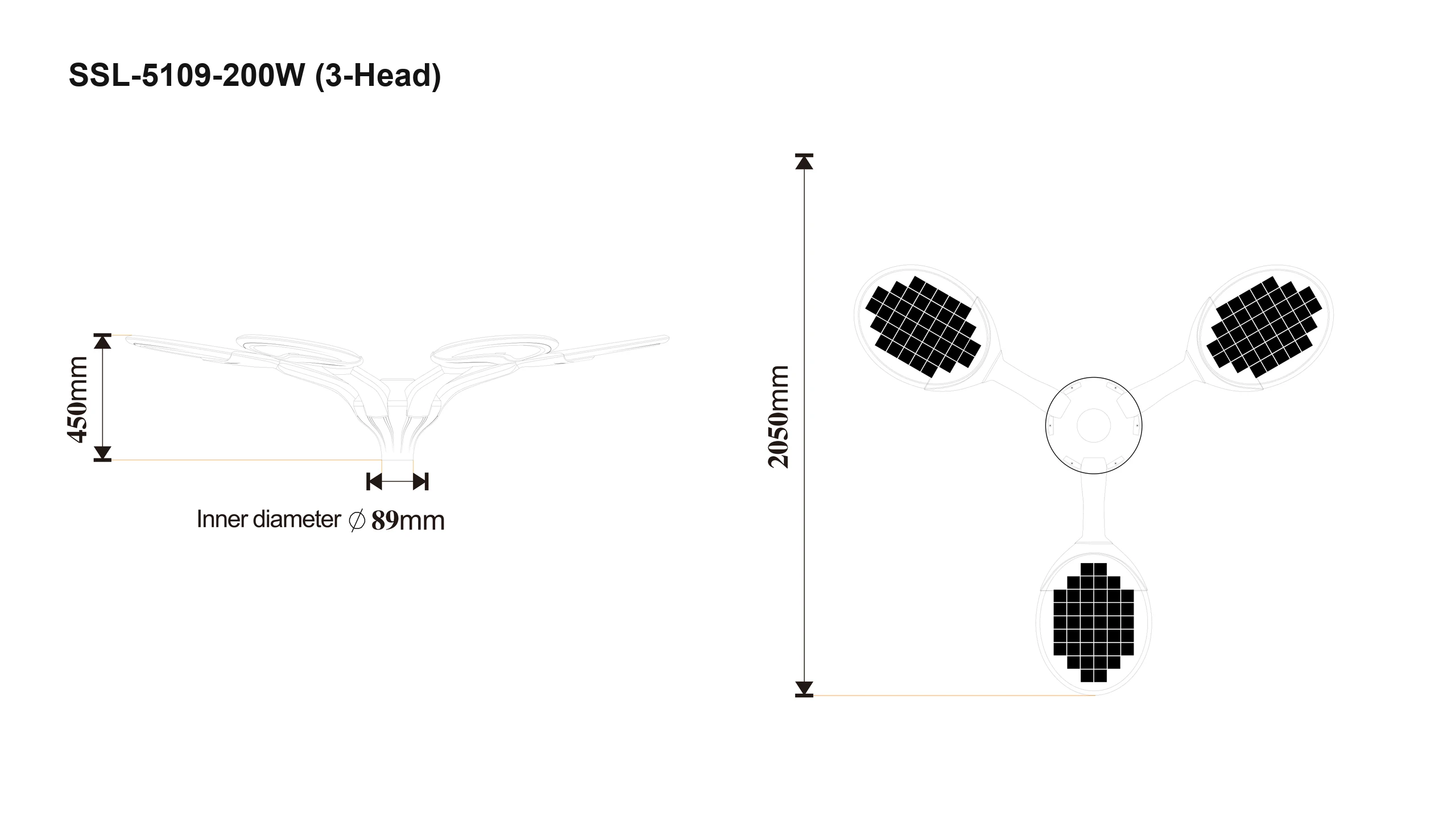

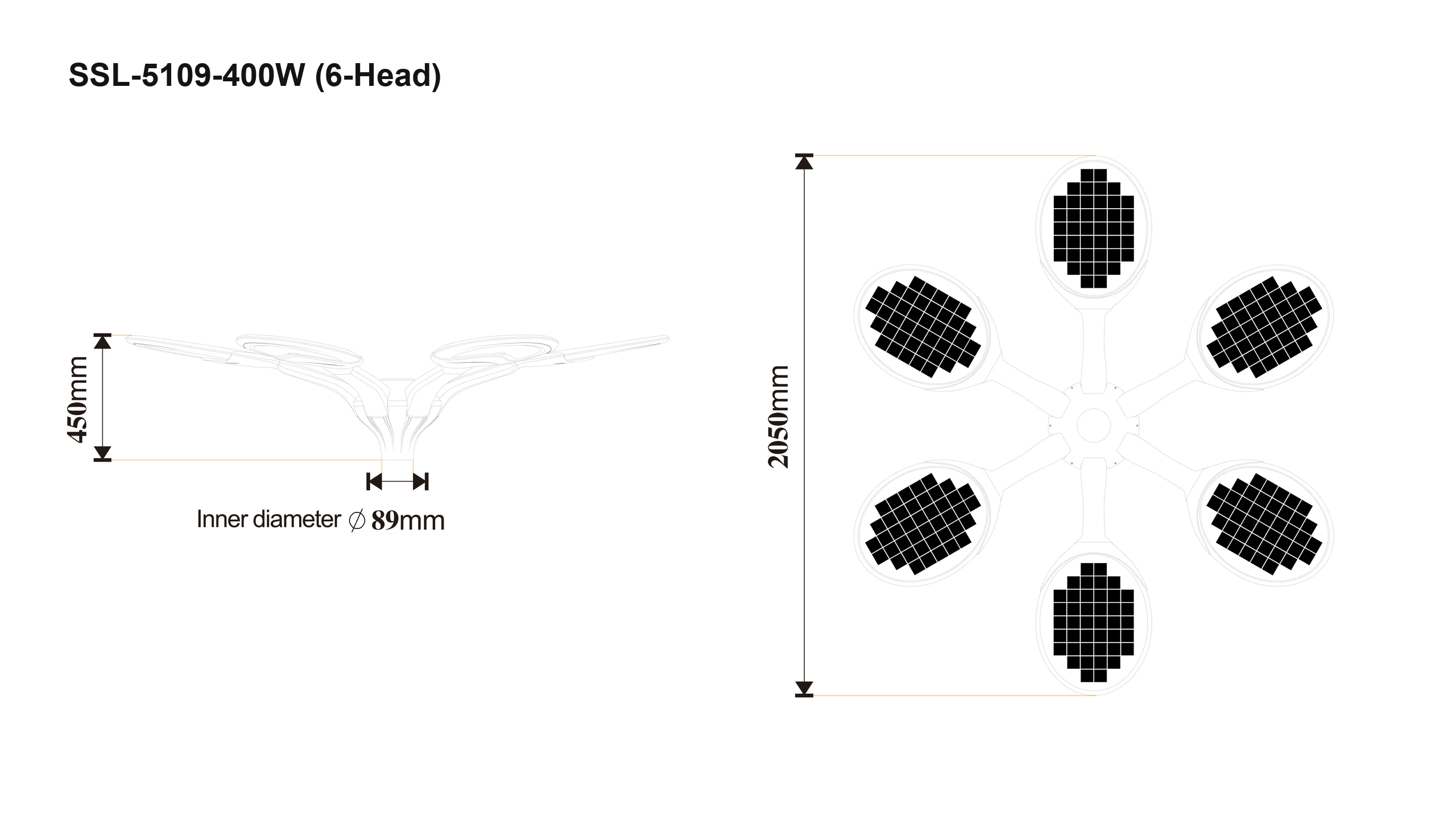

Product Size Ø2050 mm × H450 mm (6-Head & 3-Head)

Installation Tenon Inner Diameter Ø89 mm (Tenon Mount with 4 Hex Bolts, Luminaire Head Only)

Mounting Height 5m ~ 12m · Recommended Pole Spacing 21m ~ 35m

Controller & Charging Intelligent MPPT Solar Charge Controller · 6 Hours Fast Full Charge

Weatherproof Rating IP65 Ingress Protection · Operating Temp: -25°C to 50°C

Housing Material Thick Die-Cast Aluminum + Anodic Oxidation (Sand Black / Grey)

Model Configuration

Model	Dimension	Power	Color Options	Lumen Output	Packing Info
SSL-5109-200W	Ø2050 × H450 mm	200W Class (75W Solar)	3000K 6500K	2,990 lm	Inner Tenon: Ø89 mm Battery: LiFePO4 90Ah (288Wh) Leaf: 72×49×16.5cm (×3) + Hub: 39×39×37cm
SSL-5109-400W	Ø2050 × H450 mm	400W Class (150W Solar)	3000K 6500K	5,980 lm	Inner Tenon: Ø89 mm Battery: LiFePO4 180Ah (576Wh) Leaf: 72×49×16.5cm (×6) + Hub: 39×39×37cm

Advantages

Bionic Flourishing Lotus Aesthetics

Inspired by the graceful blooming lotus flower, the organic petal arrangement provides 360-degree panoramic light distribution while serving as a prestigious architectural centerpiece for luxury landscapes.

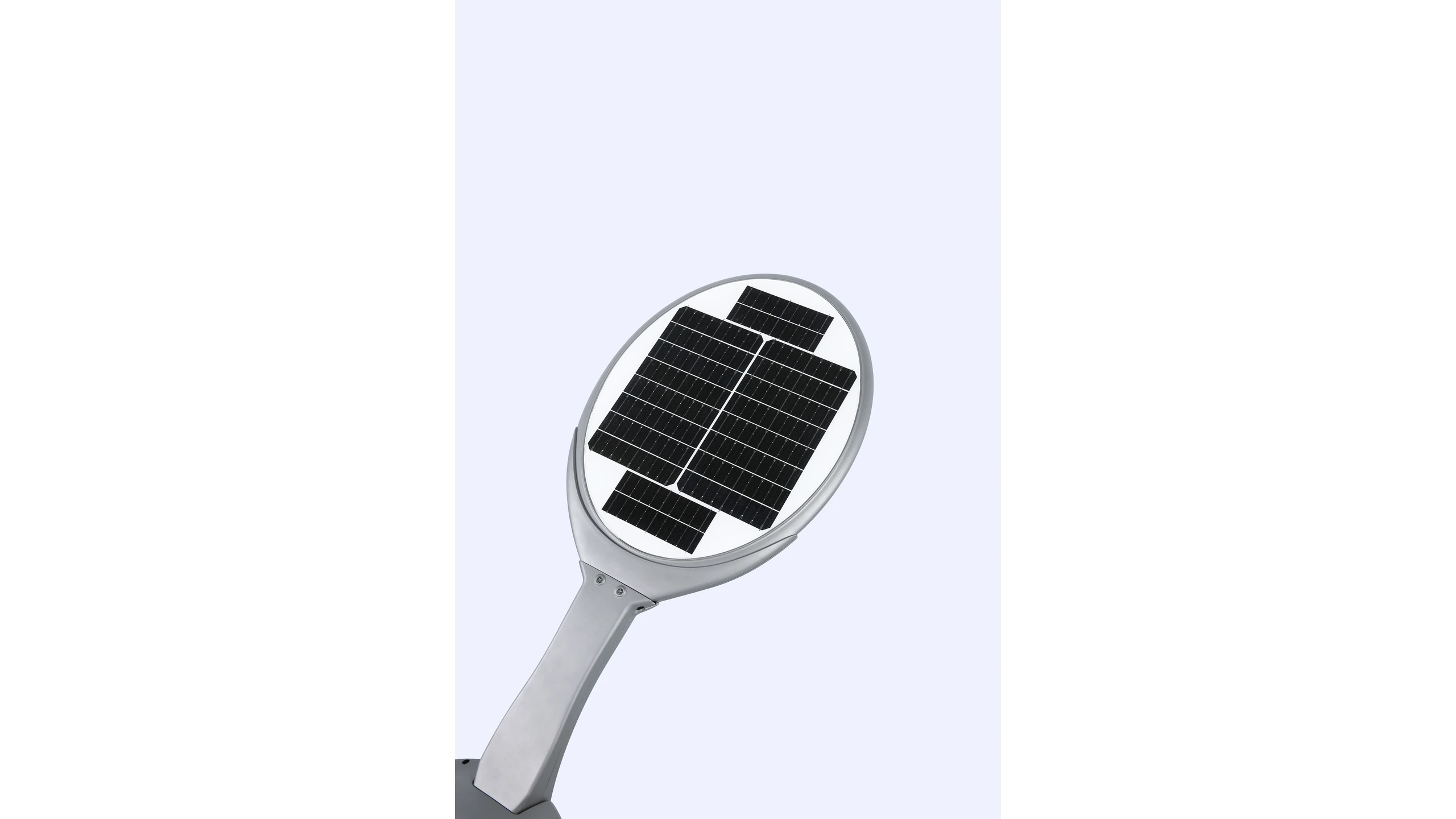

High-Yield Monocrystalline PV Architecture

Equipped with custom multi-petal monocrystalline solar modules delivering up to 150W generating capacity, maximizing solar photon capture even under low-angle sunlight and cloudy weather conditions.

Heavy-Duty LiFePO4 Power Reserve

Integrated lithium iron phosphate storage (up to 180Ah / 576Wh) delivers over 2,000 deep discharge cycles, operating reliably across extreme climates with more than 3 to 5 continuous days of overcast autonomy.

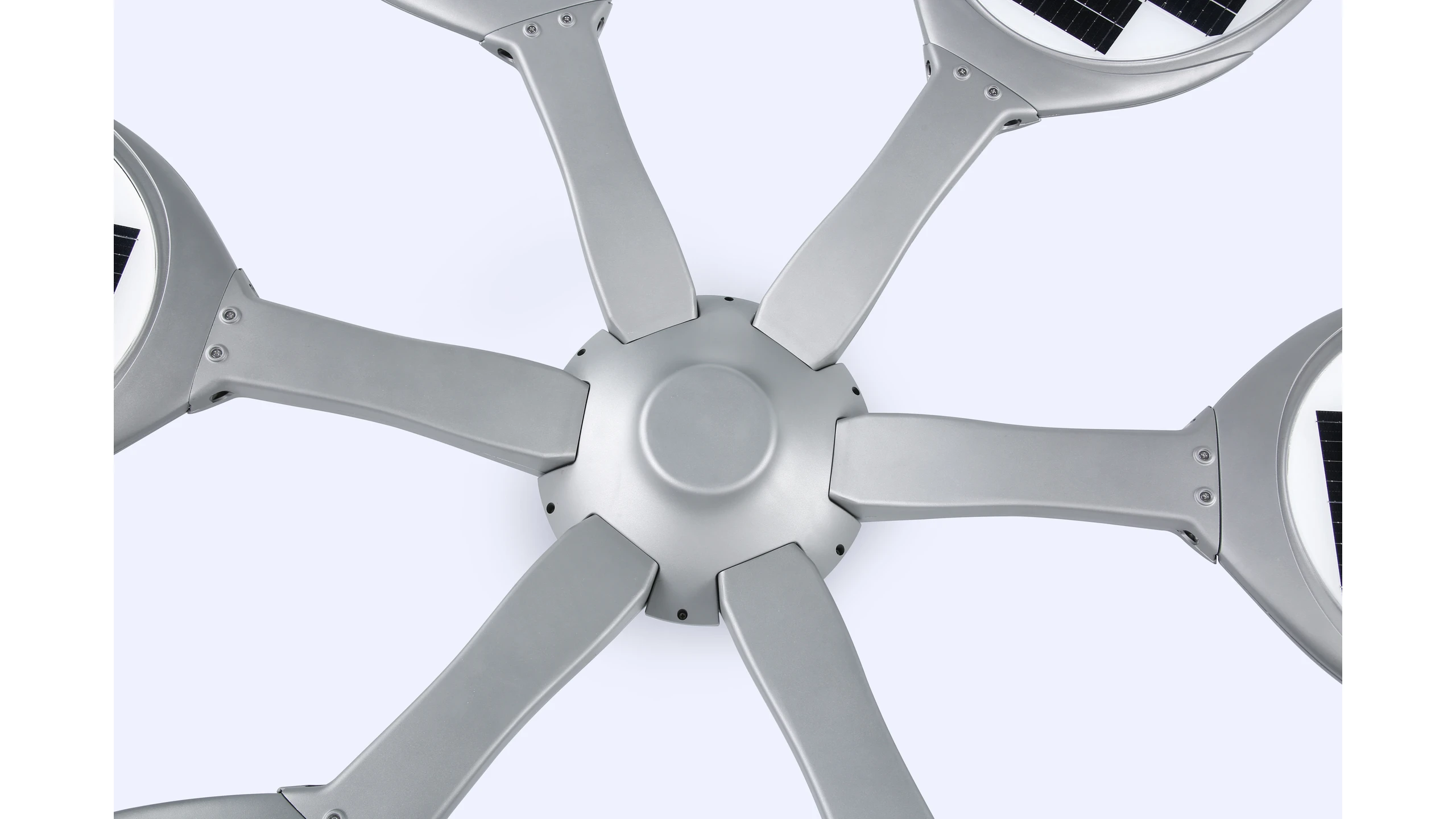

Precision Die-Cast Aluminum & IP65 Protection

Thickened aerospace-grade die-cast aluminum central body with anodic oxidation and UV-resistant outdoor finish provides supreme structural rigidity, hurricane wind resistance, and IP65 weatherproof integrity.

Application Scenarios

Municipal Parks & Botanical Gardens

Blends naturally into parklands and scenic green belts, delivering reliable dusk-to-dawn lighting for safe night jogging, walking, and sightseeing.

Commercial Plazas & Corporate Campuses

Ideal for outdoor shopping malls, pedestrian commercial streets, and corporate headquarters requiring high visual prestige and uniform illumination.

Waterfront Promenades & Riverfront Avenues

Provides robust salt-spray and moisture resistance along coastal boulevards, marina boardwalks, and scenic riverbanks with 360° glare-free lighting.

Luxury Residential Estates & Villa Communities

Enhances private estates and high-end residential streets with refined nighttime elegance, zero electrical utility trenching, and autonomous solar power.

Impressions

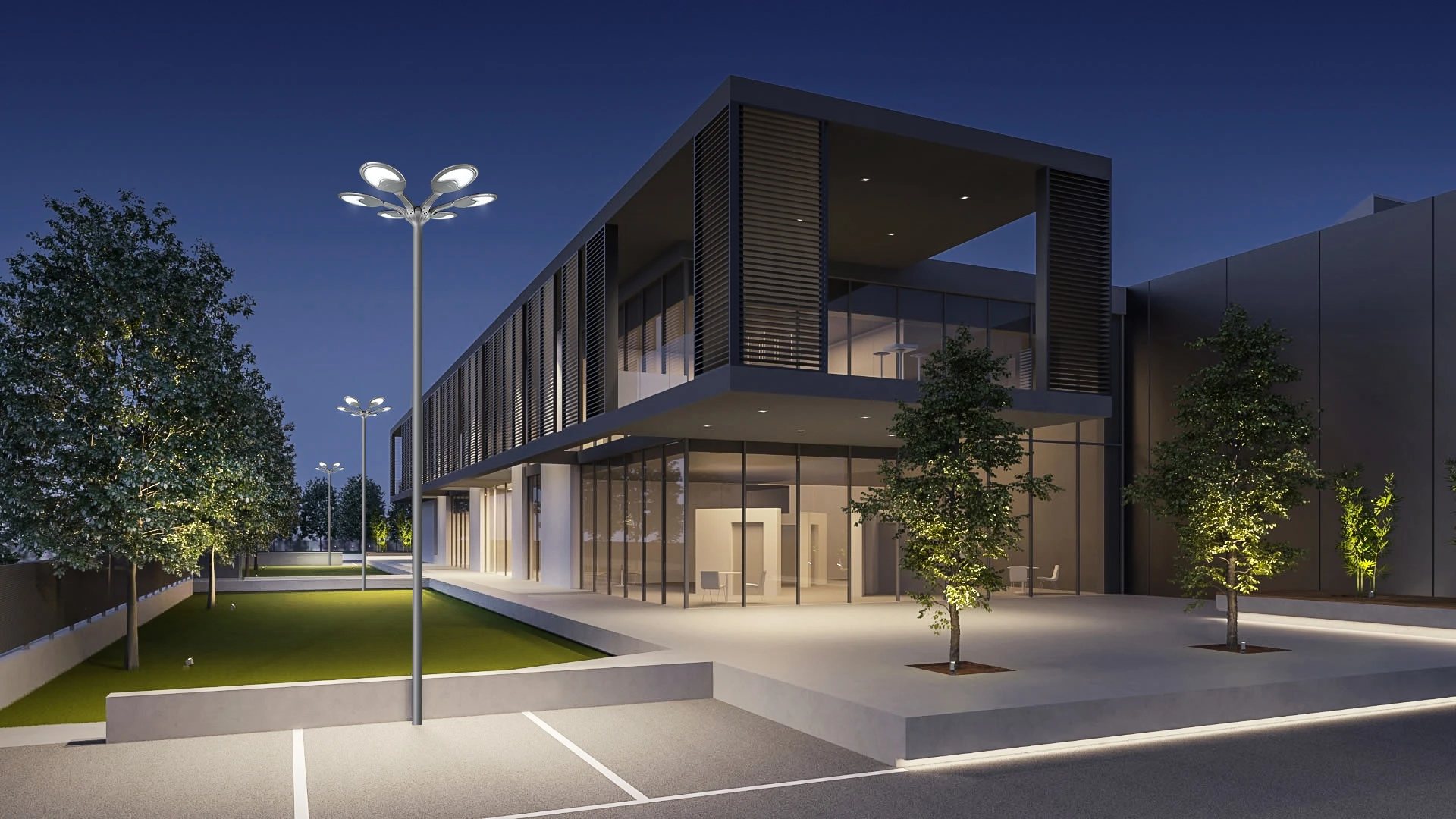

SSL-5109 modern commercial plaza architecture night illumination scene | TPK Lighting

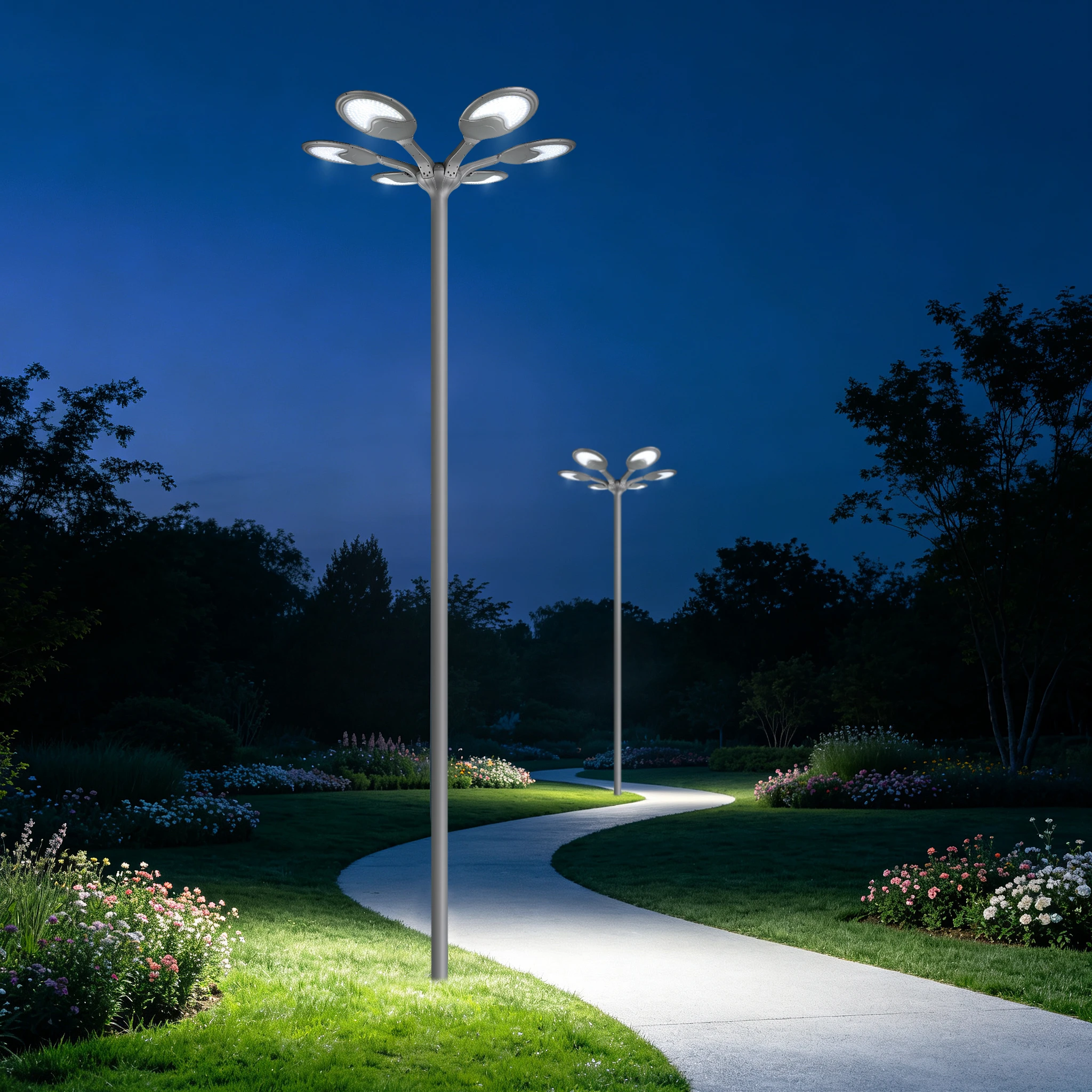

SSL-5109 garden park pathway twilight landscape lighting scene | TPK Lighting

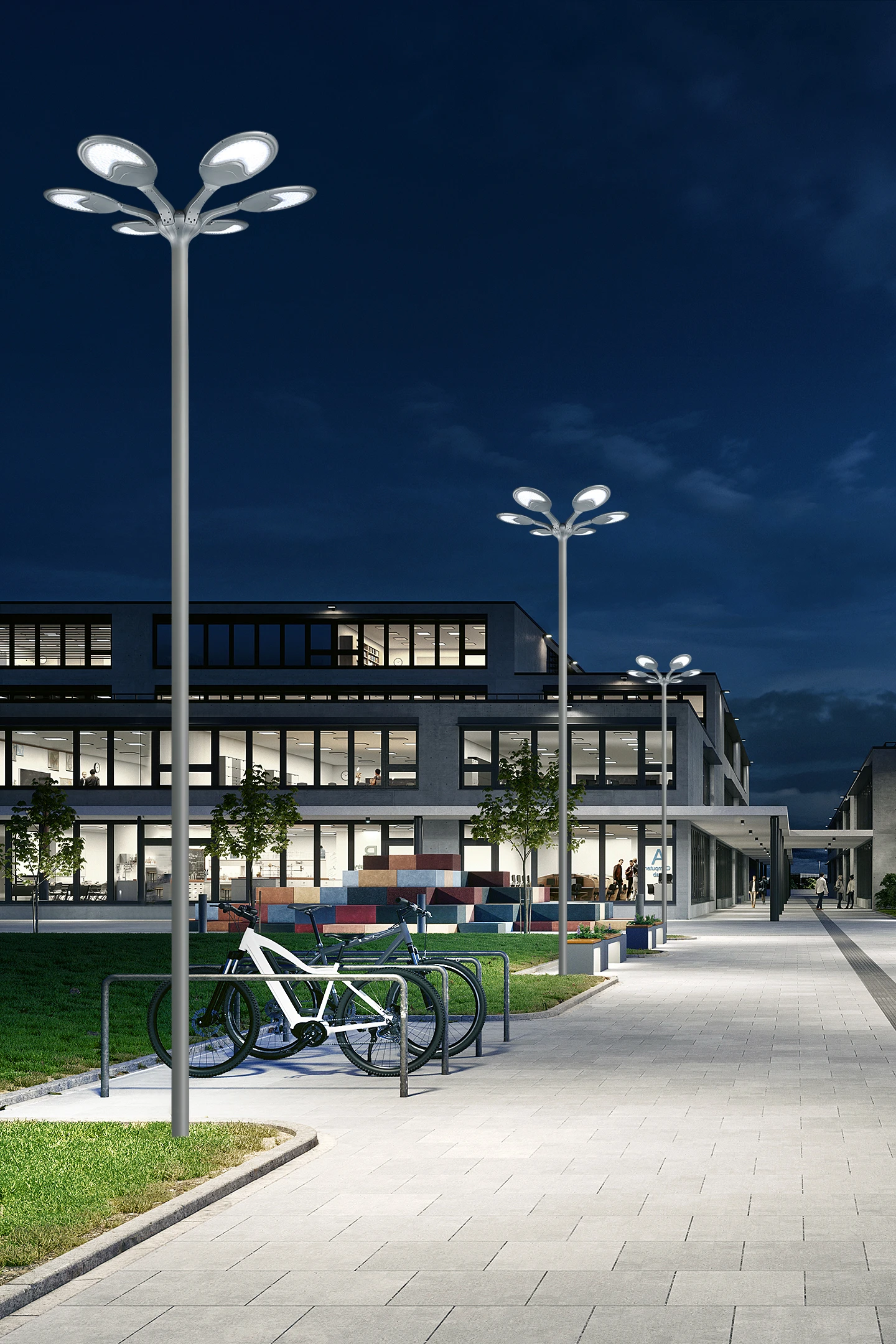

SSL-5109 commercial avenue pedestrian boulevard night illumination | TPK Lighting

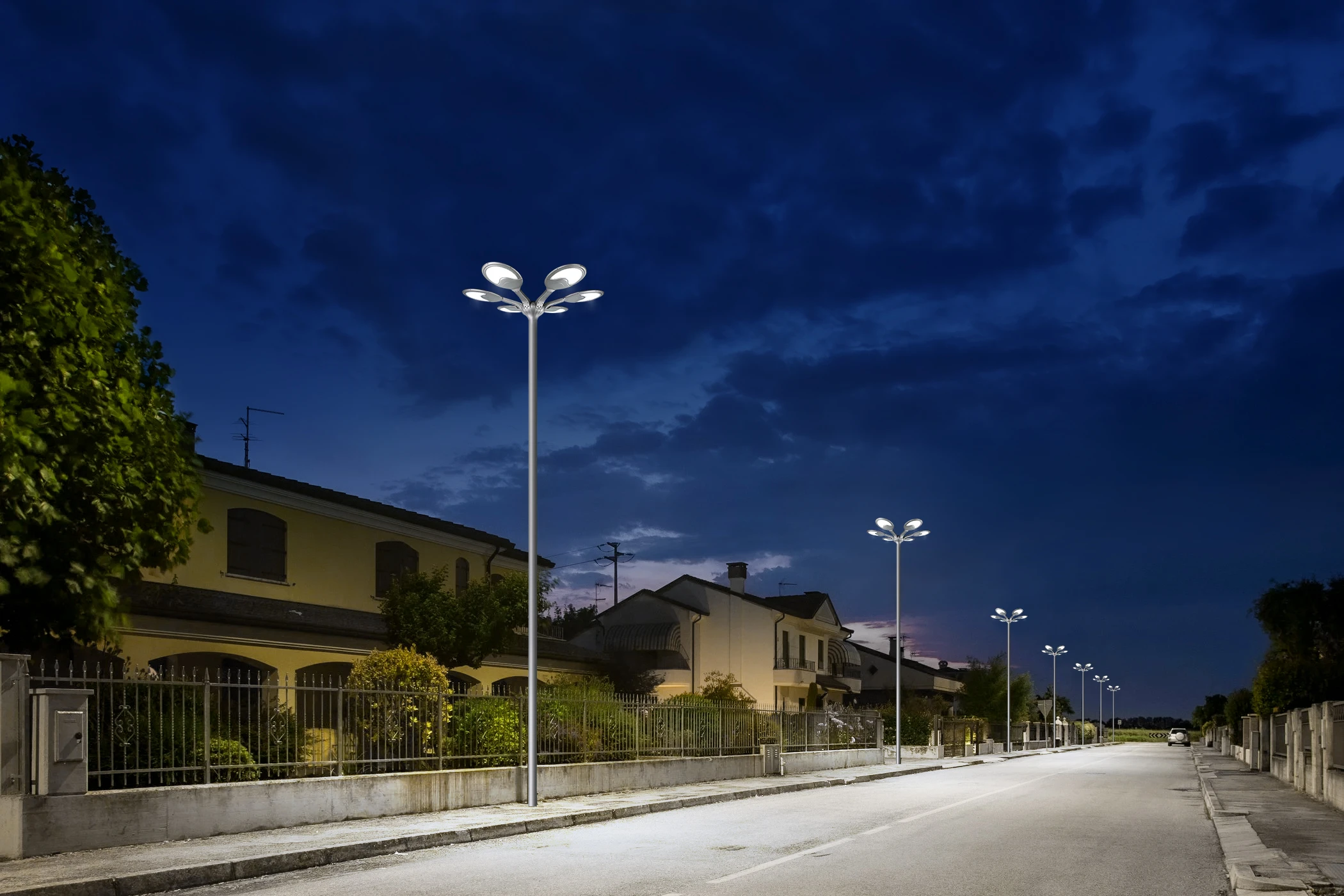

SSL-5109 residential boulevard roadway night lighting scene | TPK Lighting

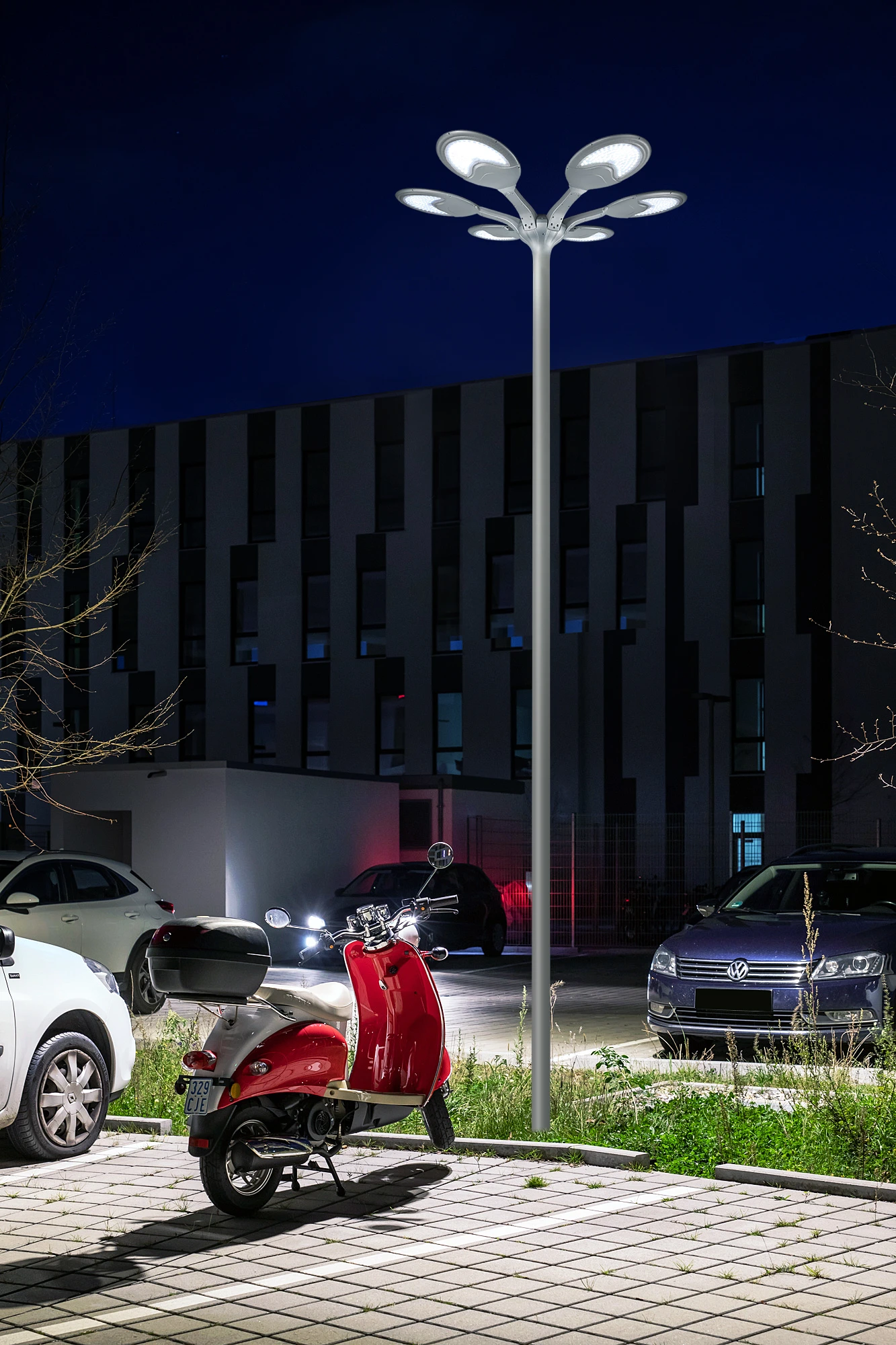

SSL-5109 urban facility outdoor parking court night lighting scene | TPK Lighting

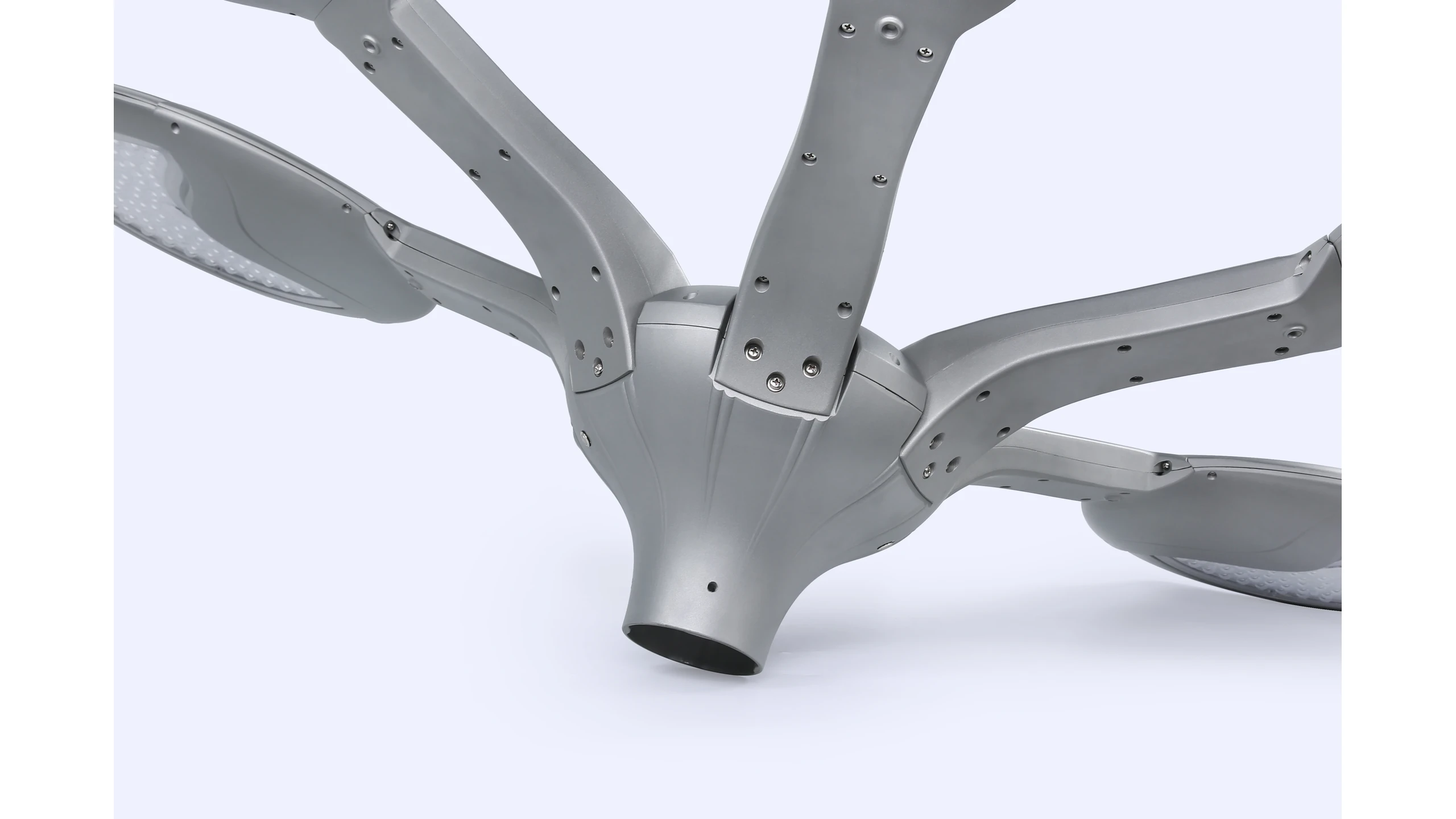

What pole diameter is required for mounting the SSL-5109 luminaire head?

The SSL-5109 light head features a standardized inner tenon diameter of Ø89 mm (3.5 inches). It slides smoothly over standard Ø89 mm cylindrical or stepped pole spigots and is securely fastened using 4 high-tensile internal hex bolts.

Does the standard supply package include the light pole?

No, TPK Lighting specializes in high-efficiency solar luminaire heads. The package contains the complete self-contained fixture (petals, solar panels, battery, and hub). Light poles are excluded to drastically reduce international shipping volume and costs, allowing clients to source poles locally or order matching poles separately.

How does the SSL-5109 perform during prolonged cloudy or rainy periods?

Engineered with high-capacity automotive-grade LiFePO4 batteries (up to 180Ah / 576Wh) and an intelligent MPPT controller with multi-stage dynamic power management, the SSL-5109 delivers over 3 to 5 continuous nights of autonomous illumination after a full solar charge.

What is the recommended installation height and pole spacing?

For optimal 360-degree photometric uniformity, we recommend a mounting height between 5 meters and 12 meters, with standard pole spacing of 21 meters to 35 meters depending on ground illuminance requirements for parks, plazas, or roadways.
