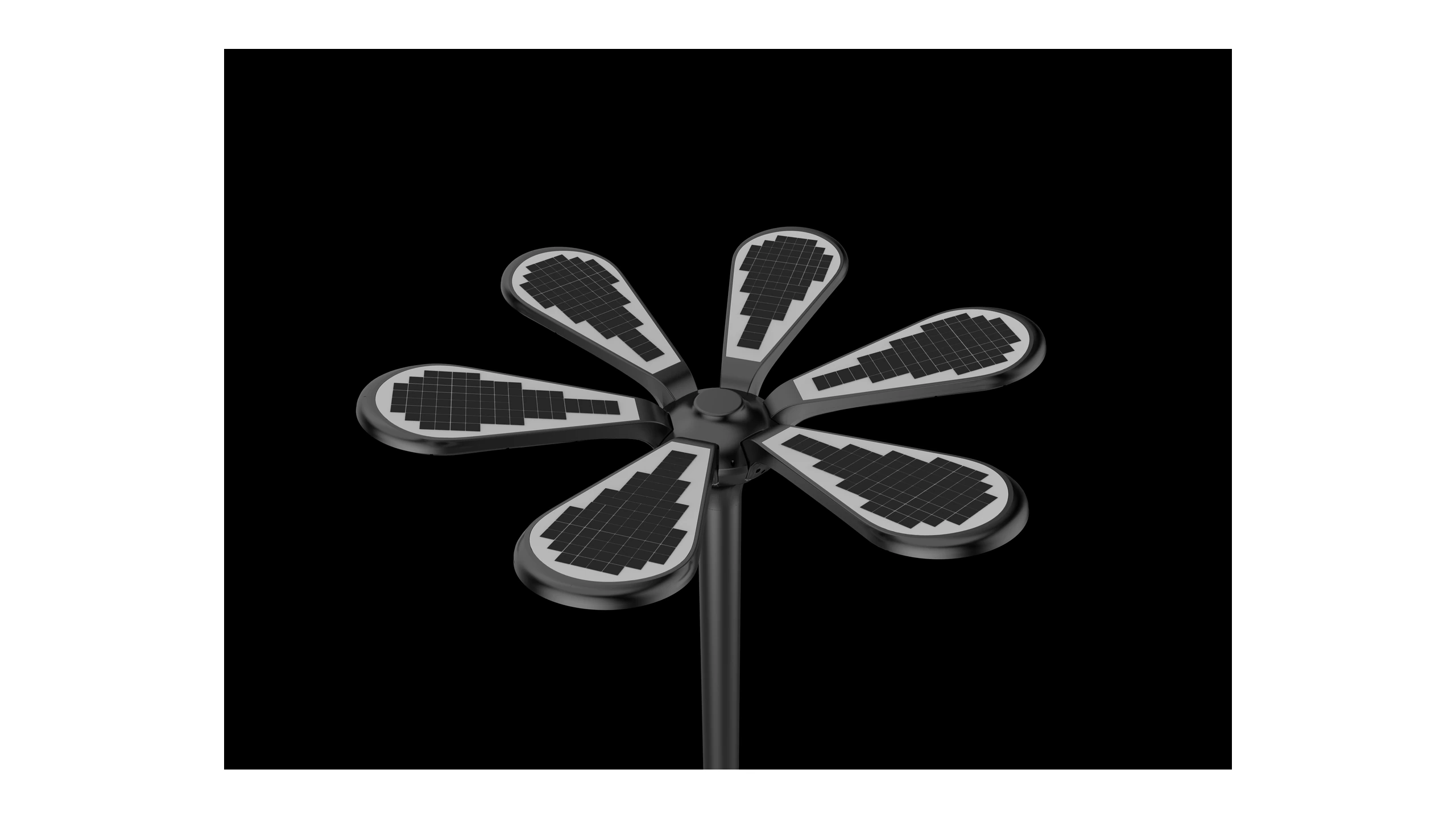

SSL-5105 Lily Series Solar Garden Light

IP65 Waterproof · High-Efficiency MPPT · Monocrystalline Solar · Die-Cast Aluminum · Luminaire Head Only (Pole Excluded)

The SSL-5105 Lily Series Solar Garden Light features an elegant bionic lily-petal aesthetic with 360-degree all-around illumination. Designed for upscale parks, villas, municipal plazas, and campus landscapes, it integrates high-efficiency monocrystalline solar panels (up to 105W), premium automotive-grade LiFePO4 batteries (up to 120Ah/384Wh), and intelligent MPPT charging for superior all-weather reliability and over 3 nights of continuous lighting.

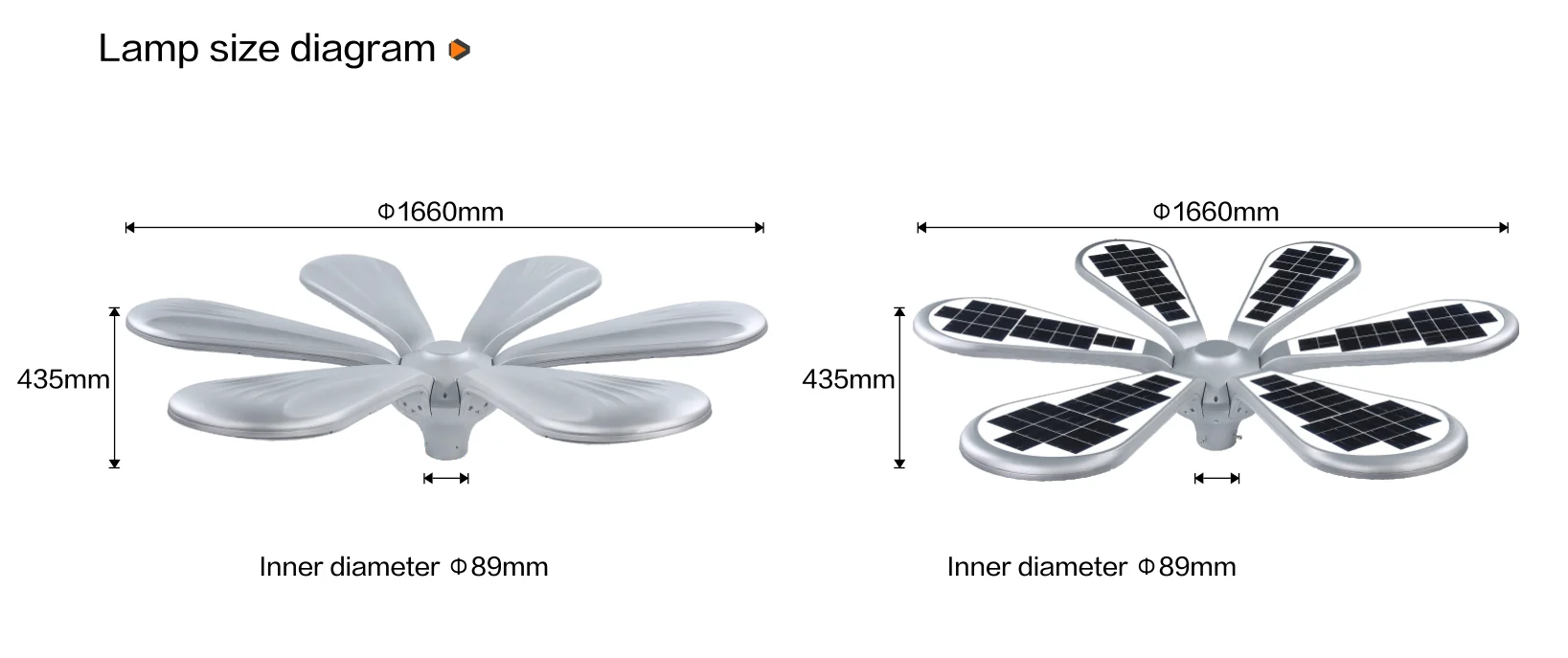

SSL-5105 3D structure and dimension drawing

IP65Weatherproof Rating

MPPTSmart Solar Controller

LiFePO4Deep-Cycle Battery (120Ah)

>3 DaysRainy Days Autonomy

CE / RoHSInternational Standards

Color & Optic

Color Options

3000K

4000K

6500K

Available in 3000K warm white, 4000K neutral white, and 6500K daylight cool white. High color rendering index CRI > 80 Ra.

Beam Options

120°

Precision optical PC lens provides wide, glare-free 360° circular coverage with light transmittance exceeding 90%.

Product Specifications

Solar Panel18V 105W (6-Head) / 18V 52.5W (3-Head) Monocrystalline Silicon

Battery Pack3.2V 120Ah (384Wh) / 3.2V 60Ah (192Wh) Deep-Cycle LiFePO4

LED Light Source3030 SMD LED Chips · 480 pcs (6-Head) / 240 pcs (3-Head)

Luminous Flux8,303 LM (6-Head) / 4,151 LM (3-Head)

Color Temperature3000K ~ 6500K (CRI > 80 Ra)

Beam Angle180° Wide Radial · 360° Omnidirectional Distribution

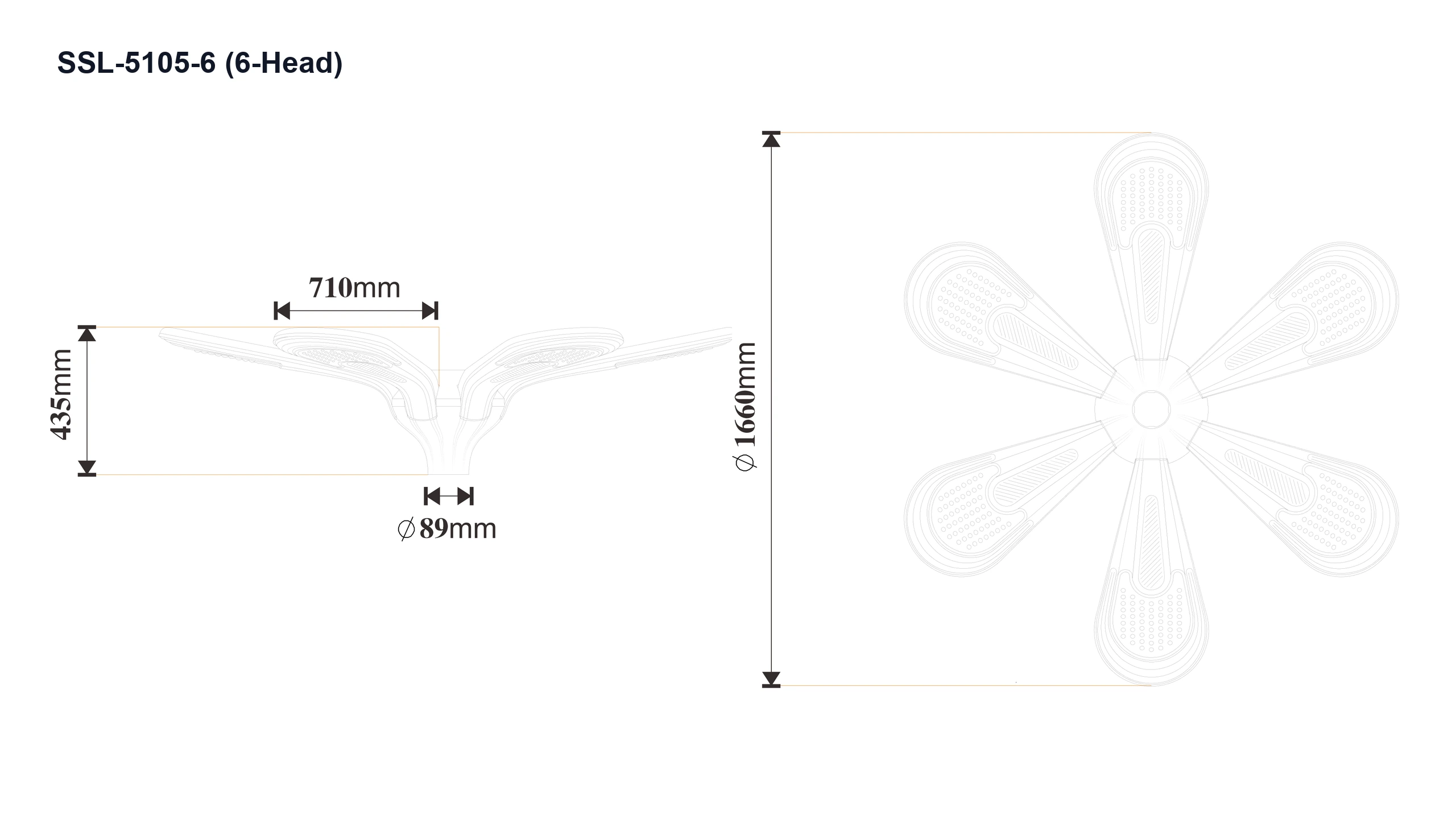

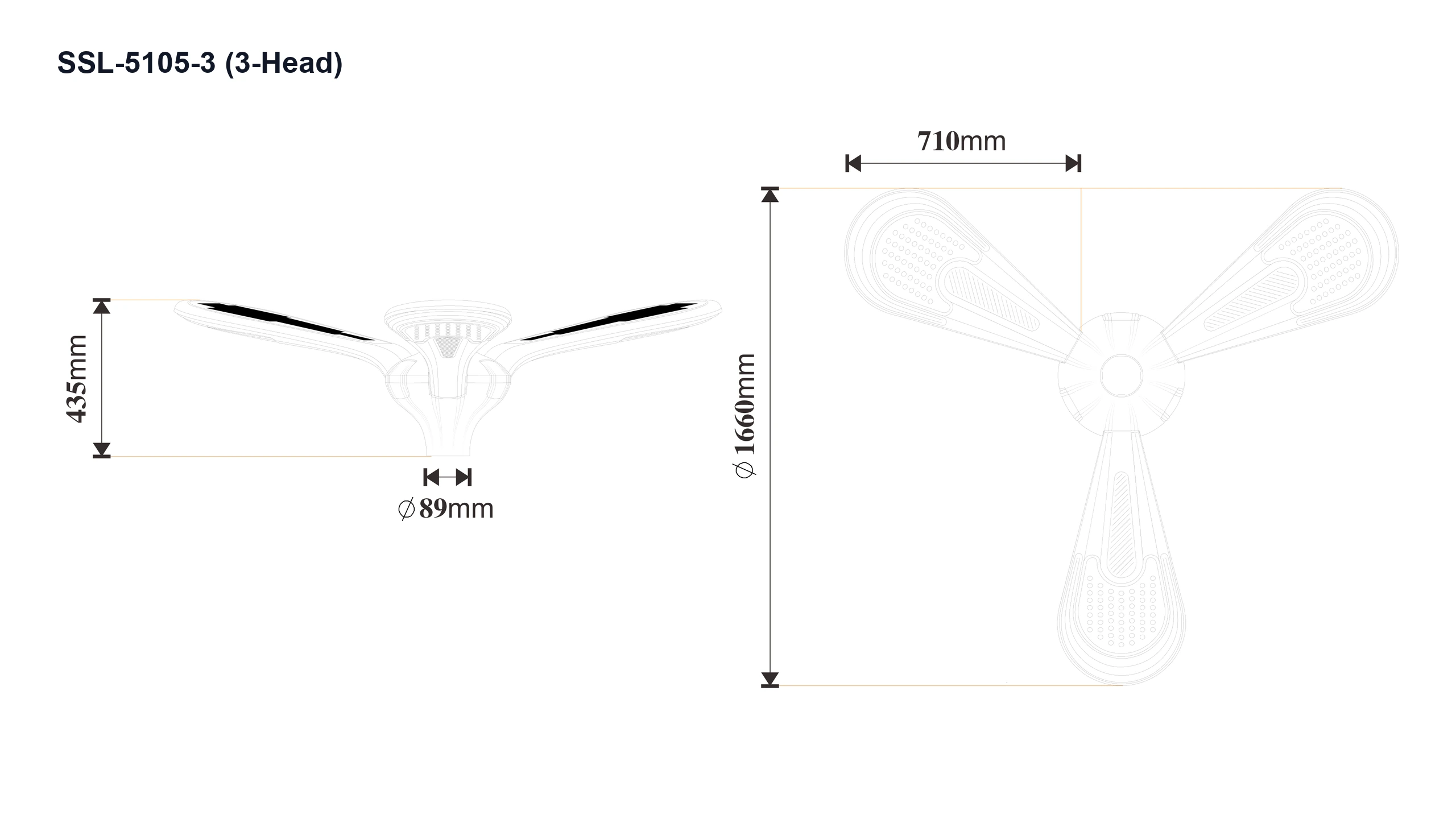

Product SizeØ1660 mm × H435 mm (Both Models)

Installation TenonInner Diameter Ø89 mm (Fixed with 4 Hexagonal Screws)

Mounting Height6m ~ 12m (6-Head) / 4m ~ 8m (3-Head) · Spacing 14-21m

Controller & SensorSmart MPPT Controller with Dusk-to-Dawn + Time Dimming

Weatherproof RatingIP65 Ingress Protection · Operating Temp: -25°C to 50°C

Housing MaterialHigh-Grade Die-Cast Aluminum + High-Transmittance PC Lens

Model Configuration

Model	Dimensions	Solar PV / Battery	CCT Options	Output (LM)	Packing & Weight
SSL-5105-3-60W	Ø1660 × H435 mm (Spigot Ø89mm)	18V 52.5W Mono PV 3.2V 60Ah (192Wh) LiFePO4	3000K 6500K	4,151 LM	Net: 16.5 kg \| G.W.: 19.5 kg Cartons: 800×310×400mm + 390×390×370mm Container: 20GP: 155 sets \| 40HQ: 377 sets
SSL-5105-6-120W	Ø1660 × H435 mm (Spigot Ø89mm)	18V 105W Mono PV 3.2V 120Ah (384Wh) LiFePO4	3000K 6500K	8,303 LM	Net: 27.8 kg \| G.W.: 30.5 kg Cartons: 800×310×400mm×2 + 390×390×370mm Container: 20GP: 93 sets \| 40HQ: 226 sets

Standard package excludes pole and cage. Available with pre-configured timer dimming modes upon request.

Advantages

Lily-Petal Bionic Architecture & 360° Illumination

Inspired by natural lily petals, the modular curved petals create a visually striking landscape silhouette while delivering seamless 360-degree circular light distribution without dark zones.

Grade-A Monocrystalline Silicon Solar Panels

Equipped with high-efficiency 18V monocrystalline solar cells integrated directly into each petal module, providing outstanding low-light charging performance and rapid replenishment even on overcast days.

Smart MPPT Controller with Dusk-to-Dawn Control

Integrated MPPT charging algorithm continuously tracks maximum power point, boosting energy harvest by up to 30% compared to traditional PWM systems with automatic dusk-to-dawn switching.

Deep-Cycle LiFePO4 Battery & IP65 Protection

Built-in automotive-grade lithium iron phosphate (LiFePO4) battery pack supports over 2,000 cycles, housed in a precision die-cast aluminum enclosure with IP65 ingress protection for extreme durability.

Application Scenarios

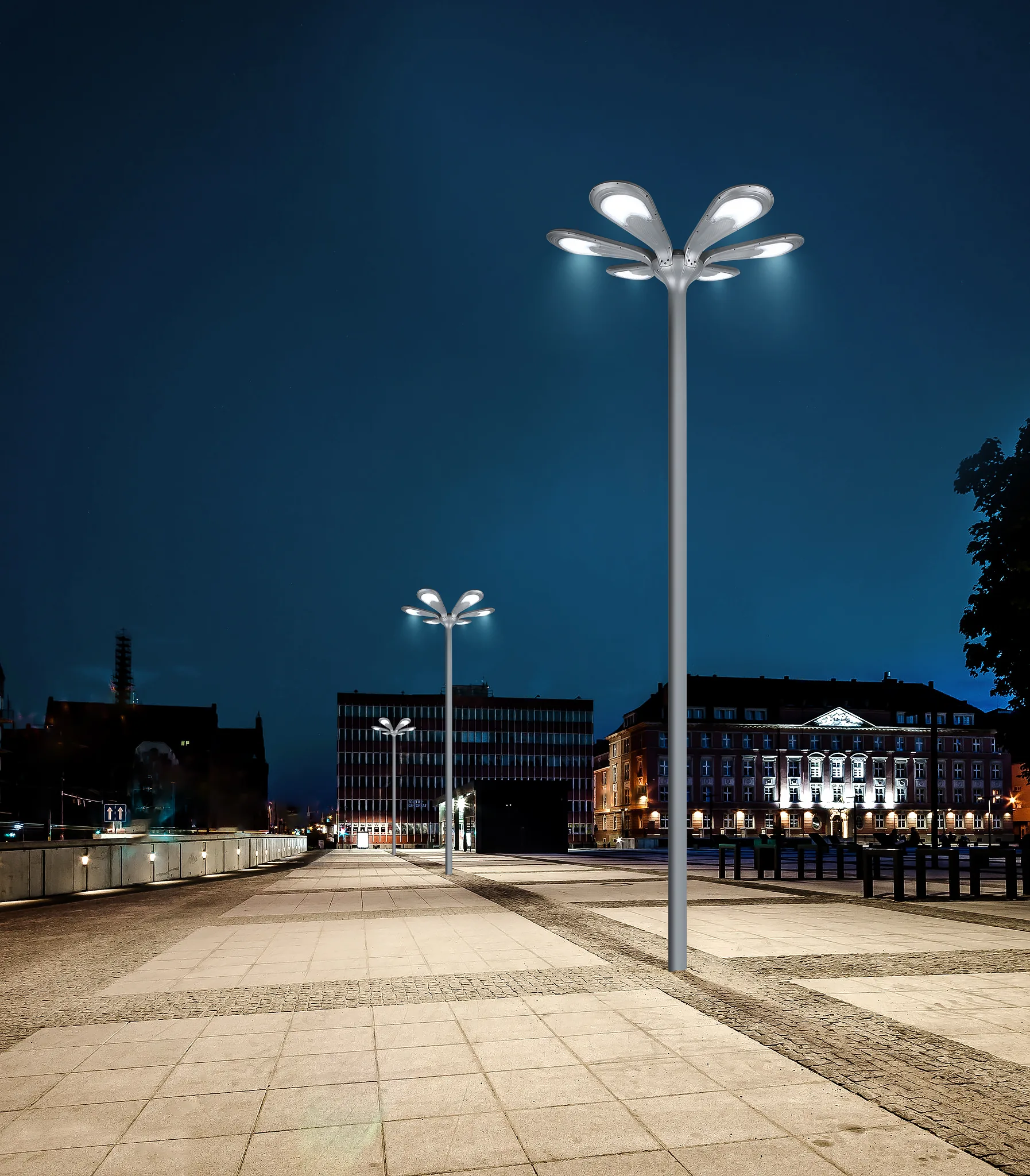

Municipal Parks & Public Plazas

Provides reliable, grid-free night illumination for public parks, central plazas, and community walking paths with zero electricity expenditure.

Upscale Residential & Villa Communities

Blends seamlessly with upscale landscaping, elevating property aesthetics while enhancing nighttime safety along perimeter driveways and gardens.

Resorts, Hotels & Waterfront Promenades

The sculptural petal design serves as an artistic landscape feature during the day and delivers comfortable, inviting ambient illumination after dark.

Corporate Campuses & Educational Institutions

Ideal for green building initiatives and university grounds, showcasing eco-friendly solar technology with dependable all-night performance.

Recommended installation spacing is 14m to 21m depending on target illuminance requirements.

Impressions

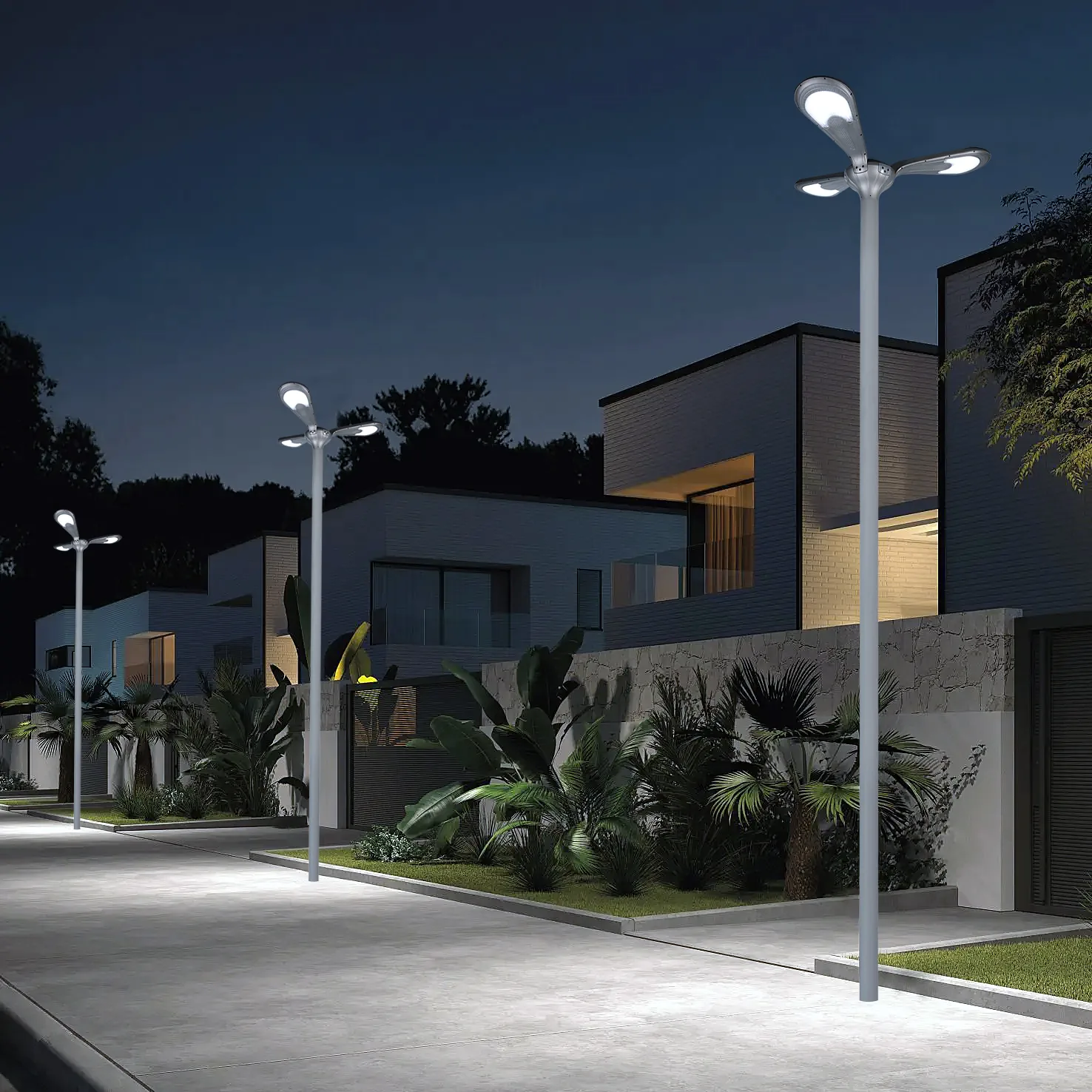

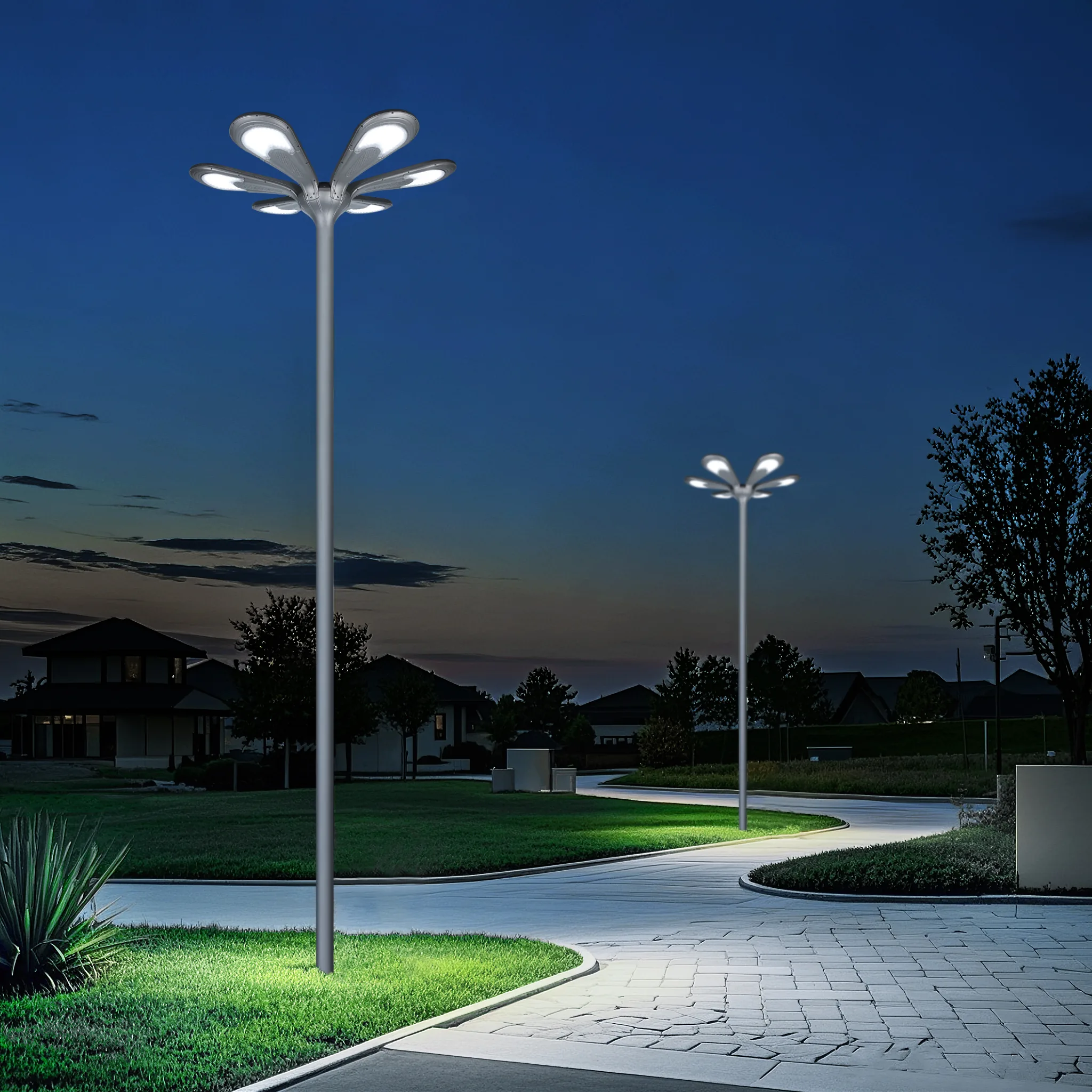

SSL-5105 pedestrian walkway illumination

How many nights of lighting does the SSL-5105 provide during continuous rainy days?

With its high-capacity LiFePO4 battery pack (up to 120Ah / 384Wh) and intelligent MPPT energy management, the SSL-5105 provides over 3 continuous rainy or overcast days of autonomy when fully charged under standard sunlight.

What pole diameter is required for installation?

The SSL-5105 Lily series is designed for standard post-top installation and is compatible with Ø89mm (and Ø76mm adapter) pole tenons, secured with 4 hexagonal locking screws. Recommended installation heights range from 4m to 8m for the 3-head model, and 6m to 12m for the 6-head model.

Can the working hours and brightness be customized?

Yes. The built-in smart controller supports customized dimming schedules (e.g., 4 hours full power + 4 hours 50% power + dawn mode) preset before factory dispatch according to project requirements.

How does MPPT charging compare to traditional PWM controllers?

The built-in MPPT (Maximum Power Point Tracking) controller tracks solar panel peak output in real time, delivering 15% to 30% higher charging efficiency than traditional PWM systems, ensuring rapid battery replenishment during winter and monsoon seasons.
