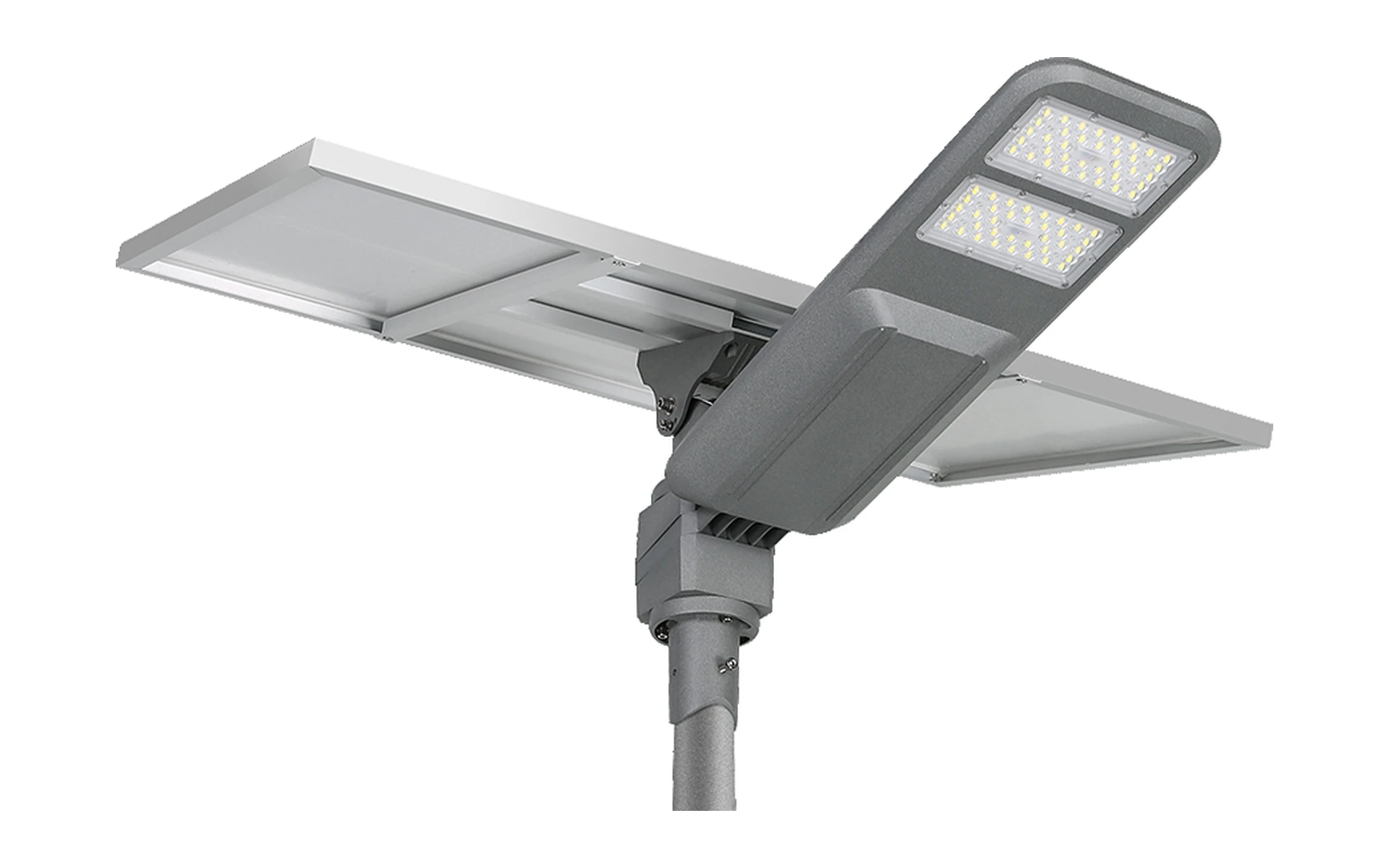

SSL-1108 Yunfan Series Integrated Solar Street Light
The SSL-1108 Yunfan Series Integrated Solar Street Light combines high-efficiency monocrystalline photovoltaic performance with an aerodynamic heavy-duty die-cast aluminum chassis engineered for secondary highways, municipal roads, commercial complexes, and industrial logistics parks. Available in 60W, 80W, 120W, and 150W configurations delivering up to 15,778 lumens, the luminaire features high-capacity 12.8V deep-cycle LiFePO4 batteries (up to 960Wh / 75Ah), dual 5054 LED optical modules with 140°×70° batwing distribution, and an adjustable solar panel bracket optimizing solar absorption across diverse geographical latitudes. Supplied strictly as an all-in-one luminaire head with solar panel assembly (lighting poles excluded from supply scope), it mounts directly onto standard Ø60mm spigots via four stainless steel set-screws, ensuring over 3 to 5 continuous nights of autonomous dusk-to-dawn illumination.
Color & Optic
Beam Options
Product Specifications
Model Configuration
| Model | Dimension | Power | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|

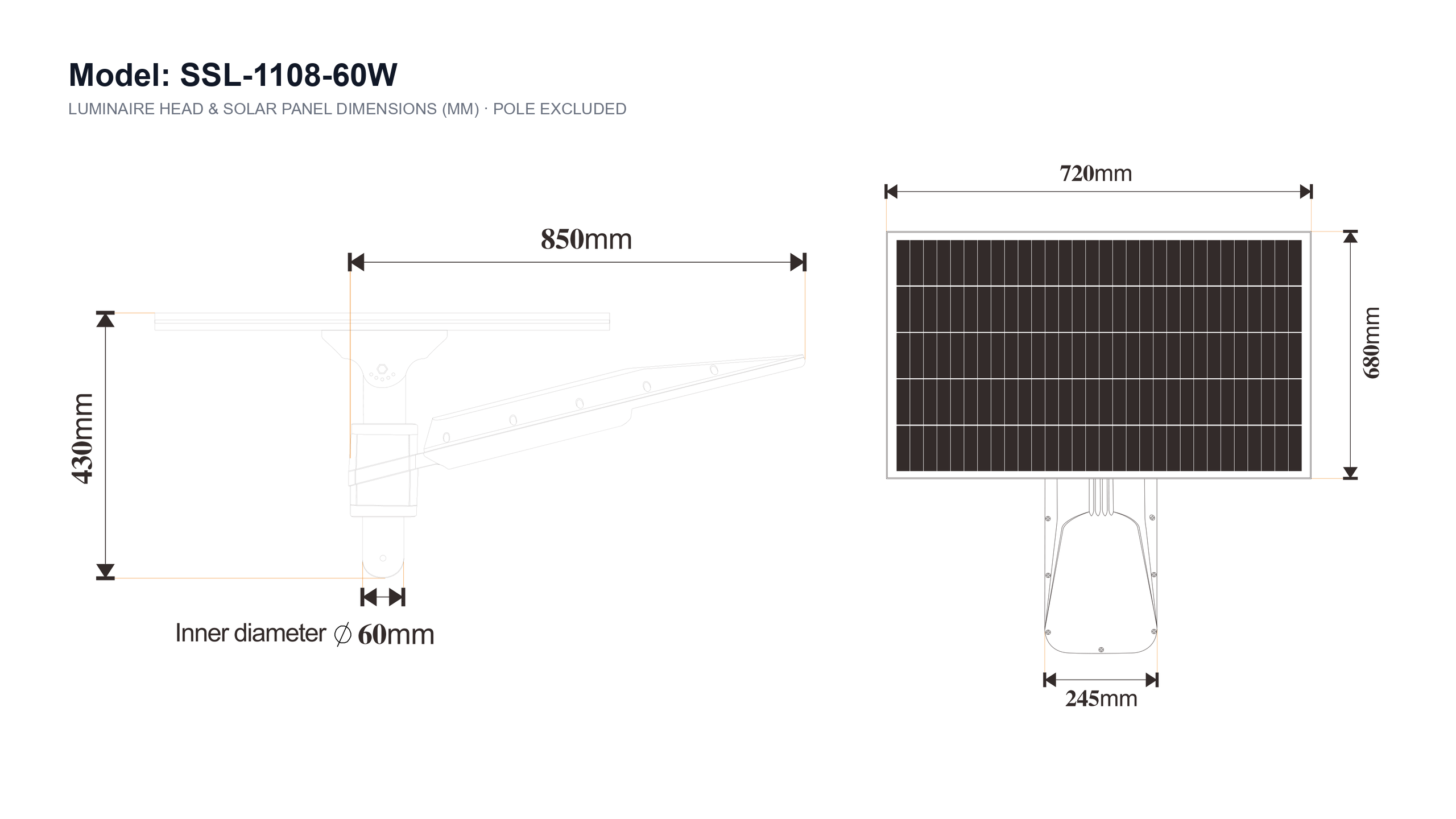

| SSL-1108-60W | 850 × 430 × 245 mm (PV: 720×680mm) | 60W Class (18V 90W PV) |
3000K
4000K
6500K
|
6,483.7 lm | Tenon: Ø60 mm (Luminaire Only · Pole Excluded) | G.W. 11.0 kg Battery: LiFePO4 30Ah (384Wh) Carton: 880×330×290mm (1 Set) |
| SSL-1108-80W | 850 × 430 × 245 mm (PV: 890×680mm) | 80W Class (18V 110W PV) |
3000K
4000K
6500K
|
8,444.7 lm | Tenon: Ø60 mm (Luminaire Only · Pole Excluded) | G.W. 12.1 kg Battery: LiFePO4 45Ah (576Wh) Carton: 880×330×290mm (1 Set) |
| SSL-1108-120W | 850 × 430 × 245 mm (PV: 1000×680mm) | 120W Class (18V 130W PV) |
3000K
4000K
6500K
|
12,400.8 lm | Tenon: Ø60 mm (Luminaire Only · Pole Excluded) | G.W. 13.2 kg Battery: LiFePO4 60Ah (768Wh) Carton: 880×330×290mm (1 Set) |
| SSL-1108-150W | 850 × 430 × 245 mm (PV: 1180×680mm) | 150W Class (18V 150W PV) |
3000K
4000K
6500K
|
15,778.0 lm | Tenon: Ø60 mm (Luminaire Only · Pole Excluded) | G.W. 14.3 kg Battery: LiFePO4 75Ah (960Wh) Carton: 880×330×290mm (1 Set) |
Advantages

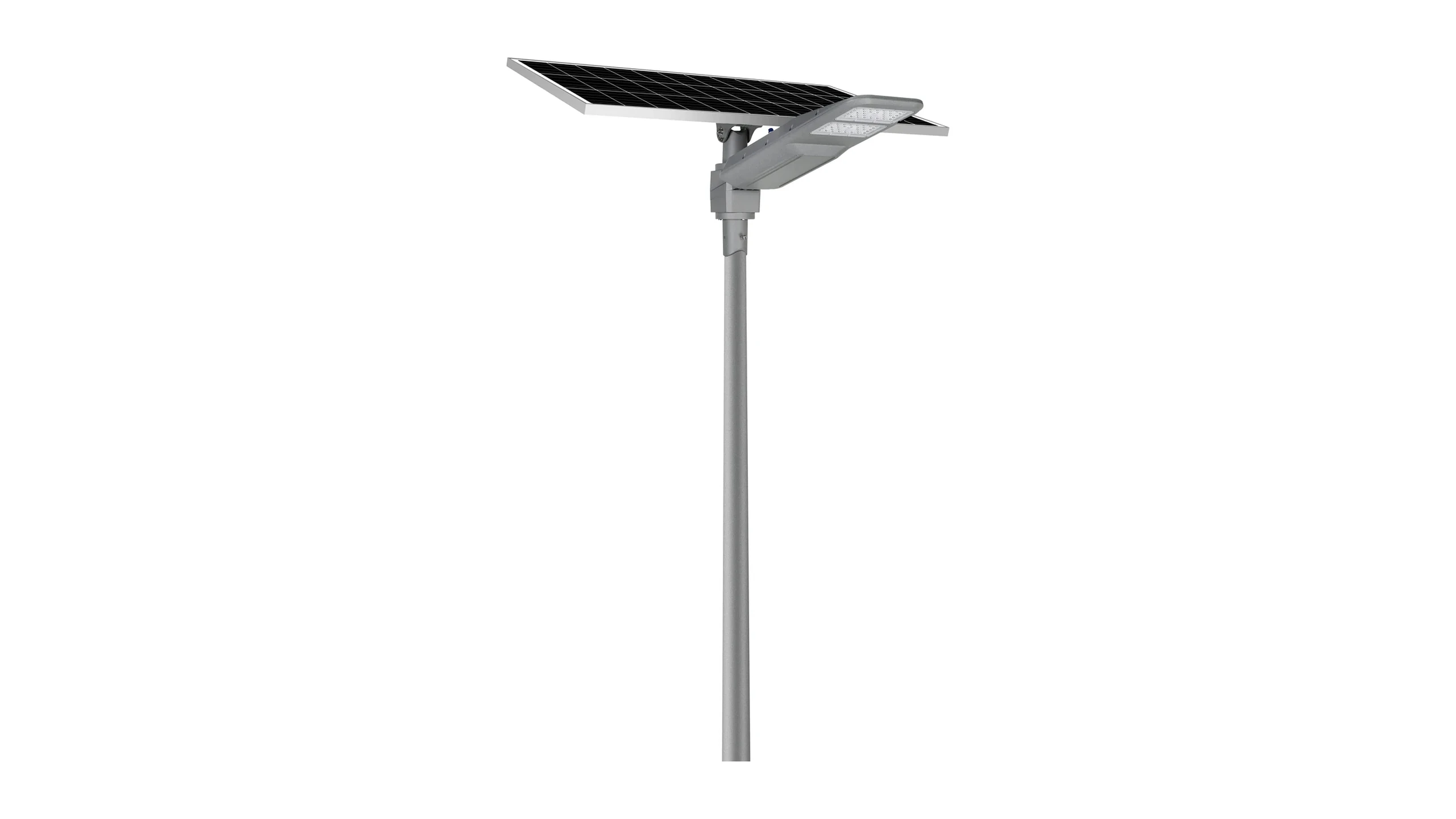

High-Efficiency Monocrystalline Silicon PV
Equipped with 18V high-conversion Grade-A monocrystalline silicon solar panels (90W to 150W) with module conversion efficiency exceeding 22%, ensuring rapid battery charging even in overcast and rainy conditions.
Deep-Cycle Automotive-Grade LiFePO4 Battery
Built-in high-capacity 12.8V lithium iron phosphate battery packs (384Wh to 960Wh) engineered for more than 2,000 charge-discharge cycles, featuring intelligent BMS overcharge and thermal runaway protection.

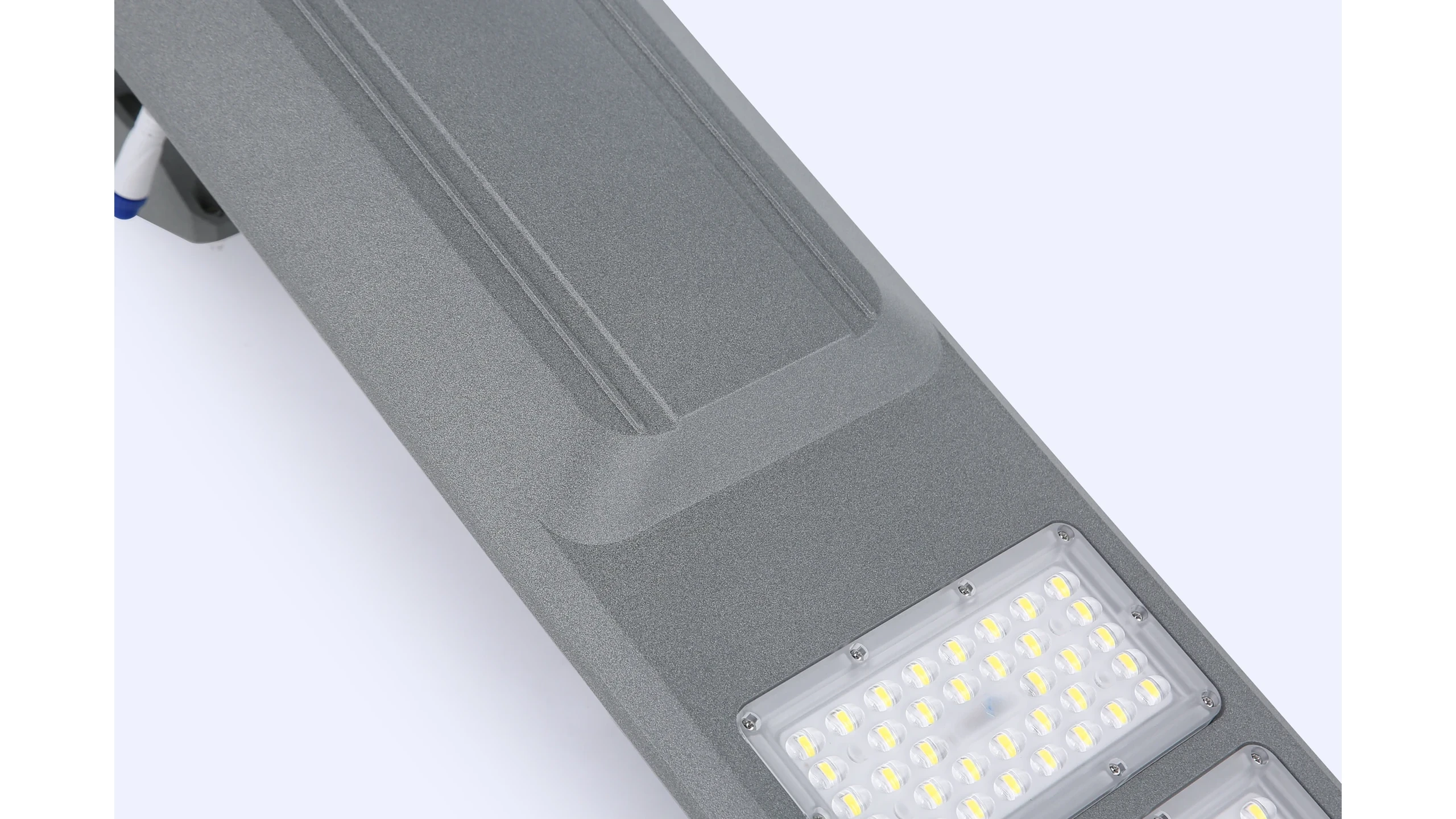

Dual-Module 5054 High-Lumen Optical Distribution
Dual high-power 5054 SMD LED clusters paired with specialized anti-UV PC optical lenses deliver 140°×70° batwing roadway illumination, delivering light transmittance up to 90% and rated lifespan over 80,000 hours.
Aerodynamic Heavy-Duty Die-Cast Aluminum Body
One-piece molded high-strength ADC12 die-cast aluminum housing finished with anodic oxidation and anti-corrosive electrostatic powder coating, providing IP65 ingress protection and rugged weather resistance.
Multi-Angle Adjustable PV Mounting Bracket
Features an adjustable knuckle hinge bracket allowing multi-gear solar panel tilt angle customization (15° to 45°), maximizing annual photovoltaic energy harvest across diverse project latitudes.

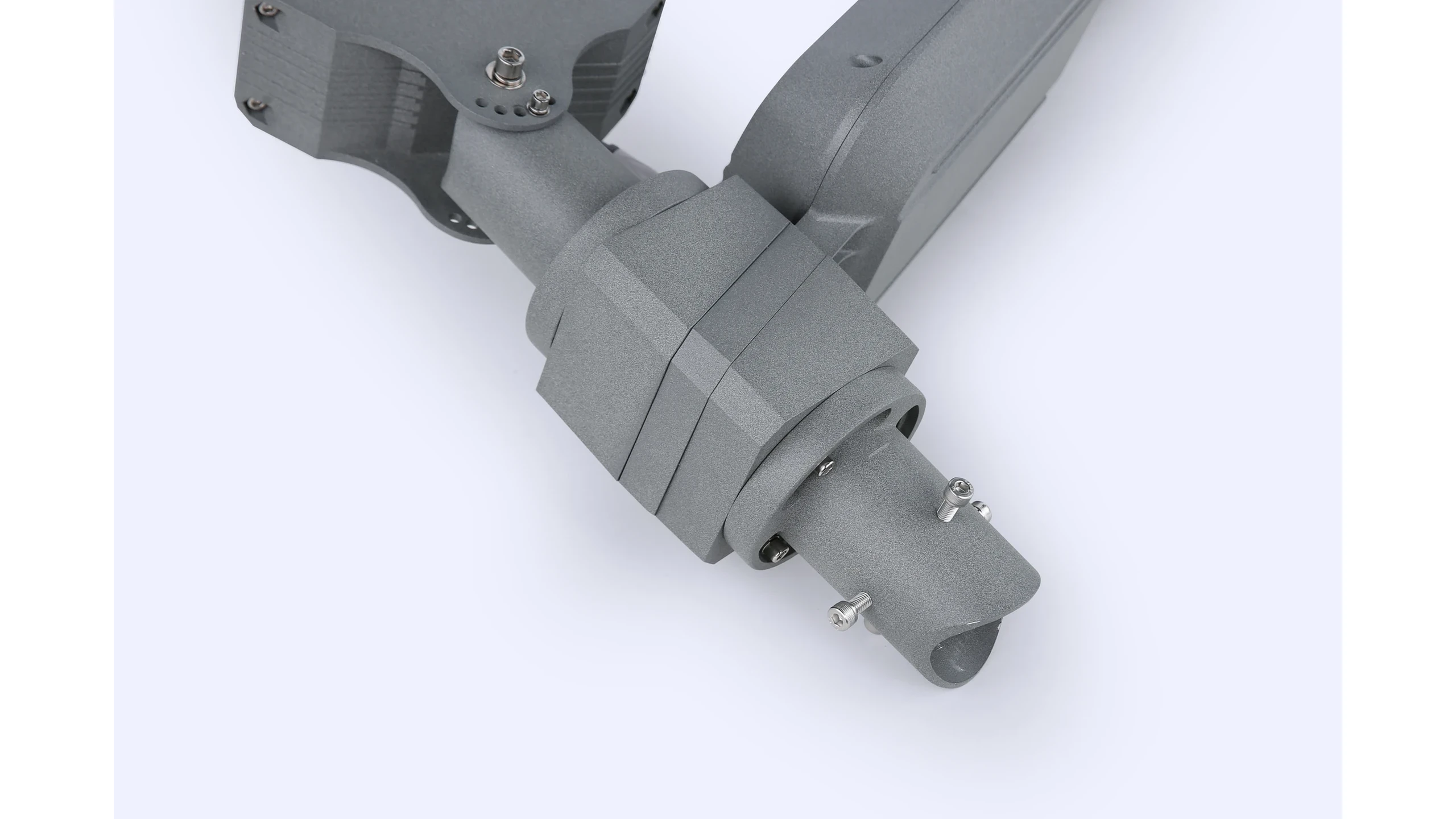

Standard Ø60mm Spigot Tenon Mount
Standardized Ø60mm inner diameter mounting sleeve secured with four high-tensile stainless steel locking screws enables direct slip-fit installation onto local roadway poles (pole excluded from supply scope).
Application Scenarios

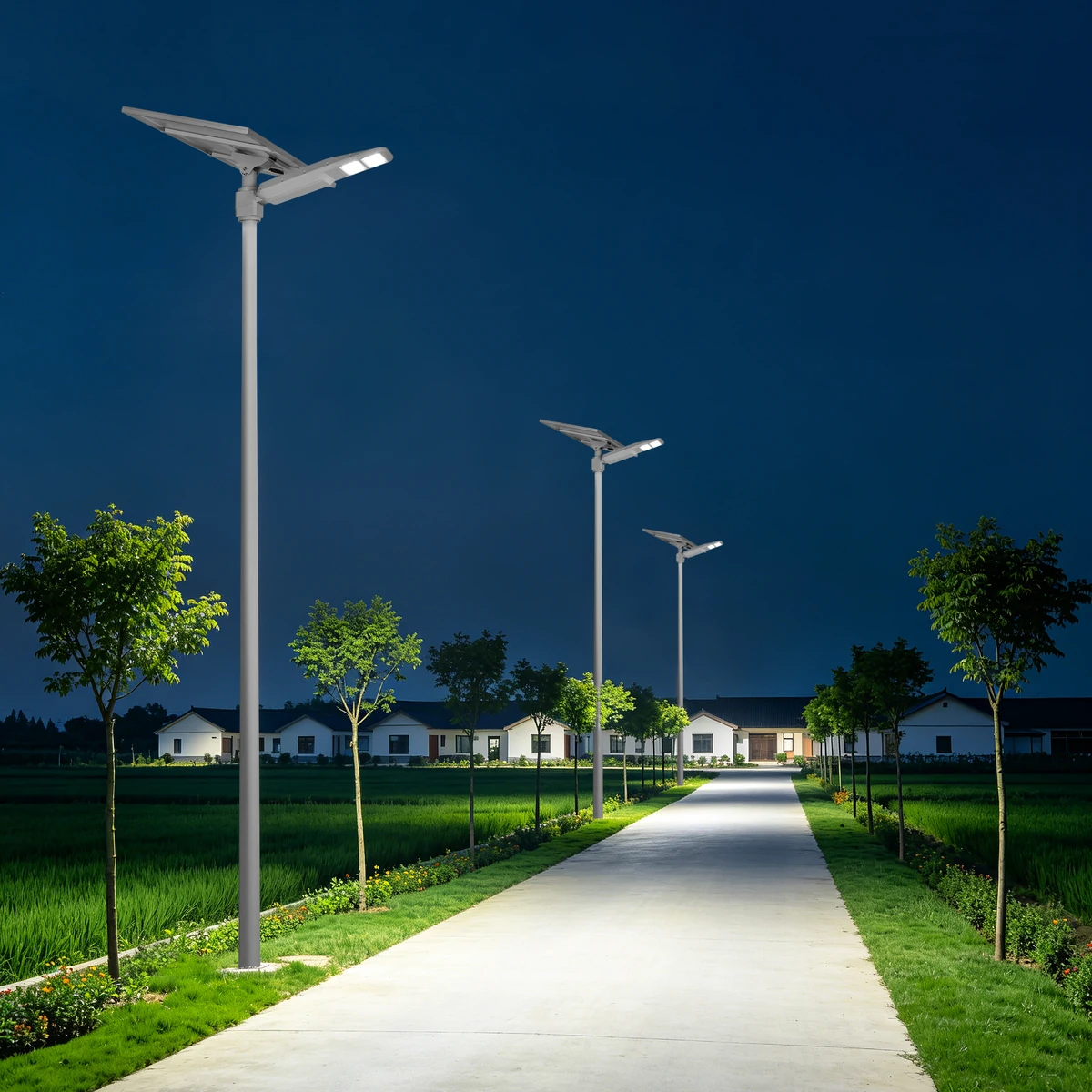

Municipal & Rural Roadways
Standard secondary highways, municipal thoroughfares, and rural roads requiring zero-grid trenching, low maintenance, and continuous nighttime safety visibility.
Industrial & Logistics Parks
Perimeter access roads, freight loading docks, distribution facilities, and factory campus avenues demanding durable high-lumen commercial illumination.
Commercial Plazas & Parking Lots
Shopping center perimeters, transit parking areas, and pedestrian promenades requiring wide uniform batwing light coverage and clean architectural aesthetics.

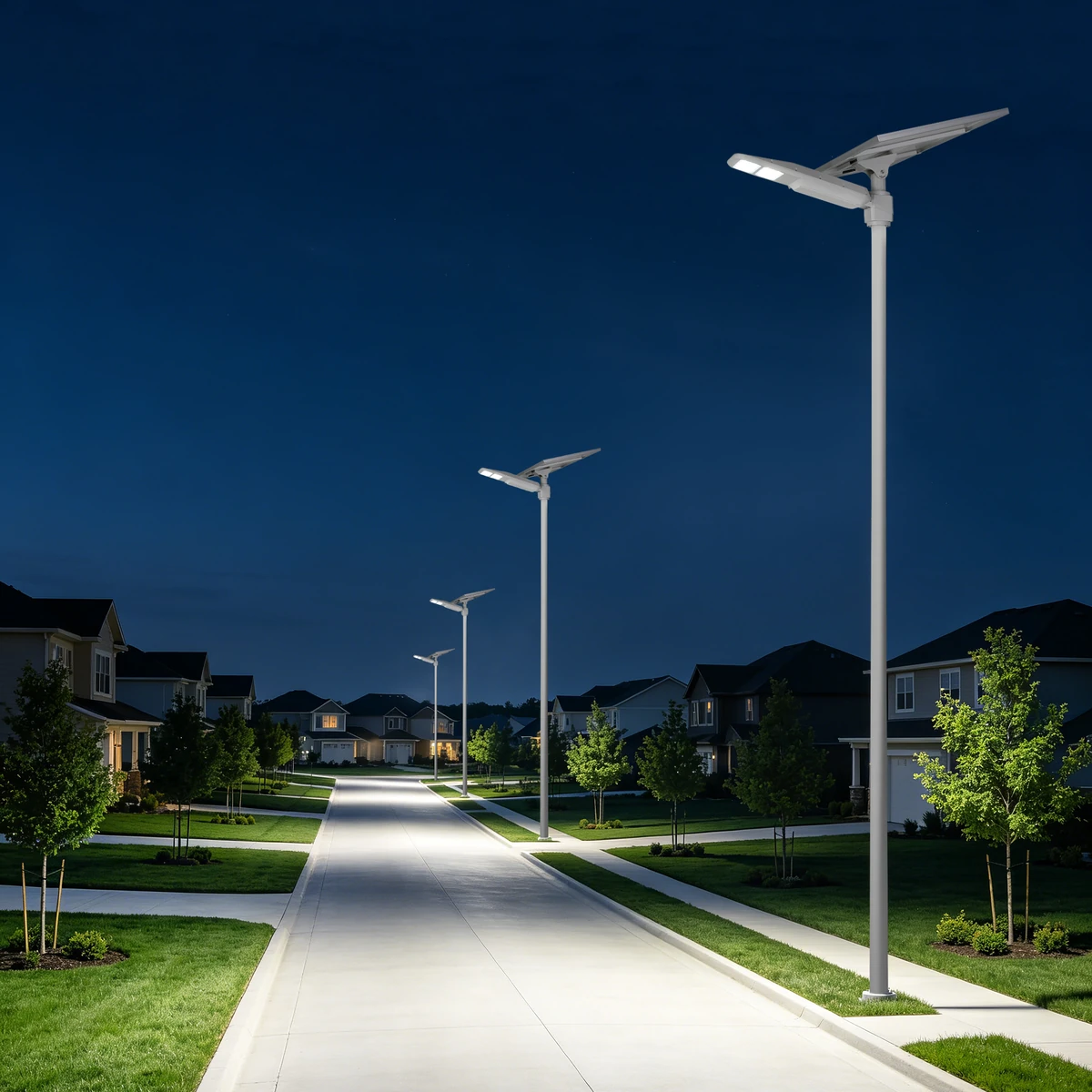

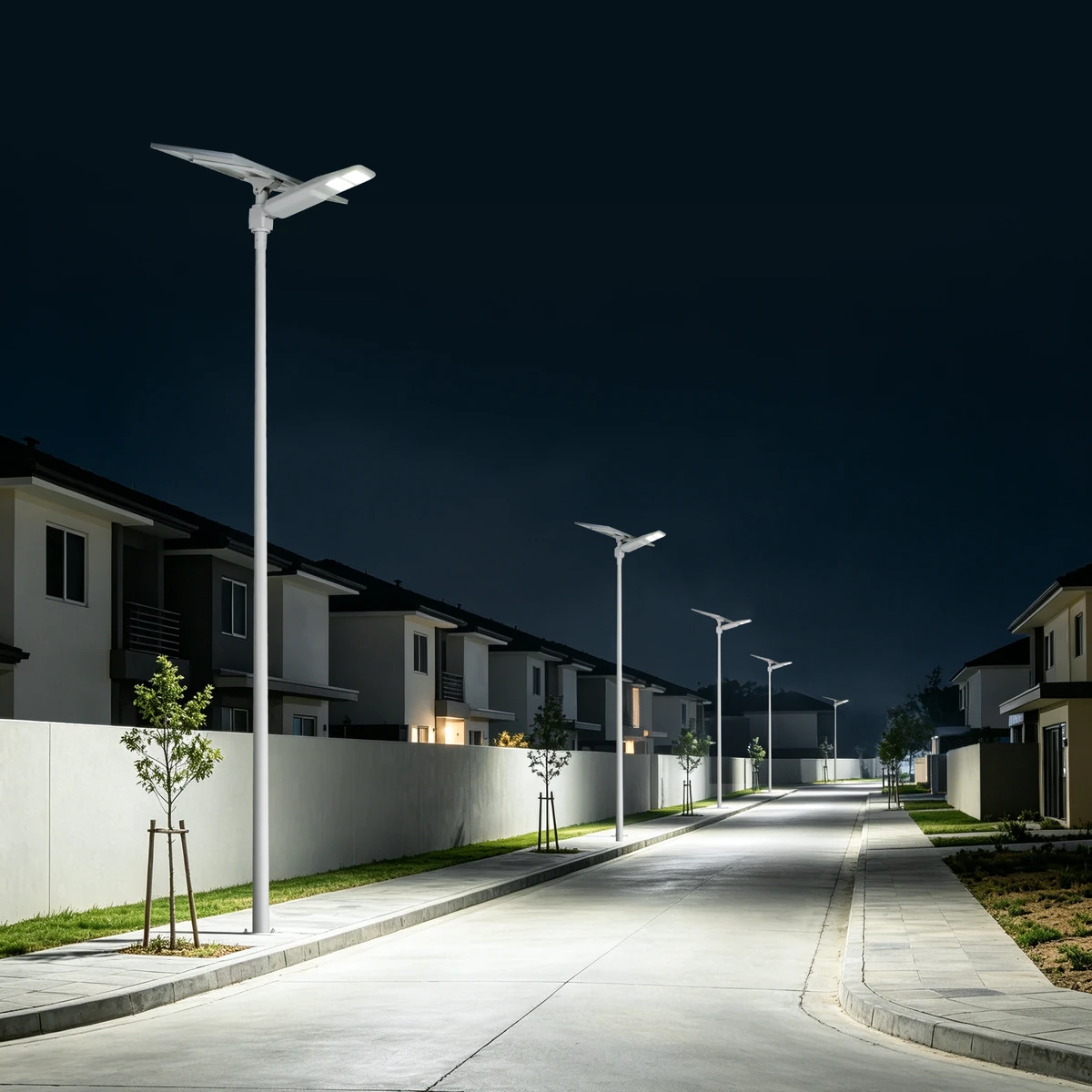

Urban Boulevards & Avenues
City boulevards, landscaped parkways, and civic thoroughfares benefiting from low glare optical distribution and integrated clean energy autonomy.

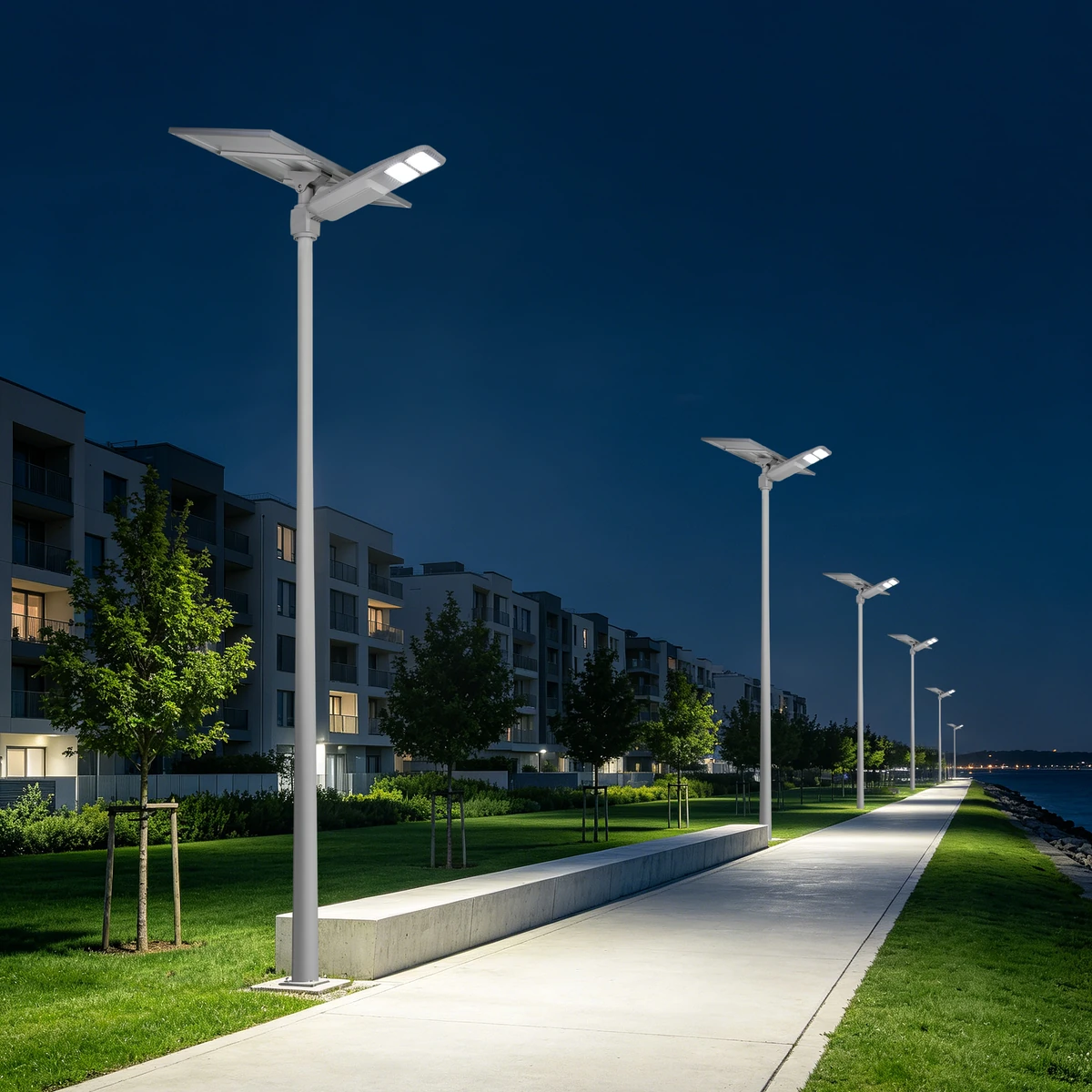

Parks & Waterfront Promenades
Municipal public parks, greenway trails, riverfront walkways, and recreation corridors providing eco-friendly solar illumination with zero ground cable excavation.

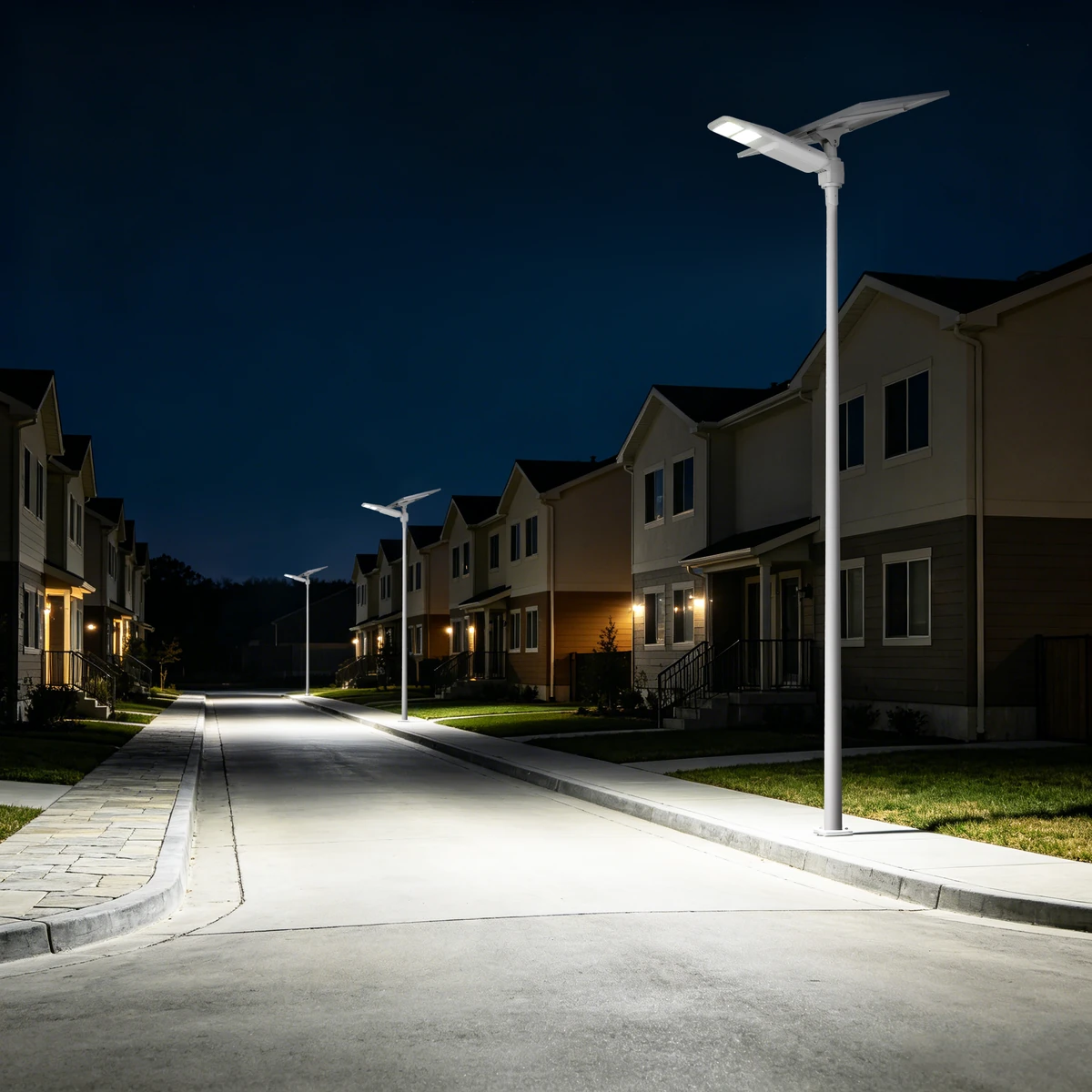

Residential Communities & Estates
Suburban neighborhoods, gated residential villa complexes, and resort developments seeking modern styling, whisper-quiet solar operation, and reliable security lighting.
