LPL-OP-D30

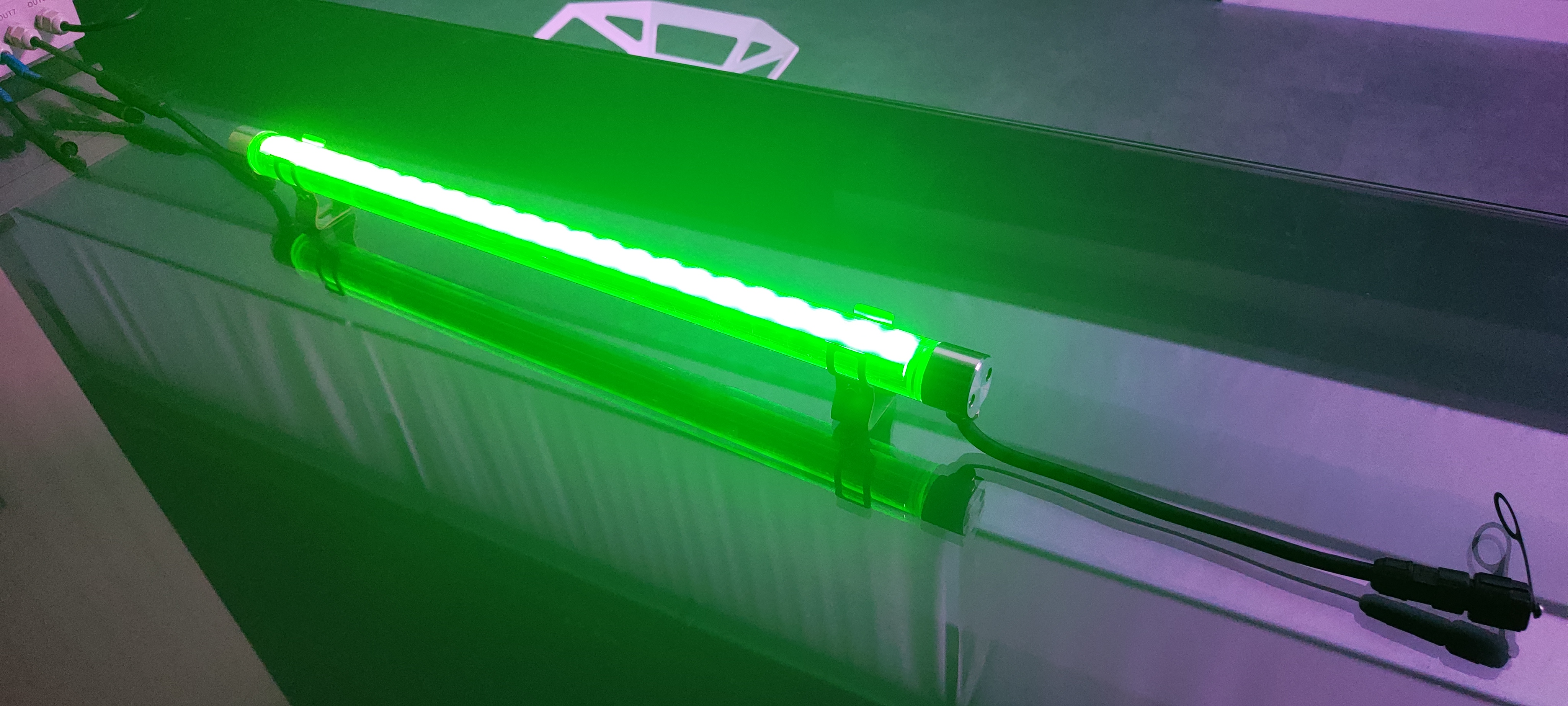

The LPL-OP-D30 is a specialized LED pool light designed for underwater architectural and landscape lighting. Constructed with a stainless steel cover, aluminum alloy 6063 housing, and a PC round tube, it offers robust IP68 waterproof and IK08 impact protection. Available in two lengths (560mm and 1060mm) with dual-white, RGB, and RGBW color options, it supports DMX control for dynamic gradient or on-off effects. Operating on a safe 24V DC low-voltage system, it is ideal for swimming pools and underwater installations requiring continuous immersion and reliable illumination.
Color & Optic
Beam Options
Product Specifications
Model Configuration
| Model | Dimension | Power (Max) | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|
| LPL-OP-D30-L5 | Φ30xL560mm | 11W | 2700K3000K4000K5700K RGBRGBW | 630-770lm 190lm 220lm | Weight: 0.40±5%KgQty/Ctn: 20Units/CtnCarton: 61x28x23cm |
| LPL-OP-D30-L10 | Φ30xL1060mm | 21W | 2700K3000K4000K5700K RGBRGBW | 1260-1470lm 380lm 440lm | Weight: 0.75±5%KgQty/Ctn: 12Units/CtnCarton: 111x28x18cm |
Configuration summary: 24V DC baseline, IP68 rated for permanent underwater use. 15°/30°/45°/60°/20×40°/30×40° beam angles apply across the series. Photometric lumen output varies based on exact power and optic selections.
Advantages
IP68 Ingress Protection
Complete dust tightness and permanent water immersion resistance, engineered specifically to withstand harsh underwater and wet environments like swimming pools.
Safe Low-Voltage Operation
Operating on a 24V DC power supply requires a safety isolation transformer, ensuring absolute safety for users in underwater pool environments without the risk of high-voltage shock.
Sturdy Construction
The lamp body is constructed from a stainless steel cover, 6063 aluminum alloy, and a PC round tube with an anti-oxidation surface treatment, featuring high heat dissipation and anti-corrosion performance.
Flexible Control Options

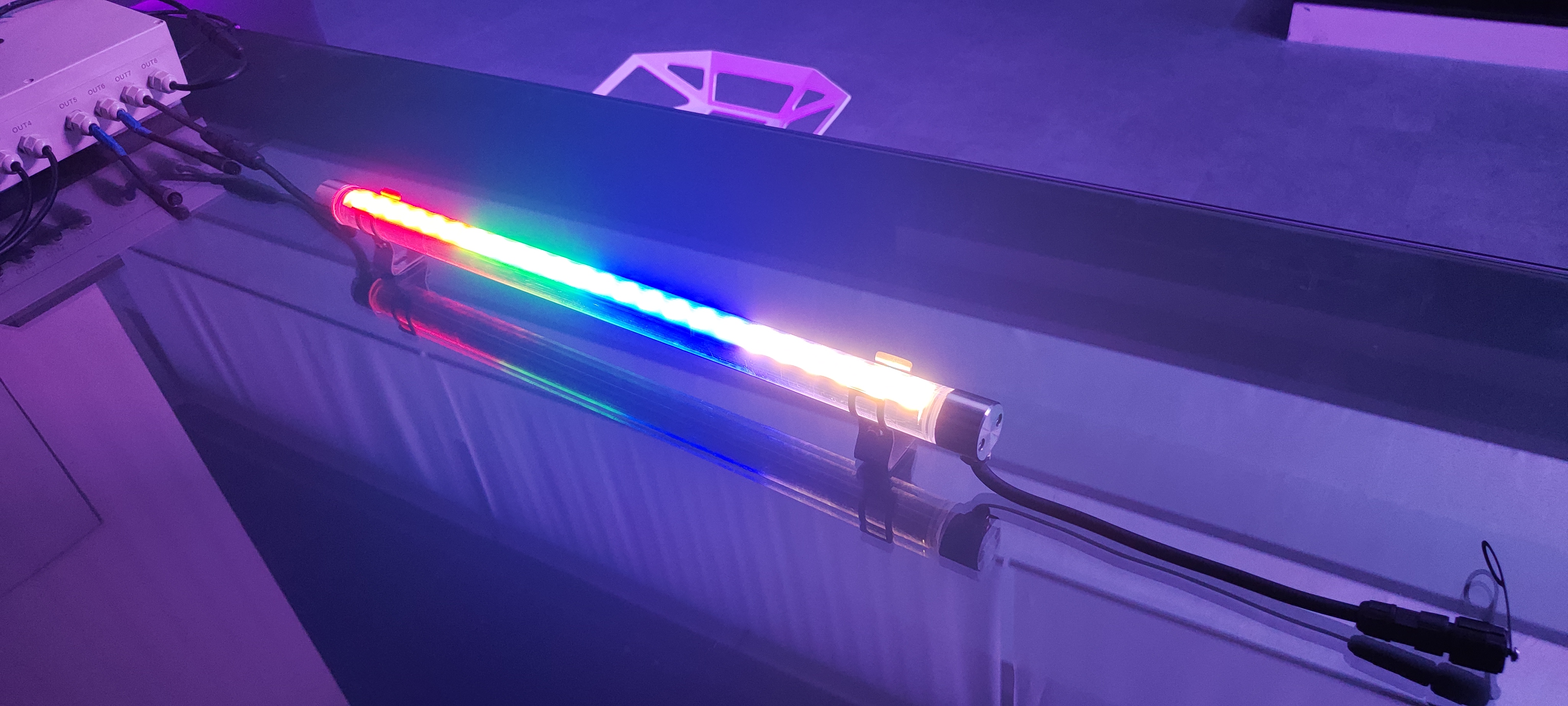

Supports both steady color mode and DMX512 control systems, providing seamless integration for dynamic RGB and RGBW color mixing, gradient changes, and customized underwater lighting effects.
IK08 Impact Resistance
Superior impact protection performance, resistant to high-intensity external collisions, ensuring structural integrity in public and rugged application scenarios.
Comprehensive Optics
Six beam angle options — ranging from a narrow 15° beam to a 30×40° asymmetric distribution — provide precise underwater light control tailored to different pool designs and depths.
Impressions
