LLS-OP-W20A/B
The LLS-OP-W20 series is an ultra-compact outdoor LED linear light designed for precise architectural outlining, grazing, and media facade integration. Available in two profile variants (W20A and W20B) and multiple lengths, it provides seamless end-to-end connections, uniform light distribution, and reliable IP65 weather resistance for permanent outdoor applications.
Color & Optic
Beam Options
Product Specifications

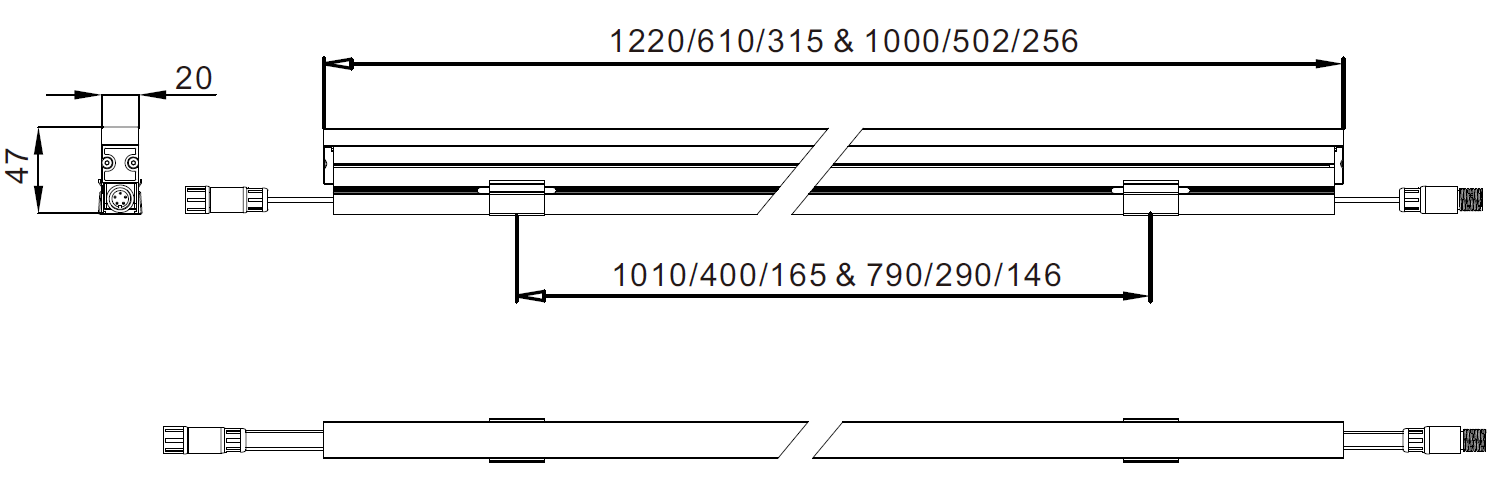

Model Configuration
| Model | Length | Power (Max) | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|
| LLS-OP-W20A-L6 | L500mm | 7W | 2700K3000K4000K5700K RGBW |
350lm 250lm |
Weight: 0.58±5%KgQty/Ctn: 40Units/CtnCarton: 125.5x32x23cm |
| LLS-OP-W20A-L12 | L1000mm | 15W | 2700K3000K4000K5700K RGBW |
750lm 500lm |
Weight: 1.16±5%KgQty/Ctn: 20Units/CtnCarton: 125.5x32x23cm |
| LLS-OP-W20B-L6 | L610mm | 8W | 2700K3000K4000K5700K RGBW |
488lm 160lm |
Weight: 0.63±5%KgQty/Ctn: 40Units/CtnCarton: 125.5x32x23cm |
| LLS-OP-W20B-L12 | L1220mm | 16W | 2700K3000K4000K5700K RGBW |
976lm 320lm |
Weight: 1.05±5%KgQty/Ctn: 20Units/CtnCarton: 125.5x32x23cm |
Configuration summary: W20A (PC Cover) and W20B (Glass Cover) variations operating on 24V DC input. Both profiles are IP66 / IK10 certified for demanding outdoor architectural integration.
Advantages
IP66 / IK10 Full Protection
Advanced structural waterproofing ensures IP66 outdoor reliability, while the robust IK10 impact resistance provides superior protection against heavy external collisions.
Seamless Connection Design
Engineered with a seamless end-to-end connector system, enabling uniform light emission with no dark shadows for continuous architectural contour lighting.

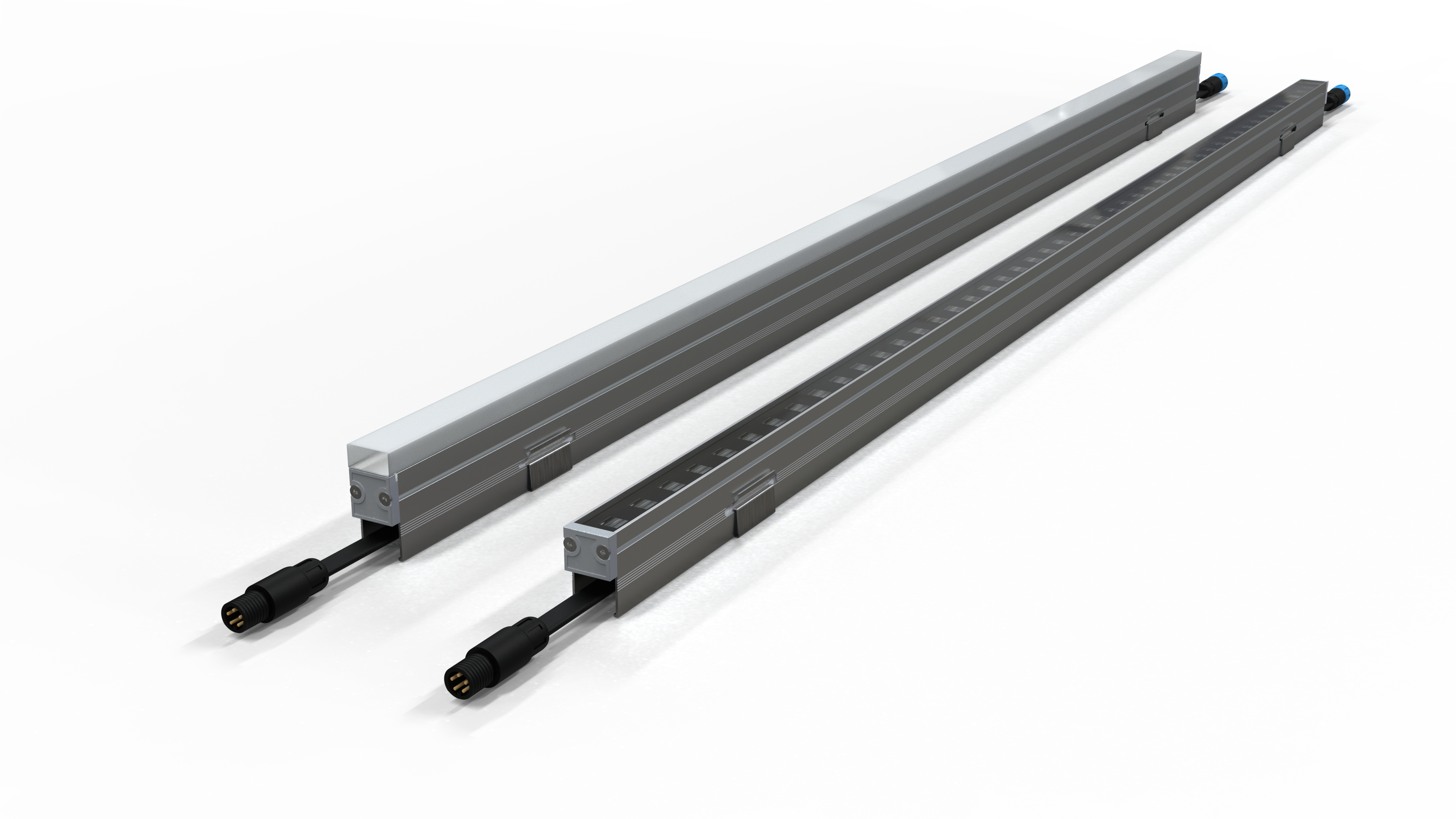

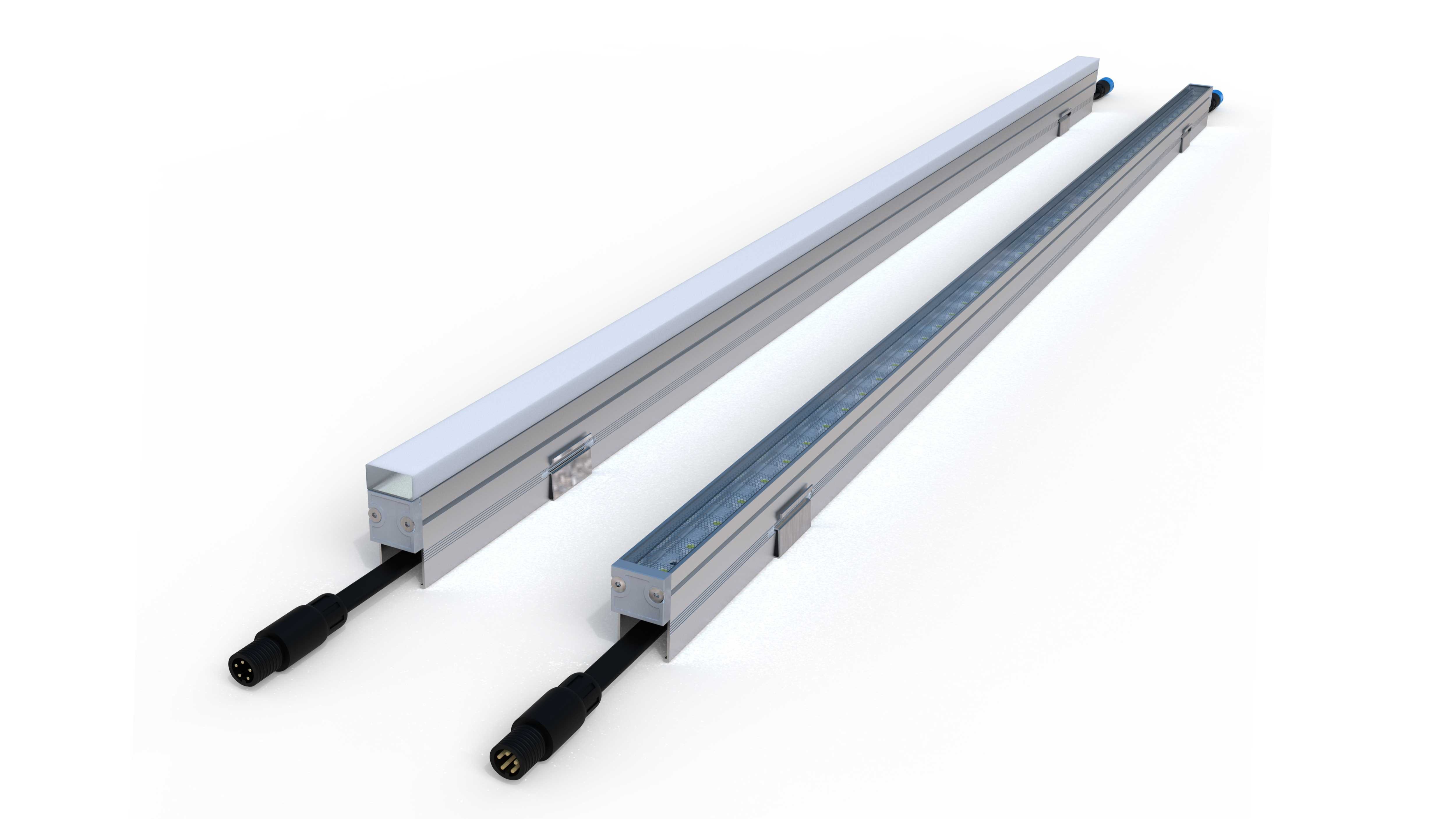

Dual Optic System (W20A vs W20B)
Choose W20A with a UV-resistant PC diffusive cover for a wide 150° soft glow, or W20B with tempered glass and lenses for precise 30°/60°/90° beam control.
6063 Aluminum Housing
Constructed from high-grade aluminum alloy 6063 with a silver anti-oxidation finish, maximizing heat dissipation and ensuring long-term anti-corrosion performance.
Flexible Control Integration
Fully compatible with DMX512 systems for dynamic RGBW color programming, 0-10V dimming for adjustable output, or simple steady color mode for static illumination.
Compact 20mm Profile
The ultra-slim 20mm width combined with flexible length variants allows for discreet snap-in installation in narrow architectural slots, coves, and tight spaces.
Application Scenarios

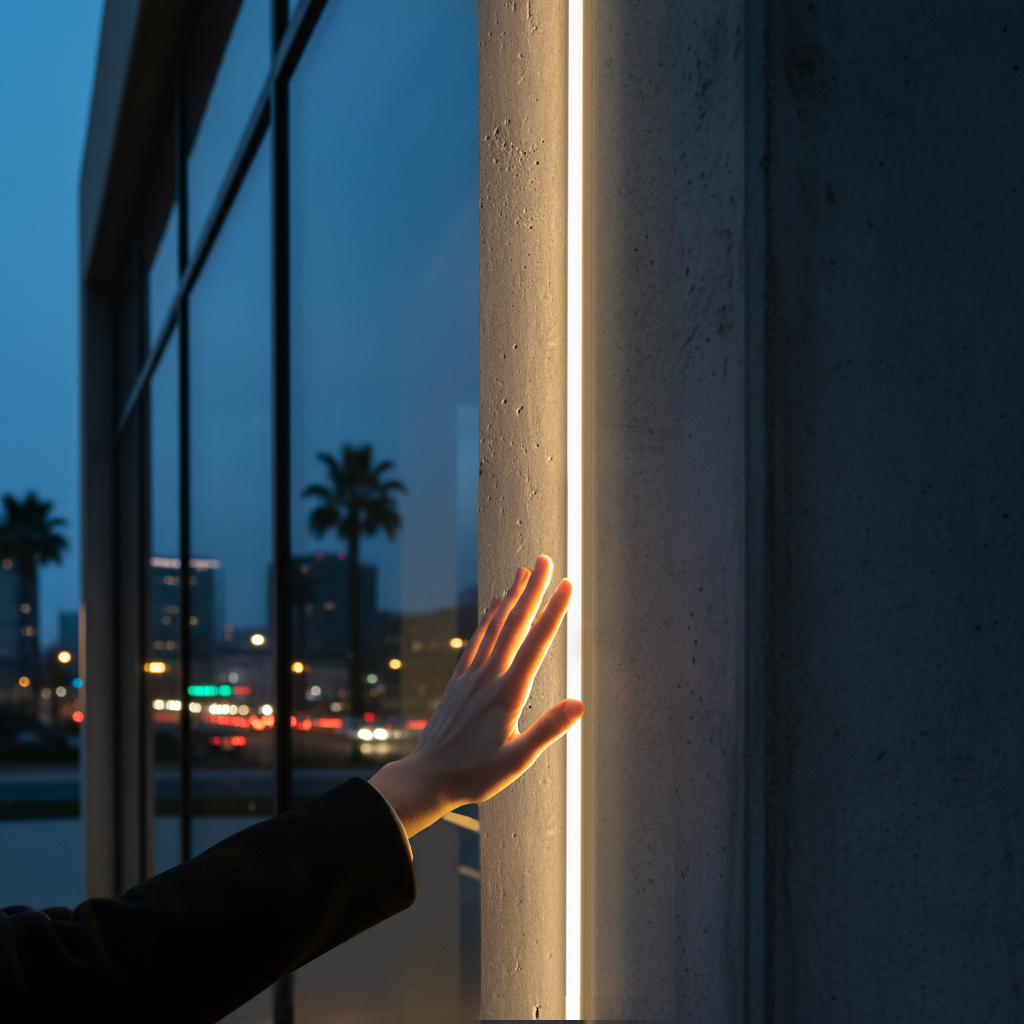

Building Facade Outlining
Ideal for tracing architectural contours, rooflines, and curtain walls with precise, continuous, and dynamic linear light.
Bridge and Structural Lighting
Perfect for mounting along bridge railings, cables, and structural edges where a slim form factor and high durability are required.
Landscape and Step Lighting
Suitable for integrating into landscape steps, pathways, and retaining walls to provide safe and decorative ambient illumination.

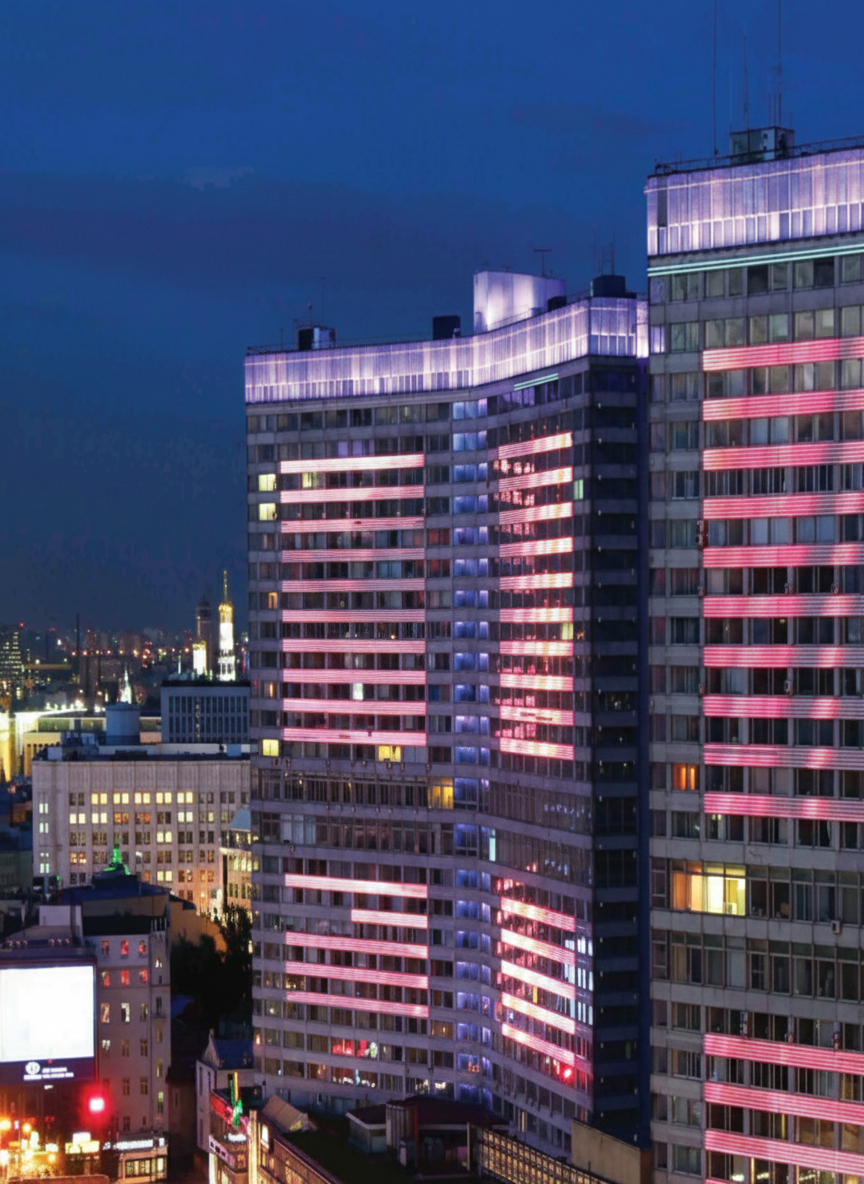

Commercial Media Facades
Deployable in large arrays to form low-resolution media screens for hotels, shopping malls, and entertainment venues.
The LLS-OP-W20 series is engineered for versatile outdoor architectural lighting projects where slim aesthetics, seamless connectivity, and dynamic color programming are essential.
