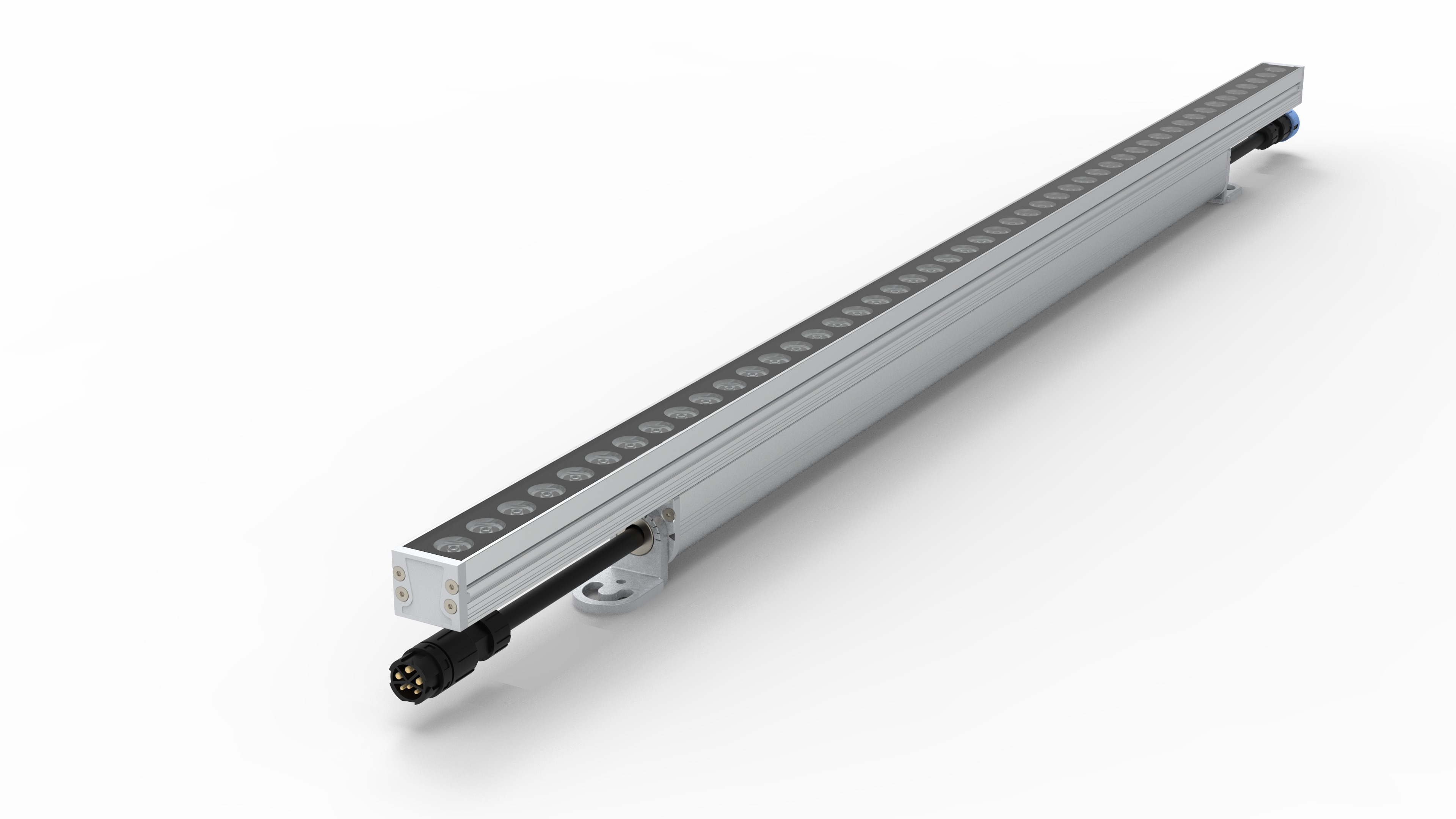

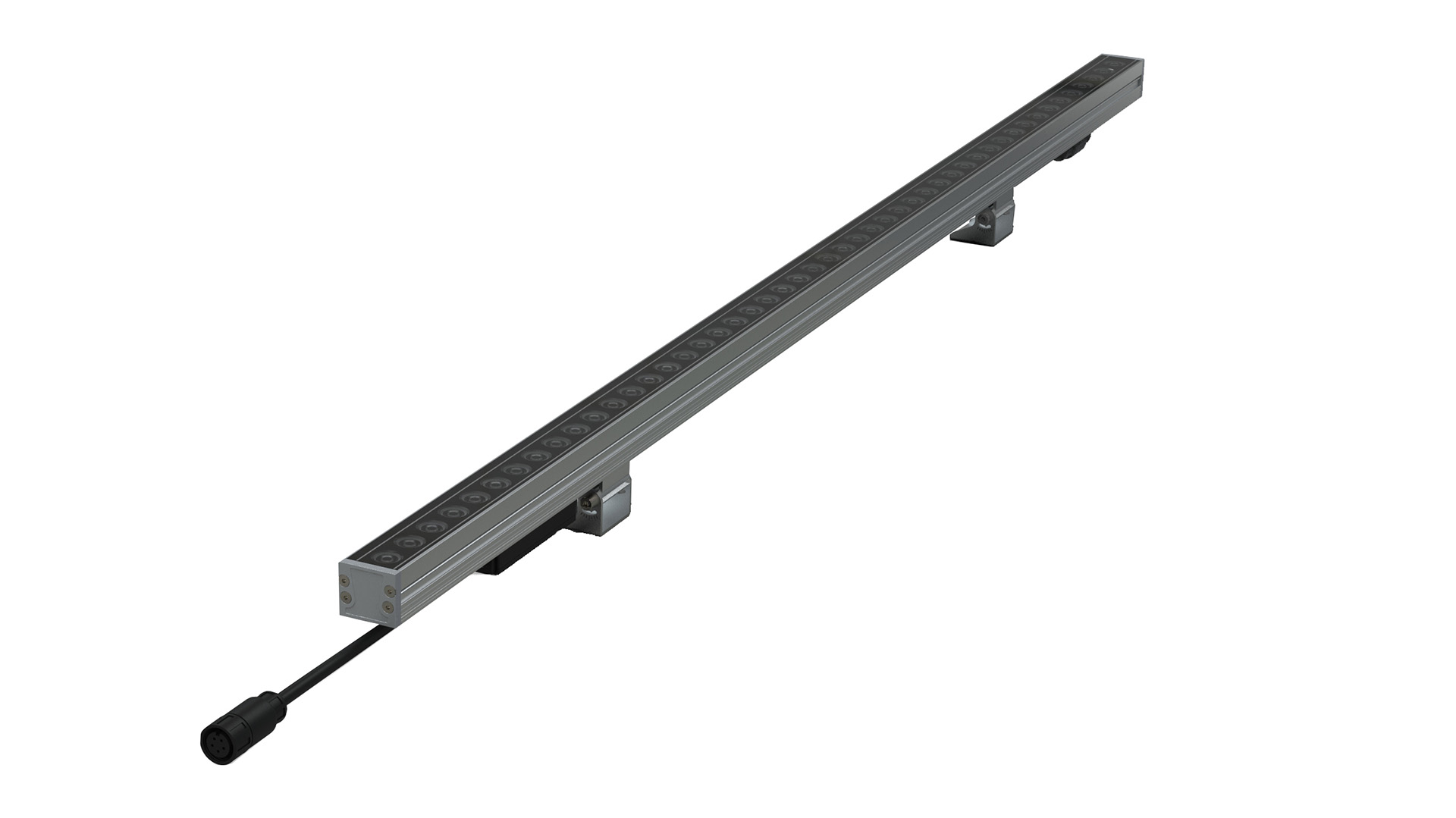

LLS-OP-W30B

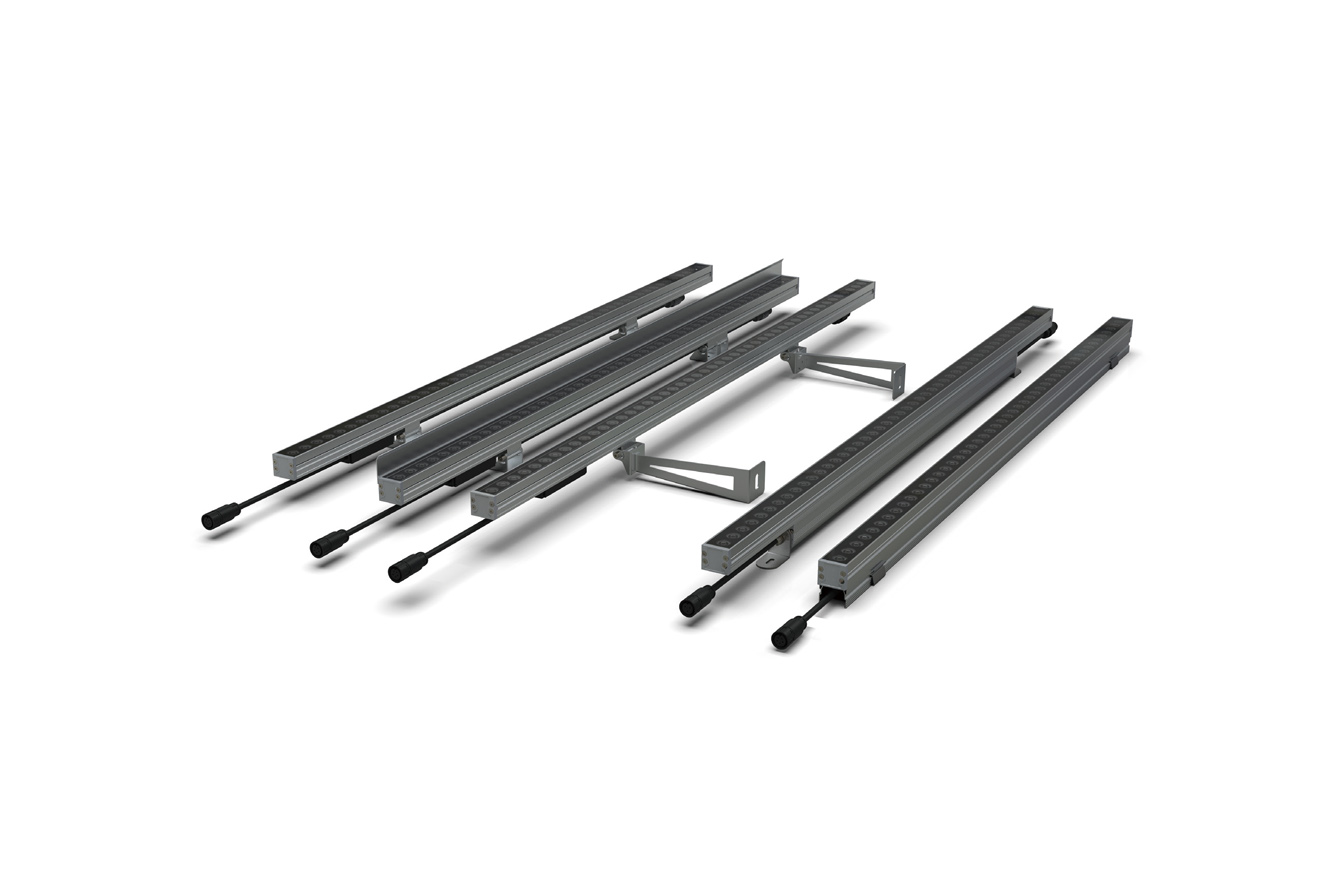

The LLS-OP-W30B is a 6–21W IP66 outdoor LED linear strip featuring high-transparency tempered glass and precision beam optics for architectural facade, outline, and wash lighting. ETL listed for North America and CE certified for Europe. Six beam angle options — 15°, 30°, 45°, 60°, 20×40°, and 30×40° — cover narrow-throw facade grazing through broad linear wash. Available in static white (2700K/3000K) and RGBW. Supports DMX512/RDM and 0–10V control. Three length options: 313mm, 615mm, and 1220mm.
Color & Optic
Beam Angle Options
Product Specifications

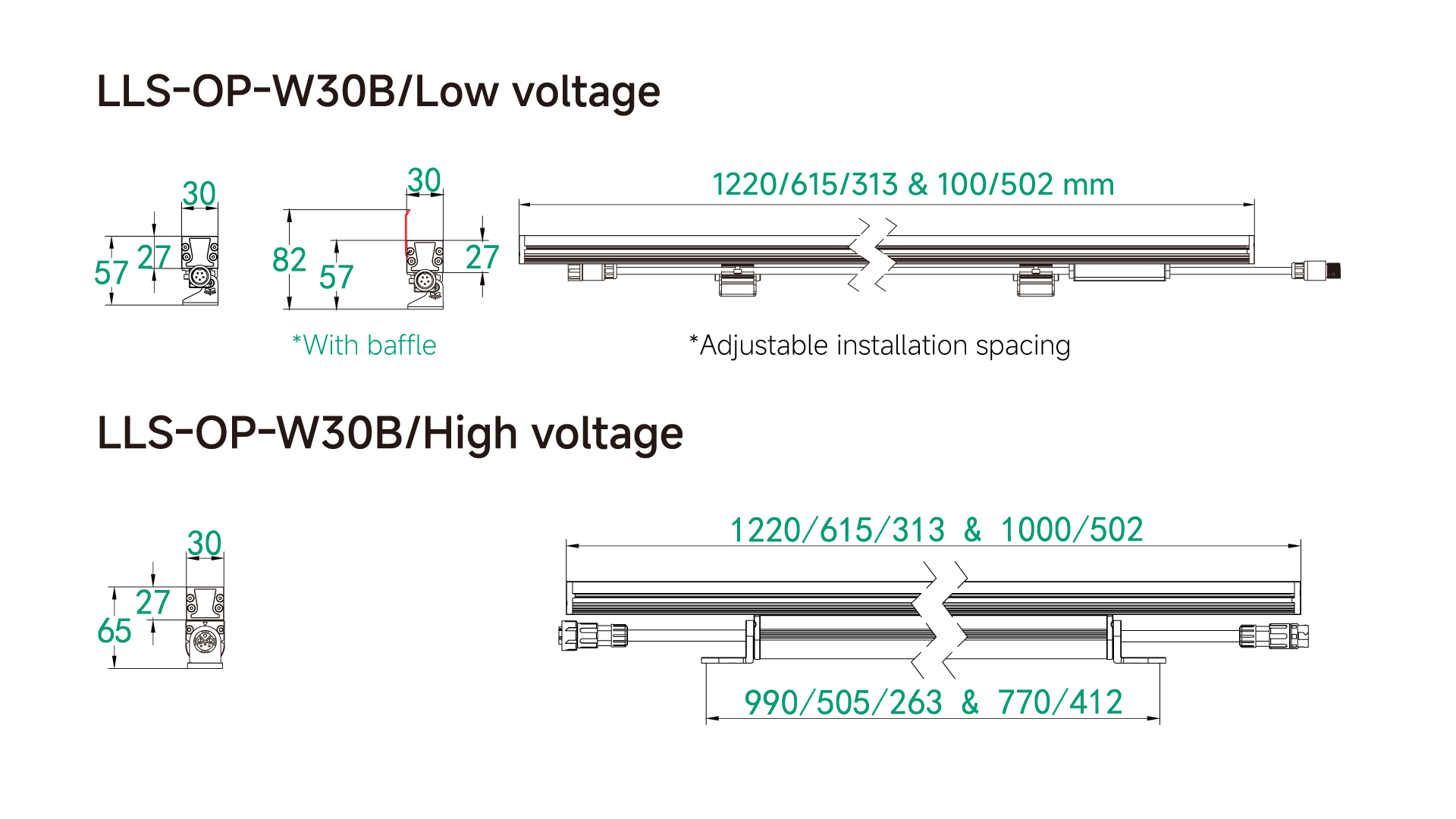

Model Configuration
| Model | Length | Power (Max) | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|
| LLS-OP-W30B-L3 | L313mm | 6W | 2700K3000K RGBW | 240lm 150lm | Weight: 0.32/0.54kg ±5%Qty/Ctn: 32 Units/CtnCarton: 66 × 32 × 22.5 cm |
| LLS-OP-W30B-L6 | L615mm | 11W | 2700K3000K RGBW | 440lm 275lm | Weight: 0.63/0.71kg ±5%Qty/Ctn: 16 Units/CtnCarton: 66 × 32 × 22.5 cm |
| LLS-OP-W30B-L12 | L1220mm | 21W | 2700K3000K RGBW | 840lm 520lm | Weight: 1.26/1.42kg ±5%Qty/Ctn: 16 Units/CtnCarton: 125.5 × 32 × 23 cm |
Lumen configurations based on standard models. All variants: IP66, IK06, ETL listed, CE certified, 3-year warranty.
Advantages

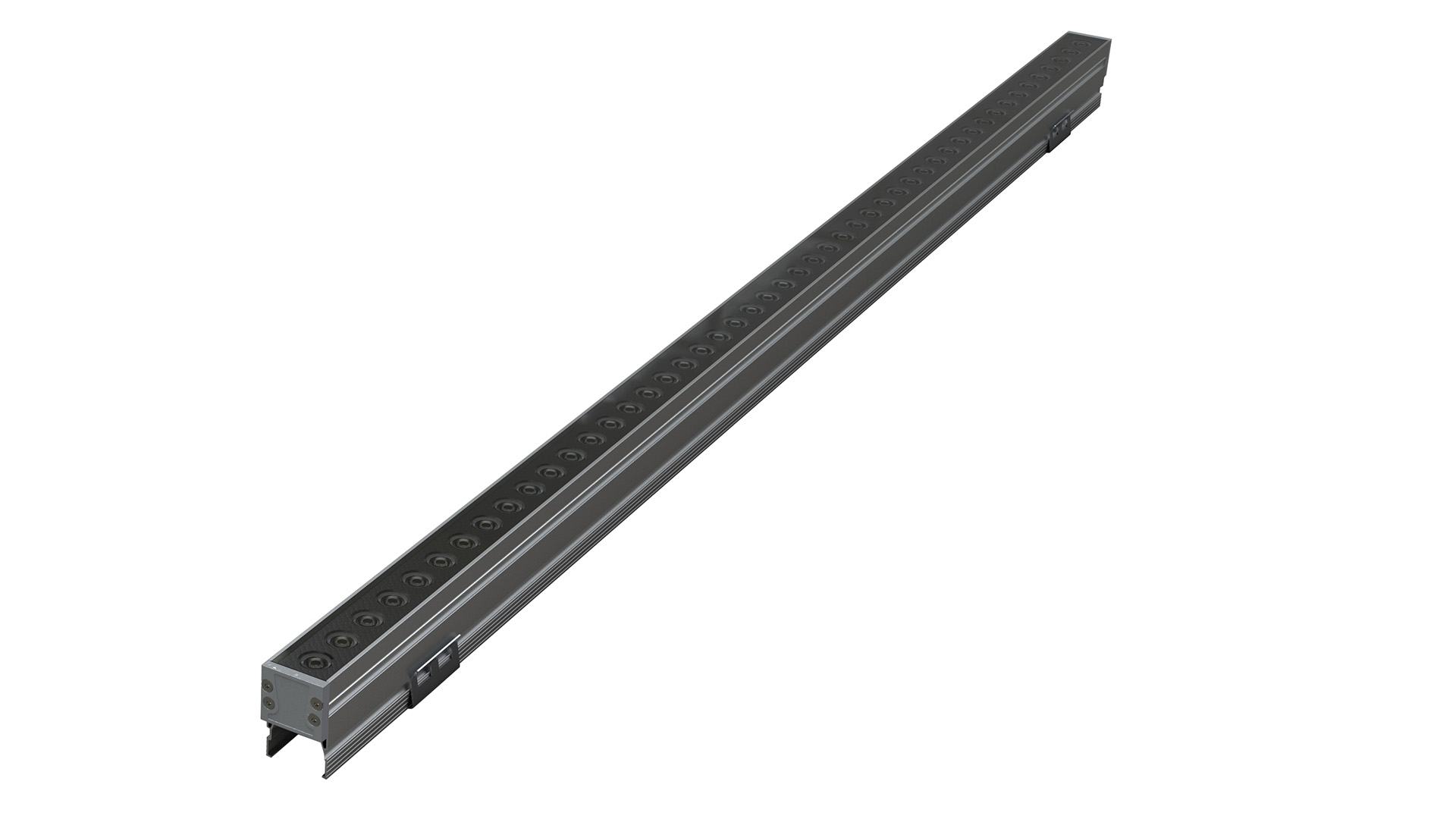

Tempered Glass Panel
High-transparency tempered glass delivers excellent impact resistance alongside the IP66 structural waterproofing, keeping the optical path clear and protected in exposed architectural positions.
Six Precision Beam Angles
15°, 30°, 45°, 60°, 20×40°, and 30×40° cover narrow facade grazing through broad linear wash. Engineered to control lateral spill without compromising output.
Static White and RGBW
2700K/3000K static white for hospitality and commercial facades; RGBW for full dynamic color programming via DMX512/RDM integration.
Full-Structure Waterproofing
IP66-rated structural waterproofing protects from end to end. Suitable for permanent outdoor installation on building facades, bridge structures, and landscaped environments. Rated to +45°C operating temperature.
6063 Aluminum with Anti-Oxidation Finish
The entire fixture body is extruded 6063 aluminum with anti-oxidation surface treatment, combining high thermal conductivity with corrosion resistance for long-term outdoor service.
50,000-Hour Rated Lifetime
50,000-hour lifetime rating with a 3-year full-assembly warranty. Three lengths from 313mm to 1220mm. Ideal for concealed or surface-mounted installation.

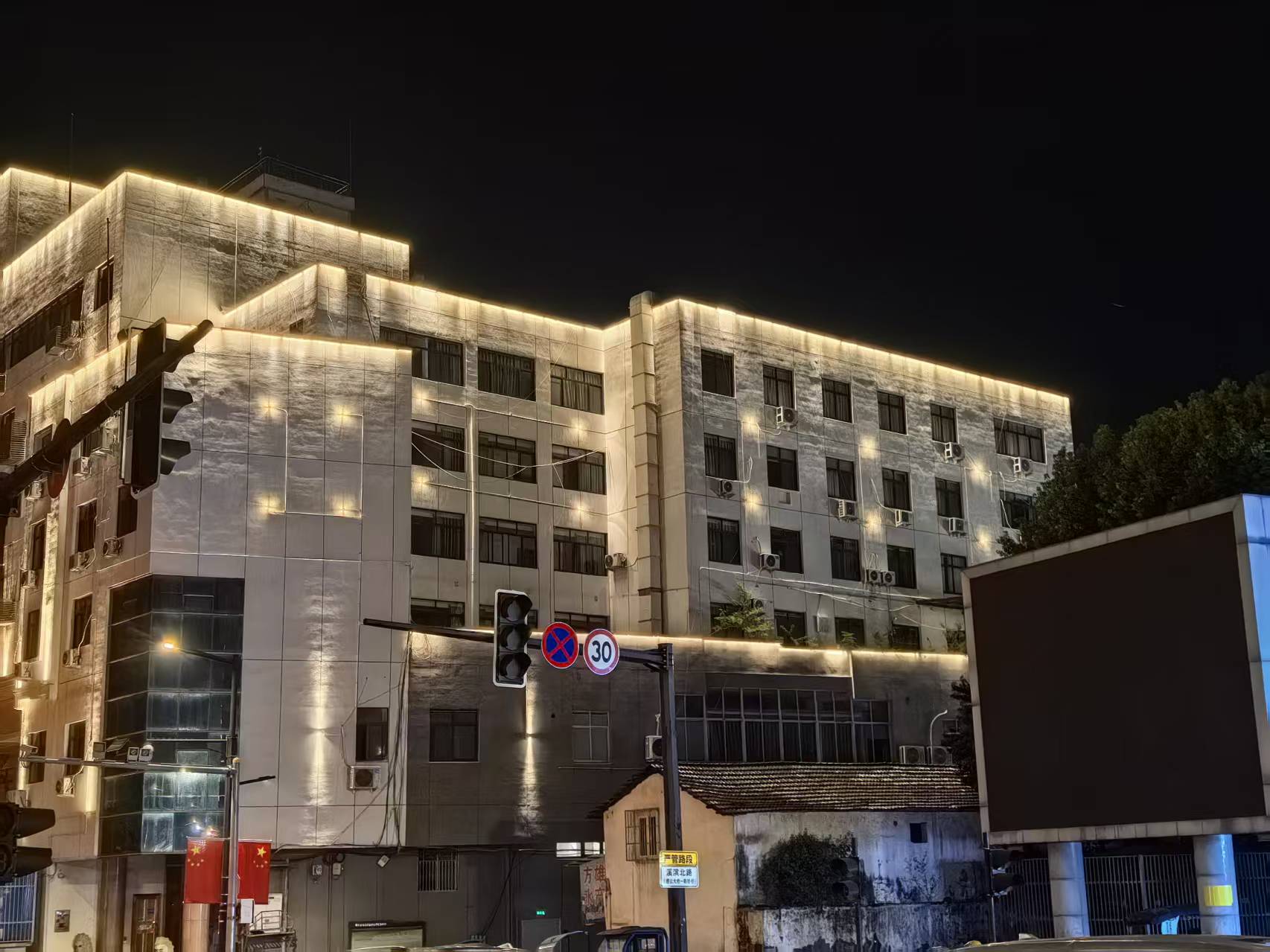

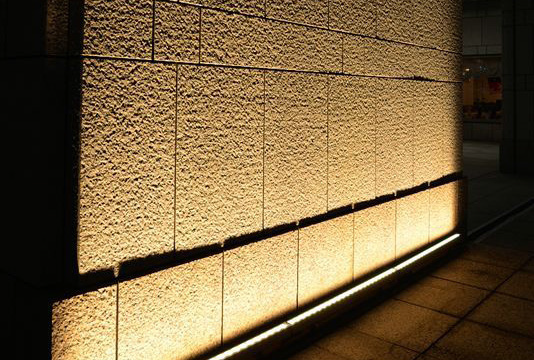

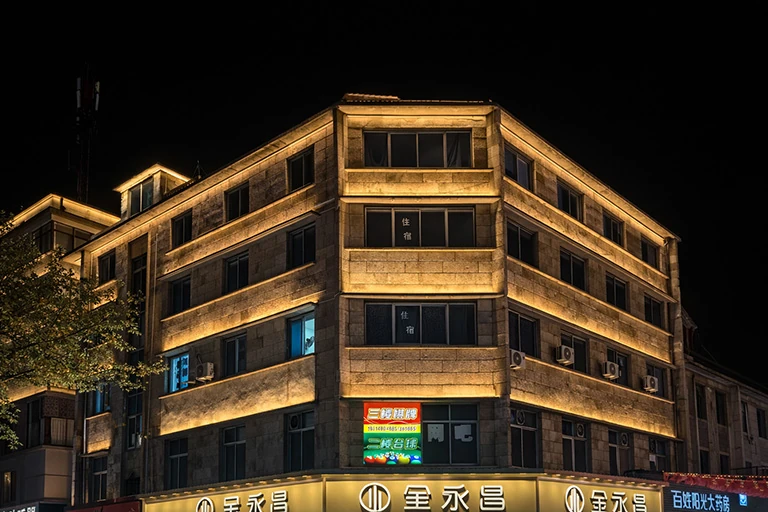

Impressions
