LLS-OP-D50IP66 Direct-ViewLED Linear Light
Looking for an alternative to Philips UniBar BCS342? See our selection guide →
LLS-OP-D50
The LLS-OP-D50 is a 7–28W outdoor LED linear strip developed for building outlines, garden accents, and architectural highlighting. ETL listed for North America and CE certified for Europe. It features a double-layer curved PC cover — an inner diffuser panel that makes the light transition softer and more even, and an anti-UV outer layer that withstands outdoor exposure for 3 years without aging — with a glass inner layer inside the cover providing an additional waterproofing barrier. Available in static white (3000K–6500K), RGB, and RGBW with a wide 150° beam. High-voltage (100–277V AC) and low-voltage (24V DC) versions share the same housing design, so one product platform covers either project power infrastructure. Five length options from 315mm to 1222mm ensure flexible and seamless architectural integration.
Color & Optic
Beam Angle
Product Specifications
Model Configuration
| Model | Length | Power (Max) | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|
| LLS-OP-D50-L3 | L315mm | 7W | 3000K4000K6000K6500K RGBRGBW | 350lm 280lm | Weight: 0.6kg ±5%Qty/Ctn: 24 Units/CtnCarton: 66 × 32 × 33 cm |
| LLS-OP-D50-L5 | L504mm | 11W | 3000K4000K6000K6500K RGBRGBW | 550lm 455lm | Weight: 0.8kg ±5%Qty/Ctn: 24 Units/CtnCarton: 53.5 × 32 × 33 cm |
| LLS-OP-D50-L6 | L617mm | 14W | 3000K4000K6000K6500K RGBRGBW | 700lm 560lm | Weight: 0.8kg ±5%Qty/Ctn: 24 Units/CtnCarton: 66 × 32 × 33 cm |
| LLS-OP-D50-L10 | L1002mm | 22W | 3000K4000K6000K6500K RGBRGBW | 1100lm 910lm | Weight: 1.6kg ±5%Qty/Ctn: 12 Units/CtnCarton: 103.5 × 32 × 33 cm |
| LLS-OP-D50-L12 | L1222mm | 28W | 3000K4000K6000K6500K RGBRGBW | 1400lm 1120lm | Weight: 1.9kg ±5%Qty/Ctn: 12 Units/CtnCarton: 125.5 × 32 × 33 cm |
Lumen configurations based on standard models. Higher lumens correspond to static white versions; lower lumens correspond to RGB/RGBW mixing. All variants: IP66, IK08, ETL listed, CE certified.
Advantages
Double IP66 Sealing — Cover and Glass Each Seal Independently
Two separate waterproof barriers. The PC cover is ultrasonically welded, which is a fused joint with no sealant to age, and is IP66 on its own. The glass inner layer is a bonded glass structure with structural adhesive sealing, and the 6063 aluminum body and die-cast aluminum end caps complete the enclosure. Water has to defeat both barriers to reach the LEDs. Installed-configuration burn-in testing has run continuously for over 1 year.
Double-Layer Curved PC Cover — Soft Light, 3-Year UV Resistance

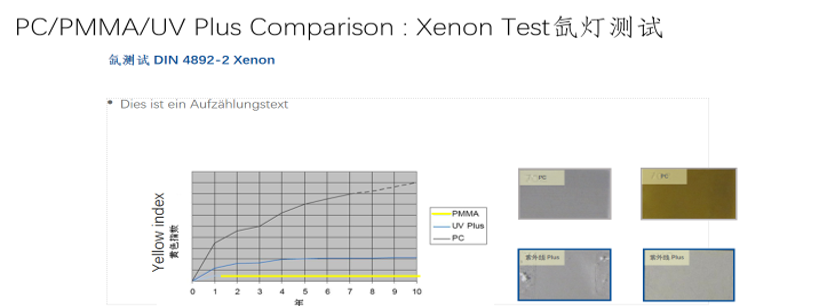

Co-extruded cover: an anti-UV outer layer and a diffuser inner layer. No yellowing outdoors for 3 years, rated IK08. The cover material is supplied by BWF Kunststoffe GmbH & Co. KG, and the material test report is available on request.
One Platform, High or Low Voltage
The same housing is offered in 24V DC and 100–277V AC. Maximum fixtures per run (L12): 9 at 24V DC, 16 at 100–120V AC, 39 at 220–277V AC. Pick by site power: mains-fed long runs cut power-injection points; 24V suits safe-voltage layouts.
Connectors Matched to Your System
ETL and CE versions ship with LLT connectors (5-pin for 24V, 6-pin for high voltage). Connectors from other brands can be customized so the fixture plugs into the cabling standard your project already uses.
DMX512 / RDM, and Art-Net Beyond 200 m
Variable-channel DMX512 with RDM addressing; RF remote also available. For long distances, an Art-Net gateway carries the signal over Ethernet or fiber and outputs DMX near the fixtures, extending control beyond 200 m. Already used in multiple projects. One 512-channel universe drives 12 L12 fixtures in RGBW mode (40 channels each).
150° Diffuse Beam, Seamless Joints
Uniform 150° output with no visible LED hot spots. Ultra-thin end caps keep the dark gap between butt-jointed fixtures minimal, with a 5 mm minimum spacing for installation.
Application Scenarios
Building Outline Lighting
Direct-view continuous line along roof edges and facades. Segmented DMX control for chase, gradient and color-shift effects; RGBW for white-point accuracy.
Bridge and Long-Run Infrastructure
Mains-fed 220–277V versions put up to 39 L12 fixtures on one run, and Art-Net gateways carry control past 200 m. Double IP66 sealing and the anti-UV cover suit full-sun, wet exposure.
Hotel and Retail Exterior
Close-viewing facades where hot spots show: diffuser cover and 150° beam keep the line smooth at short distances.
Garden and Landscape
24V DC low-voltage version for pathways, parks and landscape corridors.
Retrofit and Substitution
Replacing an existing linear fixture: customized connectors keep the project's existing wiring standard. Send the old model and connector photo for a mechanical, electrical, control and connector check.
Coastal, High-Humidity and High-UV Sites
Double IP66 sealing, anti-oxidation aluminum and a UV-stable cover for rain, sea-air humidity and strong sun. Operating range −20°C to +45°C.
Impressions
FAQ
Model: LLS-OP-D50How many fixtures can I connect, and how far can the signal go?
Signal, per DMX universe: 12 L12 fixtures in RGBW mode (40 channels each). To control more, add universes.
Distance: a standard DMX line is limited by cable length. For runs beyond 200 m, use an Art-Net gateway: the signal travels over Ethernet or fiber and is converted to DMX next to the fixtures. This setup has been used in multiple projects.
