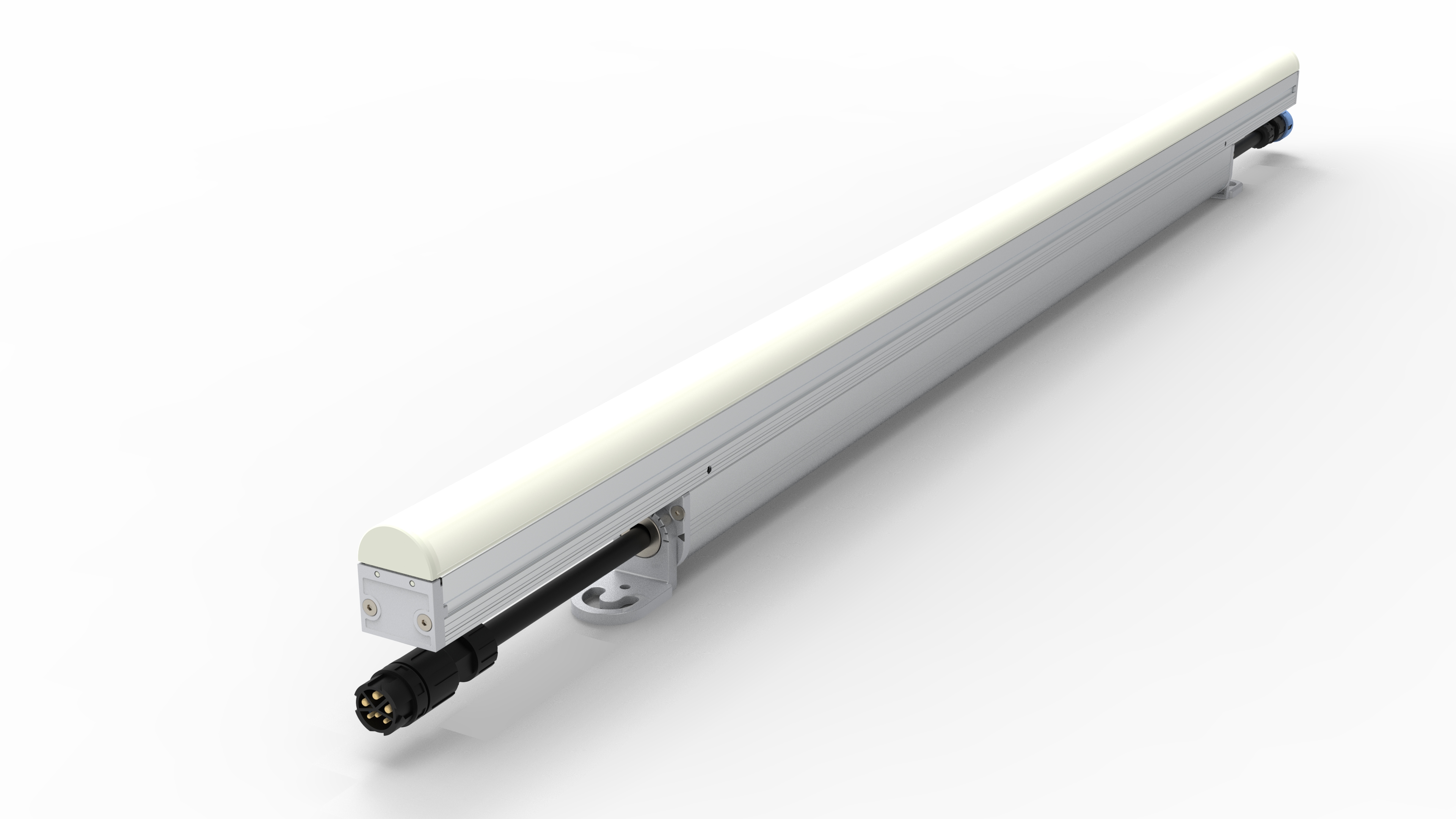

LLS-OP-W30A

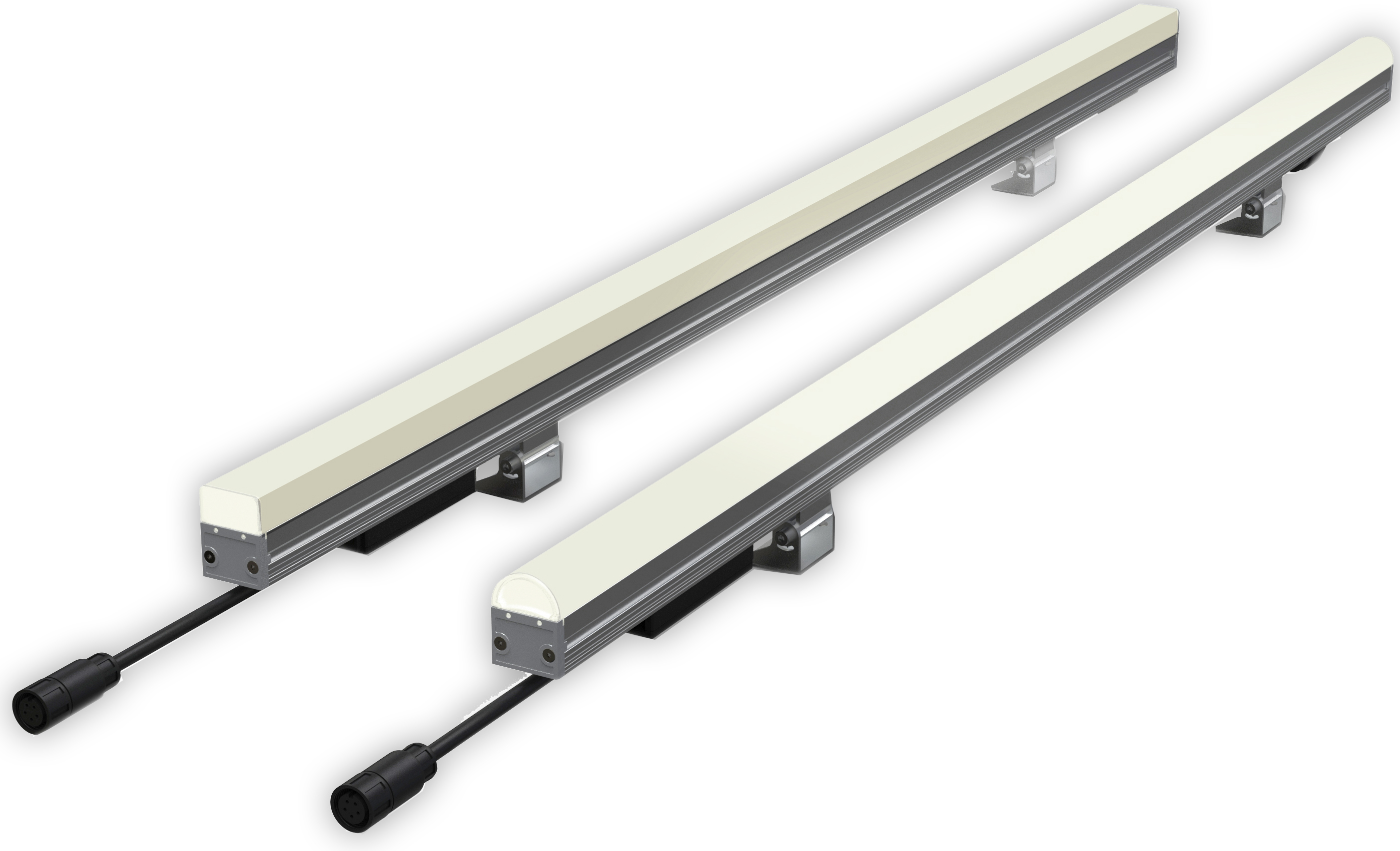

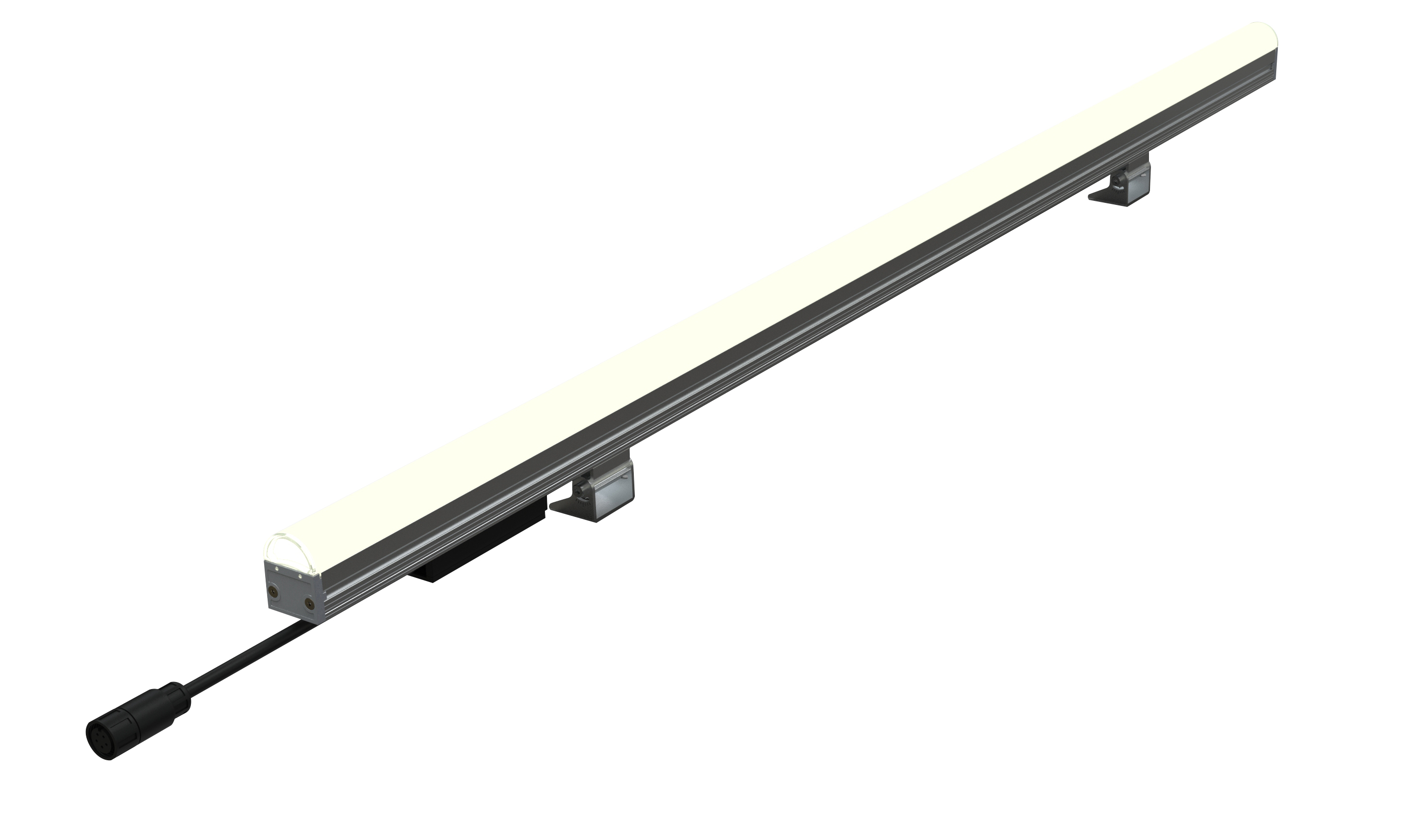

The LLS-OP-W30A is a 12–24W IP66 outdoor LED linear strip designed for architectural outline lighting, building contour definition, and facade accent. ETL listed for North America and CE certified for Europe. The wide 150° diffuse beam through a UV-resistant PC lens creates uniform, glare-controlled linear light. Available in static white (2700K–5700K) and RGBW, with DMX512/RDM dimming integration. Spring-clip installation brackets suit narrow-slit mounting positions. Available in two standard project lengths: 615mm and 1220mm.
Color & Optic
Beam Angle
Product Specifications
Model Configuration
| Model | Length | Power (Max) | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|
| LLS-OP-W30A-L6 | L615mm | 12W | 2700K3000K4000K5700K RGBW | 480lm 300lm | Weight: 0.58kg ±5%Qty/Ctn: 40 Units/CtnCarton: 125.5 × 32 × 23 cm |
| LLS-OP-W30A-L12 | L1220mm | 24W | 2700K3000K4000K5700K RGBW | 960lm 600lm | Weight: 1.16kg ±5%Qty/Ctn: 20 Units/CtnCarton: 125.5 × 32 × 23 cm |
Lumen configurations based on standard models. All variants: IP66, IK06, ETL listed, CE certified, 3-year warranty.
Advantages
UV-Resistant PC Diffuser
High-quality PC diffusive cover is UV-resistant and anti-yellowing, transmitting light without hot spots for even linear output across the full length. Ensures uniform 150° light distribution.
Full-Structure Waterproofing
Structural waterproofing from end cap to body delivers IP66 protection — fully dust-tight and resistant to high-pressure water jets — for long-term outdoor installation without service interruption.
DMX512 / RDM Control
Supports DMX512/RDM for dynamic color programming across RGBW channels. Spring-clip T-cable connectors keep wiring fast and organized on large architectural runs.
Corrosion-Resistant Aluminum Structure
Extruded 6063 aluminum profile with anti-oxidation surface treatment combines high thermal conductivity for stable LED junction temperatures with reliable outdoor corrosion resistance.
Spring-Clip Installation

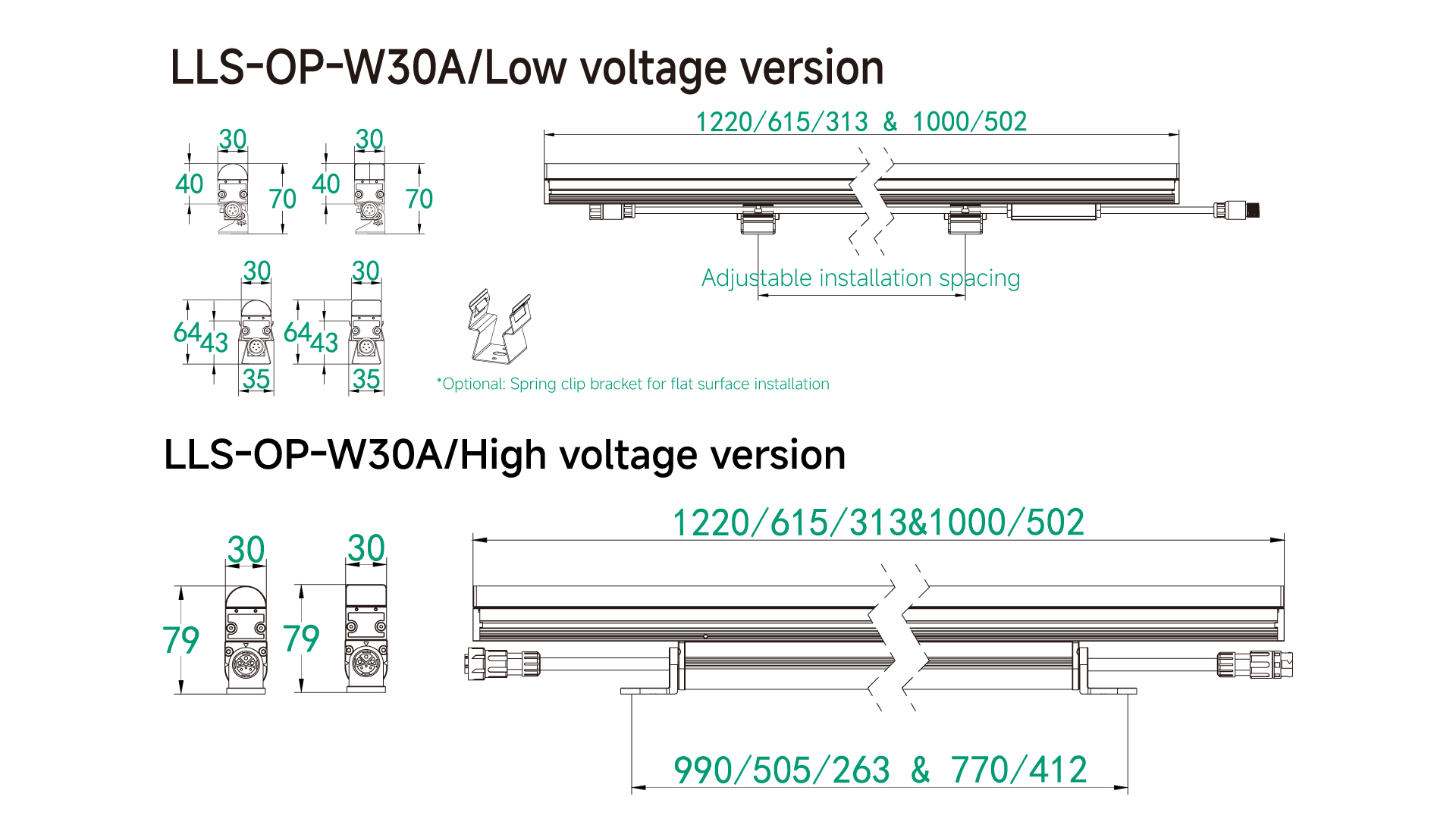

Spring-clip bracket solution installs into narrow slit positions where conventional mounting hardware can't reach — cove channels, glazing rebates, and concealed linear reveal details.
50,000-Hour Rated Lifetime
Rated at 50,000 hours with a 3-year full-assembly warranty. Operating temperature range −20°C to +40°C. Robust construction for diverse commercial applications.

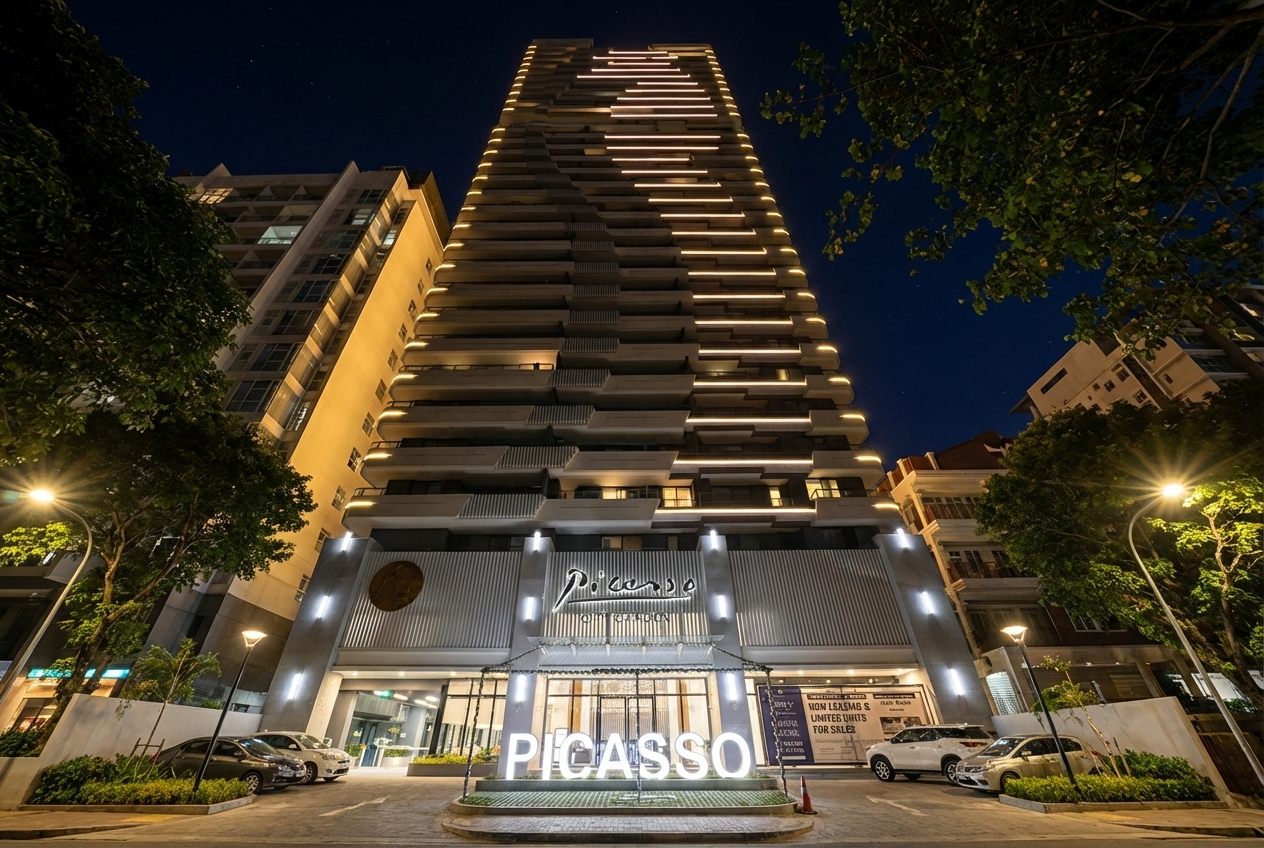

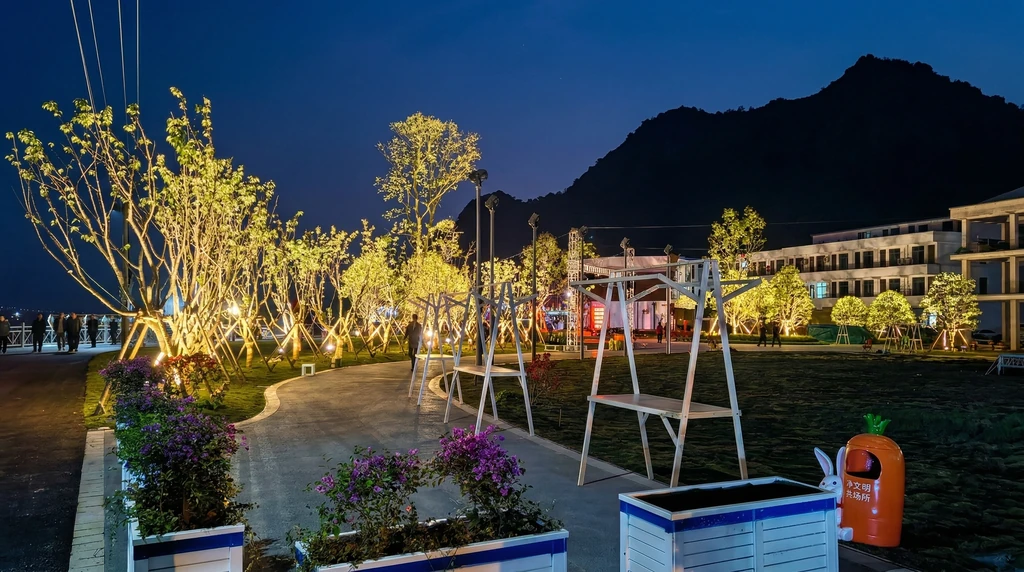

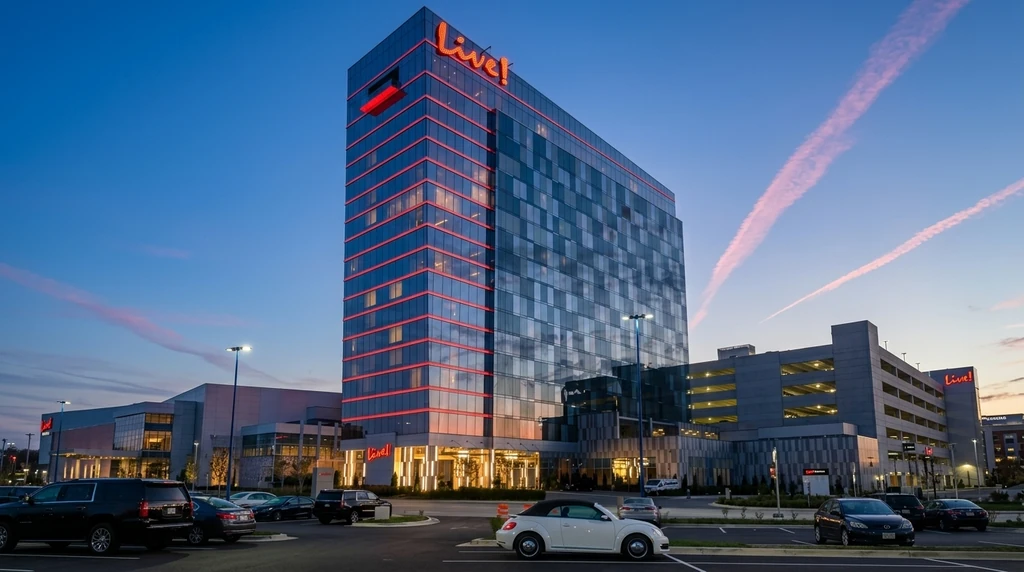

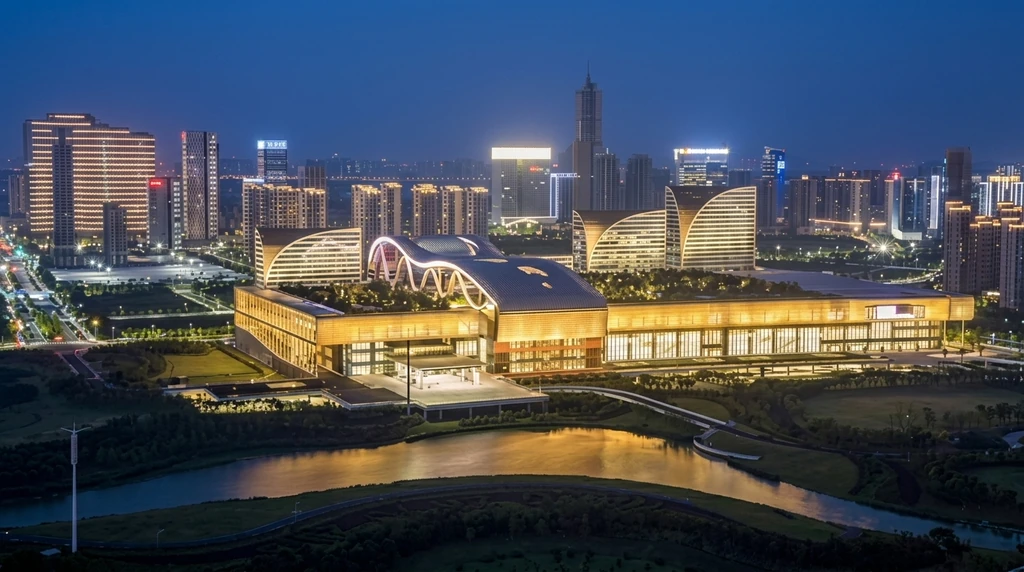

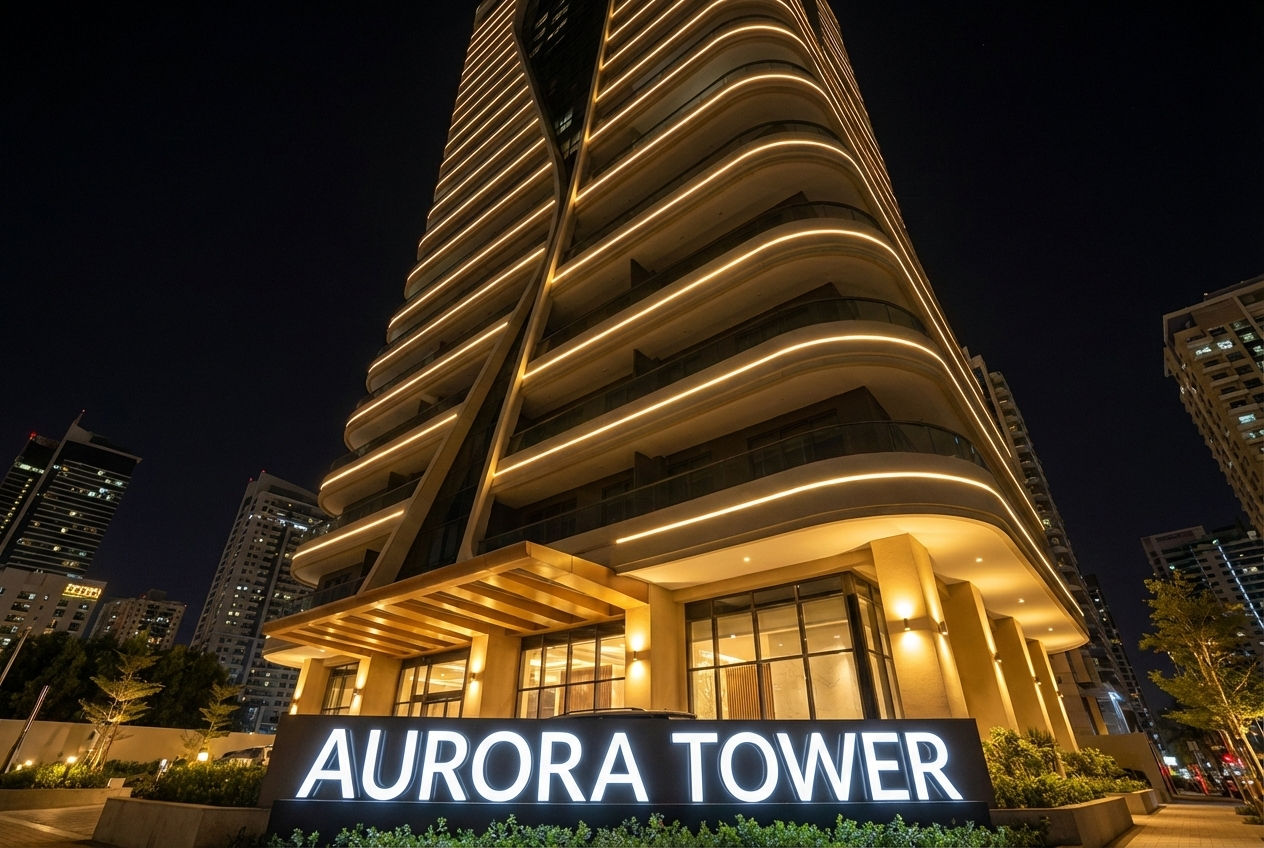

Impressions
