YXYSW6
The YXYSW6 (SKYWING VI SF06 Series) is a 400W to 1200W IP66 LED floodlight designed for stadium, port, and large-scale infrastructure lighting. It carries UL, ETL, CE, and RoHS certifications. The integrated die-casting ADC12 heat sink and heavy-duty cold-rolled bracket with WF2 corrosion treatment ensure excellent thermal management and structural rigidity, achieving a rated lifetime of 60,000 hours. Available in 2700K to 6500K static white, it features an integrated handle bar for easy installation, an anti-glare visor, and supports DALI and DMX control protocols with an efficacy up to 150 lm/W.
Color & Optic
Beam Options
Product Specifications
Model Configuration
| Model | Length | Power | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|
| YXYSW6-A400W | 522mm | 400W | White | 60,000 lm | Weight: 22.00 KG Qty/Ctn: 1 Units/Ctn Carton: 690×580×345mm |
| YXYSW6-A500W | 522mm | 500W | White | 75,000 lm | Weight: 22.00 KG Qty/Ctn: 1 Units/Ctn Carton: 690×580×345mm |
| YXYSW6-A600W | 522mm | 600W | White | 90,000 lm | Weight: 22.00 KG Qty/Ctn: 1 Units/Ctn Carton: 690×580×345mm |
| YXYSW6-A800W | 681mm | 800W | White | 120,000 lm | Weight: 36.00 KG Qty/Ctn: 1 Units/Ctn Carton: 805×735×405mm |
| YXYSW6-A1000W | 681mm | 1000W | White | 150,000 lm | Weight: 36.00 KG Qty/Ctn: 1 Units/Ctn Carton: 805×735×405mm |
| YXYSW6-A1200W | 681mm | 1200W | White | 180,000 lm | Weight: 36.00 KG Qty/Ctn: 1 Units/Ctn Carton: 805×735×405mm |
Lumen output calculated at 150 lm/W (±5%). Specific lumen output may vary based on exact CCT and optics configuration. All models are IP66 and carry a 5-year warranty.
Advantages

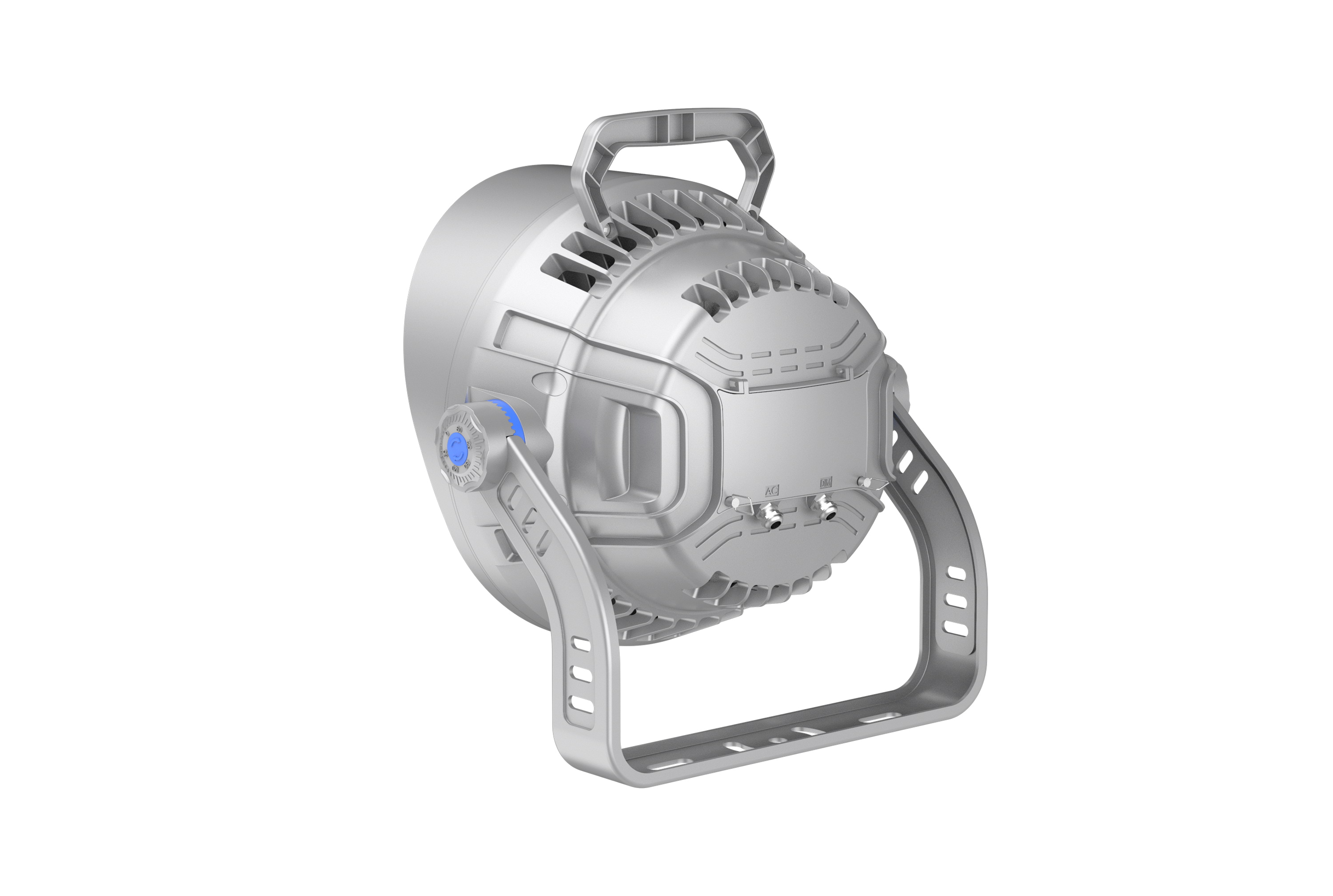

ADC12 Die-Casting Heat Sink
Integrated structure delivers excellent thermal management and a compact footprint for high-power demands.

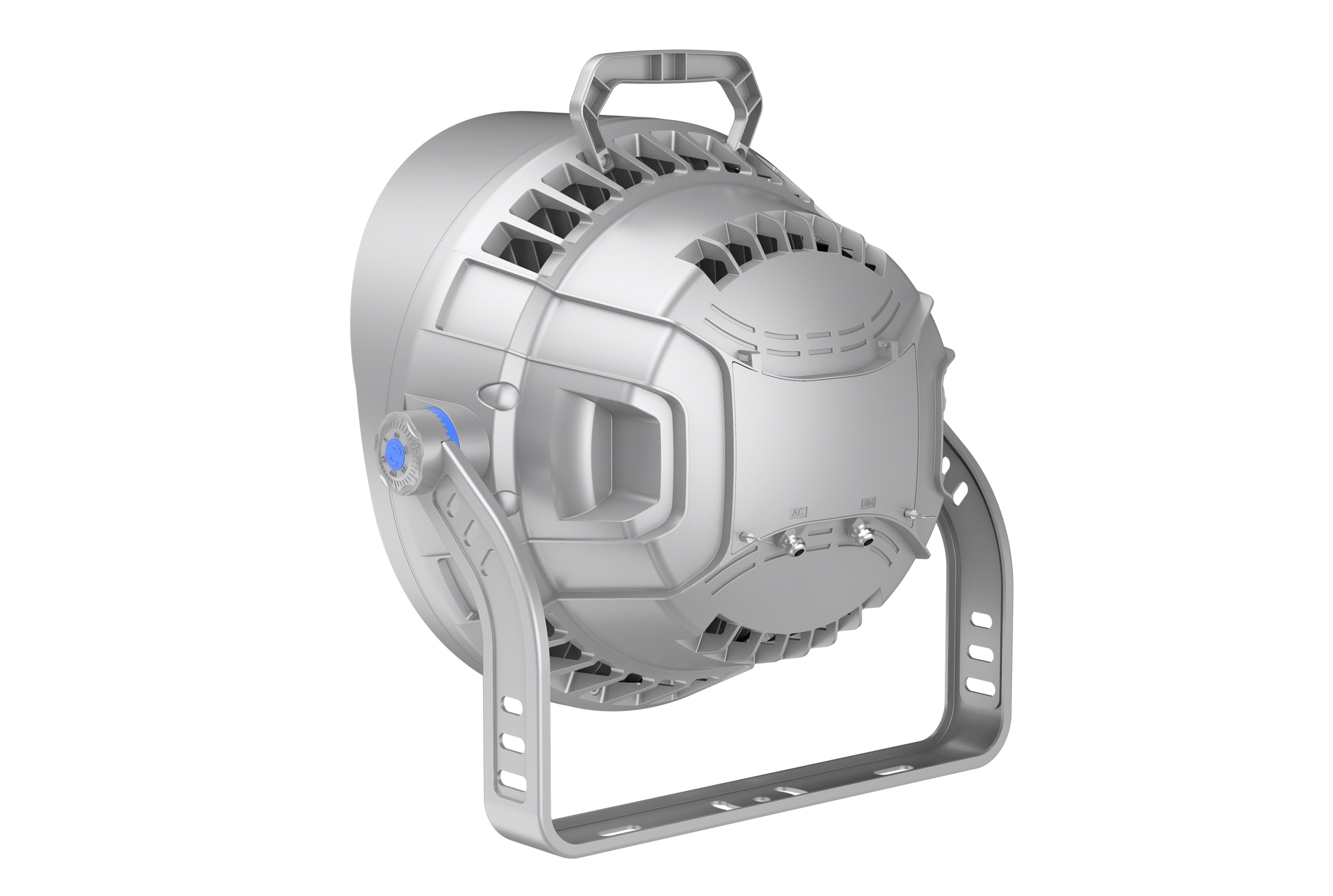

Integrated Handle Bar
Features a specialized handle bar on top of the fixture making it extremely easy for on-site installation and carrying.

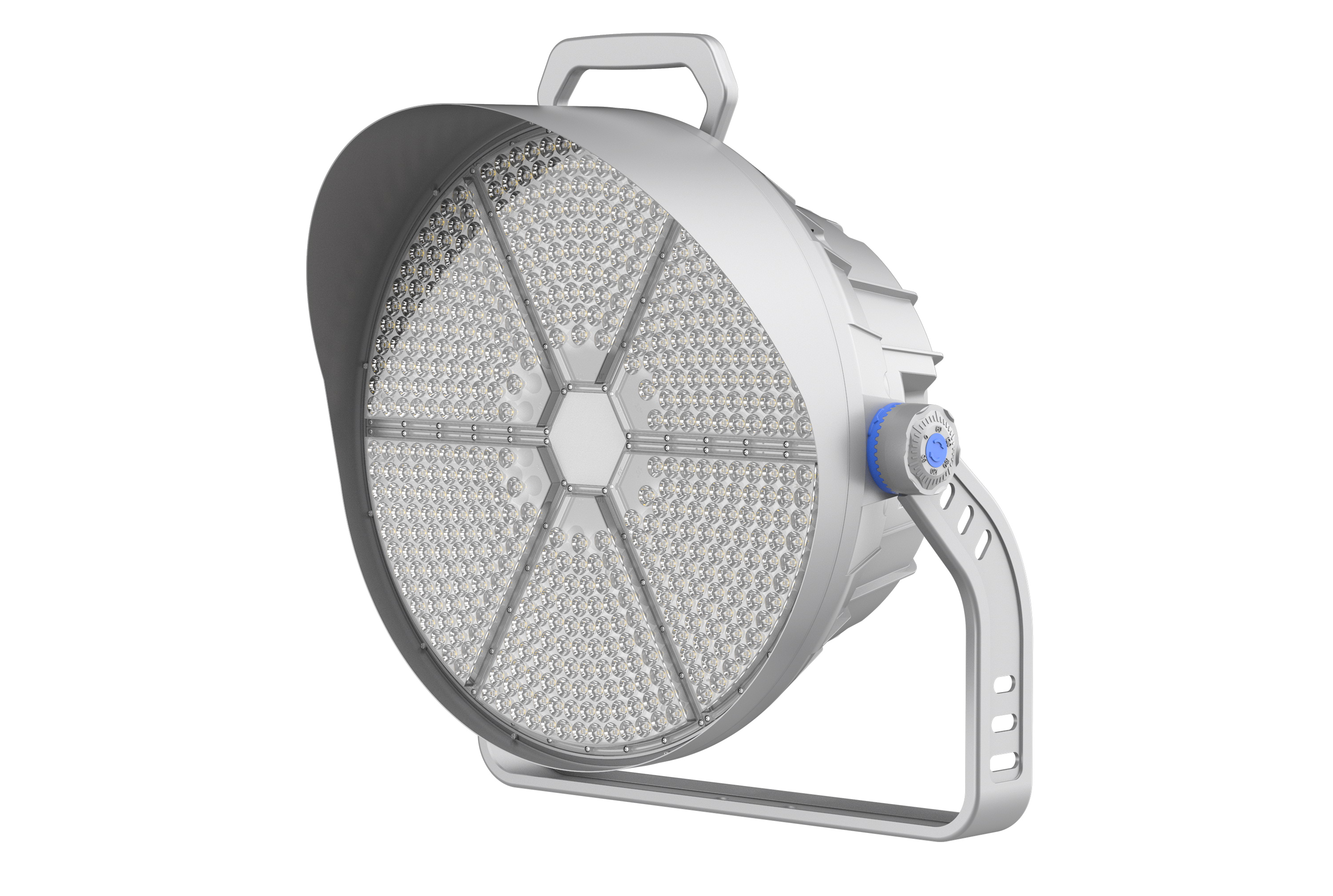

Anti-Glare Visor
Effectively controls spill light and upward light while avoiding lighting pollution in surrounding environments.
Japan TEIJIN PC Lens
High strength polycarbonate lens offers multiple optical lighting designs, anti-UV capability, and high mechanical strength.
WF2 Corrosion Treatment
High-strength cold-rolled bracket design with integral flanging and special corrosion treatment for coastal applications.
Double Surge Protection
Built-in high-quality drivers combined with an extra 10KV SPD protect the fixture against severe voltage fluctuations.
