YXYSW5
The YXYSW5 is a 200W to 1200W IP66 modular LED floodlight engineered for sports stadiums, high mast, and large-scale infrastructure lighting. Featuring high brightness 3030 and 5050 LED chips, it achieves an exceptional efficacy of up to 180lm/W. Its die-cast aluminum housing, embedded cable raceway, and up to 270° racked angle adjustment ensure reliable thermal management and precise installation. Supported by multiple optics and a 60,000-hour rated lifespan, it provides broadcast-quality illumination for professional venues.
Color & Optic
Beam Options
Product Specifications
Model Configuration
| Model | Length | Power | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|
| YXYSW5-E200W | 150mm | 200W | White | 30,000 lm | Weight: 6.2 KG Qty/Ctn: 1 Units/Ctn Carton: 565×245×175mm |
| YXYSW5-E400W | 315mm | 400W | White | 60,000 lm | Weight: 11.10 KG Qty/Ctn: 1 Units/Ctn Carton: 570×420×190mm |
| YXYSW5-E600W | 428mm | 600W | White | 90,000 lm | Weight: 15.65 KG Qty/Ctn: 1 Units/Ctn Carton: 543×532×185mm |
| YXYSW5-E800W | 555mm | 800W | White | 120,000 lm | Weight: 20.45 KG Qty/Ctn: 1 Units/Ctn Carton: 663×542×185mm |
| YXYSW5-E1000W | 668mm | 1000W | White | 150,000 lm | Weight: 20.45 KG Qty/Ctn: 1 Units/Ctn Carton: 773×542×185mm |
| YXYSW5-E1200W | 776mm | 1200W | White | 180,000 lm | Weight: 32.60 KG Qty/Ctn: 1 Units/Ctn Carton: 883×542×185mm |
Lumen output calculated at 150 lm/W (±5%). High efficiency 160lm/W and 180lm/W options are available. All models are IP66 and carry a 5-year warranty.
Advantages
High Efficiency Operation
Up to 180 lm/W light efficiency using top brand LED chips and drivers, ensuring broadcast-quality illumination and long lifetime.
Modular Heat Sink Design

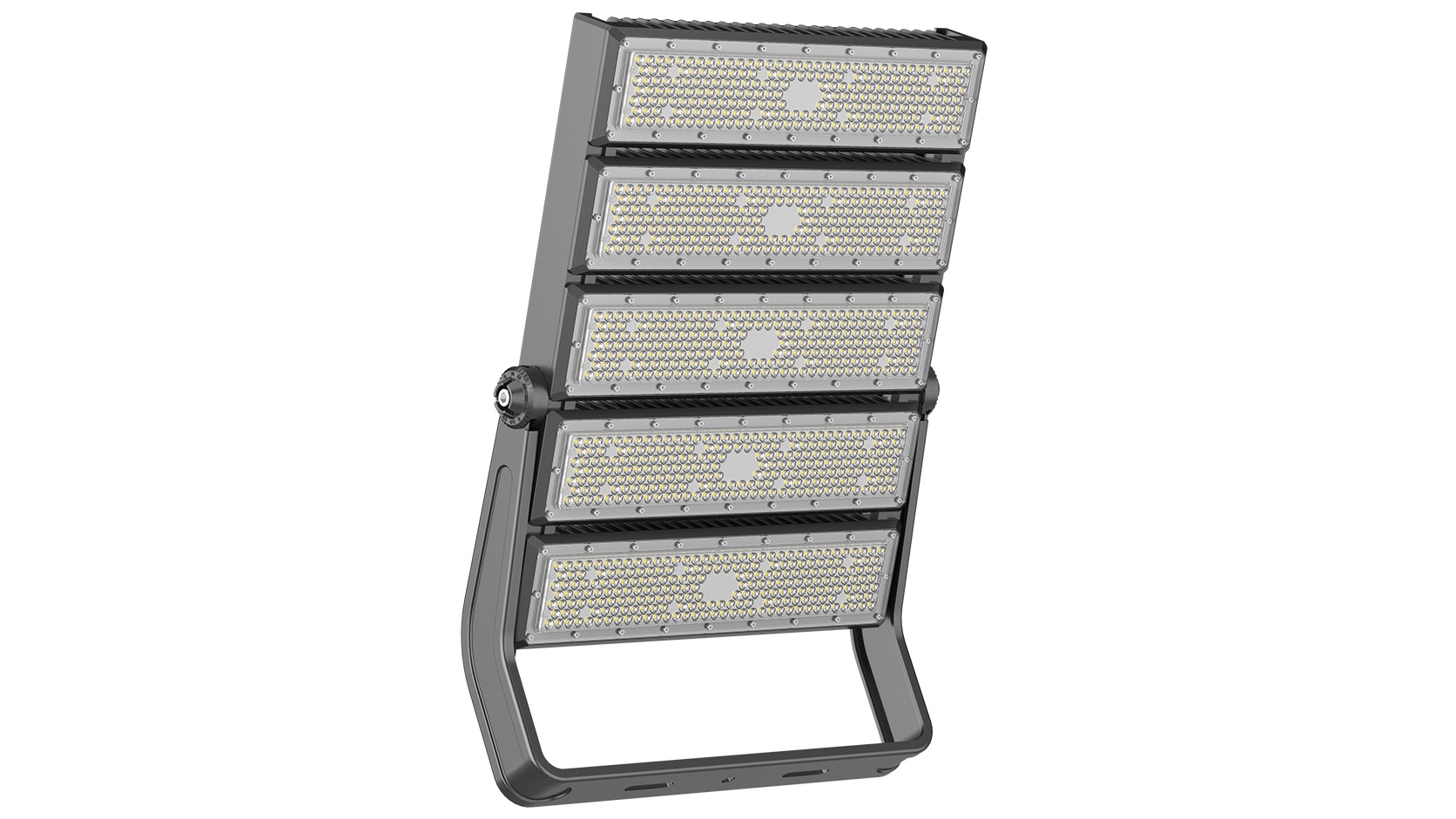

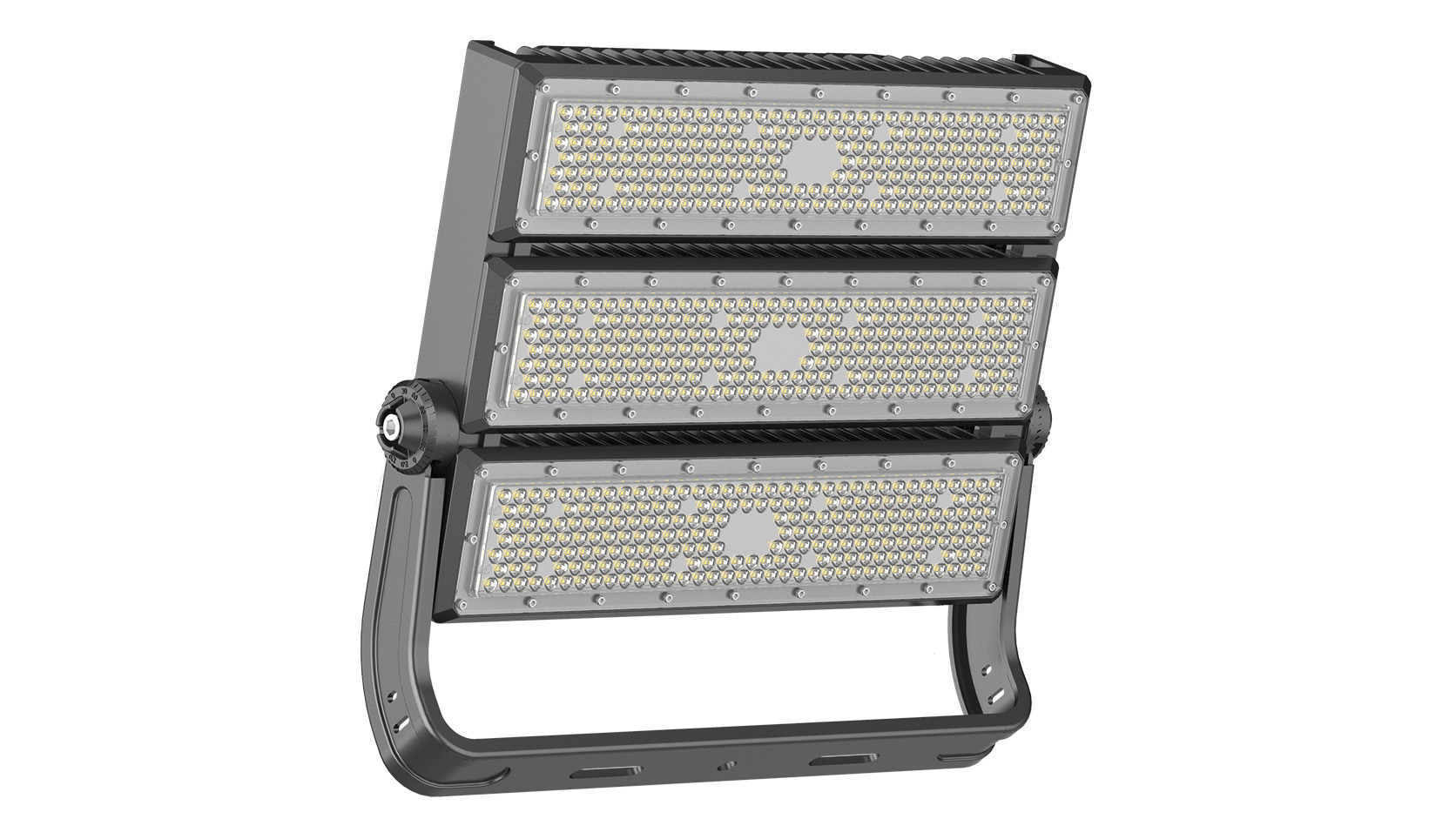

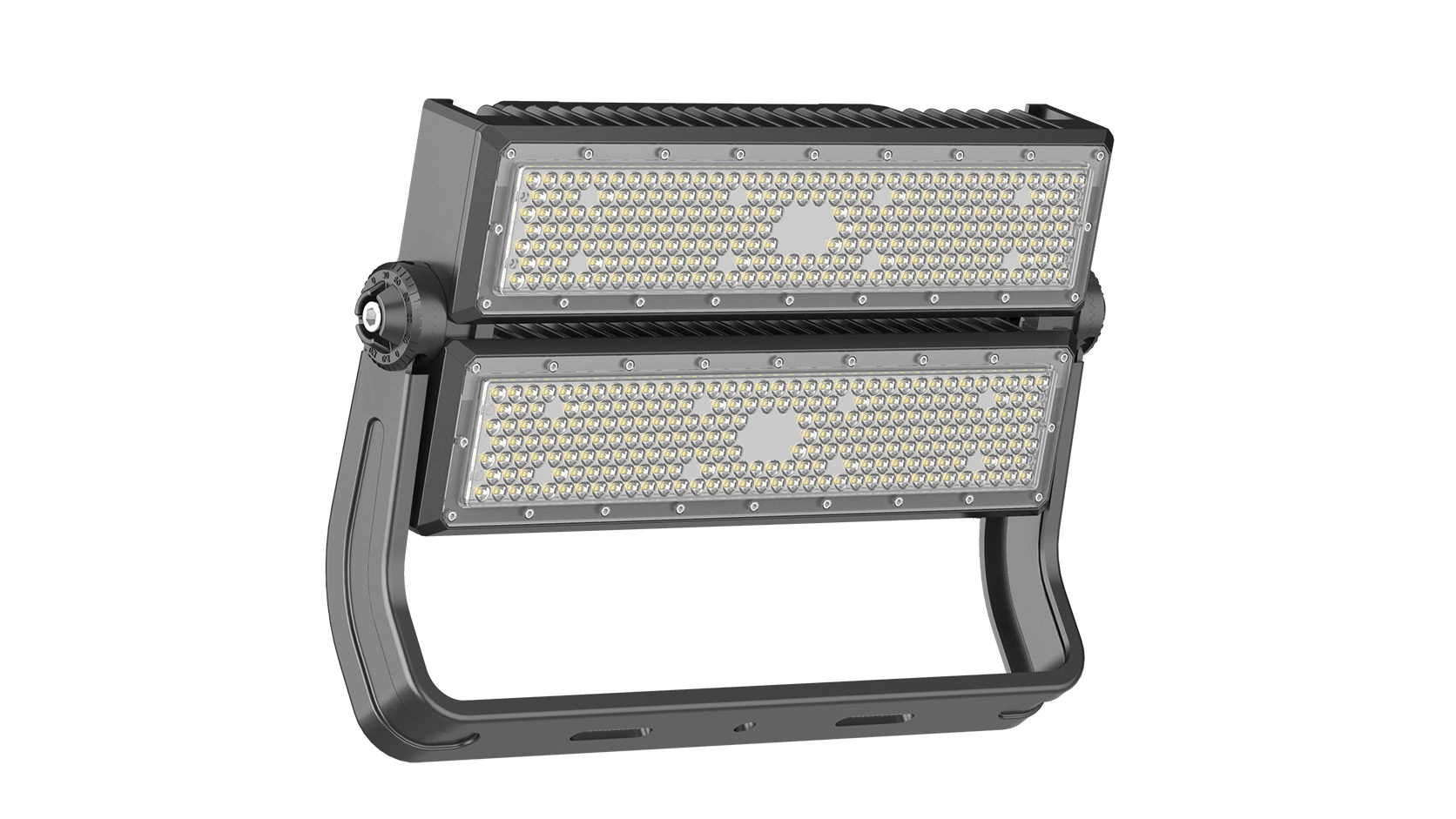

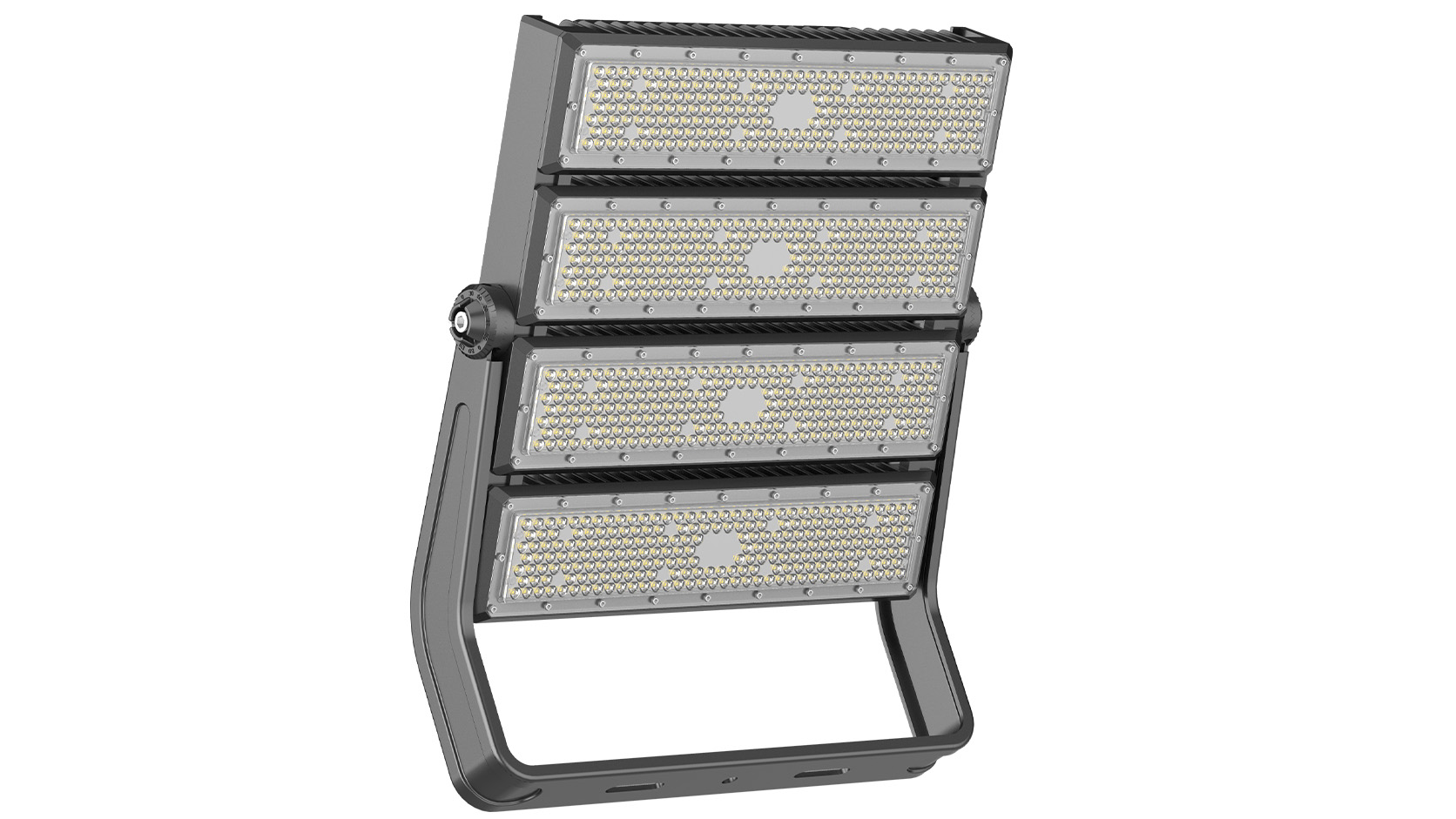

Single 120W to 200W modules combine up to 1200W, offering excellent thermal management and a compact structure.
Embedded Cable Raceway
Optimizes cable layout for a clean installation, reducing exposure to harsh weather and improving overall safety.
270° Racked Angle
10° step adjustment allows for up to 270° of precise aiming, making it perfect for complex stadium or high mast projects.
Tempered Glass Option
4mm high-strength tempered glass cover reduces UV degradation and prevents rust, specifically designed for coastal areas.
Double Surge Protection
Built-in high-quality drivers paired with an extra 10KV SPD protect the fixture against severe voltage fluctuations.
