YXYDF2

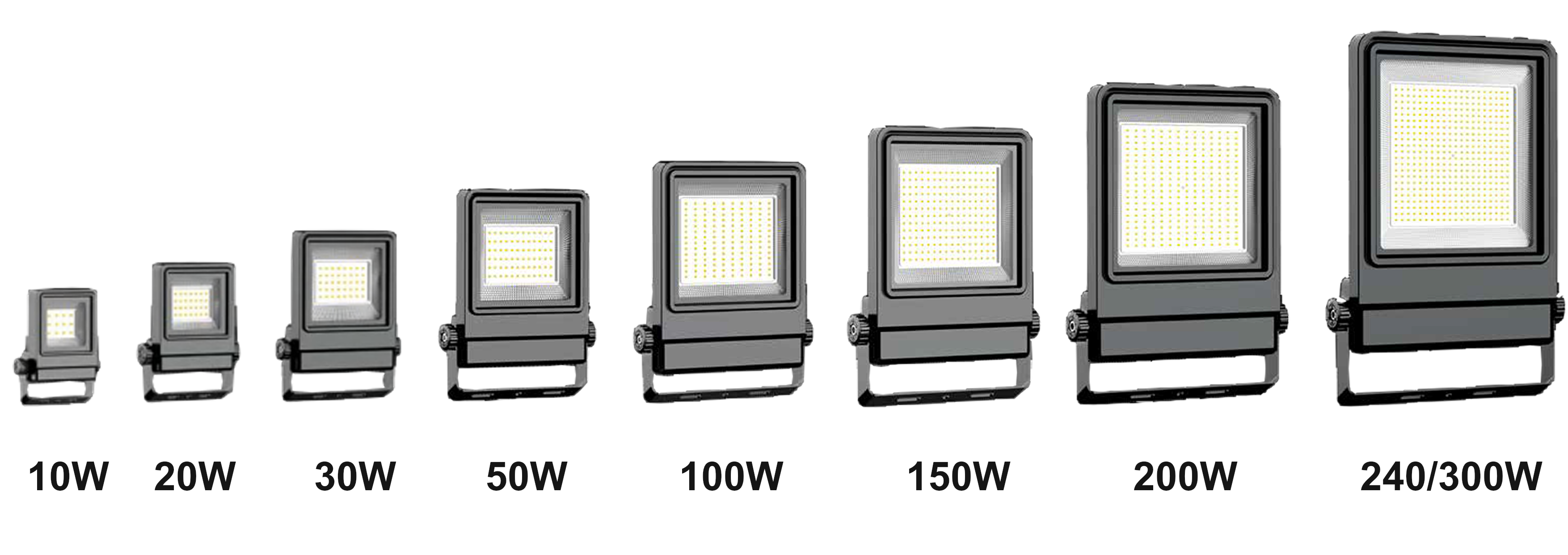

The YXYDF2 (DIAMOND II Series) is a professional narrow beam angle LED floodlight designed for architectural, landscape, and bridge illumination. Utilizing ADC12 die-casting aluminum for superior thermal management, it delivers up to 150 lm/W efficacy. Available in 30W to 300W configurations, the fixture features a versatile racked angle bracket with 270° adjustment, IK08 tempered glass, and static white CCT options. It carries CE, CB, and SAA certifications for global project compliance.
Color & Optic
Beam Options
Product Specifications
Model Configuration

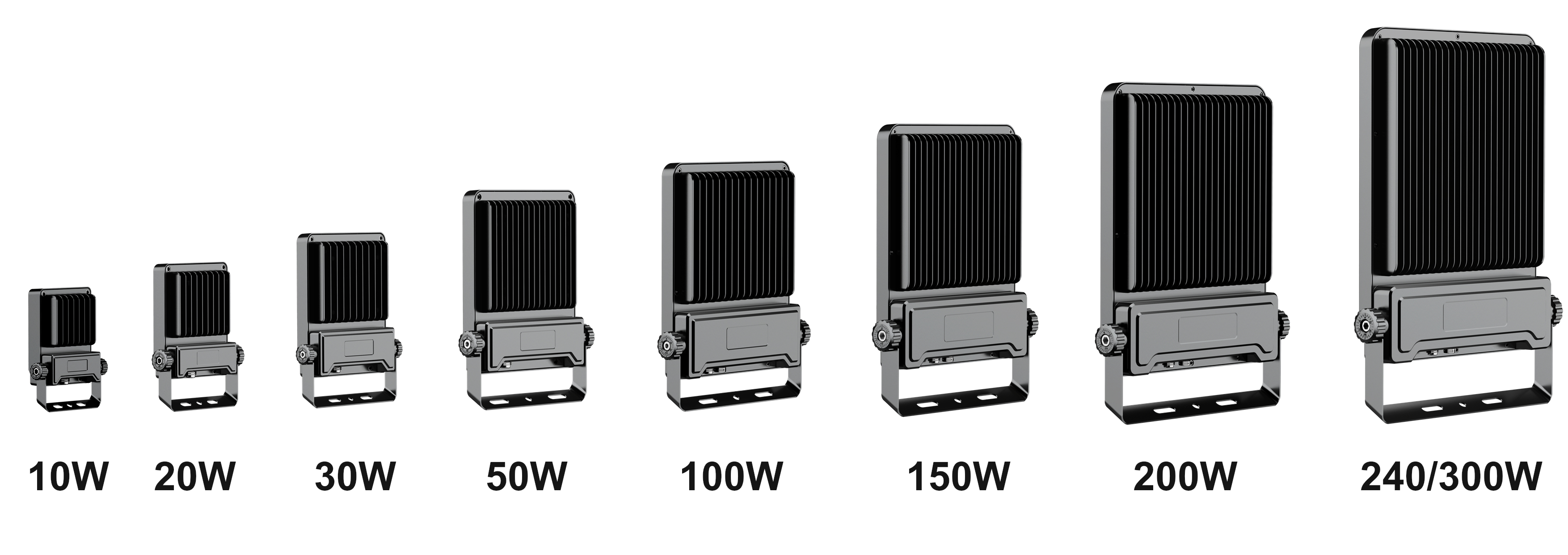

| Model | Length | Power | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|

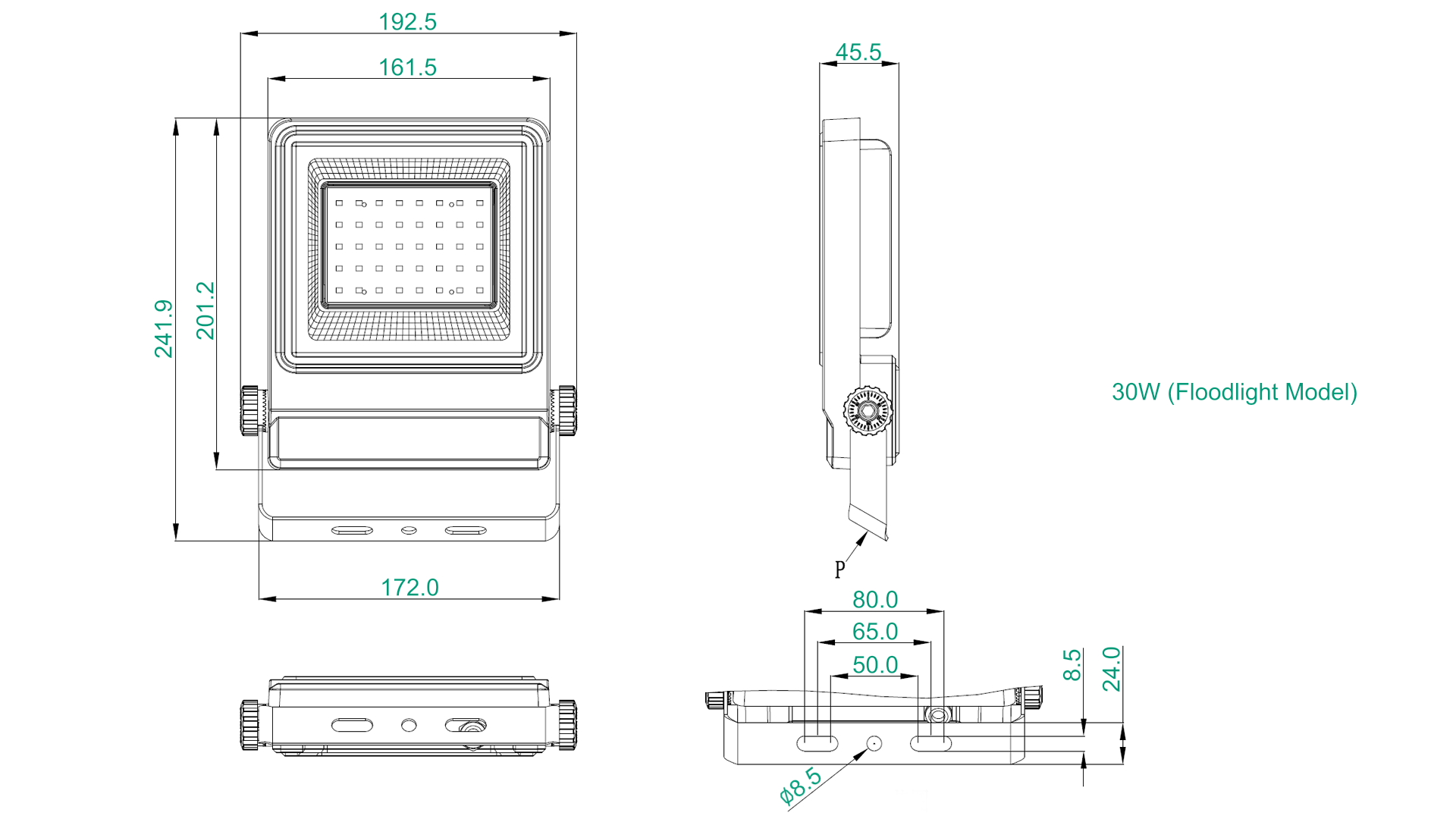

| YXYDF2-30W | 201mm | 30W | White | 4,500 lm | Weight: 1.10 KG Qty/Ctn: 15 Units/Ctn Carton: 605×310×270mm |
| YXYDF2-50W | 247mm | 50W | White | 7,500 lm | Weight: 1.60 KG Qty/Ctn: 10 Units/Ctn Carton: 520×315×320mm |
| YXYDF2-100W | 301mm | 100W | White | 15,000 lm | Weight: 2.80 KG Qty/Ctn: 5 Units/Ctn Carton: 395×330×400mm |
| YXYDF2-150W | 358mm | 150W | White | 22,500 lm | Weight: 4.50 KG Qty/Ctn: 5 Units/Ctn Carton: 400×395×495mm |
| YXYDF2-200W | 412mm | 200W | White | 30,000 lm | Weight: 5.80 KG Qty/Ctn: 4 Units/Ctn Carton: 415×330×555mm |
| YXYDF2-240W | 486mm | 240W | White | 37,500 lm | Weight: 7.85 KG Qty/Ctn: 3 Units/Ctn Carton: 460×275×630mm |
| YXYDF2-300W | 486mm | 300W | White | 45,000 lm | Weight: 8.00 KG Qty/Ctn: 3 Units/Ctn Carton: 460×275×630mm |
Lumen output calculated at 150 lm/W (±5%). All models are IP66 and carry a 5-year warranty.
Advantages
ADC12 Die-Casting Heat Sink
Excellent thermal management maintains stable lumen output and minimizes temperature differences, ensuring the fixture's long-term performance.
Racked Angle Adjustment
Features 10° adjustment steps allowing for up to 270° of precise installation adjustment, adapting to various mounting environments.
Integrated Breather Valve
Perfectly balances internal and external temperature and humidity, protecting internal components from harsh outdoor weather elements.
High-Strength Bracket
Galvanized, corrosion-resistant cold-rolled plate bracket with integral flanging provides high mechanical strength for secure mounting.
Tempered Glass Protection
4mm thick tempered glass provides IK08 impact resistance, significantly enhancing the fixture's durability in public and commercial spaces.
Premium Efficiency
Lumileds 2835 chips paired with high-quality SOSEN drivers deliver an impressive 150 lm/W efficacy, maximizing brightness while reducing energy costs.
