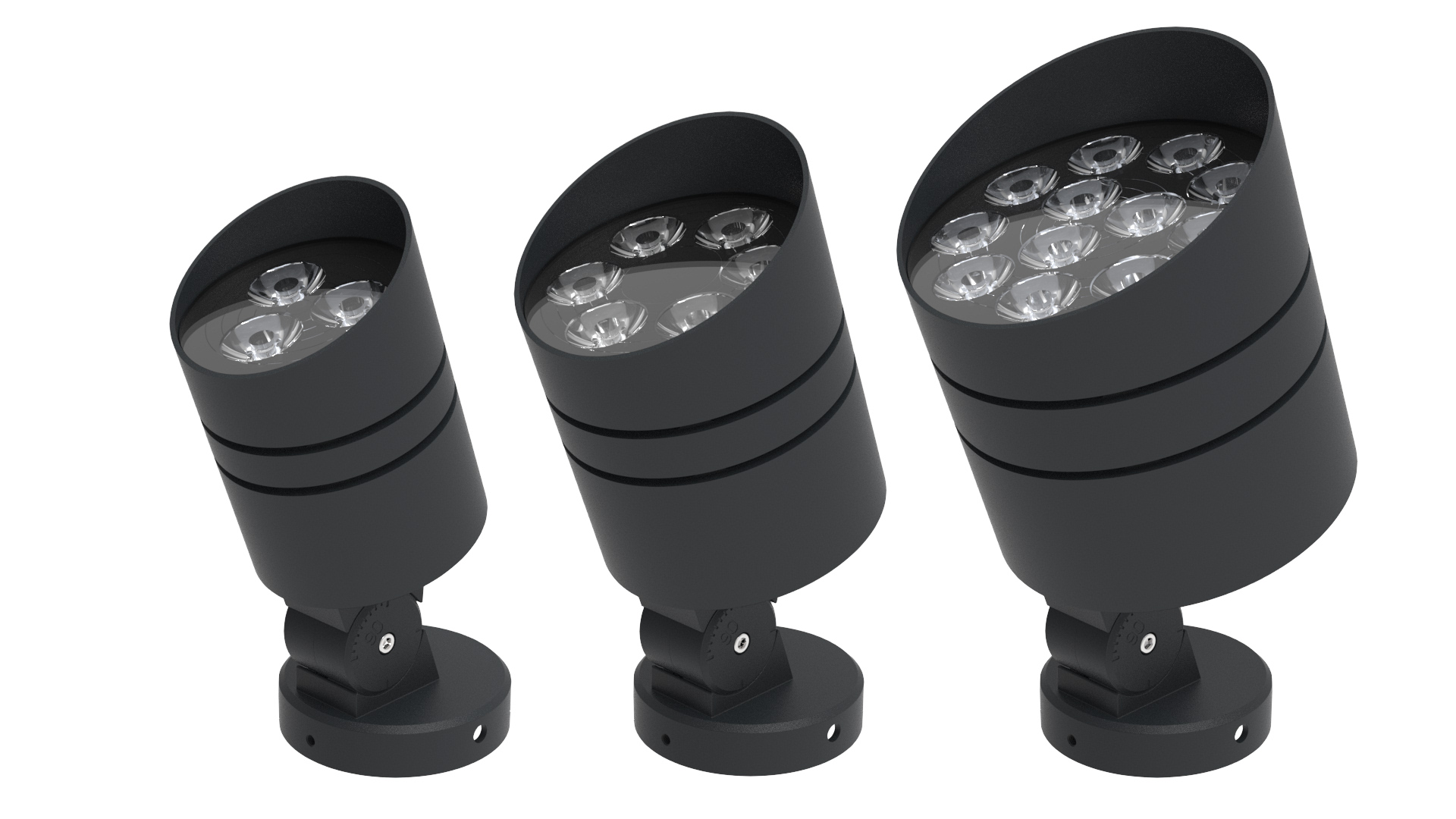

SP-PZT-R110 /135 /170
The SP-PZT-R110 /135 /170 is a high-power outdoor architectural LED floodlight designed for building facade, landscape and large-area lighting. It combines an aluminum profile lamp body, structural waterproofing, multiple beam angles, RGB/RGBW color options, and DMX512/RDM control for permanent exterior installations.
Color & Optic
Beam Options
Product Specifications
Model Configuration
| Model | Dimension | Power (Max) | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|

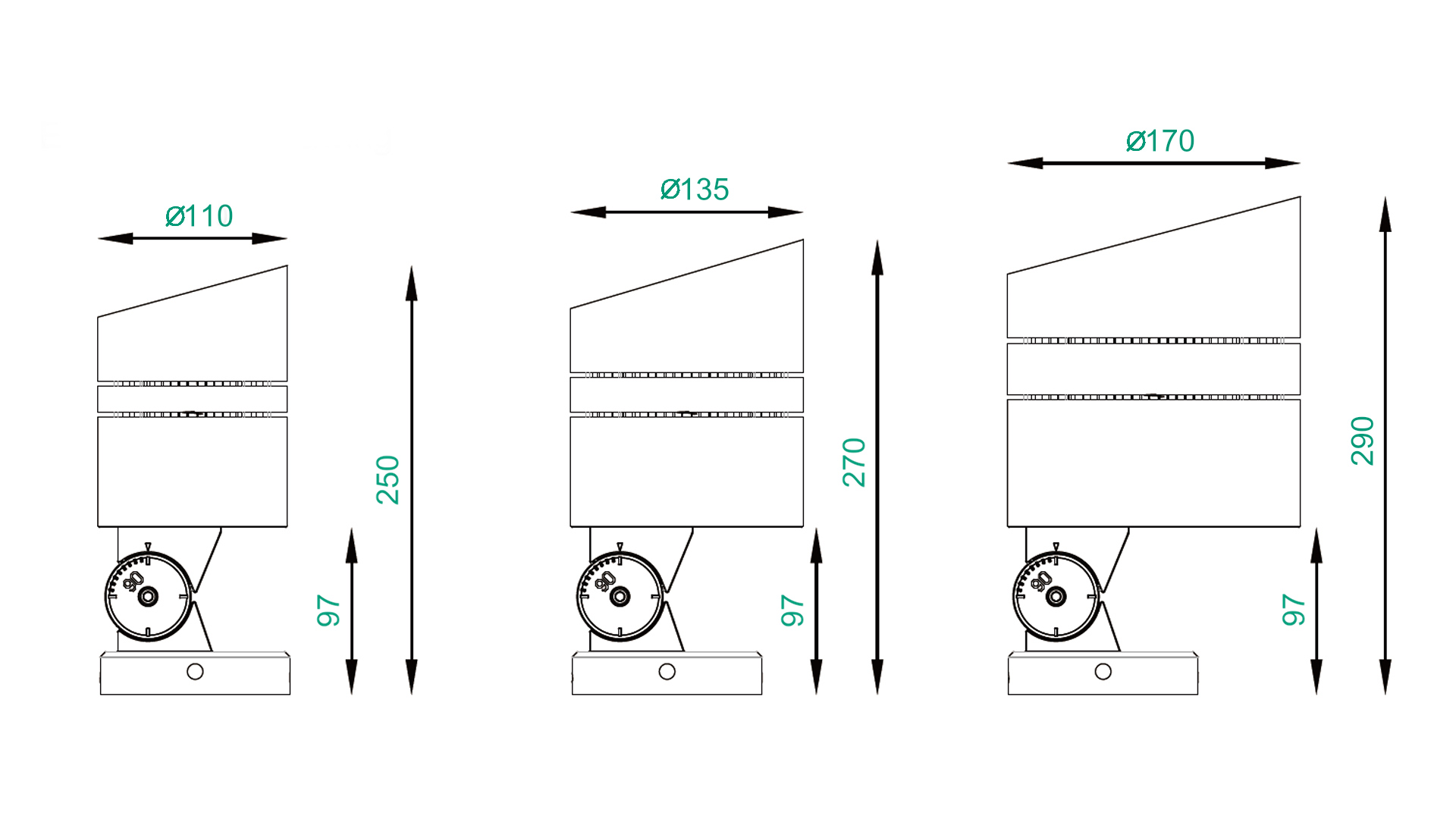

| SP-PZT-R110 | Φ110xH145mm | 15W | 2700K3000K4000K5700K RGBRGBW | 1250lm 1400lm 700lm 900lm | Weight: 1.1±5%KgQty/Ctn: 12Units/CtnCarton: 43x28x55.5cm |
| SP-PZT-R135 | Φ135xH168mm | 30W | 2700K3000K4000K5700K RGBRGBW | 2550lm 2800lm 1450lm 1800lm | Weight: 1.6±5%KgQty/Ctn: 8Units/CtnCarton: 35.5x35.5x48.5cm |
| SP-PZT-R170 | Φ170xH218mm | 55W | 2700K3000K4000K5700K RGBRGBW | 4650lm 5000lm 2650lm 3300lm | Weight: 2.5±5%KgQty/Ctn: 4Units/CtnCarton: 44.5x23x55.5cm |
Configuration summary: Available in multiple CCTs, RGB, and RGBW options, power range 15W–55W across three dimensions (R110, R135, R170), multiple beam angles, DMX512/RDM control, IP66, IK08, ETL listed and CE certified.
Advantages
High-Efficiency Power Output
Base power of 15W, scalable up to 55W, delivering high brightness to meet large-area lighting demands with efficient energy use.
DMX512 / RDM Control
Supports DMX512/RDM for flexible, precise operation and dynamic RGB/RGBW lighting effects for architectural scenes.
Tight Waterproof Structure
Features a robust, structurally sealed IP66 waterproof design, providing reliable protection against moisture ingress for harsh outdoor environments.
Corrosion-Resistant Aluminum Structure
Anodized aluminum profile improves corrosion resistance, weather durability and reliable heat dissipation for permanent outdoor installations.
Optimal Color Mixing and Optics
RGBW 4-in-1 mode ensures excellent color mixing, with flexible optical options (5° to 55°) for diverse project scenarios.
3-Year Warranty
Standard 3-year warranty covering the complete assembly under normal outdoor operating conditions.
Application Scenarios

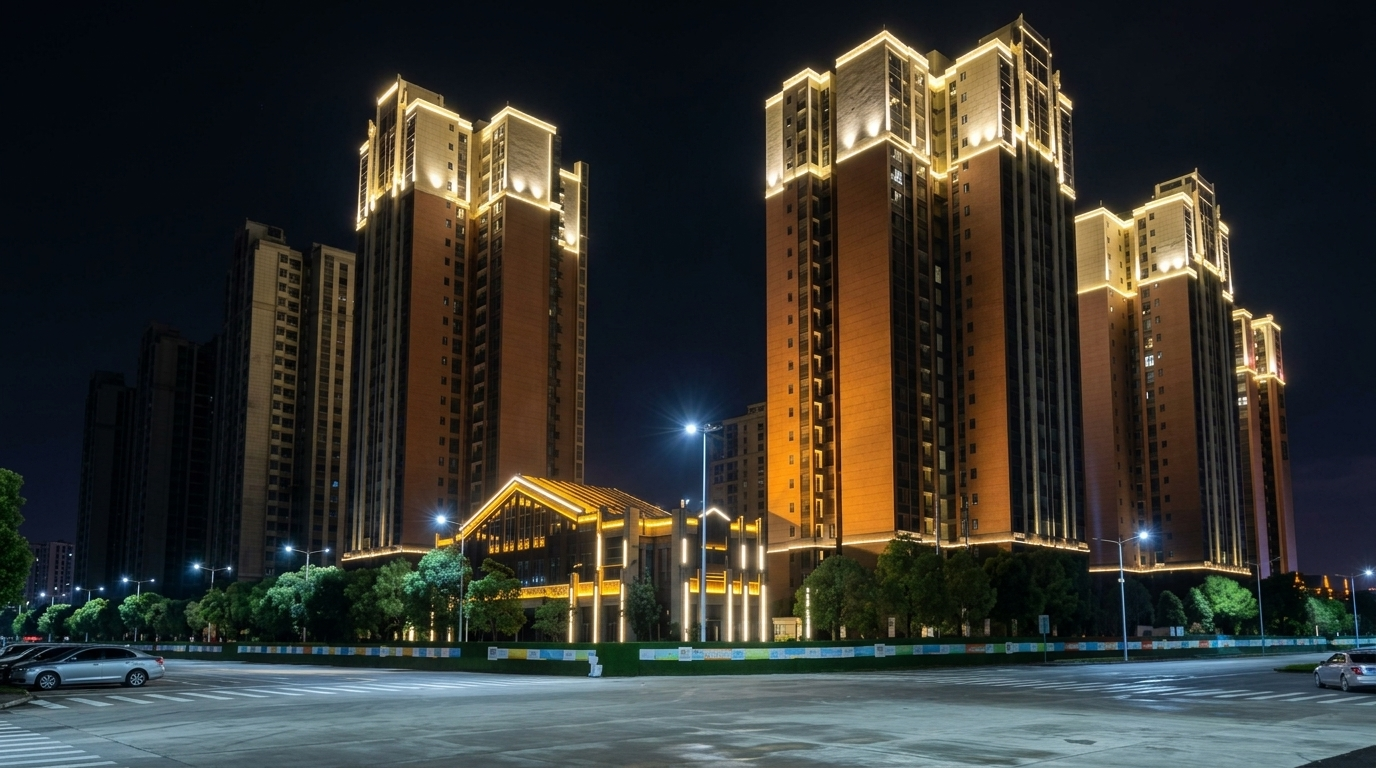

Building Facade Lighting
For commercial building facades, curtain walls, and architectural structures requiring high-power, dynamic color illumination.
Bridge and Infrastructure Lighting
For bridge structures, guardrails, and large public infrastructure projects requiring long-distance beam control.

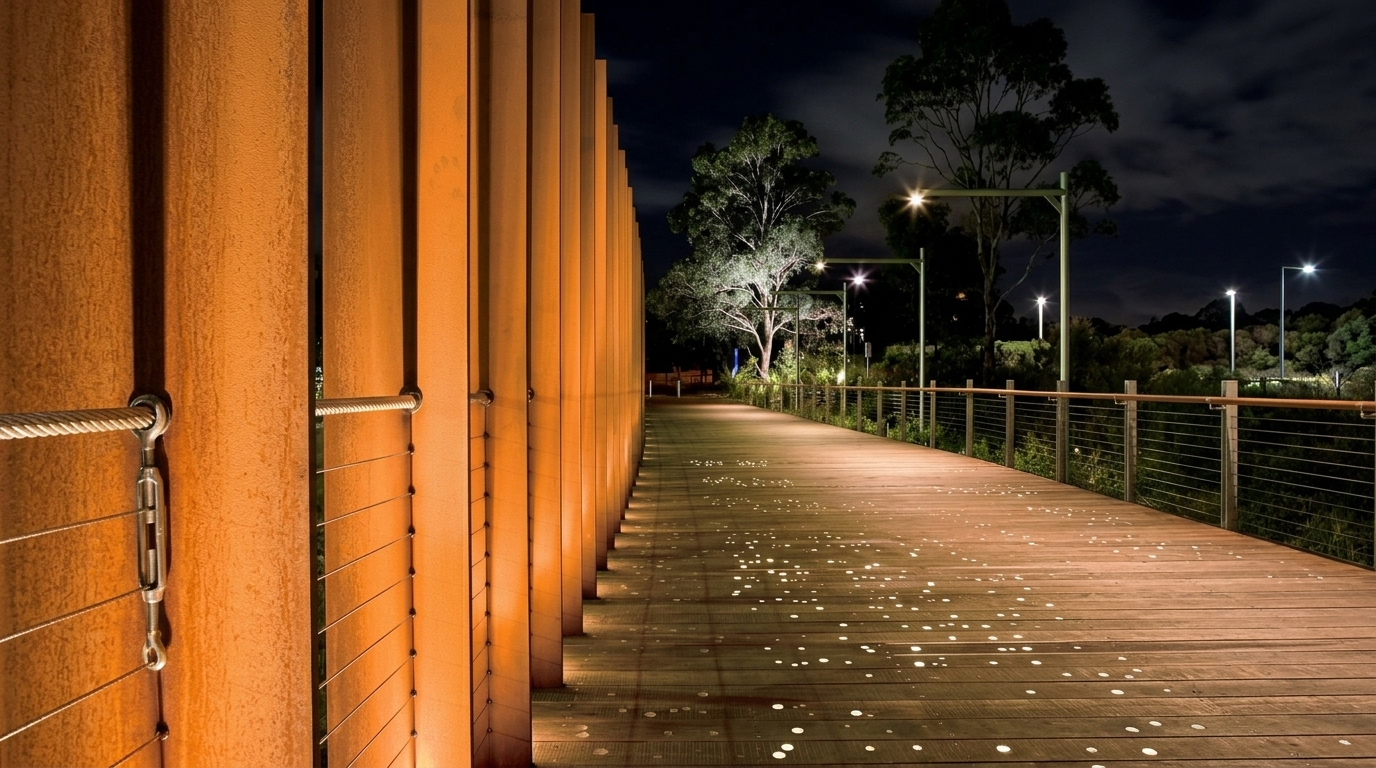

Landmark and Landscape Lighting
For national landmarks, towers, parks, and public plazas where high-output RGBW and precise beam shaping is essential.
Hotel and Retail Exterior Lighting
For hotel entrances, retail facades, and commercial plazas requiring warm white and dynamic color atmospheres.
SP-PZT-R110 /135 /170 is designed for permanent outdoor architectural lighting projects where high-power, beam control, weather resistance and dynamic color are required.
Impressions
