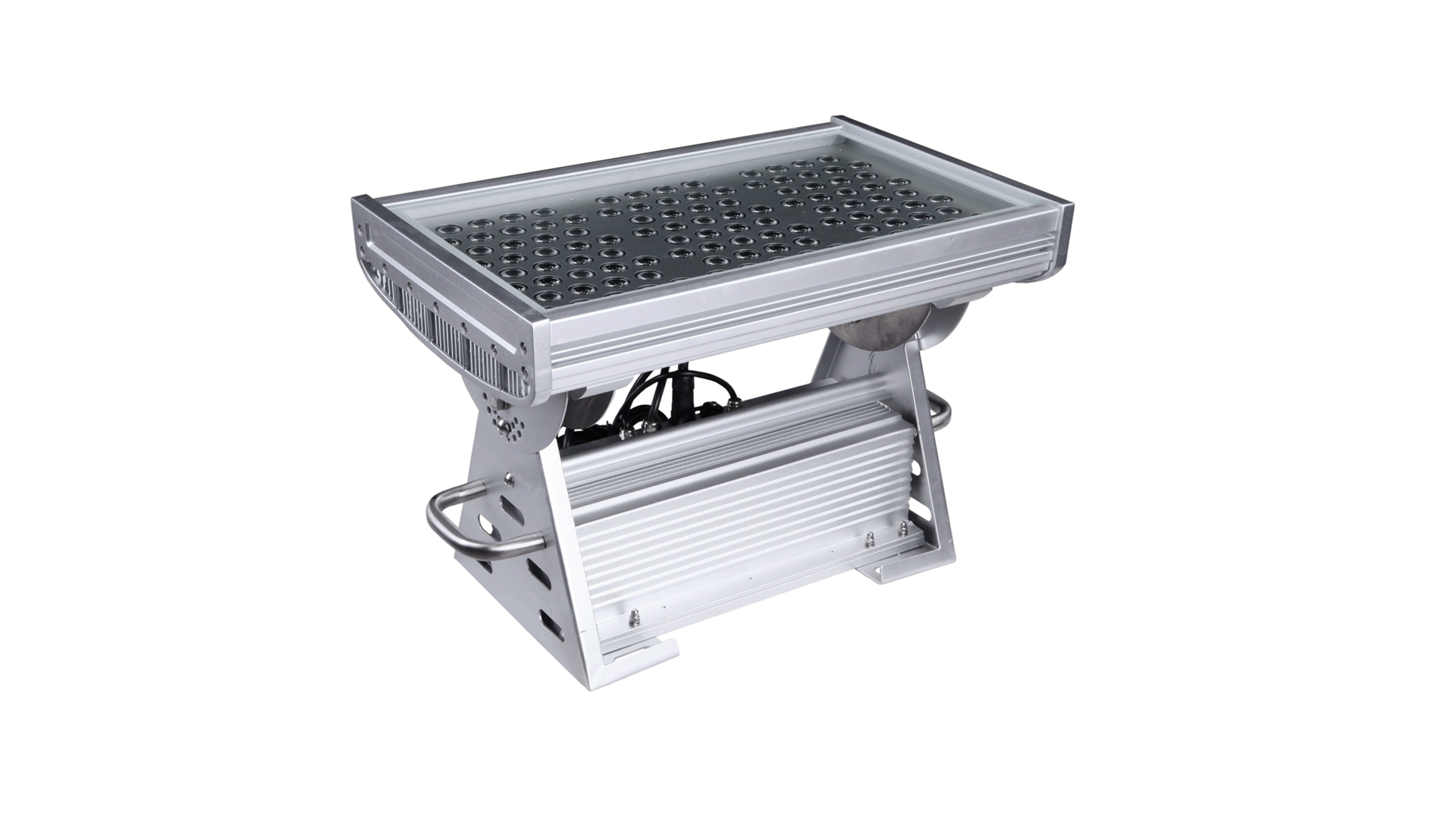

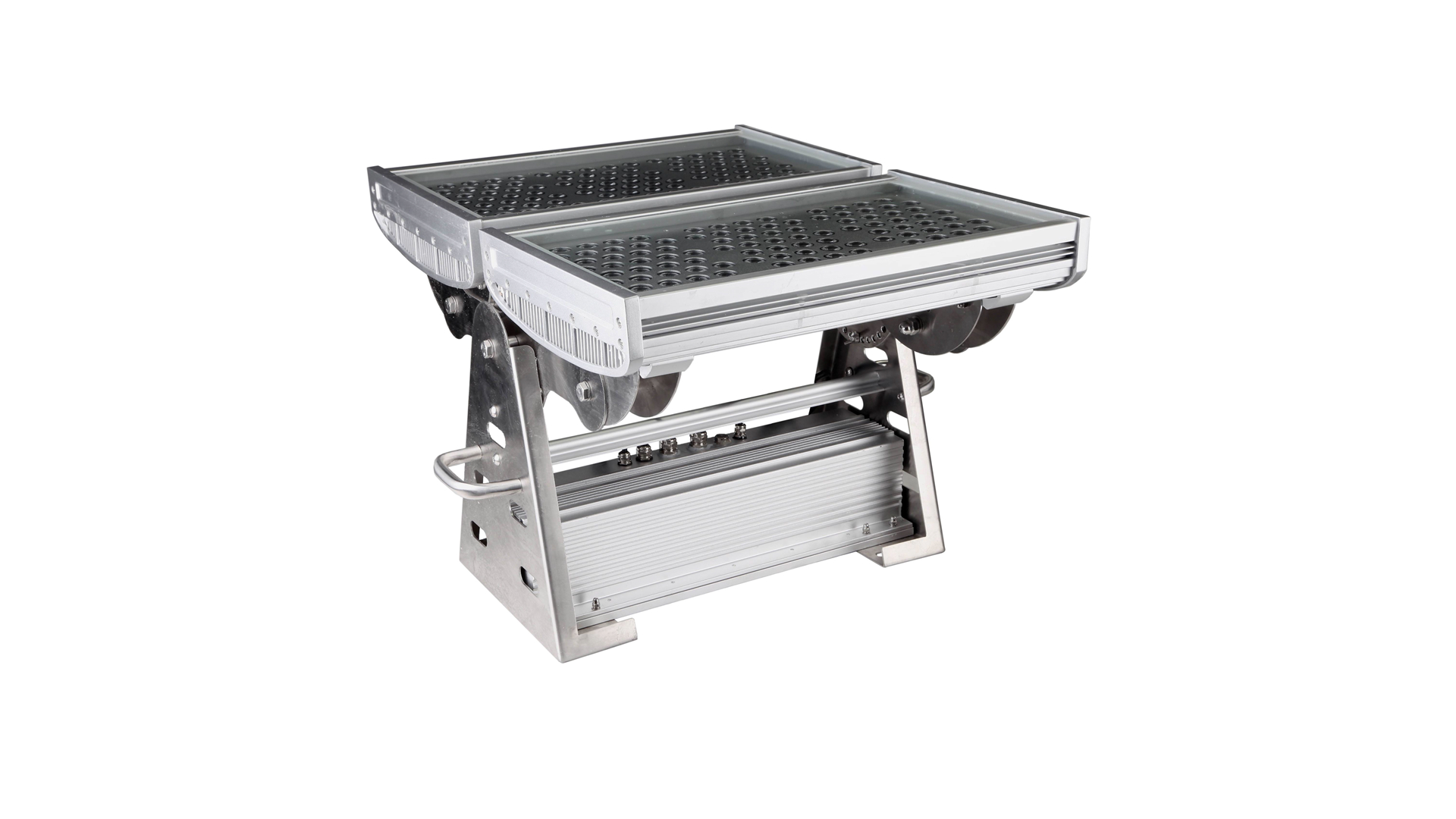

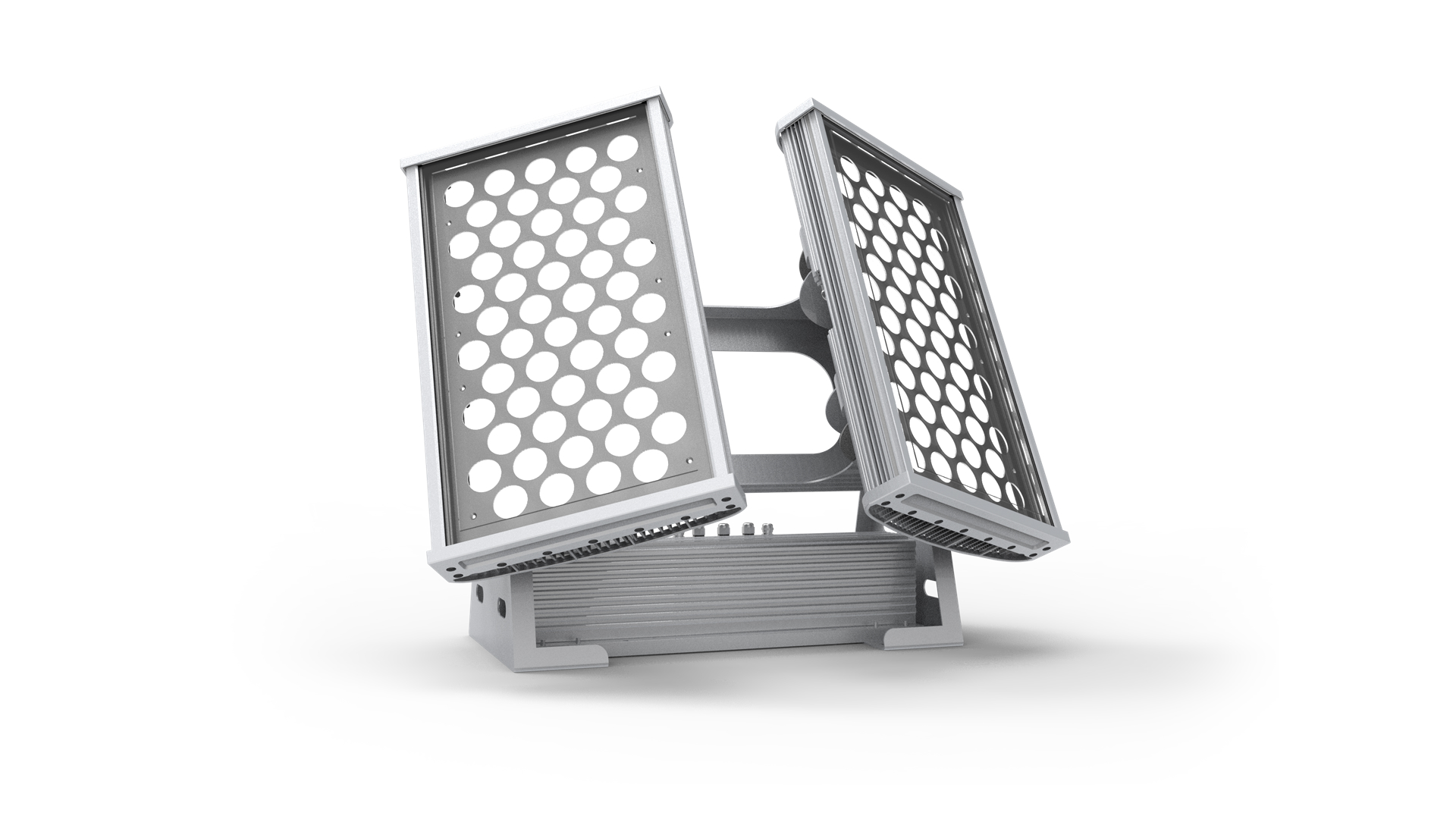

SP-F620A
The SP-F620A is a high-power outdoor architectural LED floodlight designed for building facade, landscape, and large-area lighting. It features a robust aluminum alloy and stainless steel housing, structural waterproofing, a versatile 8°–60° beam angle range, RGB/RGBW color options, and DMX512/RDM control for permanent exterior installations.
Color & Optic
Beam Options
Product Specifications
Model Configuration
| Model | Length | Power (Max) | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|
| SP-F620A-72P | L320mm | 216W | RGBW | 11475lm | Weight: 25.5kg ±5%Qty/Ctn: 1Units/CtnCarton: L59.5 × W35.5 × H40 cm |
| SP-F620A-108P | L320mm | 216W | 2700K3000K4000K5700K RGB | 12500lm 13500lm 7960lm | Weight: 25.5kg ±5%Qty/Ctn: 1Units/CtnCarton: L59.5 × W35.5 × 40 cm |
| SP-F620A-144P | L670mm | 430W | RGBW | 14000lm | Weight: 42.5kg ±5%Qty/Ctn: 1Units/CtnCarton: L70.5 × W69 × H50 cm |
| SP-F620A-216P | L670mm | 430W | 2700K3000K4000K5700K RGB | 15316lm 17000lm 11475lm | Weight: 42.5kg ±5%Qty/Ctn: 1Units/CtnCarton: L70.5 × W69 × H50 cm |
| SP-F620A-54P | L320mm | 216W | RGBW | 5100lm | Weight: 25.5kg ±5%Qty/Ctn: 1Units/CtnCarton: L59.5 × W35.5 × 40 cm |
| SP-F620A-108P | L320mm | 430W | RGBW | 13000lm | Weight: 42.5kg ±5%Qty/Ctn: 1Units/CtnCarton: L70.5 × W69 × H50 cm |
Configuration summary: SP-F620A 216W and 430W power levels, RGB and RGBW options, multiple beam angles, DMX512/RDM control, IP65, IK08, ETL listed and CE certified.
Advantages
High-Efficiency Power Output
Maximum power of 430W with high brightness and low energy consumption, perfectly meeting large-area lighting demands.
DMX512 / RDM Control
High-voltage input with DMX512/RDM control for flexible, precise operation and dynamic lighting effects.
New Narrow Beam Angle
8° narrow beam option available with excellent color mixing effect in RGBW mode.
Sturdy Construction
6063 aluminum lamp body with anti-oxidation surface treatment, delivering high heat dissipation and corrosion resistance.
High Power and Cost-Effective
Maximum power up to 430W, delivering outstanding cost-performance ratio for large-scale projects.
3-Year Warranty
Standard 3-year warranty covering the complete assembly under normal outdoor operating conditions.
Application Scenarios

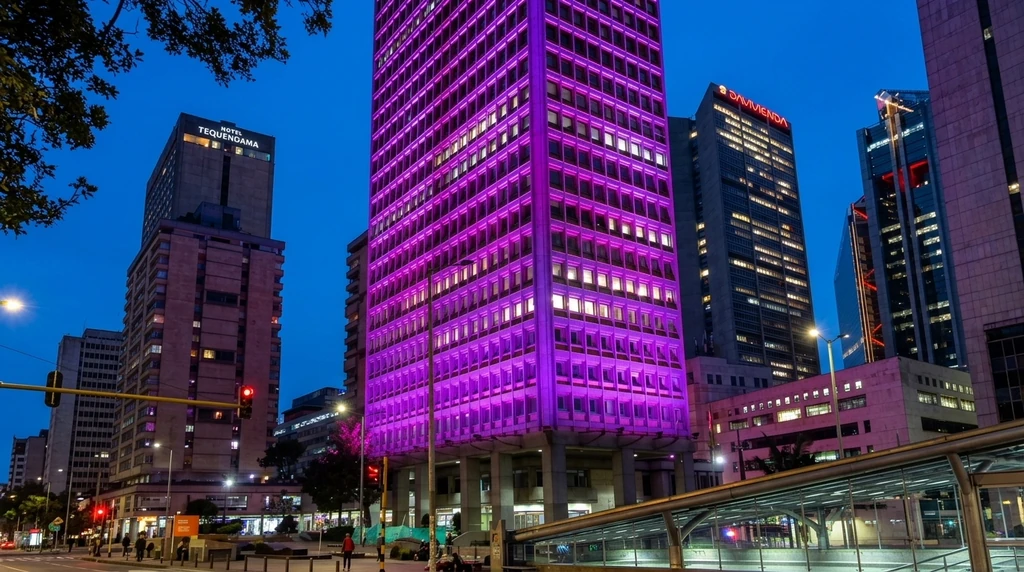

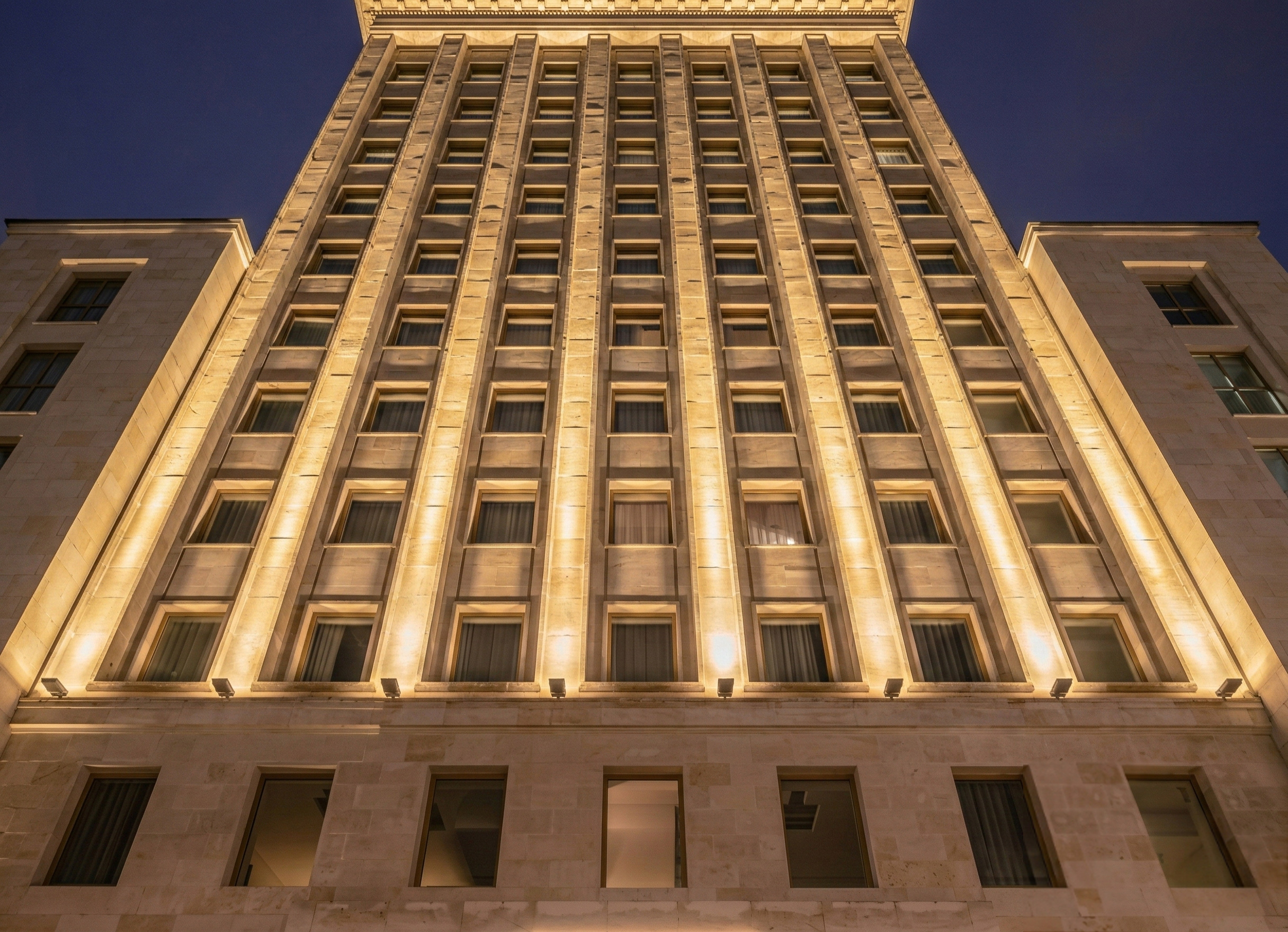

Building Facade Lighting
For commercial building facades, curtain walls, and architectural structures requiring high-power, dynamic color illumination and long-distance beam projection.
Bridge and Infrastructure Lighting
For bridge structures, guardrails, and large public infrastructure projects where high output and precise beam control are essential.

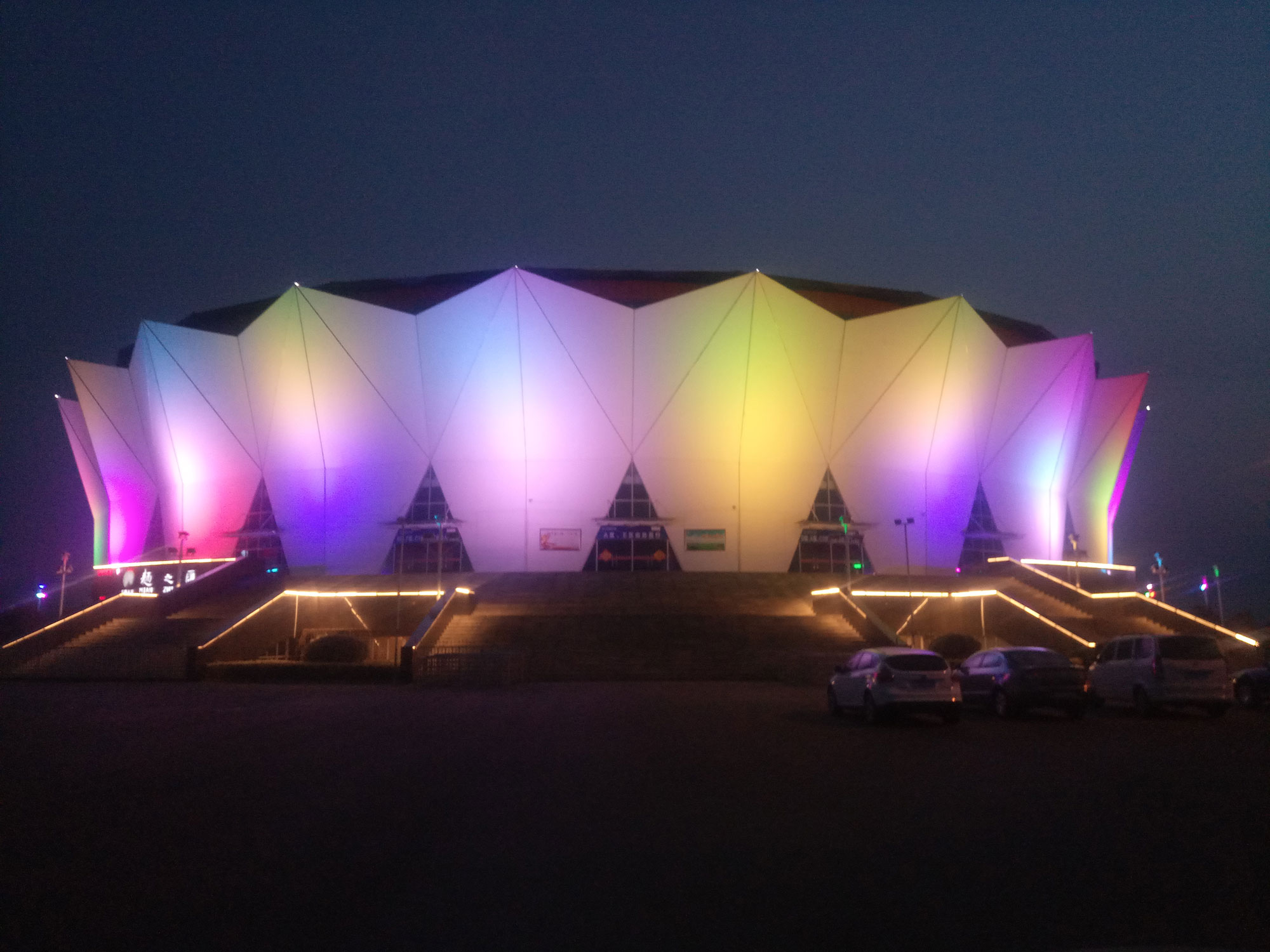

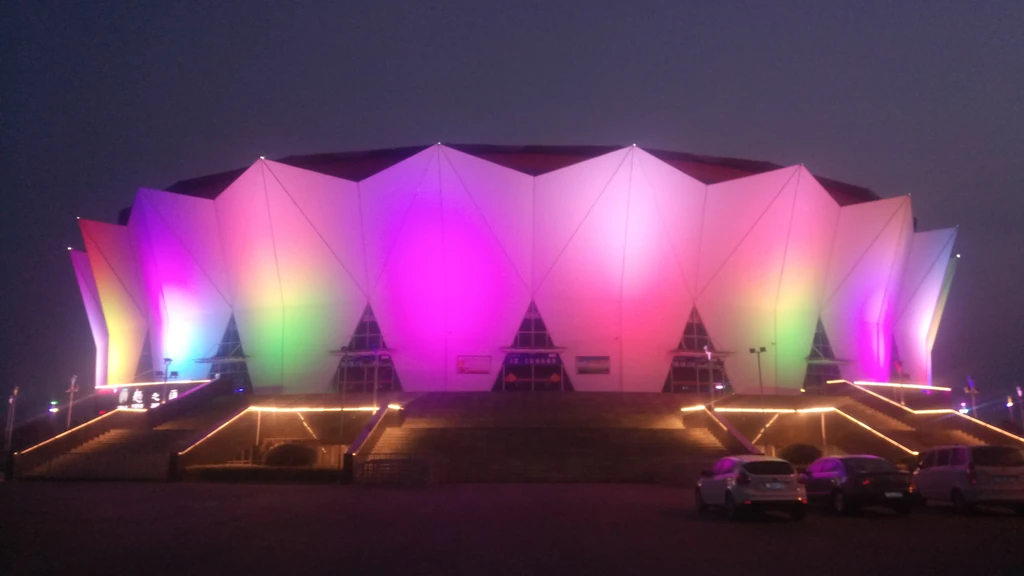

Landmark and Landscape Lighting
For national landmarks, towers, parks, and public plazas where high-power RGBW and narrow beam shaping creates iconic nightscapes.
Hotel and Retail Exterior Lighting
For hotel entrances, retail facades, and commercial plazas requiring warm white and dynamic color atmospheres.
SP-F620A is designed for permanent outdoor architectural lighting projects where high power, narrow beam control, weather resistance and dynamic color are critical.
Impressions
