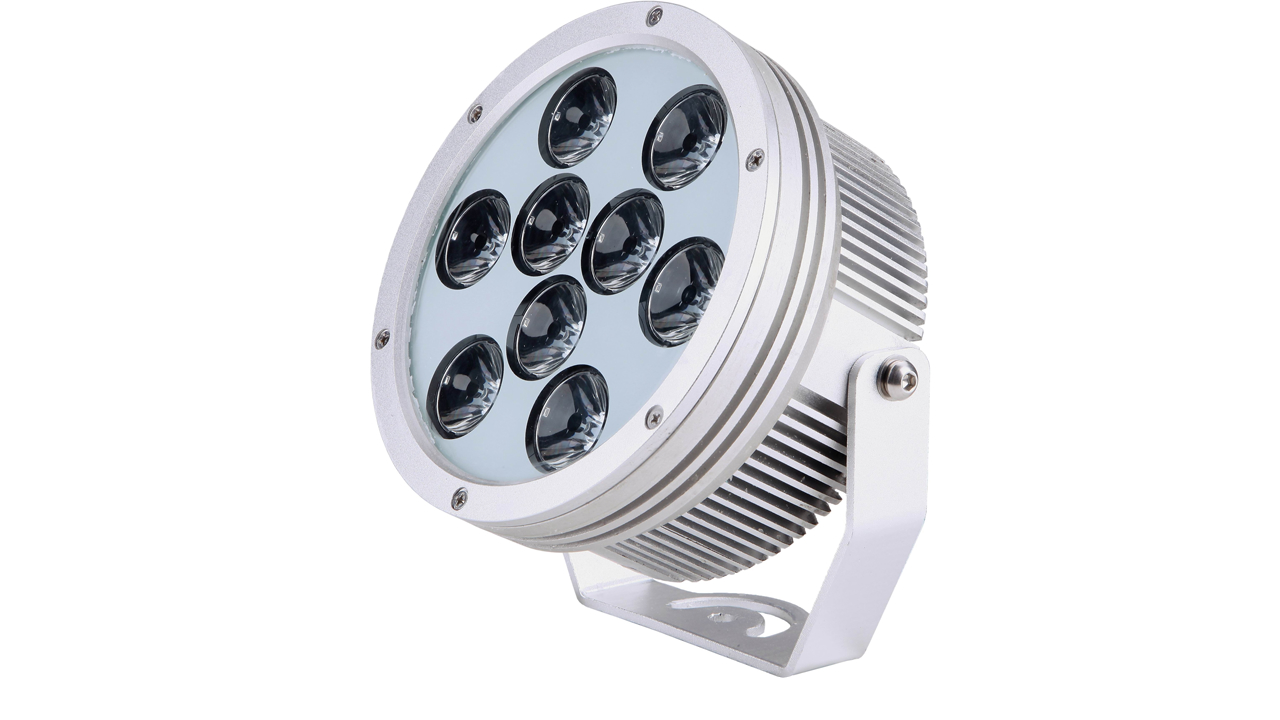

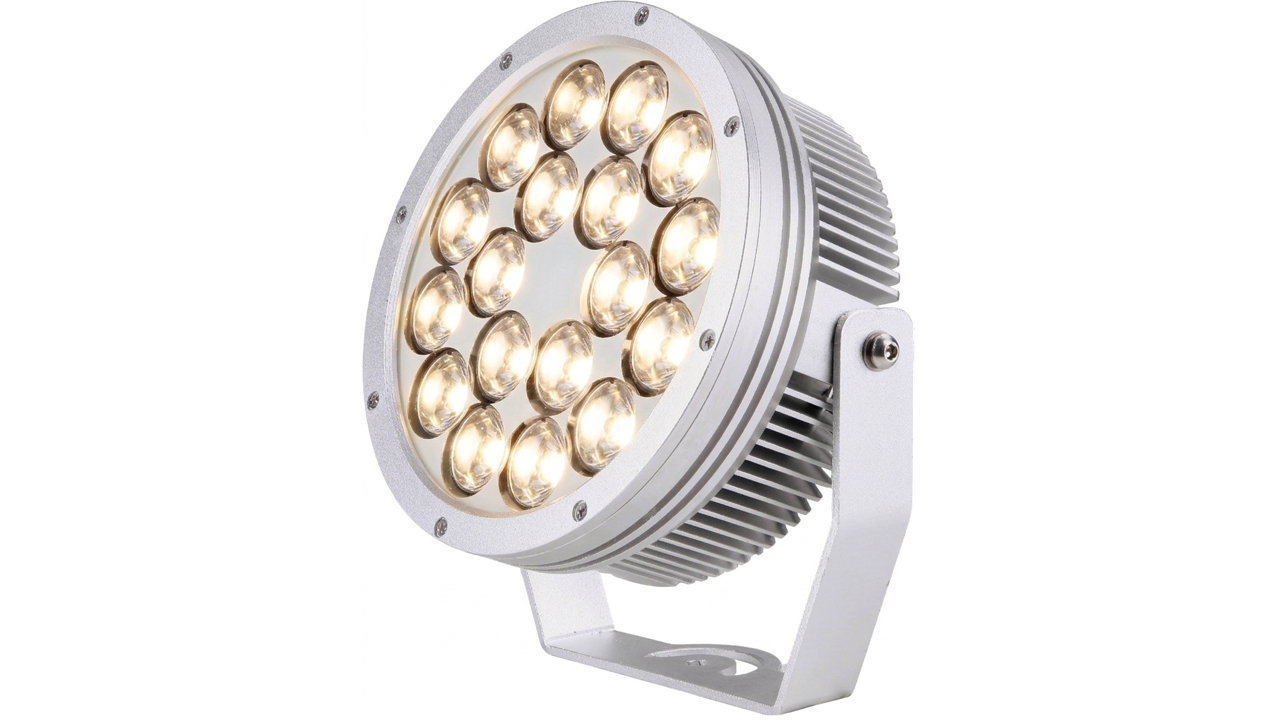

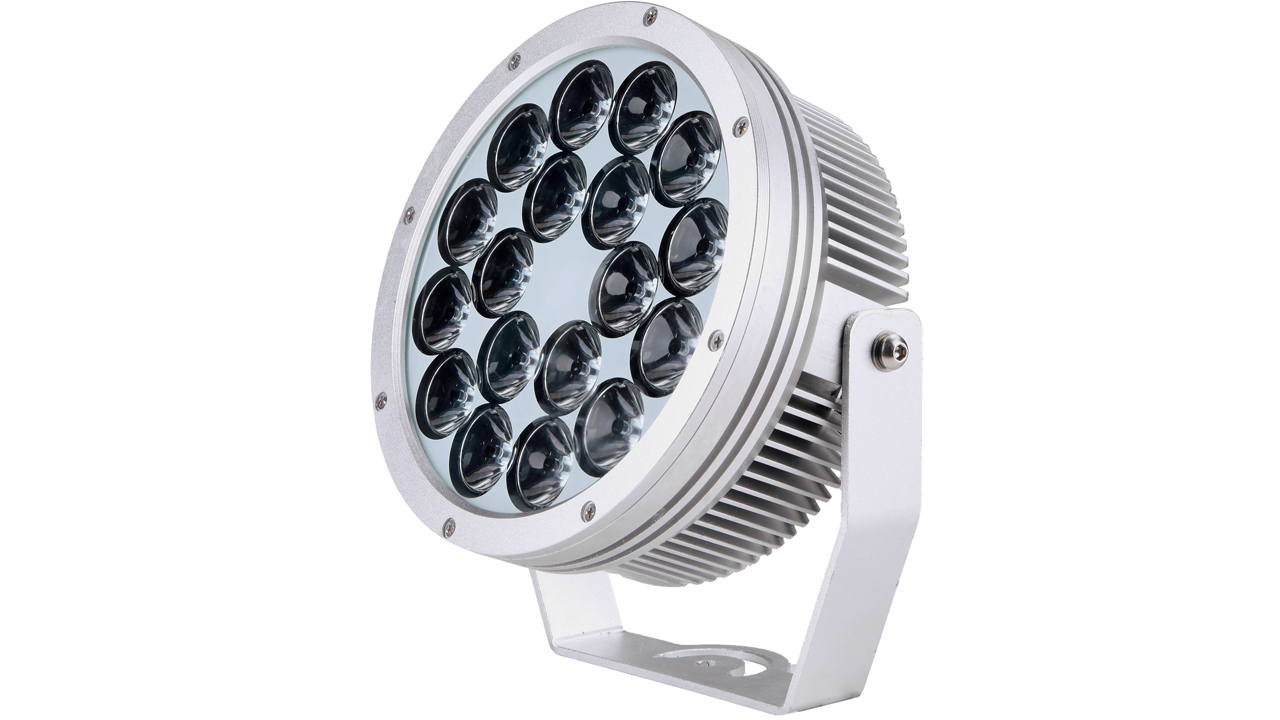

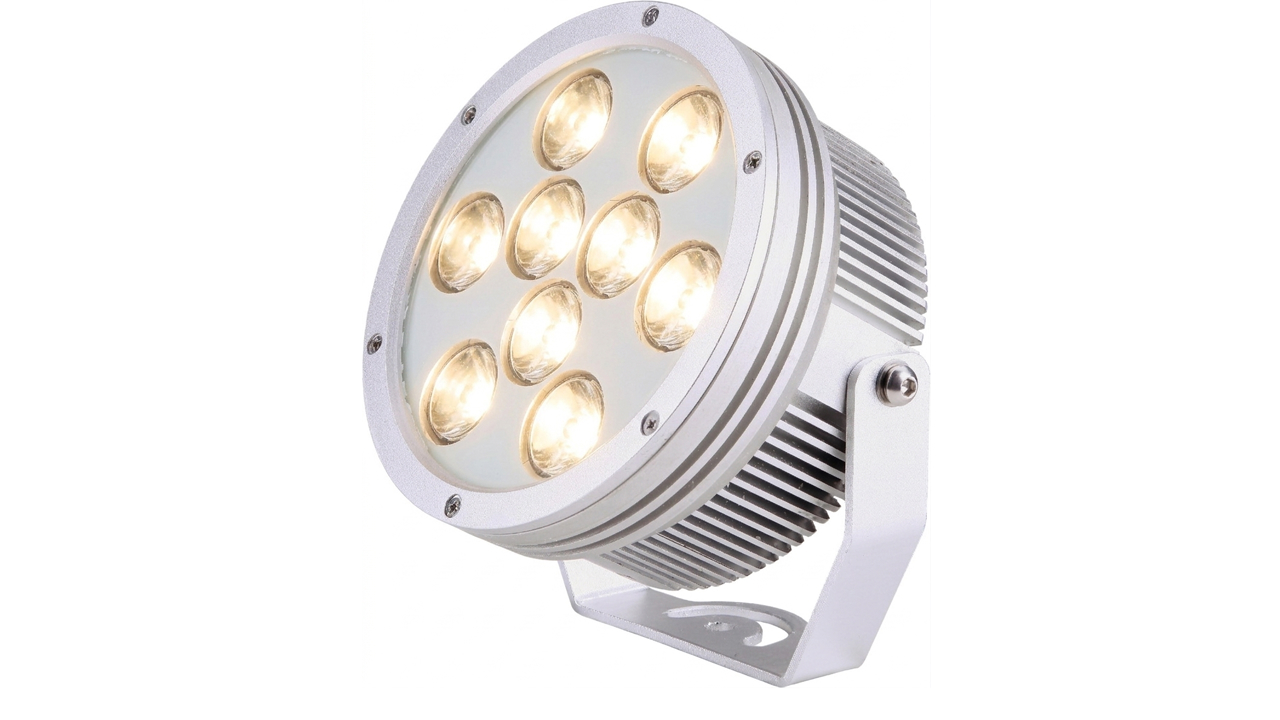

SP-EA-R195/R225
The SP-EA-R195/R225 is a compact high-power outdoor architectural LED floodlight designed for building facade, landscape, and accent lighting. It combines a durable 6063 aluminum housing, structural waterproofing, multiple beam angles, RGB/RGBW color options, and DMX512/RDM control for permanent exterior installations.
Color & Optic
Beam Options
Product Specifications
Model Configuration
| Model | Diameter | Power (Max) | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|
| SP-EA-R195A-6P | φ195mm | 20W | RGBW | 1422 lm | Weight: 3.1kg ±5%Qty/Ctn: 4 pcsCarton: 58.5 × 30 × 57.5 cm |
| SP-EA-R195A-9P | φ195mm | 20W | 2700K3000K4000K5700K RGB | 3077 lm 714 lm | Weight: 3.1kg ±5%Qty/Ctn: 4 pcsCarton: 58.5 × 30 × 57.5 cm |
| SP-EA-R225A-12P | φ225mm | 40W | RGBW | 2464 lm | Weight: 4.5kg ±5%Qty/Ctn: 4 pcsCarton: 61.5 × 31.5 × 60 cm |
| SP-EA-R225A-18P | φ225mm | 40W | 2700K3000K4000K5700K RGB | 5518 lm 1778 lm | Weight: 4.5kg ±5%Qty/Ctn: 4 pcsCarton: 61.5 × 31.5 × 60 cm |
Configuration summary: RGBW, tunable white, and RGB options, power range 20W–40W across two diameters (R195, R225), multiple beam angles, DMX512/RDM control, IP65, IK08, ETL listed and CE certified.
Advantages
Efficient Power Output
Up to 40W high brightness with low energy consumption, perfectly meeting accent and facade lighting needs.
DMX512 / RDM Control
High-voltage input with DMX512/RDM for flexible, precise operation and dynamic lighting effects.
Narrow Beam Angle Option
8° narrow beam available, with excellent color mixing in RGBW mode for focused illumination.
Sturdy Construction
6063 aluminum alloy body with anti-oxidation surface treatment, delivering high heat dissipation and corrosion resistance.
Compact and Cost-Effective
Maximum power up to 40W in a compact form factor, providing an outstanding cost-performance ratio.
3-Year Warranty
Standard 3-year warranty covering the complete assembly under normal outdoor operating conditions.
Application Scenarios

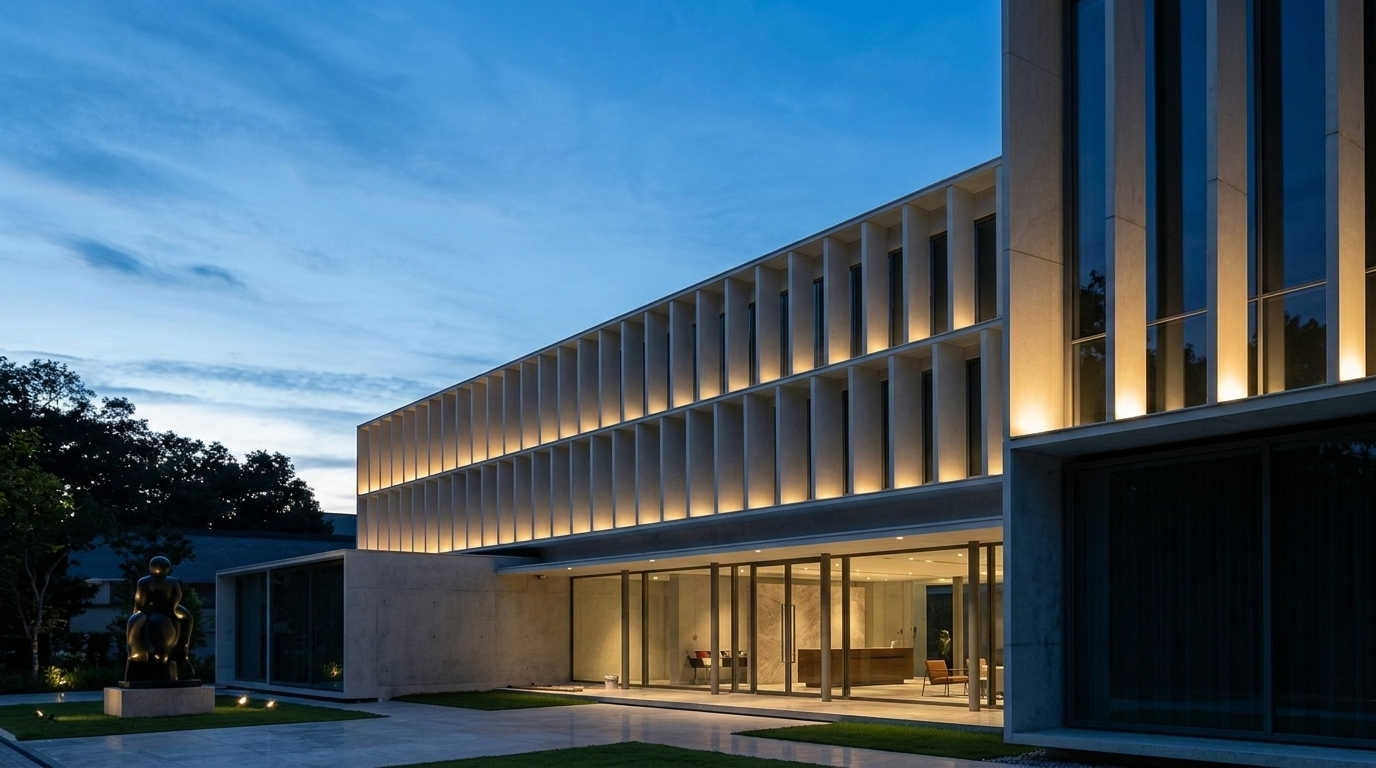

Building Facade Lighting
For commercial building facades, curtain walls, and architectural structures requiring dynamic color and precise beam control.
Bridge and Infrastructure Lighting
For bridge structures, guardrails, and public infrastructure where compact high-power fixtures are required.
Landscape and Accent Lighting
For parks, plazas, and landscape features where narrow beam and dynamic color create dramatic effects.

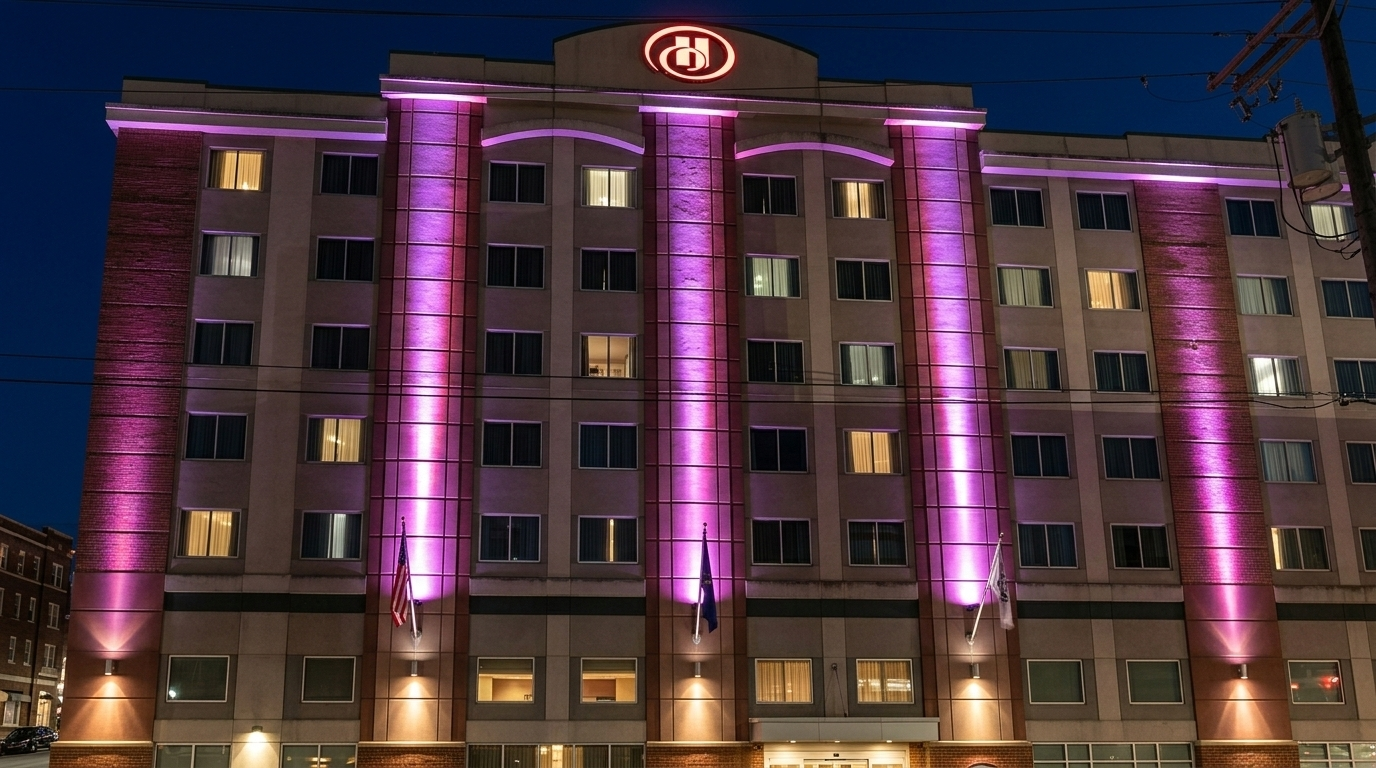

Hotel and Retail Exterior Lighting
For hotel entrances, retail facades, and commercial plazas requiring warm white and dynamic color atmospheres.
SP-EA-R195/R225 is designed for permanent outdoor architectural lighting projects where compact size, beam control, weather resistance and dynamic color are critical.
