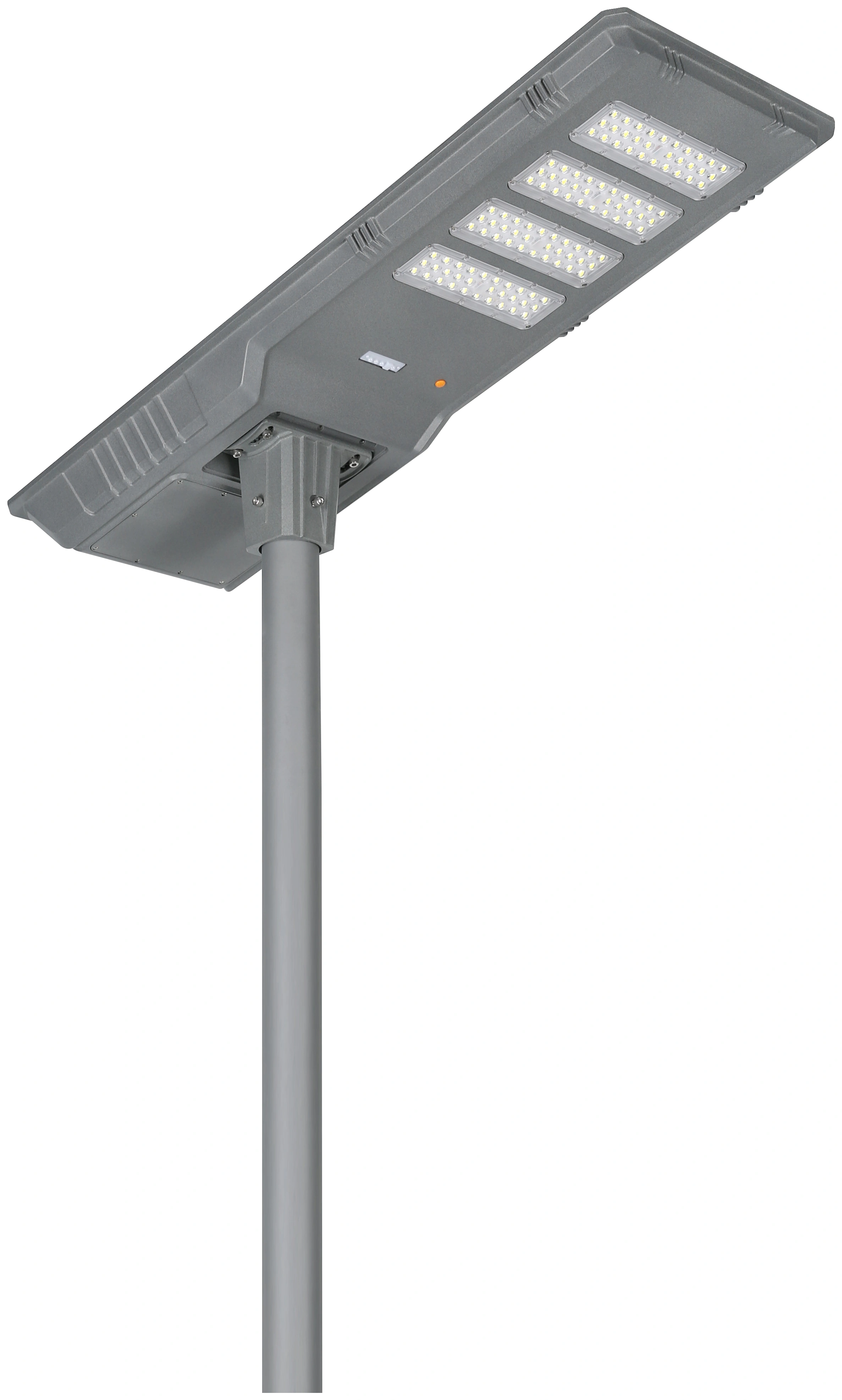

SSL-8060
Starry Sky Series
Heavy-duty architectural all-in-one solar street light engineered for municipal roadways, industrial logistics parks, highway access ramps, and commercial boulevard thoroughfares.
Engineered for highways.
Built to endure.
Type II-M roadway optics.

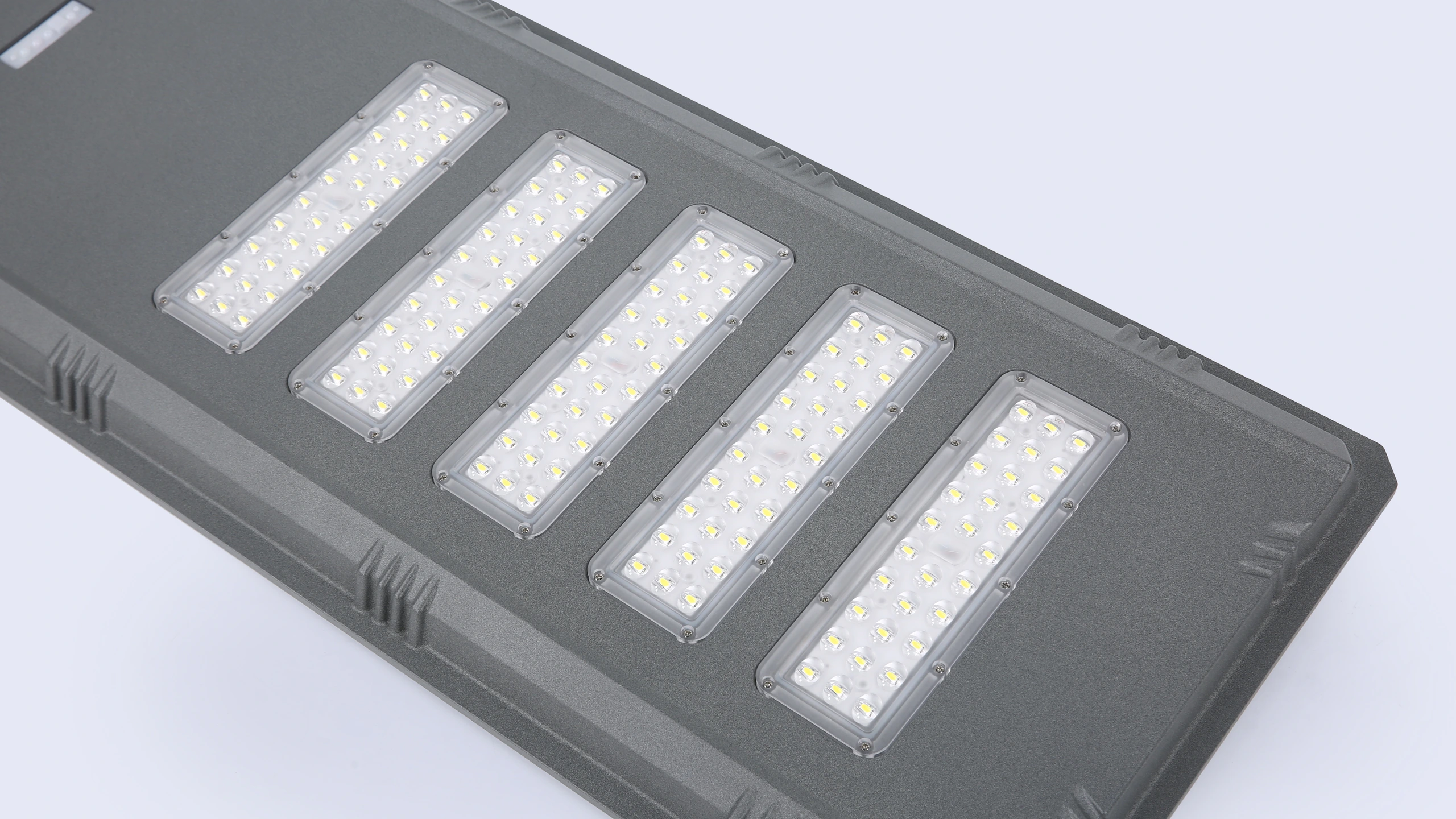

Engineered with precision optical PMMA batwing lenses tailored for multi-lane thoroughfares and industrial corridors, projecting a wide 140°×70° asymmetrical beam pattern that eliminates dark spots between poles while preventing oncoming glare.

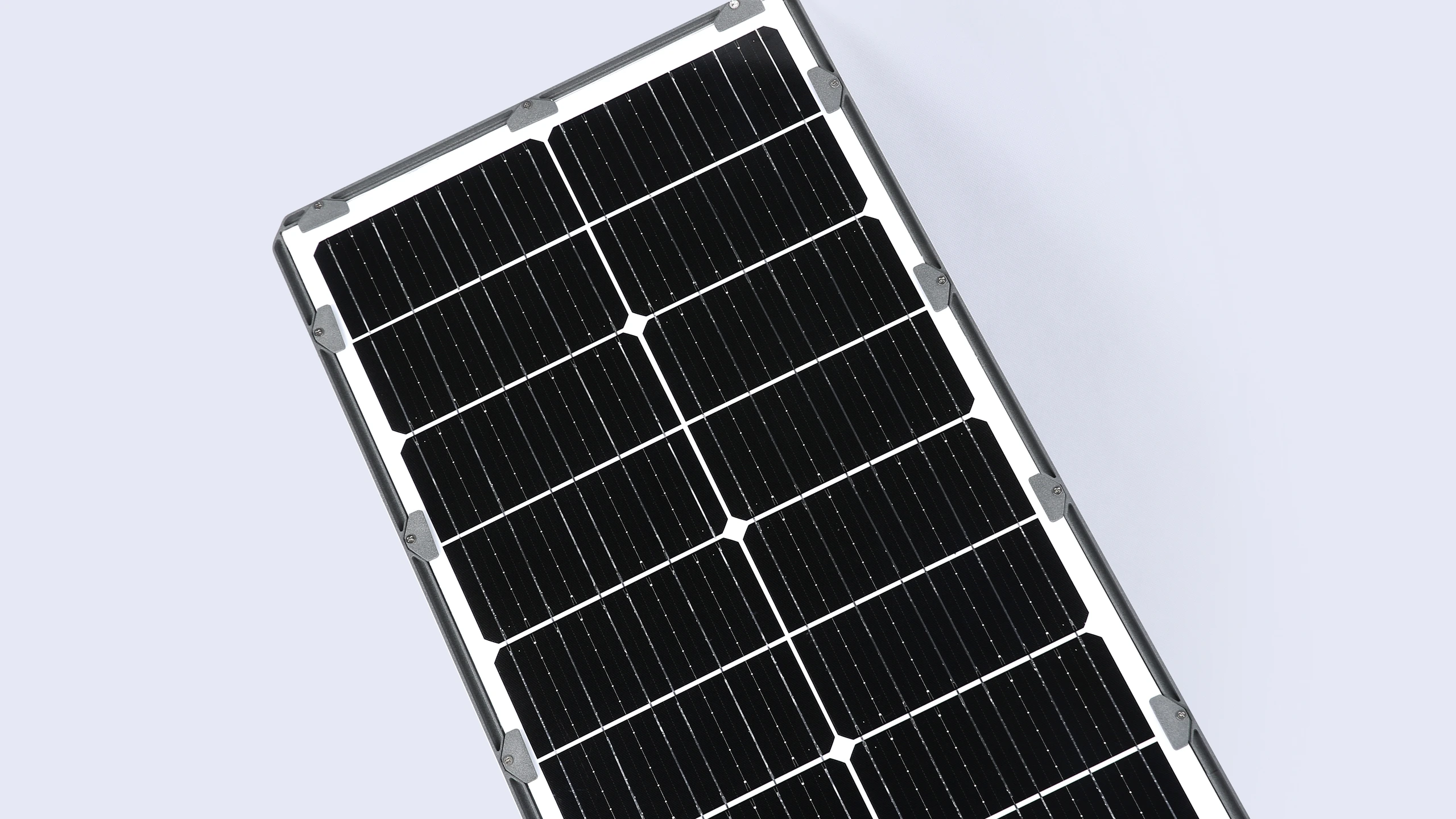

High-yield monocrystalline integration.
Top-mounted high-conversion Grade-A monocrystalline silicon solar array reaching up to 120W peak power. Paired with integrated automotive-grade LiFePO4 cells and intelligent MPPT control, it guarantees over 3 consecutive rainy days of dusk-to-dawn lighting.

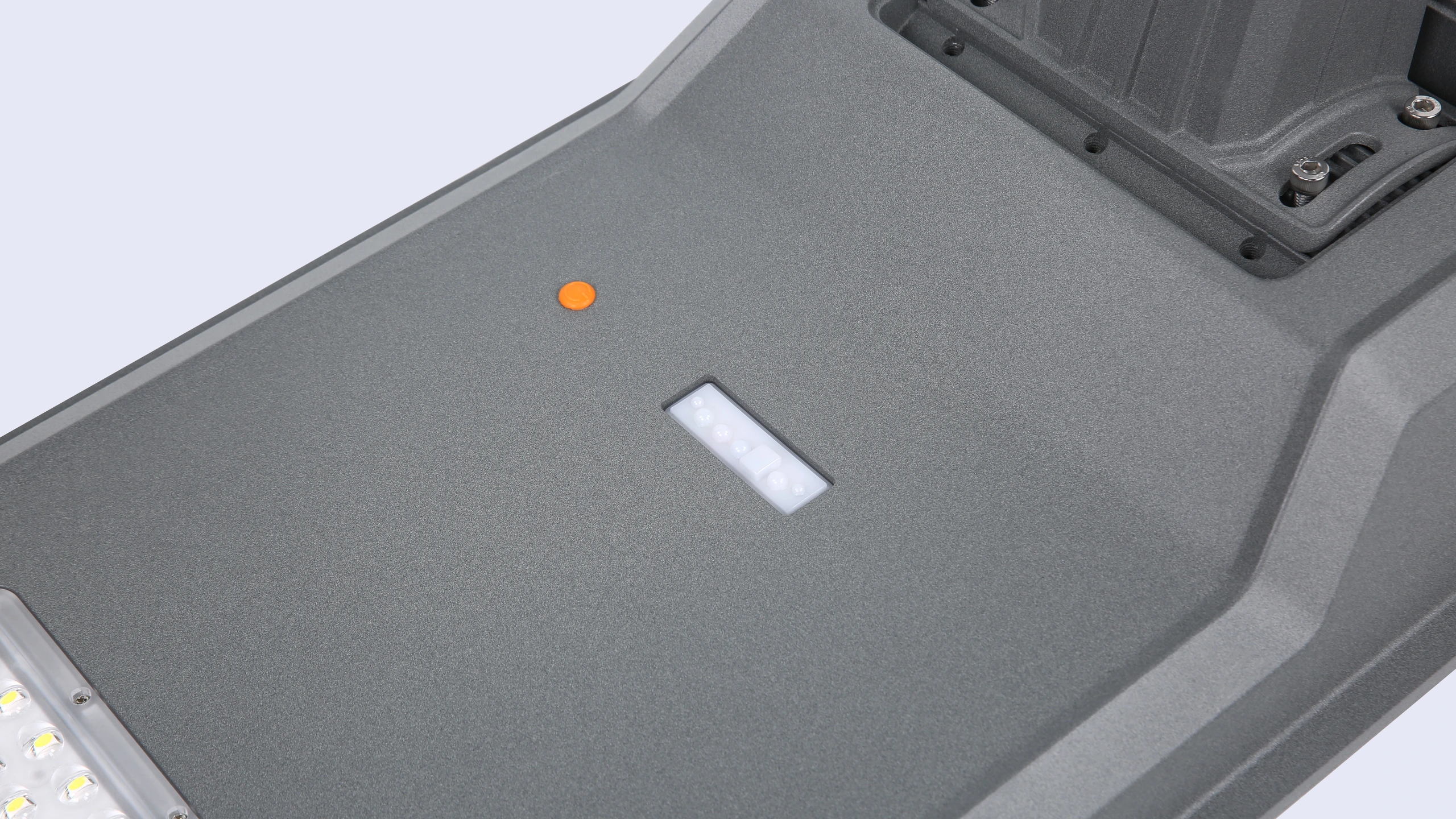

Heavy-duty ADC12 unibody chassis.
Aerospace-grade ADC12 die-cast aluminum housing finished with anodic oxidation and anti-corrosion exterior powder coat. Features an internal reinforced heat-dissipation rib matrix and dual-fit Ø76mm / Ø60mm spigot receiver with stainless-steel hardware.
One architecture.
Three configurations.

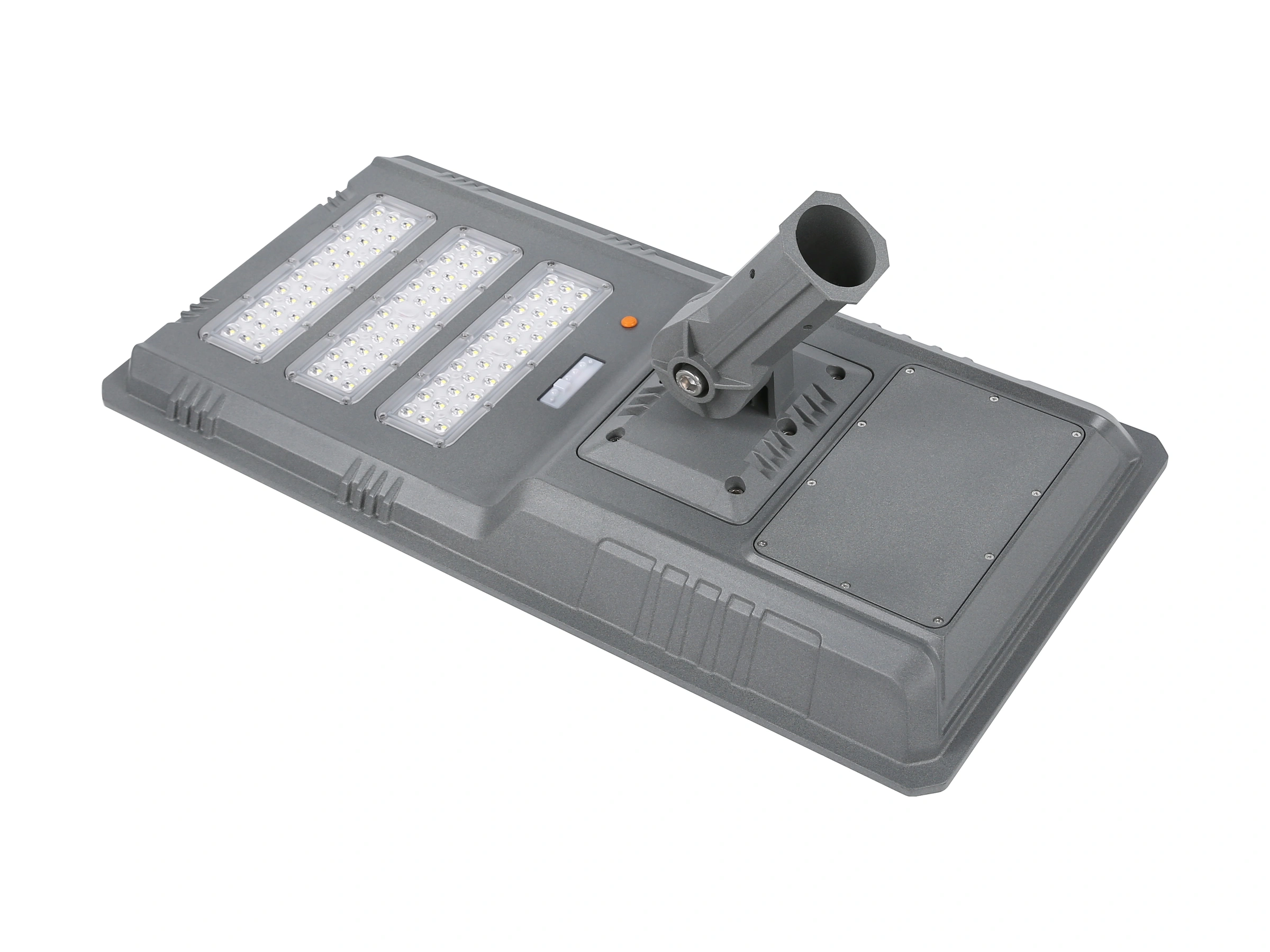

SSL-8060-60W · Standard Roadway (60W / 5,668 lm)
5,668 lm · 18V / 60W Monocrystalline PV
3.2V / 80Ah (256Wh) LiFePO4
Die-cast Aluminum · IP65 Weatherproof
Ø76 mm / Ø60 mm Spigot Mount · Pole Not Included
Technical specifications.
| Model Configuration | System Power | Luminous Output | Solar PV Array | LiFePO4 Storage | Luminaire Dimensions | Mounting Spigot | Net / Gross Weight |
|---|---|---|---|---|---|---|---|
| SSL-8060-60WStandard Municipal Roadway | 60W | 5,668 lm | 18V / 60W Mono | 3.2V / 80Ah (256Wh) | 823 × 416 × 200 mm | Ø76 mm / Ø60 mm | 10.88 kg / 14.37 kg |
| SSL-8090-90WCommercial Boulevard Thoroughfare | 90W | 7,652 lm | 18V / 90W Mono | 3.2V / 120Ah (384Wh) | 1180 × 416 × 200 mm | Ø76 mm / Ø60 mm | 14.37 kg / 15.30 kg |
| SSL-8120-120WHeavy-Duty Highway Flagship | 120W | 10,857 lm | 18V / 120W Mono | 3.2V / 150Ah (480Wh) | 1590 × 416 × 200 mm | Ø76 mm / Ø60 mm | 18.25 kg / 20.81 kg |
Light distribution.

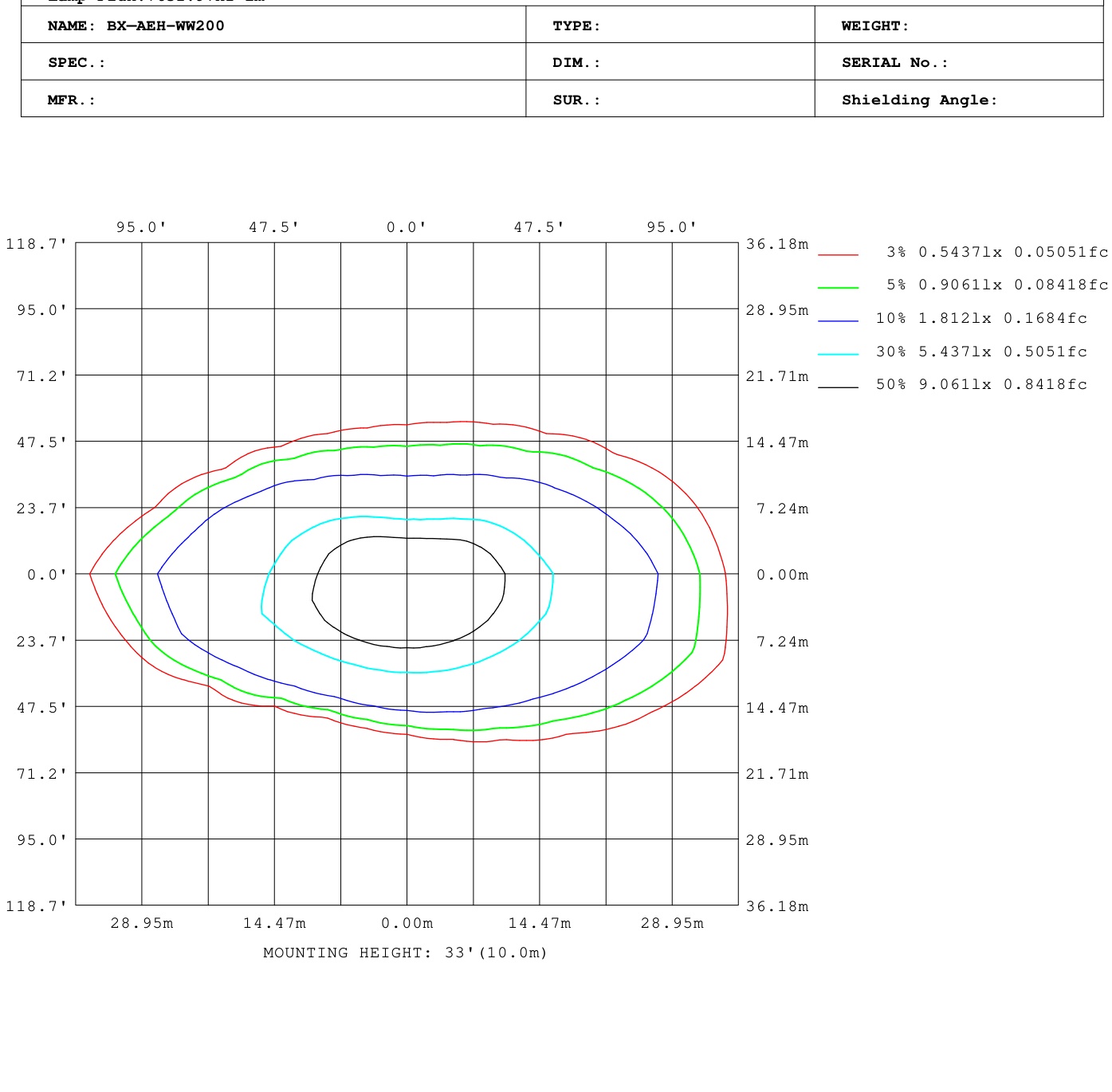

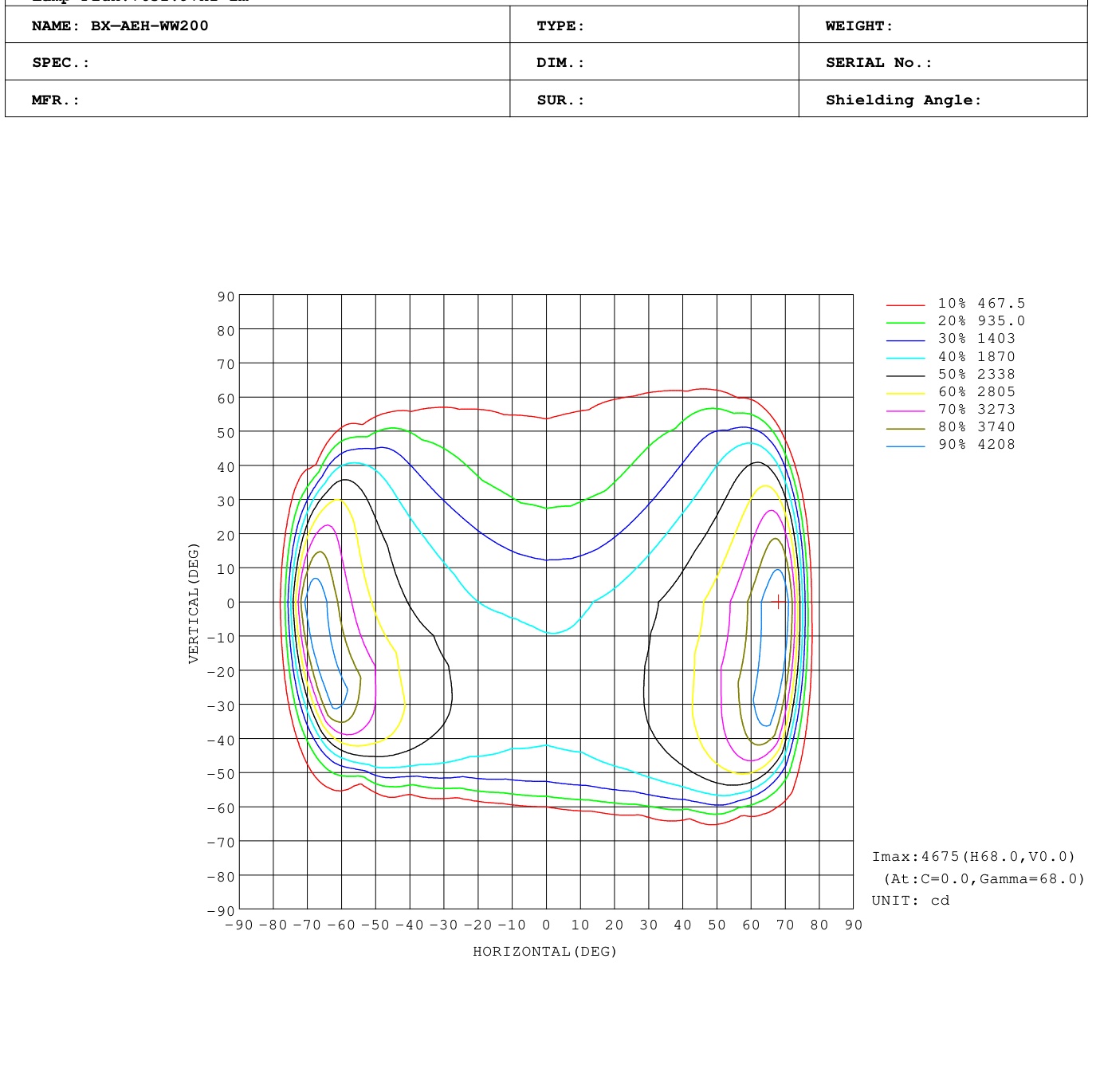

Optical distributions
Mounting height simulation
| Mounting Height | Coverage Area | Center Lux | Average Lux |
|---|---|---|---|
| 5.0 meters (16.4 ft) | 18m × 8m | 48.5 lx | 24.2 lx |
| 6.0 meters (19.7 ft) | 21m × 9m | 35.0 lx | 18.6 lx |
| 7.0 meters (23.0 ft) | 24m × 10m | 26.8 lx | 14.1 lx |
| 8.0 meters (26.2 ft) | 28m × 12m | 20.5 lx | 11.0 lx |

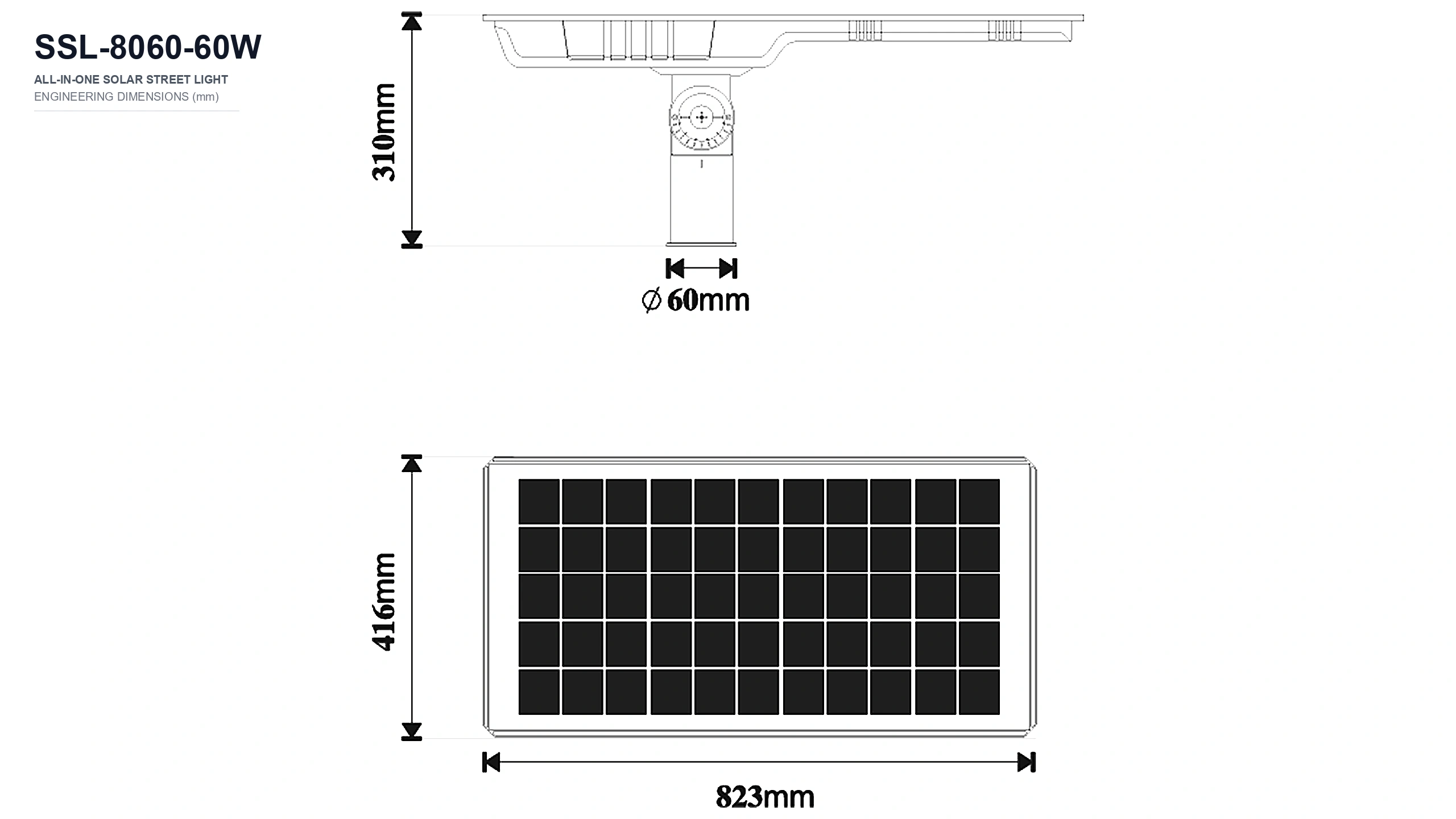

Dimensions & drawings.

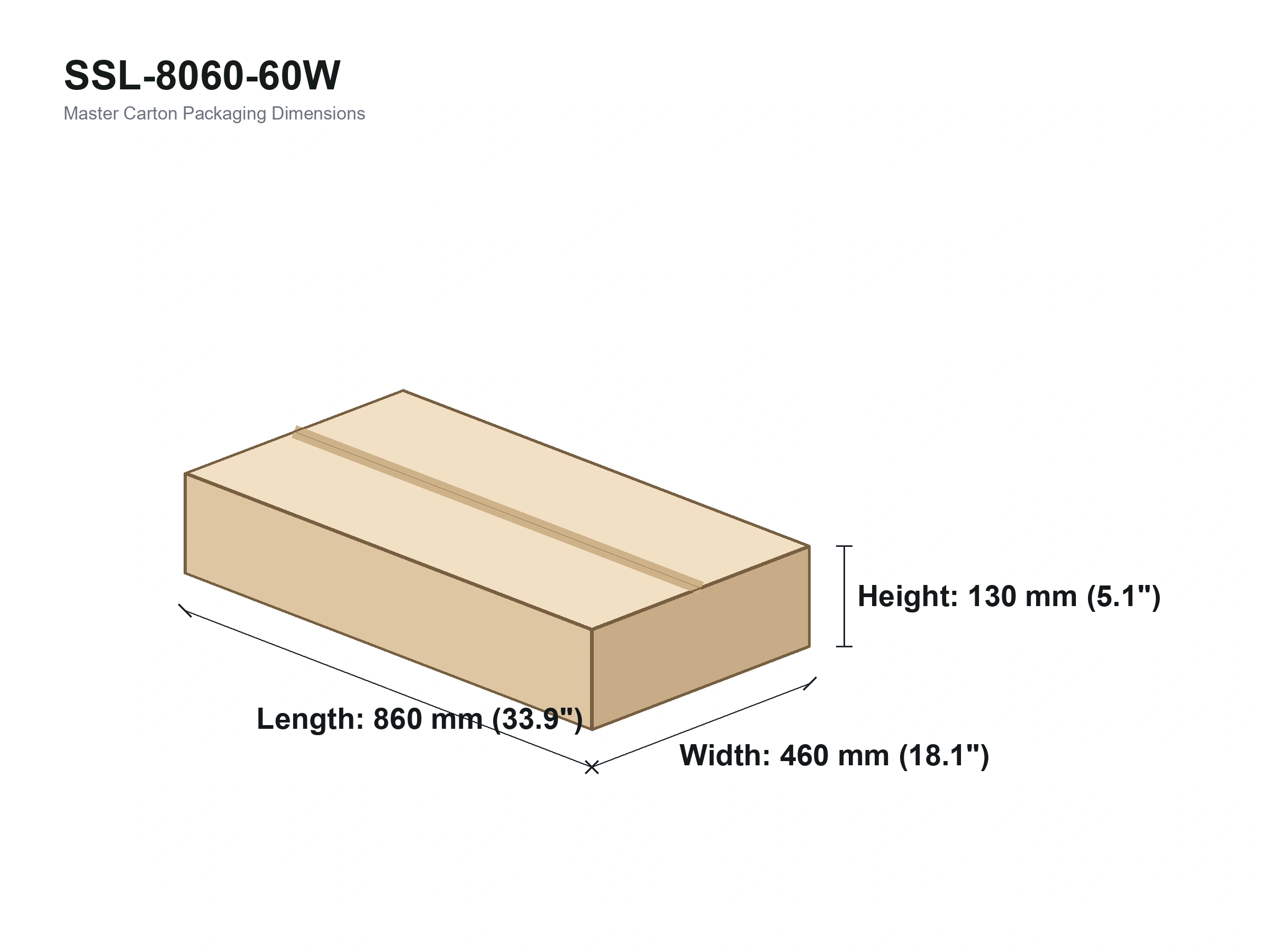

Packaging & logistics.
SSL-8060-60W · Standard Roadway (60W)
Luminaire: 860 × 130 × 460 mm · Spigot: 200 × 160 × 170 mm
Net Weight: 10.88 kg · Gross Weight: 14.37 kg (2 Cartons / Set)
20'GP: 496 Sets · 40'GP: 1,028 Sets · 40'HQ: 1,205 Sets
Applications.

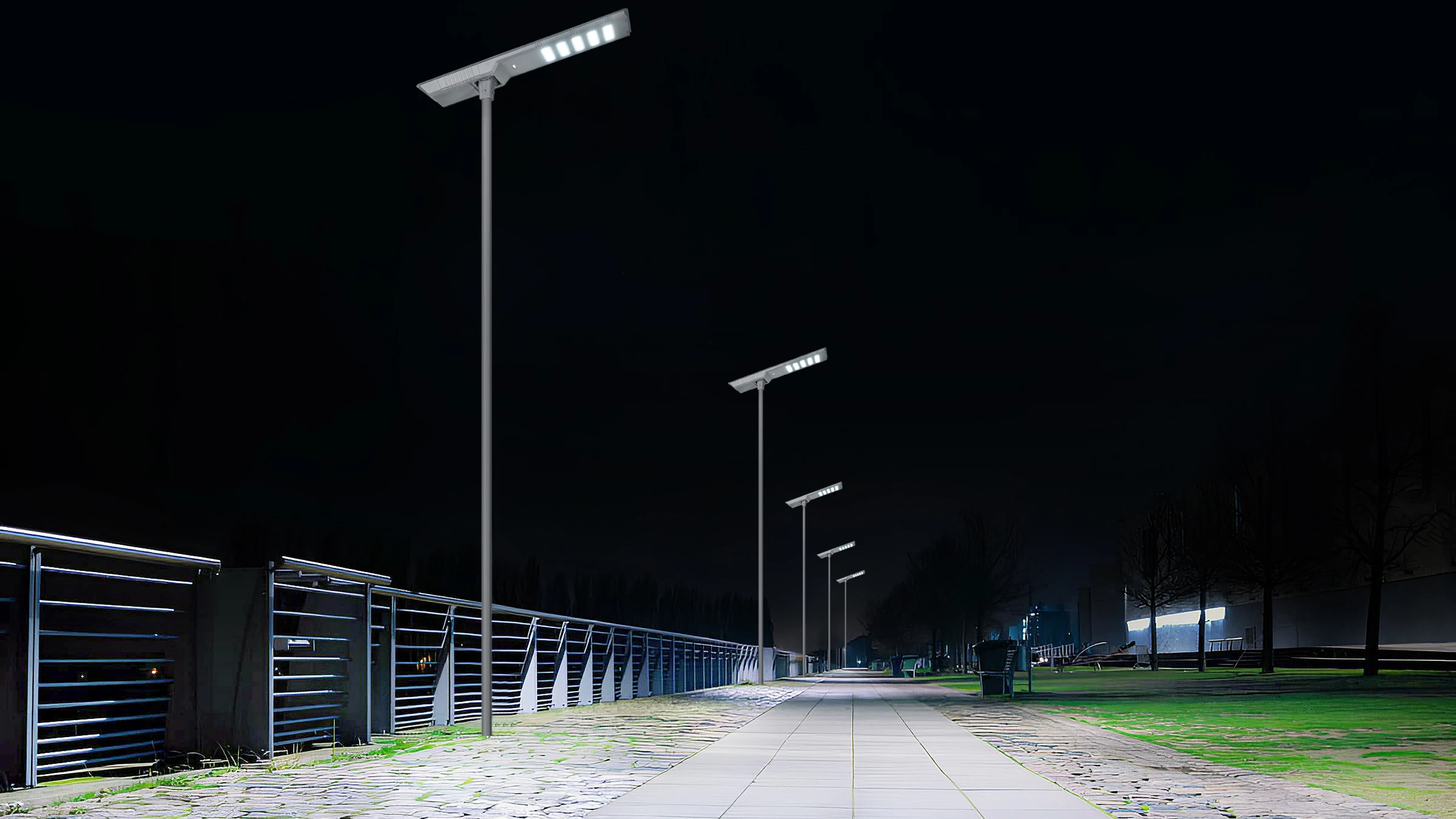

Municipal arterial roadway lighting

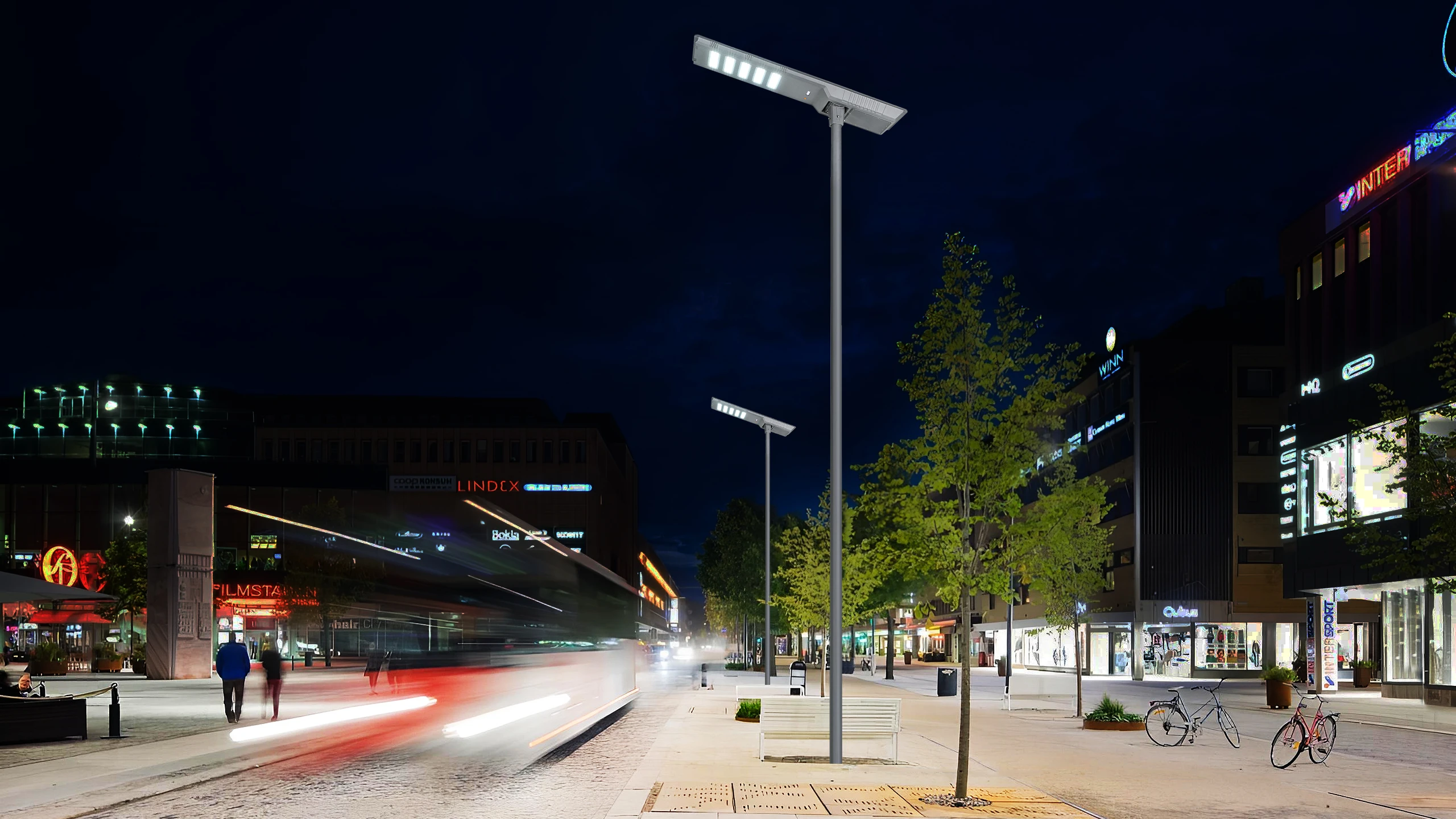

Industrial logistics park perimeter

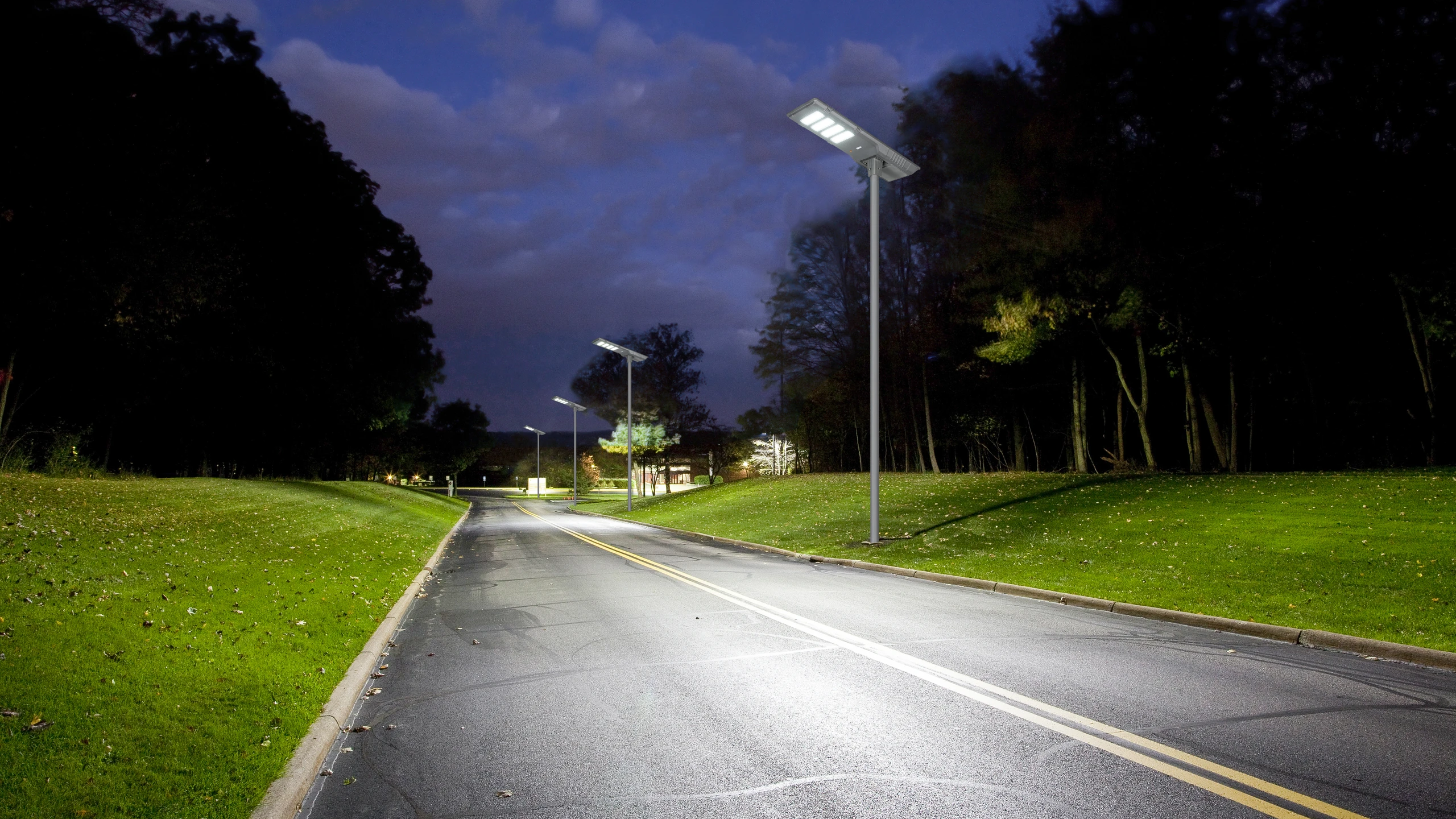

Commercial boulevard thoroughfare

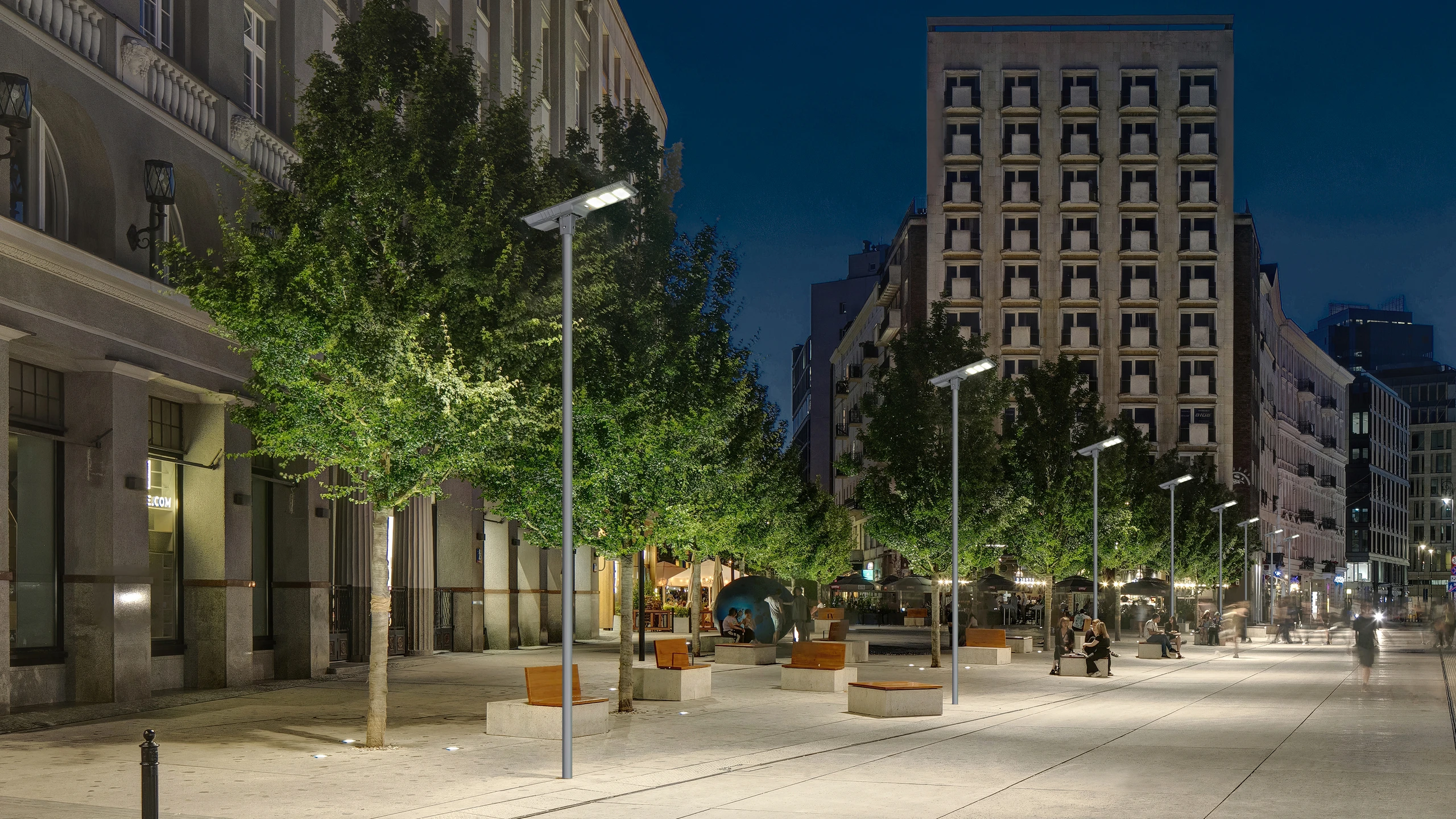

Highway interchange access corridor
Frequently asked questions.
How does the luminaire maintain illumination during consecutive rainy or cloudy days?
The system integrates automotive-grade Grade-A LiFePO4 battery packs (up to 480Wh / 512Wh) matched with high-efficiency 18V monocrystalline solar modules and an intelligent MPPT charge controller. Even under sustained overcast weather, the system regulates power output automatically to sustain over 3 consecutive nights of uninterrupted dusk-to-dawn lighting.
What pole diameter is required, and is the mounting bracket angle adjustable?
The heavy-duty ADC12 die-cast mounting spigot fits standard commercial Ø76 mm or Ø60 mm pole tenons. An optional heavy-duty adjustable knuckle adapter is available, permitting 0° to 90° tilt angle calibration to optimize solar harvest angle and roadway target lux on site.
What smart operating modes are supported, and does it require external wiring?
The SSL-8060 is a 100% self-contained all-in-one solar fixture requiring zero trenching or grid cabling. It operates automatically via integrated solar dusk-to-dawn sensing combined with programmable multi-stage time dimming profiles configured prior to shipment.
