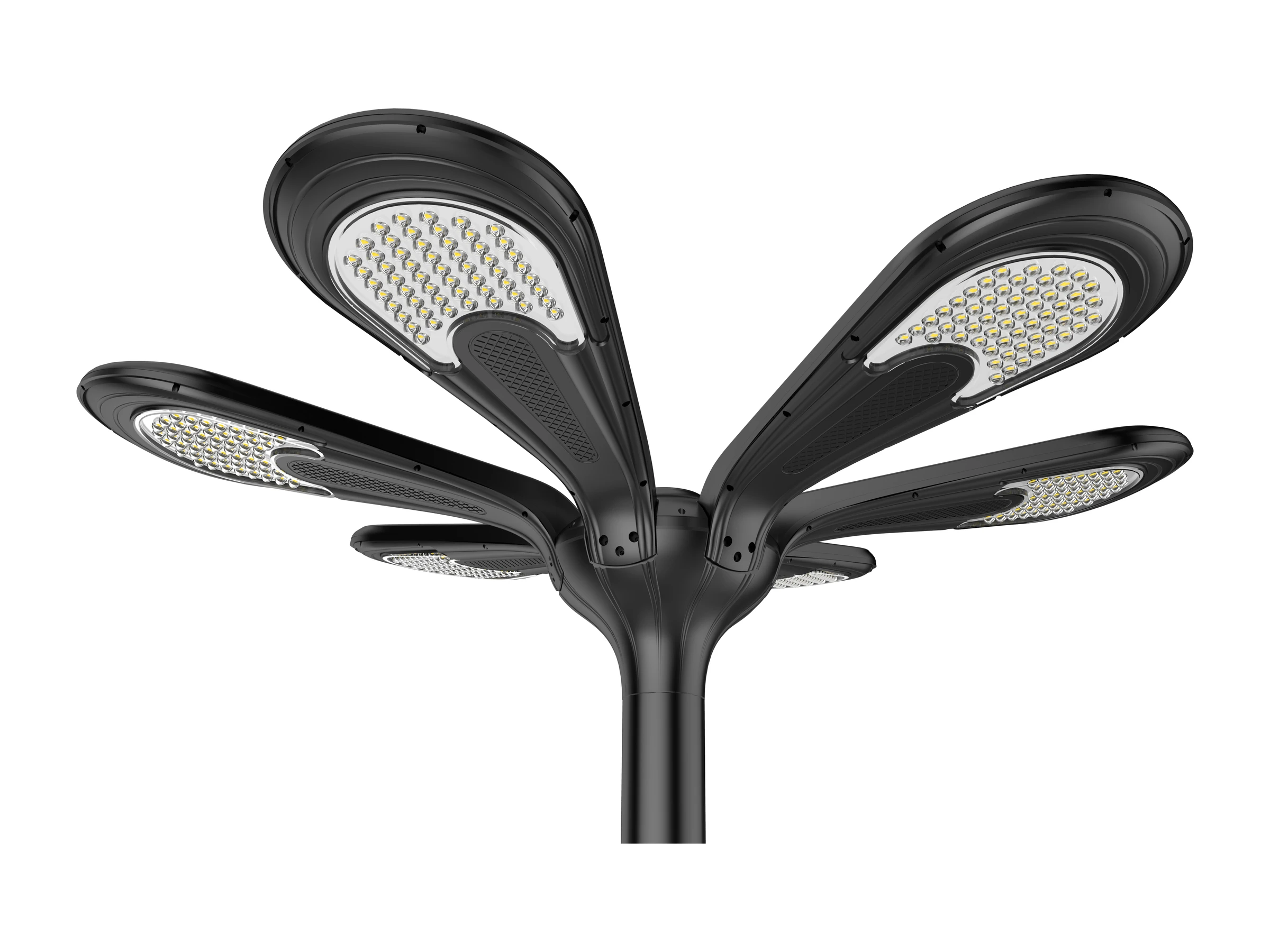

SSL-5105
Flourishing Lotus Series
Commercial architectural post-top luminaire engineered for civic plazas, municipal pathways, botanical gardens, and premium villa promenades.
Architectural form.
Public presence.

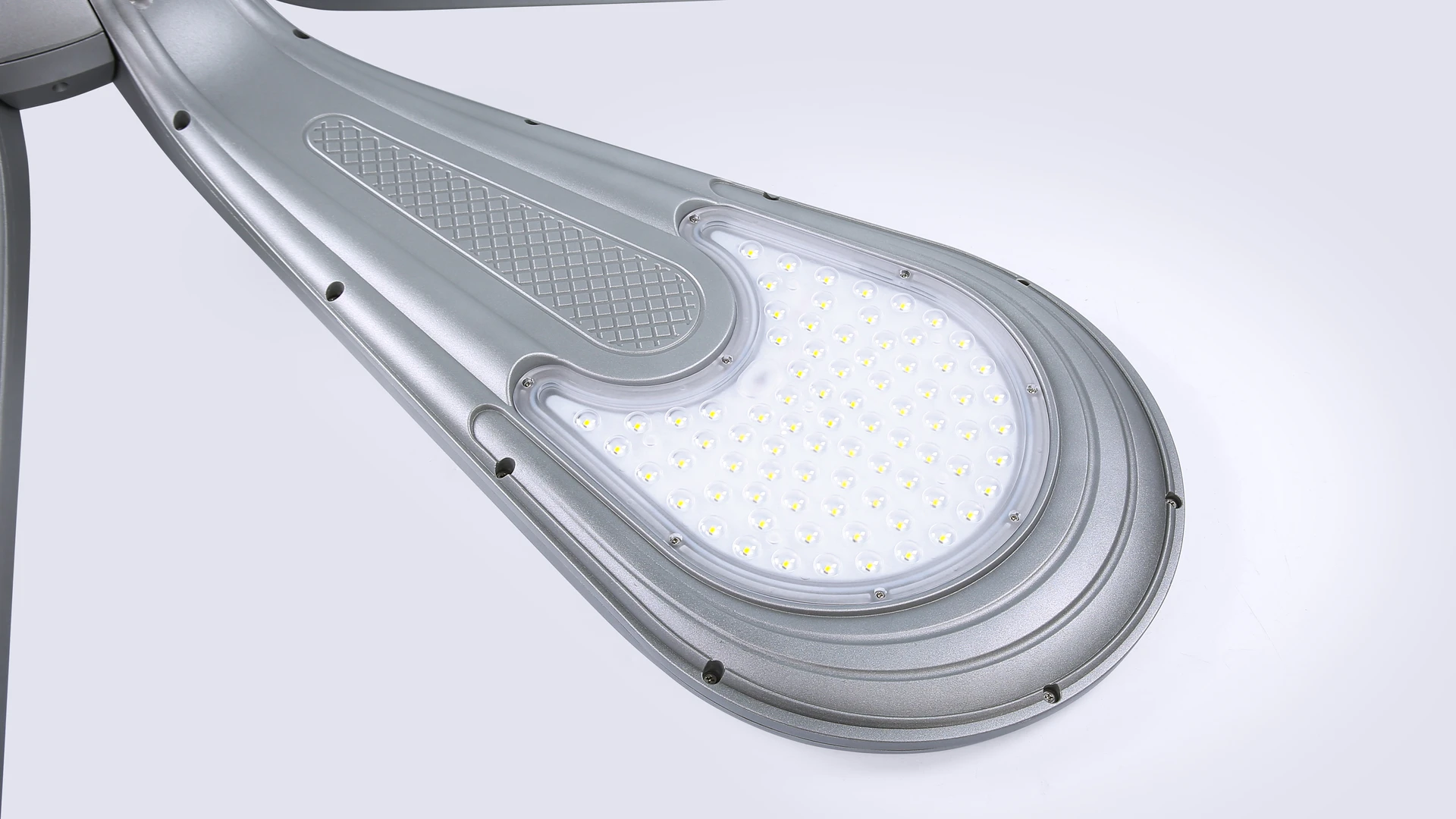

Radial optics.
Each independent contoured petal arm integrates a multi-cluster SMD LED array behind precision PMMA batwing lenses, delivering 360-degree uniform ground illuminance across public parks and walkways without glare.

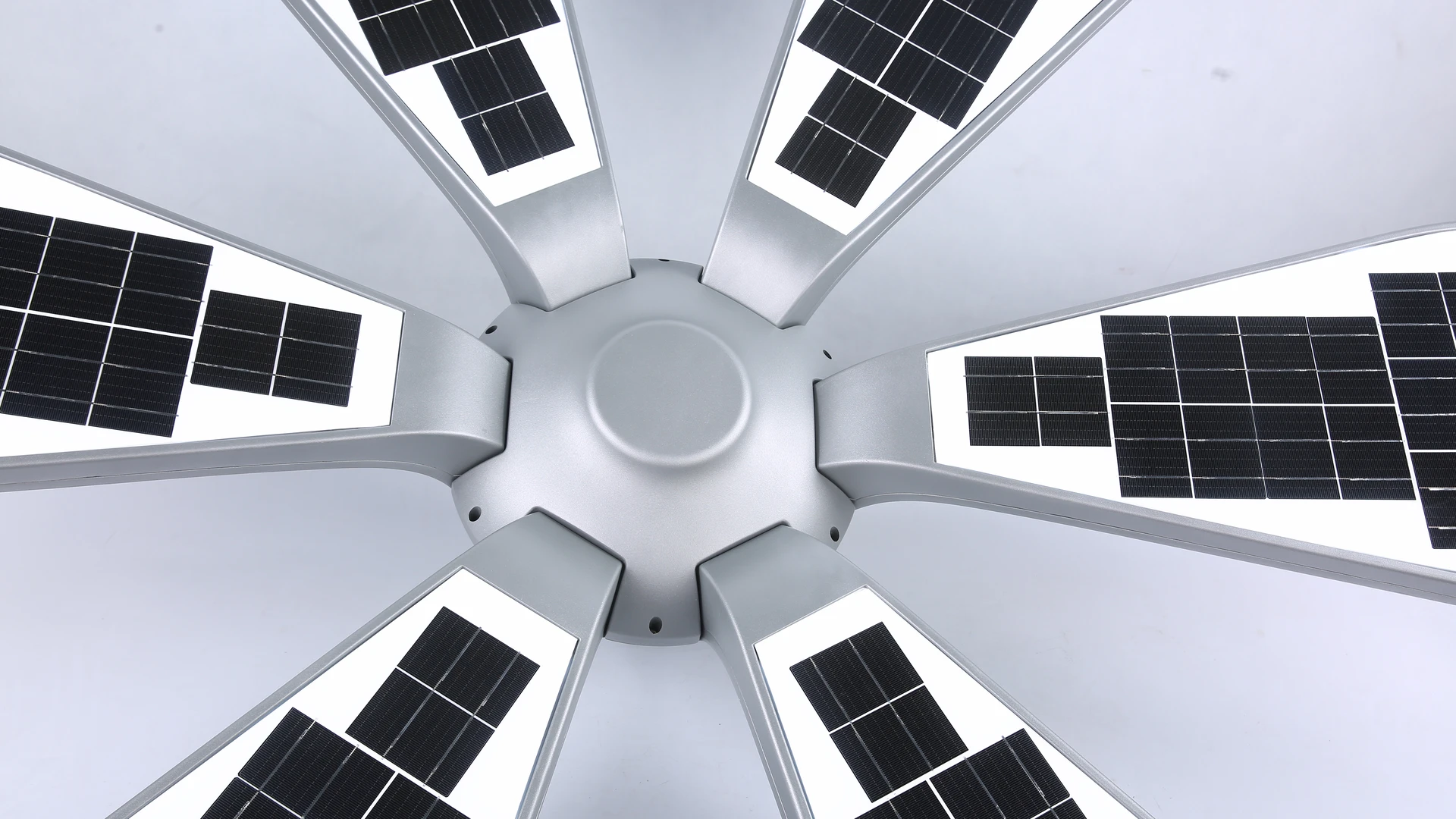

Solar autonomy.
Top surfaces of each petal host contoured monocrystalline solar modules reaching up to 105W total capacity. Paired with internal LiFePO4 storage up to 384Wh, the intelligent MPPT system guarantees over 3 consecutive rainy days of dusk-to-dawn lighting.

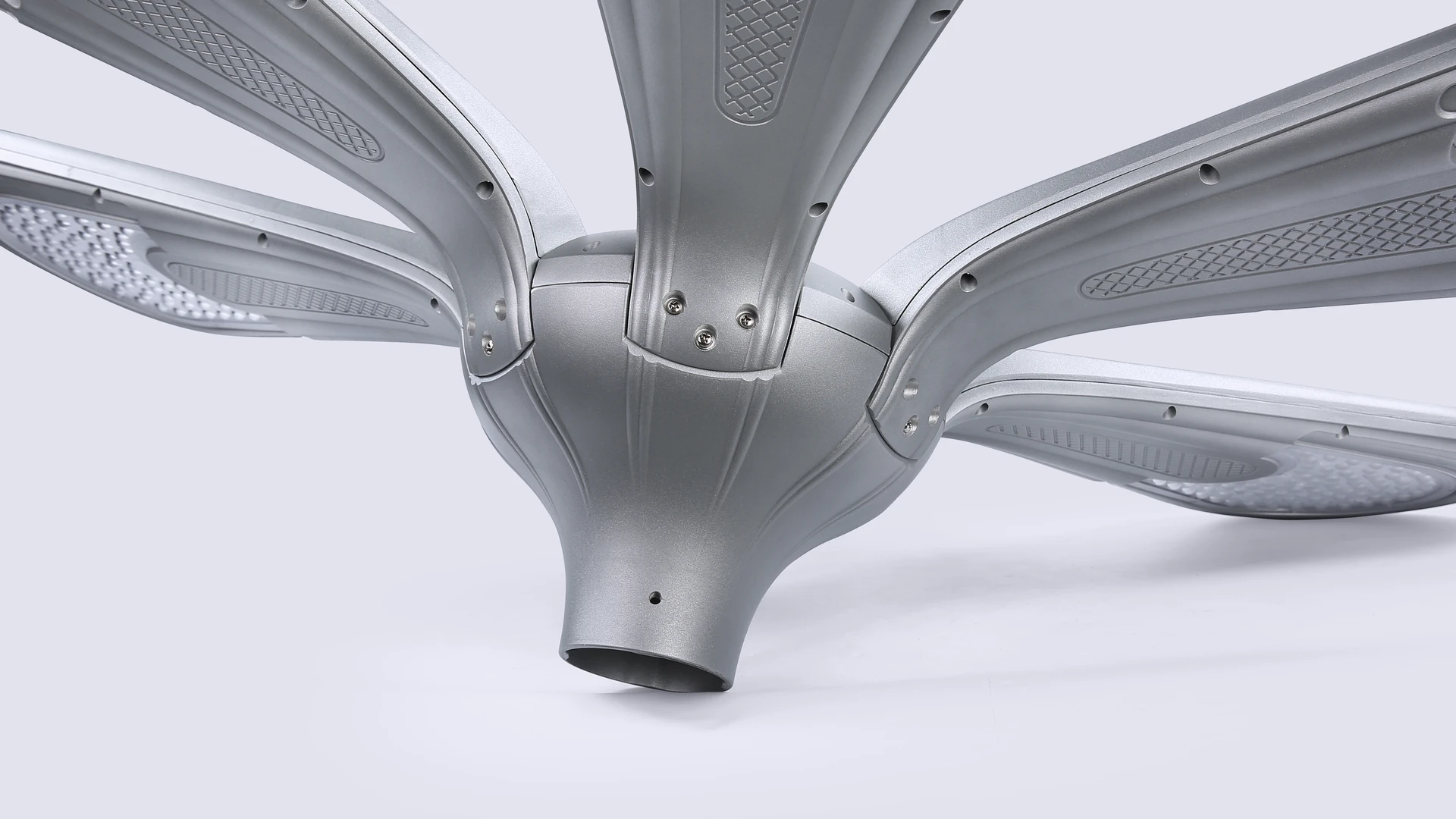

Die-cast chassis.
Engineered with heavy-duty ADC12 die-cast aluminum core hub with anti-corrosion powder coating. Dual-diameter receiver secures directly onto standard Ø76mm or Ø89mm commercial lighting poles with stainless steel set-screws.
One architecture.
Three configurations.

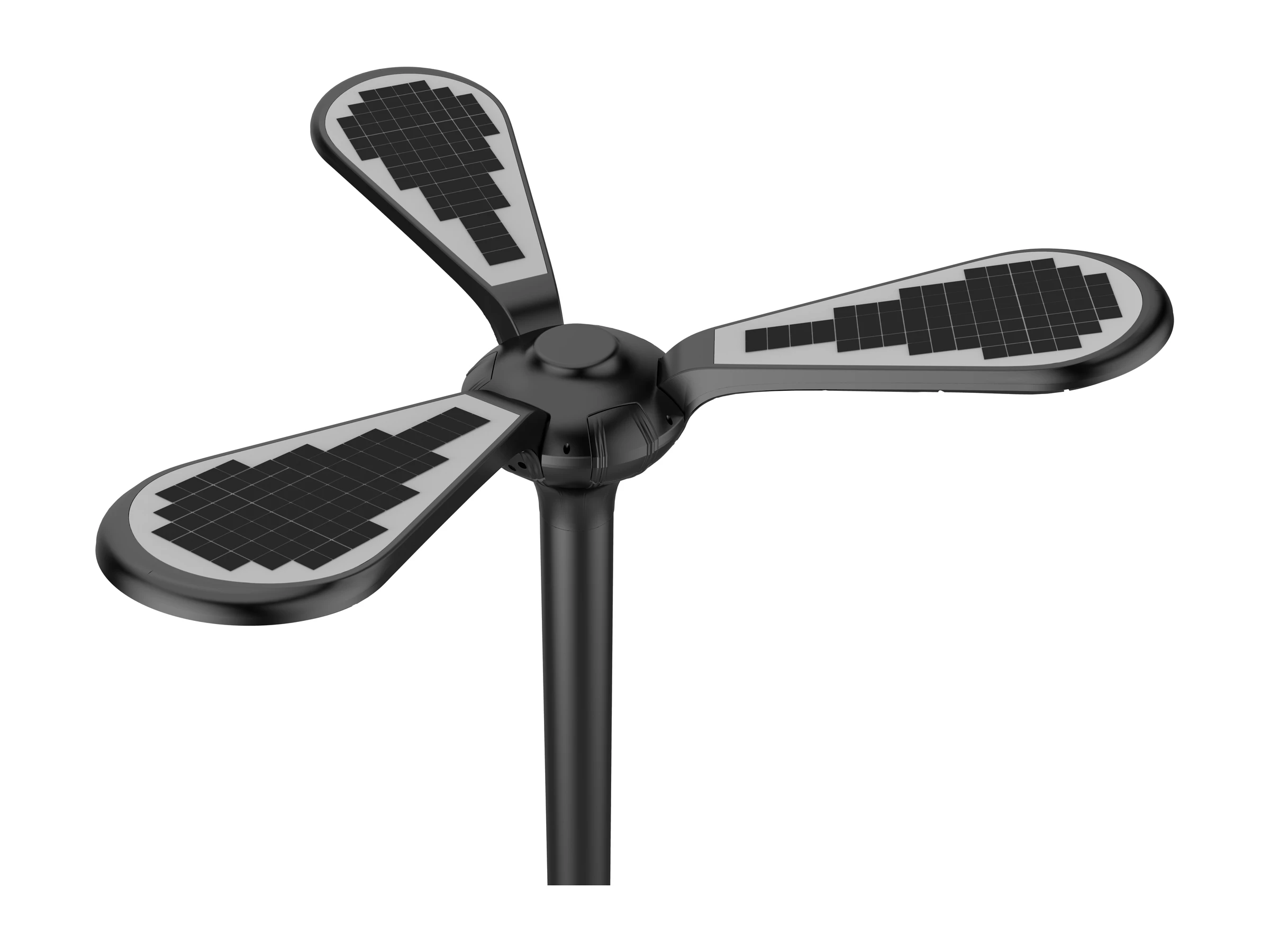

SSL-5105-3-60W · 3-Head (60W / 4,151 lm)
4,151 lm · 18V / 52.5W Monocrystalline PV
3.2V / 60Ah (192Wh) LiFePO4
Die-cast Aluminum · IP65 Weatherproof
Ø76 mm / Ø89 mm Spigot Mount · Pole Not Included
Technical specifications.
| Model Configuration | LED Heads | System Power | Luminous Output | Solar Panel | LiFePO4 Storage | Mounting Spigot | Net Weight |
|---|---|---|---|---|---|---|---|
| SSL-5105-3-60W3-Head Architectural Promenade | 3 Modular Heads | 60W | 4,151 lm | 18V / 52.5W Mono | 3.2V / 60Ah (192Wh) | Ø76 mm / Ø89 mm | 13.80 kg |
| SSL-5105-6-120W6-Head Civic Plaza Flagship | 6 Modular Heads | 120W | 8,303 lm | 18V / 105W Mono | 3.2V / 120Ah (384Wh) | Ø76 mm / Ø89 mm | 20.20 kg |
| SSL-5105-ACAC Mains Grid-Tied Version | 6 Modular Heads | 150W | 15,000 lm | Mains Powered (100–240V) | Commercial AC Driver | Ø76 mm / Ø89 mm | 17.50 kg |
Light distribution.

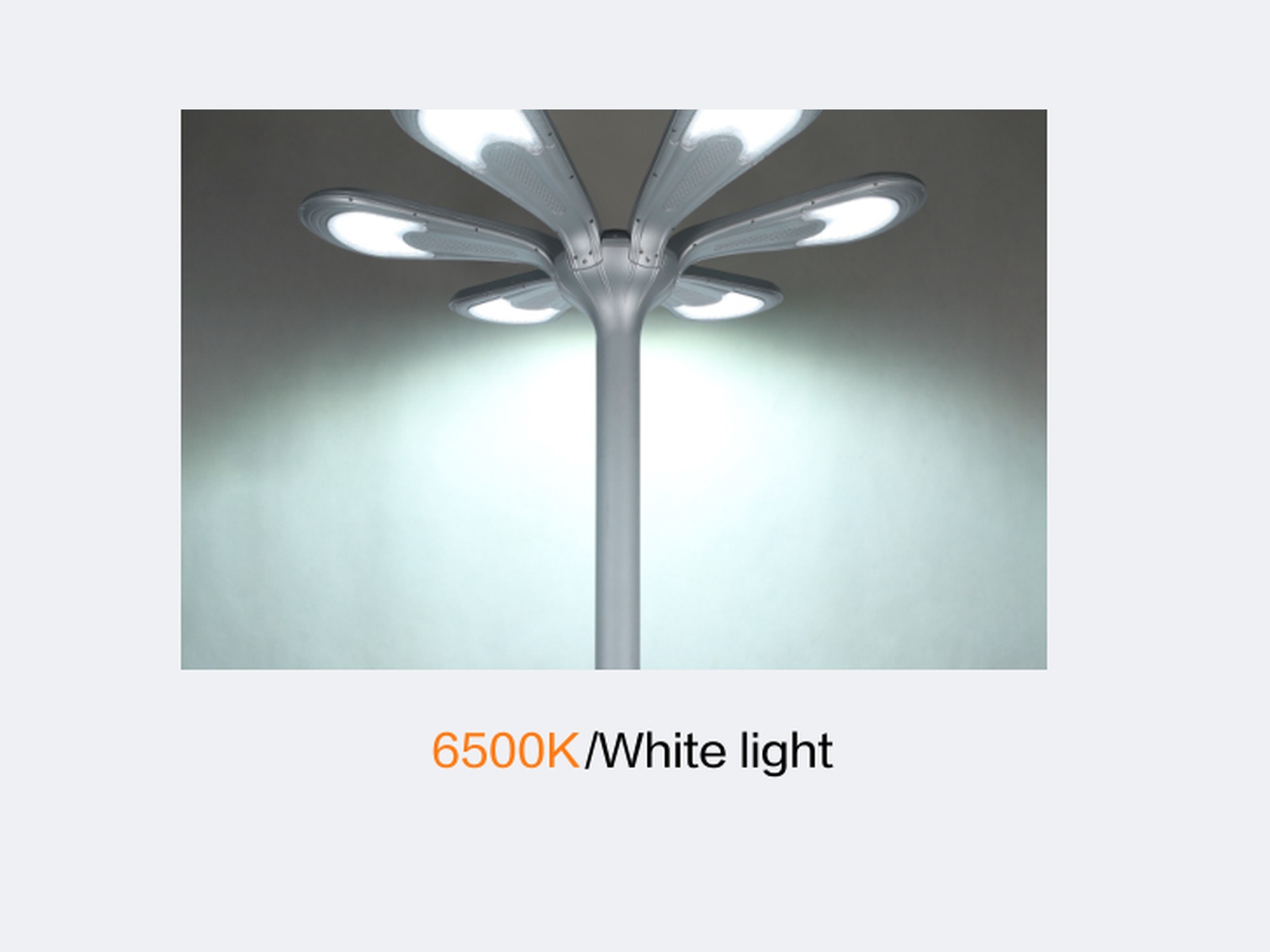

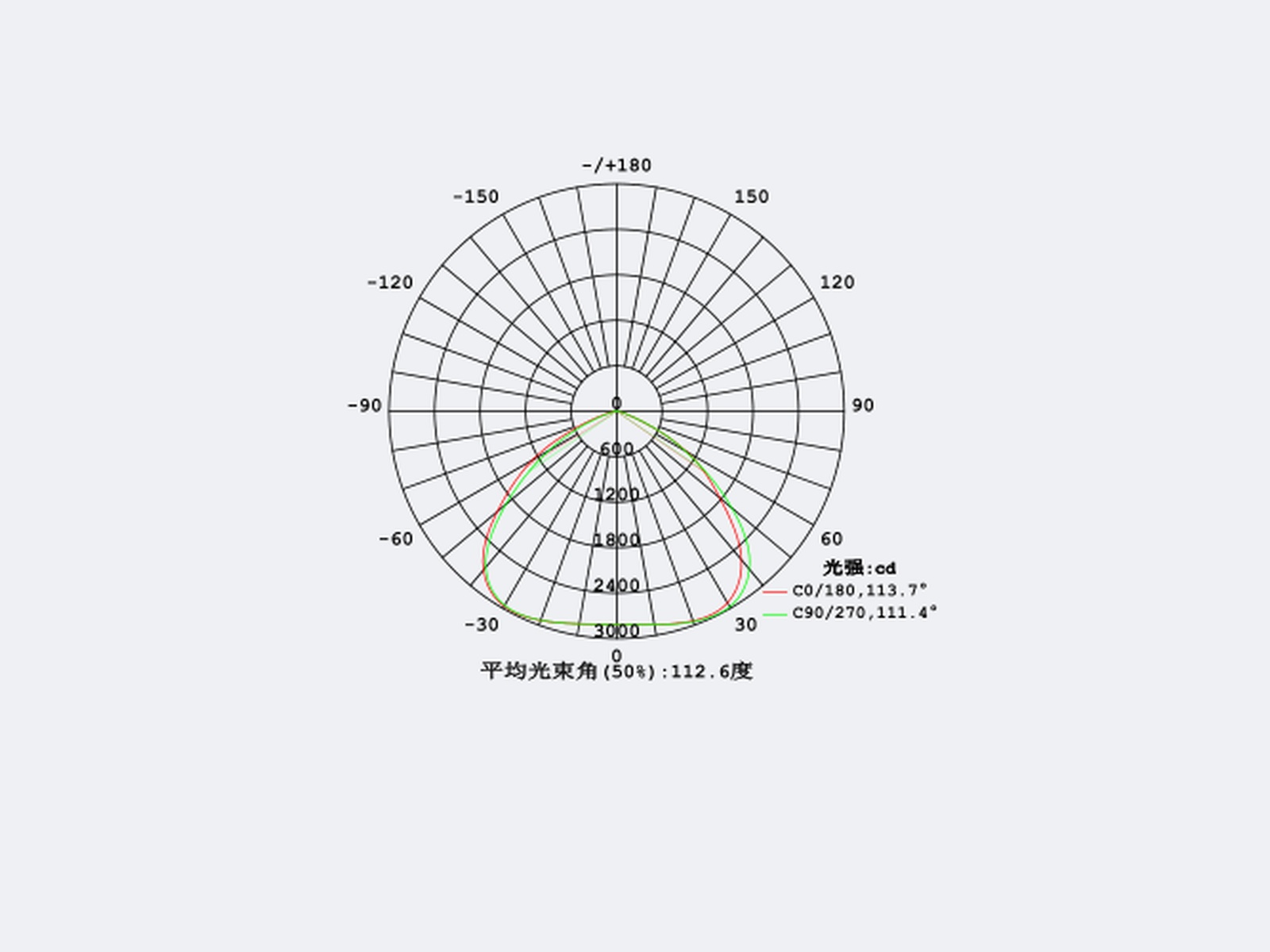

Optical distributions
Mounting height simulation
| Mounting Height | Coverage Area | Center Lux | Average Lux |
|---|---|---|---|
| 4.0 meters (13.1 ft) | 16m × 16m | 56.0 lx | 28.5 lx |
| 5.0 meters (16.4 ft) | 20m × 20m | 38.2 lx | 19.8 lx |
| 6.0 meters (19.7 ft) | 24m × 24m | 26.5 lx | 14.0 lx |
| 7.0 meters (23.0 ft) | 28m × 28m | 19.4 lx | 10.2 lx |

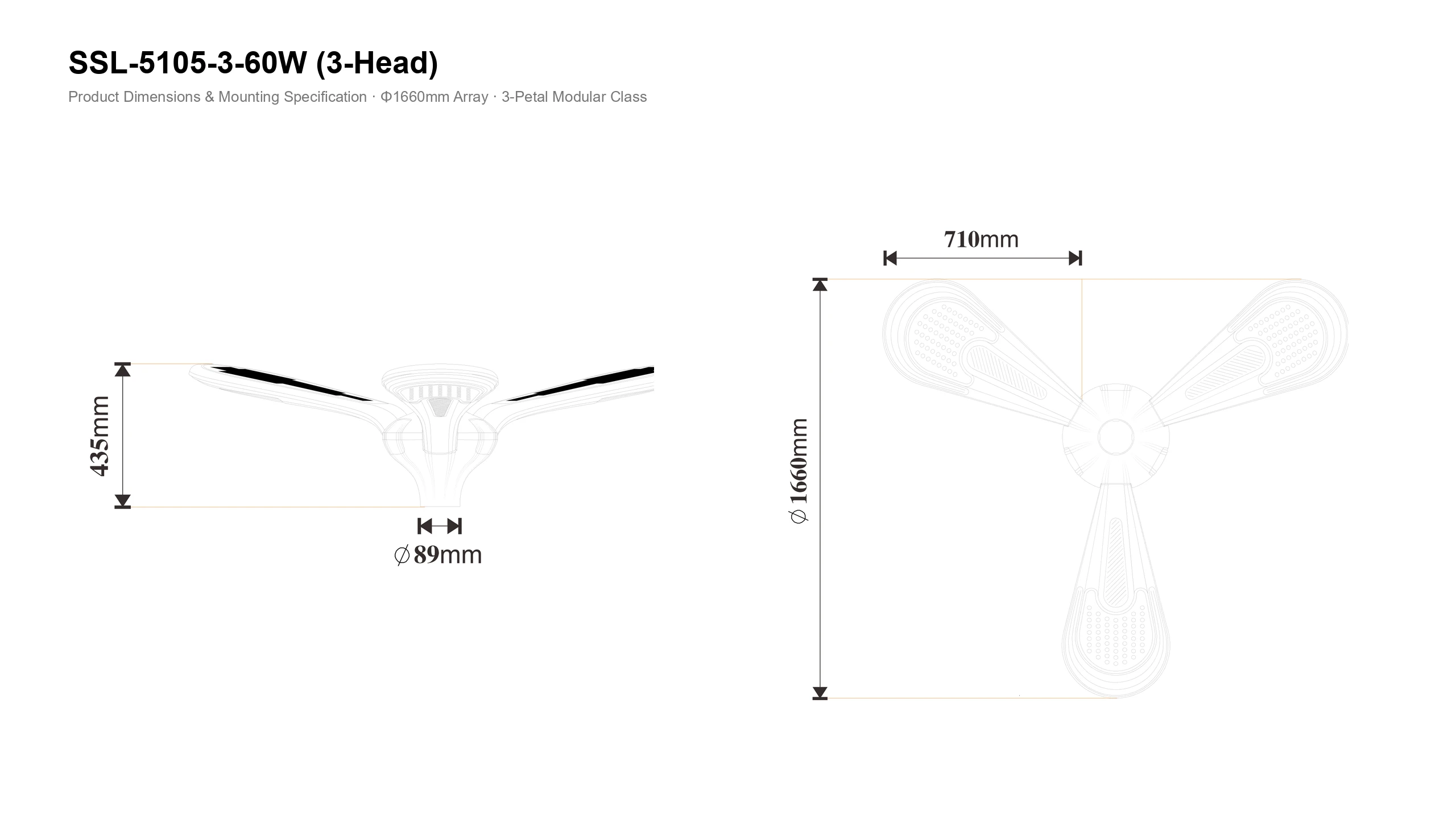

Dimensions & drawings.

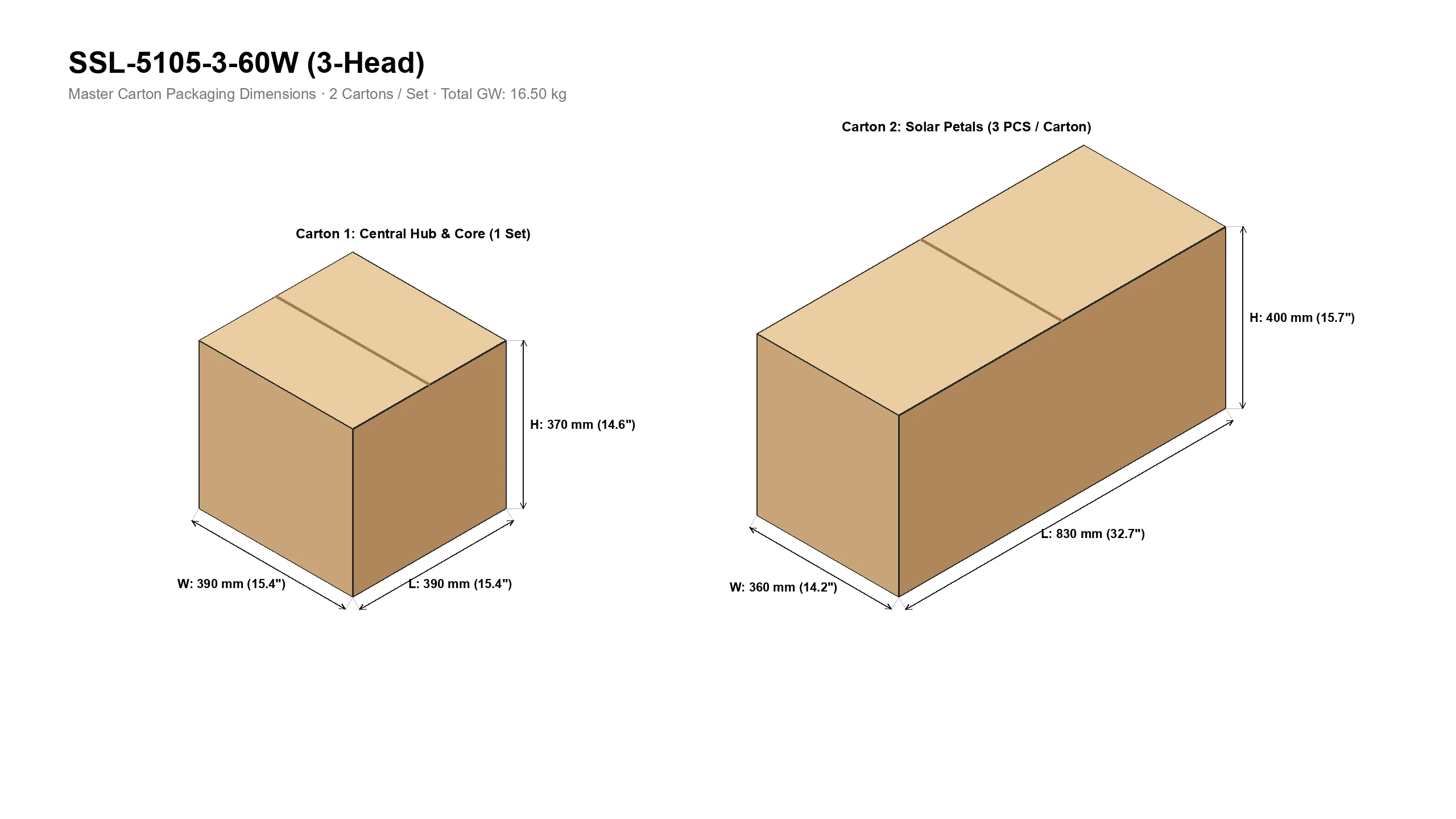

Packaging & logistics.
SSL-5105-3-60W · 3-Head (60W)
Hub: 390 × 390 × 370 mm · Petals (1 ctn / 3 pcs): 830 × 360 × 400 mm
Net Weight: 13.80 kg · Gross Weight: 16.50 kg (2 Cartons / Set)
20'GP: 220 Sets · 40'GP: 460 Sets · 40'HQ: 540 Sets
Applications.

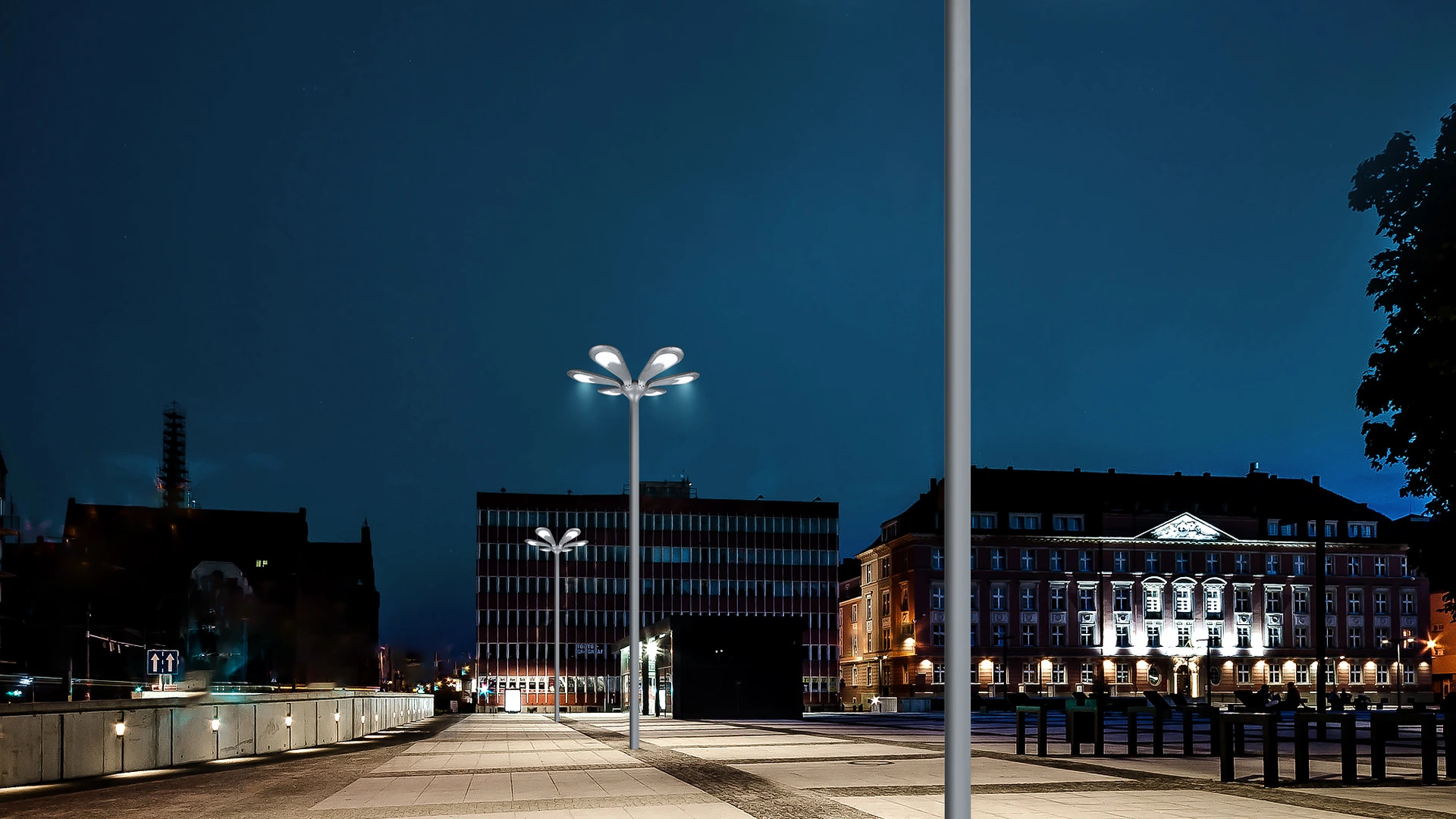

Luxury villa estate walkway

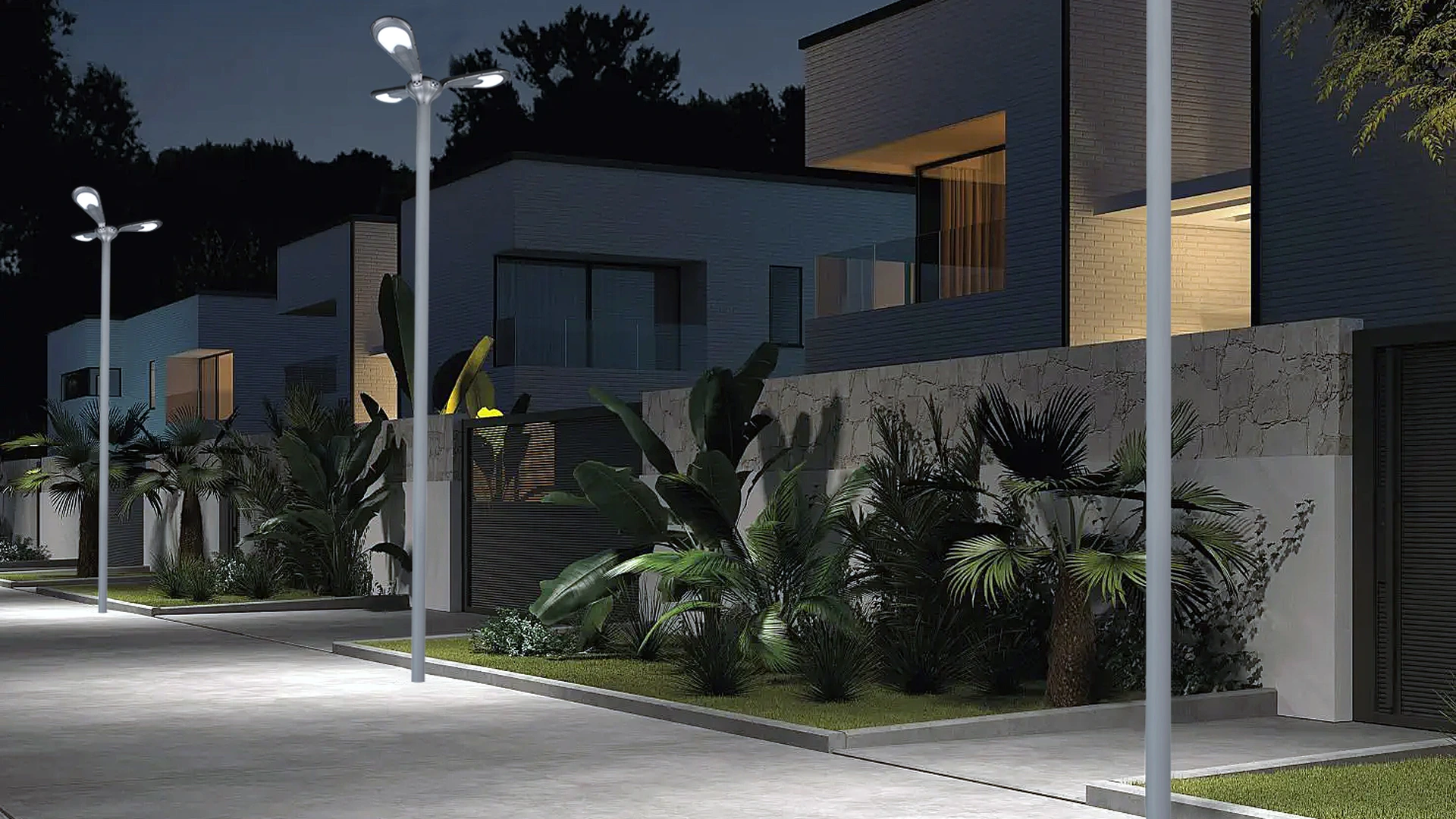

Botanical garden grounds

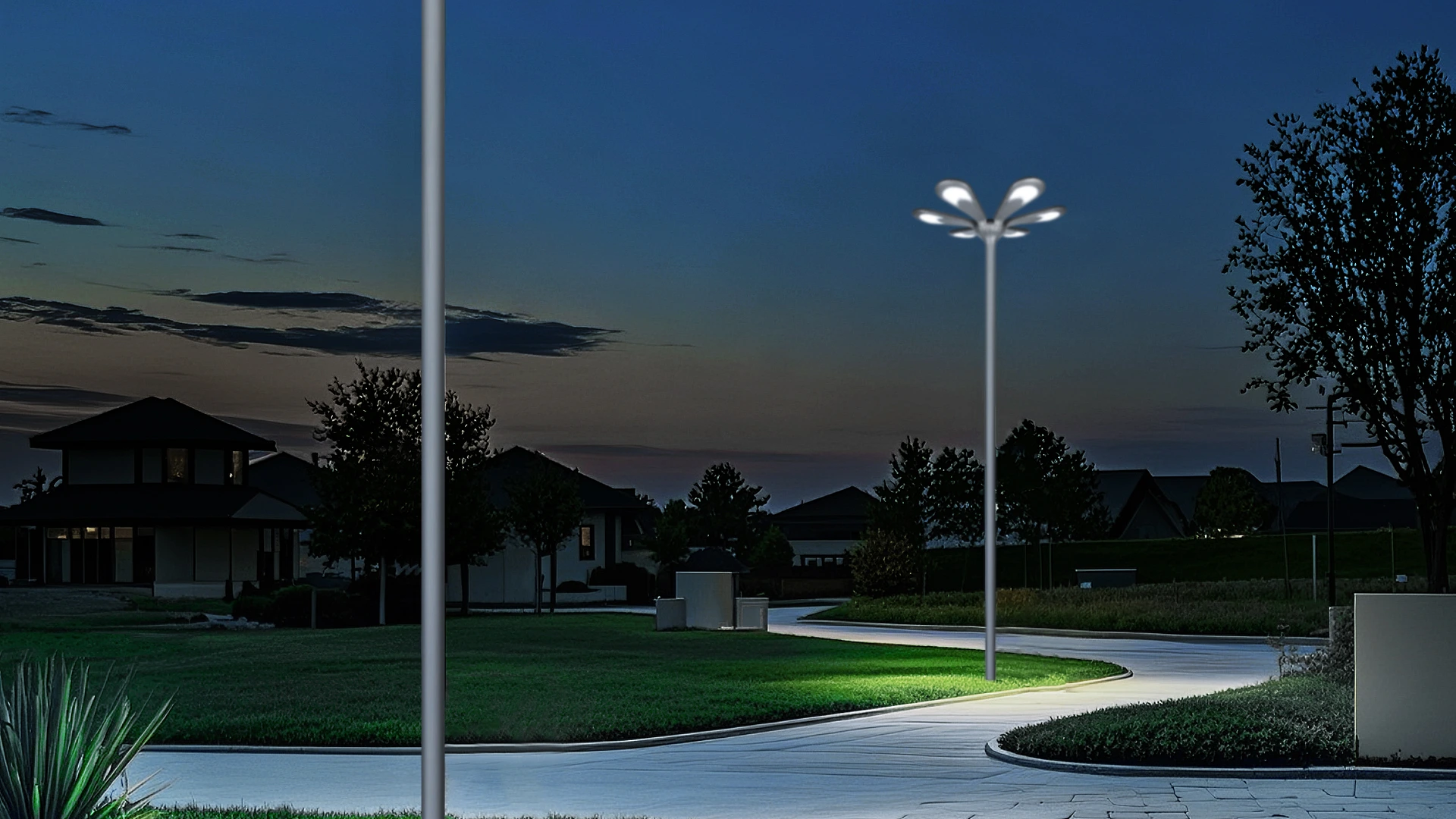

Civic plaza promenade

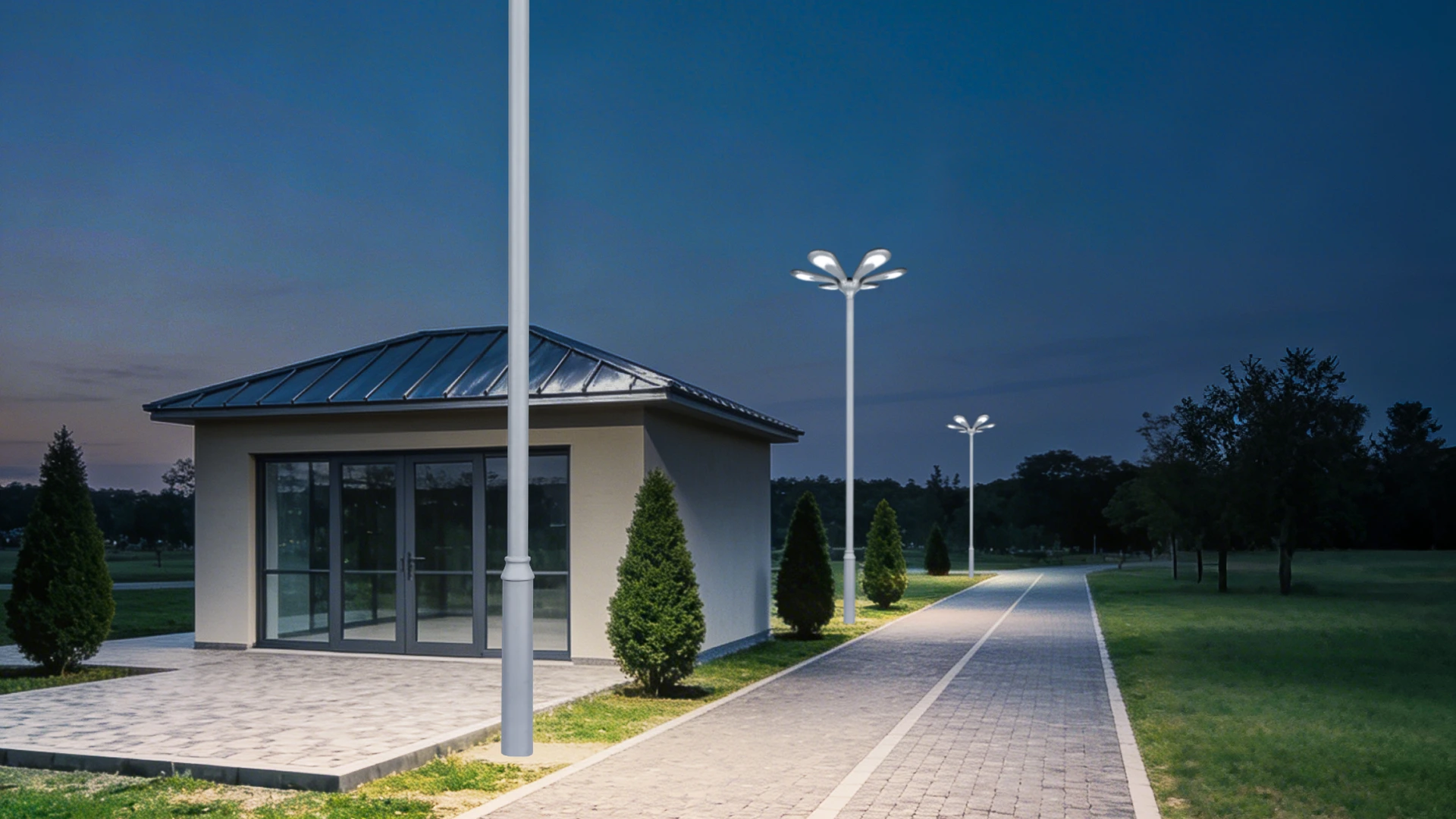

Resort waterfront walkway
Frequently asked questions.
How does the fixture maintain illumination during cloudy or rainy weather?
The system stores energy in high-capacity 3.2V LiFePO4 automotive-grade batteries (192Wh for 3-head, 384Wh for 6-head). Combined with intelligent MPPT dimming algorithms, it sustains uninterrupted dusk-to-dawn lighting for more than 3 consecutive rainy days.
What pole diameter is required for installation, and is the pole included?
The cast aluminum hub features a dual-fit internal receiver compatible with standard Ø76 mm or Ø89 mm tenon poles. The mounting pole is not included and should be selected according to project site elevation requirements (typically 4m to 6m).
Can this luminaire be connected to AC grid power or operate on hybrid projects?
Yes. Alongside autonomous solar configurations, we provide the SSL-5105-AC model. It utilizes the identical 6-head die-cast architecture, radial optics, and mounting interface, but runs on 100-240V AC utility power delivering 15,000 lumens for continuous commercial illumination.
