SGL-4105 Angel Eyes Series Solar Garden Light
The SGL-4105 Angel Eyes Series Solar Garden Light embodies European landscape architectural refinement with clean cylindrical flaring geometry engineered for botanical garden walkways, private villa estates, waterfront resort promenades, and commercial campus greens. Engineered as a completely autonomous zero-trenching pedestrian luminaire, each unit integrates an A-grade 5V 4.5W monocrystalline solar canopy disc, a high-cycle 3.2V 8Ah (25.6Wh) LiFePO4 battery cell, and 30 high-efficacy 2835 SMD LEDs within a heavy die-cast aluminum post body. Delivering 240 lumens of soft, 360-degree batwing pedestrian pathway light, it sustains over 3 continuous rainy nights on a single 4–6 hour solar charge. Available in three distinct architectural column heights (380mm pedestal, 680mm bollard, 880mm pillar) with an integrated Ø150mm heavy cast mounting flange. Self-contained ground bollard unit; external tall poles are excluded.
Color & Optic
Beam Options
Product Specifications
Model Lineup Configuration
| Model Code | PV Array / Power | Battery Capacity | Luminous Output | Correlated Color Temp | Physical Size | Mounting Spigot |
|---|---|---|---|---|---|---|
| SGL-4105-38CM | 5V 4.5W Mono | 3.2V 8Ah (25.6Wh) | 240 lm |
3000K
6500K
|
Ø240 × H380mm |
Ø150mm Flange
Self-Contained · Pole Excluded
4 Sets/Ctn · 510×510×440mm
|
| SGL-4105-68CM | 5V 4.5W Mono | 3.2V 8Ah (25.6Wh) | 240 lm |
3000K
6500K
|
Ø240 × H680mm |
Ø150mm Flange
Self-Contained · Pole Excluded
4 Sets/Ctn · 510×510×740mm
|
| SGL-4105-88CM | 5V 4.5W Mono | 3.2V 8Ah (25.6Wh) | 240 lm |
3000K
6500K
|
Ø240 × H880mm |
Ø150mm Flange
Self-Contained · Pole Excluded
4 Sets/Ctn · 510×510×910mm
|
| SGL-4105-AC | AC 220V Hybrid | AC Mains Driver | 1,200 lm |
3000K
6500K
|
Ø240 × H680mm |
Ø150mm Flange
Self-Contained · Pole Excluded
4 Sets/Ctn · 510×510×740mm
|
Advantages
European Inverted Conical Architectural Form
The Angel Eyes silhouette pairs classical European flaring lantern geometry with a sleek cylindrical pedestal column. Engineered with precision die-cast aluminum treated with an anodized anti-oxidation coating for enduring marine and garden corrosion resistance.
360° Symmetrical Batwing Pedestrian Optics
Equipped with a high-transmittance optical PC conical diffuser and internal white conical reflector that redirects downlight laterally into an expansive 360-degree ground circle, eliminating blinding upwards glare and dark pedestrian ground shadows.
High-Efficiency Monocrystalline Silicon & LiFePO4

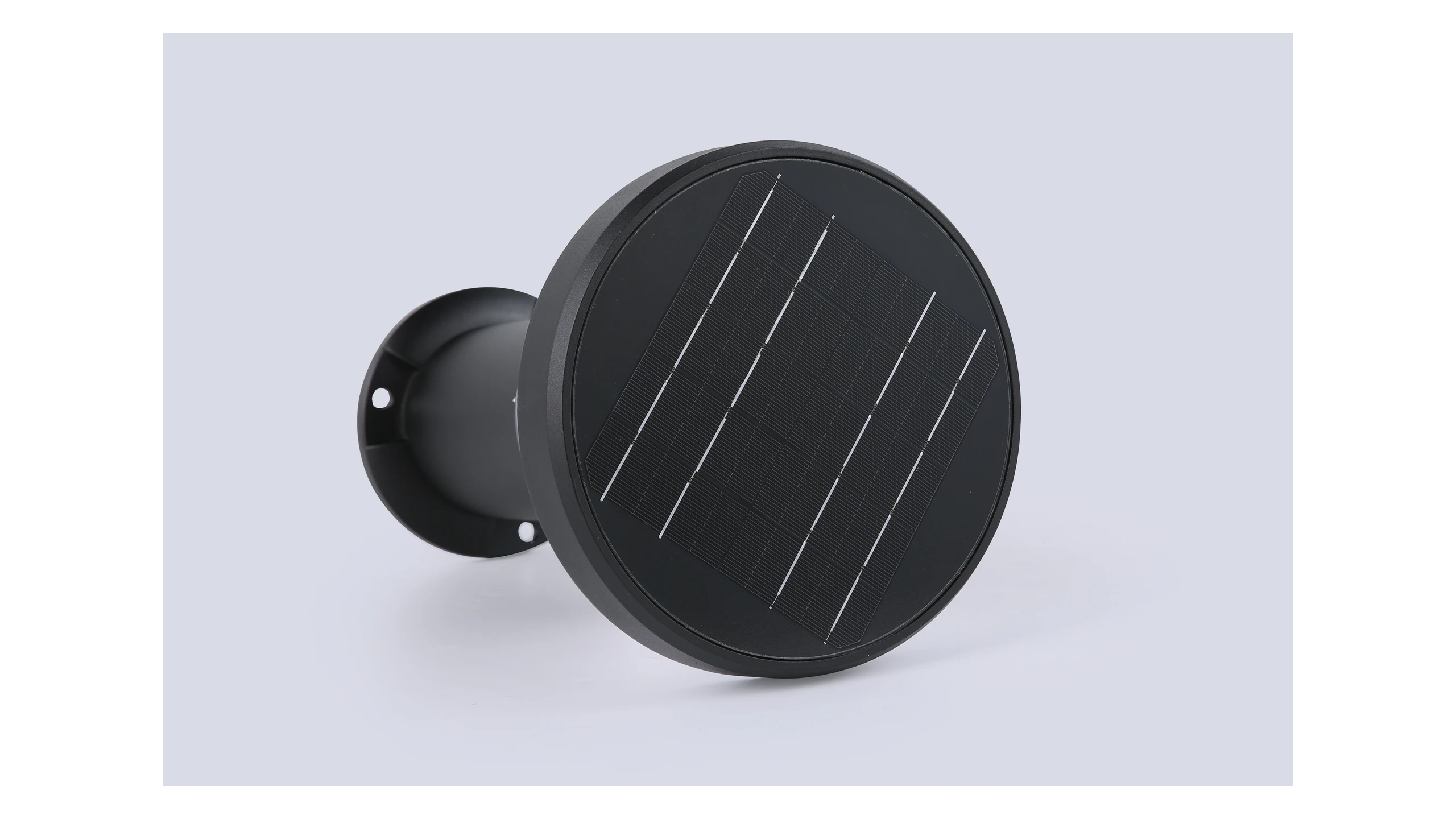

The top disc houses an imported 5V 4.5W monocrystalline solar cell providing rapid 4 to 6-hour full recharging under bright sunlight. Backed by a 3.2V 8Ah (25.6Wh) Grade-A LiFePO4 battery sustaining 3+ consecutive rainy days of all-night lighting.

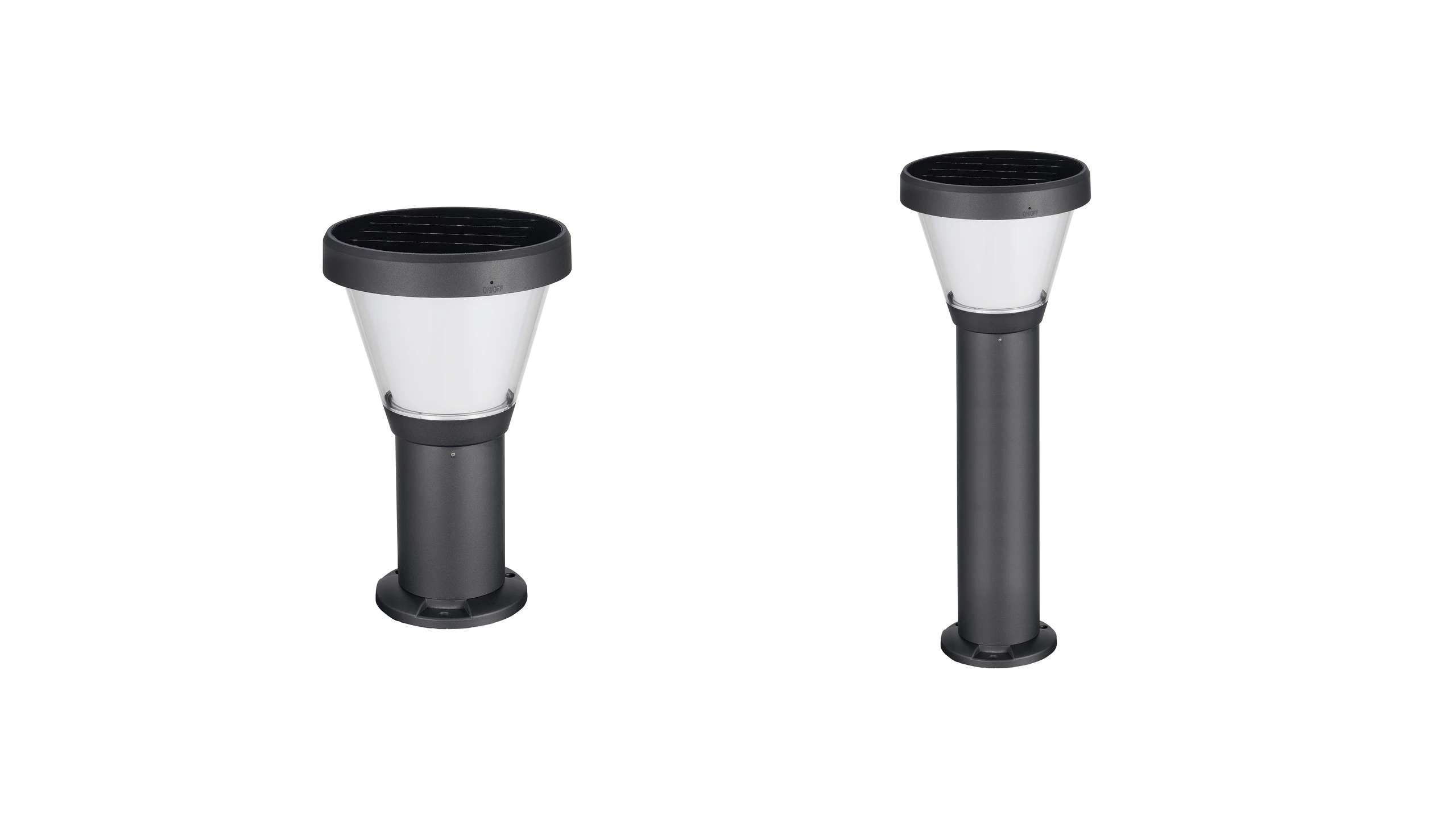

Three Column Heights for Landscape Hierarchy

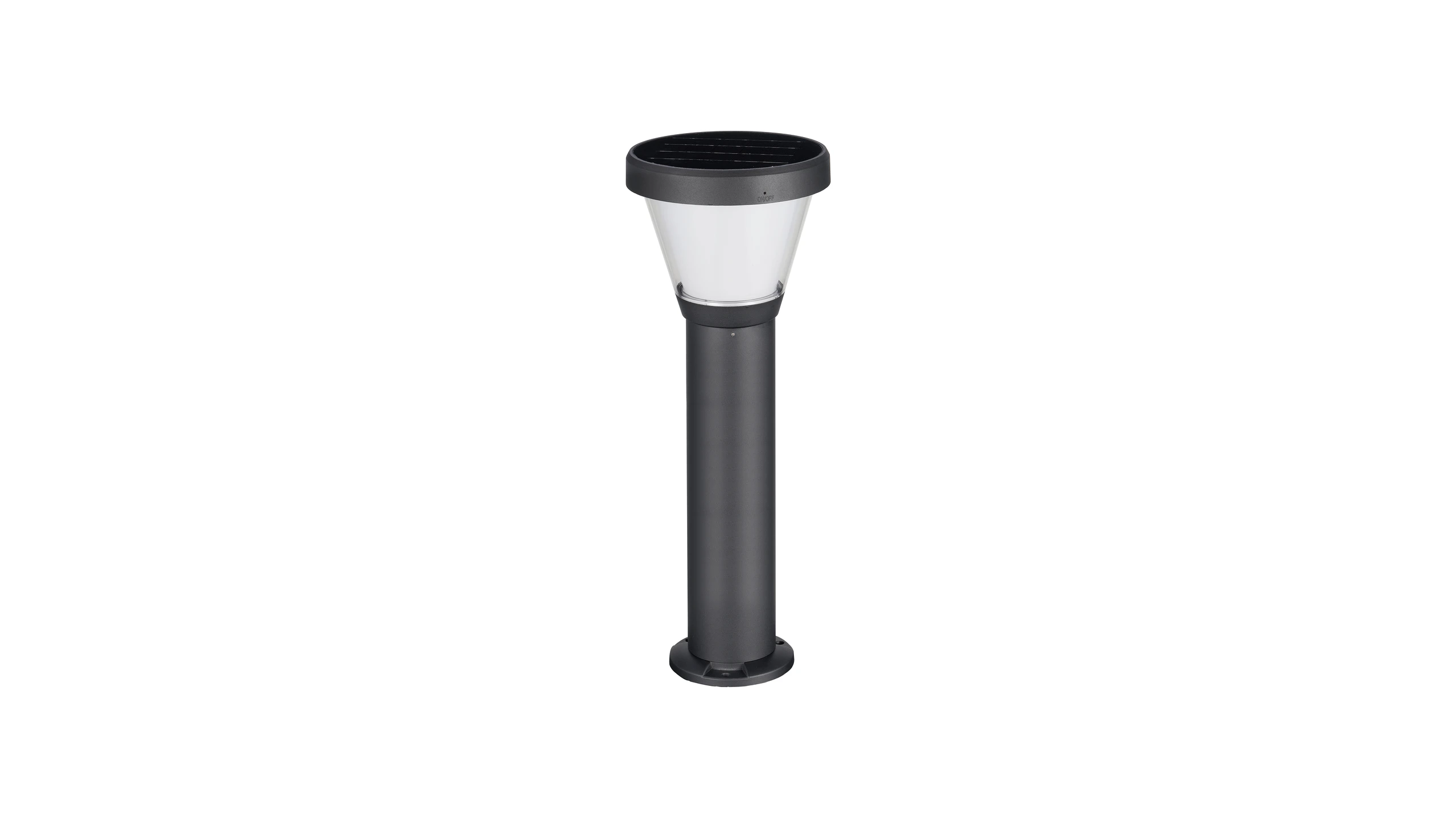

Available in 380mm low pedestal (for lawn edges, retaining walls, and stair risers), 680mm standard bollard (for garden walkways and patio perimeters), and 880mm tall pillar (for driveway borders and civic entrances), allowing unified architectural styling.

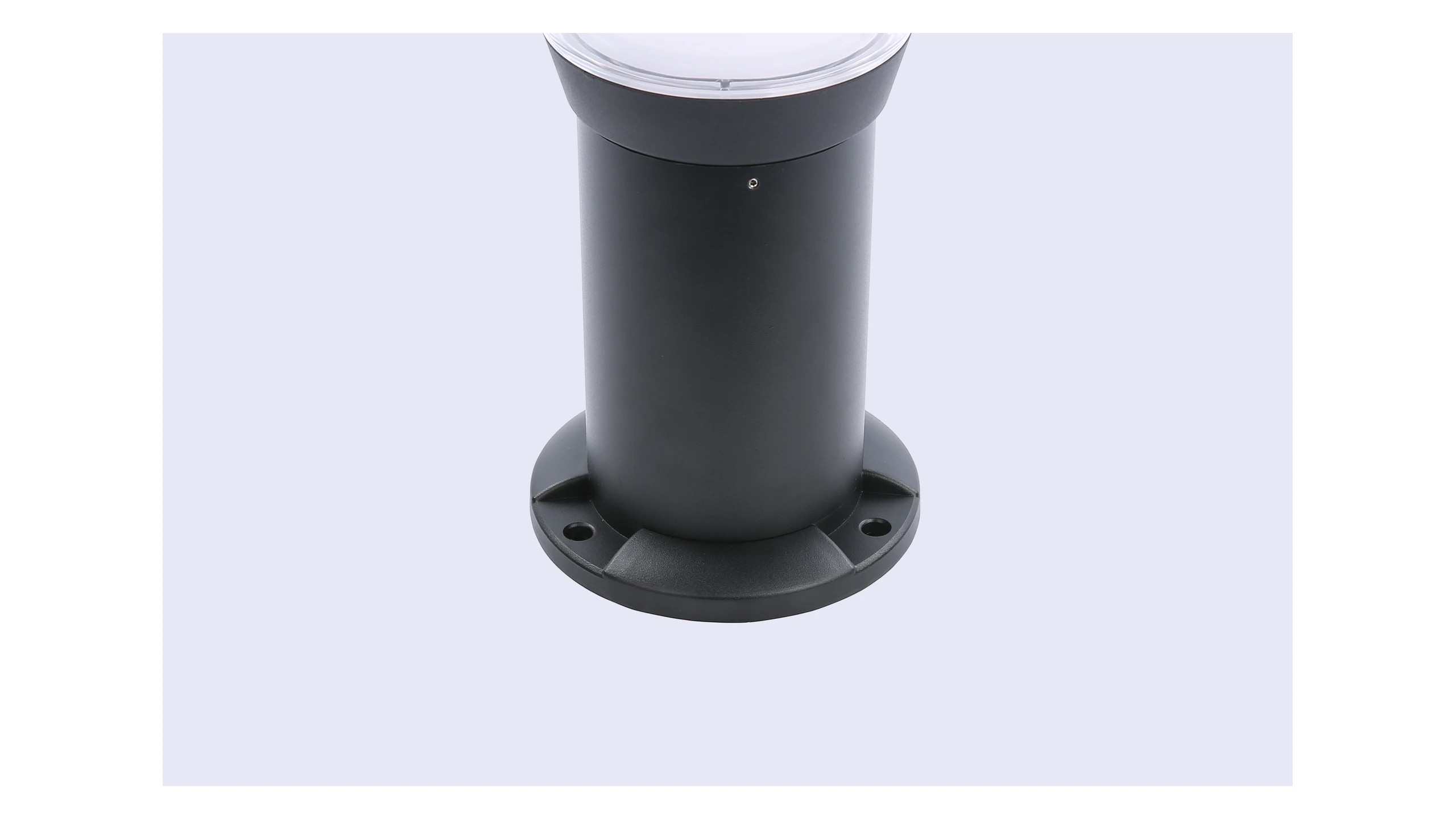

Heavy-Duty Ø150mm Flange Surface Mount

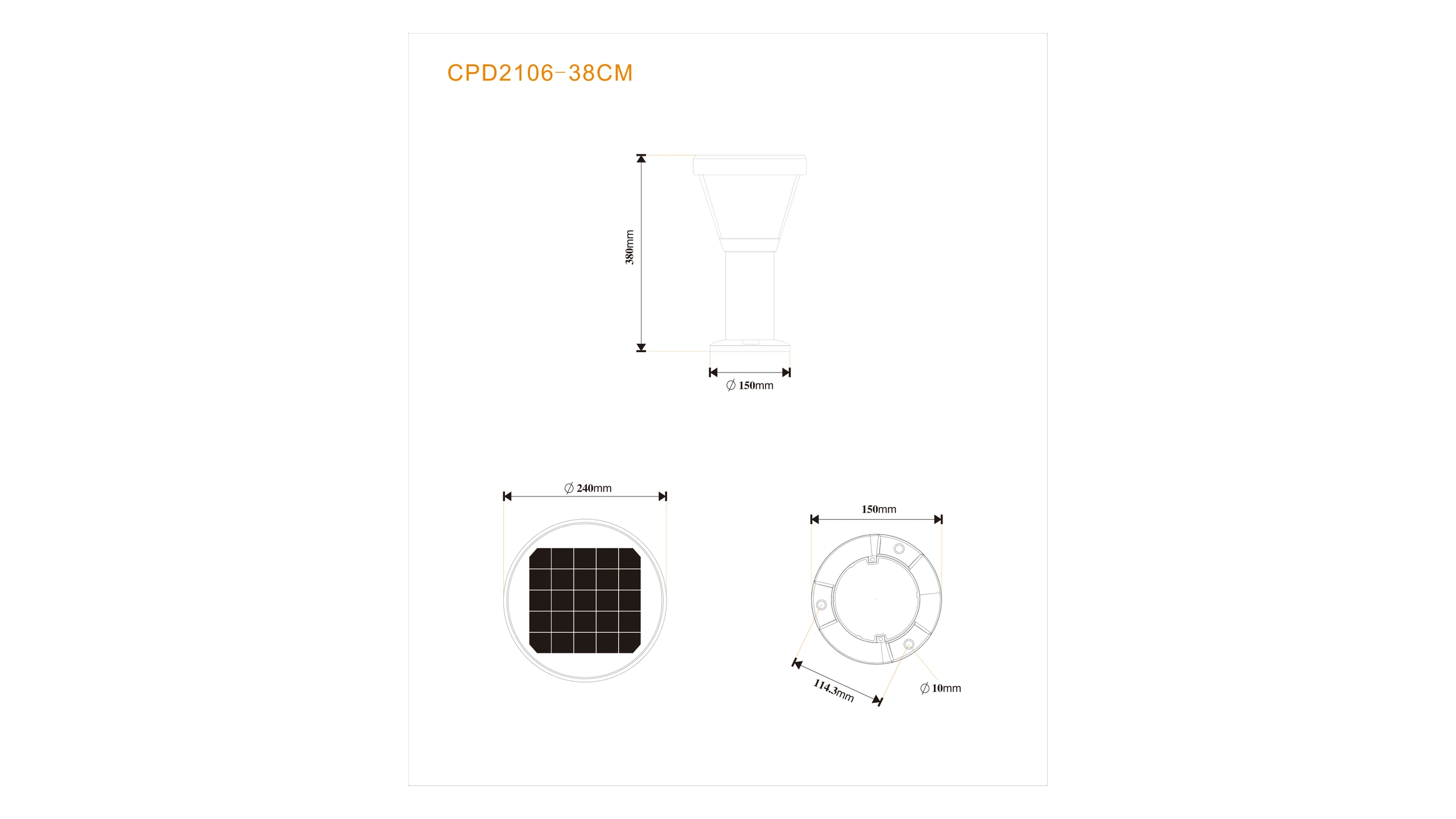

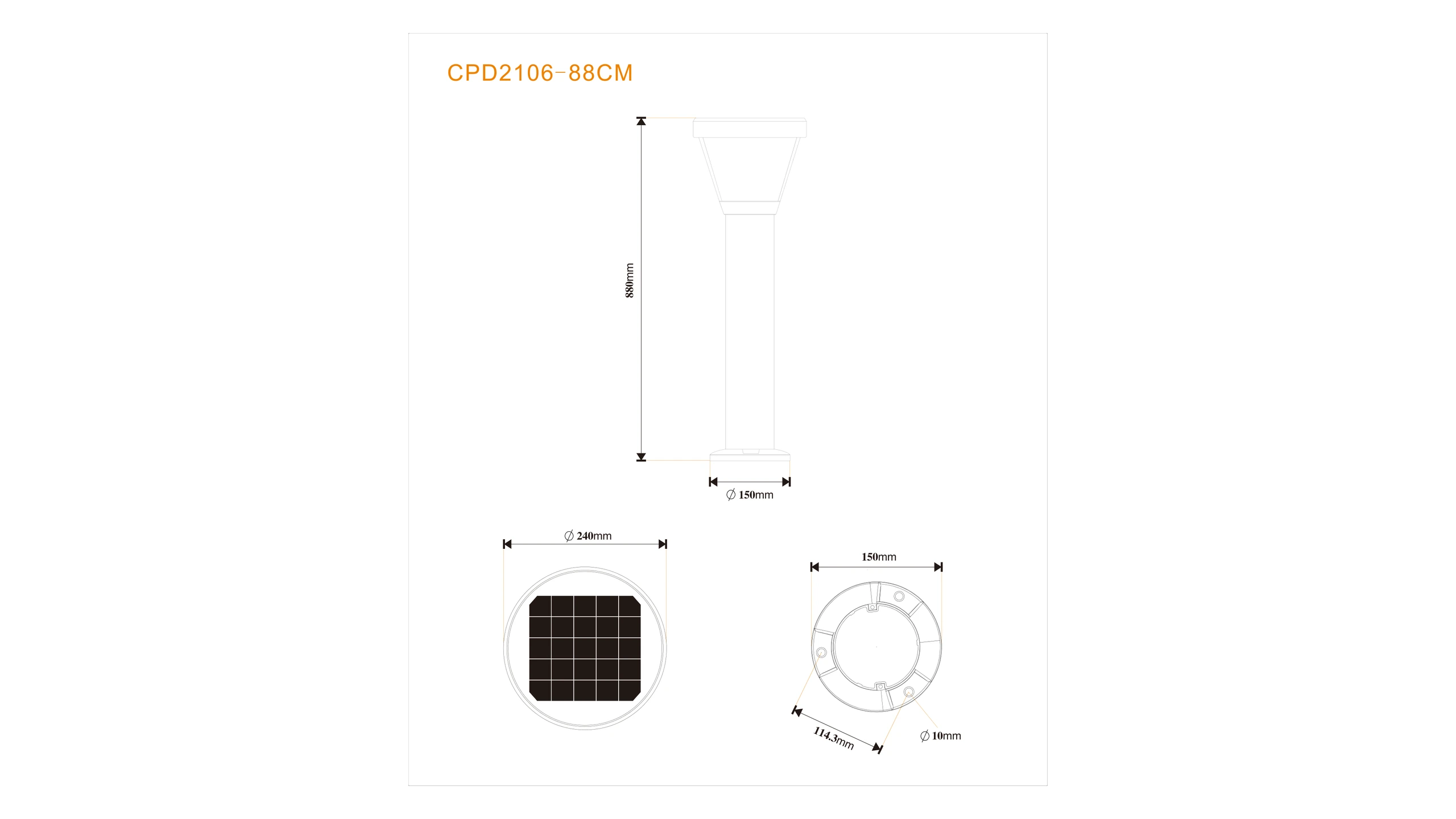

Features an integrated solid die-cast aluminum base flange with 3 pre-cast Ø10mm anchor holes on a 114.3mm PCD circle. Anchors directly onto concrete pavers, masonry pedestals, or timber decking without ground trenching or external cabling.
IP65 Weatherproof & Auto Dusk-to-Dawn Control

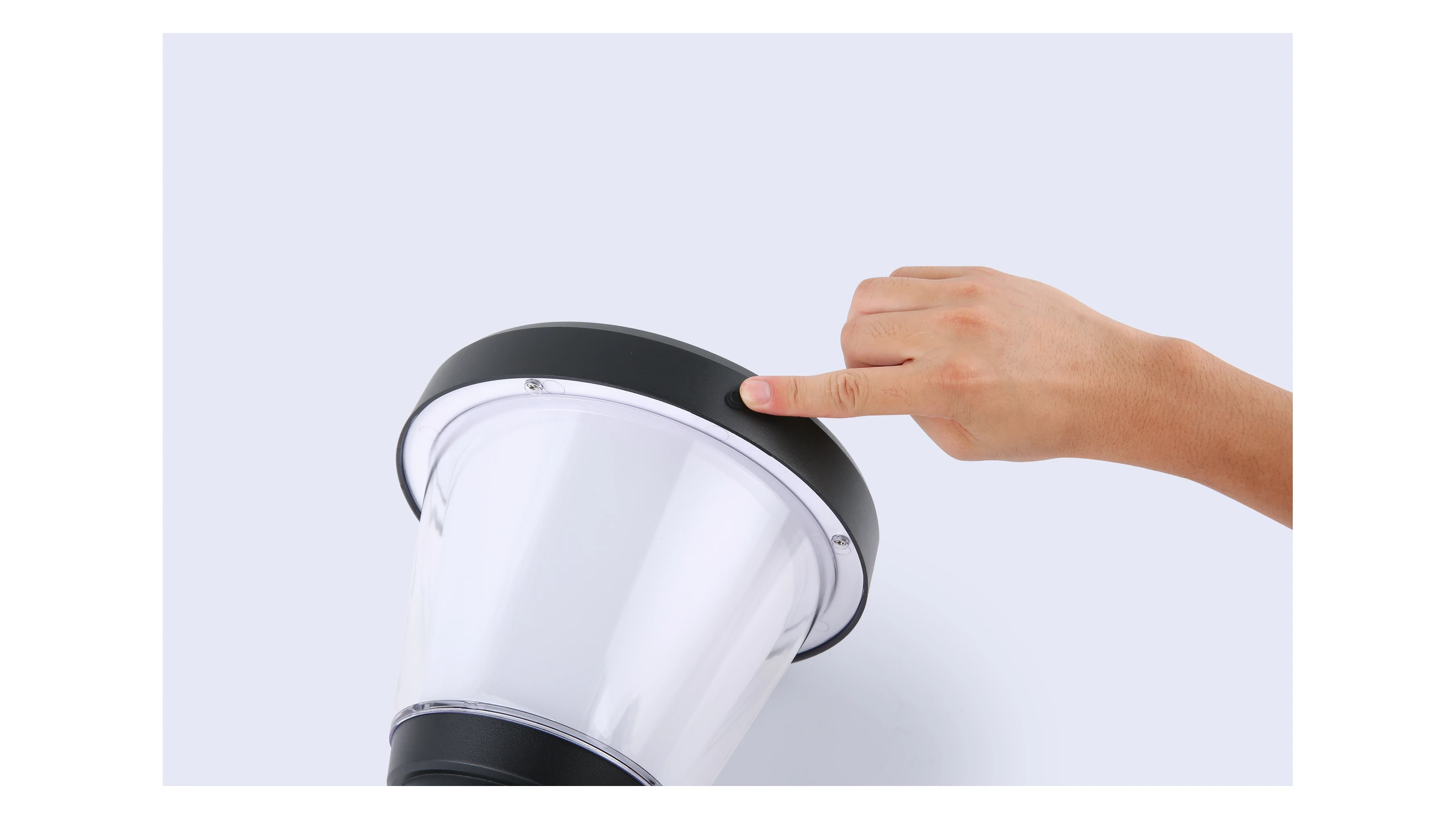

Hermetically sealed with industrial silicone gaskets against driving monsoon rains, lawn sprinklers, and coastal salt spray. Built-in smart PWM micro-controller automatically activates lighting at twilight and powers down at dawn.
Applications

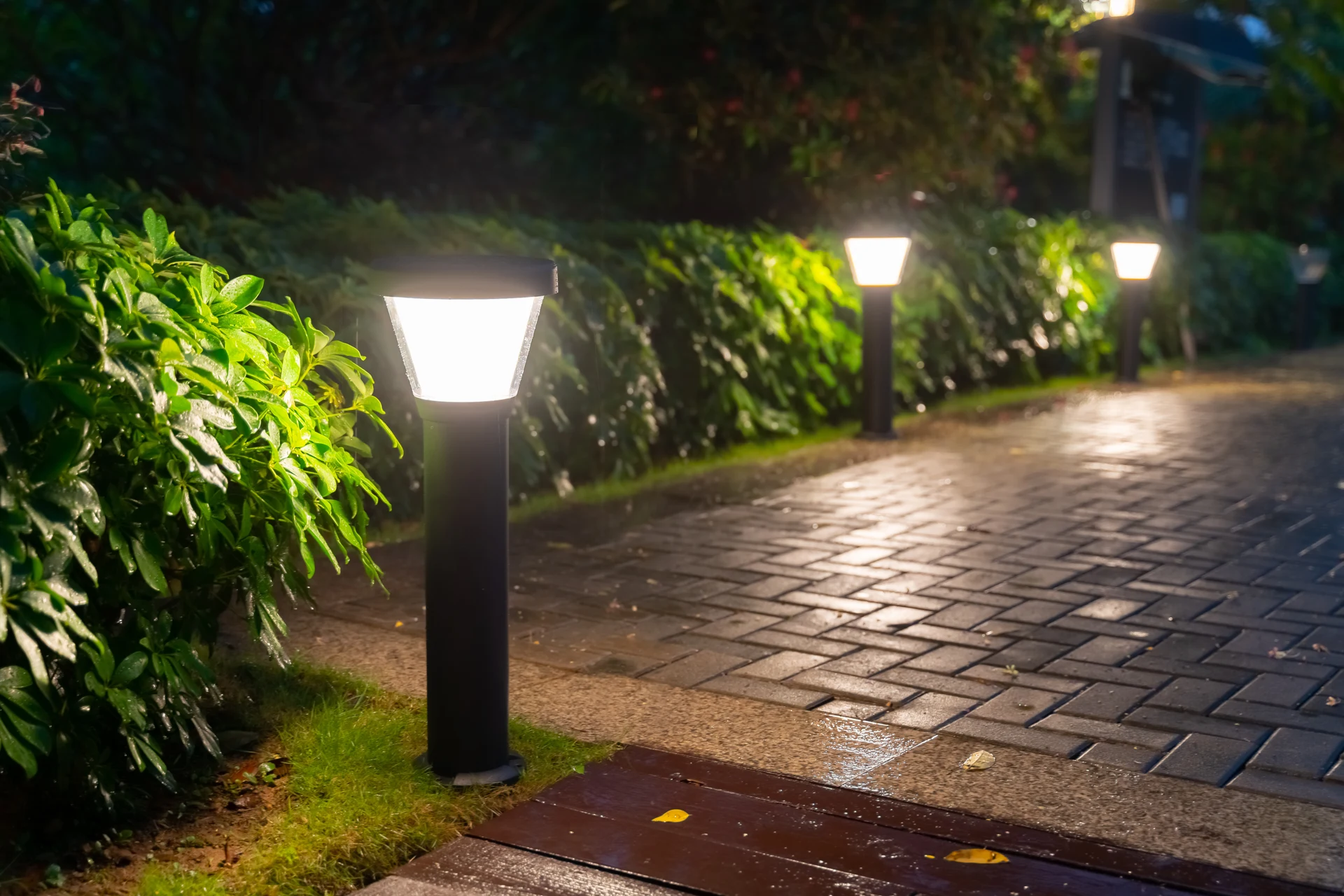

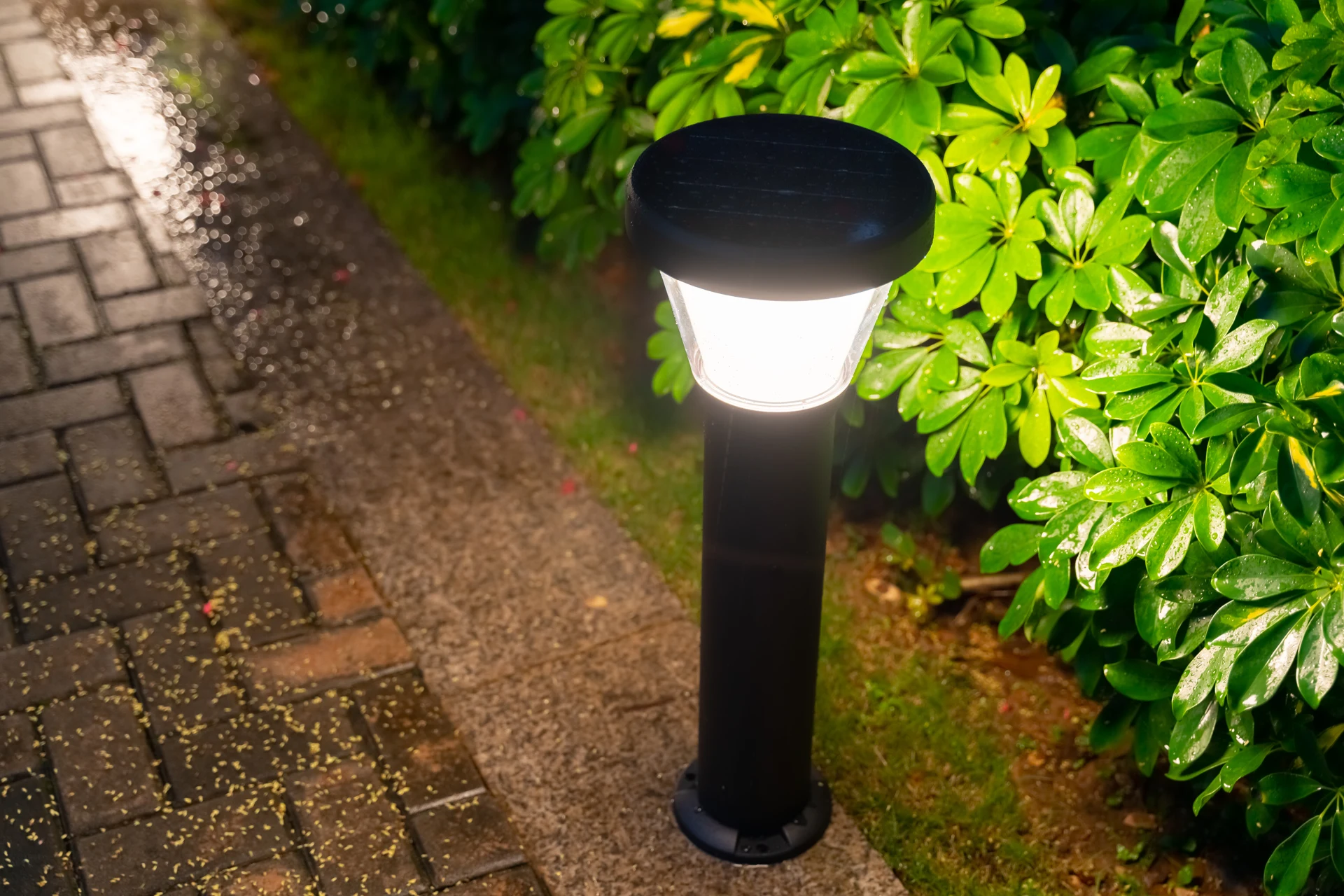

Garden Pathways & Cobblestone Walkways
Guiding pedestrians safely through botanical gardens, community greenways, and residential promenades with smooth 360-degree ambient downward illumination.
Residential Villa Estates & Driveways
Providing elegant post-top bollard illumination along private driveway borders, entrance gates, and lawn perimeters with zero electric utility bills.

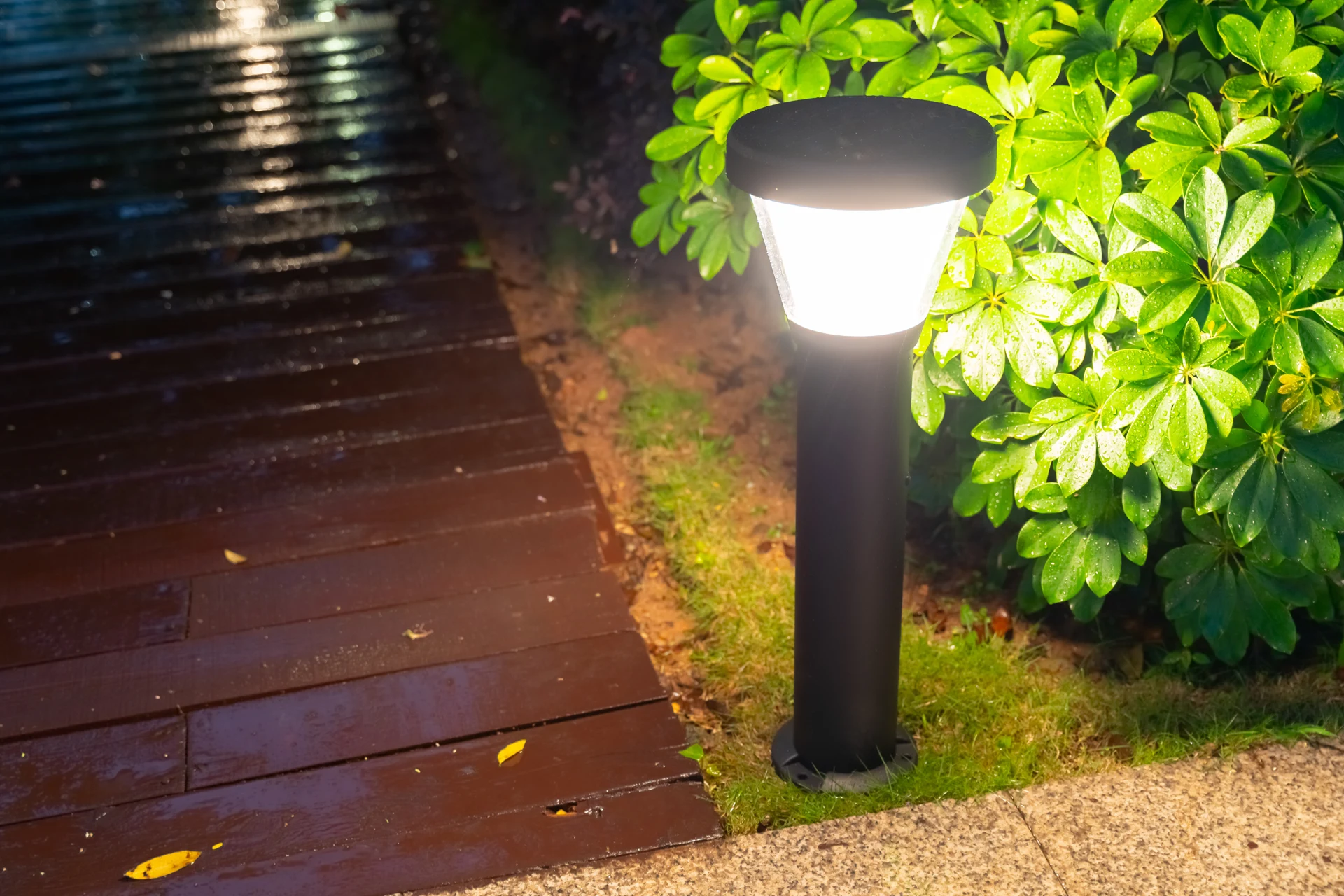

Timber Boardwalks & Deck Terraces
Anchoring securely onto timber decking around resort lagoons, poolside terraces, and alfresco dining decks without trenching through finished woodwork.

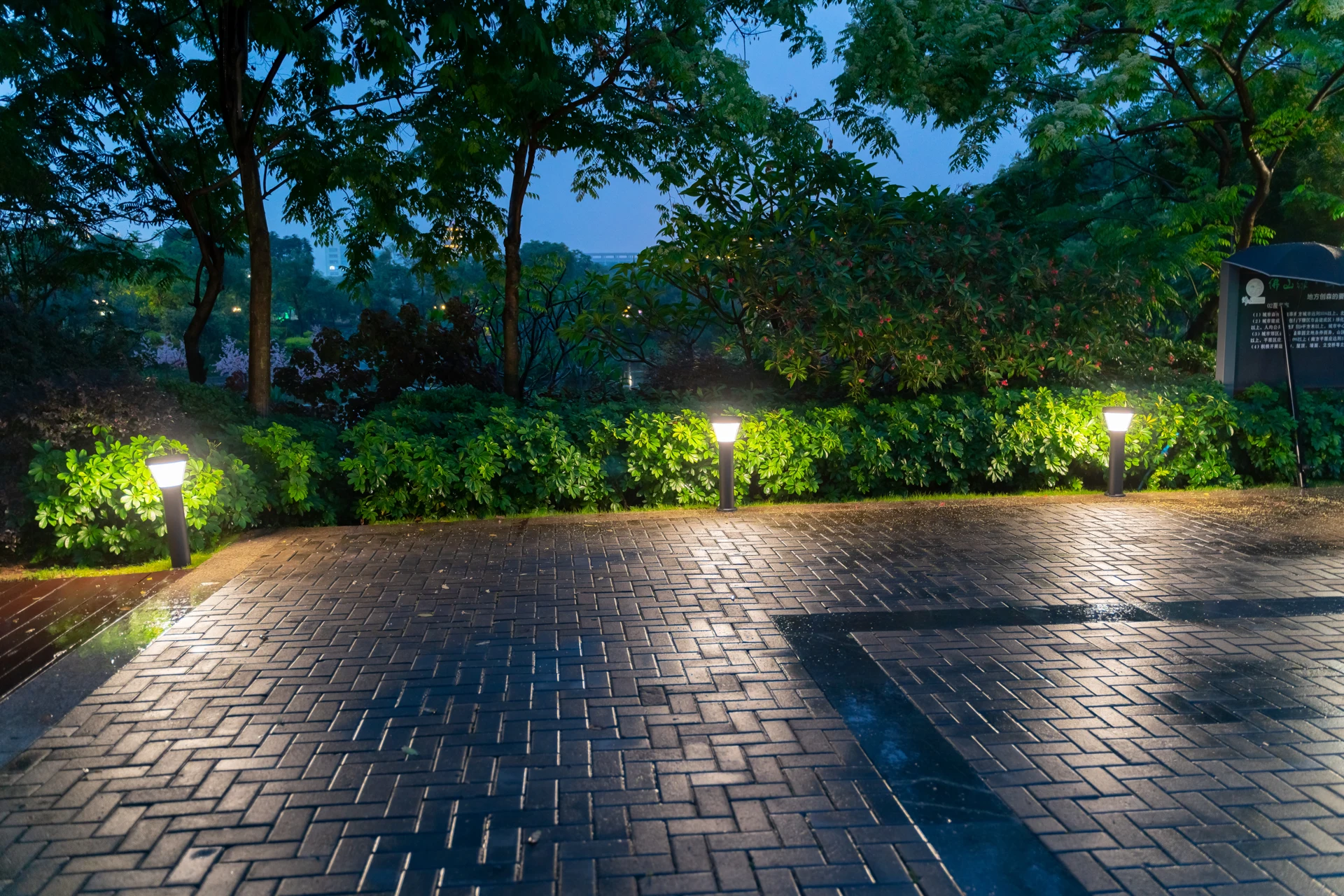

Commercial Plazas & Courtyards
Defining pedestrian circulation pathways and courtyard seating nooks across retail lifestyle complexes, corporate headquarters, and hotel gardens.
Public Parks & Botanical Reserves
Preserving pristine parkland and fragile root zones with self-contained solar bollards that operate independently of municipal utility wiring.
Waterfront Esplanades & Marinas
Resisting harsh coastal humidity and marine salt atmosphere with corrosion-proof anodized aluminum construction and IP65 hermetic sealing.
