Architectural Landscape Garden Lighting Bright Moon Series Integrated Solar Garden Light Model: SGL-006
SGL-006 Bright Moon Series Integrated Solar Garden Light
The SGL-006 Bright Moon Series Integrated Solar Garden Light combines contemporary European post-top minimalism with robust solar engineering for high-end residential communities, commercial corporate campuses, public parks, and municipal landscape plazas. Featuring an inverted flared conical diffuser available in both crystal-clear PC and glare-free dual-layer frosted PC, the luminaire delivers 1,060 lumens of uniform 360-degree batwing ground illumination without dark zones or light pollution. Powered by a high-efficiency 5V 20W monocrystalline solar panel, an automotive-grade 3.2V 20Ah (64Wh) LiFePO4 battery pack, and 80 high-performance 2835 SMD LEDs, it ensures 3+ continuous rainy days of uninterrupted nocturnal lighting. Supplied strictly as an all-in-one luminaire head (lighting poles excluded from standard supply) with an integrated Ø78mm spigot tenon sleeve for direct slip-fit mounting onto universal round poles.
Color & Optic
Beam Options
Product Specifications
Model Lineup Configuration
| Model Code | PV Array / Power | Battery Capacity | Luminous Output | Correlated Color Temp | Physical Size | Mounting Spigot |
|---|---|---|---|---|---|---|
| SGL-006-20W-SOL | 5V 20W Mono | 3.2V 20Ah (64Wh) | 1,059.5 lm |
3000K
6500K
|

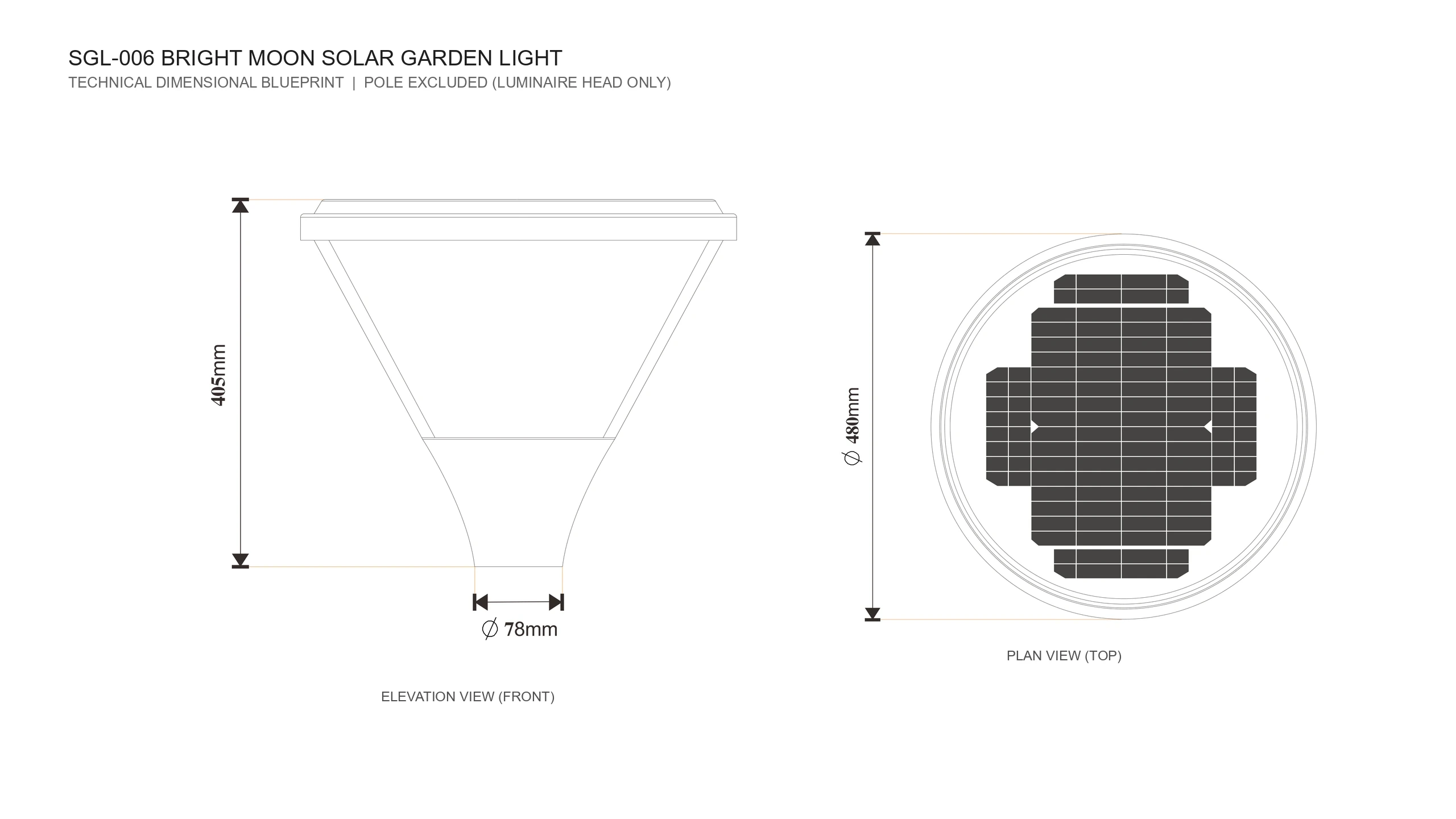

Ø480 × H405mm |
Ø78mm Tenon
Head Only · Pole Excluded
1 Set/Ctn · 490×490×420mm
|
| SGL-006-50W-AC | AC 220V Hybrid | AC Mains Driver | 4,500 lm |
3000K
6500K
|
Ø480 × H405mm |
Ø78mm Tenon
Head Only · Pole Excluded
1 Set/Ctn · 490×490×420mm
|
Advantages
Iconic Inverted Conical Architectural Form
The patented inverted flared conical silhouette merges classical European post-top lantern proportions with contemporary architectural elegance. The die-cast aluminum frame features an anodized surface treatment providing superior marine-grade corrosion and UV resistance for premier landscape projects.

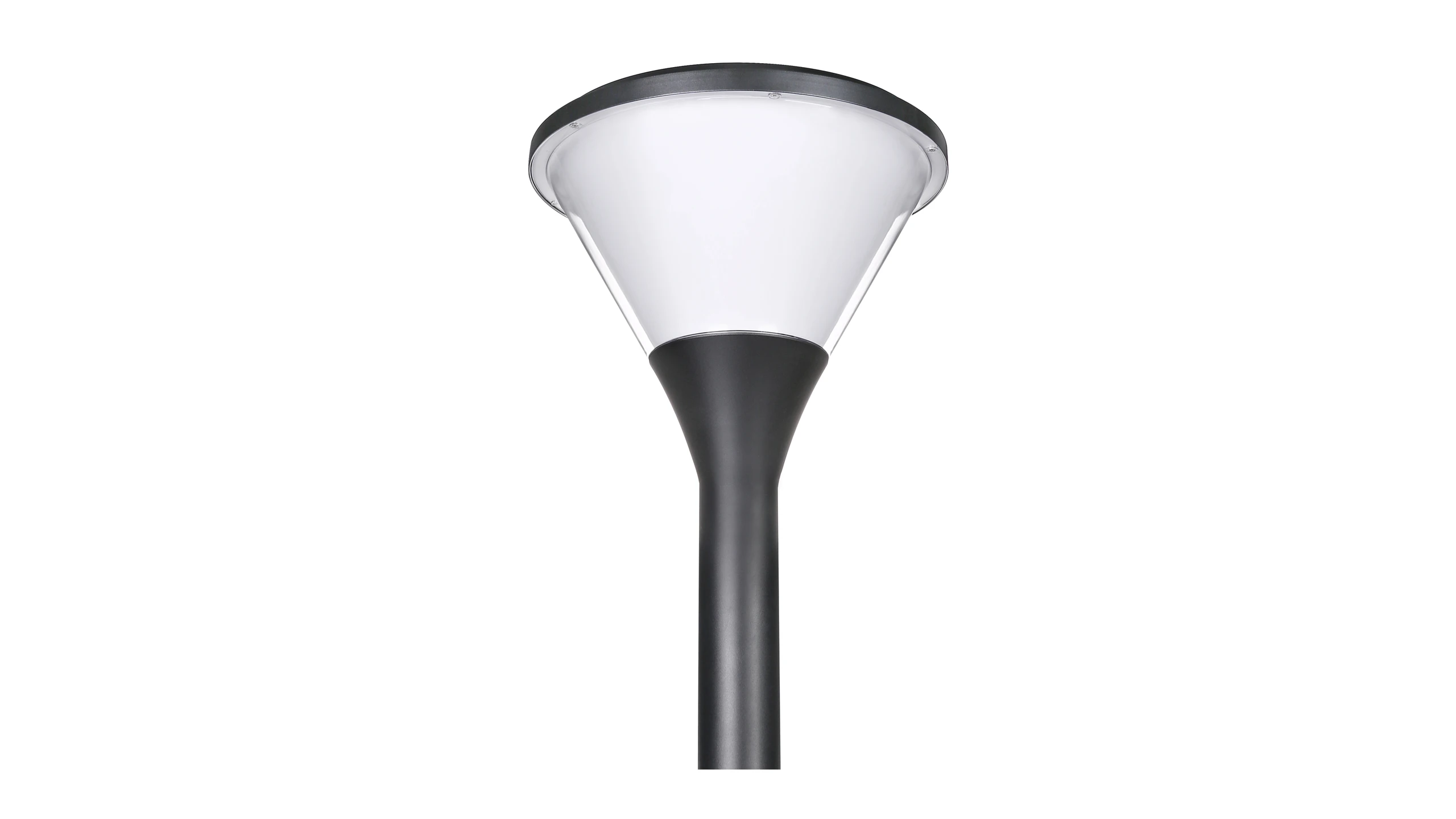

Dual PC Diffuser & High-Efficiency Optics
Engineered with a high-transmittance outer optical polycarbonate cone paired with an internal conical white reflector or frosted inner tube. This secondary optical configuration projects uniform 360° batwing lateral ground coverage, eliminating harsh glare while illuminating pathways up to 21 meters apart.

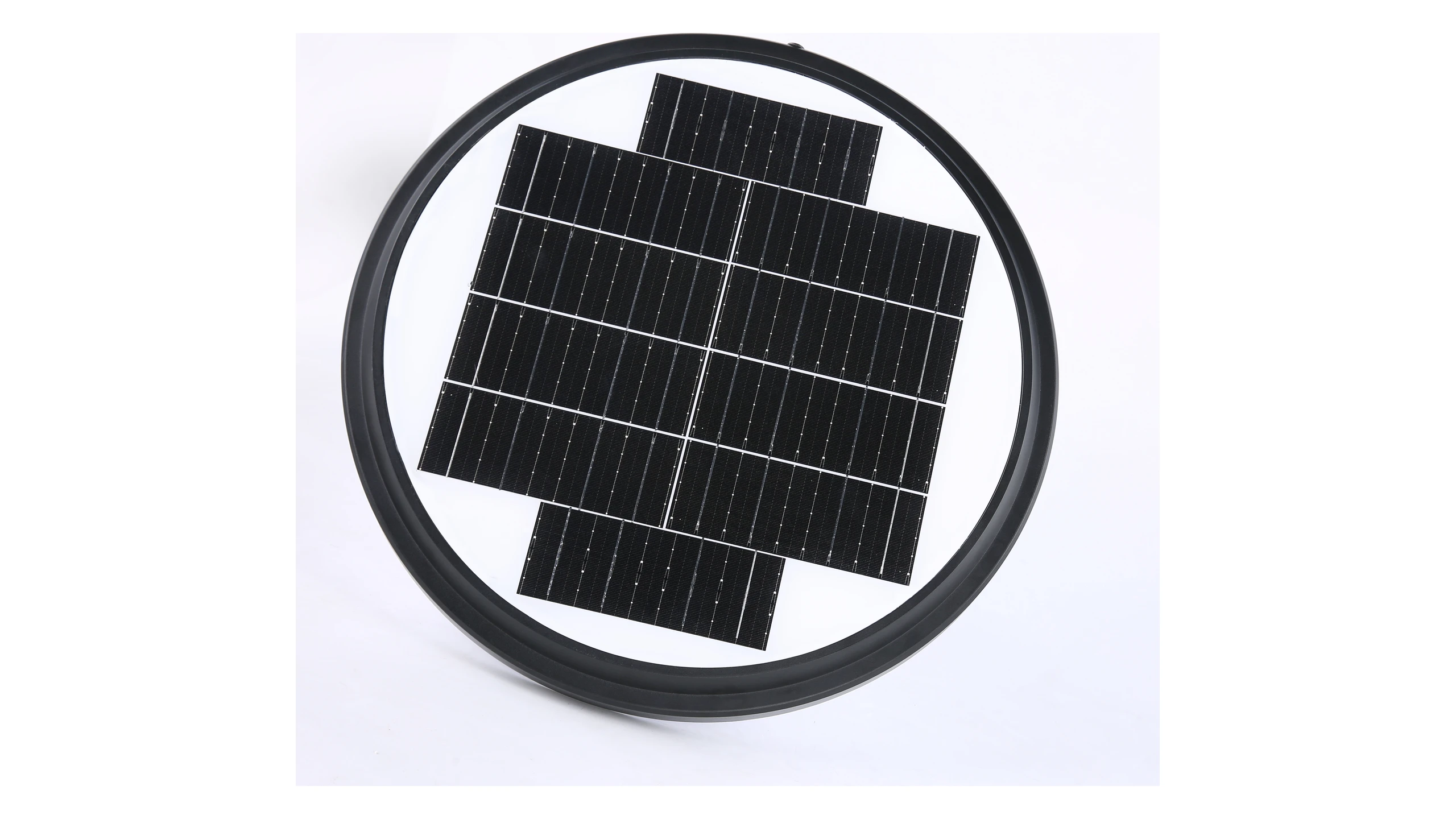

High-Conversion Monocrystalline PV & LiFePO4
Integrated A-grade 5V 20W monocrystalline silicon disc ensures rapid 6-hour solar recharge even under overcast conditions. Combined with a robust 3.2V 20Ah (64Wh) deep-cycle LiFePO4 battery pack, the luminaire sustains 3+ continuous rainy days of all-night dusk-to-dawn lighting performance.

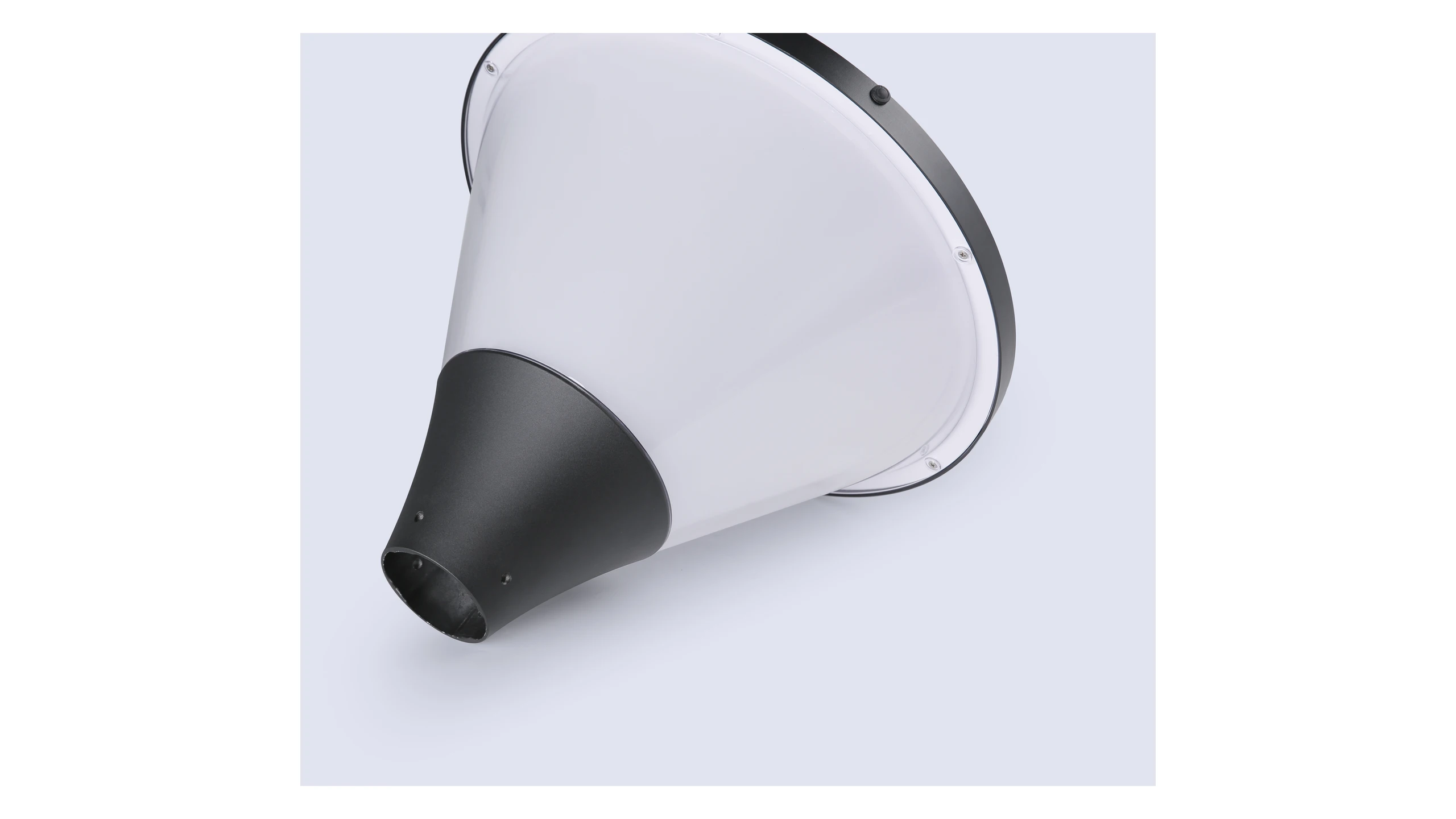

Universal Ø78mm Tenon Direct Slip-Fit
Features a factory-integrated Ø78mm internal diameter spigot tenon with stainless steel hex locking screws. Enables direct slip-fit installation onto standard 76mm to 78mm landscape light poles without field wiring, external conduit, or specialized trenching infrastructure.
IP65 Weatherproof Industrial Die-Cast Housing
Built with precision die-cast aluminum alloy and UV-stabilized polycarbonate diffuser sealed with high-elasticity silicone gaskets to achieve IP65 ingress protection against torrential monsoon rains, snowstorms, and dust.
Intelligent Auto Dusk-to-Dawn Control
Integrated smart PWM solar controller automatically monitors ambient solar voltage for seamless dusk-to-dawn switching and adaptive power optimization throughout changing seasonal day lengths.
Applications

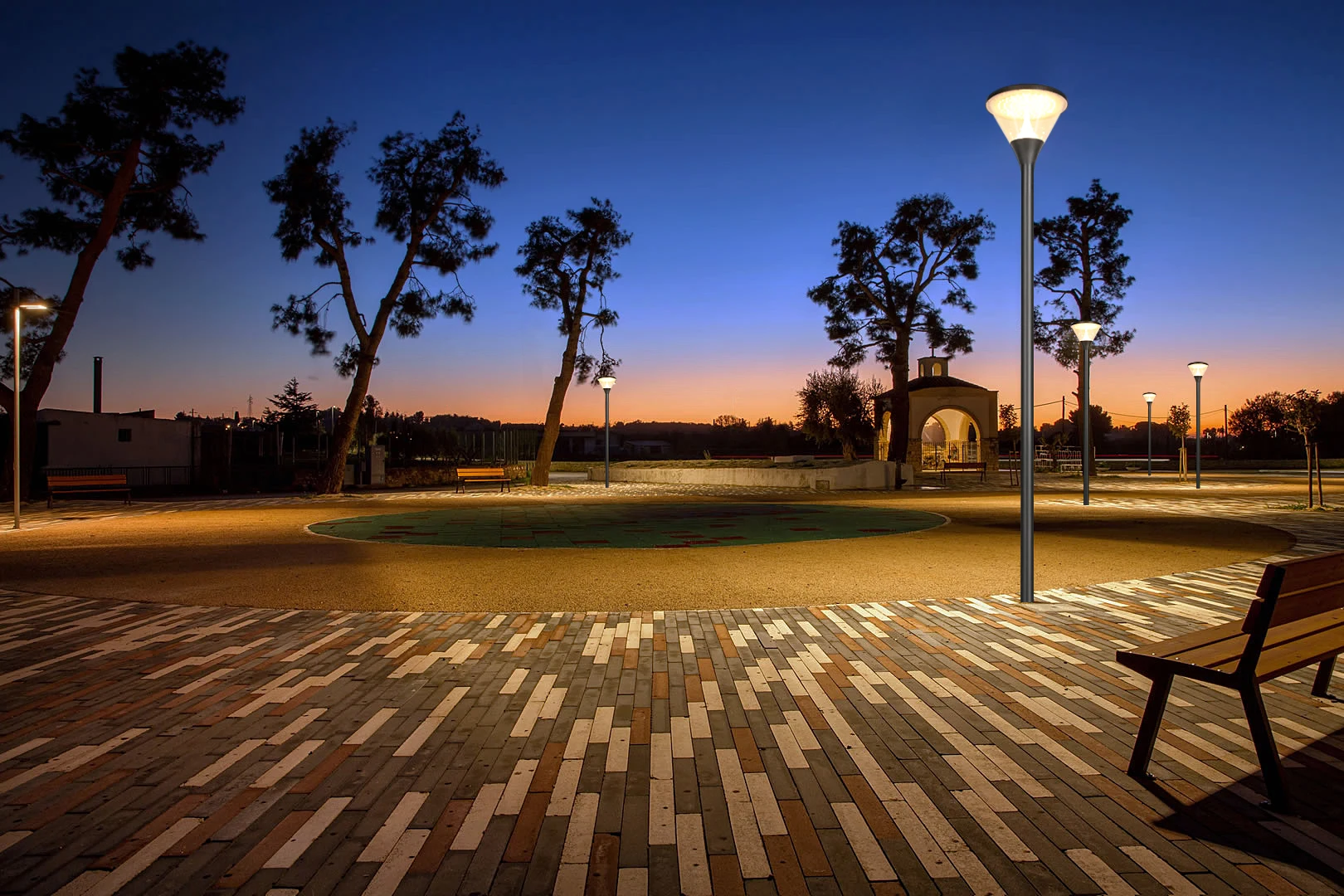

Civic Plazas & Promenades
Delivering generous symmetrical 360-degree ground lighting that enhances evening pedestrian visibility and public urban vibrancy across town squares and waterfront esplanades.

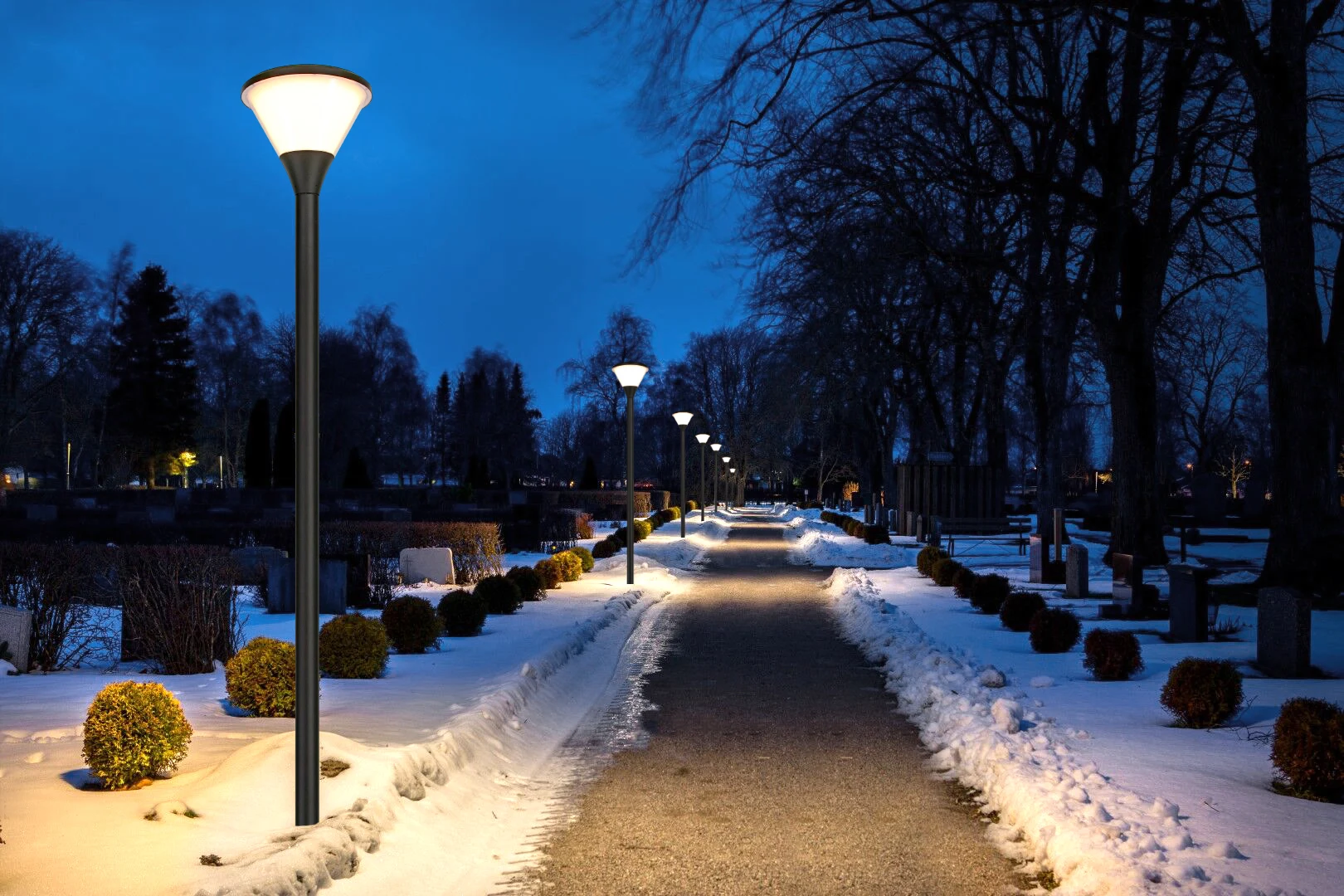

Public Parks & Forest Walkways
Eliminating disruptive underground cabling across sensitive botanical roots while guiding evening joggers, cyclists, and visitors along serene nature pathways.

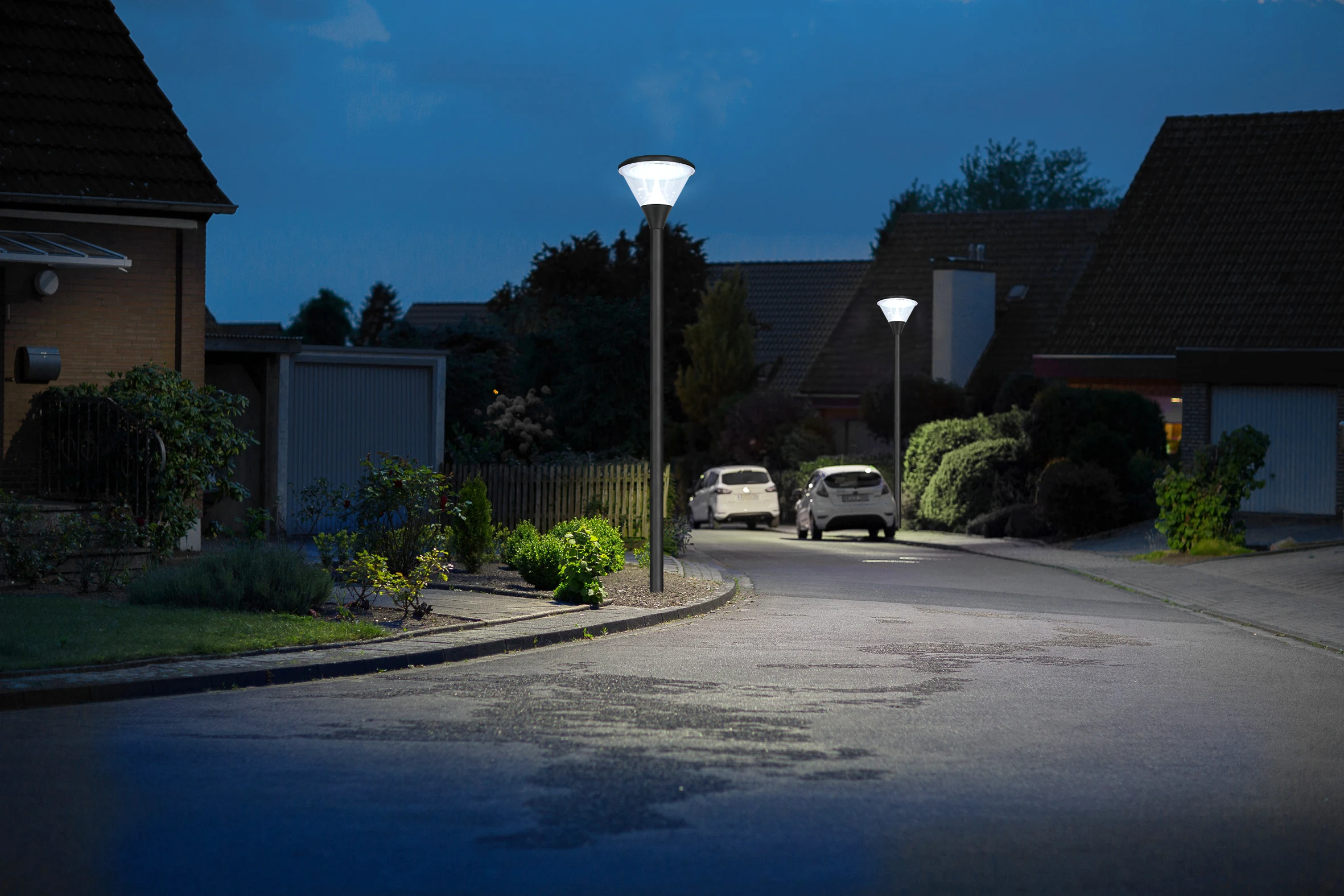

Residential Communities & Villas
Offering refined low-glare perimeter illumination along neighborhood access roads, private driveways, and clubhouse courtyard pathways.

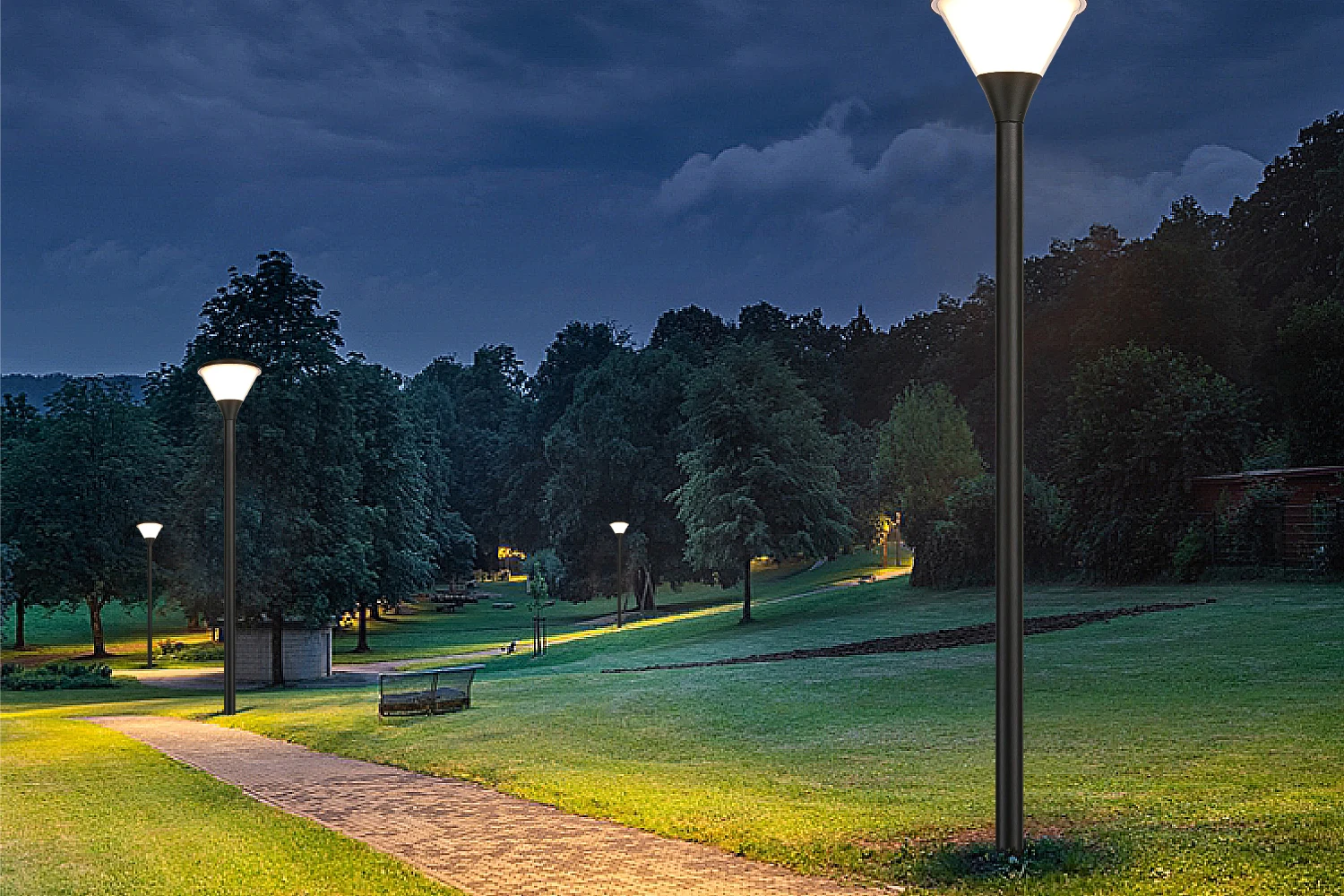

Corporate Campuses & Gardens
Providing sustainable zero-grid landscape illumination that complements modern glass and steel office architecture while lowering long-term operating overhead.
Hospitality Resorts & Hotels
Elevating outdoor guest hospitality with warm 3000K ambient illumination across poolside lawns, alfresco terraces, and tropical resort pathways.
Commercial Retail Centers
Illuminating open-air retail village courtyards and dining esplanades with inviting architectural post-top fixtures requiring zero utility power consumption.
Impressions
