Name: SGL-001 Hourglass Solar Garden Light | TPK Lighting
SKU: SGL-001

SGL-001 Hourglass Series Integrated Solar Garden Light

IP65 Weatherproof · Stepped Conical Bionic Geometry · Monocrystalline PV · Pole Excluded (Luminaire Head Only)

The SGL-001 Hourglass Series Integrated Solar Garden Light embodies timeless geometric symmetry inspired by the classic hourglass silhouette, engineered specifically for pedestrian walkways, commercial courtyards, public greenways, and luxury residential estates. Featuring an integrated 5V 20W high-conversion monocrystalline solar disc, an automotive-grade 3.2V 20Ah (64Wh) LiFePO4 battery pack, and 80 high-efficiency 2835 SMD LEDs, it delivers 822 lumens of smooth 360-degree radial illumination without glare. Supplied strictly as an all-in-one luminaire head (lighting poles excluded from standard supply) with an integrated Ø76mm spigot tenon sleeve, it enables direct slip-fit installation onto standard garden posts, delivering over 3 consecutive rainy nights of autonomous dusk-to-dawn lighting.

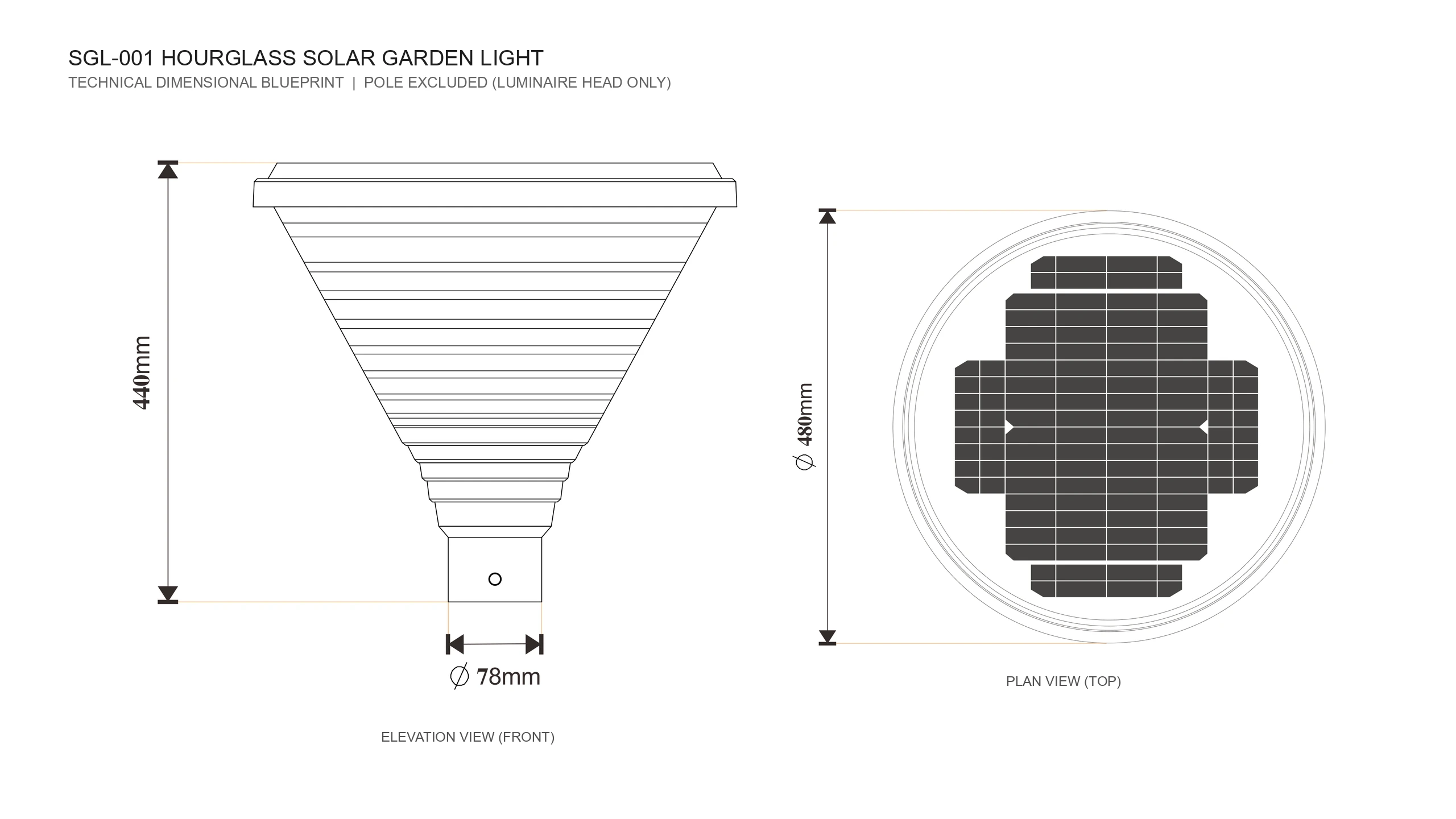

SGL-001-30W CAD dimension drawing (luminaire head only · pole excluded)

Color & Optic

Color Temperature Options

3000K

6500K

Available in 3000K warm white and 6500K daylight cool white. High color rendering index CRI > 80 Ra.

Beam Options

360 degree symmetrical radial beam angle

360° Radial

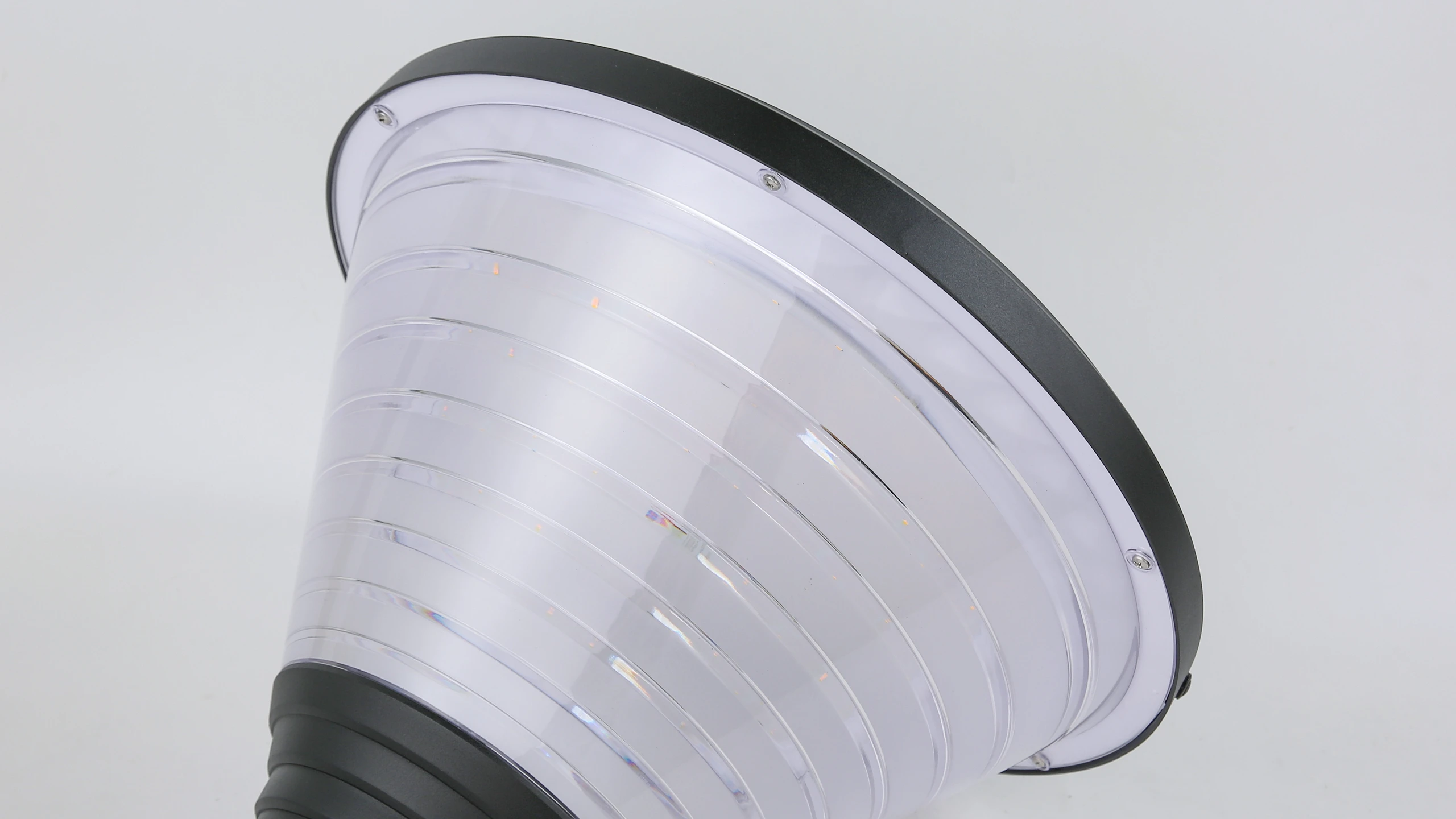

Precision stepped conical PC optical diffuser delivering uniform 360° symmetrical light distribution across wide pedestrian zones.

Product Specifications

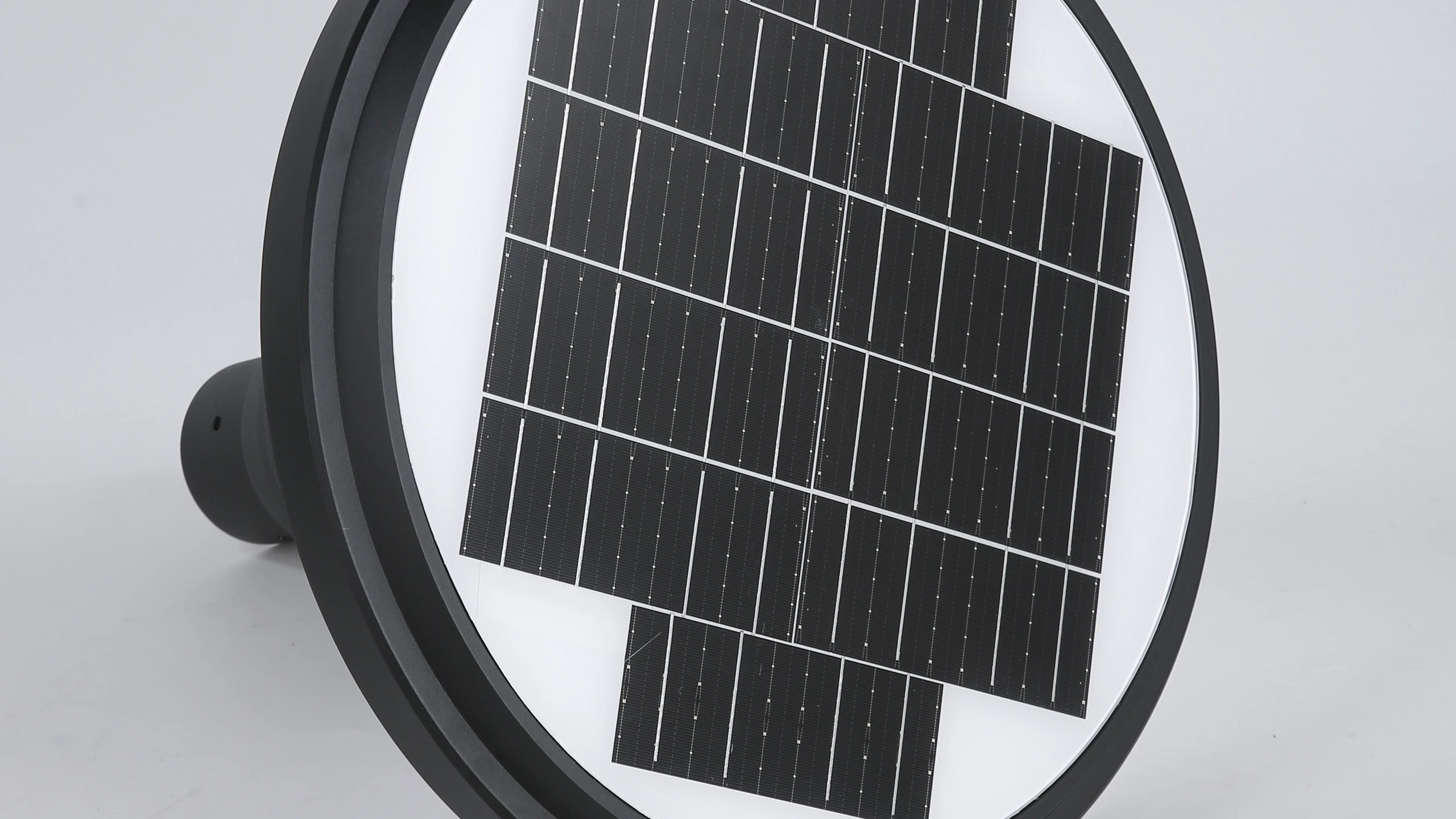

Solar Panel 5V 20W Grade-A High-Conversion Monocrystalline Silicon

Battery Pack 3.2V 20Ah (64Wh) Deep-Cycle Lithium Iron Phosphate (LiFePO4)

LED Light Source 3V 2835 SMD · 80 pcs (0.5W per LED)

Luminous Flux 822 lm (6500K) / 780 lm (3000K)

Color Temperature 3000K ~ 6500K Multi-CCT Spectrum (CRI > 80 Ra)

Beam Distribution 360° Symmetrical Radial Anti-Glare Garden Distribution

Product Size Ø480 × H440 mm (Head) · Carton: 485 × 485 × 490 mm

Installation Tenon Standard Tenon Inner Diameter Ø76 mm (Luminaire Head Only · Pole Excluded)

Mounting Height 4m ~ 6m · Recommended Spacing 14m ~ 21m

Housing & Diffuser Heavy Die-Cast Aluminum + UV-Stabilized Stepped PC

Ingress Protection IP65 Weatherproof & Dust-Tight Industrial Sealed

Standard Warranty 2 Years Comprehensive Factory Replacement Warranty

Model Lineup Configuration

Model Code	PV Array / Power	Battery Capacity	Luminous Output	Correlated Color Temp	Physical Size	Mounting Spigot
SGL-001-30W-SOL	5V 20W Mono	3.2V 20Ah (64Wh)	822 lm	3000K 6500K	Ø480 × H440mm	Ø76mm Tenon Head Only · 4.8kg 1 Set/Ctn · 485×485×490mm
SGL-001-50W-AC	AC 220V Hybrid	AC Mains Driver	4,200 lm	3000K 6500K	Ø480 × H440mm	Ø76mm Tenon Head Only · 4.2kg 1 Set/Ctn · 485×485×490mm

Advantages

Bionic Hourglass Aesthetic Form

Distinctive stepped hourglass contours provide architectural visual harmony across classical gardens and modern commercial parkscapes.

360° Glare-Free Stepped Conical PC

Precision stepped polycarbonate optic eliminates uncomfortable visual hotspots while uniformly dispersing comfortable horizontal radial foot-candles.

A-Grade 20W Monocrystalline PV Disc

High-conversion efficiency monocrystalline photovoltaic cells maximize solar harvest even in low-angle winter sunlight and diffuse overcast skies.

Automotive LiFePO4 Battery Core

Safe, thermally stable 3.2V 20Ah lithium iron phosphate pack delivers over 2,000 discharge cycles, powering 3+ rainy nights effortlessly.

IP65 Heavy Die-Cast Aluminum Body

Corrosion-resistant die-cast aluminum housing with outdoor anodic powder coating resists extreme coastal salinity, heavy downpours, and UV degradation.

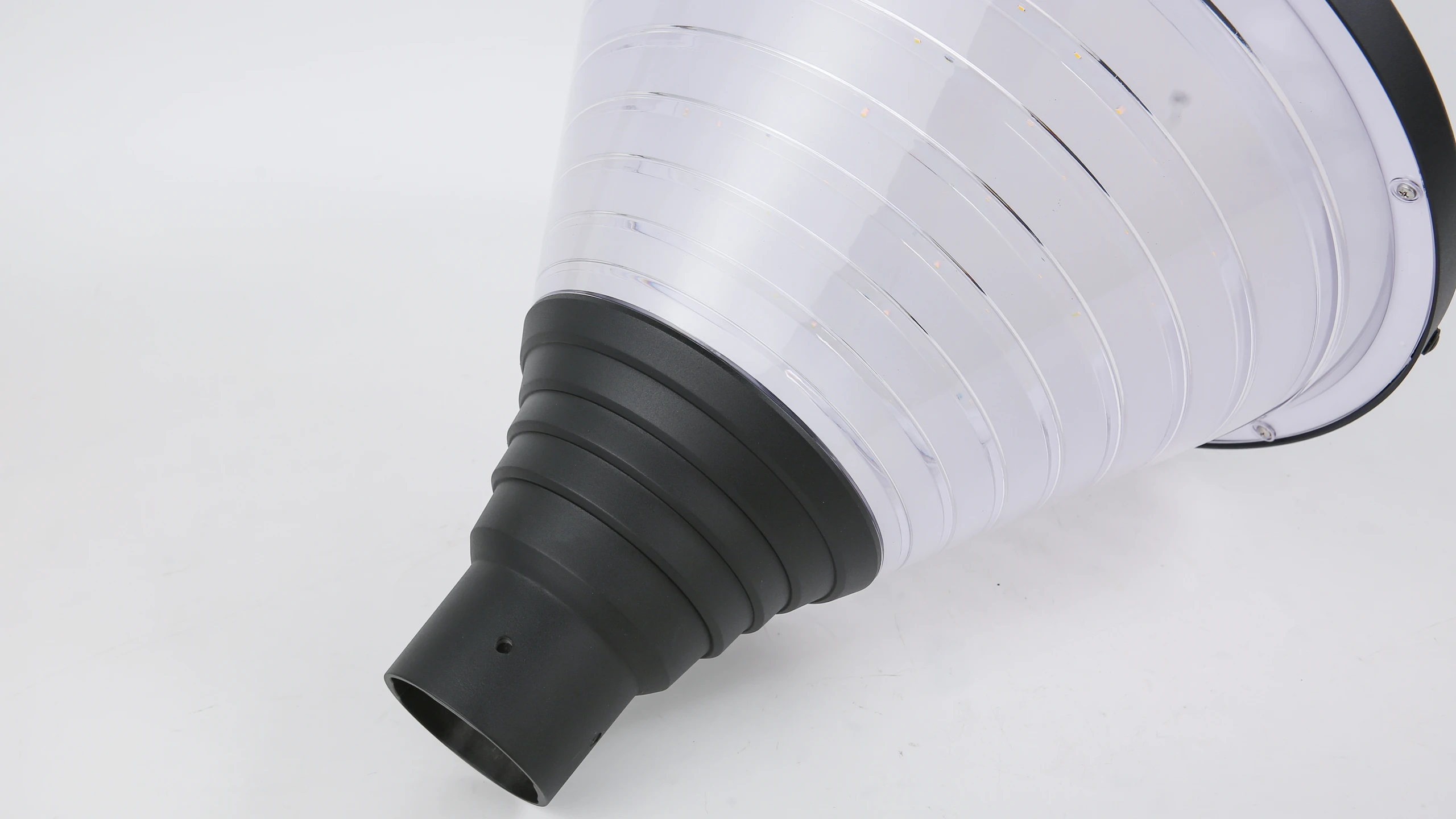

Direct Tenon Slip-Fit Installation

Universal Ø76mm mounting socket enables rapid tool-less slip-fit connection to standard posts (luminaire head only, pole excluded).

Applications

Residential Villa Courtyards & Lawns

Providing soft, atmospheric illumination for private garden patios, green lawns, and boundary walkways without disruptive glare.

Municipal Public Parks & Botanical Gardens

Delivering reliable zero-trenching, zero-electricity municipal lighting along botanical pathways and scenic lakeside promenades.

Commercial Plaza & Retail Promenades

Enhancing evening pedestrian foot traffic and dining ambiance around open-air commercial squares and outdoor lifestyle centres.

Hospitality Resorts & Waterfront Trails

IP65 salt-mist resistant construction ensures continuous pristine operation across coastal resorts and riverside bike tracks.

Corporate Campuses & Technology Parks

Modern architectural luminaire profiles complement contemporary headquarters landscaping with zero annual carbon emissions.

Historic Districts & Pedestrian Alleys

Elegant hourglass geometry harmonizes seamlessly with traditional brick and heritage stone pedestrian walkways.

Impressions

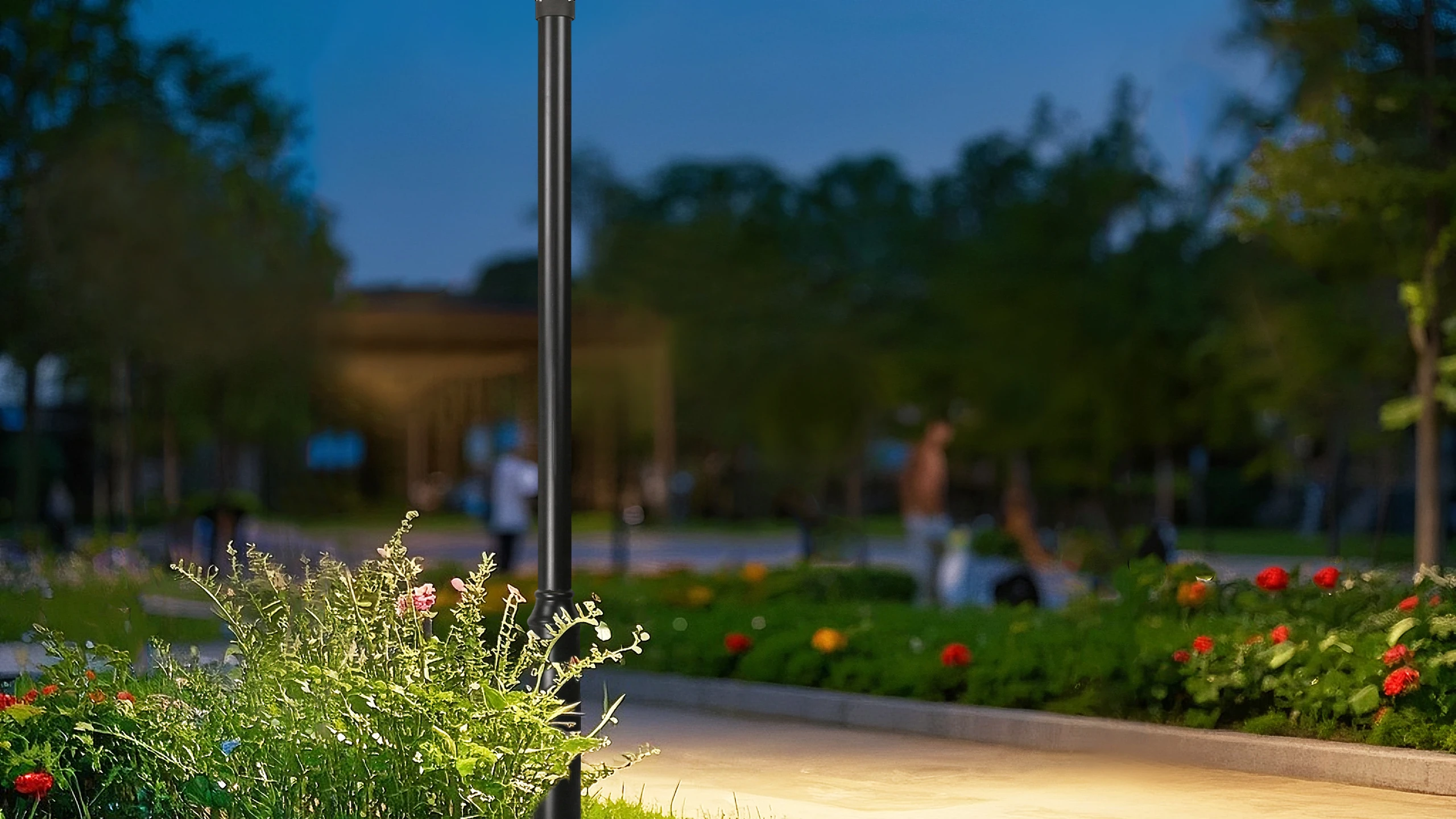

SGL-001 Hourglass garden light in private luxury villa courtyard

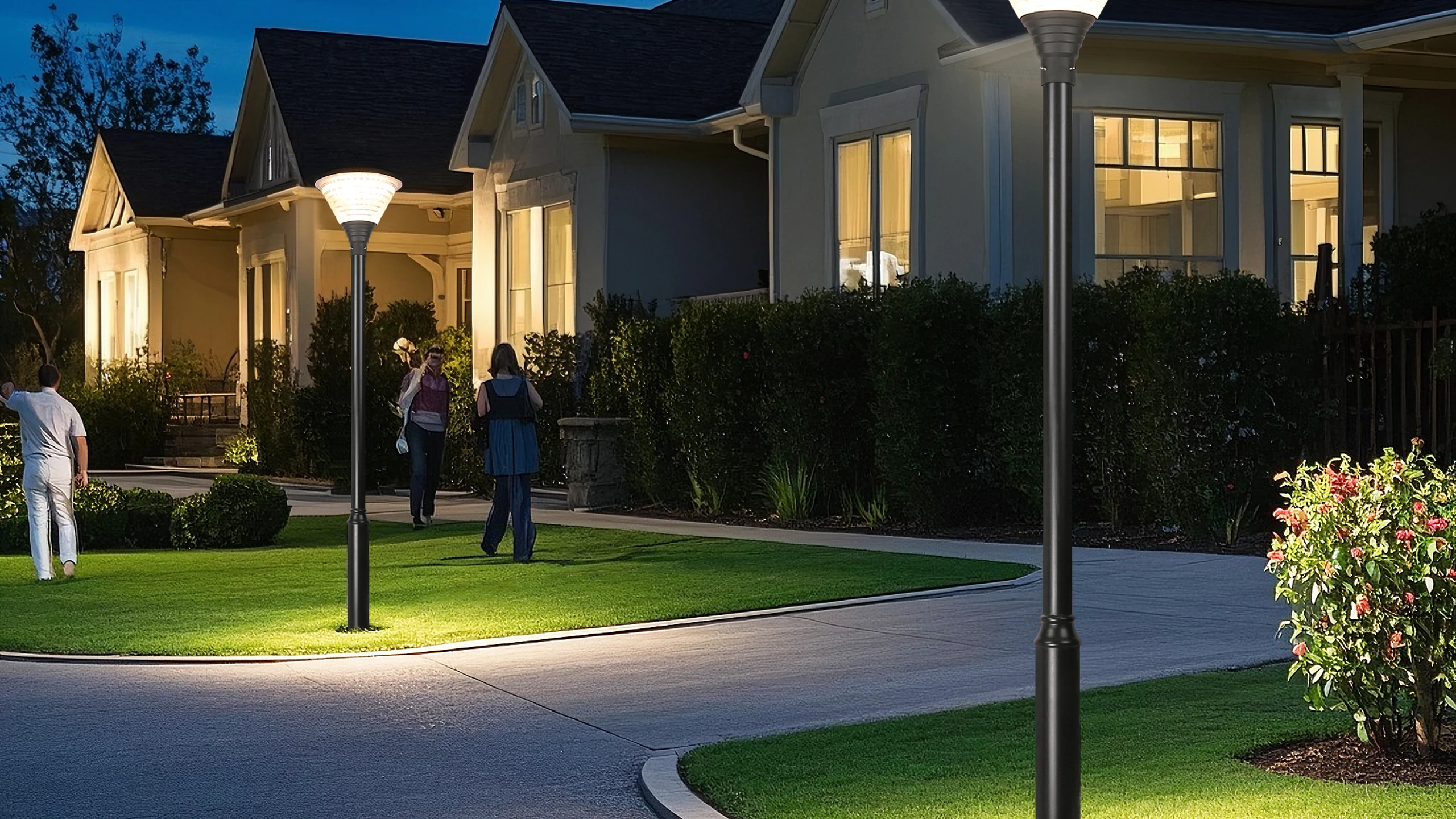

SGL-001 Hourglass garden light illuminating park pedestrian walkway

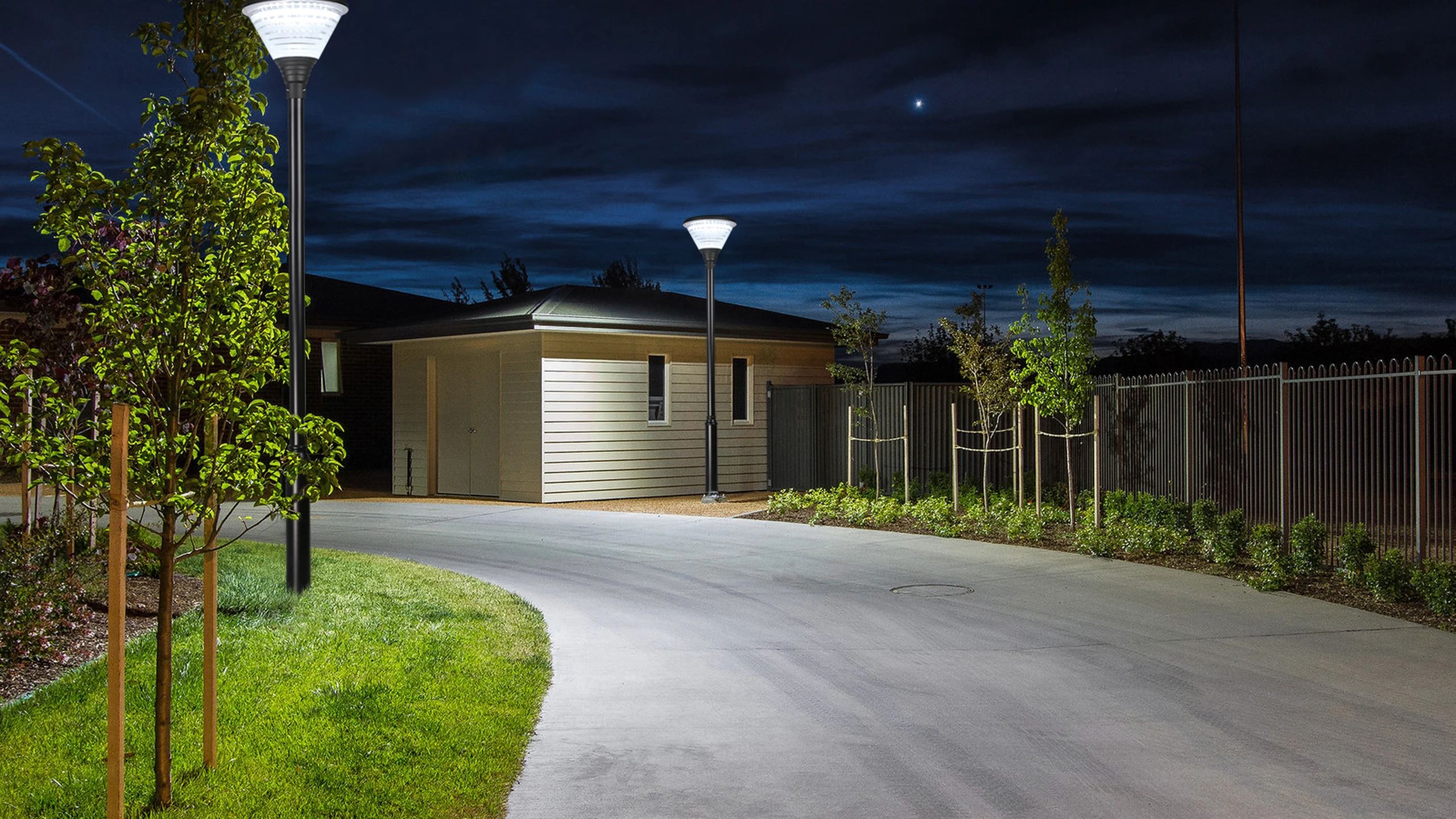

SGL-001 Hourglass garden light along green residential path

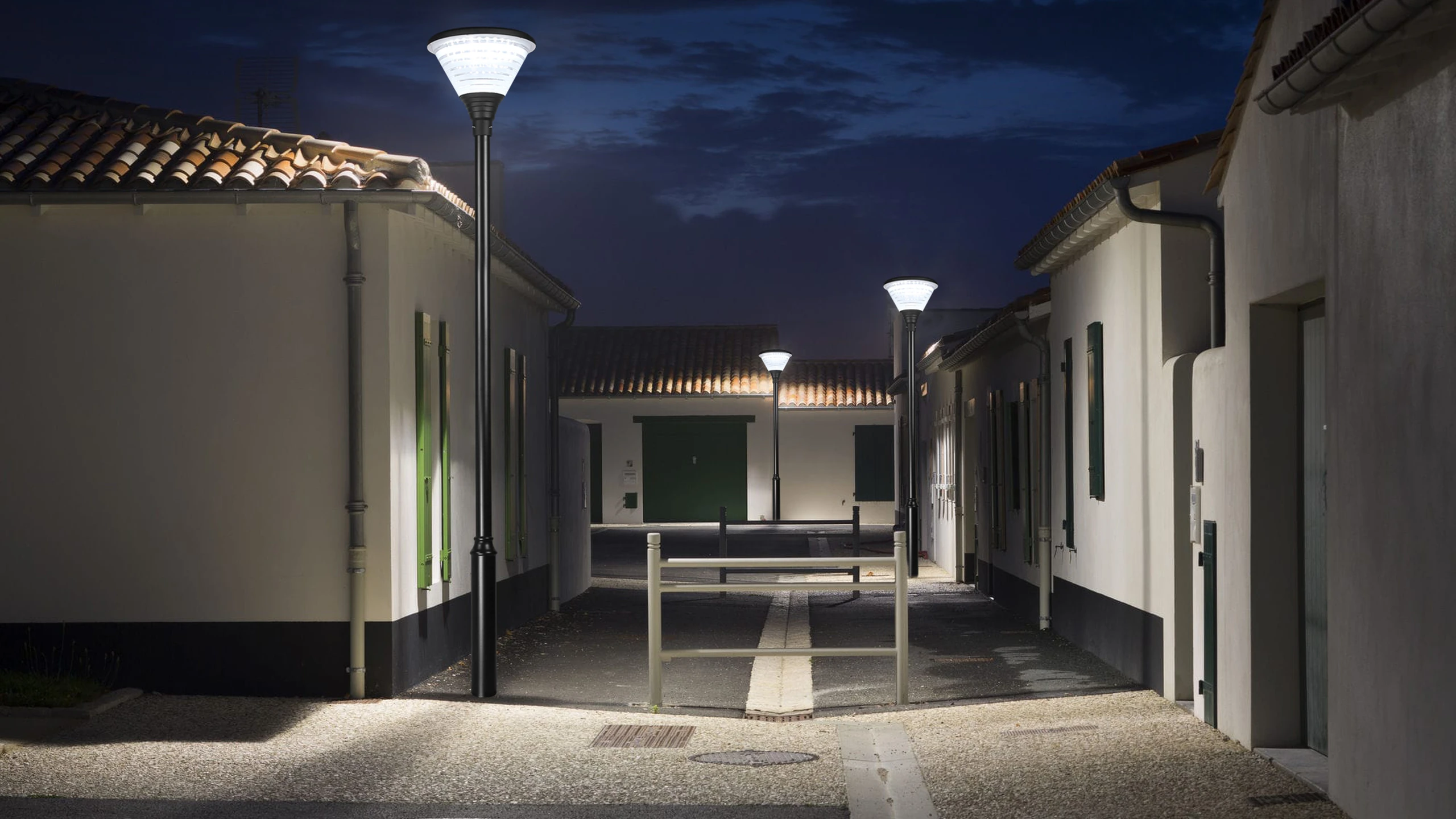

SGL-001 Hourglass garden light illuminating evening public park promenade

FAQ

Are lighting poles included with the SGL-001 Hourglass garden light?

No. In accordance with standard international commercial supply terms, the SGL-001 is supplied strictly as an all-in-one luminaire head (pole excluded). It features an integrated Ø76mm mounting tenon socket with dual stainless-steel hex set screws, allowing seamless slip-fit installation onto local 4m–6m steel or aluminum posts.

How does the SGL-001 perform during prolonged continuous rainy or overcast days?

The luminaire integrates an oversized 3.2V 20Ah (64Wh) Grade-A LiFePO4 battery pack coupled with an intelligent PWM multi-stage dimming controller. On a full charge (6 hours in bright sun), it delivers over 3 consecutive nights of dusk-to-dawn lighting without any utility grid connection.

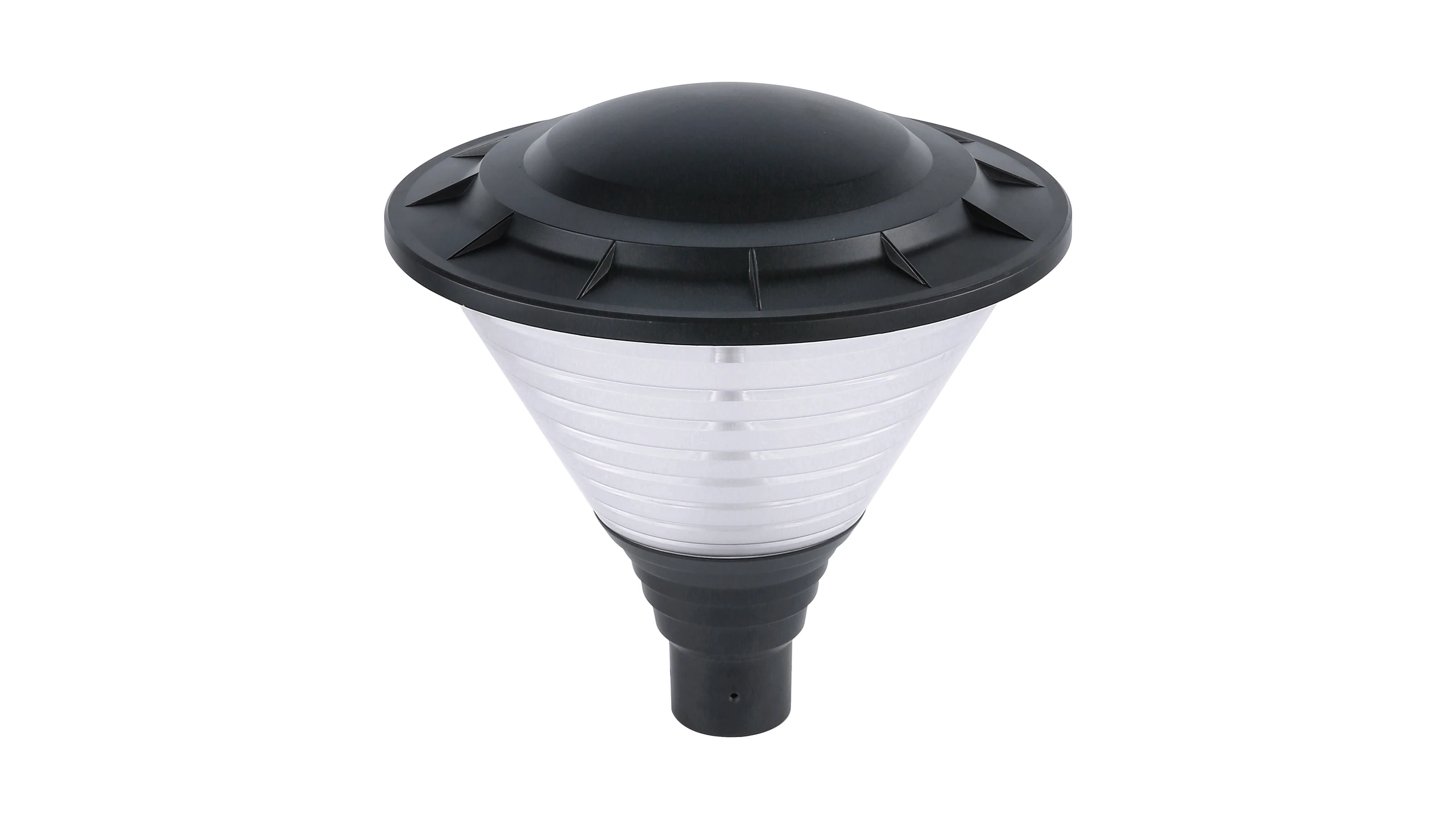

Is an AC mains electric hybrid version available for permanent shade installations?

Yes. We offer model SGL-001-50W-AC, which utilizes the exact same architectural hourglass die-cast housing and stepped PC optic, but incorporates an internal 100–240V AC mains LED driver producing 4,200 lumens for heavily shaded courtyard areas.

What is the recommended installation height and pole spacing for SGL-001?

For standard pedestrian pathways and park walkways, an installation height of 4.0m to 6.0m with a pole-to-pole spacing of 14m to 21m provides uniform Class P ground illuminance with excellent photometric uniformity and zero visual cutoff glare.

What certifications and factory warranty support the SGL-001?

The SGL-001 is fully certified to CE, RoHS, and IP65 standards. It is backed by TPK's standard 2-year comprehensive factory replacement warranty covering the solar panel, LiFePO4 battery, LED array, and optical assembly.
