Architectural Landscape Garden Lighting Pumpkin Series Integrated Solar Garden Light Model: SGL-1105
SGL-1105 Pumpkin Series Integrated Solar Garden Light
The SGL-1105 Pumpkin Series Integrated Solar Garden Light infuses classical bionic architecture into modern municipal illumination. Featuring a distinctive circular silhouette reminiscent of natural fluted pumpkin forms, this luminaire integrates a 5V 28W monocrystalline solar disc, an automotive-grade 3.2V 36Ah (115.2Wh) LiFePO4 battery pack, and 160 high-efficiency 3030/2835 SMD LEDs producing up to 1,833 lumens of uniform 360-degree glare-free radial light. Supplied strictly as an all-in-one luminaire head (lighting poles excluded from standard supply) with an integrated Ø76mm spigot tenon, it enables direct slip-fit installation onto standard garden posts, delivering over 3 to 5 continuous nights of autonomous dusk-to-dawn lighting.
Color & Optic
Beam Options
Product Specifications
Model Configuration

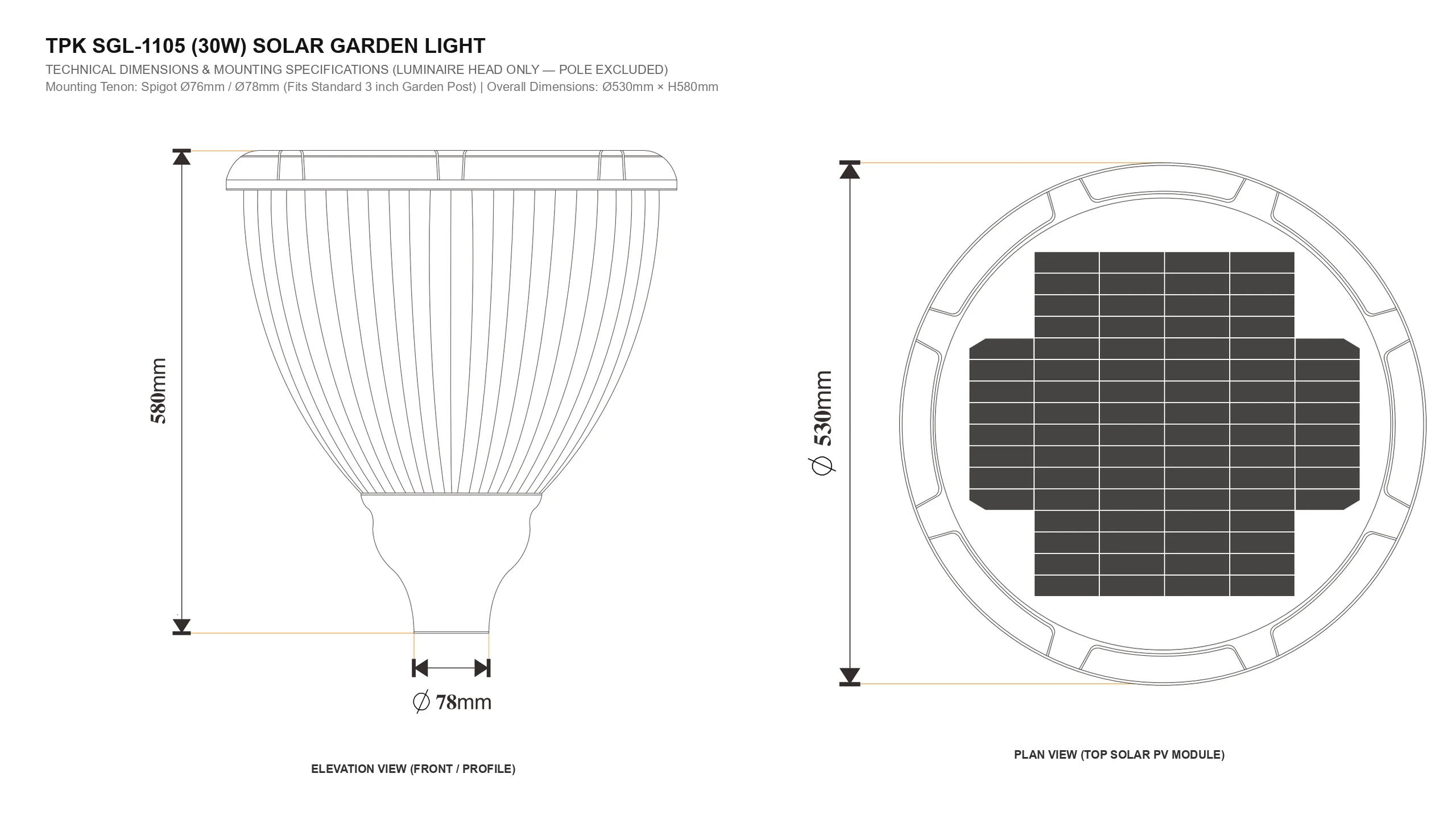

| Model | Dimension | Power | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|
| SGL-1105-30W-WW | Ø530 × H580 mm | 30W Nominal (5V 28W PV) |
3000K
4000K
6500K
|
1,710.2 lm | Tenon: Ø76 mm (Luminaire Only · Pole Excluded) | G.W. 10.2 kg Battery: LiFePO4 36Ah (115.2Wh) Carton: 540×540×610mm (1 Set) |
| SGL-1105-30W-CW | Ø530 × H580 mm | 30W Nominal (5V 28W PV) |
3000K
4000K
6500K
|
1,833.8 lm | Tenon: Ø76 mm (Luminaire Only · Pole Excluded) | G.W. 10.2 kg Battery: LiFePO4 36Ah (115.2Wh) Carton: 540×540×610mm (1 Set) |
Advantages

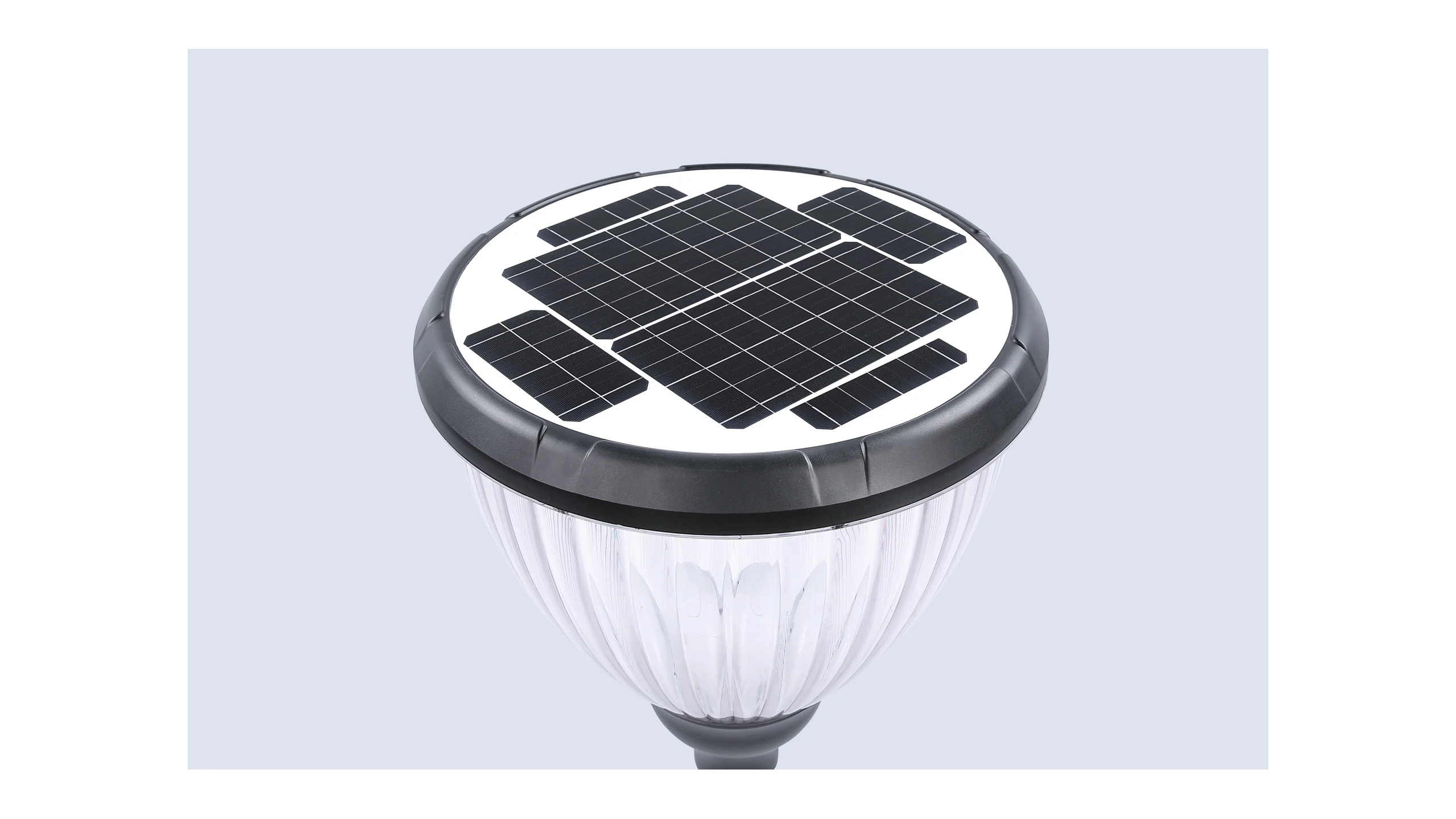

High-Efficiency Monocrystalline Silicon PV
Integrated top-mounted 5V 28W A-grade monocrystalline solar panel with conversion efficiency over 22%, delivering full battery recharge within 6 peak sunlight hours.
Automotive Deep-Cycle LiFePO4 Energy Cell
High-capacity 3.2V 36Ah (115.2Wh) lithium iron phosphate battery pack rated for over 2,000 deep cycles, maintaining stable energy supply across extreme temperatures from -25°C to +65°C.

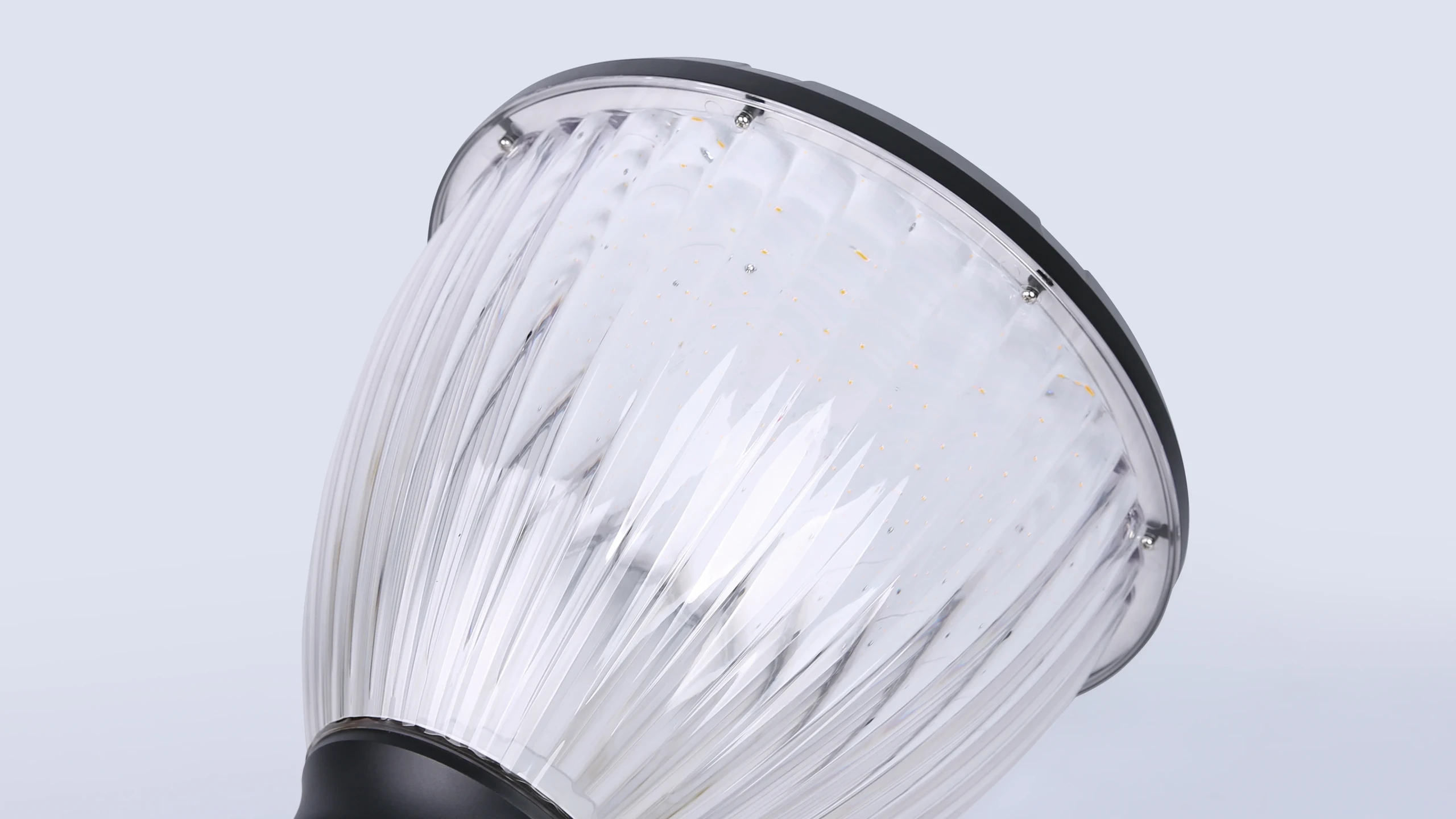

Fluted Polycarbonate Optical Lens Diffuser
Classical pumpkin fluted diffuser with 160 high-efficiency SMD LEDs provides seamless 360-degree ground illumination, eliminating dark zones across park walkways.
Sculptural Heavy-Duty Die-Cast Aluminum Body
Heavy-duty ADC12 die-cast aluminum housing finished with outdoor anodic oxidation and electrostatic powder coating, providing IP65 ingress protection and superior corrosion resistance.
Intelligent PWM Power Management
Smart integrated dusk-to-dawn controller provides automatic illumination activation with multi-stage dimming, sustaining over 3 continuous rainy days of autonomous performance.
Standard Ø76mm Spigot Tenon Mount
Standardized Ø76mm inner diameter mounting sleeve secured with stainless steel set-screws enables effortless slip-fit mounting onto local garden light poles (pole excluded from supply scope).
Application Scenarios

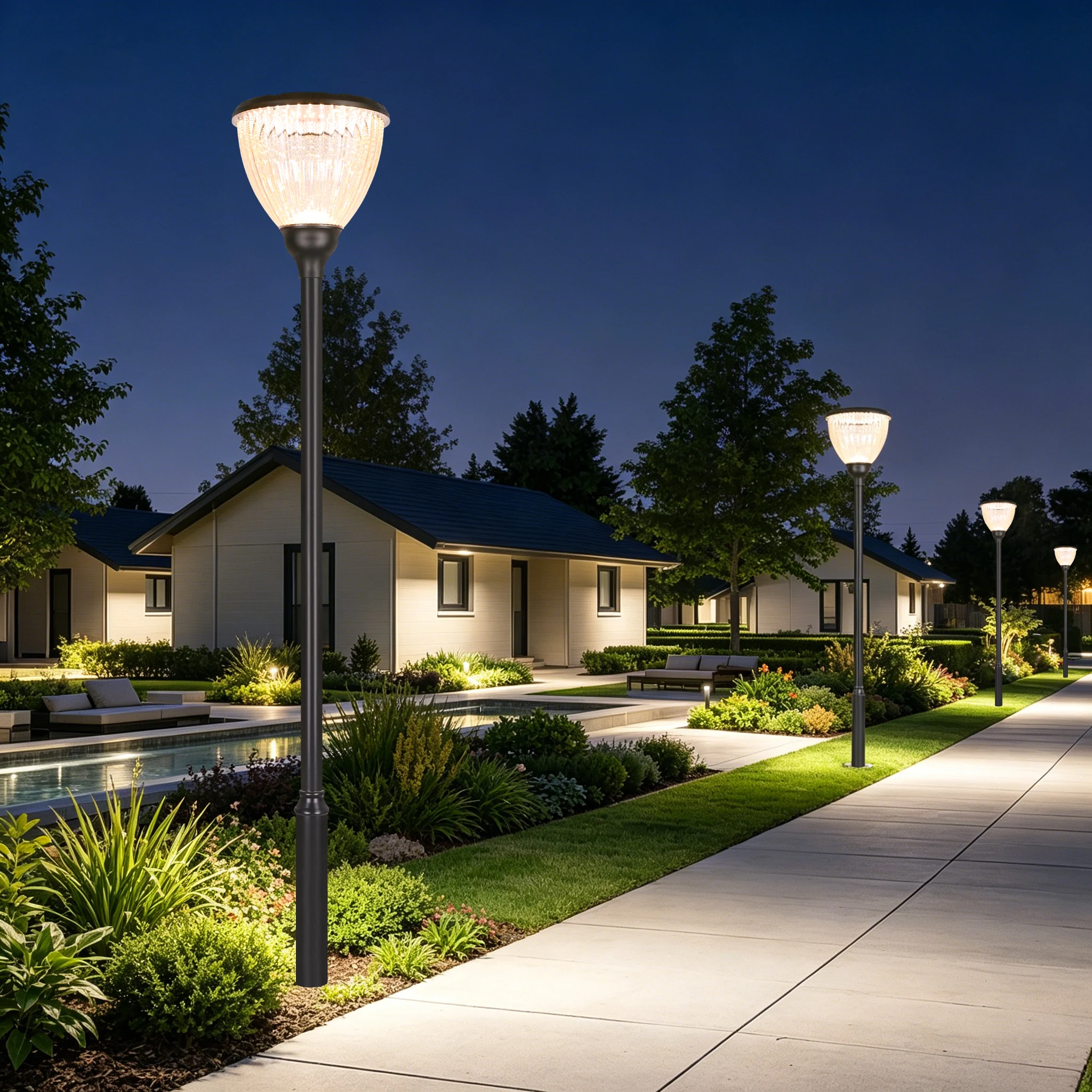

Residential Communities & Private Villas
Residential landscape perimeters, villa gardens, and private courtyard paths requiring refined architectural styling and zero-trenching solar illumination.

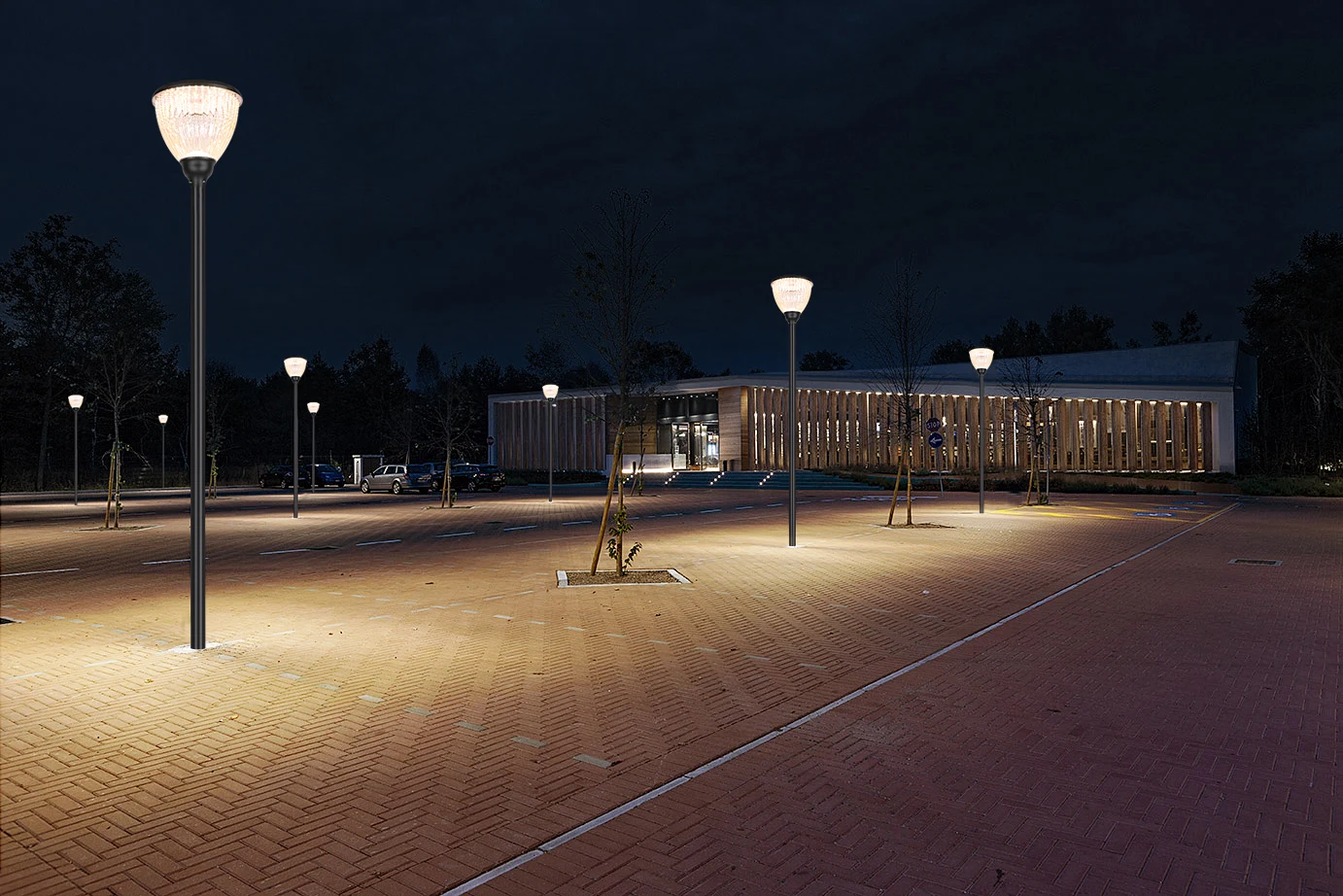

Commercial Plazas & Parking Facilities
Commercial retail plazas, outdoor parking lots, and corporate courtyard areas providing dependable autonomous all-night visibility and enhanced safety.

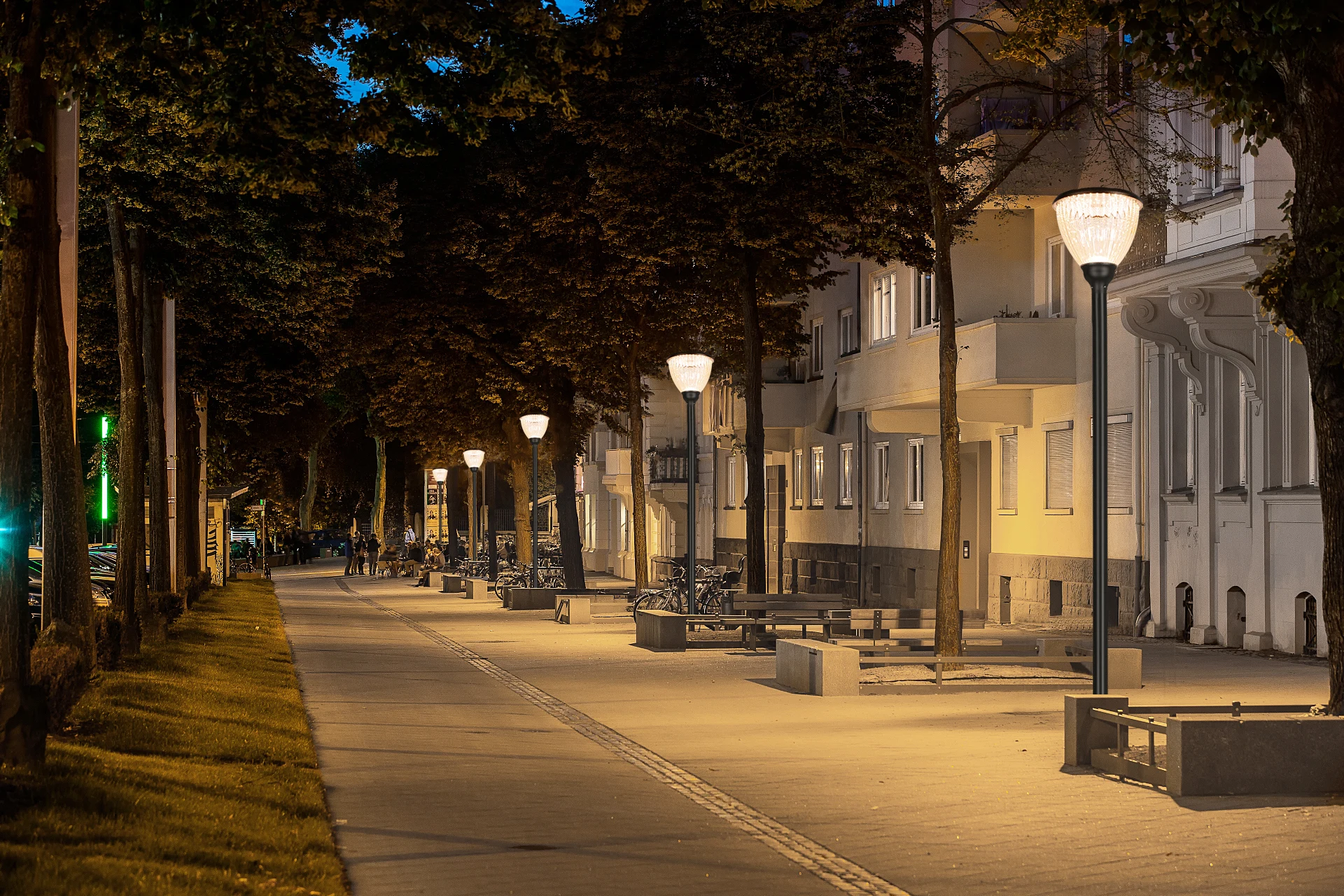

Urban Promenades & Pedestrian Streets
Urban walking avenues, municipal pedestrian corridors, and cultural town walkways demanding high architectural aesthetics and reliable nighttime guidance.

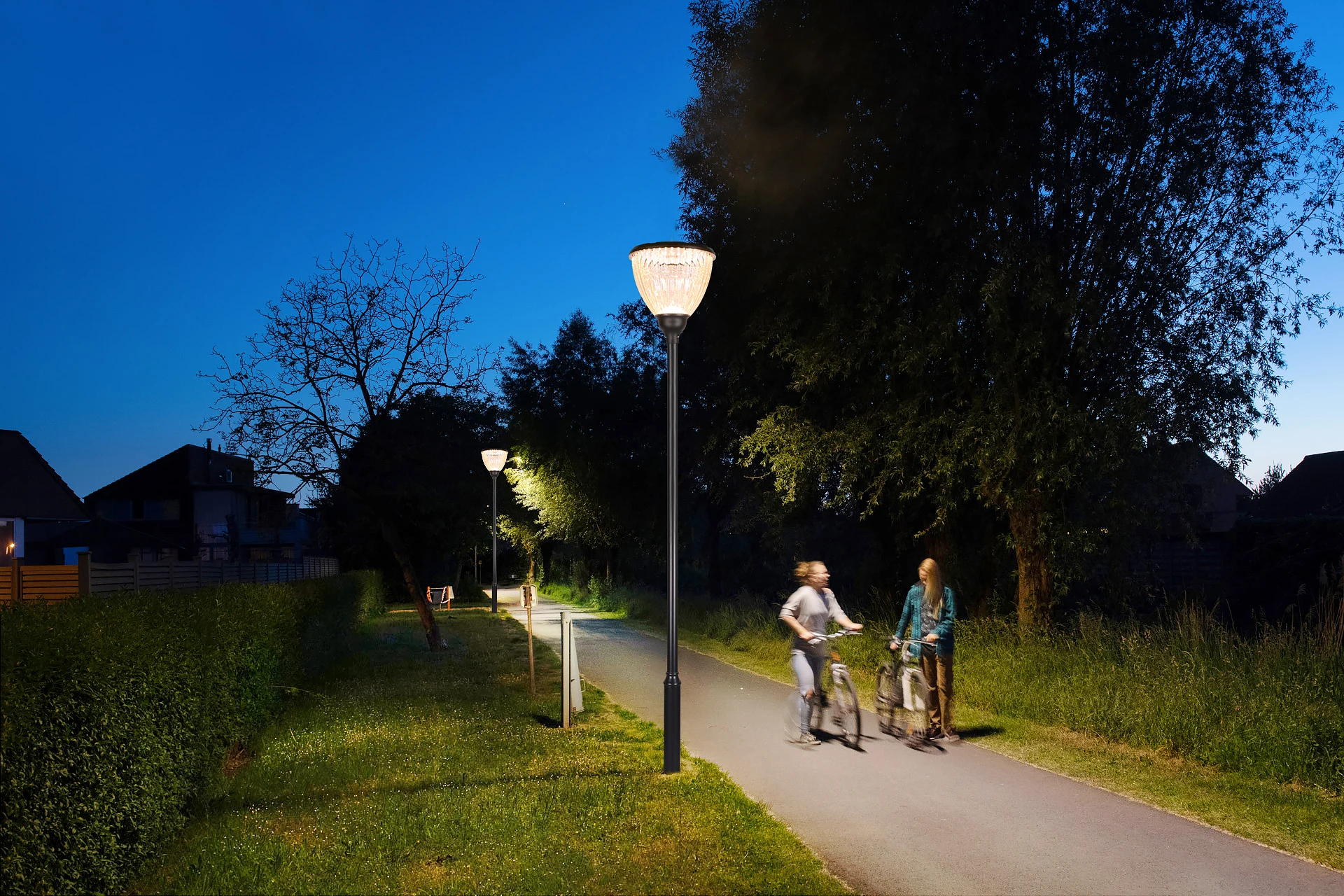

Riverside Greenways & Bicycle Trails
Waterfront greenways, bicycle trails, and eco-park pathways requiring wide-area low-glare lighting without disturbing surrounding natural habitats.
Public Parks & Botanical Gardens
Municipal park pathways, botanical gardens, and recreational trails delivering uniform pedestrian lighting with eco-friendly solar autonomy.
Resort Hotels & Hospitality Corridors
Boutique hotel walkways, wellness retreats, and seaside resort gardens requiring low-glare warm illumination for welcoming nighttime visitor experiences.
Impressions
