S2-UFO

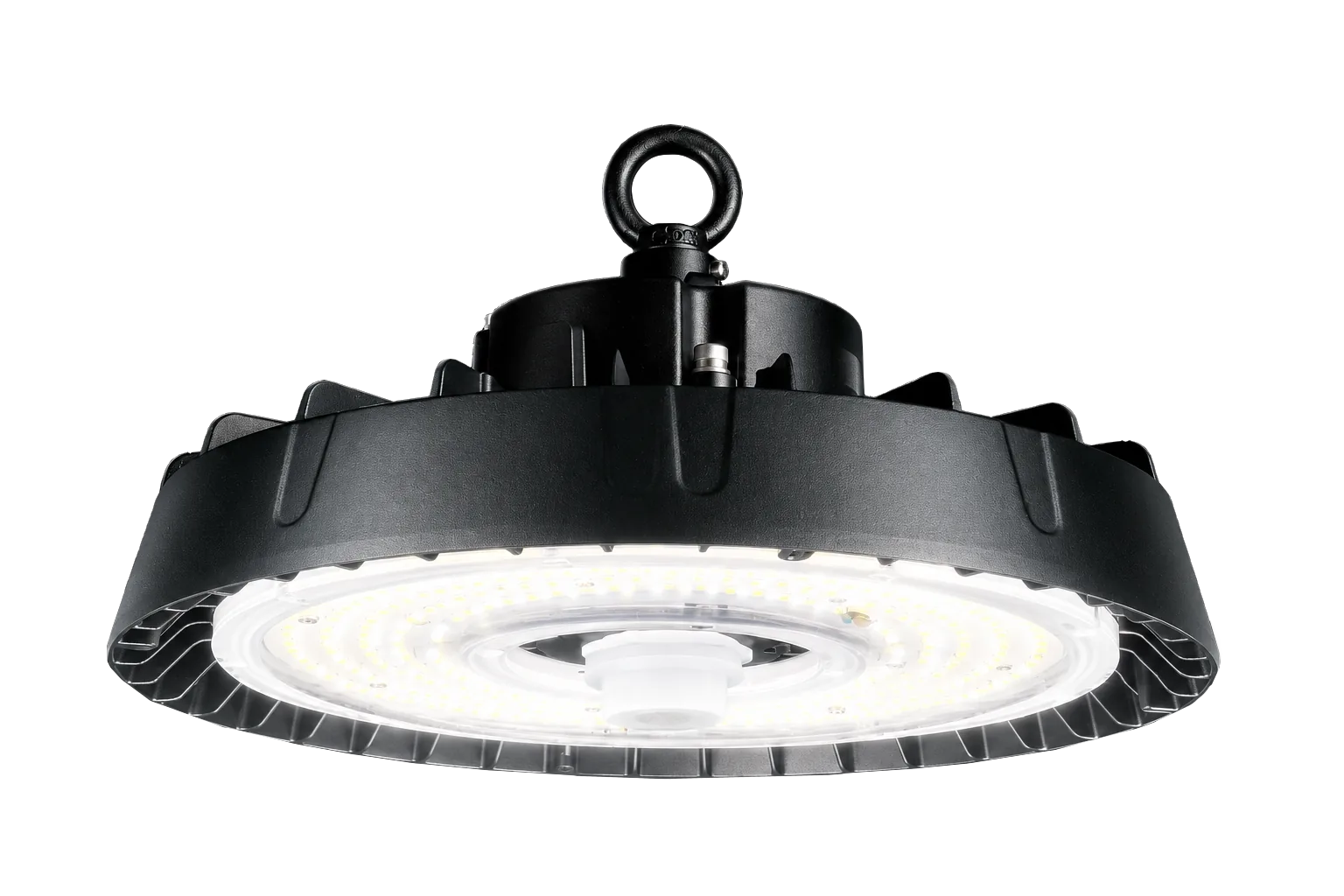

The S2-UFO is a smart UFO LED high bay built for warehouses, production floors, and other high-ceiling spaces. Its die-cast ADC12 aluminum housing uses an air-channel thermal design that cuts weight while pulling heat away from the LEDs, and the Lumileds 2835 light engine delivers up to 39,600 lm at 165 lm/W with LM80-tested lumen maintenance. Five power options from 100W to 240W share the same Ø320×H188mm housing, with 3000K, 4000K, 5000K, or 6000K CCT and 60°, 90°, or 120° beam angles to match ceiling heights and rack layouts. The anti-glare lens keeps UGR below 23 with over 90% transmittance, and the IP66-rated, non-dust-accumulating housing is rated for a service life of more than 50,000 hours (Ta=30°C @ L70). Smart control via smartphone, plus optional microwave, PIR, and daylight sensors, supports occupancy-based energy savings, and the fixture can be installed by suspension, wall bracket, or pipe mount.
Color & Optic
Beam Options
Product Specifications
Model Configuration
| Model | Dimension | Power | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|
| S2-UFO-100W | Ø320×H188 mm | 100W |
3000K
4000K
5000K
6000K
|
16,500 lm | Weight: 2.8kgQty/Ctn: * Units/CtnCarton: 36 × 36 × 19 cm |
| S2-UFO-120W | Ø320×H188 mm | 120W |
3000K
4000K
5000K
6000K
|
19,800 lm | Weight: 2.8kgQty/Ctn: * Units/CtnCarton: 36 × 36 × 19 cm |
| S2-UFO-150W | Ø320×H188 mm | 150W |
3000K
4000K
5000K
6000K
|
24,750 lm | Weight: 2.9kgQty/Ctn: * Units/CtnCarton: 36 × 36 × 19 cm |
| S2-UFO-200W | Ø320×H188 mm | 200W |
3000K
4000K
5000K
6000K
|
33,000 lm | Weight: 3.4kgQty/Ctn: * Units/CtnCarton: 36 × 36 × 19 cm |
| S2-UFO-240W | Ø320×H188 mm | 240W |
3000K
4000K
5000K
6000K
|
39,600 lm | Weight: 3.5kgQty/Ctn: * Units/CtnCarton: 36 × 36 × 19 cm |

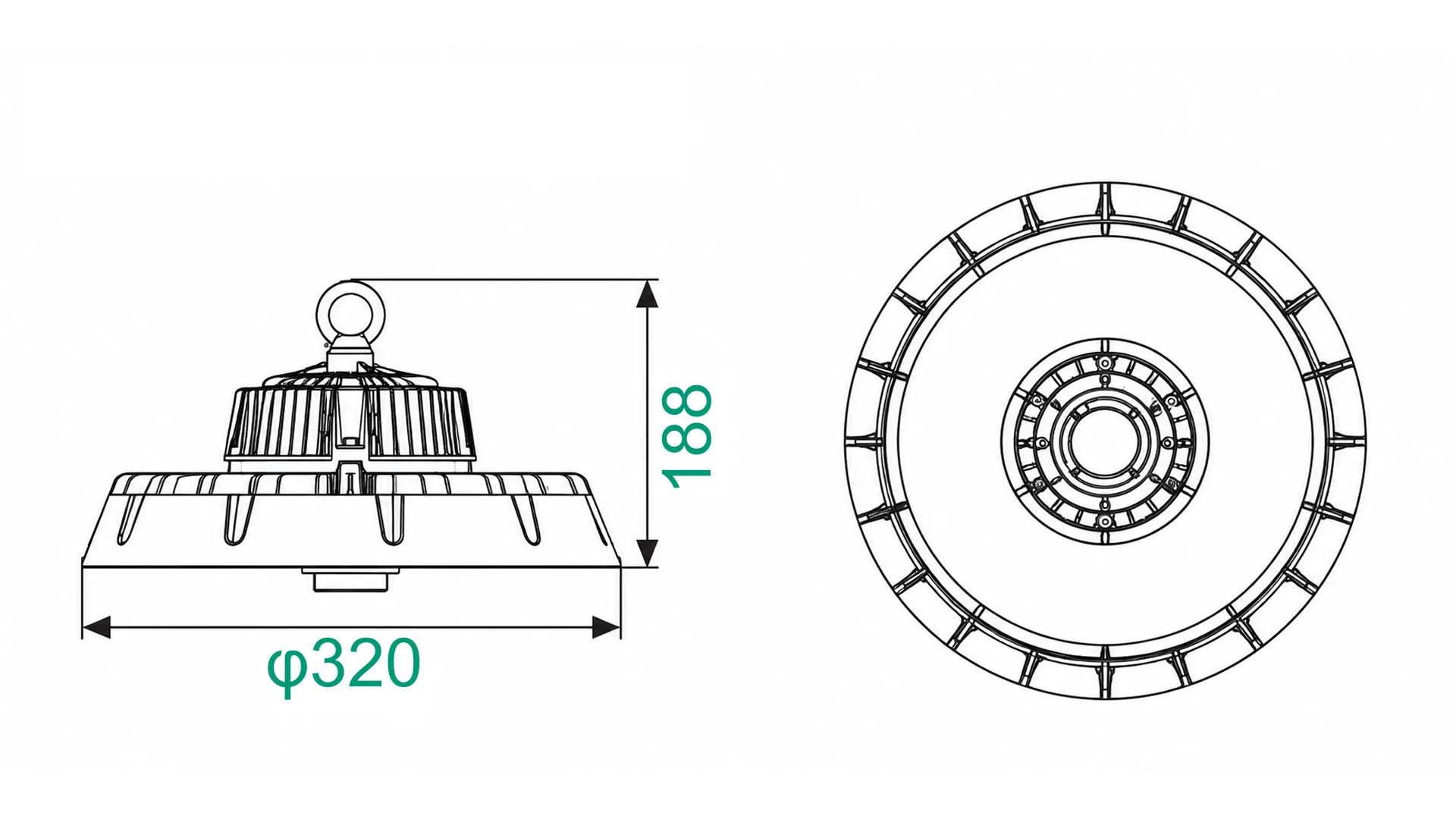

Luminous flux stated at +5% tolerance. Weight is net weight; gross weights range from 3.6kg to 4.3kg. All five models share the Ø320×H188mm housing and the 360×360×190mm carton. Efficacy 165 ± 5 lm/W with CRI >70 standard (>80 / >90 optional).
Advantages

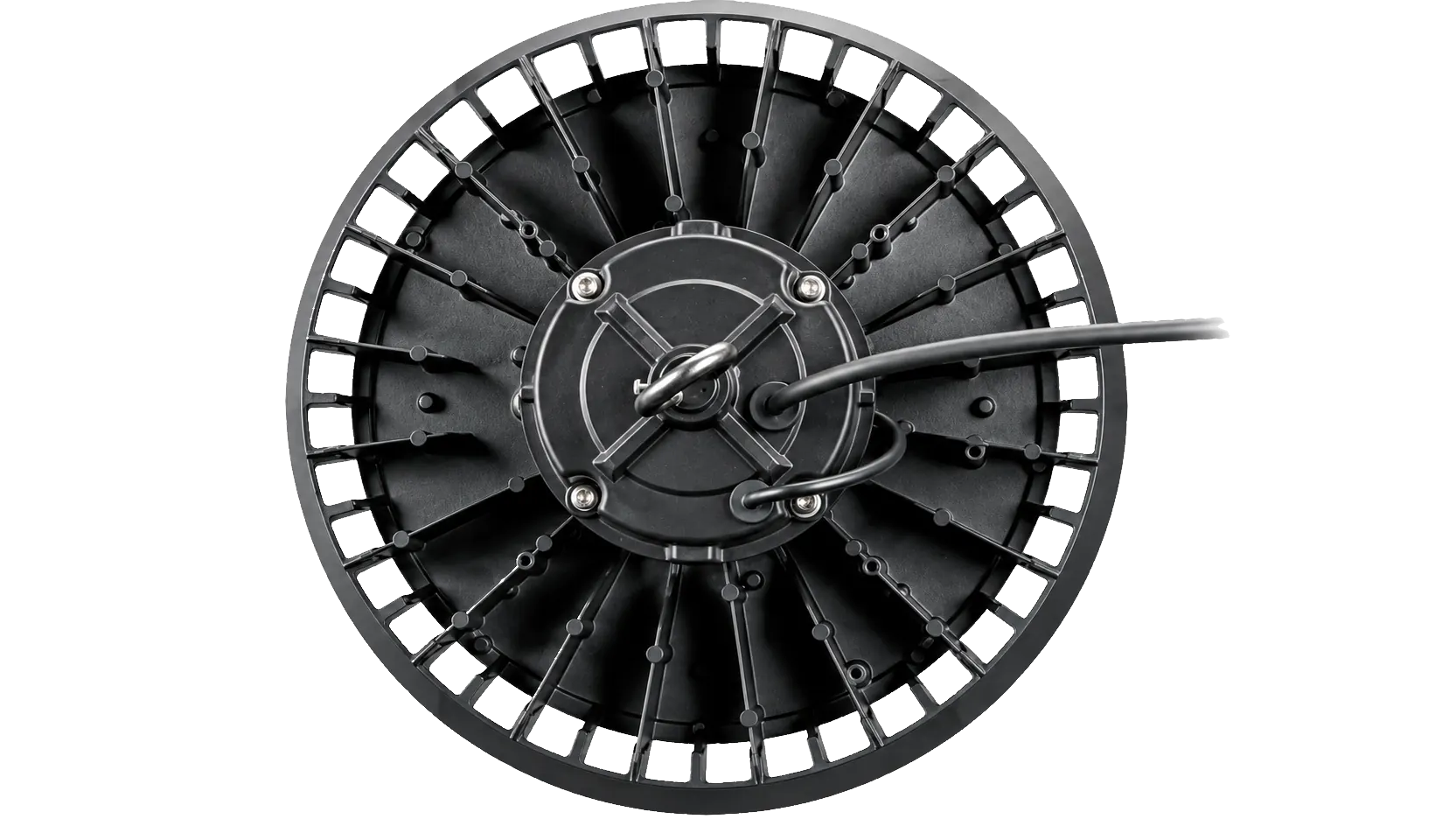

Air-Channel Thermal Design
Die-cast ADC12 aluminum housing with air convection channels moves heat away from the LEDs while keeping the fixture light. Better heat dissipation means less lumen depreciation and a longer light source life.
165 lm/W with LM80-Tested LEDs
Lumileds 2835 LEDs deliver up to 39,600 lm at 165 ± 5 lm/W, with CRI above 70 as standard and 80 or 90 available as options for color-critical areas.

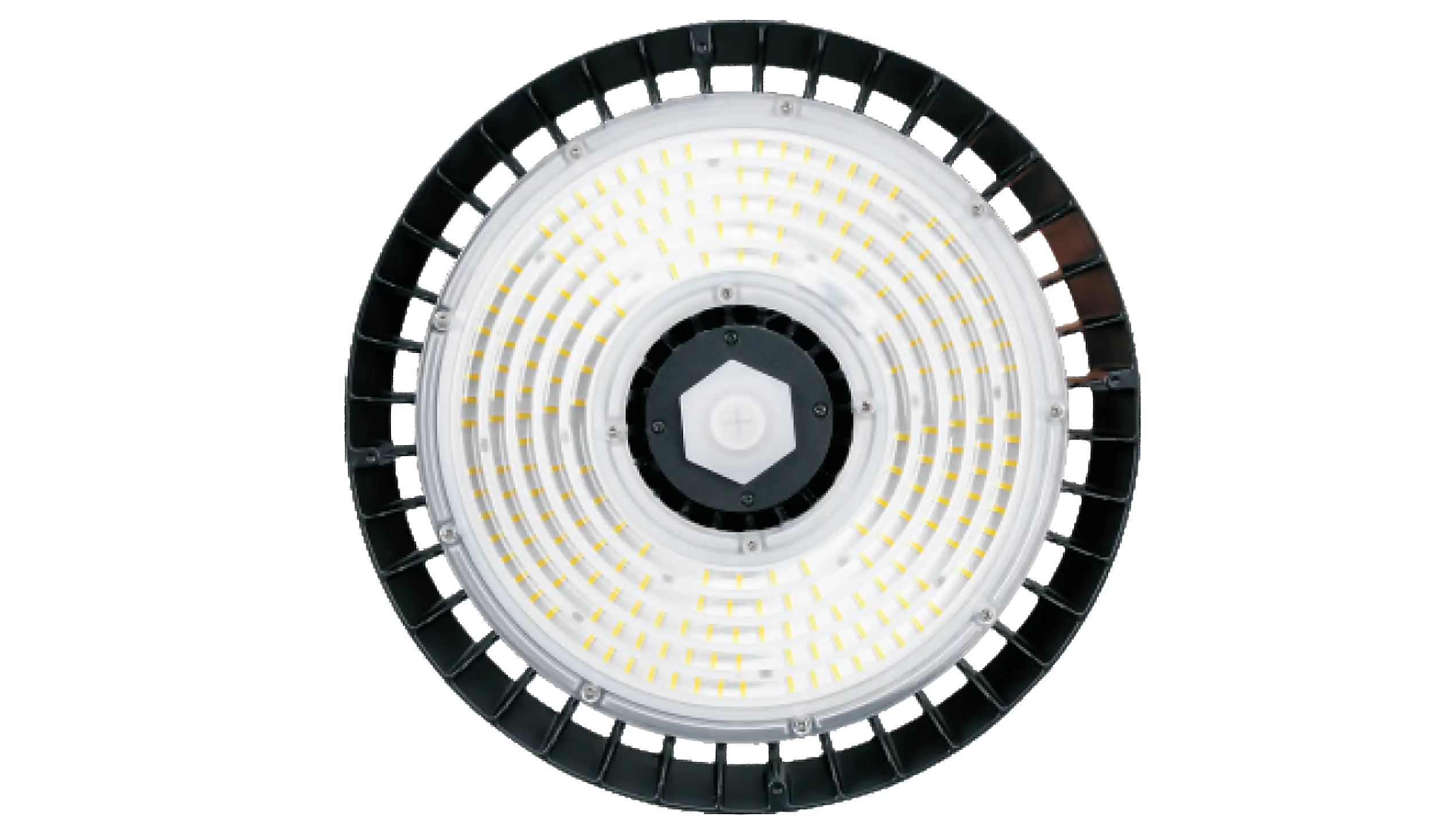

UGR < 23 Comfort Optics
A high-performance reflective optical design pairs a >90% transmittance lens with 60°, 90°, and 120° distributions, so you get even, low-glare light over racks, aisles, and work zones.
Smart Control & Sensing
Smart control via smartphone, plus optional microwave, PIR, and daylight sensor bases and a remote control, supports occupancy-based dimming and daylight harvesting without extra wall hardware.
IP66, 50,000-Hour Service Life
A sealed, non-dust-accumulating housing rated IP66 with an outdoor-grade powder coating. With more than 50,000 hours to L70 at Ta=30°C, there is no routine maintenance and no frequent lamp replacement.
Three Mounting Options
Install by suspension, wall bracket, or 3/4" pipe with the U-bracket. A safety cable prevents the fixture from falling, and the wall-mountable bracket simplifies service access.
Application Scenarios

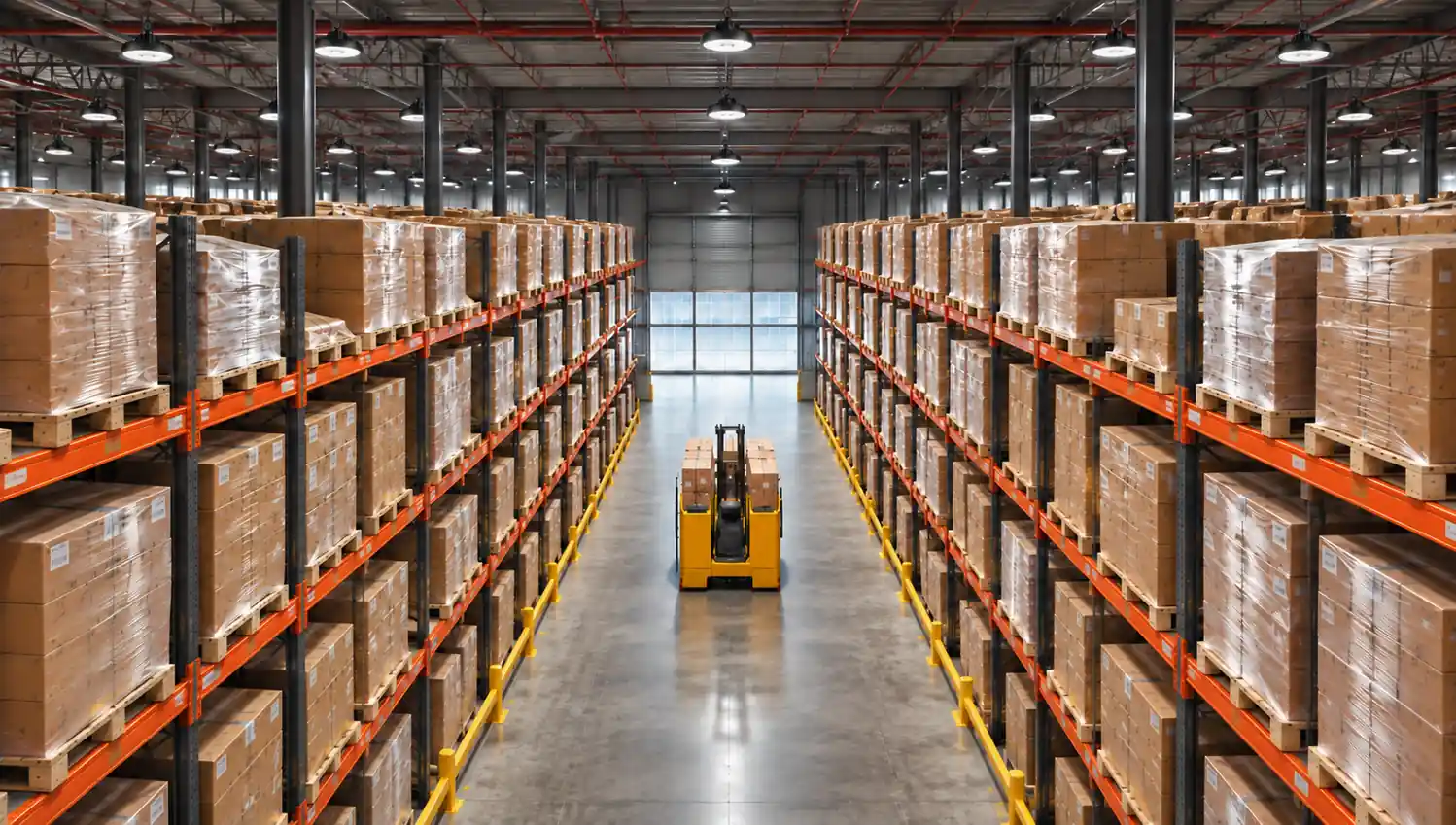

Warehouses & Logistics Centers
High-bay racking aisles, loading docks, and sortation halls benefit from the 60° narrow beam at height, while the 90° option covers open staging areas. Optional microwave and PIR sensors switch zones off when aisles are empty, cutting energy cost on long operating schedules.
Manufacturing & Production Floors
Assembly lines, machine shops, and inspection stations get even, low-glare illumination with UGR below 23, supporting visual task comfort and safety compliance. The IP66 housing tolerates dusty, damp shop-floor conditions without lumen loss.
Gymnasiums & Sports Halls
Indoor courts and training facilities need high, uniform light levels without glare in athletes' sightlines. The 120° wide distribution and >90% transmittance lens deliver comfortable overhead lighting, and suspension mounting simplifies layout planning.
Big-Box Retail & Wholesale Halls
High-ceiling retail and membership stores can mix beam angles to balance shelf vertical illumination with aisle coverage. The 3000K–6000K range supports warm merchandising light or crisp daylight-white back-of-house lighting from one platform.

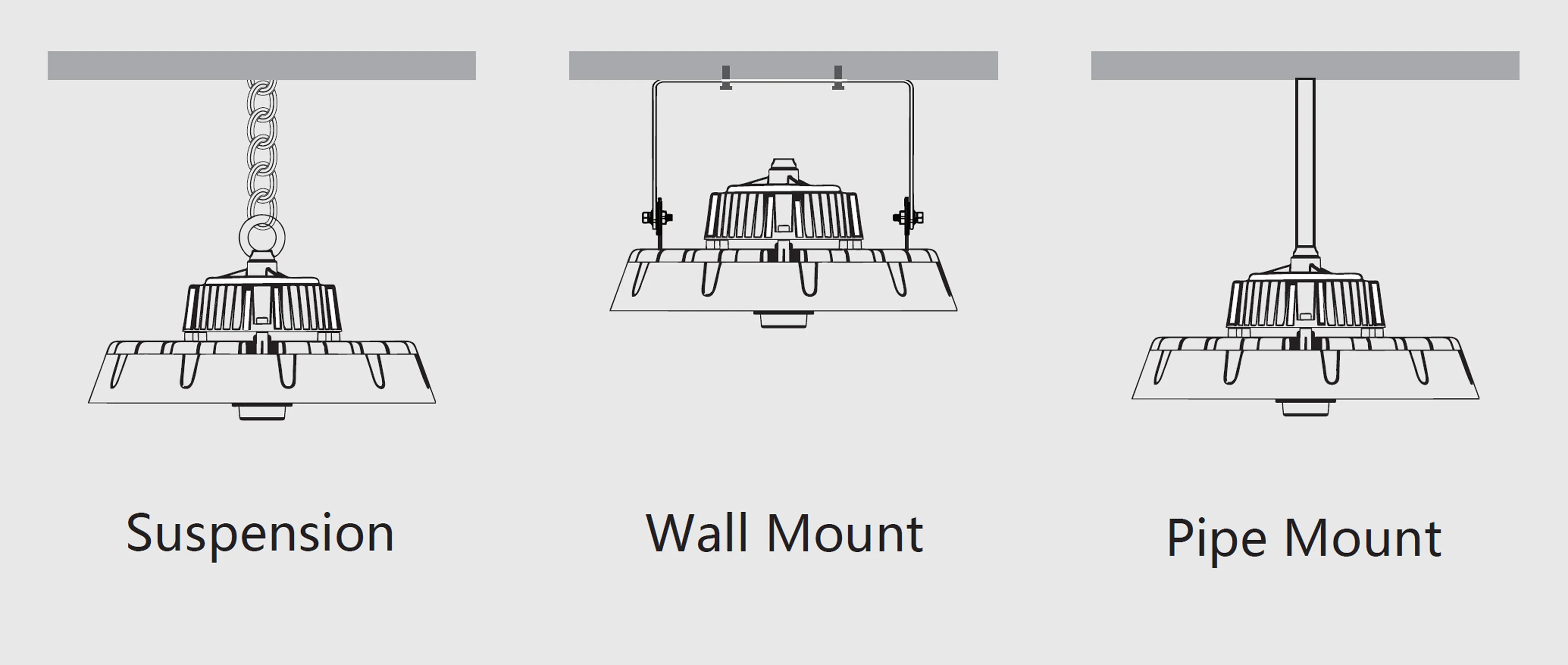

The 3-in-1 Mounting Versatility of the TPK S2-UFO High Bay
Conquer complex industrial ceilings with the TPK S2-UFO High Bay’s integrated 3-in-1 mounting system. Engineered for total on-site adaptability, a single fixture seamlessly supports three distinct installation methods:
- Rapid Suspension for traditional high-clearance warehouses.
- An adjustable U-Bracket for precise, angled Wall/Surface Mounting.
- A rigid 3/4" threaded Pipe Mount for vibration-free stability and clean cable routing in demanding environments.
Simplify your procurement and empower your installation crew with the ultimate flexibility to tackle any structural challenge on the fly.
Impressions
