Bridge Guardrail Light LWW-GRB-W55/70
The LWW-GRB-W55/70 is an IP65 rated linear LED bridge guardrail light designed for low-mounted installation along bridge railings and road safety barriers. Constructed with a 6063 aluminum alloy base and a durable PC tube, it provides excellent impact resistance (IK08) and heat dissipation. Available in dual-white, RGB, and RGBW configurations, it supports standard DMX512 control for dynamic color mixing, making it an ideal dual-purpose solution for road safety illumination and decorative bridge outlining.
Color & Optic
Beam Options
Product Specifications
Model Configuration
| Model | Dimension | Power (Max) | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|
| LWW-GRB-W55-L6 | φ76mm | 4W | 4000K | 480lm | Weight: 0.65kg ±5%Qty/Ctn: 16 Units/CtnCarton: 69.5 × 32 × 22.5 cm |
| LWW-GRB-W55-L10 | φ76mm | 12W | 4000K | 1440lm | Weight: 0.97kg ±5%Qty/Ctn: 16 Units/CtnCarton: 103.5 × 32 × 21.5 cm |
| LWW-GRB-W55-L12 | φ76mm | 4W | 4000K | 480lm | Weight: 1.13kg ±5%Qty/Ctn: 16 Units/CtnCarton: 125.5 × 32 × 21.5 cm |
| LWW-GRB-W55-L12 | φ108mm | 12W | 4000K | 1440lm | Weight: 1.31kg ±5%Qty/Ctn: 16 Units/CtnCarton: 125.5 × 32 × 21.5 cm |
Configuration summary: Available in φ76mm and φ108mm profiles with standard 4000K CCT. Operates on 24V DC input. Housed in robust aluminum 6063 and PC tube with an IP65 rating for demanding municipal guardrail integration.
Advantages
Dual-Purpose Illumination
Designed specifically for bridge and road safety guardrails, providing simultaneous functional path lighting and decorative linear outlining along bridges and roads.
DMX512 Dynamic Control
Compatible with standard DMX dimmer systems and independent RF control, enabling dynamic synchronization and thousands of programmable color-changing effects.
Wide Uniform Output
Produces clean, saturated 4000K illumination from a uniform 120° beam distribution, ensuring zero dark spots along continuous installations.
Aviation Aluminum Structure
Built with an extruded aviation-grade aluminum alloy 6063 body, maximizing heat dissipation and ensuring long-term anti-corrosion performance for municipal infrastructure.
Fully Potted IP65 Protection
Internal components are fully encapsulated with high-grade thermal glue, achieving an IP65 rating and guaranteeing safe operation in wet outdoor environments.
IK08 High Impact Resistance
The combination of a rigid metal chassis and a high-strength transparent PC tube provides excellent defense against external impacts, crucial for public road scenarios.
Application Scenarios

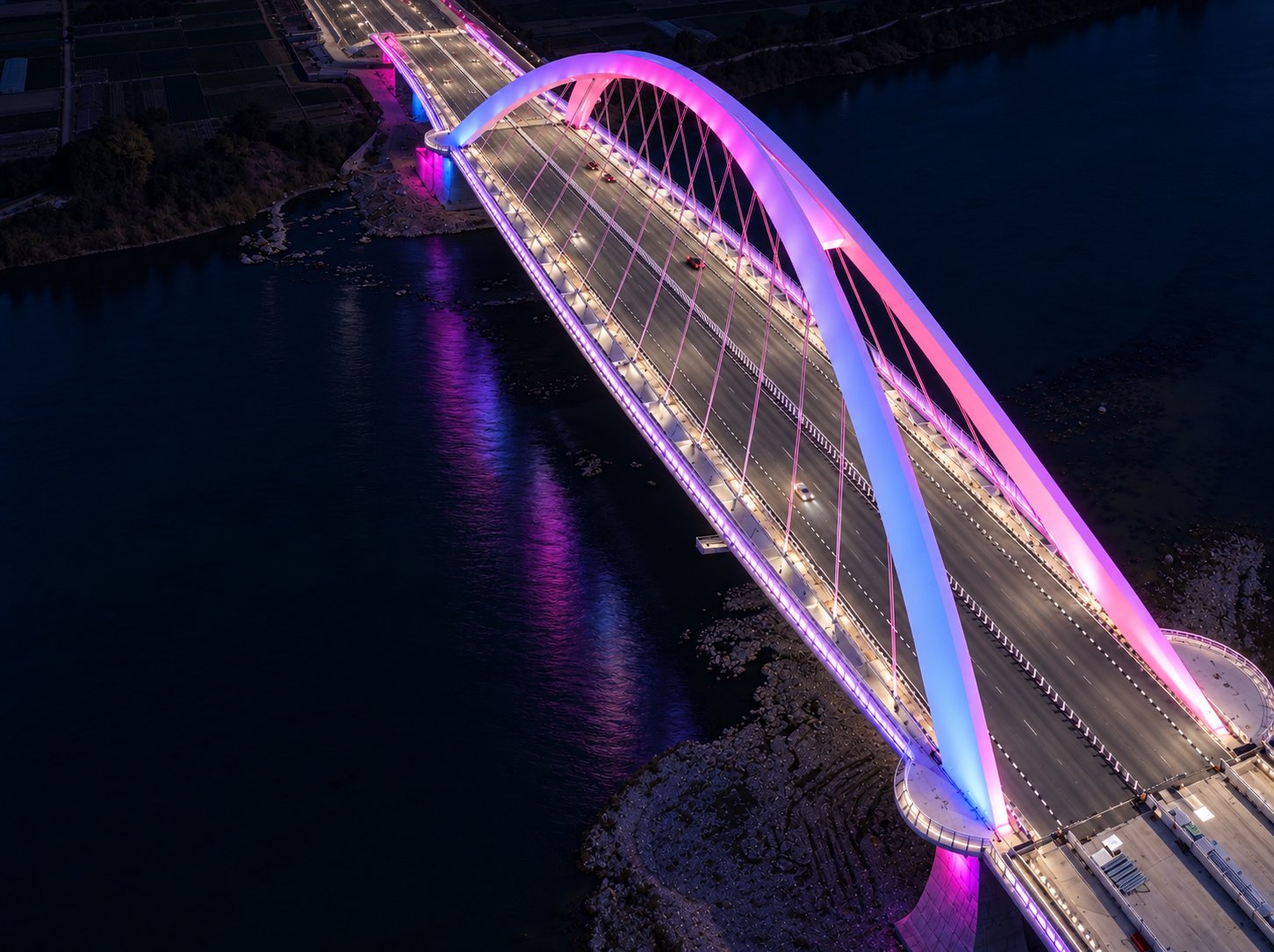

Bridge & River Guardrails
Seamlessly mounts onto existing metal handrails or concrete barriers, delivering continuous glowing lines along bridges and waterfront promenades.
Urban Overpasses
Provides critical path safety lighting while dramatically enhancing the nighttime aesthetic profile of highway overpasses and elevated roads.
Commercial Exterior Outlining
Deployable along building rooflines, large commercial curtain walls, and terraces to create striking DMX-controlled pixel arrays and media facades.
Landscape & Path Lighting
Integrates flawlessly into park boundaries, large-scale retaining walls, and public safety barriers to safely guide pedestrian traffic.
Impressions
