Crescent Sculptural Architectural Optics Crescent Series Commercial Solar Bollard Light Model: SLL-3005
SLL-3005 Crescent Commercial Solar Bollard Light

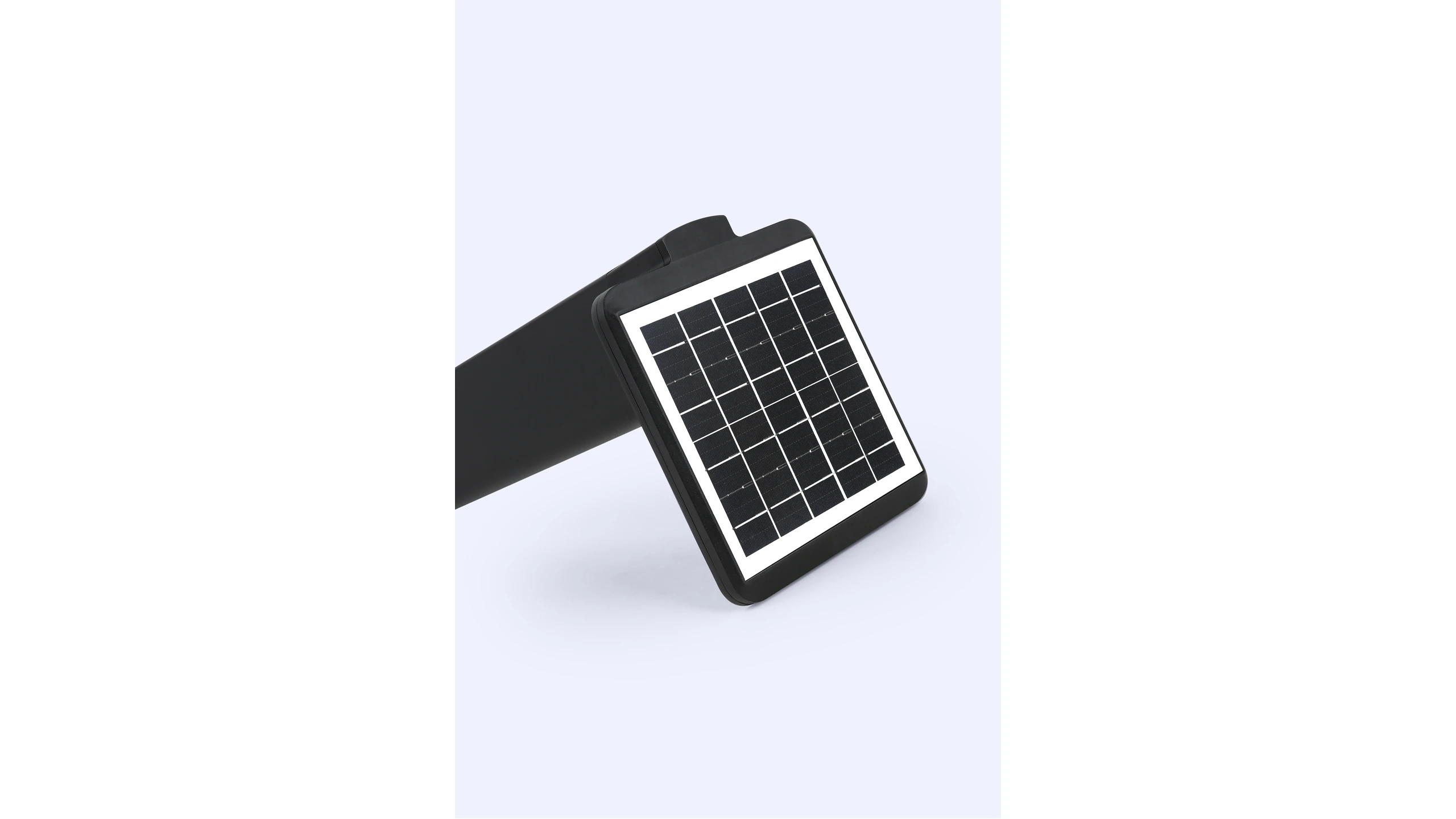

The SLL-3005 Crescent Series Commercial Solar Bollard Light fuses graceful organic crescent curvature with high-output solar engineering. Designed with an aerodynamic contoured optical head, this fixture delivers an impressive 598.57 lumens of comfortable downward illumination across gardens, commercial promenades, and boutique hotel entries. Powered by a top-integrated 5V 5W monocrystalline silicon disc and a high-capacity 3.2V 8Ah (25.6Wh) LiFePO4 battery, it ensures over 3 continuous rainy days of dusk-to-dawn performance. Complete self-contained bollard luminaire; external tall street lighting poles are excluded.
Color & Optic
Beam Options
Product Specifications
Model Lineup & Engineering Configurations
| Model Code | Solar PV | Battery Capacity | Luminous Output | CCT Options | Fixture Height & Head | Mounting & Packaging |
|---|---|---|---|---|---|---|
| SLL-3005-60CM | 5V 5W Mono | 3.2V 8Ah (25.6Wh) | 598.6 lm |

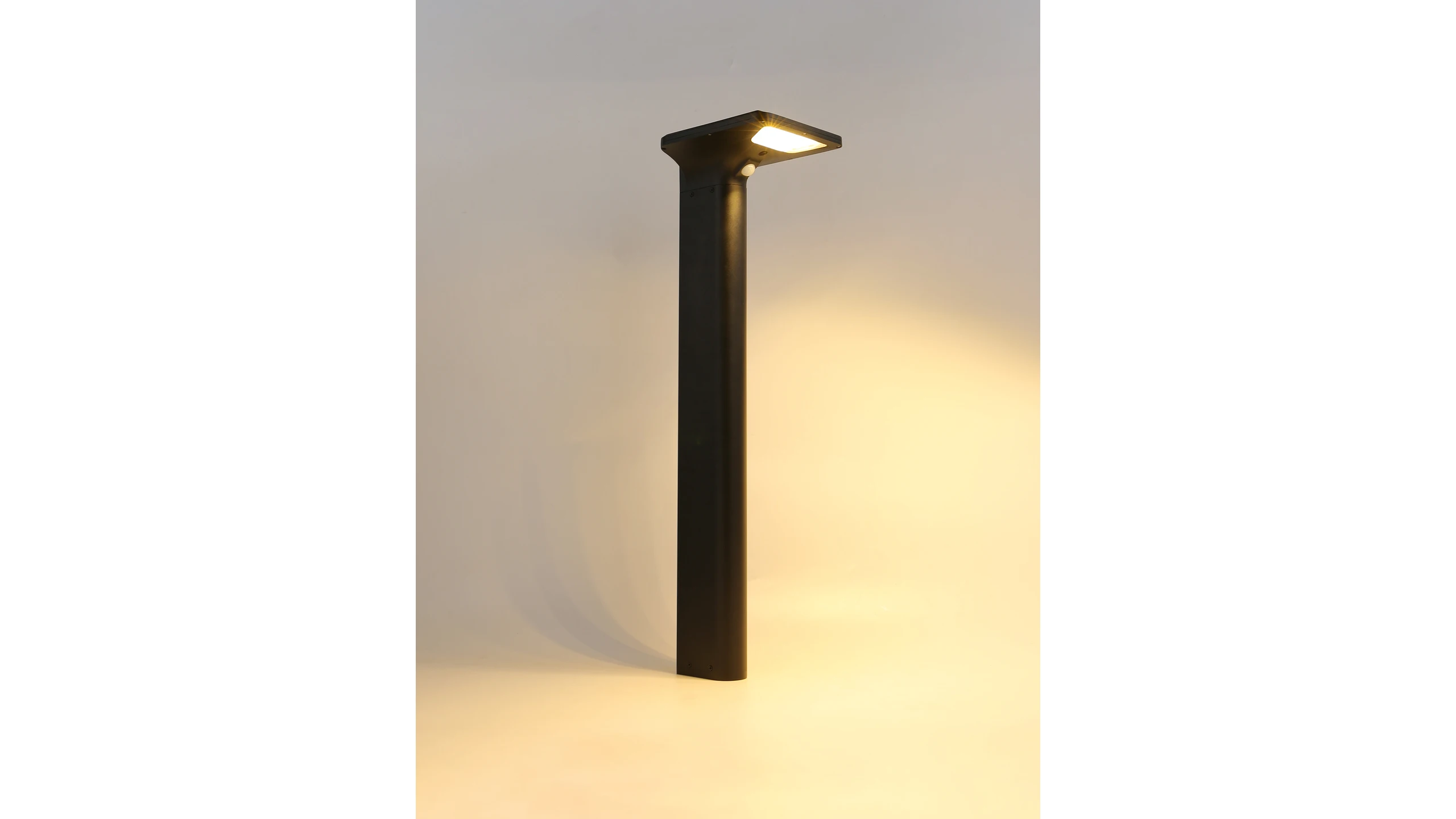

3000K

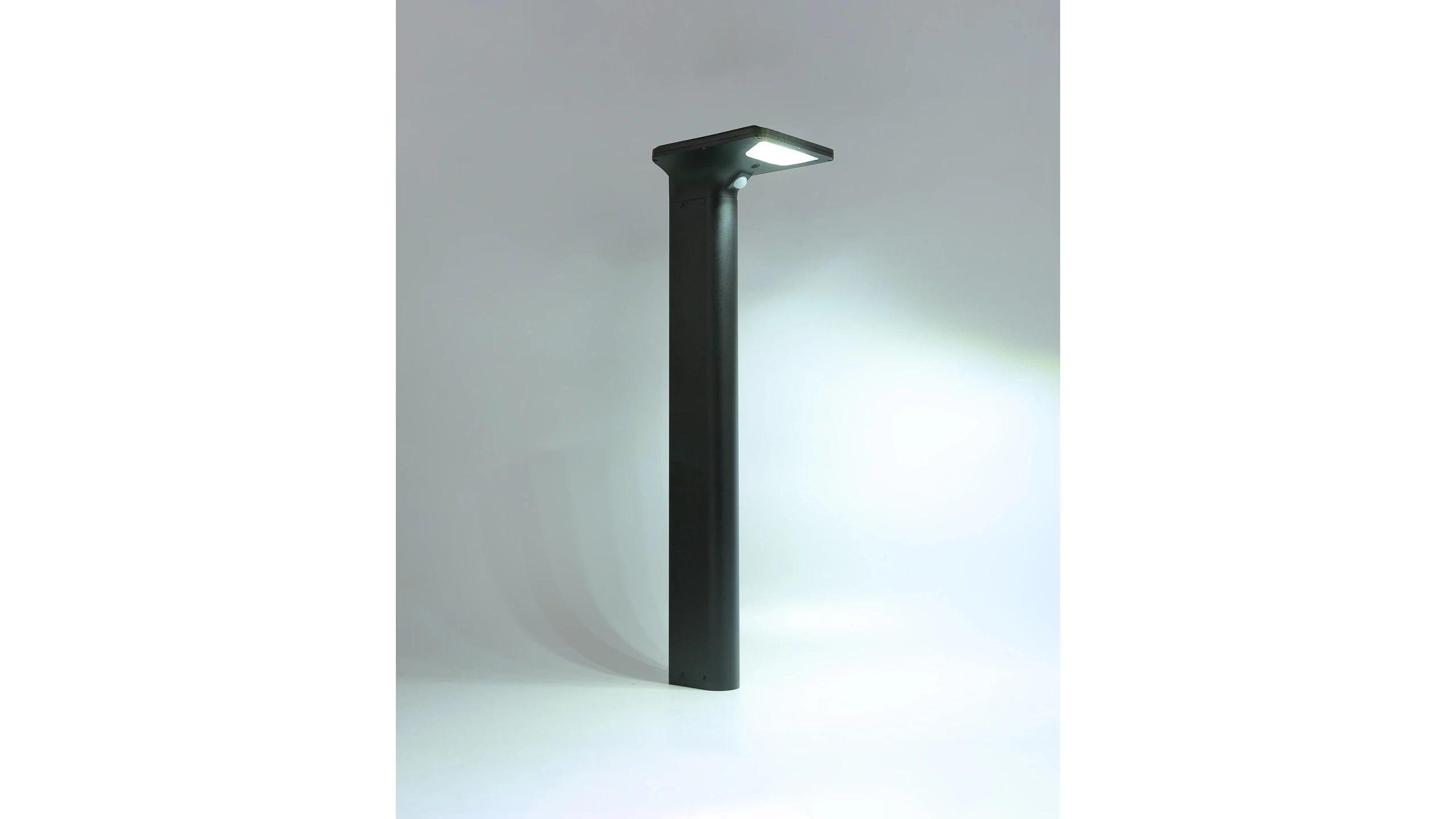

6500K
|
240×110 × H600mm |
Base Flange
Self-Contained · Pole Excluded
4 Sets/Ctn · 510×510×680mm · 10.25kg
|

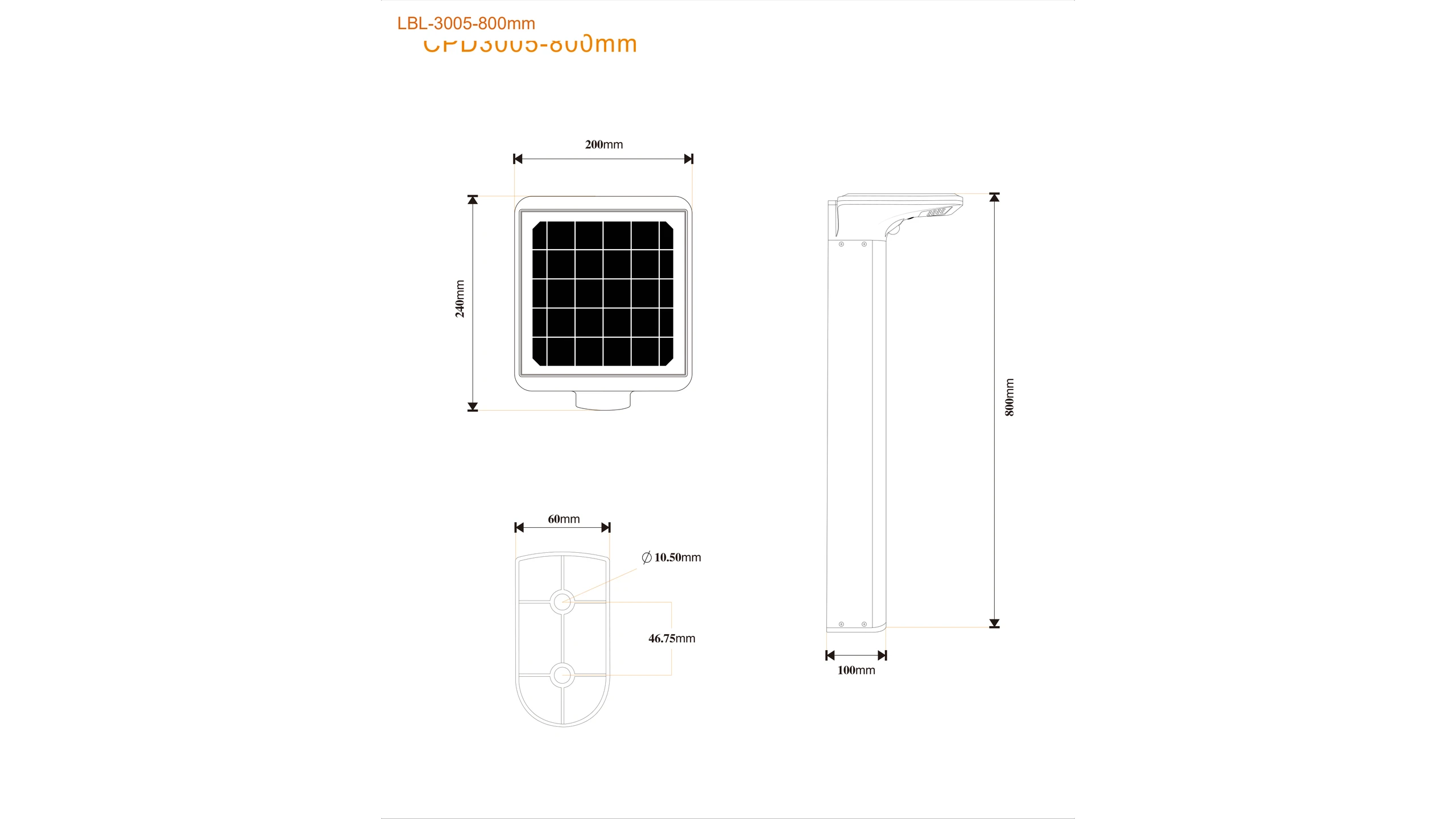

| SLL-3005-80CM | 5V 5W Mono | 3.2V 8Ah (25.6Wh) | 598.6 lm |
3000K
6500K
|
240×110 × H800mm |
Base Flange
Self-Contained · Pole Excluded
4 Sets/Ctn · 510×510×870mm · 14.32kg
|

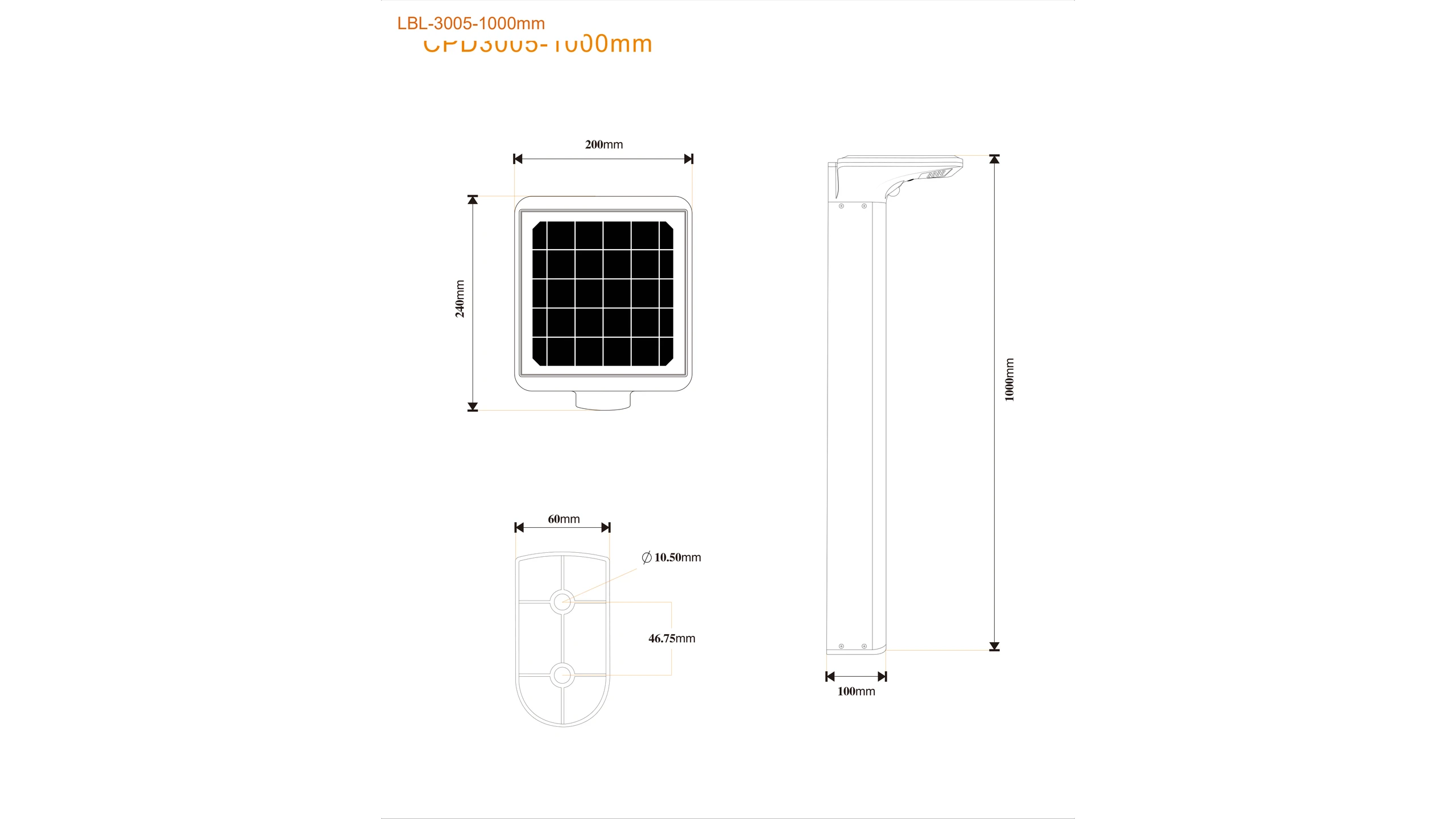

| SLL-3005-100CM | 5V 5W Mono | 3.2V 8Ah (25.6Wh) | 598.6 lm |
3000K
6500K
|
240×110 × H1000mm |
Base Flange
Self-Contained · Pole Excluded
4 Sets/Ctn · 510×510×1070mm · 16.20kg
|
Advantages
Iconic Crescent Sculptural Head Geometry
The patent crescent curved profile seamlessly merges artistic daytime landscaping presence with highly directed nighttime downward ground projection.
High Luminous Efficacy of Nearly 600 Lumens

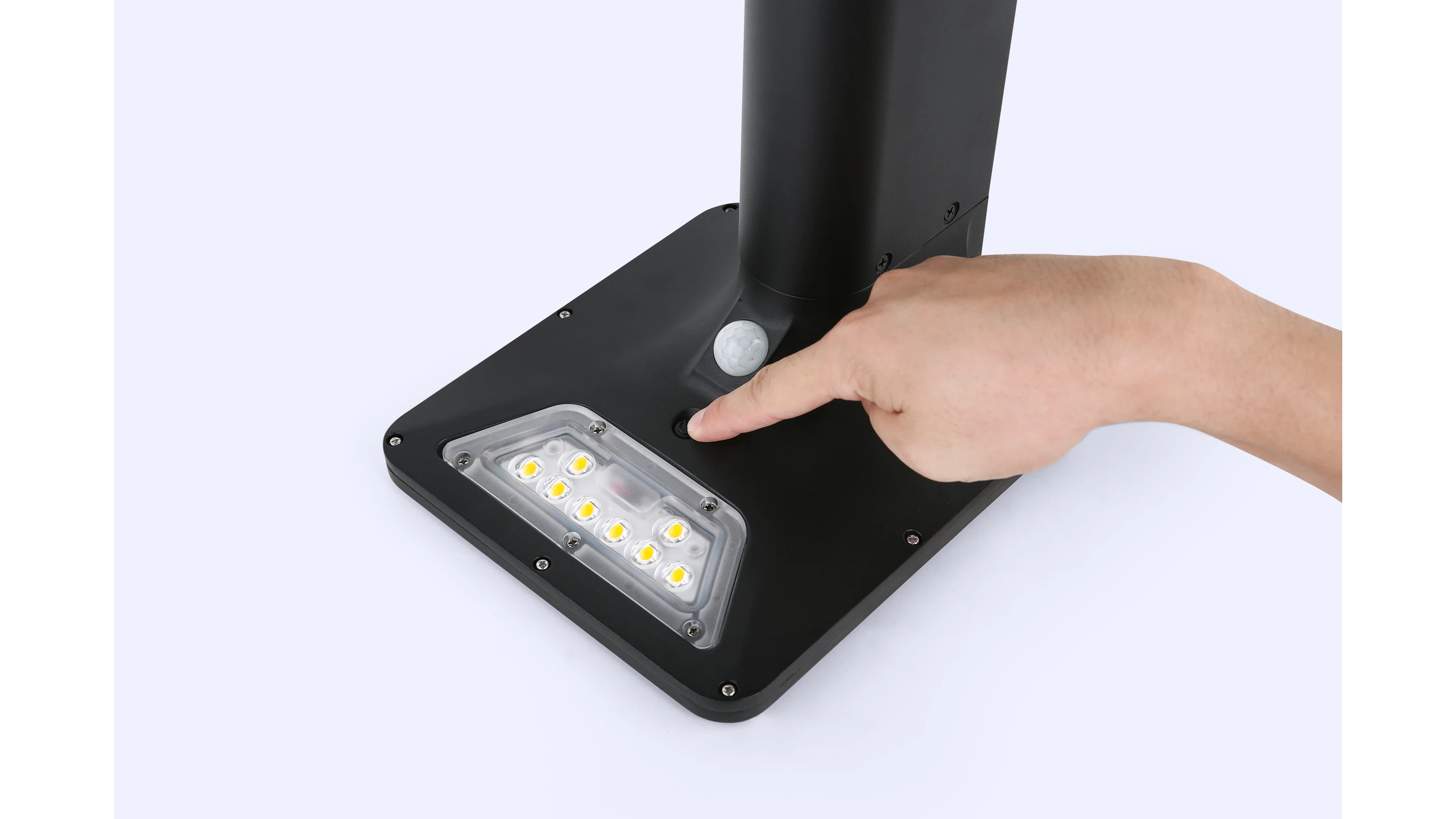

Equipped with 8 high-power SMD 2835 LEDs and optimized optics delivering 598.57 lumens, providing outstanding brightness for commercial pathway safety.
Expanded 25.6Wh LiFePO4 Energy Reservoir
Powered by an upgraded 3.2V 8Ah (25.6Wh) Lithium Iron Phosphate battery pack, guaranteeing 3+ consecutive nights of uninterrupted lighting through rainy weather.
Three Architectural Column Heights
Offered in 600mm standard, 800mm pathway, and 1000mm estate entry pillar formats to align with varying architectural proportions and lighting distances.

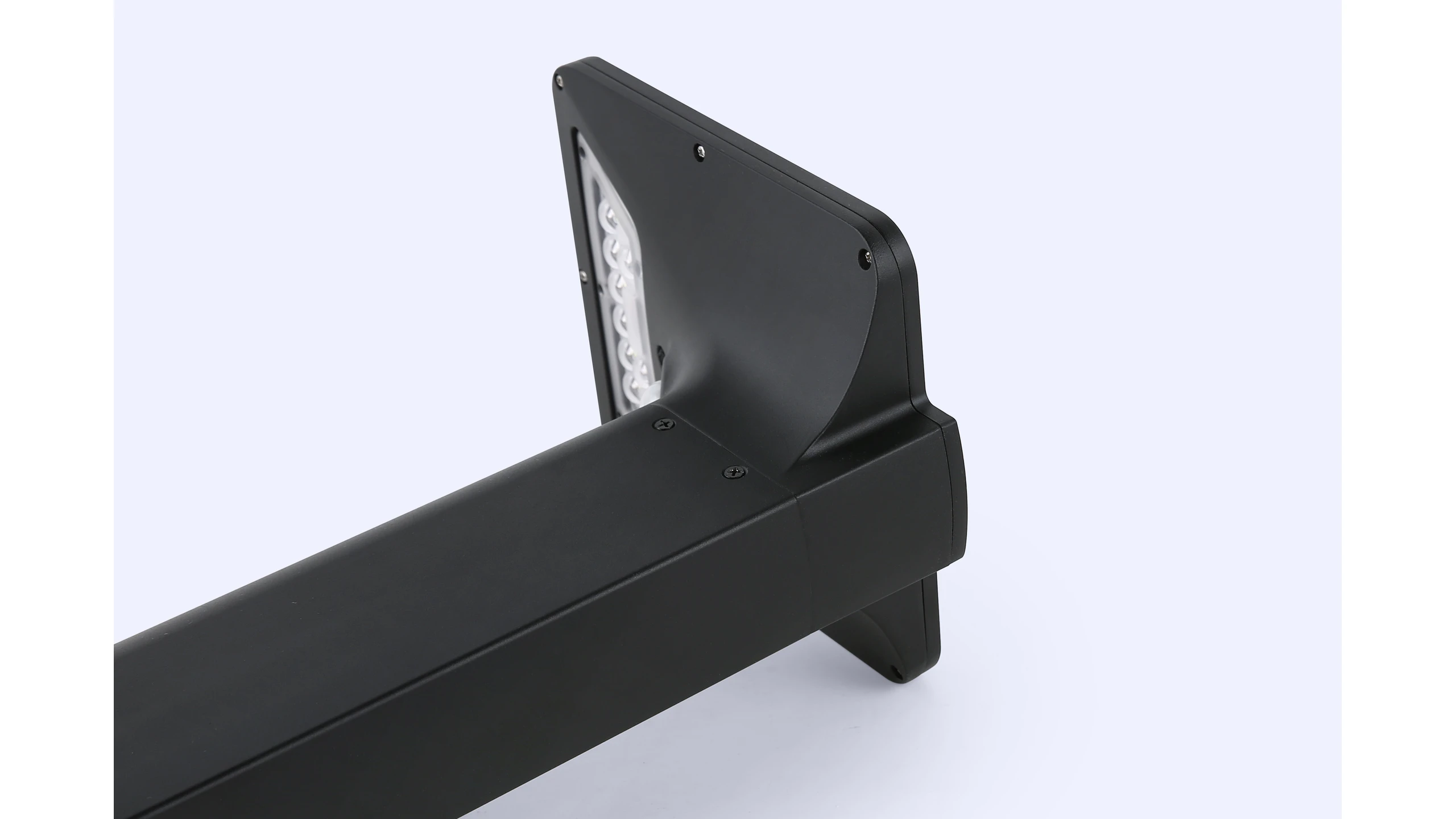

Rapid Surface Flange Anchoring
100% self-contained solar operation eliminates costly underground cabling; the integrated heavy-duty base flange fastens securely to concrete footings.
Anodic Oxidation Marine-Grade Aluminum
High-class die-cast aluminum housing treated with professional anodic oxidation resists coastal salt fog, intense solar UV rays, and extreme temperatures.
Applications

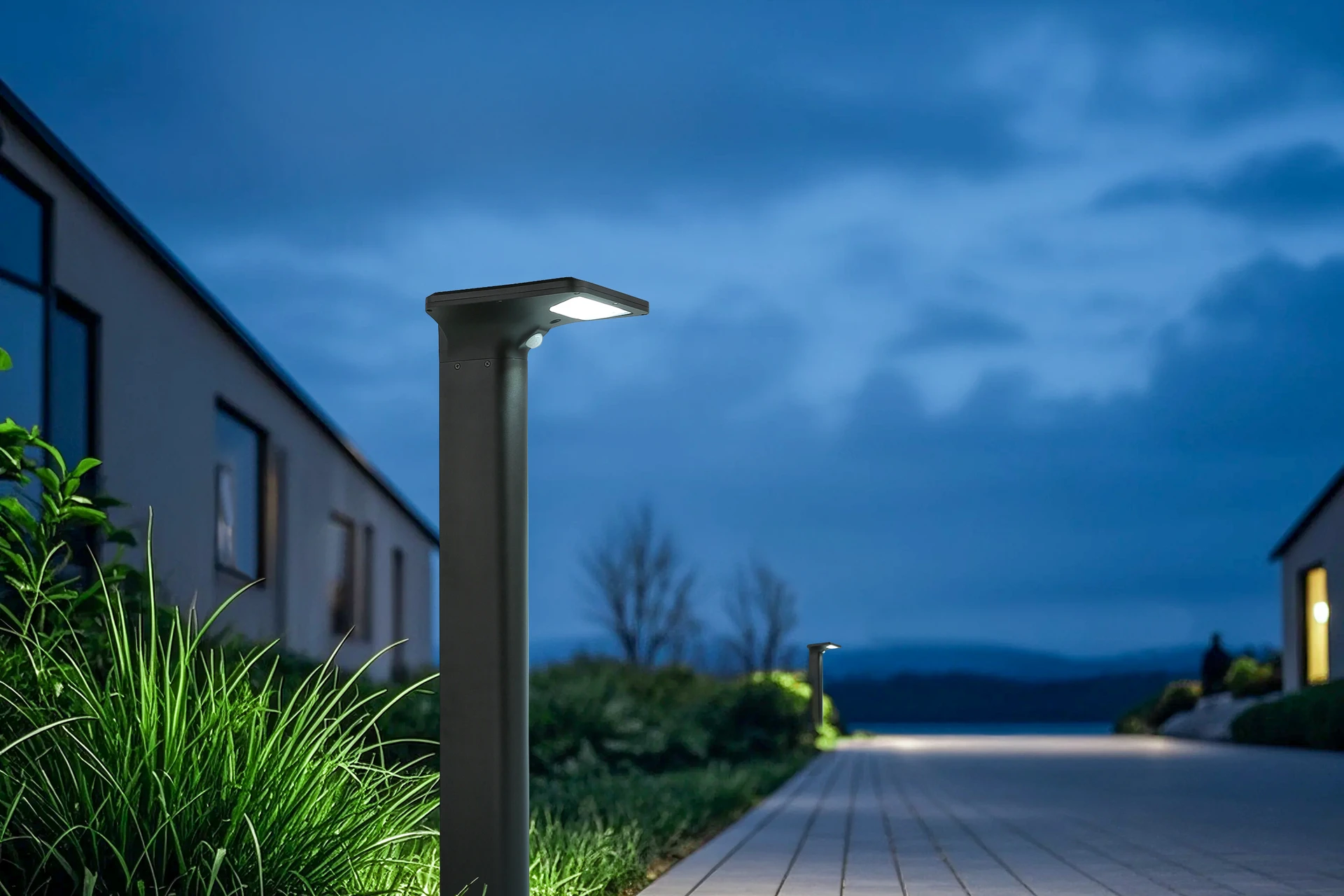

Garden Walkways & Terrace Steps
Guiding pedestrians along stone terraces, patio steps, and garden trails with wide crescent downward pathway illumination.

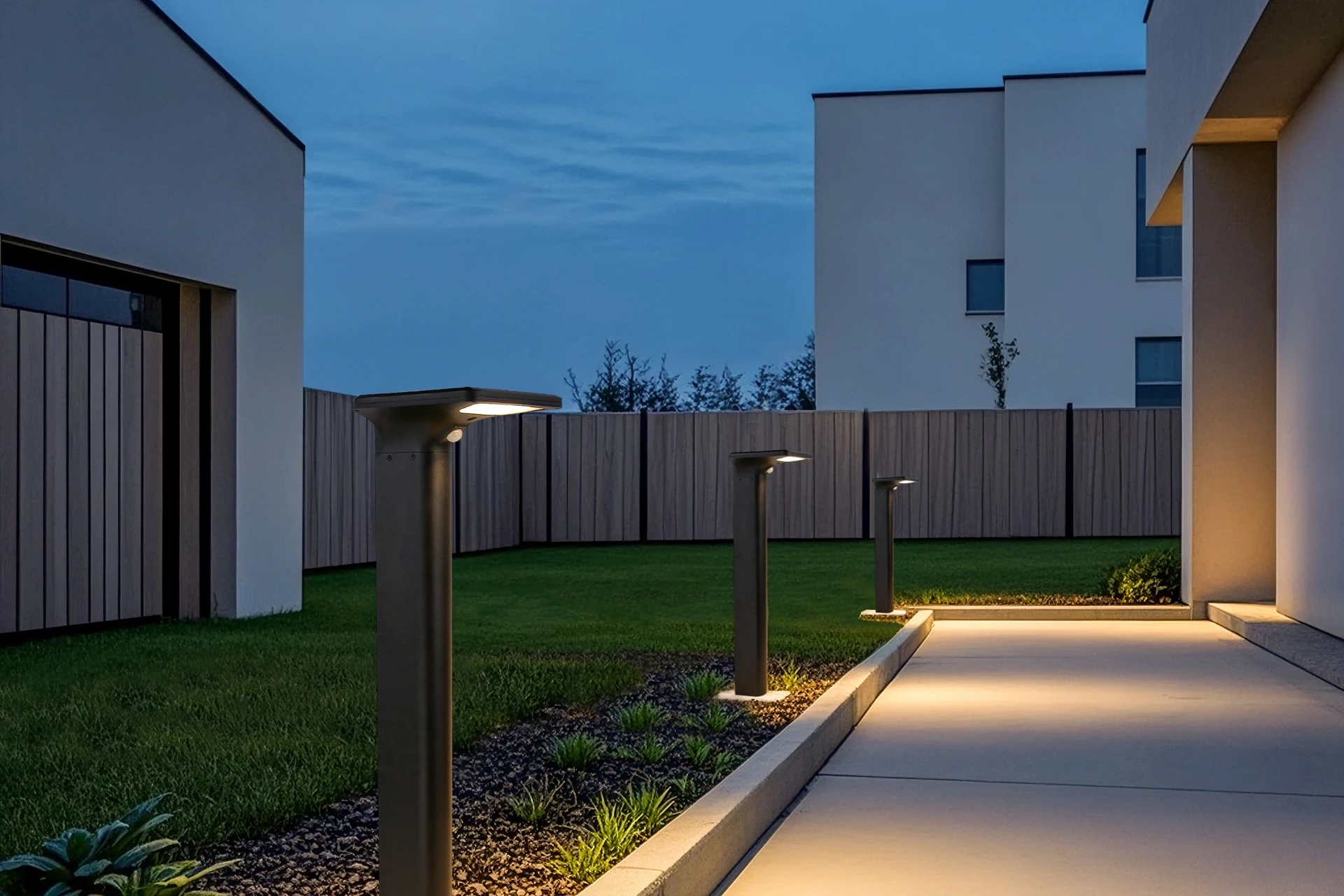

Lawn Borders & Shrubbery Edges
Highlighting manicured turf perimeters and flowerbed contours with elegant architectural vertical lines and zero cabling disruption.
Boutique Resort Hotels & Spas
Elevating guest evening experiences across resort trails and open-air pavilion walkways with zero electricity operating costs.

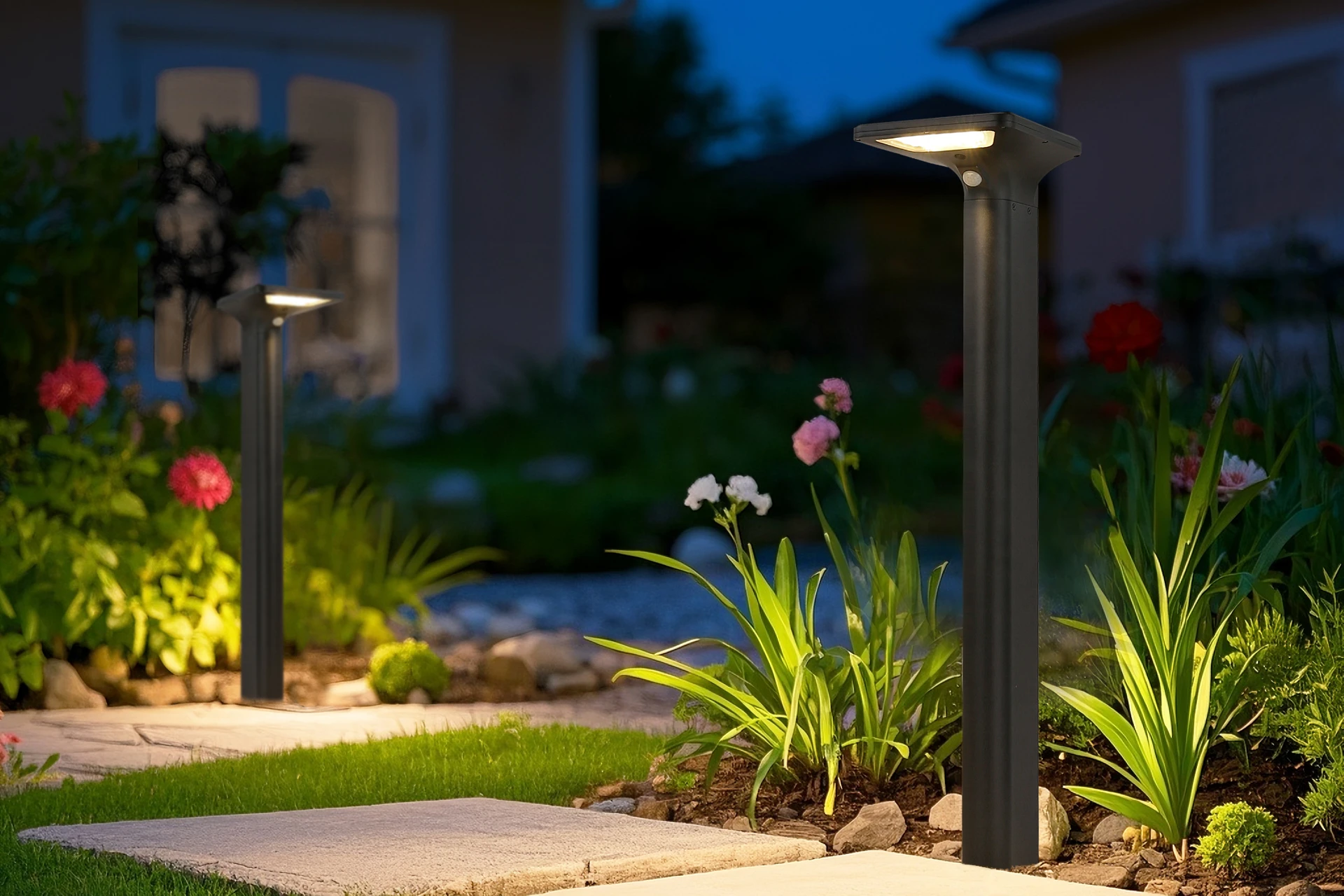

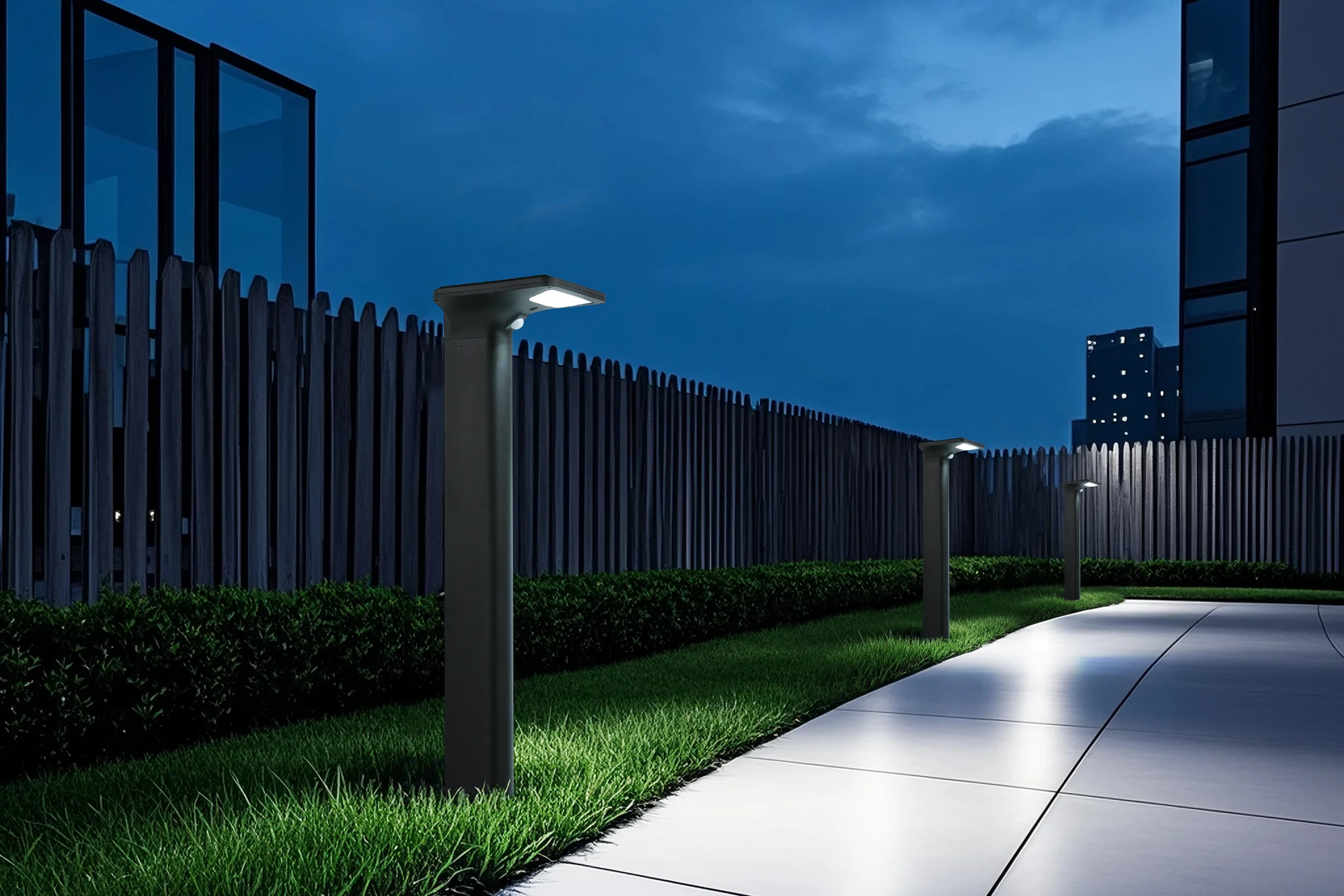

Private Villa Patios & Entrances
Enhancing outdoor dining verandas and private estate sanctuaries with warm, inviting architectural illumination.
Commercial Plaza & Terrace Patios
Defining outdoor dining terraces, rooftop gardens, and corporate campus borders with clean geometric architectural presence.
Reflecting Courtyards & Water Margins
Cast elegant circular ground reflections beside decorative water features and courtyard entry plazas with complete IP65 ingress sealing.
