Diamond Faceted Architectural Pathway Optics Diamond Series Commercial Solar Bollard Light Model: SLL-0804
SLL-0804 Diamond Commercial Solar Bollard Light
The SLL-0804 Diamond Series Commercial Solar Bollard Light pairs crystalline multifaceted optical aesthetics with rugged standalone solar pathway performance. Engineered with a top-mounted 5V 2W monocrystalline silicon panel, 3.2V 3Ah (9.6Wh) LiFePO4 battery, and an array of 20 high-output SMD 2835 LEDs delivering 110 lumens of glare-free 360-degree ground wash. Crafted from one-piece die-cast aluminum with anodic oxidation finishing, it withstands harsh exterior weather across 3+ continuous rainy nights of autonomous runtime. Complete self-contained bollard luminaire; external tall street lighting poles are excluded.
Color & Optic
Beam Options
Product Specifications
Model Lineup & Engineering Configurations
| Model Code | Solar PV | Battery Capacity | Luminous Output | CCT Options | Fixture Height & Head | Mounting & Packaging |
|---|---|---|---|---|---|---|
| SLL-0804-SPK | 5V 2W Mono | 3.2V 3Ah (9.6Wh) | 110 lm |
3000K
6500K
|

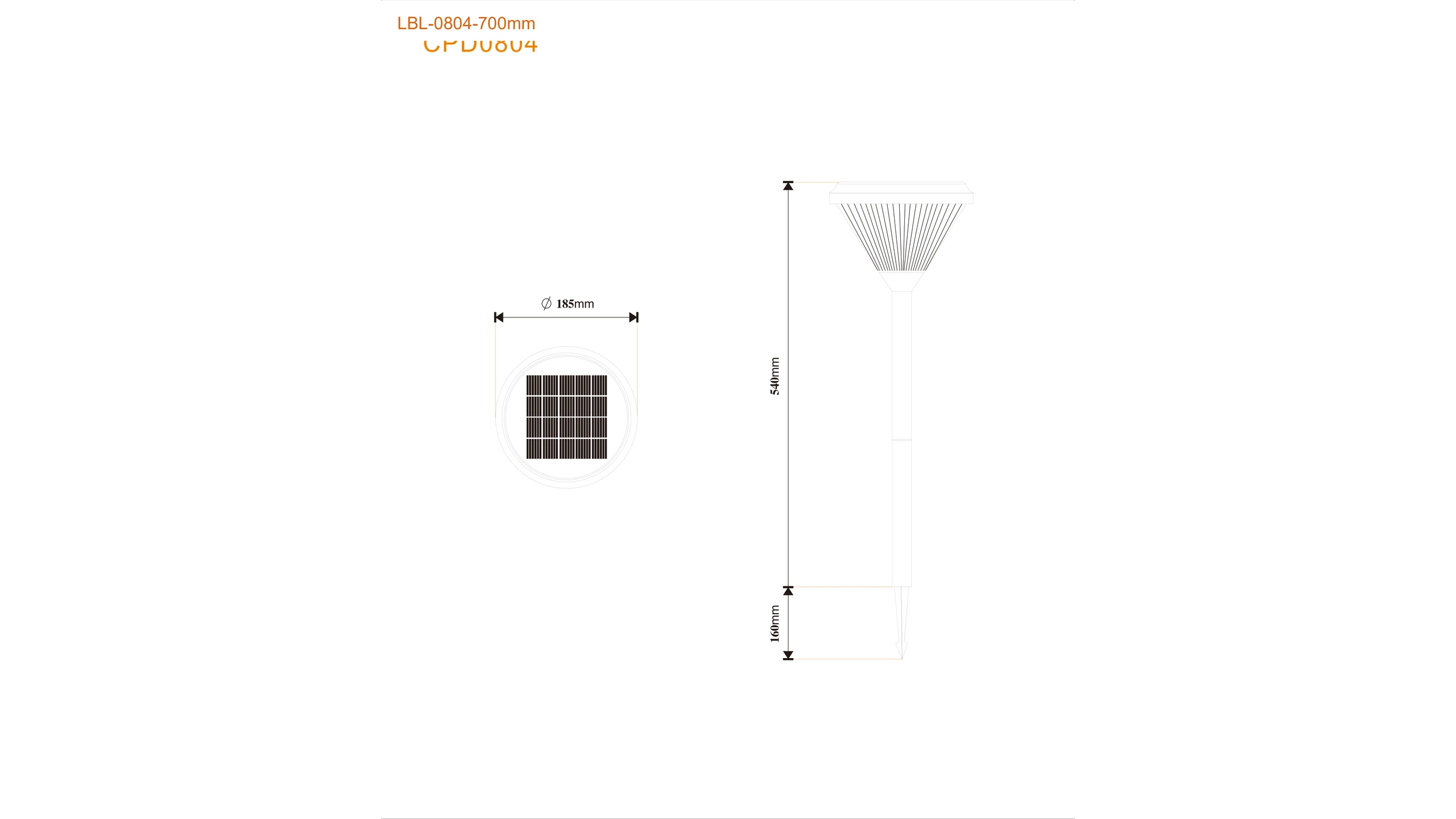

Ø185 × H700mm |
Ground Spike
Self-Contained · Pole Excluded
10 Sets/Ctn · 940×415×200mm · 10.8kg
|
| SLL-0804-FLG | 5V 2W Mono | 3.2V 3Ah (9.6Wh) | 110 lm |
3000K
6500K
|
Ø185 × H700mm |
Base Flange
Self-Contained · Pole Excluded
10 Sets/Ctn · 940×415×200mm · 10.8kg
|
Advantages

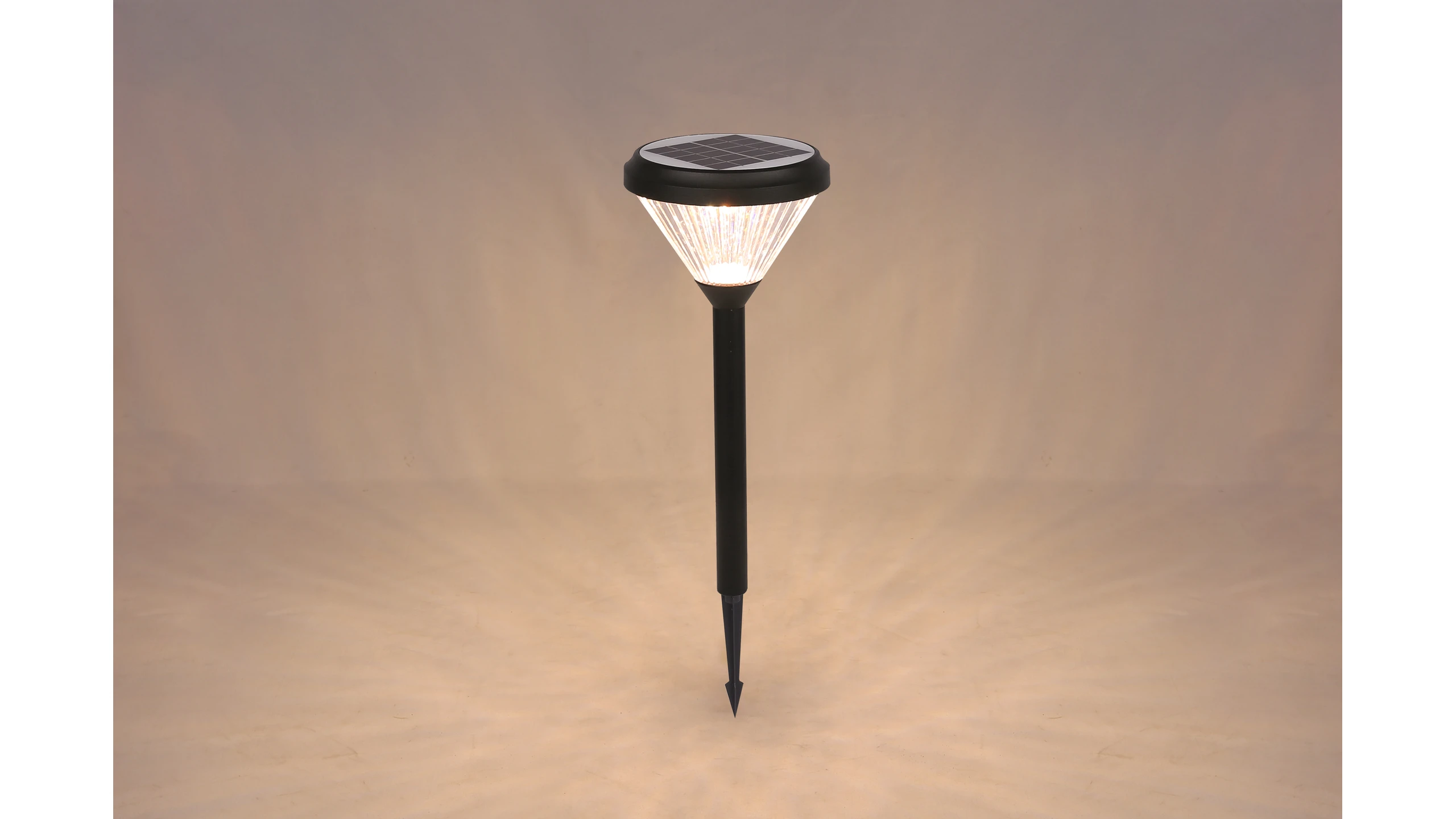

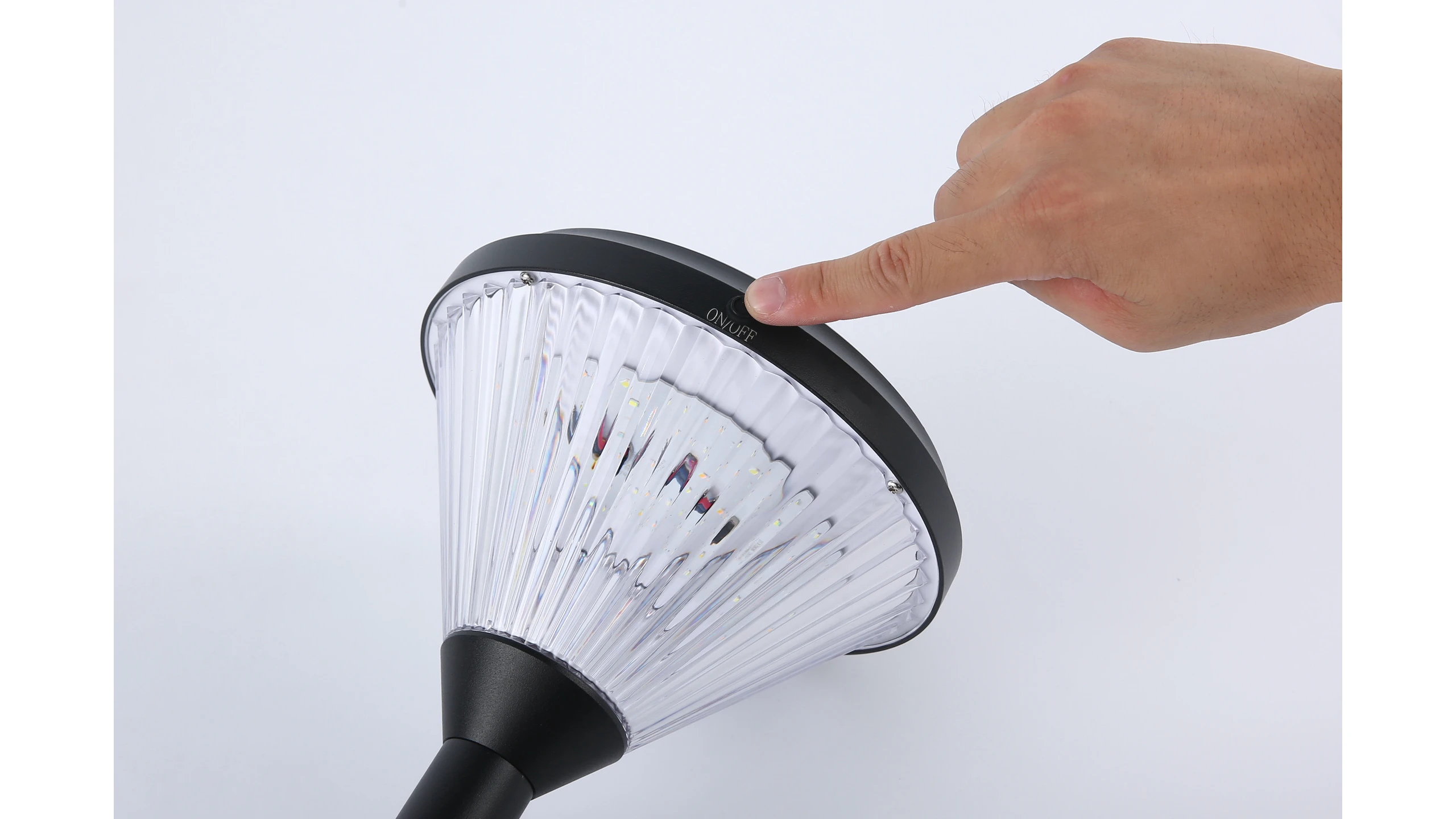

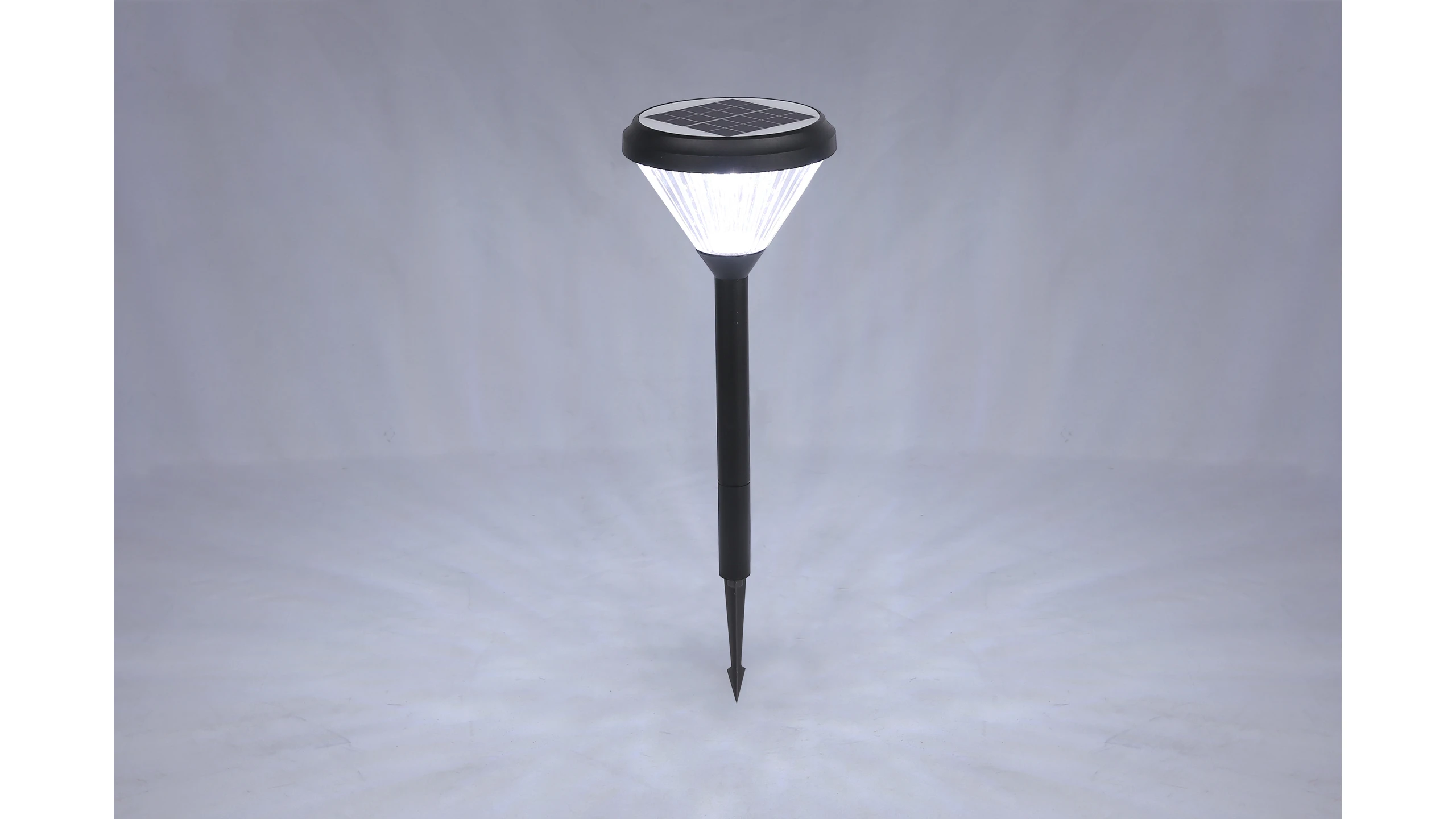

Faceted Diamond Optical Chamber
Multi-faceted geometric optic disperses 110 lumens in an evenly distributed 360-degree perimeter wash, creating glittering ground illumination.

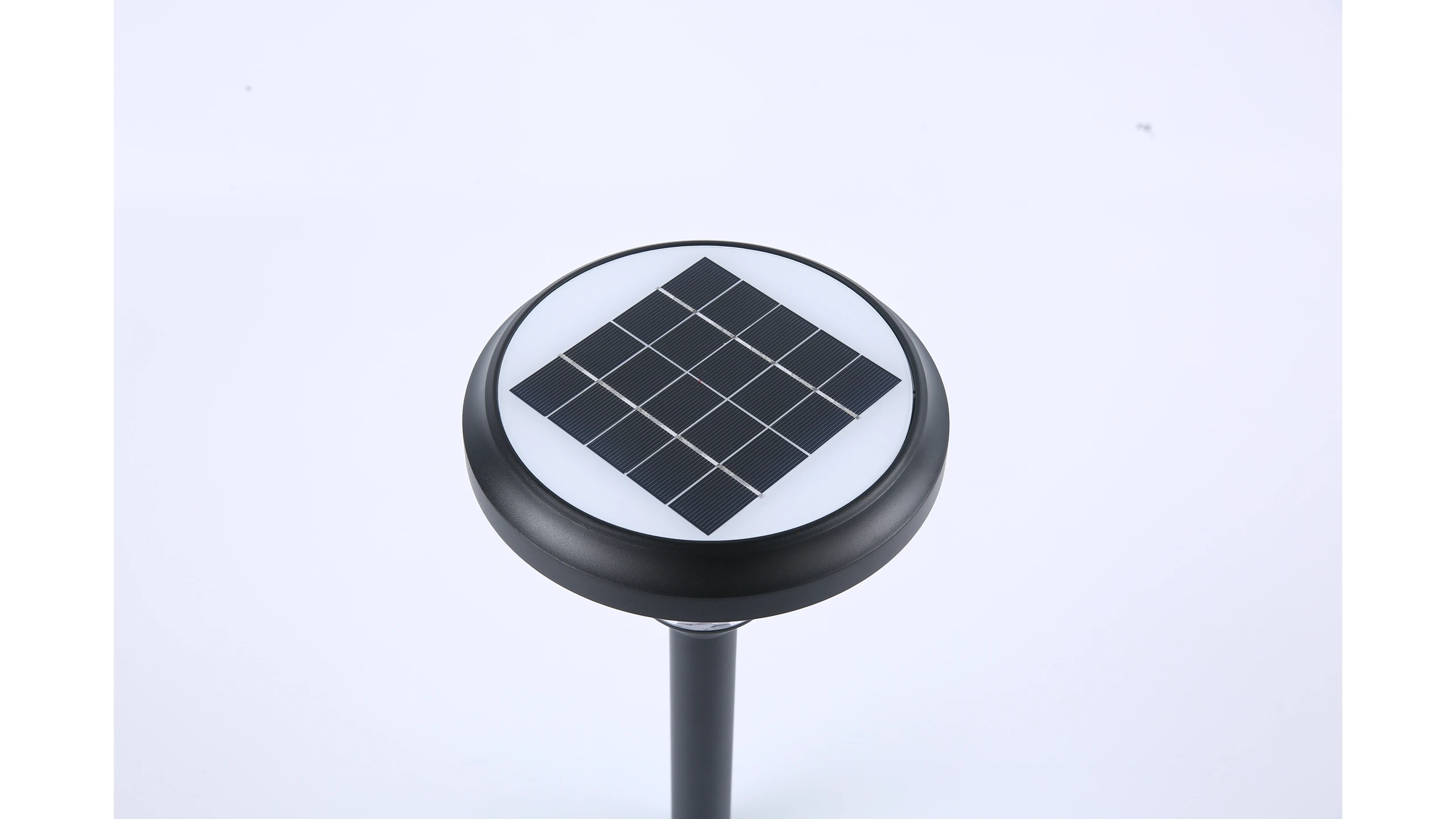

5V 2W High-Efficiency Monocrystalline Silicon
Integrated top-mounted solar disc captures solar irradiance efficiently, fully charging the internal battery in 4 to 6 hours of bright sunlight.
High-Reliability LiFePO4 Energy Reservoir
Equipped with a 3.2V 3Ah (9.6Wh) Grade-A Lithium Iron Phosphate battery pack delivering over 2,000 charge cycles and 3+ rainy nights autonomy.

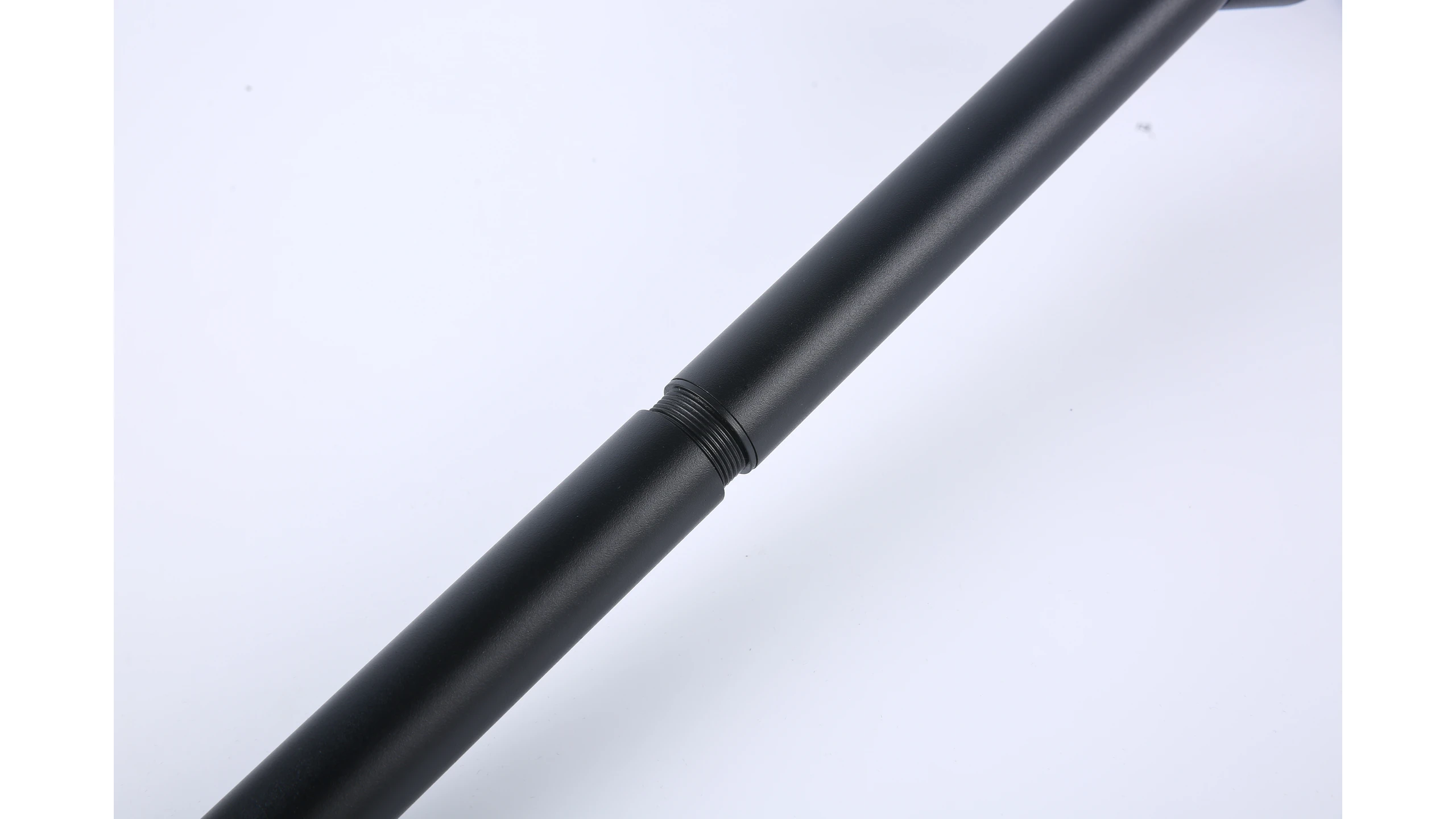

Die-Cast Aluminum with Anodic Finish
Marine-grade aluminum construction with precision anodic oxidation provides robust mechanical strength and corrosion resistance against outdoor exposure.

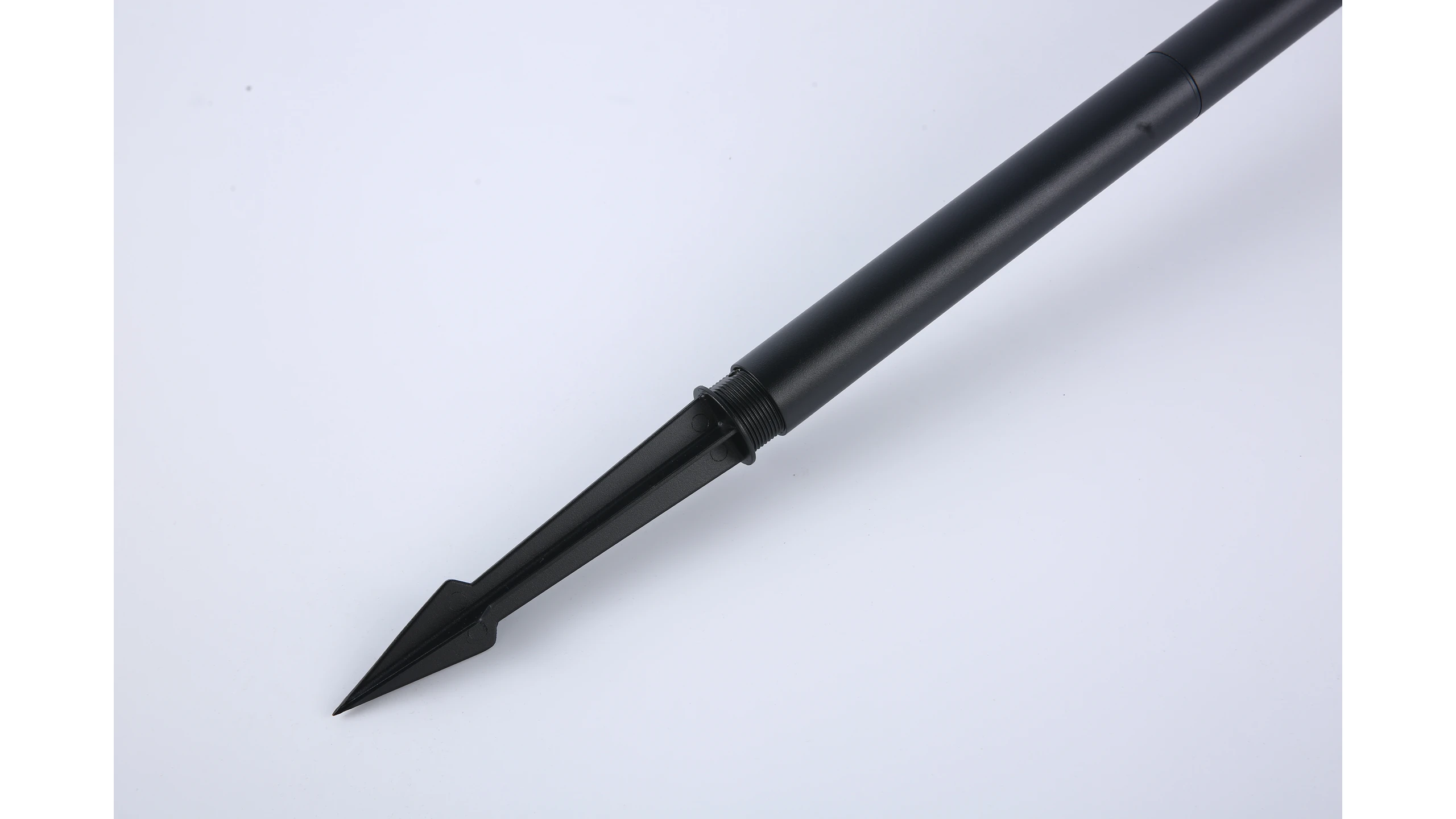

Versatile Spike & Surface Mounting
Supports both direct ground spike insertion for soft turf landscaping and anchor flange fixing for solid concrete and paver surfaces.
IP65 Ingress & Dustproof Sealing
Comprehensive silicone gasket sealing ensures uninterrupted operation in heavy rains, sprinkler sprays, and extreme temperatures from -25°C to +65°C.
Applications

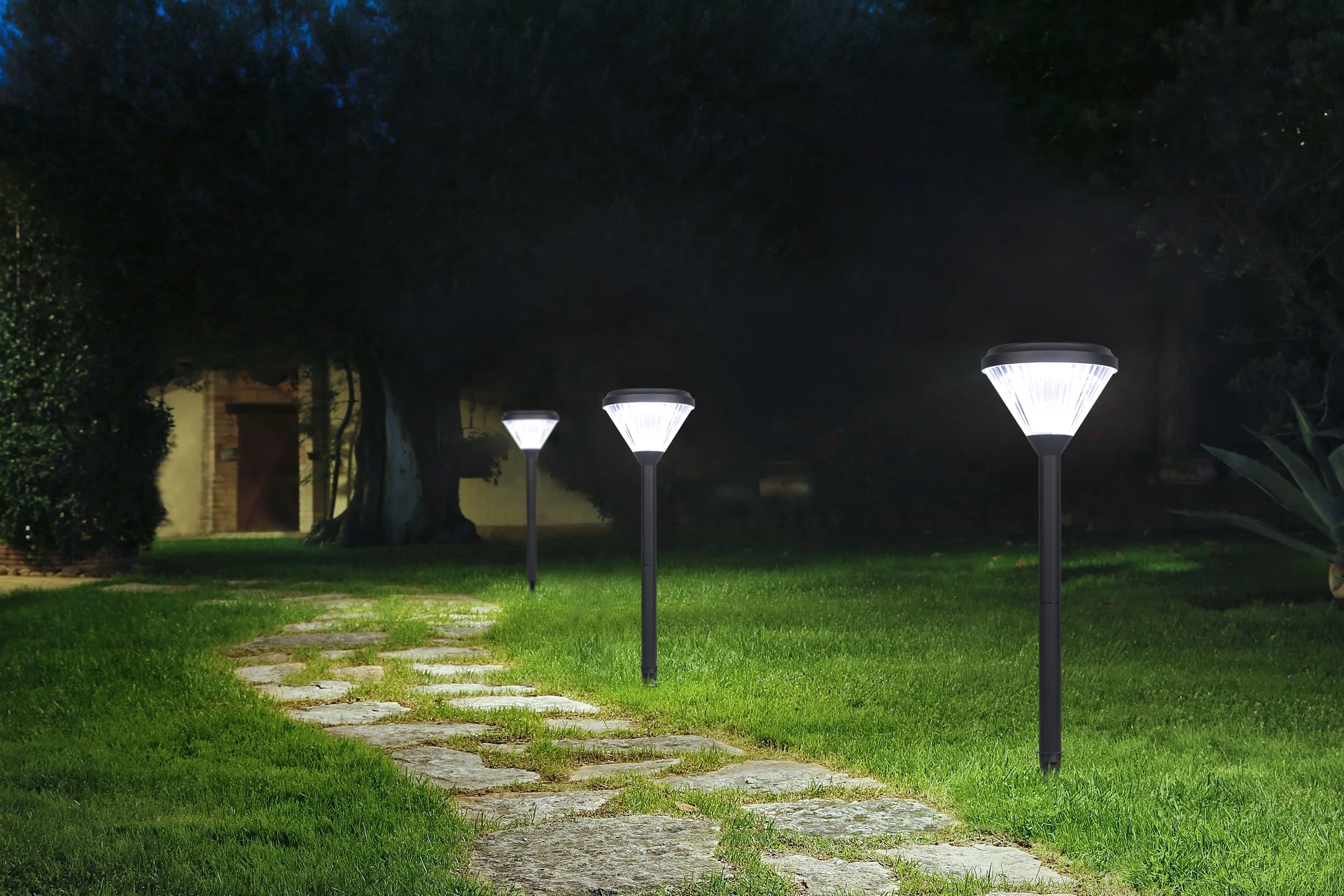

Garden Walkways & Terrace Steps
Guiding pedestrians along stone terraces, patio steps, and garden trails with diamond faceted downward pathway illumination.

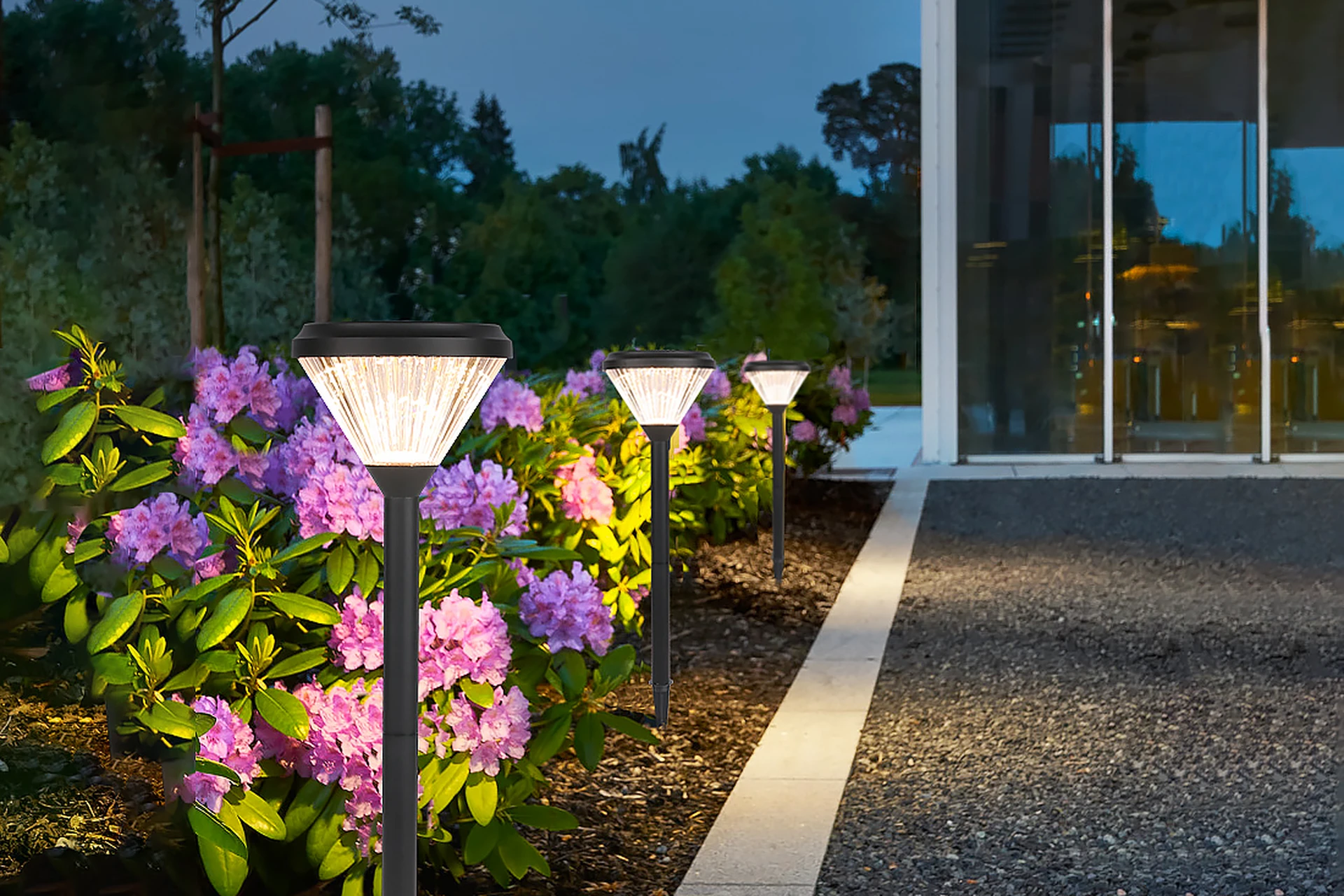

Lawn Borders & Shrubbery Edges
Highlighting manicured turf perimeters and flowerbed contours with elegant architectural vertical lines and zero cabling disruption.

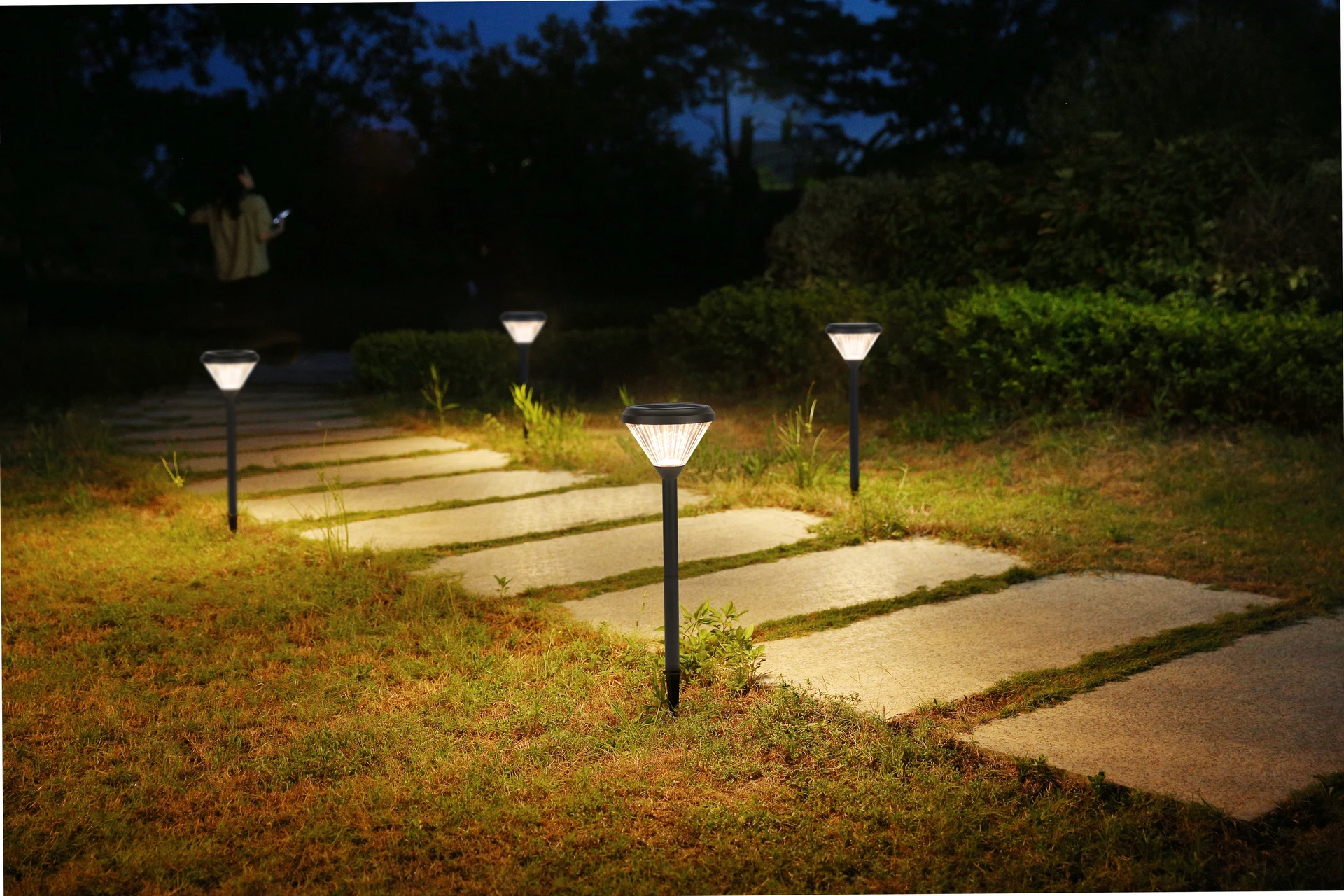

Boutique Resort Hotels & Spas
Elevating guest evening experiences across resort trails and open-air pavilion walkways with zero electricity operating costs.

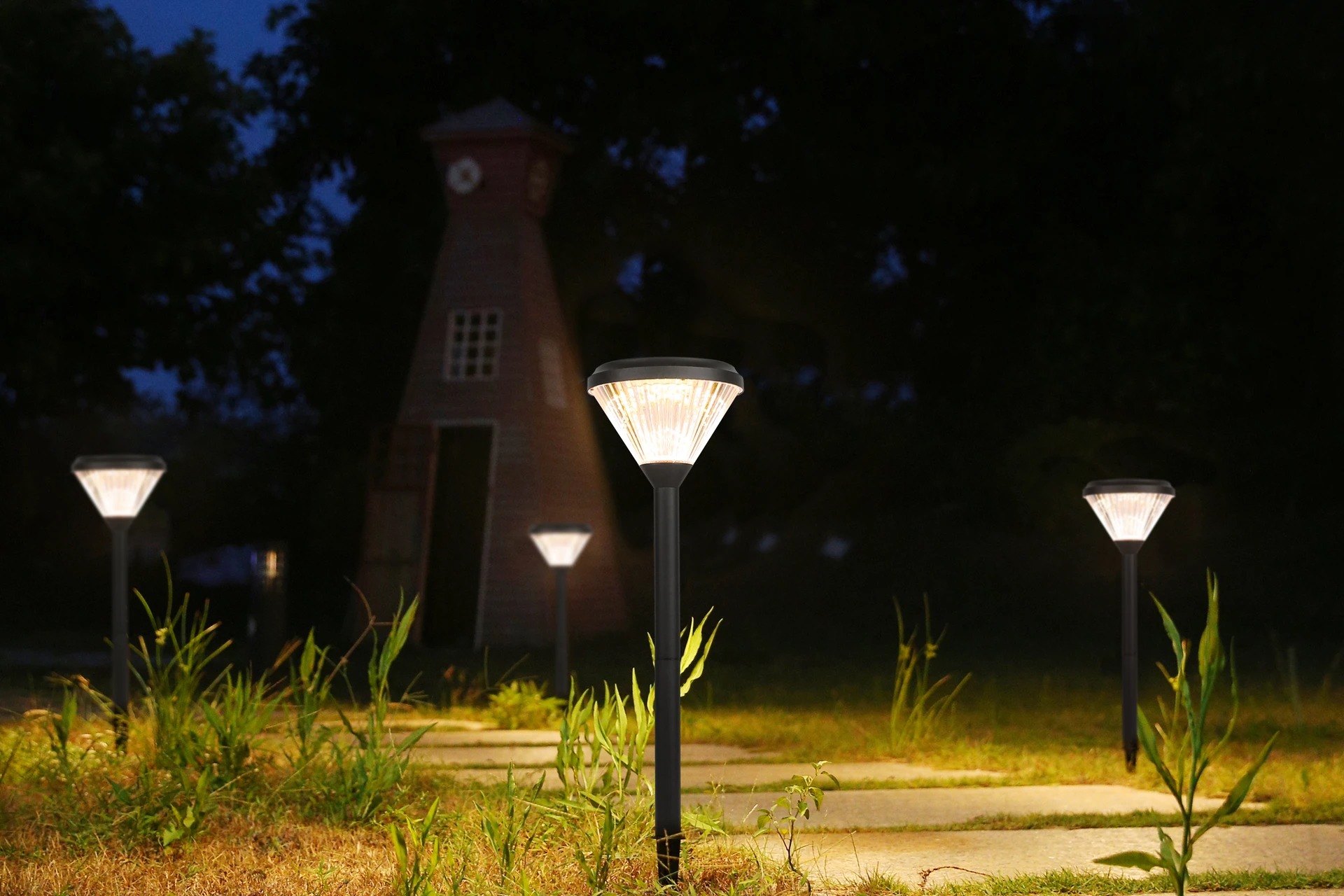

Private Villa Patios & Entrances
Enhancing outdoor dining verandas and private estate sanctuaries with warm, inviting architectural illumination.
Commercial Plaza & Terrace Patios
Defining outdoor dining terraces, rooftop gardens, and corporate campus borders with clean geometric architectural presence.
Reflecting Courtyards & Water Margins
Cast elegant circular ground reflections beside decorative water features and courtyard entry plazas with complete IP65 ingress sealing.
