LWW-PZT-W38A

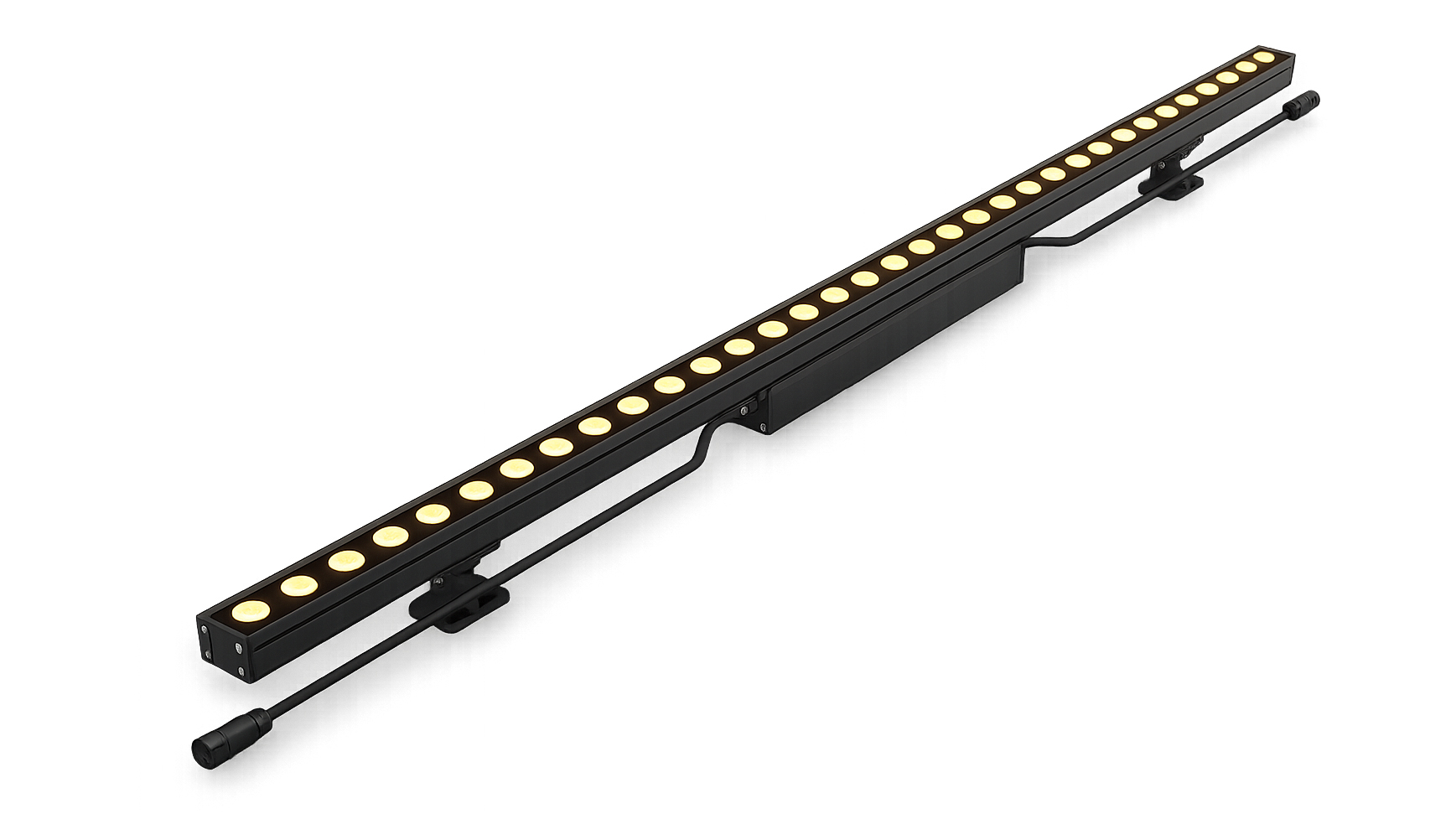

The LWW-PZT-W38A is an outdoor architectural LED wall washer for facade, bridge, hotel exterior and landscape wall-washing projects. Published configurations cover 314mm, 615mm and 1218mm lengths with 9W, 18W and 36W power options, plus 24V DC, 100–240V AC and 100–277V AC input versions. It supports White at 2700K, 3000K, 4000K and 6500K; RGB; and RGBW with 3000K, 4000K or 6000K white-channel options, and offers 10°, 20°, 40°, 60°, 10×20°, 15×40° and 15×55° optics for project-specific beam control. The IP66 / IK06 housing, adjustable bracket and quick-connector wiring are intended for permanent outdoor installation; underwater or long-term submersion applications should use IP68-rated products.
Color & Optic
Beam Options
Product Specifications
Model Configuration
| Model | Length | Power | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|
| LWW-PZT-W38A-L3 | 314mm | 9W | White RGBRGBW | 1,080 lm 315 lm 405 lm | 24V DC:0.7kg ±5%, 20 pcs/ctn, 71.5×38×25.5 cm100-277V AC:0.9kg ±5%, 16 pcs/ctn, 71.5×31×32.5 cm |
| LWW-PZT-W38A-L6 | 615mm | 18W | White RGBRGBW | 2,340 lm 630 lm 810 lm | 24V DC:1.0kg ±5%, 12 pcs/ctn, 67×48.5×25.5 cm100-277V AC:1.5kg ±5%, 12 pcs/ctn, 66.5×45.5×32.5 cm |
| LWW-PZT-W38A-L12 | 1218mm | 36W | White RGBRGBW | 4,680 lm 1,260 lm 1,620 lm | 24V DC:1.7kg ±5%, 8 pcs/ctn, 127×33×25.5 cm100-277V AC:2.6kg ±5%, 6 pcs/ctn, 127×23.5×32.5 cm |
Configuration summary: White at 2700K, 3000K, 4000K and 6500K; RGB; RGBW with 3000K, 4000K or 6000K white-channel options; power range 9W–36W; lumen output 315–4680 lm; three published lengths (314mm / 615mm / 1218mm); IP66, IK06, ETL listed and CE certified.
Advantages
Compact 38mm Fixture Body
The narrow 38mm profile helps the wall washer integrate into facade ledges, bridge edges, hotel podiums and linear architectural details without a bulky visual footprint.
Aluminum Alloy 6063 Housing with Tempered Glass Lens
The fixture body is built from aluminum alloy 6063 for outdoor corrosion resistance, with a tempered glass cover lens and multi-layer structural waterproofing for permanent facade and bridge installations across −20°C to +40°C operating temperatures.
DMX/RDM, 0–10V and DALI Control
Dynamic RGB and RGBW scenes can be configured through DMX/RDM systems, while 0–10V and DALI options support static white dimming and project control integration.
Adjustable Bracket with 7.5° Scale Rotation

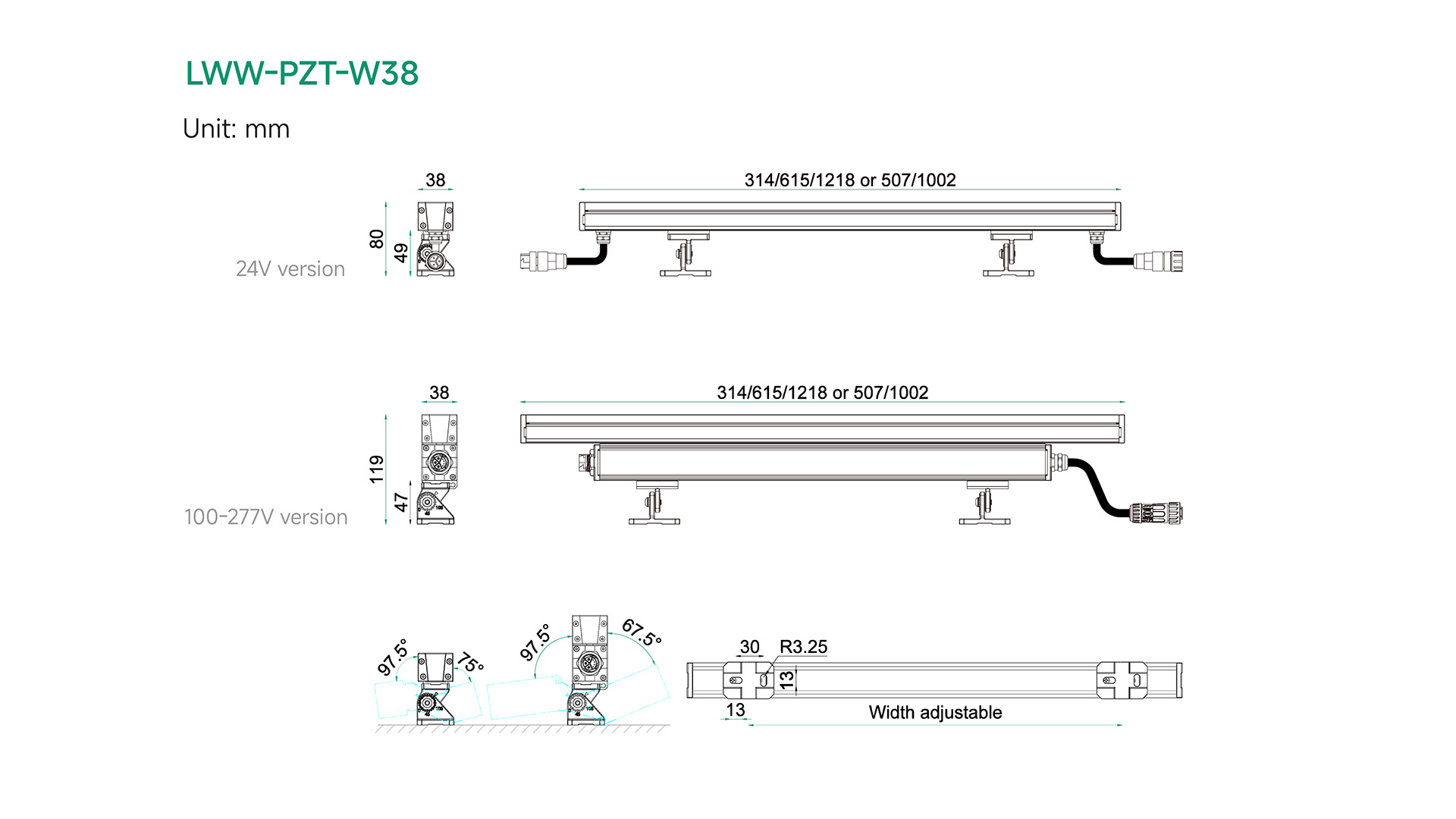

The bracket can be field-rotated in 7.5° increments per scale line, up to 172.5° total on 24V DC versions or 165° on AC versions, allowing installers to fine-tune horizontal aiming after the fixture is mounted on site.
ETL Listed, CE Certified, Multi-Voltage Input
ETL Listed for North American projects, CE certified for European projects, with 24V DC, 100–240V AC and 100–277V AC versions covering global voltage requirements without separate SKU sourcing.
Quick-Connector Wiring for Linear Runs
Quick connector links between fixtures simplify on-site wiring across long linear runs — signal chain capacity varies by length: 32, 64 or 128 fixtures per DMX segment for L12, L6 or L3 respectively — reducing installation labor and making future maintenance accessible without unsealing the fixture housing.
Application Scenarios

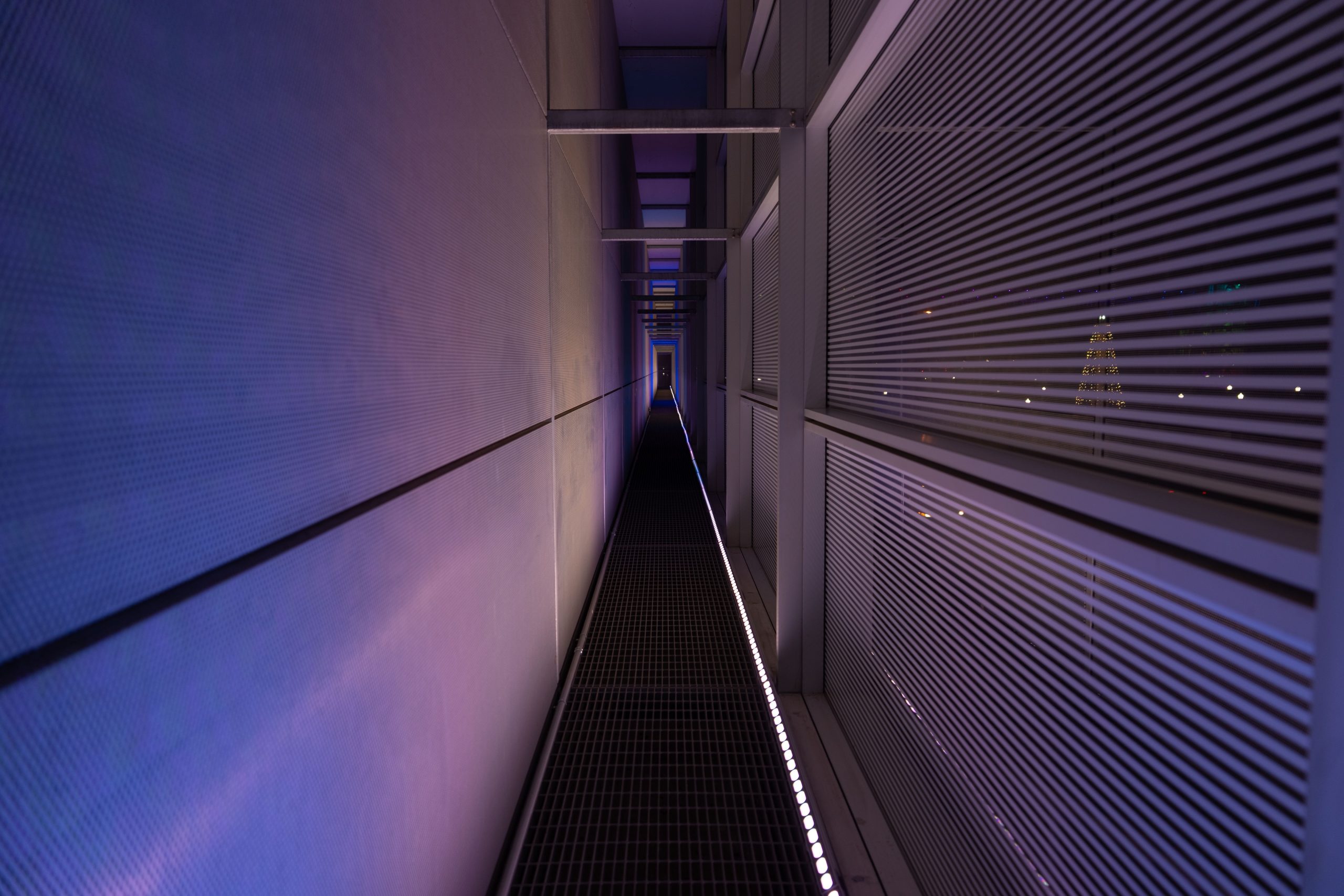

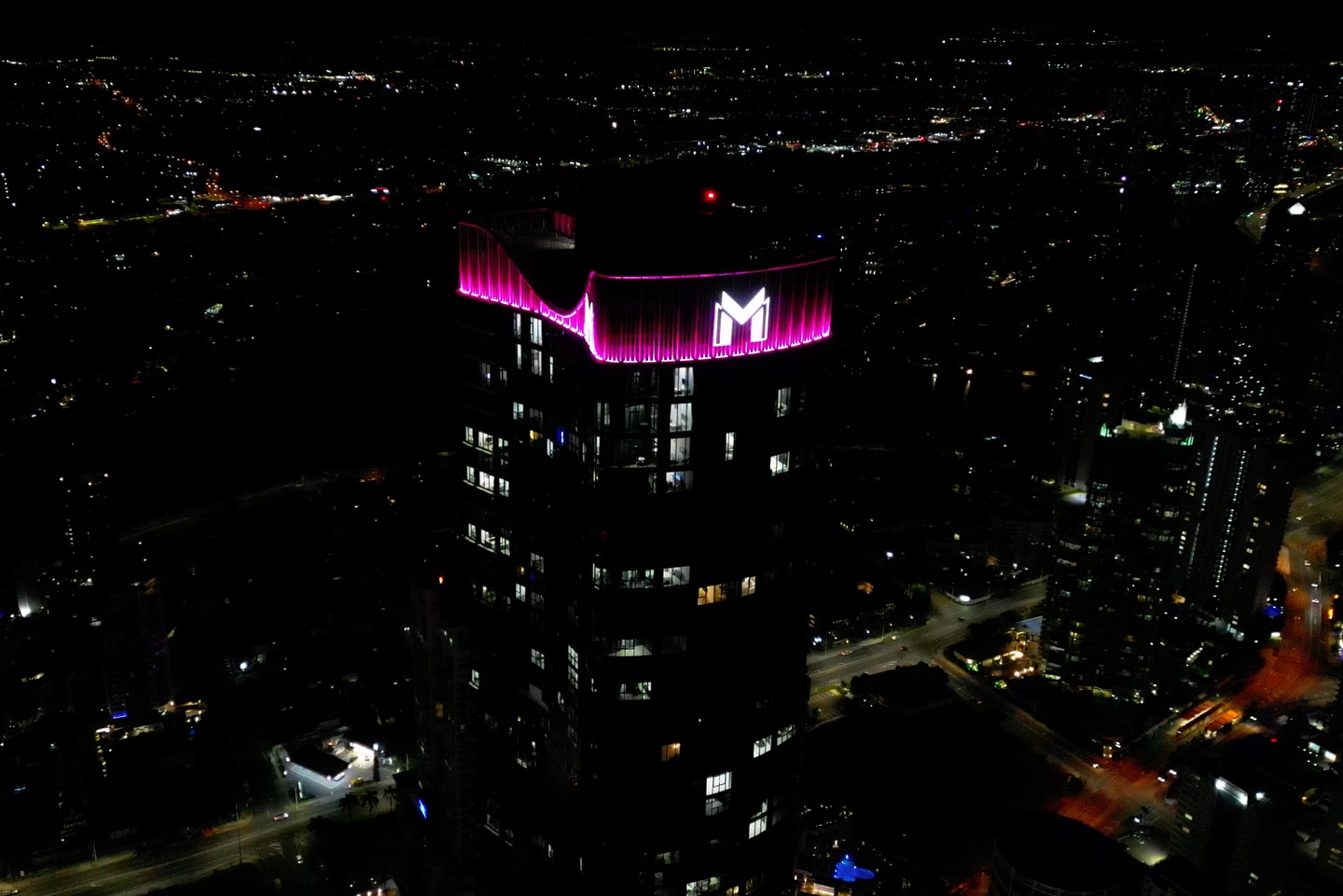

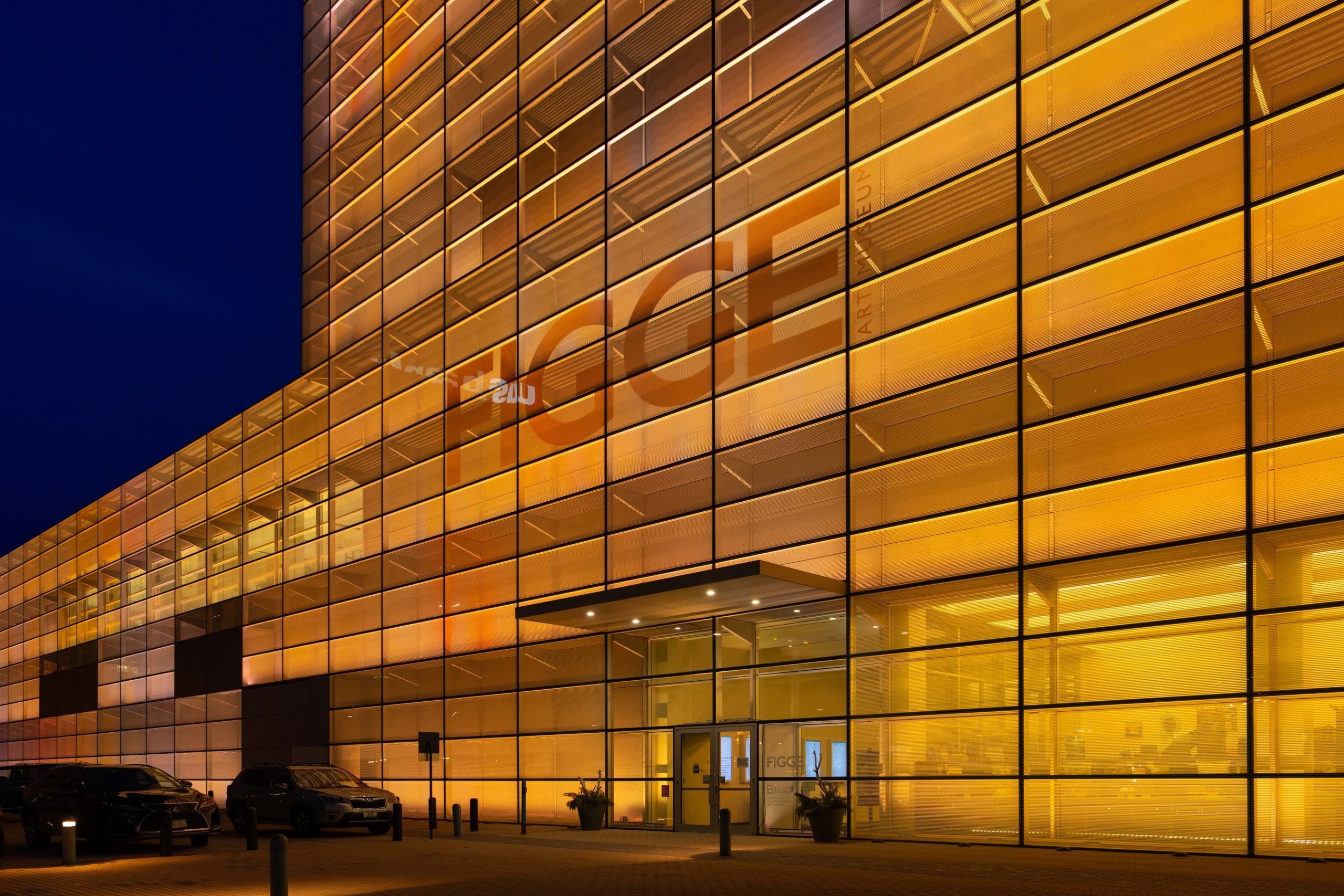

Building Facade Vertical Washing
Installed along ground channels, setback ledges or facade bases to wash upward across curtain walls, stone facades and commercial building envelopes.
Bridge Structure Lighting
Used on bridge side rails, maintenance walkways and structural edges where long linear runs and synchronized DMX/RDM color scenes are required.
Hotel and Retail Exterior Facades
White 2700K–4000K supports warm commercial entrances and podium facades, while RGBW options can create festival, brand and event lighting scenes.
Landscape Walls and Public Spaces
Suitable for retaining walls, landscape corridors, public plazas and urban nightscape projects that need IP66 outdoor protection and adjustable beam aiming.
Select beam angle, voltage and control method according to mounting distance, facade height, wiring topology and required lighting scene.
Impressions
